SOLD J60 Diesel Parts - Gas Pedal and Battery Holder Bits (1 Viewer)

[lelandEOD]

Vehicle Model

1. 60 Series

Location

Reno, Nevada United States

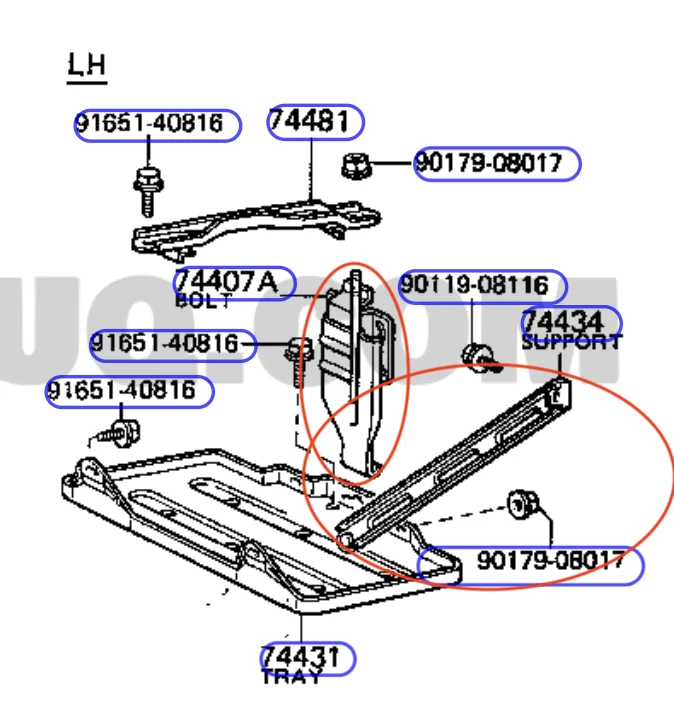

I need a couple parts from a Diesel J60. Looking for a good gas pedal assembly and the circled bits for a LH side battery. Please let me know if you can help.



[bcsteel]

I may be able to help, I’m not home for a couple days but can confirm at that time. Also am in Northern BC, Canada so shipping will sting a bit. If you’re interested PM me and I’ll send you my cell number.



[lelandEOD]

I may be able to help, I’m not home for a couple days but can confirm at that time. Also am in Northern BC, Canada so shipping will sting a bit. If you’re interested PM me and I’ll send you my cell number.

Sounds like a plan!



[mongoose2231]

I may have said parts as well. I'll be looking in my stash.,



[lelandEOD]

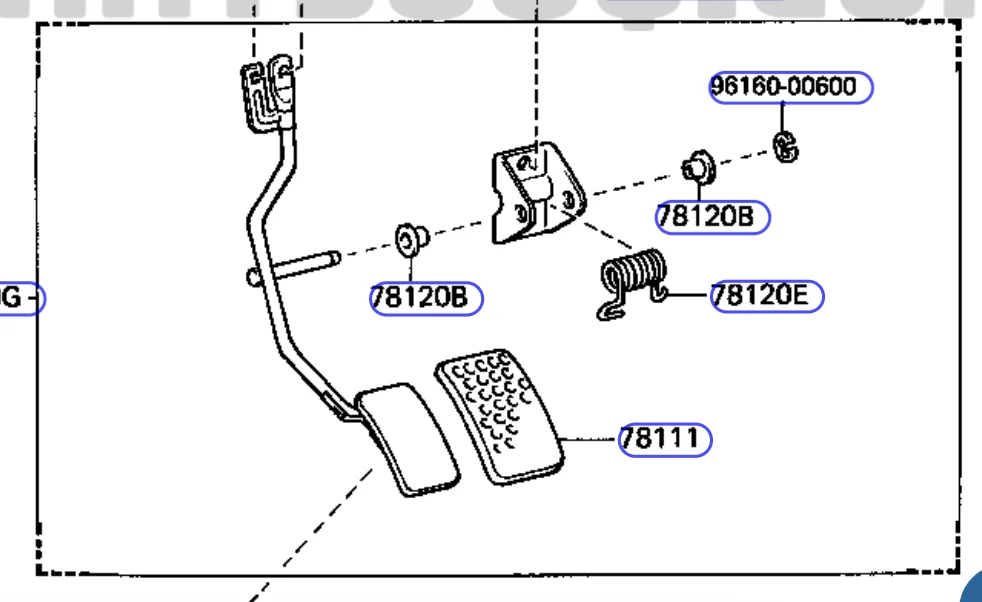

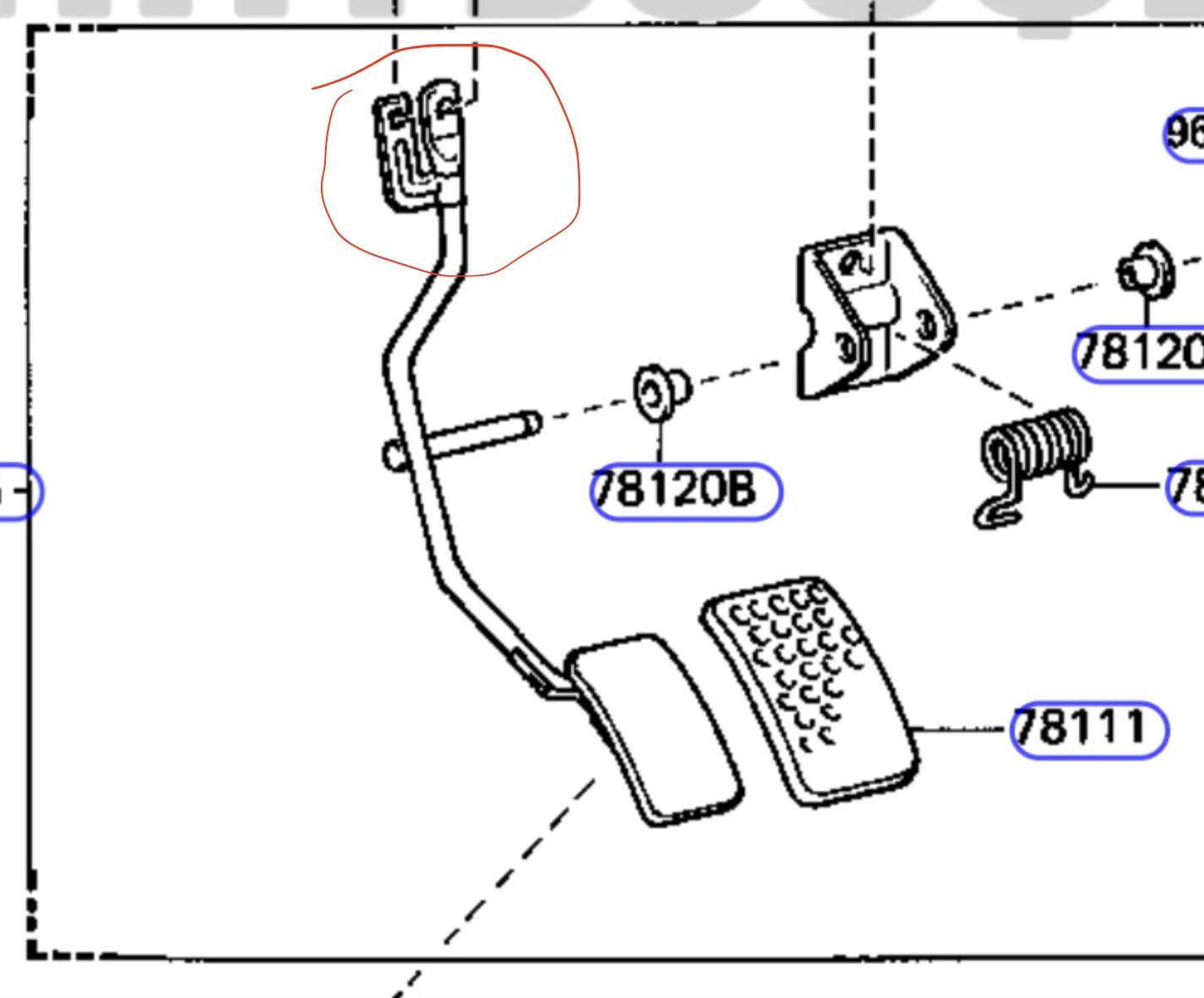

The pedal I'm looking for is specifically the type that uses the throttle cable rather than the linkage. I wish I knew which years/models had that over the more common type.



[67azcruizr]

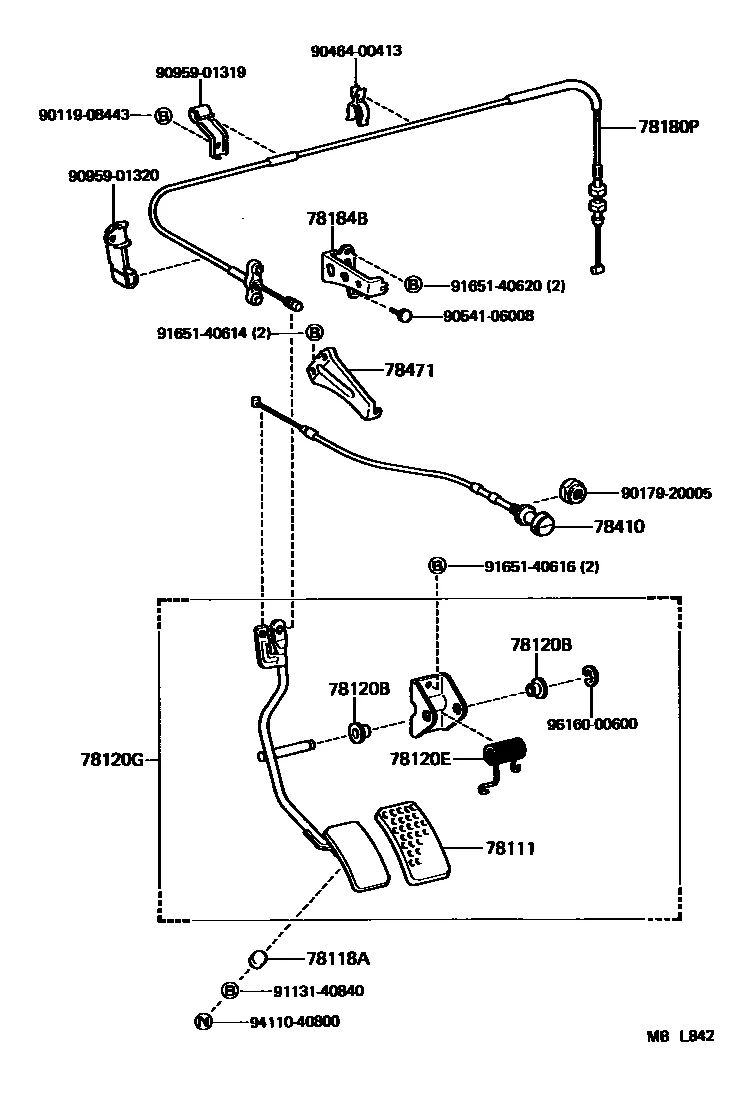

maybe 78120-90A08 search included "euro LHD model" circa '88

OEM	Name / Details	Period	Req.	Price from, USD
78180P - CABLE ASSY, ACCELERATOR CONTROL 78180-90A24 FJ62 08.1987 - 01.1990 01 Discontinued
78184B - BRACKET, ACCELERATOR CONTROL CABLE 78184-90A01 FJ62 08.1987 - 01.1988 01 19.19 78184-90A03 FJ62 01.1988 - 01.1990 01 19.45
78471 - BRACKET, THROTTLE CONTROL CABLE 78471-90A00 FJ62 08.1987 - 08.1988 01 Discontinued
78410 - CABLE ASSY, THROTTLE CONTROL 78410-90A03 FJ62 08.1987 - 01.1988 01 Discontinued 78410-90A10 (SUBS) FJ62 08.1987 - 01.1988 01 Discontinued 78410-90A08 FJ62 01.1988 - 01.1990 01 23.43
78120B - BUSH (FOR ACCELERATOR LINK ROD) 90386-08155 FJ62 08.1987 - 01.1990 02 1.15
78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) 90508-29017 FJ62 08.1987 - 01.1990 01 1.86
78120G - ROD ASSY, ACCELERATOR PEDAL 78120-90A08 FJ62 08.1987 - 01.1988 01 76.93 78120-90A09 FJ62 01.1988 - 01.1990 01 34.49
78111 - PEDAL, ACCELERATOR 78111-95110 FJ62 08.1987 - 01.1990 01 4.16
78118A - STOPPER, ACCELERATOR PEDAL 78118-90K00 FJ62 08.1987 - 01.1990 01 3.45 45619-14010 (SUBS) FJ62 08.1987 - 01.1990 01 4.78
Common parts
90464-00413	Bracket plastic			1.33
90959-01319				Discontinued
9011908443				Not available
90959-01320				Discontinued
91651-40620	Bolt			1.00
90541-06008	Cushion			1.13
91651-40614	Bolt			1.00
90179-20005				Discontinued
91651-40616	Bolt			1.00
96160-00600	Ring			1.00
91131-40840	Bolt, accelerator pedal stopper			1.06
94110-40800	Nut			1.00



[lelandEOD]

Looks like @bottombracket was able to hook it up with a NOS pedal assembly from a 79-Series so I'm good to go on the gas pedal front. I am still looking for someone to find the battery support and hold-down/washer bottle bracket.


Thanks!



[lelandEOD]

Battery tray support bar has been procured. Still looking for the coolant overflow bottle/battery holder. Please let me know if you have one!



[67azcruizr]

$100+ new, dang

85330-90A06

these little guys were a bane in my side with the 80 series this # is for your 60 85310-22080 (pump motor)



[lelandEOD]

$100+ new, dang

85330-90A06

these little guys were a bane in my side with the 80 series this # is for your 60 85310-22080 (pump motor)

Sorry, I meant coolant overflow bottle, not washer bottle.



[67azcruizr]

Sorry, I meant coolant overflow bottle, not washer bottle.

16480-90A00 in the event you like them "see through"



[70sguy]

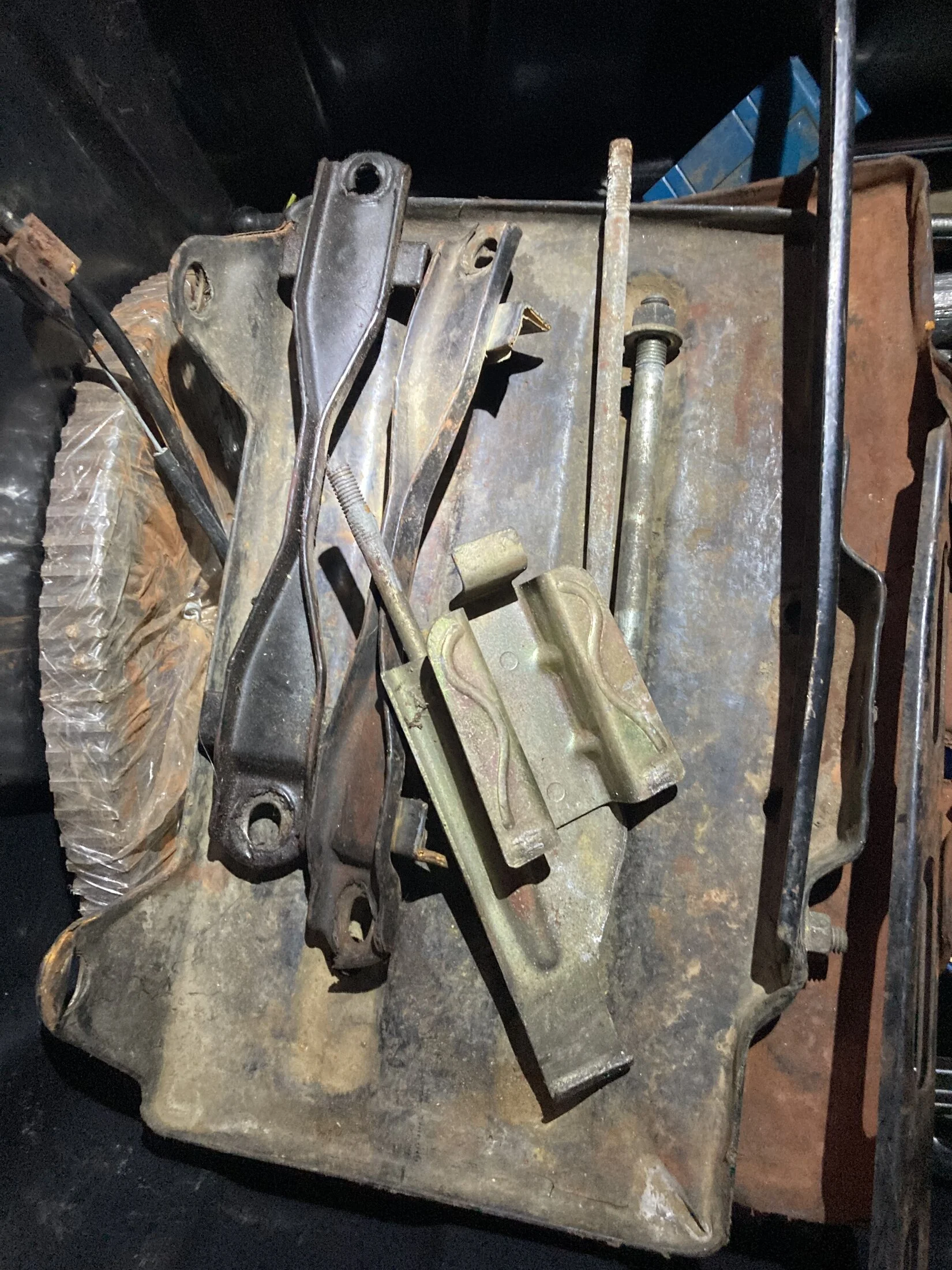

The Battery clamp bolt is 74407-90A00 if you want to check with a dealer. Failing that I have a complete tray set that has one in my bin of HJ61 misc.
