FJ142 in the making

gonzopancho · Nov 29, 2018

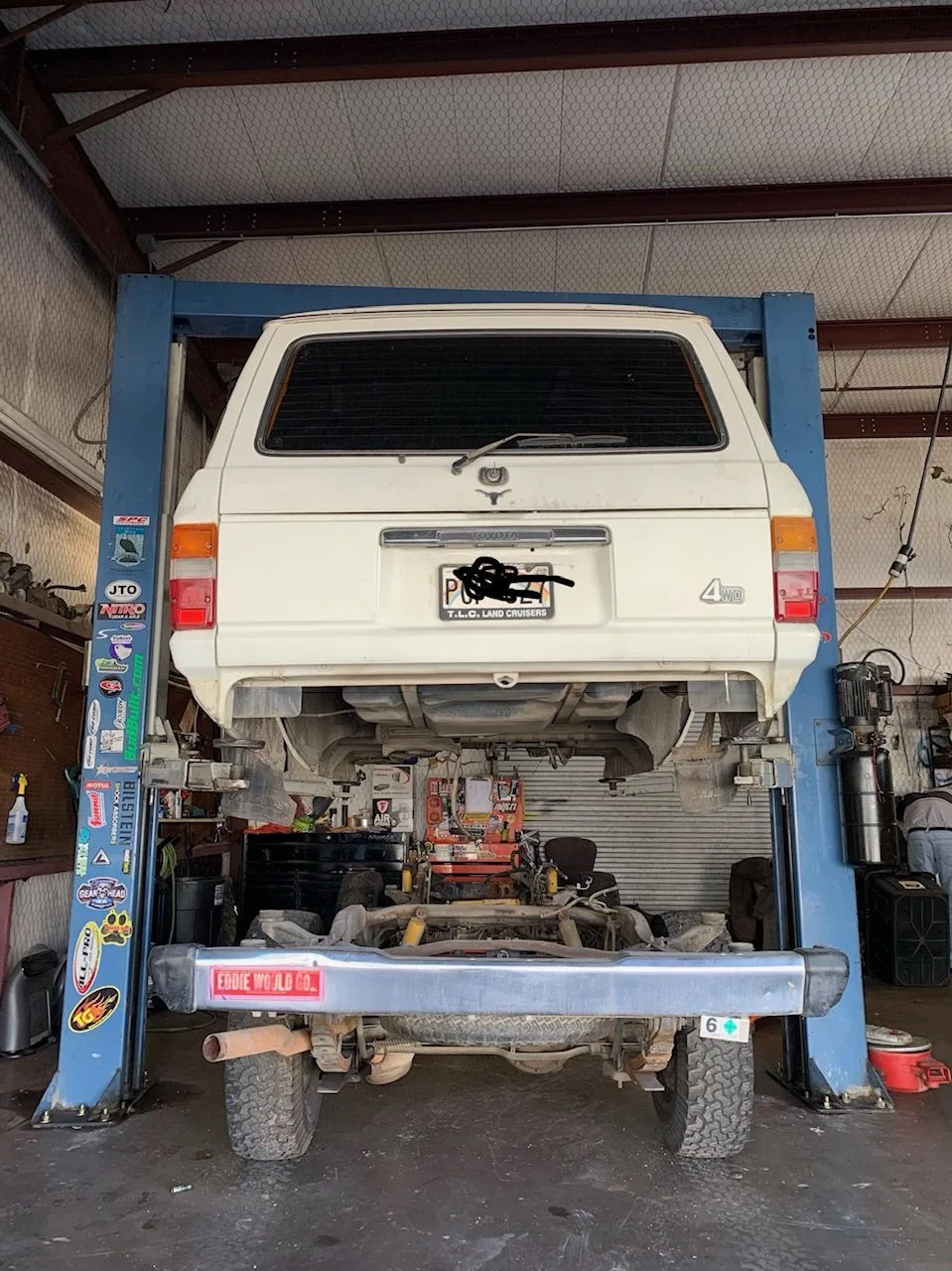

The work is being done at @green grass hopper's shop. Early stages.

The FJ62 has been my wife's since 2005. Plan is a 1FZ-FE + A442F.

gonzopancho · Dec 5, 2018

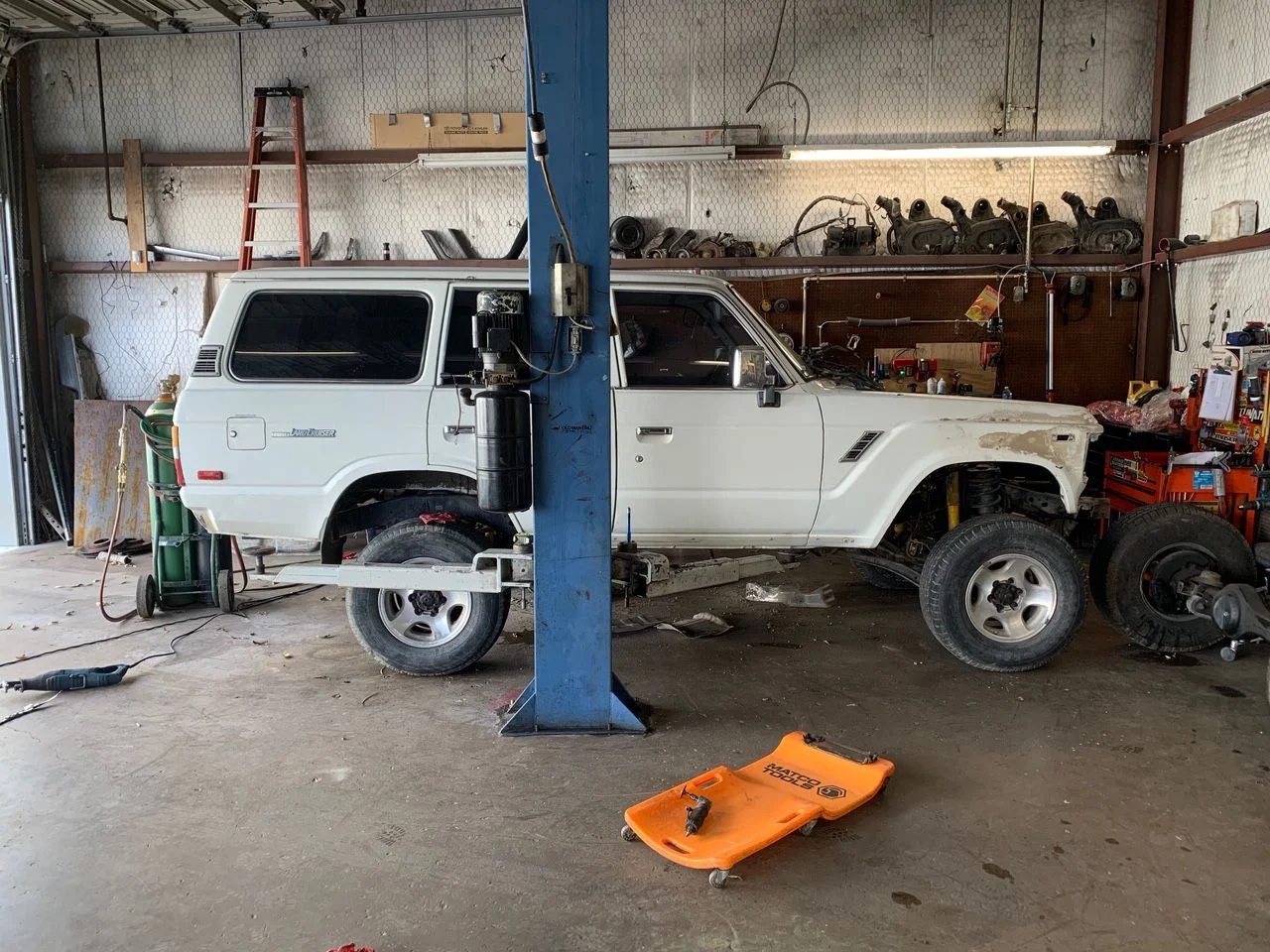

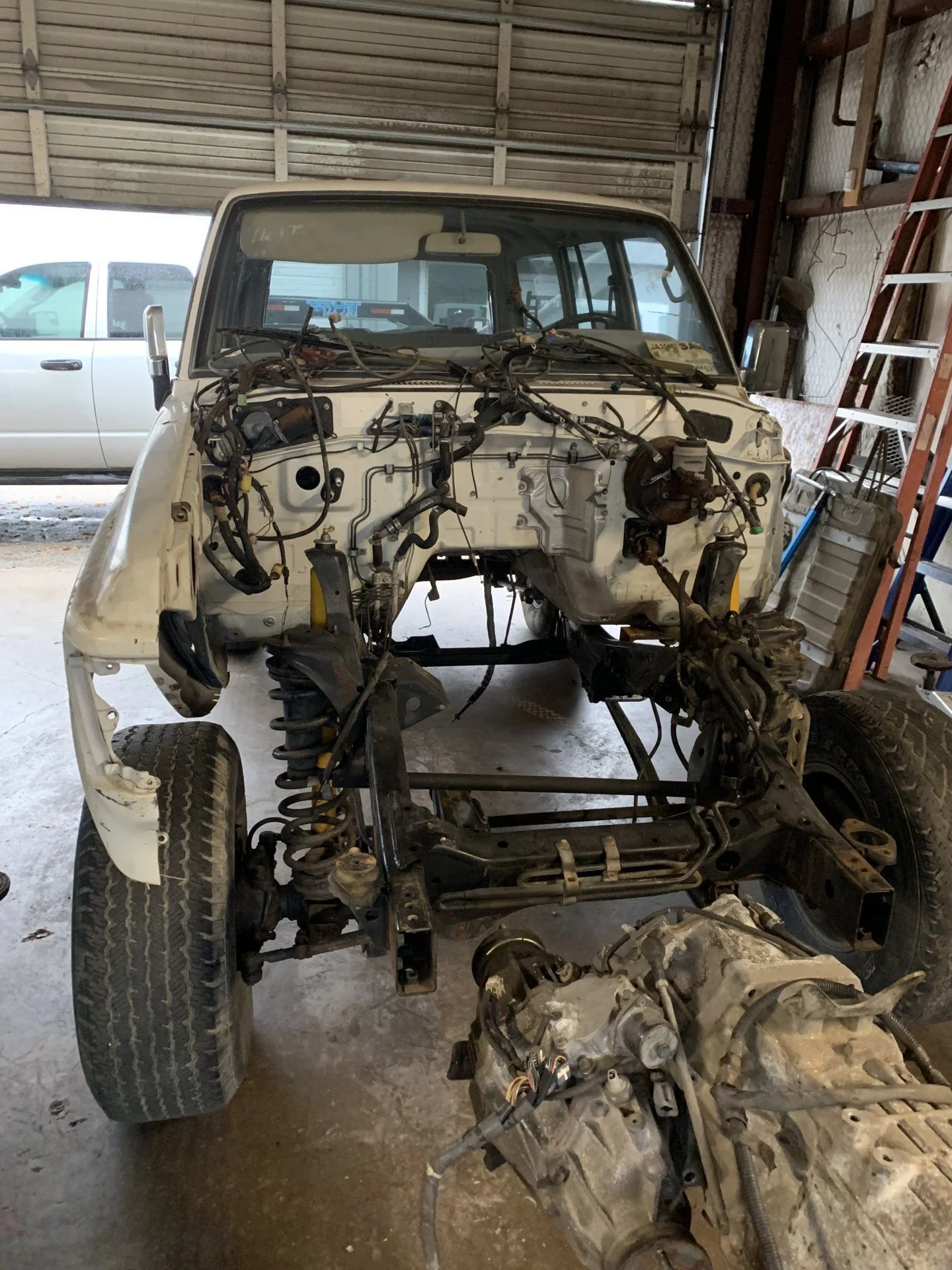

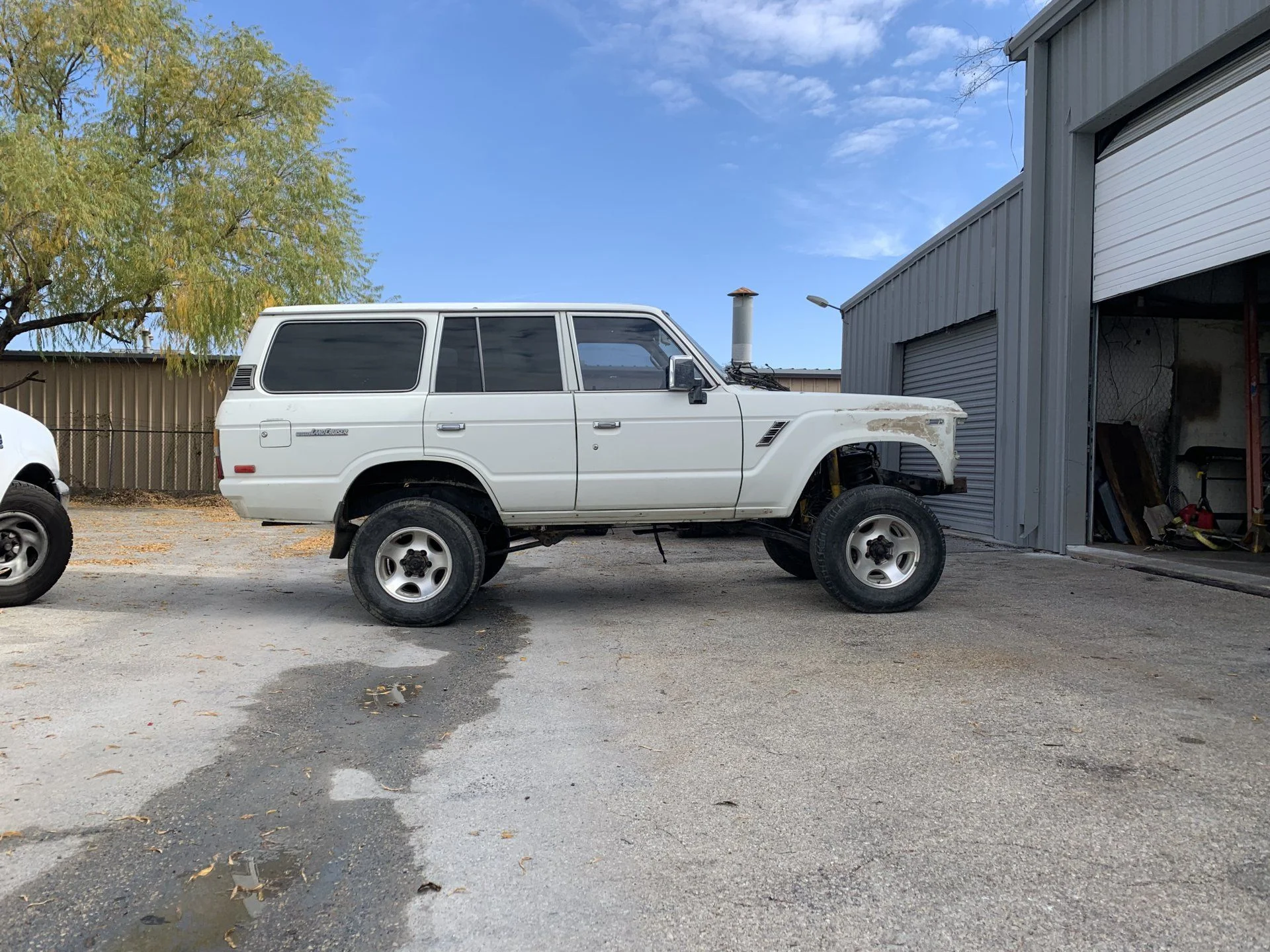

Standing on its own again

warpdriv · Dec 5, 2018

What are you doing with the 2F that came out of it? I may be interested in buying it.

green grass hopper · Dec 5, 2018

warpdriv said:
What are you doing with the 2F that came out of it? I may be interested in buying it.

It was a 3f.

gonzopancho · Dec 6, 2018

I have the 3F and A440. PM if you’re interested.

gonzopancho · Dec 6, 2018

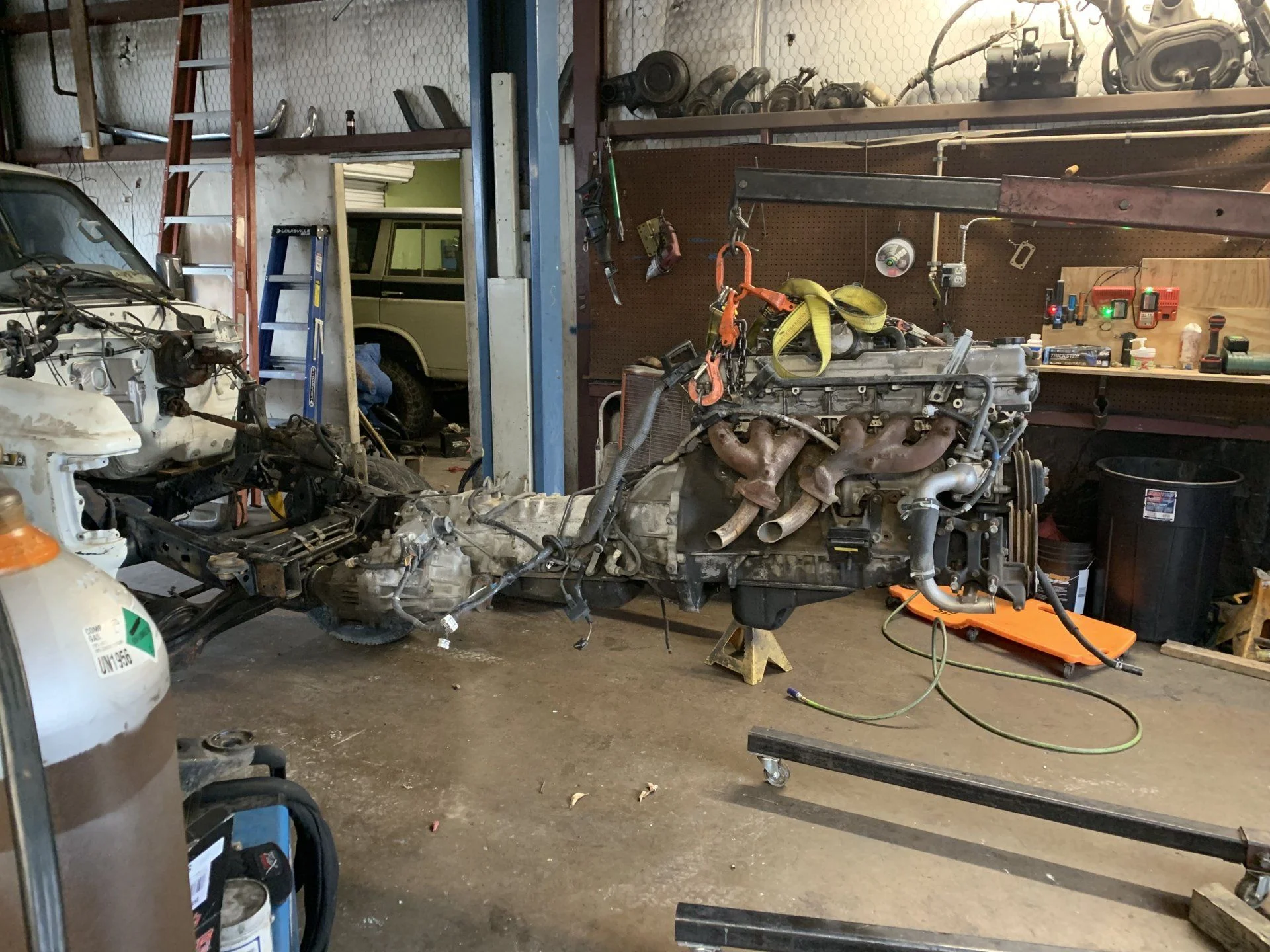

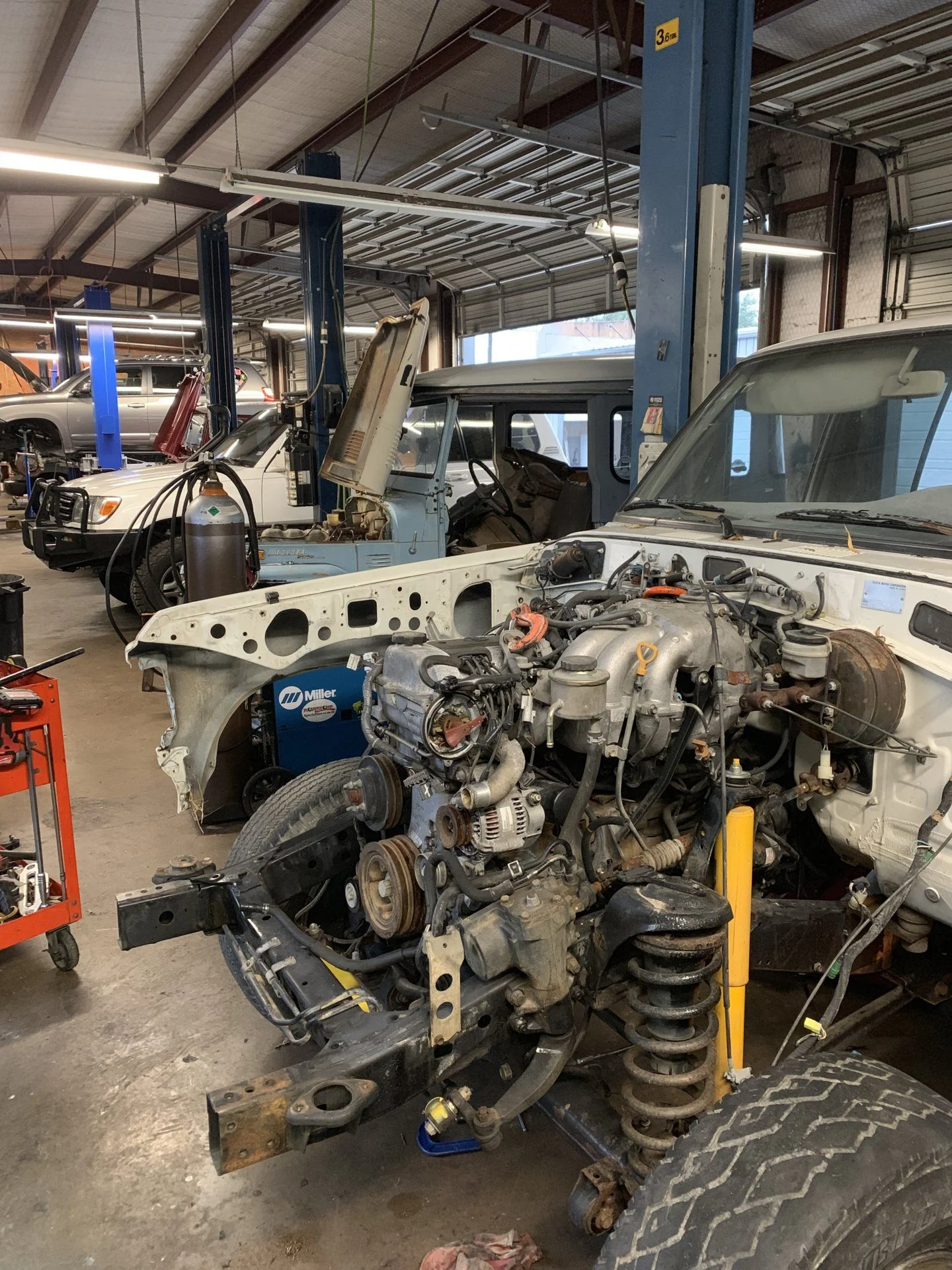

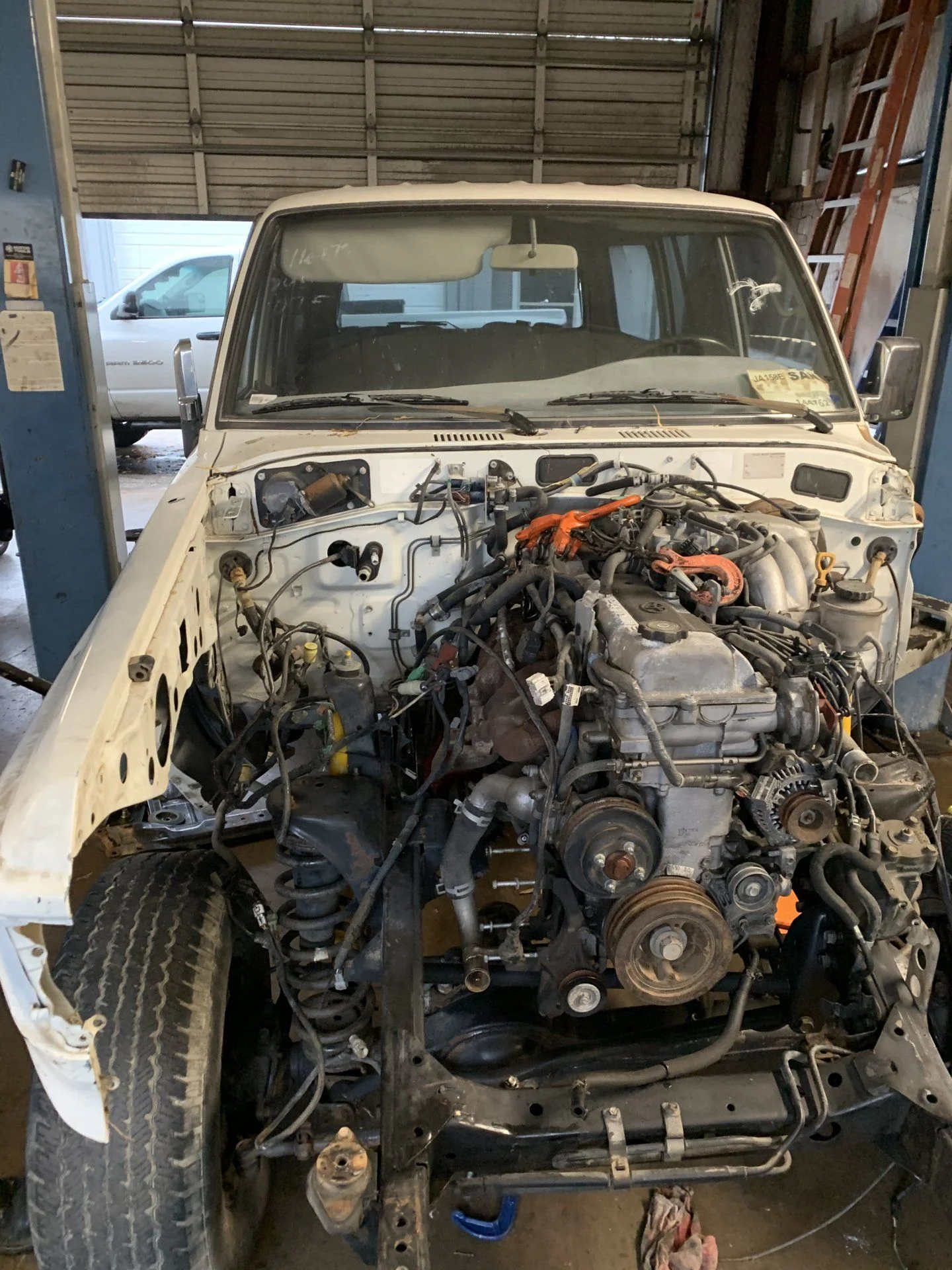

Test fit of the 1FZ.

davegonz · Dec 6, 2018

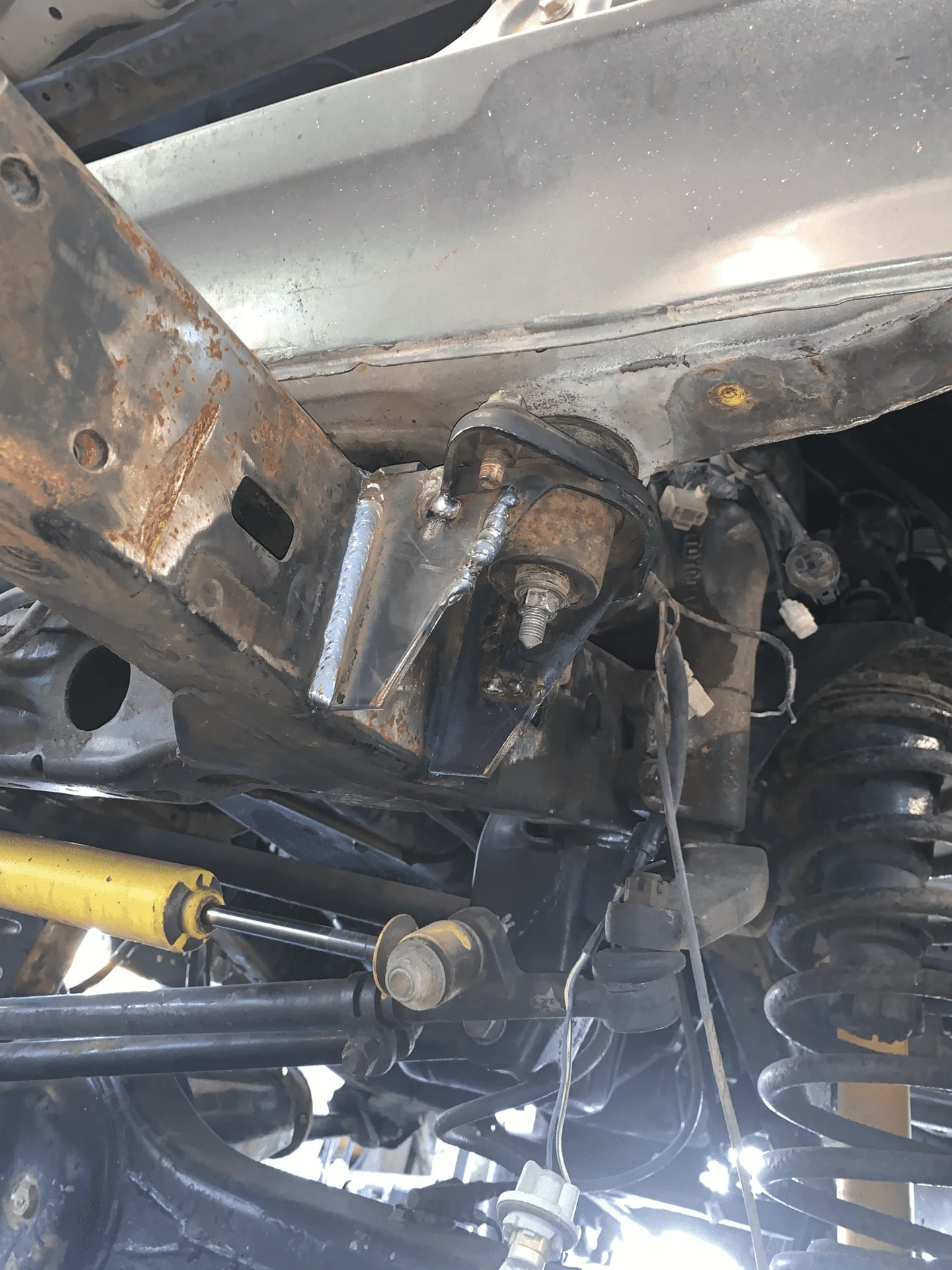

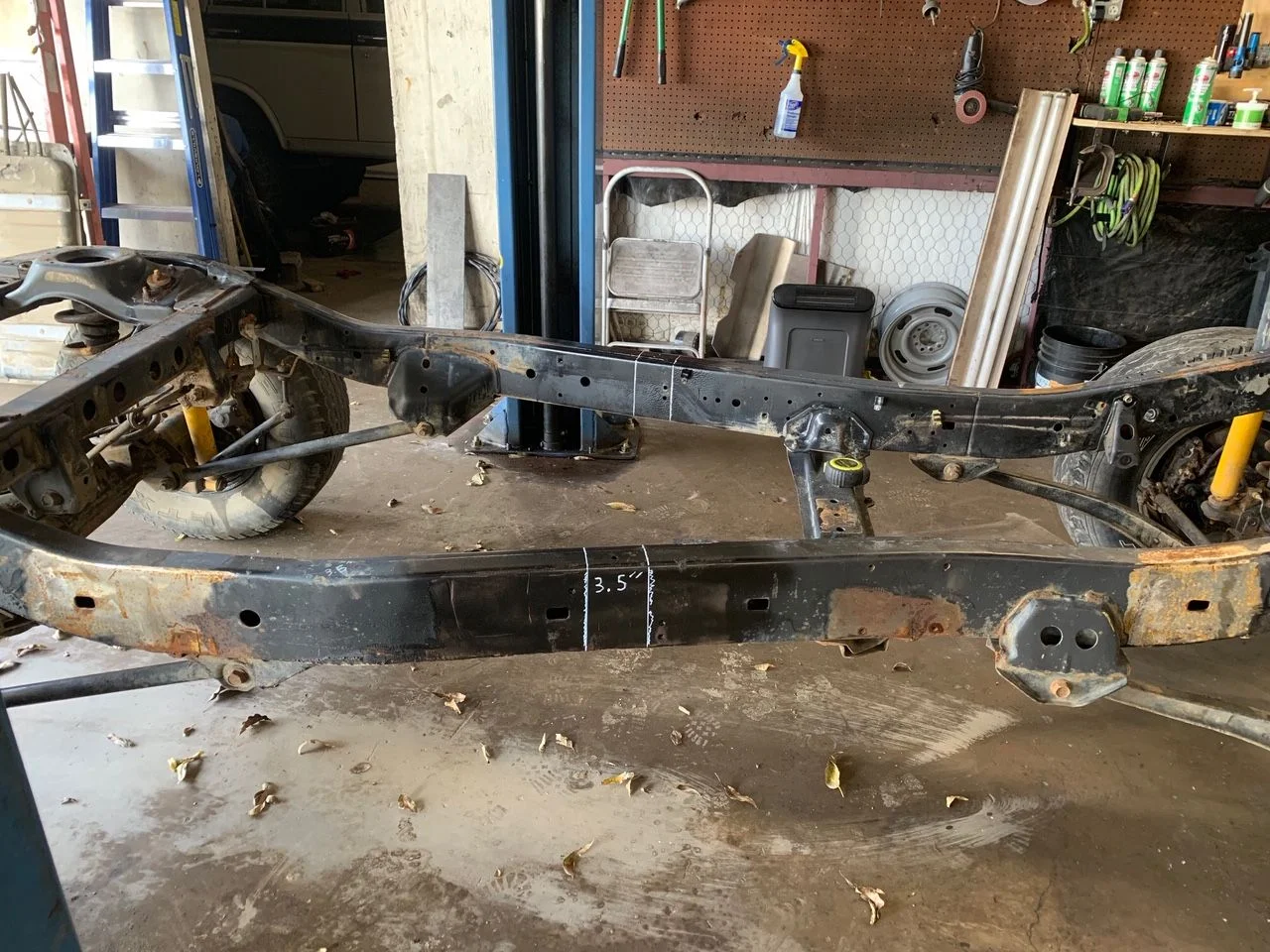

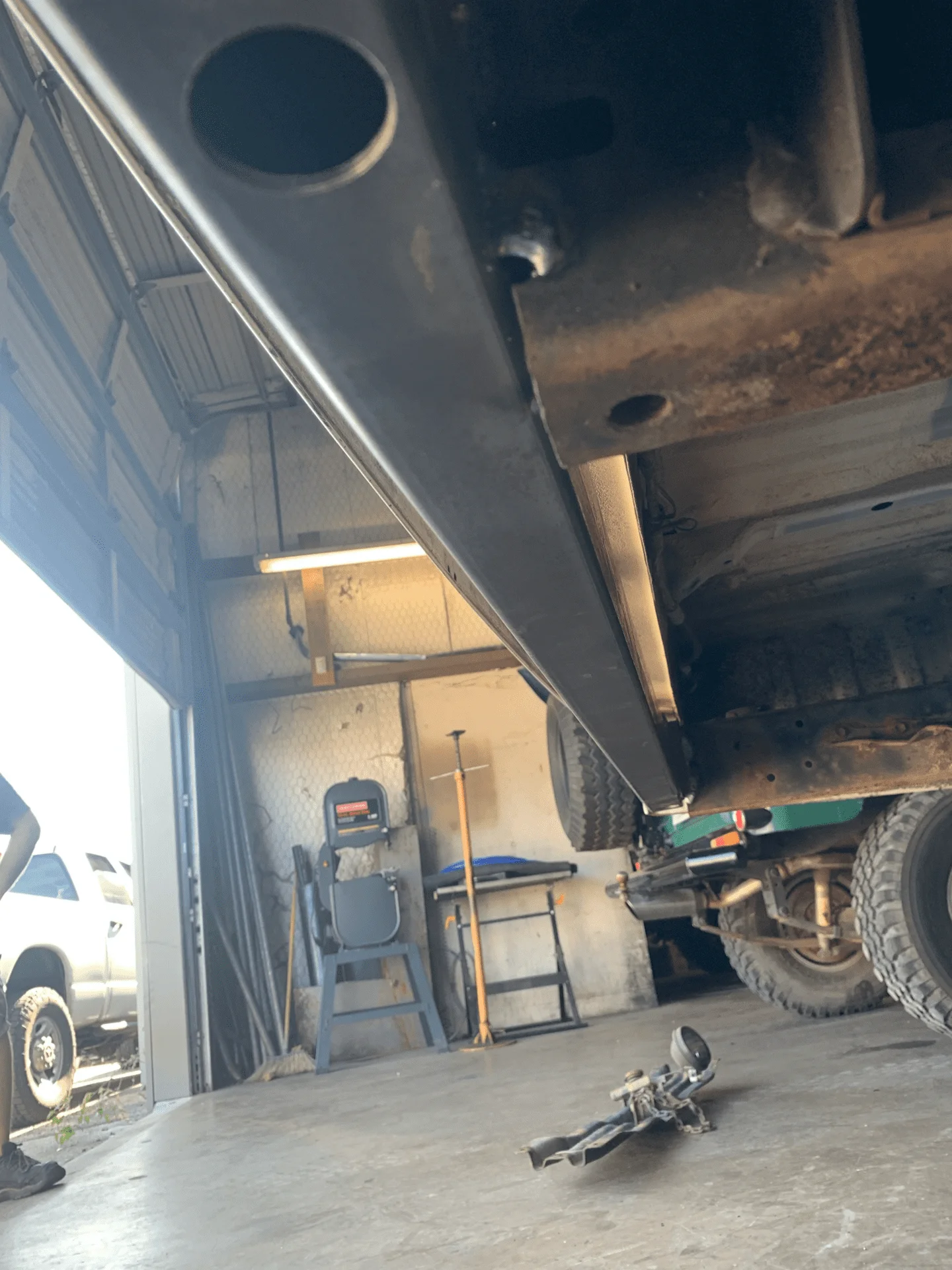

Take a pic where you cut/welded the frame. Any scab plates to hold it together?

gonzopancho · Dec 6, 2018

There are no scab plates, it's internally-sleeved.

apeterson · Dec 7, 2018

Cool!

gonzopancho · Dec 7, 2018

It's close, but the hood fits, and the exhaust can exit where it does on an 80 series.
Might have to go to an electric fan. We'll see.

But otherwise, it's almost like Mr. Toyota intended the 1FZ to fit the 60 series.

gonzopancho · Dec 20, 2018

Need to replace the core support. Hope @cruiserjunktion can help me out.

cruiserjunktion · Dec 21, 2018

gonzopancho said:

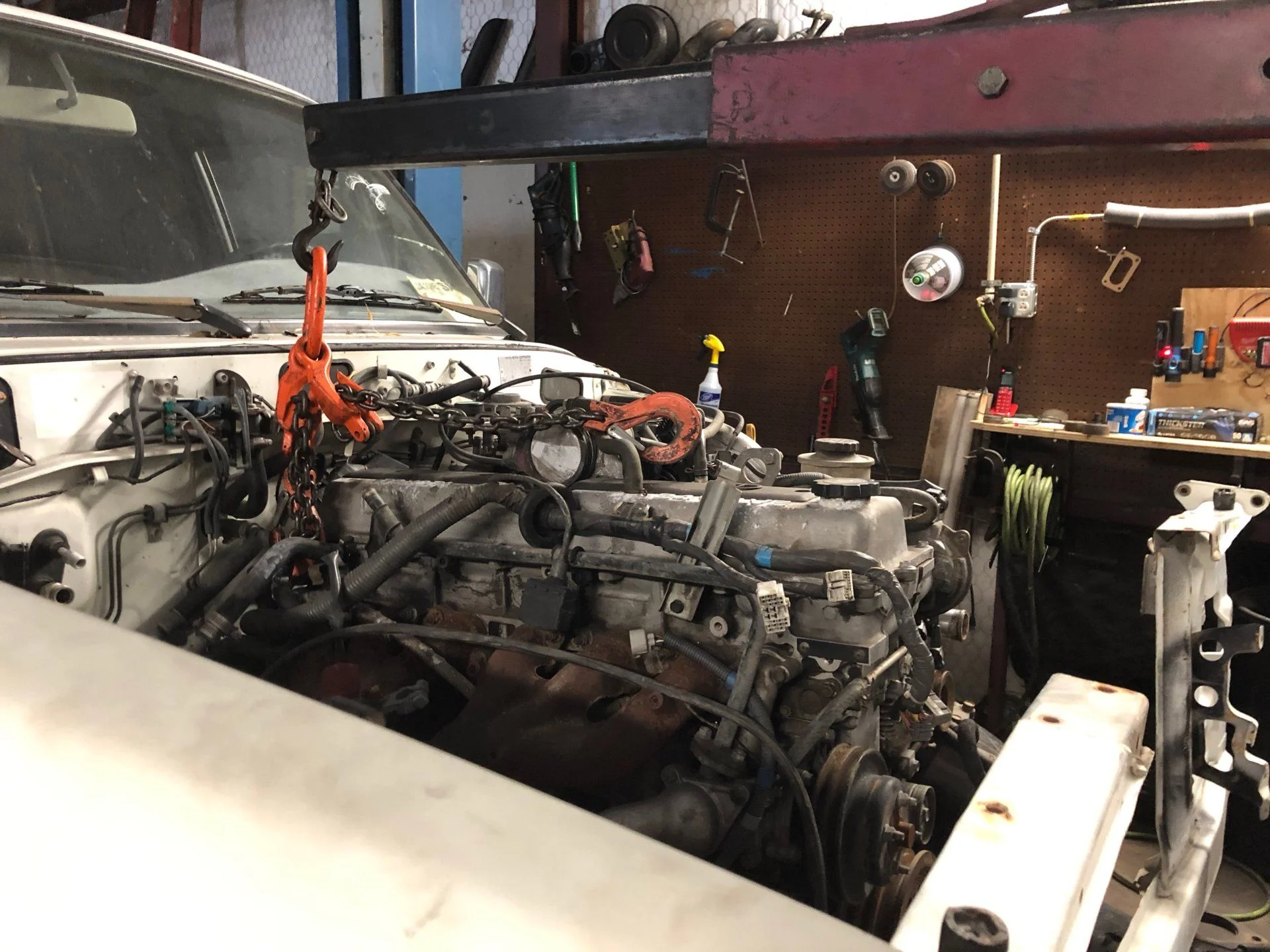

But otherwise, it's almost like Mr. Toyota intended the 1FZ to fit the 60 series.

View attachment 1849088

Wow! Nice work, the 1fz is phenomenal.

@bdyer12

gonzopancho said:

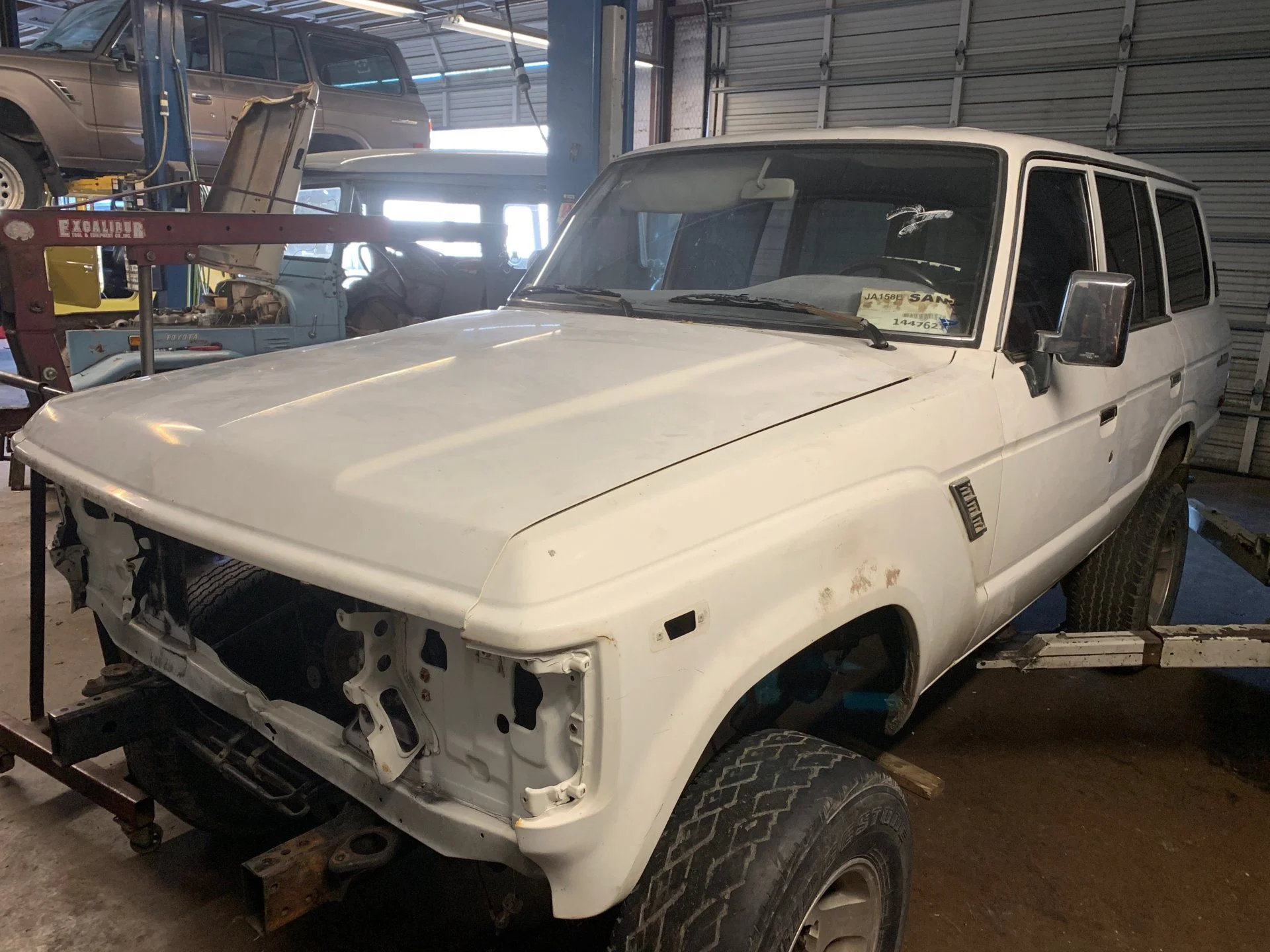

Need to replace the core support. Hope @cruiserjunktion can help me out.

View attachment 1859655

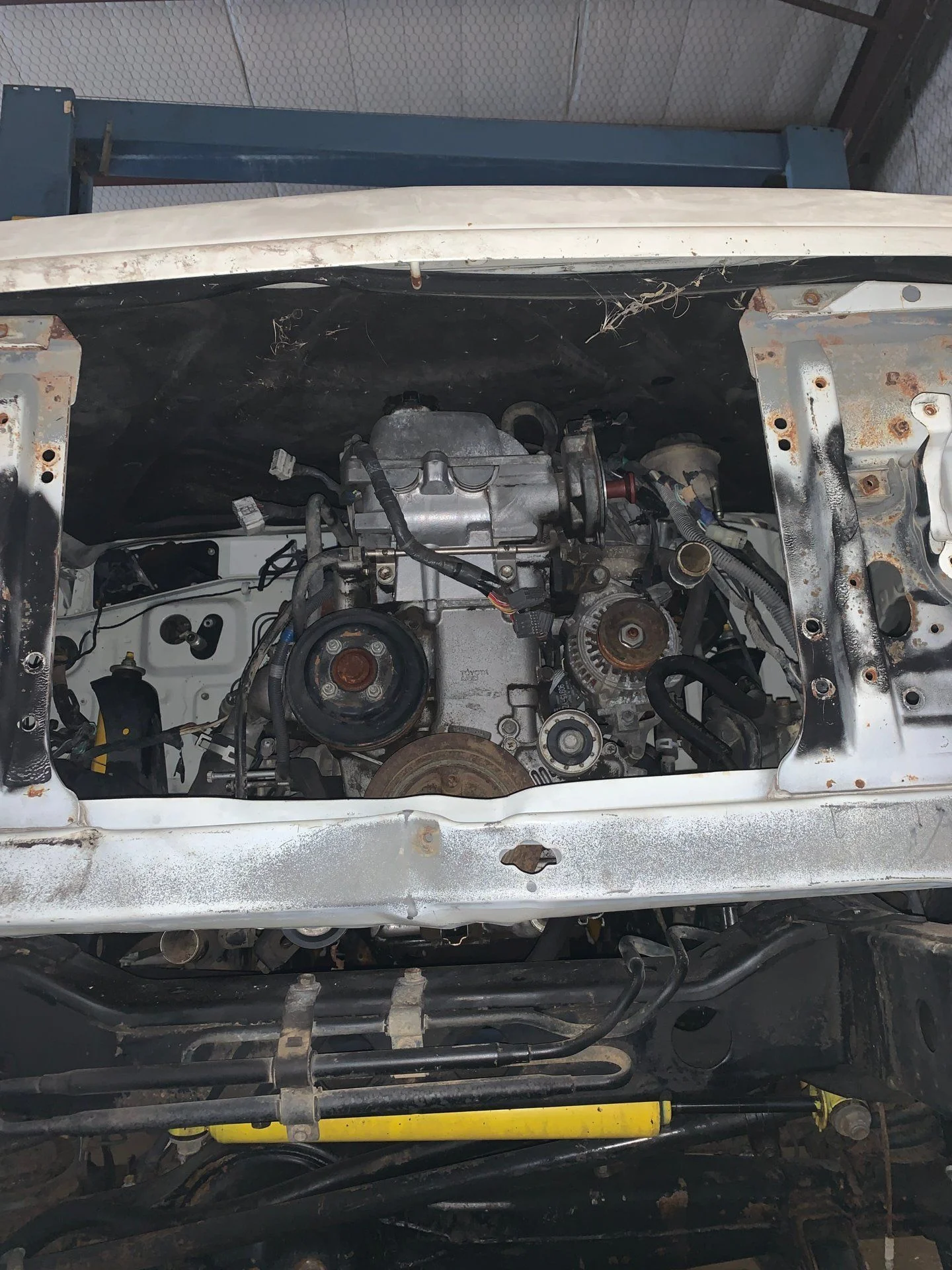

View attachment 1859656

I’ve got a couple of them in my Ebay store. Use or best offer there and I’ll get one on the way.

gonzopancho · Dec 22, 2018

Parts ordered from @cruiserjunktion.

gonzopancho · Jan 15, 2019

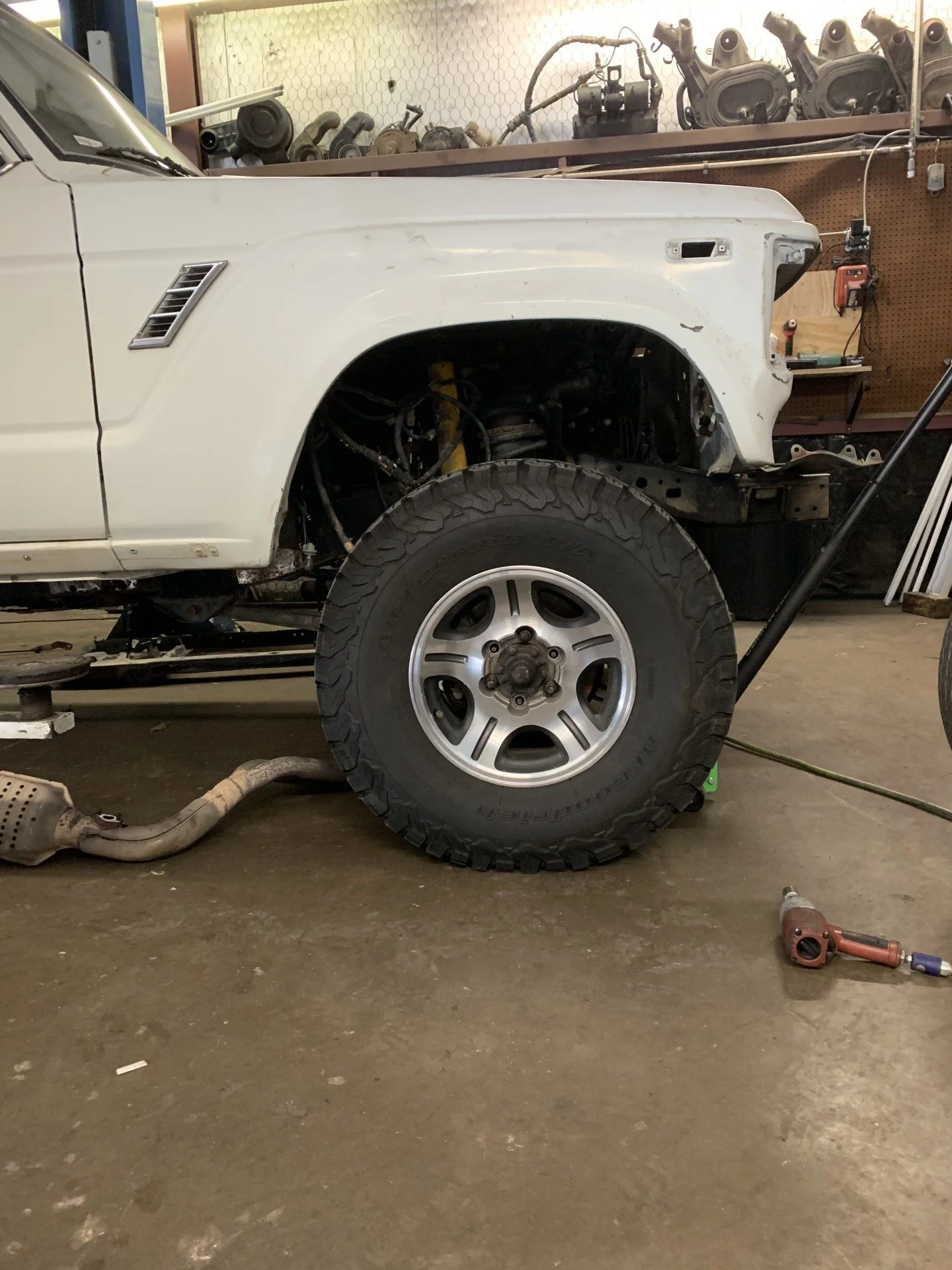

Just trying some 295s (off the lx450) for size. Moar bigger!
(Downpipe came off the other lx450.)

gonzopancho · May 25, 2019

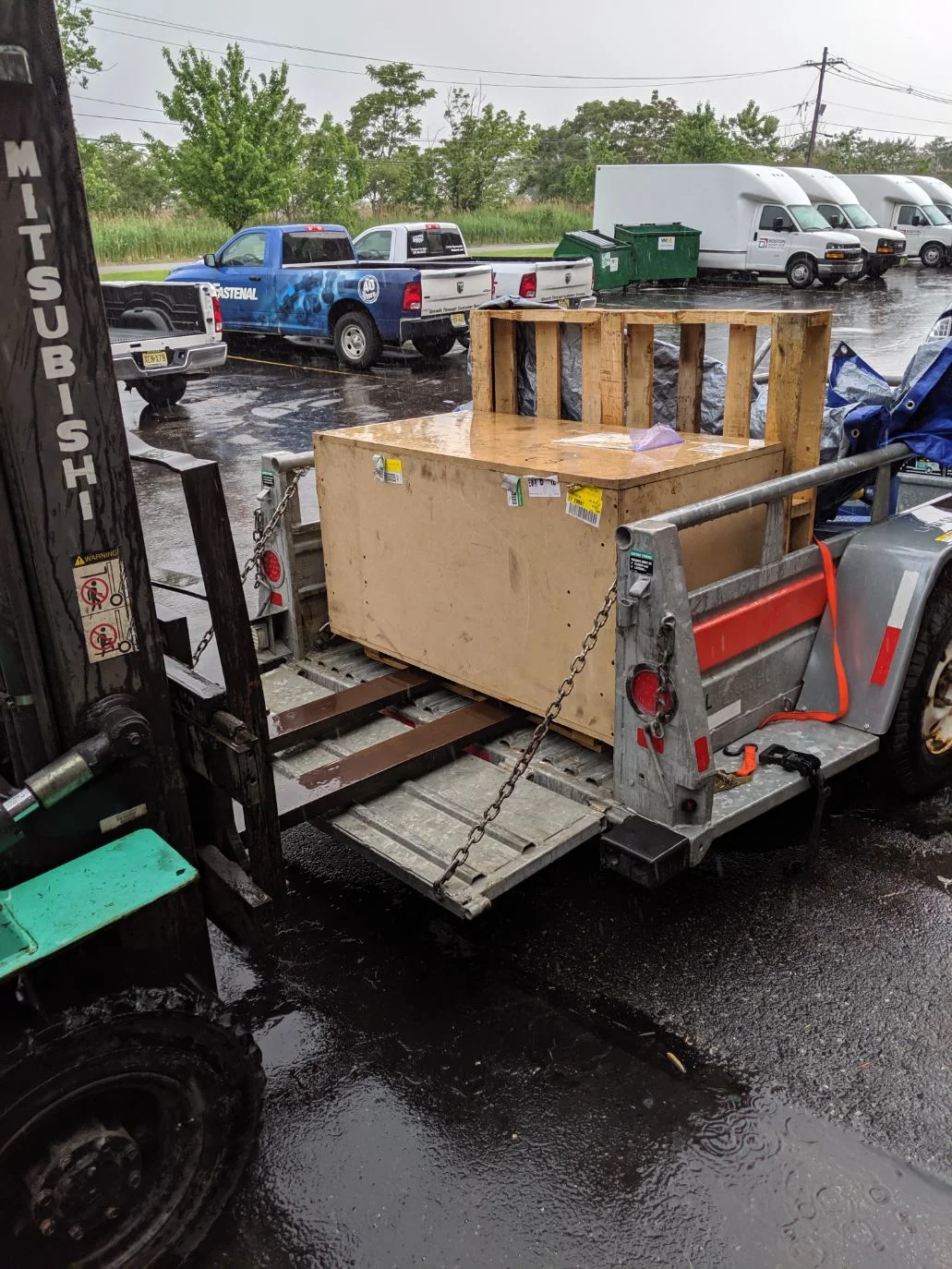

Decided to go with a H151 transmission, for way mo’ go. Found one in NJ out of a 2007 105 series, got the brother of an employee to drive from PA to NJ and take it to Fastenall.
