Dual swing out tire carrier bumper FJ40 $750 shipped

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

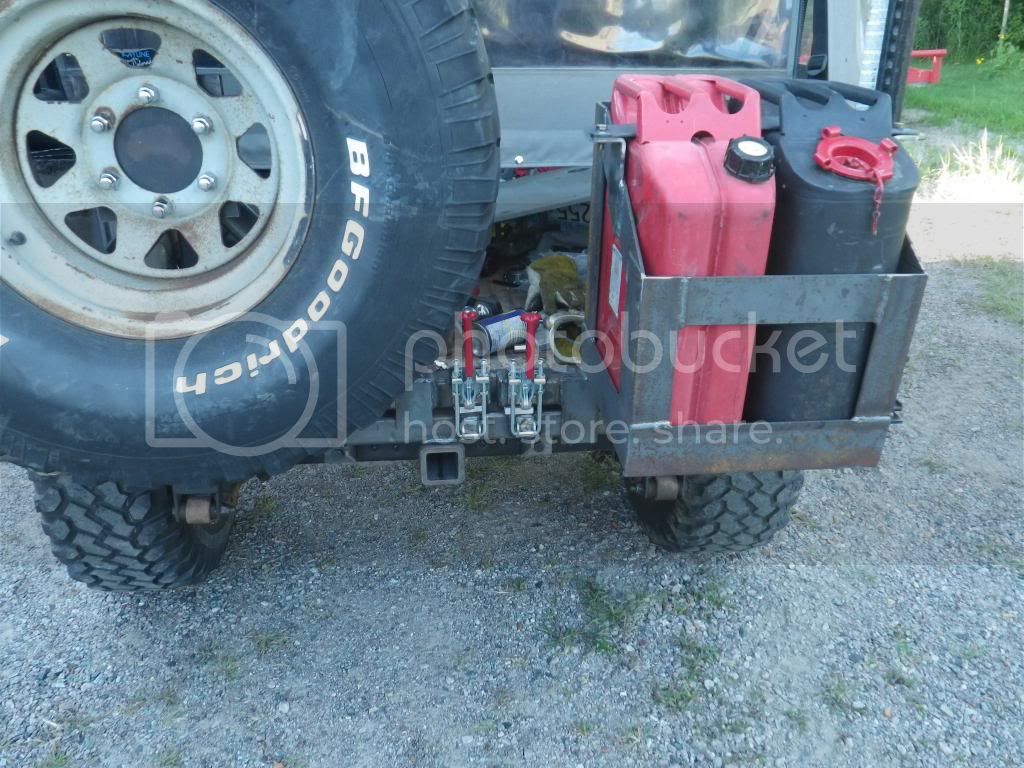

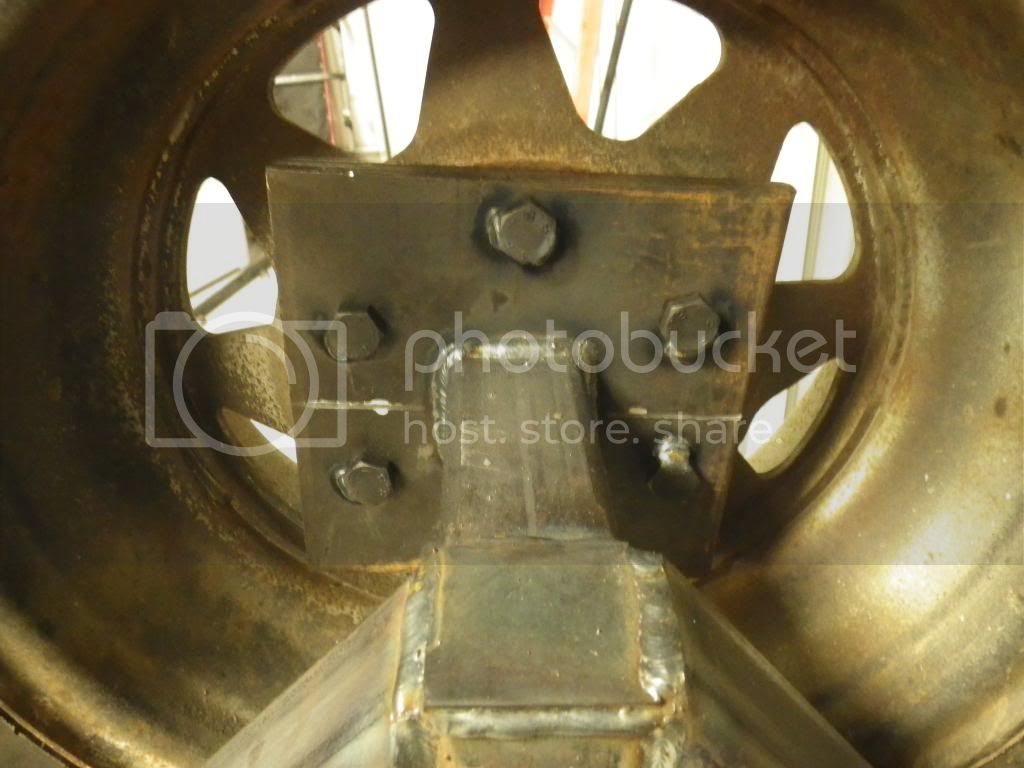

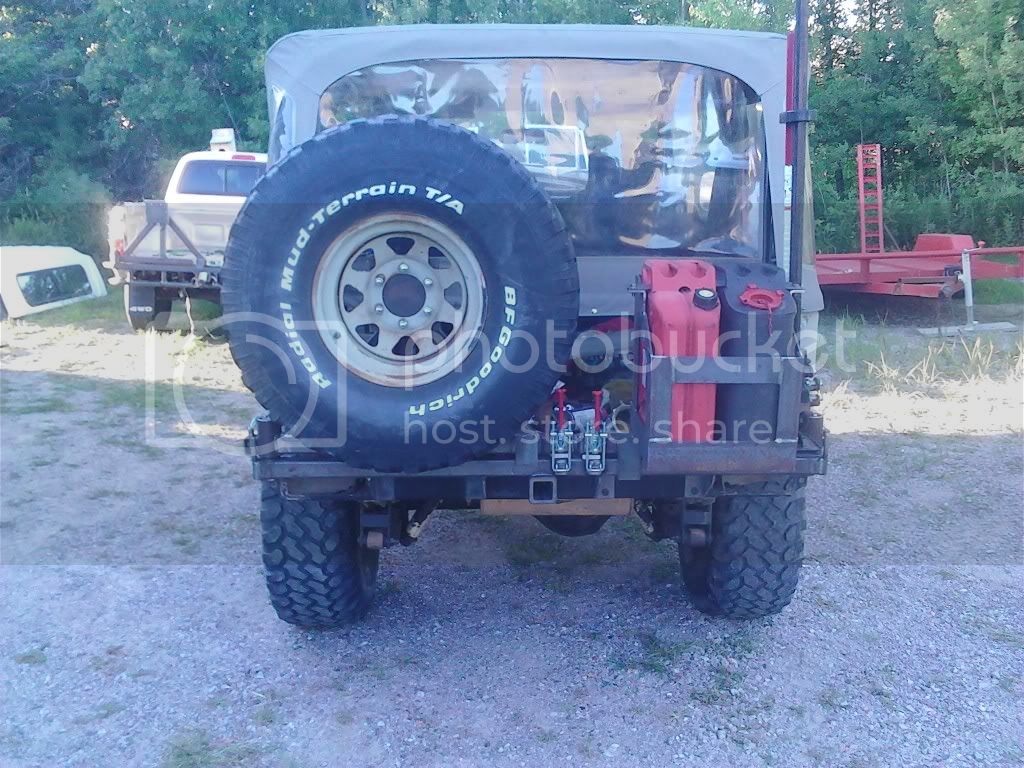

I almost have another one done, this time it will have clamps instead of a bolt, and a two Jerry can holder instead of three.







Are you willing to build a single swing out? Just the spare? I'm interested in the fact that you've eliminated the hinge mount on the body. Replacing all the rear sheet metal on the 40 and there's no inner body support for the stock carrier. If you're willing, how much?.. and ship to 37064.

What year frame do you have?

'77 FJ40 with brand new steel across the back and in the corners.

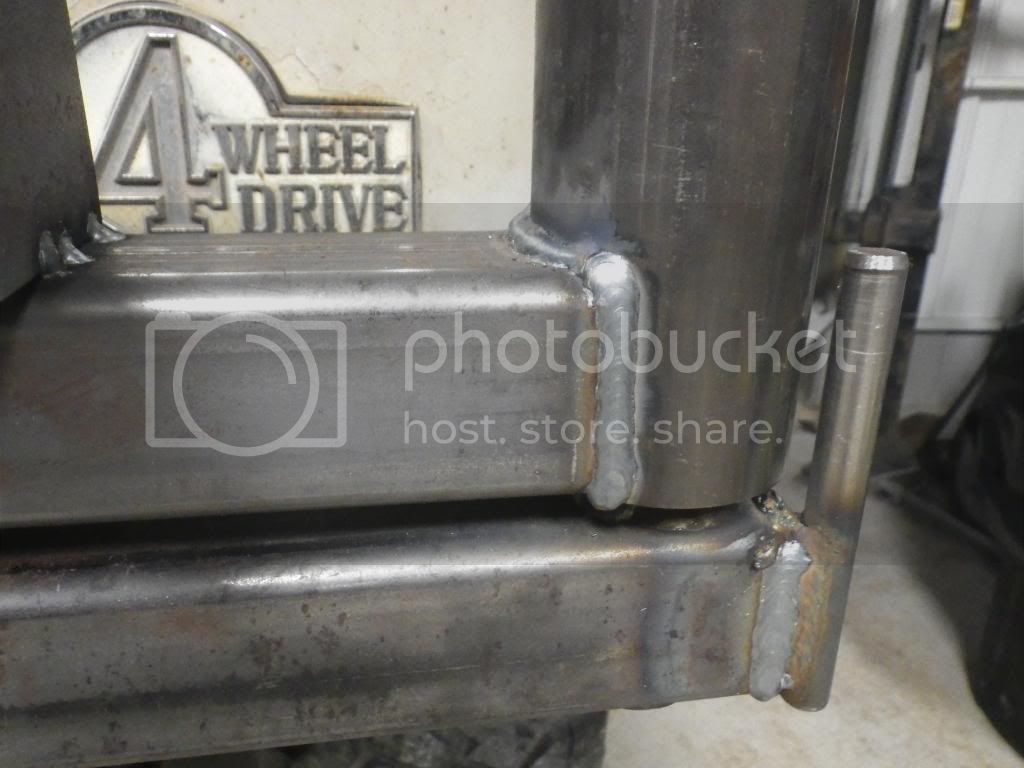

Really like the idea of the latch in that last shot...

Where in MN are you located? Subscribed! Very nice looking swing out! I'd be interested in a three can holder if one were to come available. Would like to know if the center pin or the clamps work better.

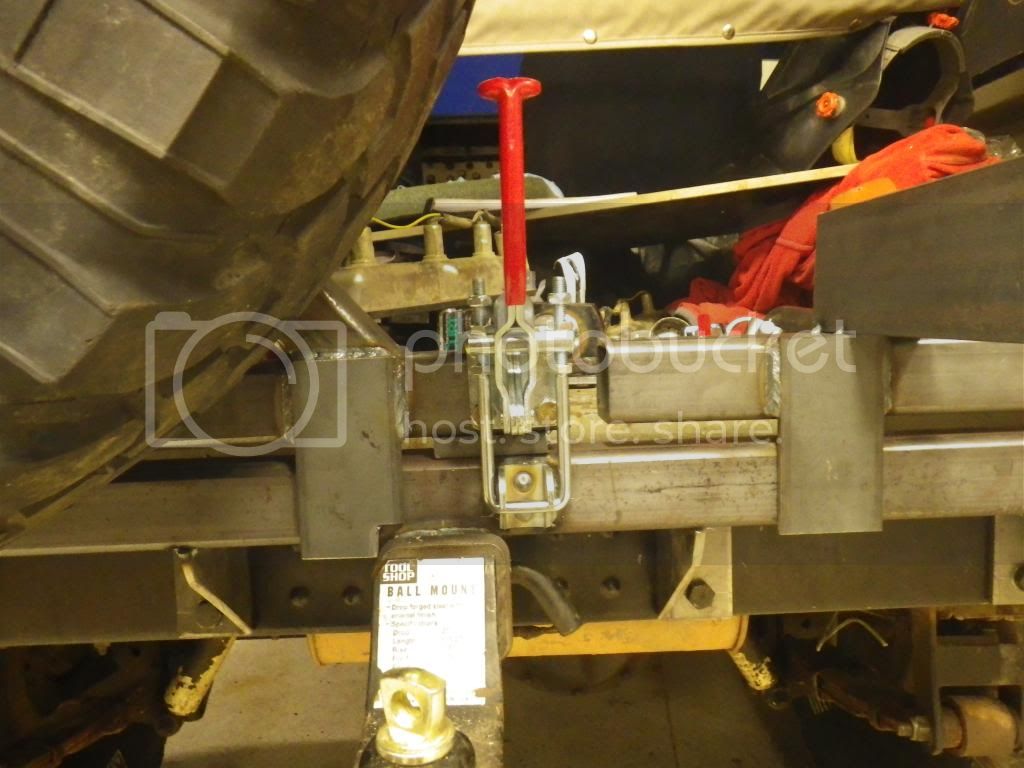

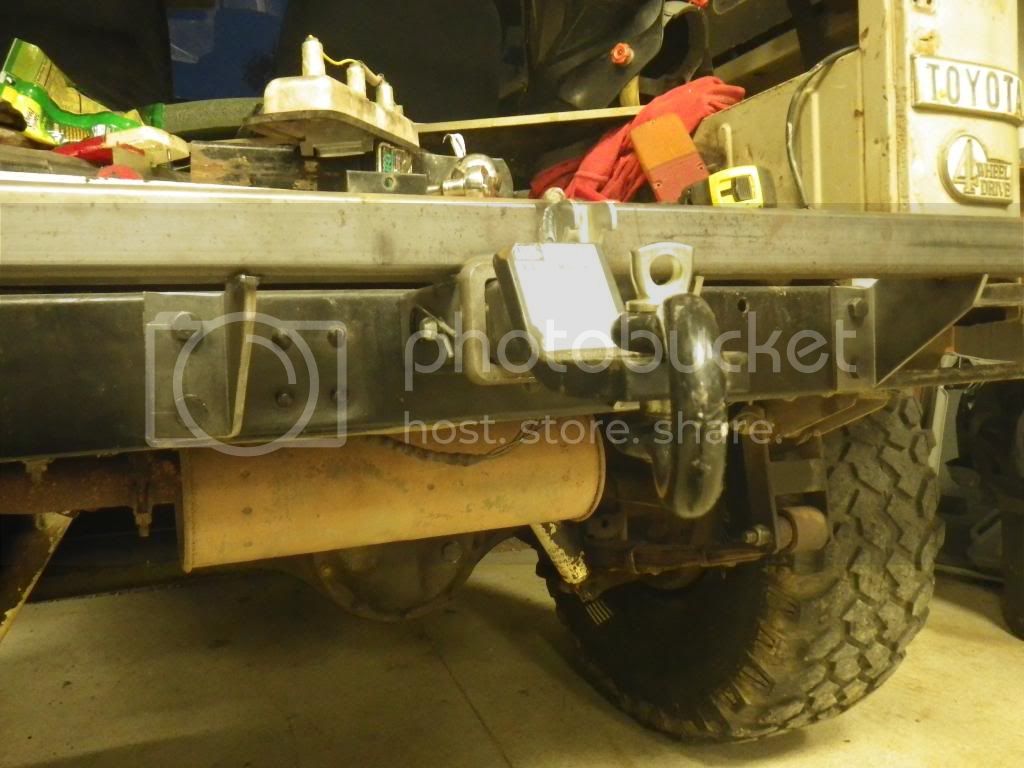

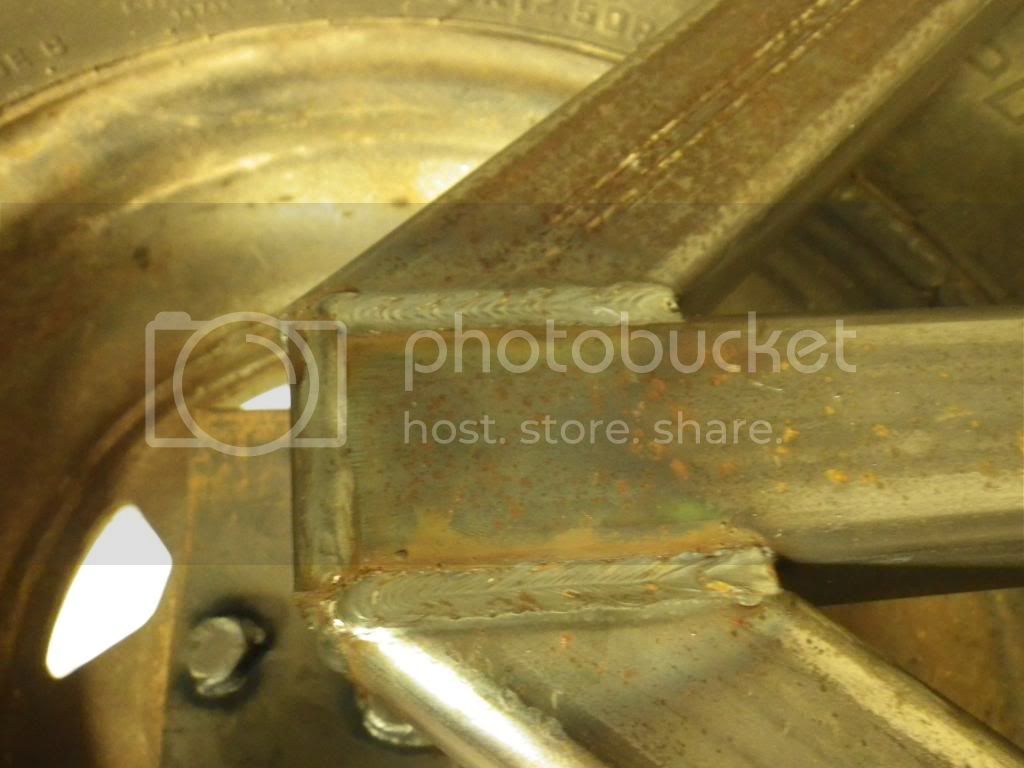

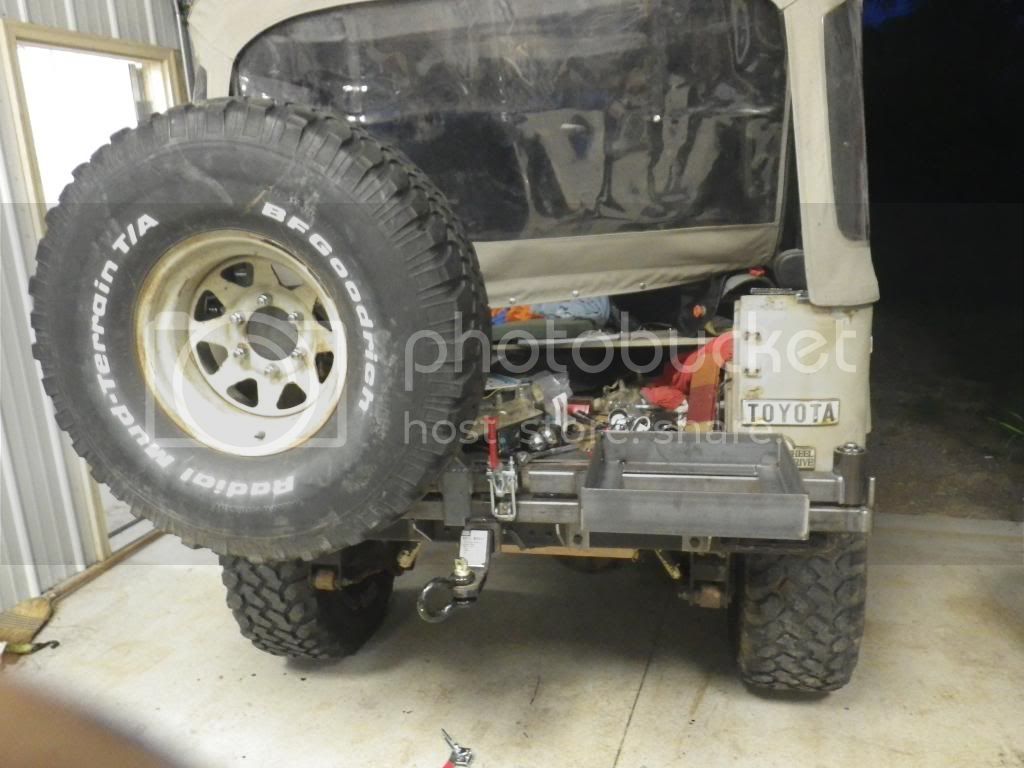

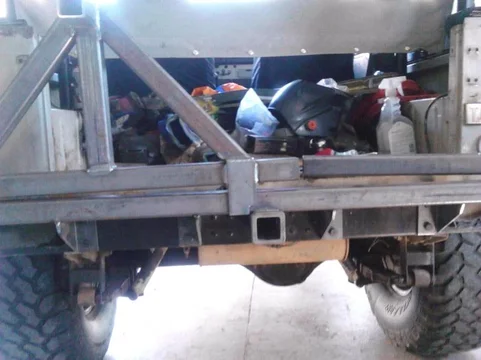

Here is some pictures of what I have going on for laveycrafter.

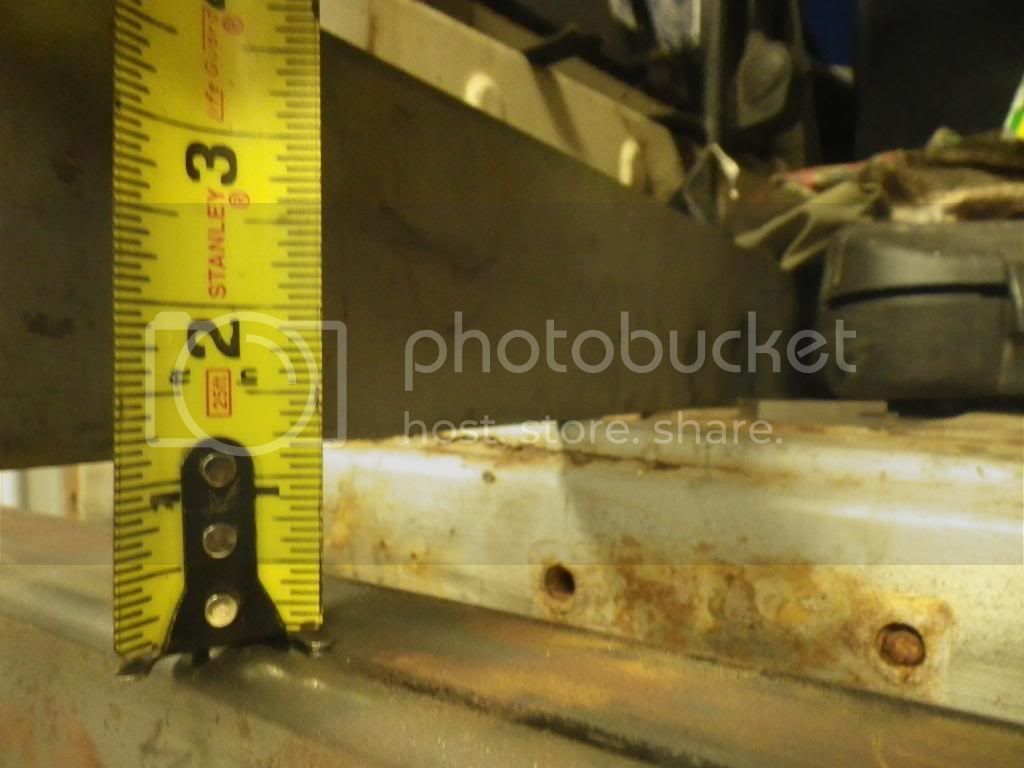

Clearance for a drop down tailgate.







-Sean

One custom spare tire only/single swing out carrier bumper ordered.

Thanks Sean.

One custom spare tire only/single swing out carrier bumper ordered.

Thanks Sean.

Thanks Rainey, I just ordered some more toggle clamps, should be all caught up sometime next week.
-Sean

Last edited:
Thanks Randy, I just ordered some more toggle clamps, should be all caught up sometime next week.
-Sean

Common mistake but Rainman comes from Rainey, not Randy...

Not a big deal...

Measurements coming to you today.

Just sent you an email with a drawing and measurements.

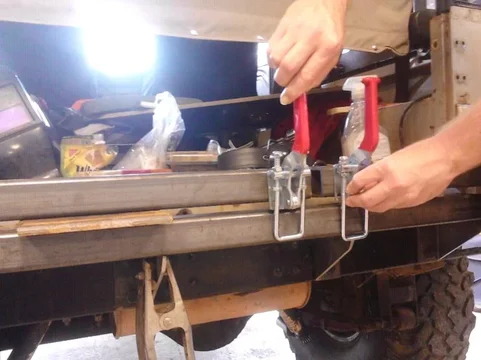

I have laveycrafters bumper 95% done, will be finishing it tomorrow and shipping it out, will post pics of the clamp setup/
-Sean






This is laveycrafters bumper, will post pictures of the next one soon!
-Sean
