Bumper on Sammy

Joined
Sep 4, 2006
Messages
2,011
Location
Sourdough?

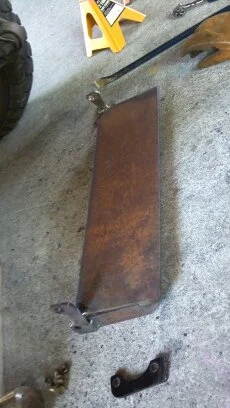

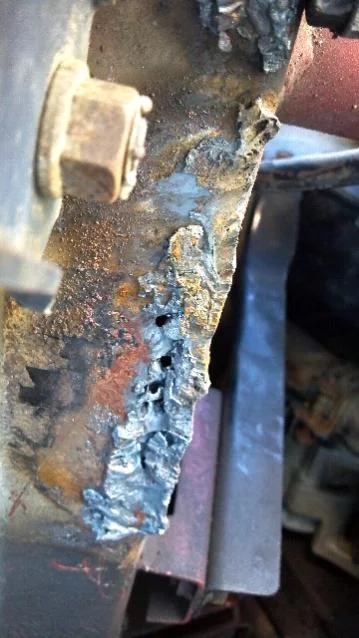

Finally back on MUD, well from mobile app I'm here again at least. Well here is the build of my bumper for the Sammy. It took a couple hours to get the over kill tow bar that was half inch material welded for almost ten inches on both sides and too the original tow points off using my plasma torch. Not only time consuming and messy but hard on my frame!

Joined
Aug 2, 2006
Messages
3,926
Location
Jefferson


i know theres more. . .

you drop the phone in the toilet? :flipoff2:

idk if this thread is a tease or a fail?

Joined
Sep 4, 2006
Messages
2,011
Location
Sourdough?

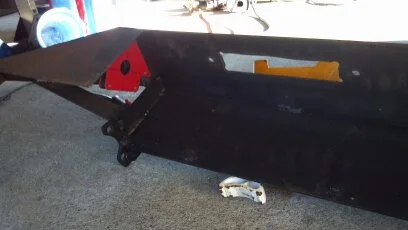

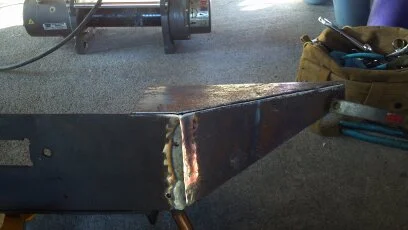

Gettin' close :D

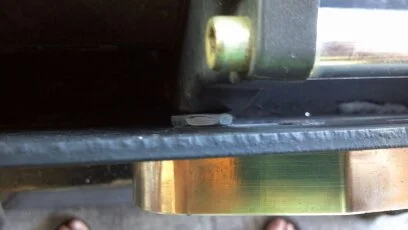

SO... I didn't take into account that the fairlead needed to be bolted on which required a nut on the inside of the bumper. I made it just large enough for the winch to fit.... well I did a little adjusting with the grinder and vualla...

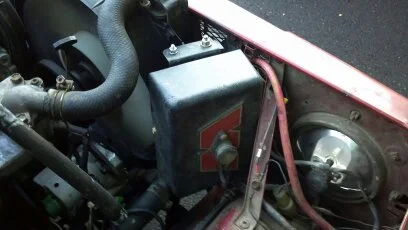

Decided to put the winch controller inside, it's kinda pimp :D

Joined
Sep 4, 2006
Messages
2,011
Location
Sourdough?

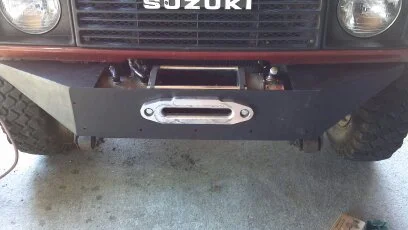

Finished :D

Hey thank you again for your helping me out with knowledge Aric!!!!!! How do ya think it turned out?

Joined
Sep 4, 2006
Messages
2,011
Location
Sourdough?

Quarter inch plate on the front of Sammy ... just barely beefy enough lmao!

Uh for now I mounted the stock signals behind the grill. I just turned them ninety and zip tied them in.... if I can't find anything I like better I'll get new lenses (mine are all busted up) and fab a bracket back there...
