Anyone Seen a Starter Body Break Before...?

Joined
Oct 14, 2018
Messages
368
Location
WV

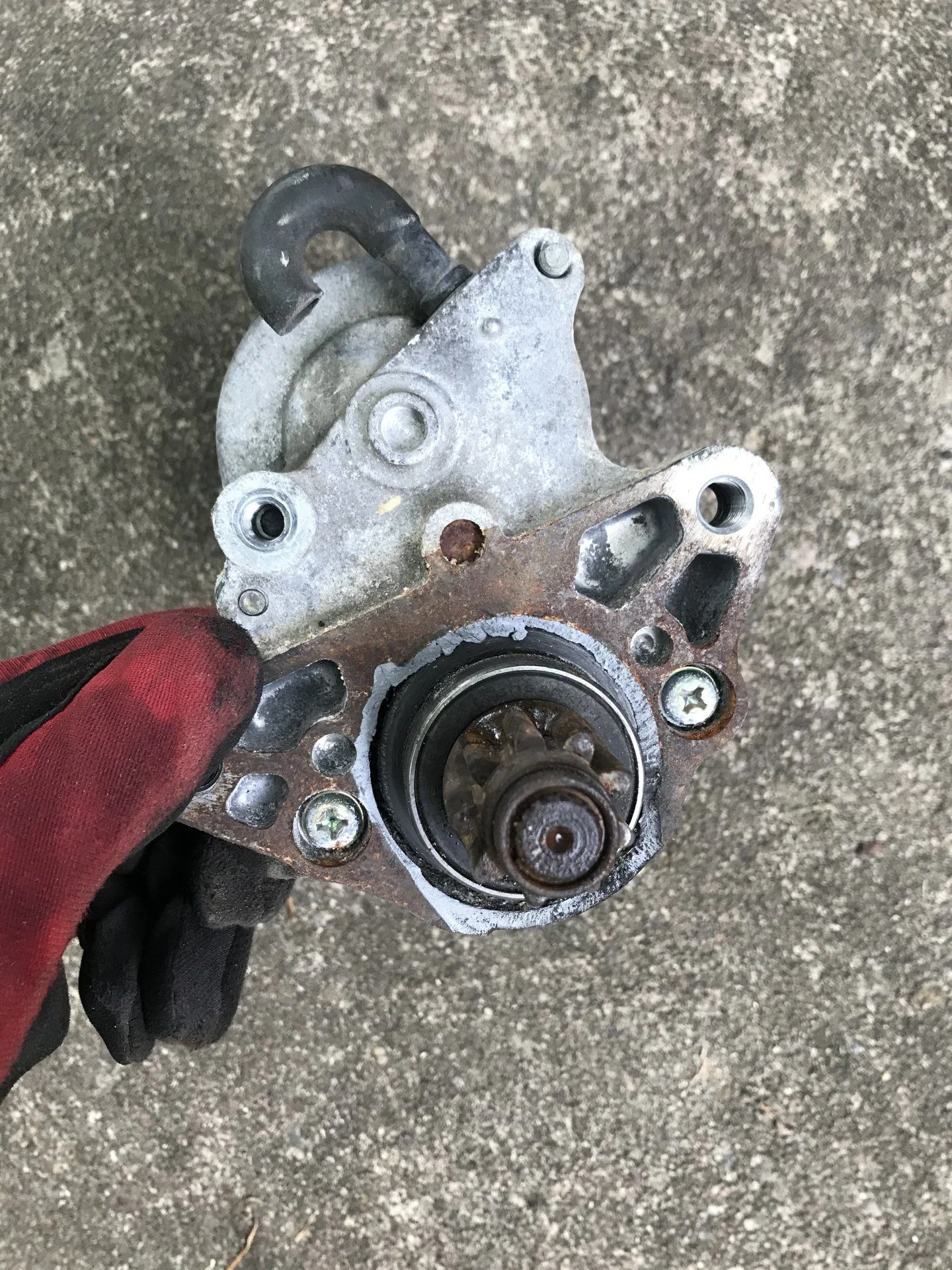

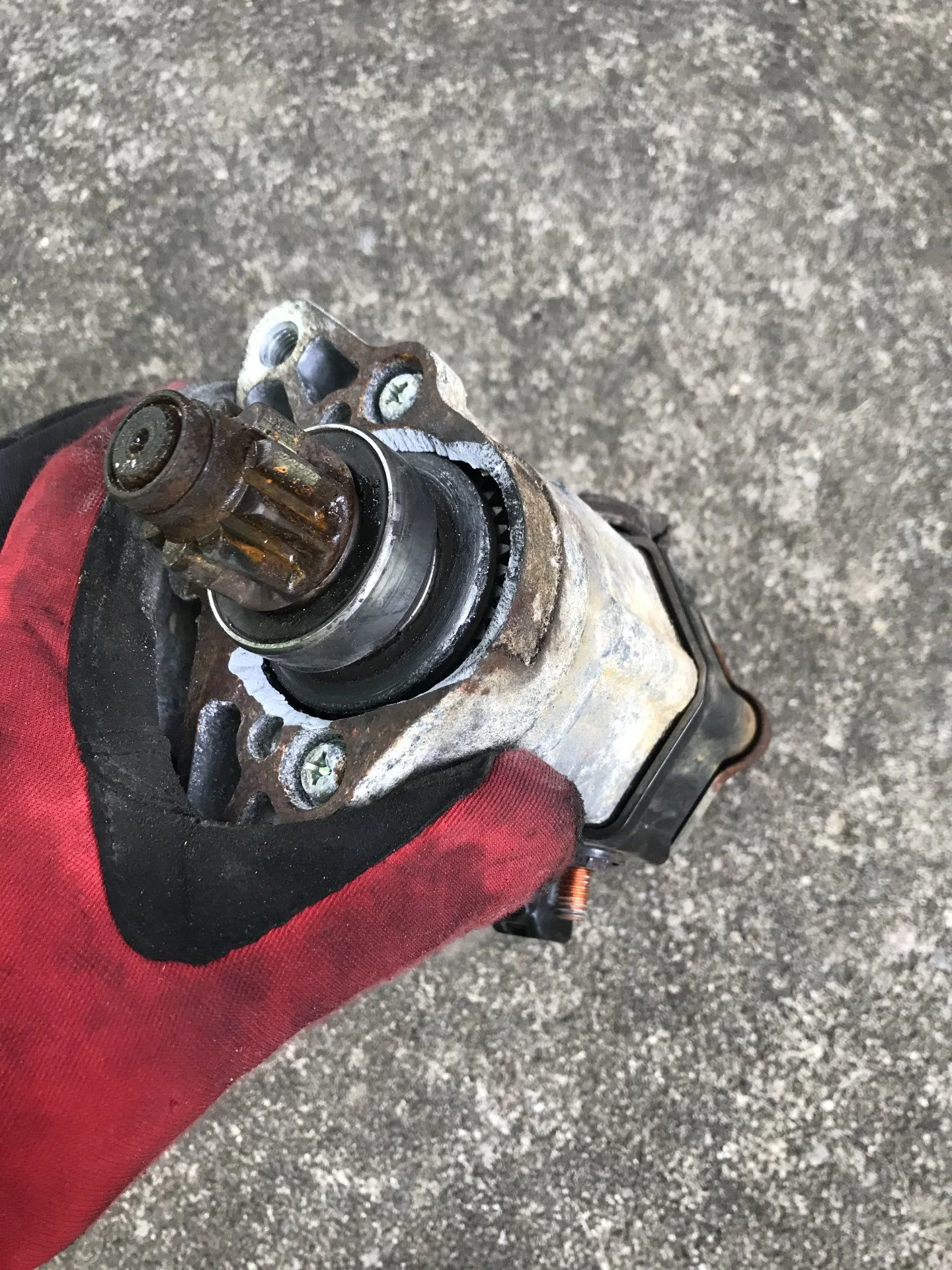

Started out to replace the starter contacts today and after the usual difficulties, got the intake manifold off, disconnected the started and found it absolutely froze solid to the block. Took a few good snacks with a rubber mallet to break it loose. The pictures below are what I found. It looks like the starter body was firmly corroded to the engine block and broke when I knocked it loose. Anyone seen this before? I'm assuming a whole new starter is in order...?






Joined
Oct 14, 2018
Messages
368
Location
WV

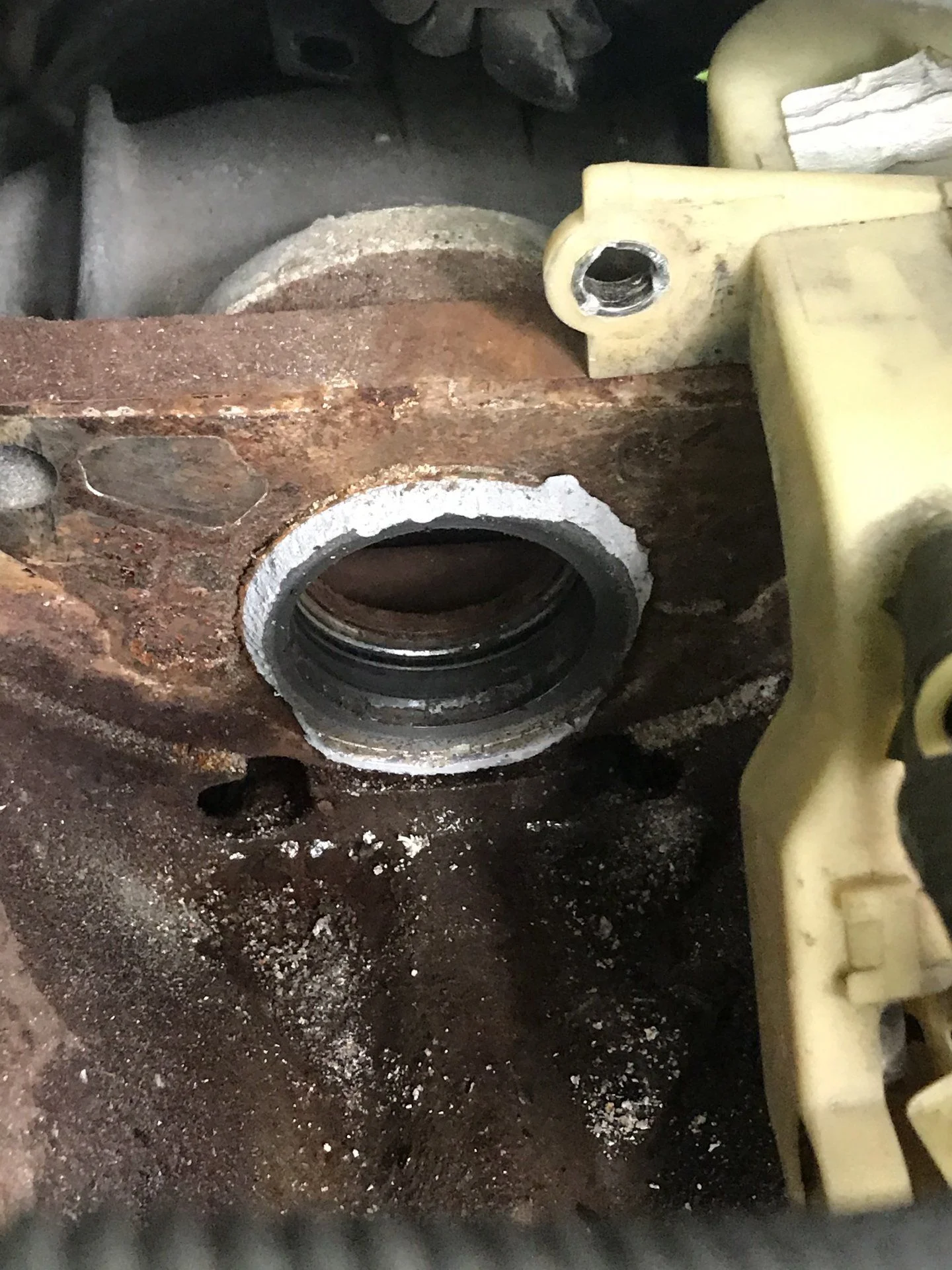

Upon further review, it appears a significant portion of the starter body remains in the block...:vomit:

Joined
Jul 31, 2018
Messages
96
Location
Chicago
Upon further review, it appears a significant portion of the starter body remains in the block...:vomit:
I had this happen to me last summer with my 98 LX. Never seen anyone else with this issue. Broke in the exact same fashion replaced with a reman unit. I used every trick to get it out the only one that worked was using a drill and carefully making two cuts in the stuck ring so it would release. Don’t even bother with a torch.

Joined
Oct 14, 2018
Messages
368
Location
WV
I had this happen to me last summer with my 98 LX. Never seen anyone else with this issue. Broke in the exact same fashion replaced with a reman unit. I used every trick to get it out the only one that worked was using a drill and carefully making two cuts in the stuck ring so it would release. Don’t even bother with a torch.

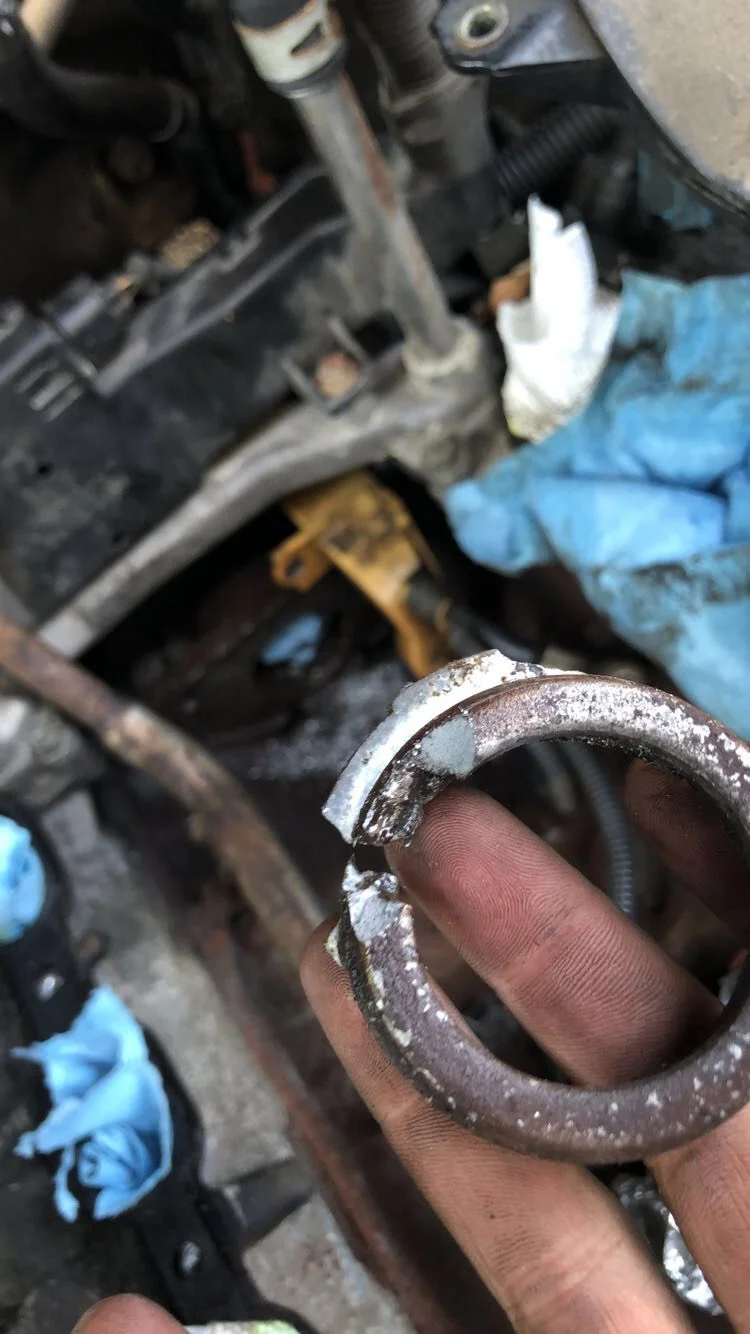

View attachment 2353730
I was thinking something along those lines. Does the broken piece go all the way through into the bell housing or is there a mating surface inside the block? (Hope that makes sense)

Joined
Jul 31, 2018
Messages
96
Location
Chicago
I was thinking something along those lines. Does the broken piece go all the way through into the bell housing or is there a mating surface inside the block? (Hope that makes sense)
If I remember correctly there is a little lip on the block got to be very careful not to cut into that once you get close to the end of the housing you can use a chisel and a hammer. Not ideal but I didn't have any issues with the truck after. Make sure none of the shavings go into the fly wheel housing though. Pretty simple just have to take percautions.

Joined
Aug 25, 2008
Messages
1,158
Location
Sacramento area, CA


That looks that salt corrosion, chlorine and aluminum don't mix well. Especially if you have dissimilar metals involved.
It is surprising in that is a somewhat protected location. Have you been splashing through the surf at the ocean? :)
That type of corrosion would explain why the nose of the starter got welded to the engine block.

Joined
Oct 14, 2018
Messages
368
Location
WV
That looks that salt corrosion, chlorine and aluminum don't mix well. Especially if you have dissimilar metals involved.
It is surprising in that is a somewhat protected location. Have you been splashing through the surf at the ocean? :)
That type of corrosion would explain why the nose of the starter got welded to the engine block.
Nope! This truck was from southern KY and very clean. Not much rust at all.

If I remember correctly there is a little lip on the block got to be very careful not to cut into that once you get close to the end of the housing you can use a chisel and a hammer. Not ideal but I didn't have any issues with the truck after. Make sure none of the shavings go into the fly wheel housing though. Pretty simple just have to take percautions.
How did you get the broken piece to release once you made the cut? That's where I'm at now.

Joined
Jul 31, 2018
Messages
96
Location
Chicago
That looks that salt corrosion, chlorine and aluminum don't mix well. Especially if you have dissimilar metals involved.
It is surprising in that is a somewhat protected location. Have you been splashing through the surf at the ocean? :)
That type of corrosion would explain why the nose of the starter got welded to the engine block.
Our truck was a mall crawler for the whole time as well.
Nope! This truck was from southern KY and very clean. Not much rust at all.



How did you get the broken piece to release once you made the cut? That's where I'm at now.
I made two cuts into the ring and some taps w a chisel and it popped out. The second cut I only cut to a point where the ring was able to flex. Takes some forcing.

Joined
Dec 5, 2016
Messages
2,155
Location
DC
spray some pb blaster in there, let it soak, use a dremel with a cutting disc to cut out a part of the stuck piece and it should pop out. it's okay to mar the tunnel a little, ain't gonna do anything bad.

Joined
Jul 31, 2018
Messages
96
Location
Chicago
Looks like chlorine corrosion, maybe someone using a chlorine based cleaner on the engine?
Seemed like to to me too, never had the engine cleaned asides from the cover. Hopefully this doesn’t become a common occurance. I know when it happened to me I thought I was royally screwed. Not to mention this was after three hours of sitting in my engine bay in 95 degree heat.

Joined
Jul 31, 2018
Messages
96
Location
Chicago
spray some pb blaster in there, let it soak, use a dremel with a cutting disc to cut out a part of the stuck piece and it should pop out. it's okay to mar the tunnel a little, ain't gonna do anything bad.
^^^ used a ton of penetrating oil. Probably the biggest hint to invest in a Dremel for me.

Joined
Jul 9, 2012
Messages
2,218
Location
South KC

I’ve got. Starter from a part out of it helps. Probably need contacts put init also as good measure since it’s out.

Joined
May 26, 2008
Messages
177
Location
Calgary


So is that a cast aluminum housing into a cast iron bellhousing? Any possibility of condensation from an exhaust gasket leaking on to it?

Joined
Oct 14, 2018
Messages
368
Location
WV
So is that a cast aluminum housing into a cast iron bellhousing? Any possibility of condensation from an exhaust gasket leaking on to it?
Basically yes, but it mates with the block instead of bell housing. No, it's pretty well protected as it's in the V under the intake. I can only assume mine was stuck because the truck is 19 years old and has 203,000 miles on it. The starter appears to be the original.

Last edited:

AlpineAccess

Overlanding is an expensive word for car camping.
Joined
Apr 16, 2019
Messages
797
Location
Colorado
Basically yes, but it mates with the block instead of bell housing. No, it's pretty well protected as it's in the V under the intake. I can only assume mine was stuck because the truck is 19 years old and has 203,000 miles on it. The starter appears to be the original.
Man, that sucks. Glad you got it removed.

Joined
Mar 29, 2019
Messages
71
Location
Campbell, Ca
Never seen that before and I just did this job a couple of weeks ago. Get the area as clean as possible and maybe lay down some anti seize before putting the new starter in.


abuck99

SILVER Star
Joined
Nov 8, 2015
Messages
3,985
Location
ATL
Wow feeling your pain man- what a terrible location to have to do any sort of fiddly labor intensive work for extended period of time. Cudo's for pulling that off. You'll may never need to replace starter again but incase you do, I'd put a thin coat of hi-temp ceramic grease to keep that from happening again (for the next guy).
