Airbag schematic?

[RolandFJ40]

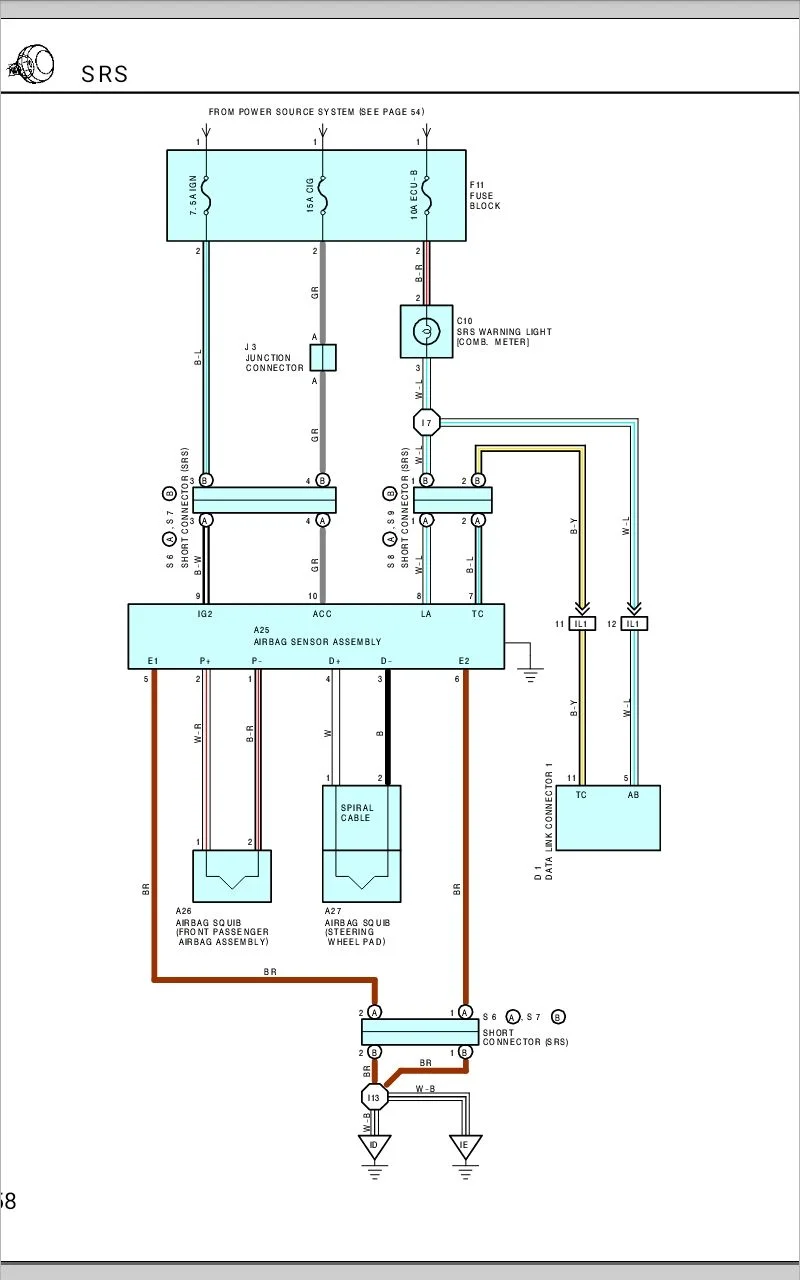

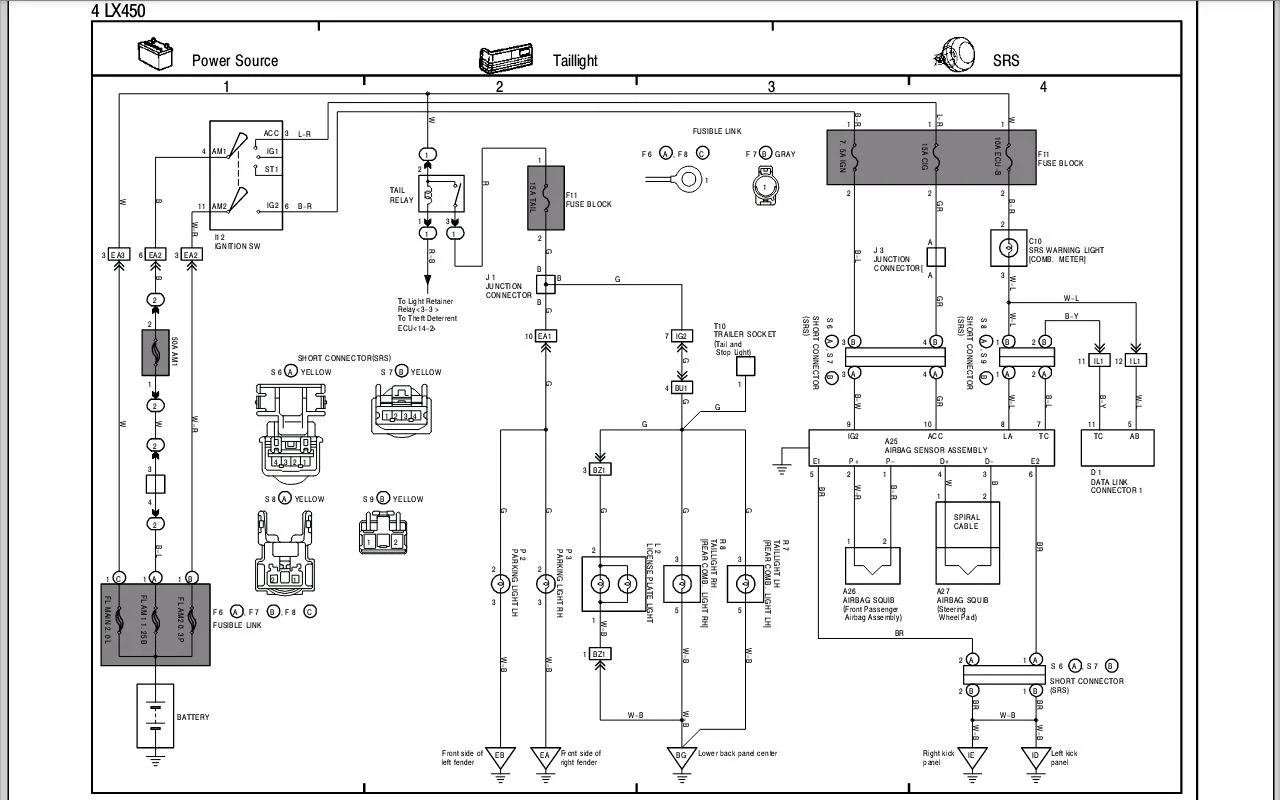

I have a 96 LX and just completed a full power steering rebuild. When I got everything buttoned back up the damn airbag light is on. So I'm wondering if there's a schematic so I can try and figure this out. I searched the site, appreciate any info.



[z00t3ch]

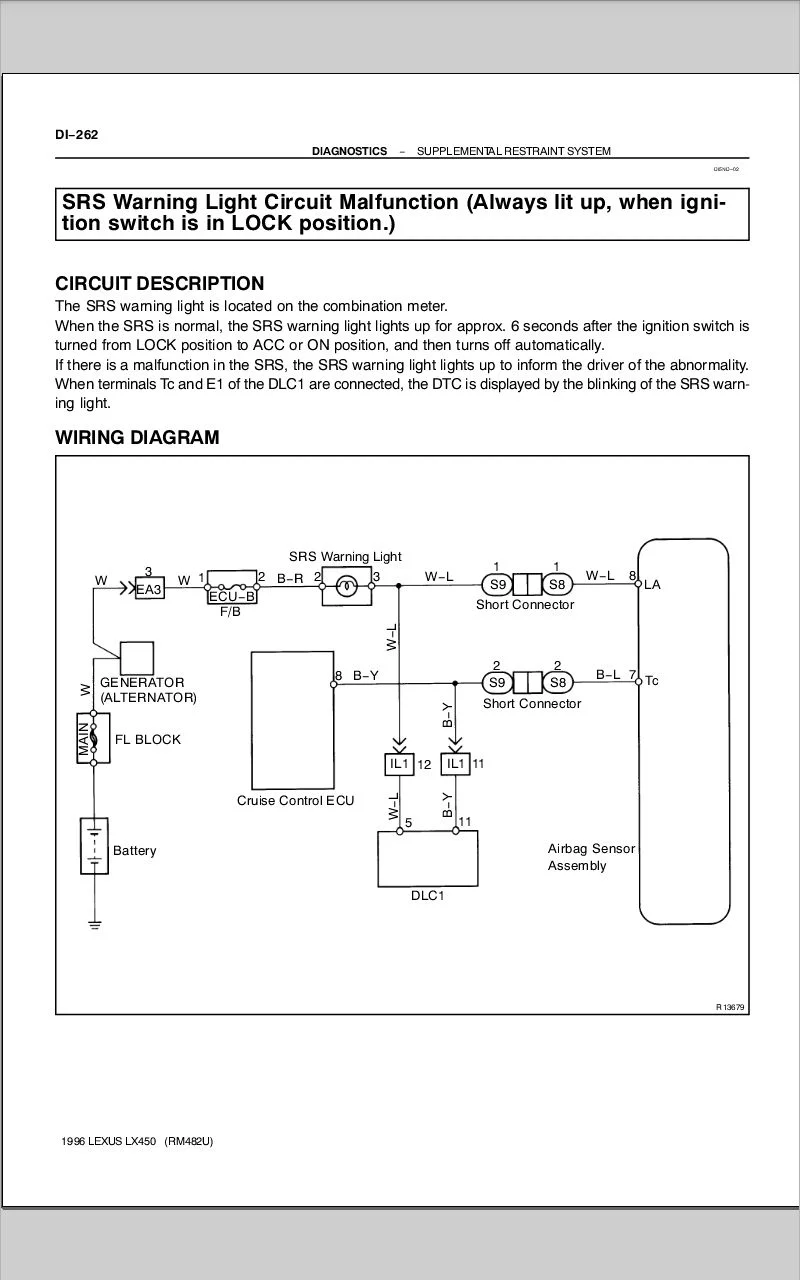

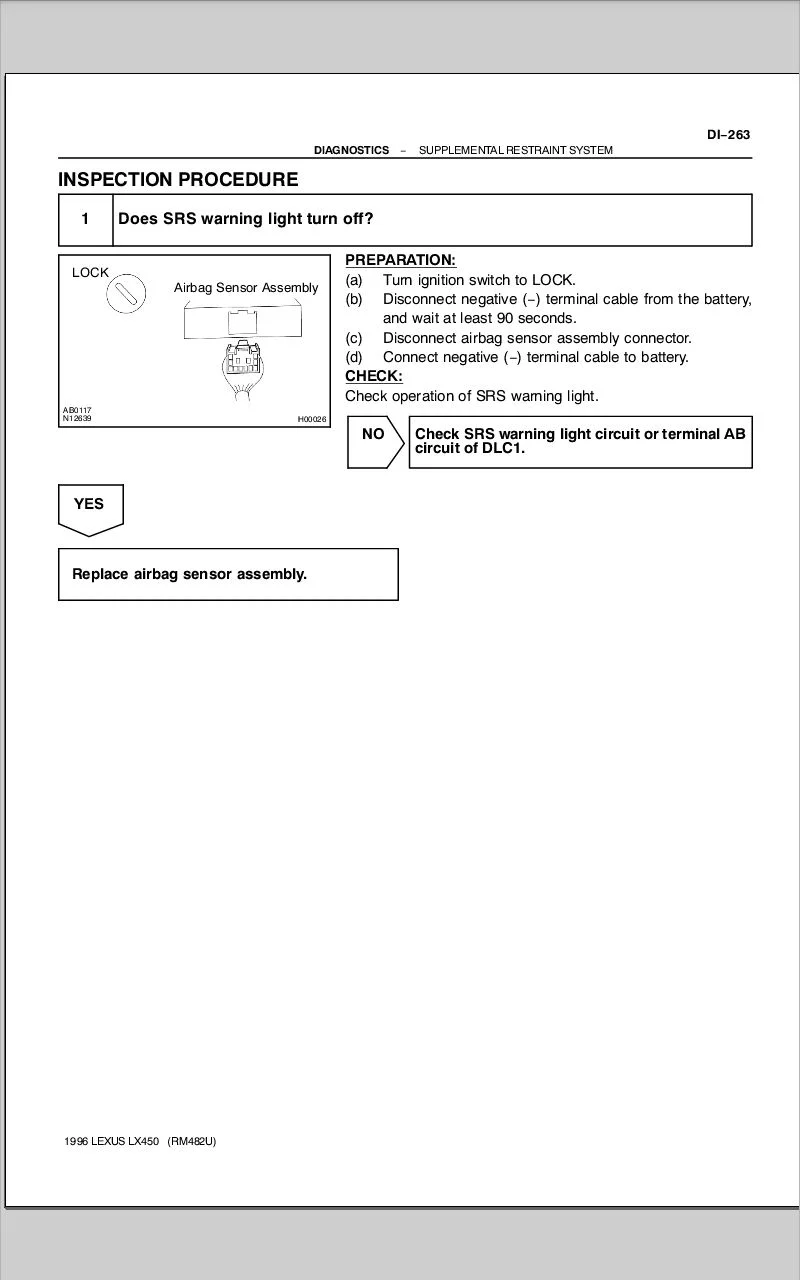

From TIS:



[z00t3ch]

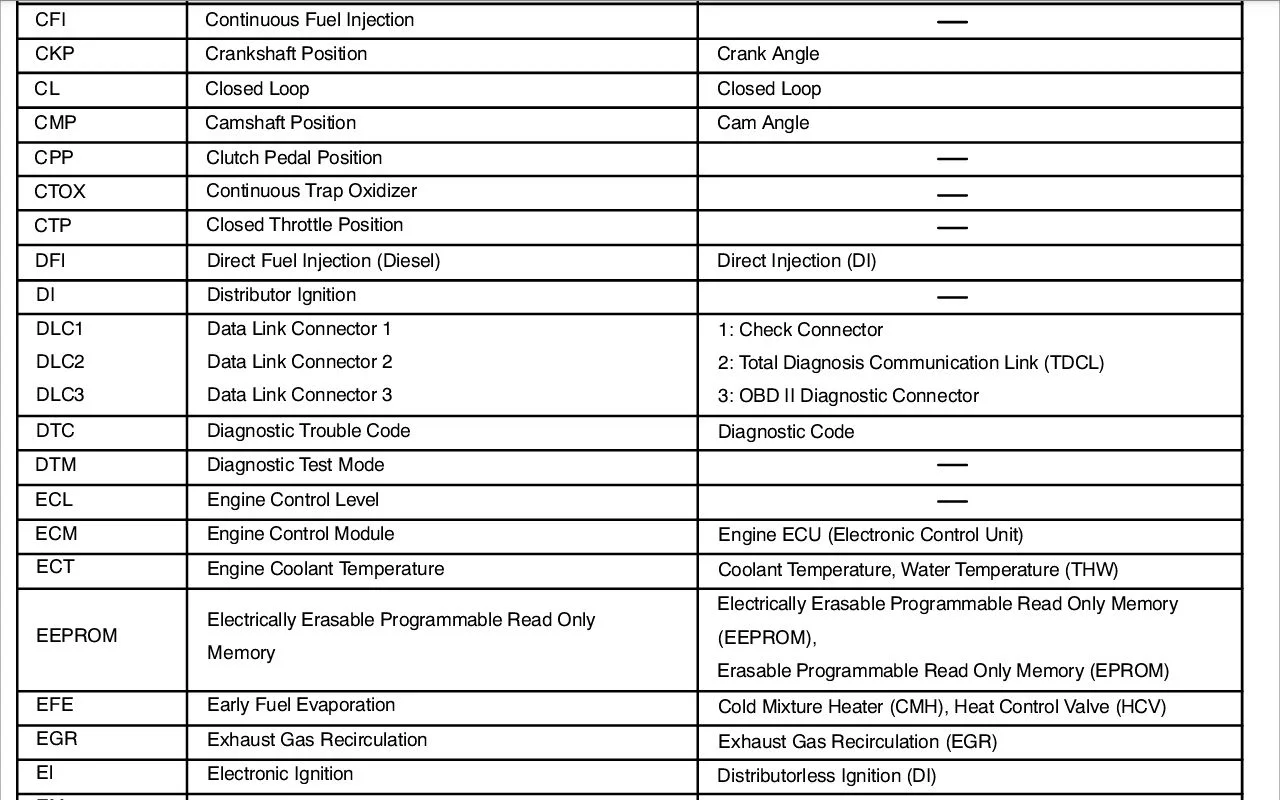

All I could find on the DLC1, it's not the OBDII port, that's DLC3...



[z00t3ch]

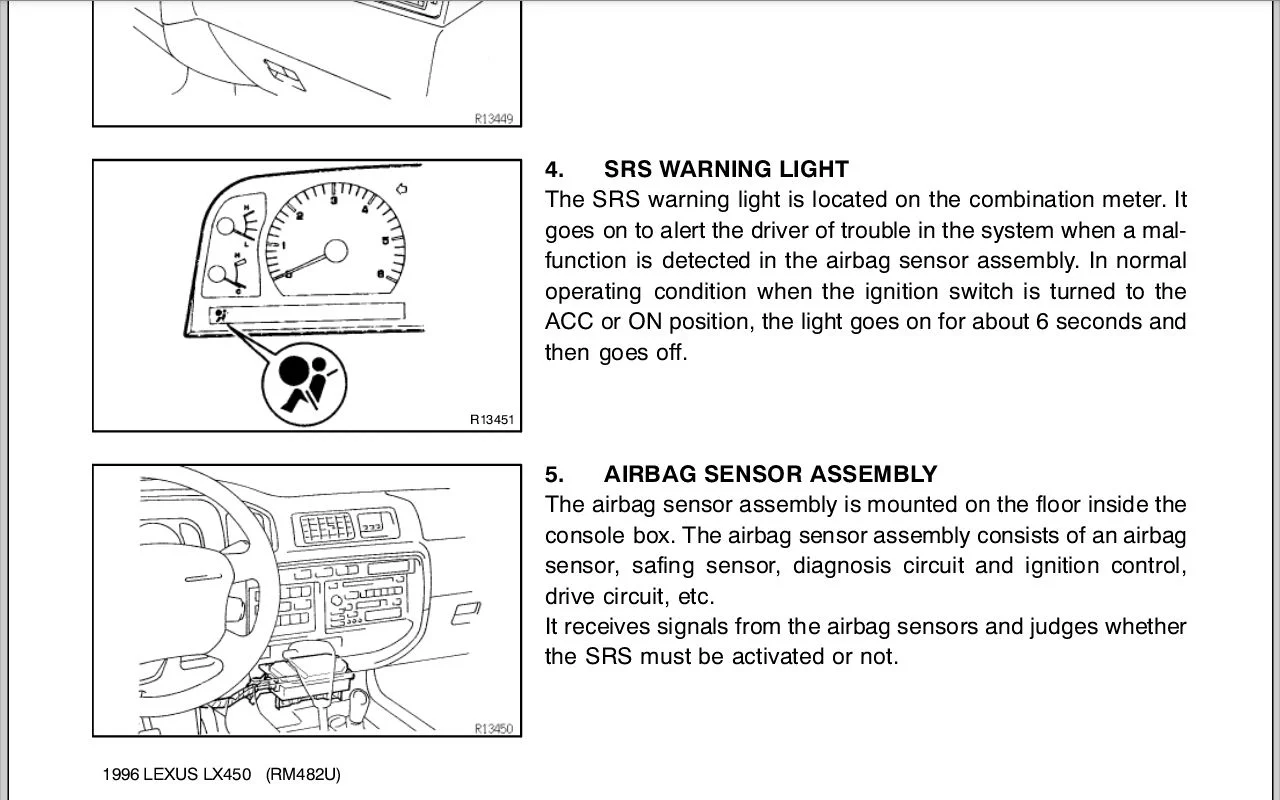

Best guess is the DLC1 is the connector that plugs into the sensor assembly...



[rolliges]

That "clear malfunction code" sequence ((Lock >20sec; ACC >20sec)x5) is news to me and looks easier than the Tc/E1 grounding exercise on the Diagnostic box under the hood.

Lights been on so long I'm surprised at the bulb's longevity.

Anyone had success with the LOCK/ACC technique?
