80 series slider and bumper plans

Joined
Jul 15, 2022
Messages
7
Location
texas
Good evening, I’m new here. I’ve got a 93 that I’m building for hard wheeling. I’d like to know if anyone has any cad files or plans for homemade sliders and rear bumpers for the 80 series. Thanks y’all!

Joined
Feb 7, 2015
Messages
1,014
Location
Eastern Washington
I have not seen any plans but there are plenty of examples of home made bumpers and sliders to look at. I built my rear bumper and sliders from scratch. I'd be happy to help you with measurements and the like if you are interested in what I did. Pictures in the link in my signature.

My front bumper is a kit from Relentless Fabrication that I modified a little. They don't list it on their site anymore but they might do a one off if you contacted them.

Joined
Jul 15, 2022
Messages
7
Location
texas
I have not seen any plans but there are plenty of examples of home made bumpers and sliders to look at. I built my rear bumper and sliders from scratch. I'd be happy to help you with measurements and the like if you are interested in what I did. Pictures in the link in my signature.

My front bumper is a kit from Relentless Fabrication that I modified a little. They don't list it on their site anymore but they might do a one off if you contacted them.
I’m very much interested. I don’t like spending $1k+for something I can definitely build. I just am a little lazy on the planning and design side.

Joined
Jul 15, 2022
Messages
7
Location
texas
I have not seen any plans but there are plenty of examples of home made bumpers and sliders to look at. I built my rear bumper and sliders from scratch. I'd be happy to help you with measurements and the like if you are interested in what I did. Pictures in the link in my signature.

My front bumper is a kit from Relentless Fabrication that I modified a little. They don't list it on their site anymore but they might do a one off if you contacted them.
How do I view your pics? I can’t seem to find them.

Joined
Feb 7, 2015
Messages
1,014
Location
Eastern Washington
How do I view your pics? I can’t seem to find them.
Front bumper is here:


First time I built the rear is here:


Additions to the rear and the sliders are here (they are kinda spread throughout the thread):


Joined
Oct 10, 2019
Messages
621
Location
bozeman montana

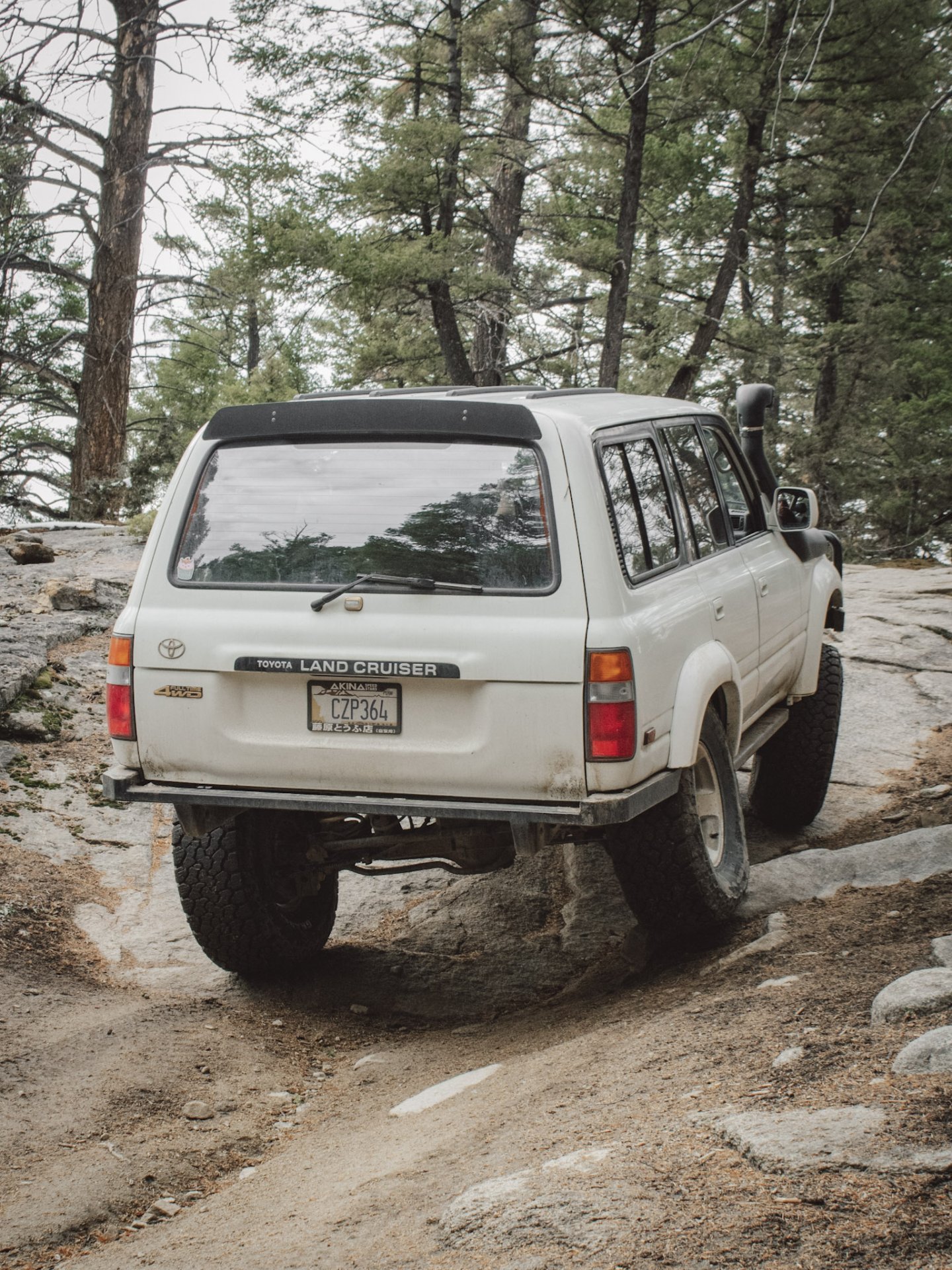

I don’t exactly have any measurements for it but a high clearance rear bumper for 80s is pretty easy. I just did the rear quarter chop, and built the whole bumper out of 1.5”x 3” stock. I cut a hole in each side of the frame, shoved a piece of DOM in it, and did 1/4” sandwich plates for the recovery points. It’s a pretty simple and effective bumper.


Joined
Jul 15, 2022
Messages
7
Location
texas
I don’t exactly have any measurements for it but a high clearance rear bumper for 80s is pretty easy. I just did the rear quarter chop, and built the whole bumper out of 1.5”x 3” stock. I cut a hole in each side of the frame, shoved a piece of DOM in it, and did 1/4” sandwich plates for the recovery points. It’s a pretty simple and effective bumper.

View attachment 3061002
You have any process pics? Closeups etc?

Joined
Feb 7, 2015
Messages
1,014
Location
Eastern Washington
I don’t exactly have any measurements for it but a high clearance rear bumper for 80s is pretty easy. I just did the rear quarter chop, and built the whole bumper out of 1.5”x 3” stock. I cut a hole in each side of the frame, shoved a piece of DOM in it, and did 1/4” sandwich plates for the recovery points. It’s a pretty simple and effective bumper.

View attachment 3061002
Doesn't get much more high clearance than that!

Joined
Oct 10, 2019
Messages
621
Location
bozeman montana
You have any process pics? Closeups etc?
Sorry, I kinda scrambled to get it done so I don’t have any step by steps.

Fun fact. I’d never seen a recovery point done like this so I asked a friend who’s an engineer at Boeing to give me an idea of how strong they would be. He calculated that they’d have a working load of about 10k lbs with a safety factor of 5. Good enough for me!




Last edited:
Joined
Feb 15, 2017
Messages
418
Location
Worland, WY
Sorry, I kinda scrambled to get it done so I don’t have any step by steps.

Fun fact. I’d never seen a recovery point done like this so I asked a friend who’s an engineer at Boeing to give me an idea of how strong they would be. He calculated that they’d have a working load of about 10k lbs with a safety factor of 5. Good enough for me!

View attachment 3062036

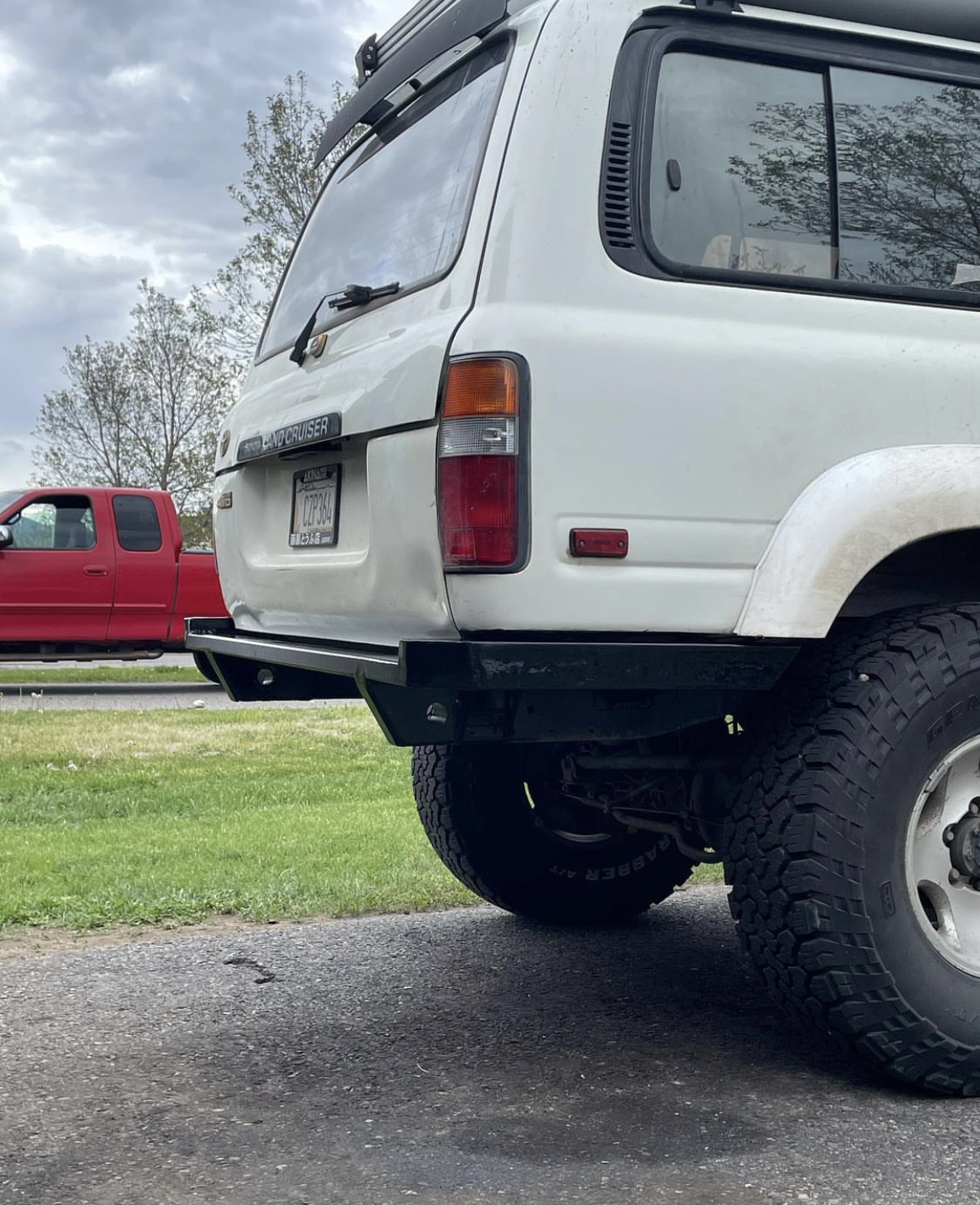

View attachment 3062037
Rust make you have to chop the rockers out like that ? Mine are the same way 😆😞 lol, but I’ll post some pics of the rear bumper that I’m finally making progress on again.
