78 alternator conversion query

Joined
Apr 19, 2022
Messages
15
Location
Cornwall
Hey chaps,

I've been enjoying running my truck this summer over here in the UK after getting the engine running nicely. Only purchased before summer.
However the charging system does not work at all. When I purchased the truck a few months ago, it ran really poor under load. After some digging and new parts, turns out the charging system was kicking out way too many volts and upsetting the ignition system (18v plus)
I simply disconnected the external regulator and that cured the running issue.
So, now I'm onto rectifying the charging system after ignoring it for a while. I firstly swopped out the regulator for a new unit that matched the one on the truck. But made no difference.

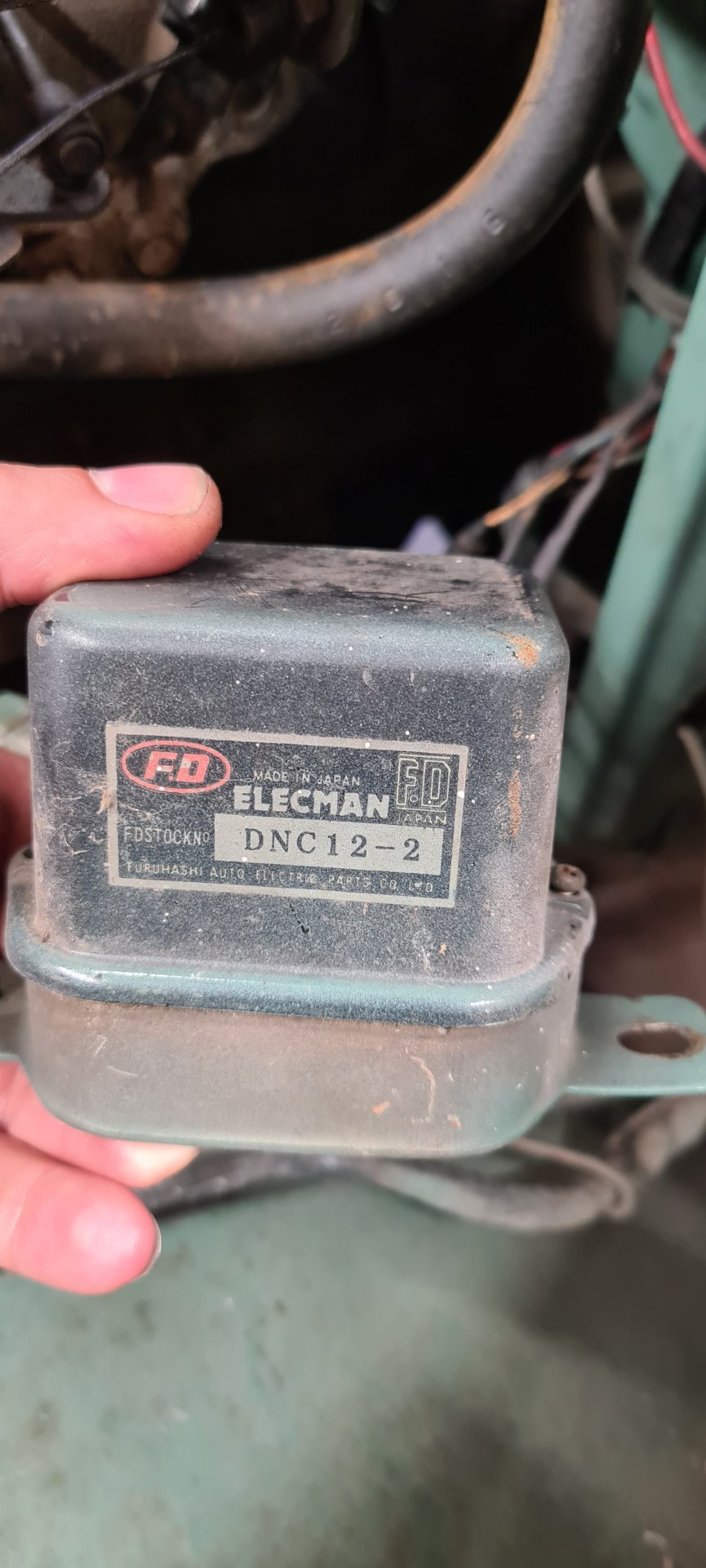

Regulator fitted is a FD ELECMAN 6 wire unit.

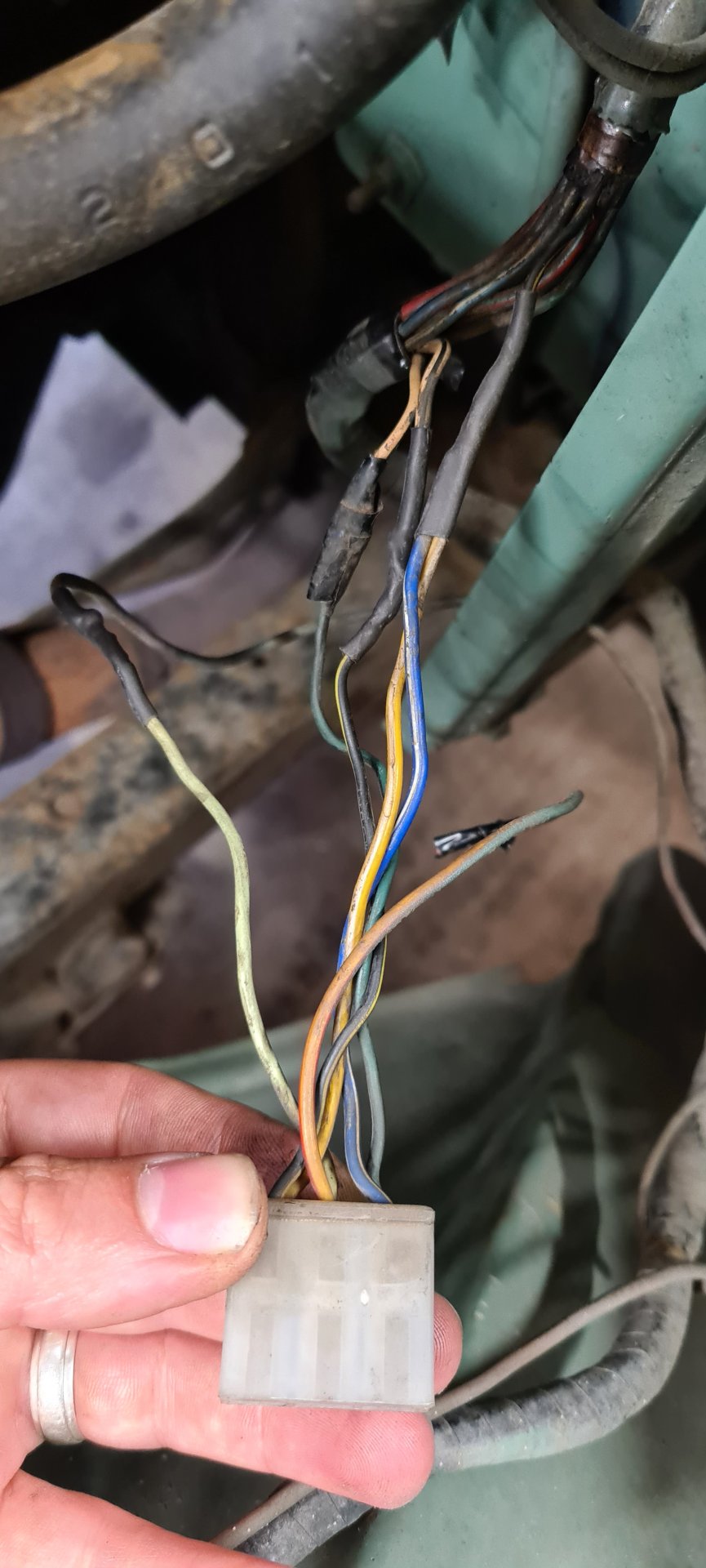

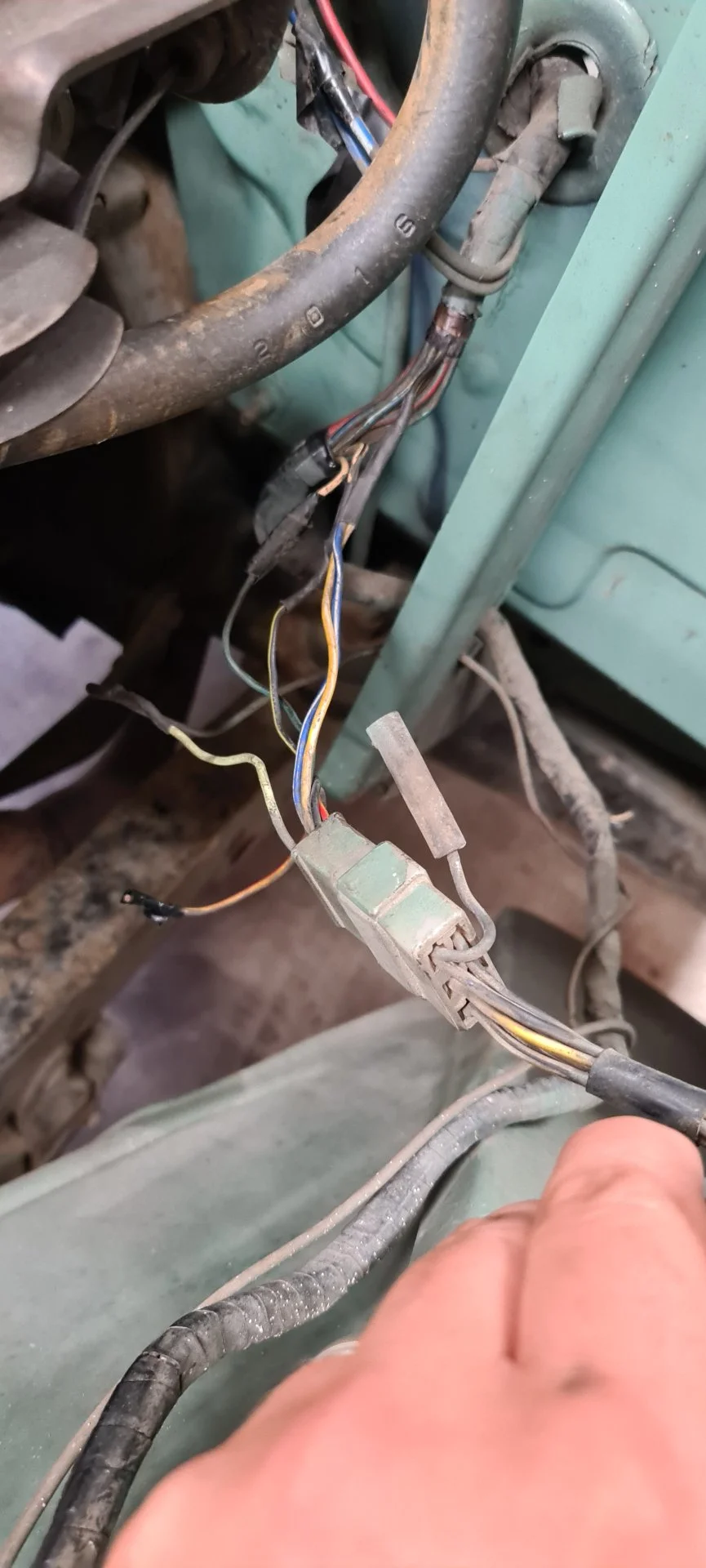

The annoying thing is, the wiring loom has been hacked and chopped. Looks as though someone has tried wiring in a 6pin regulator to a 3pin loom... But there could be some wire wire tucked away in the loom. There are joins everywhere, and looks as though some wires have got very hot. I was going to repair the wiring, and wire in the new regulator properly but I would like to convert to an internal regulator unit.
After lots and lots of research, I think my best route for where I live, is a CS130 unit. And I'll run some new cabling and remove ammeter.
The questions I have for u clever chaps is..... Being this is a rhd model and I'm in the UK with limited off the shelf options, what might be the best alternator to go for? The 10si and 12si seem hard to find over here too. Also Fj60 option seems limited over here. Is there a certain model of cs130 to look for?

I won't need any more than 90amp but obviously I'd rather it was bigger and don't need it than the other way.

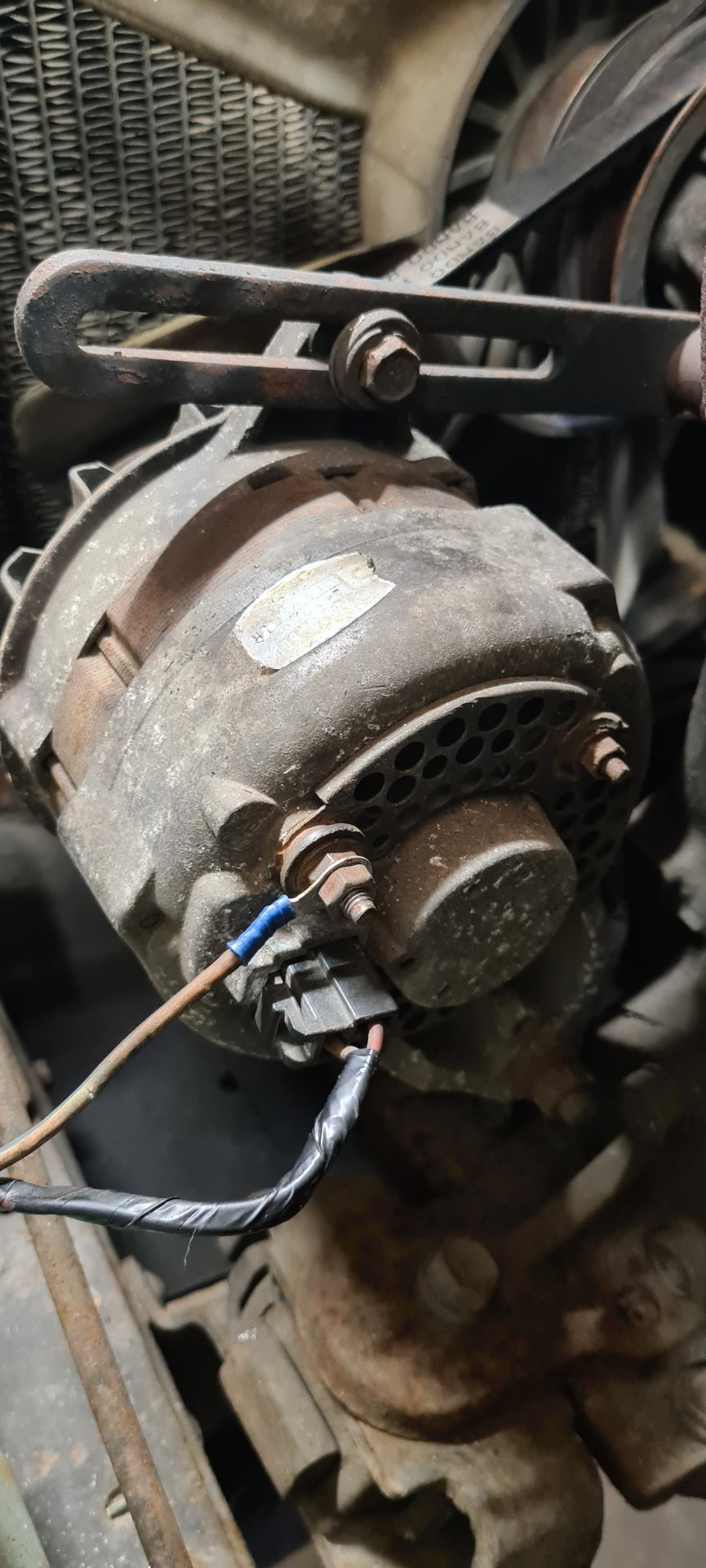

Currently has a Toyota alternator fitted with pn 27020-60070? (unable to confirm last 2 digits but belive to be this)

Any help or other recommendations appreciated, I'll post some pics of my currently layout








Joined
Apr 19, 2022
Messages
15
Location
Cornwall
Thanks for the advise. I'm really hoping for an easy off the shelf option this side of the pond if possible.
Failing that... Finding original fitment VR and putting back to original 3pin setup.

Joined
Jan 17, 2005
Messages
6,264
Location
Southern Colorado
My 7/78 FJ40 has a 6 pin regulator connector. Those regulators are dirt cheap through Toyota (like $28 USD for a reman). Somewhere in 1977/78 is when Toyota switched from the 3 pin to the 6 pin regulator. Obviously, someone has monkeyed with your wiring along the way. You might want to consult some factory wiring diagrams for your truck to determine what you originally had.

You could also install a so-called 'GM 1 wire' alternator, which I used on my '65 FJ45. I wired it through the dashboard ammeter and then back to the battery, and it self-excites when you start the truck. Very simple to use and plenty of amps: Amazon product. I bought mine from NAPA (US parts chain store) and they are sold by various hot-rod shops. In this case, you'd ditch your factory regulator and the alternator does it all.

Joined
Apr 19, 2022
Messages
15
Location
Cornwall
Thanks chaps,

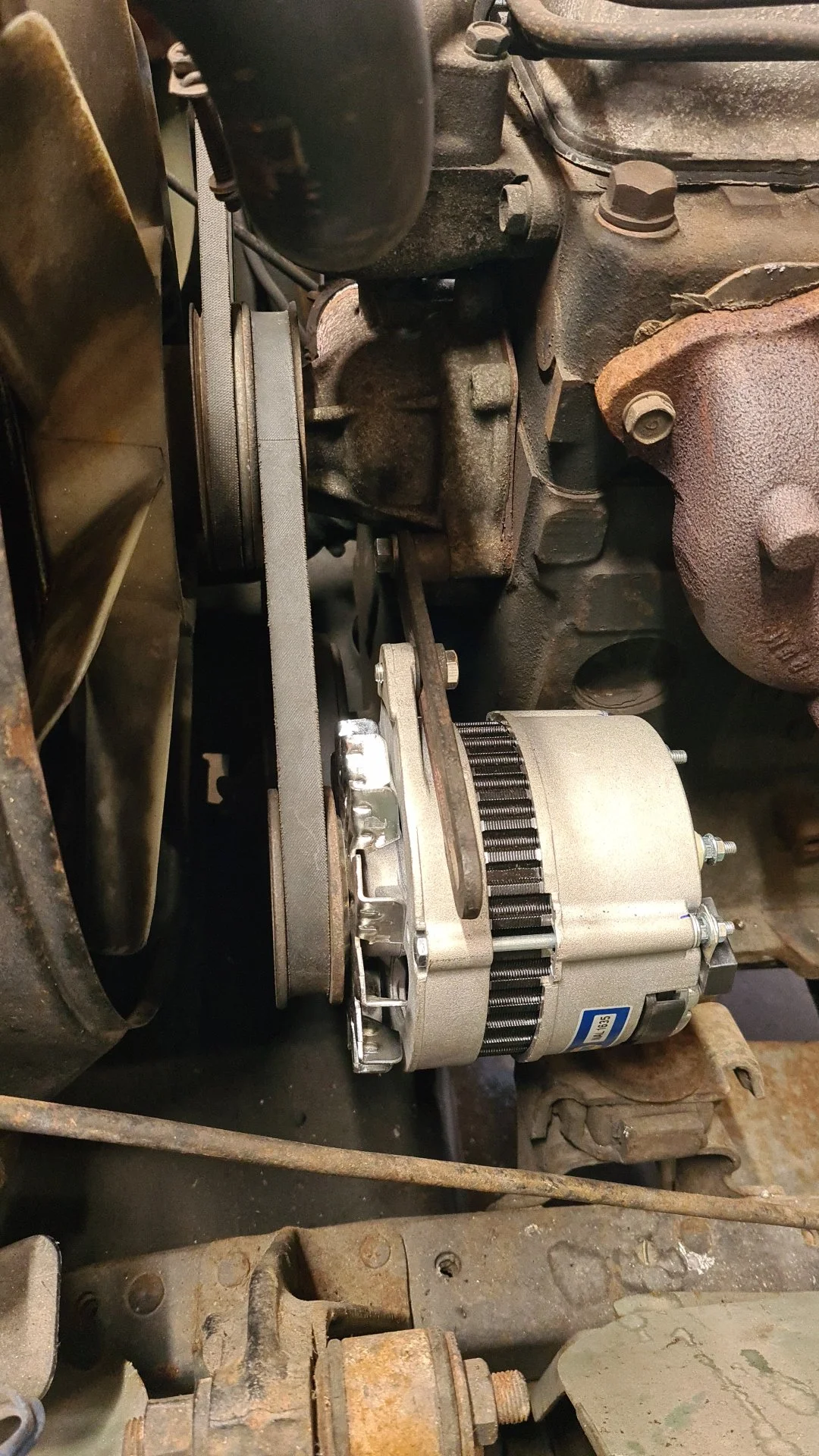

I've actually gone with my a completely different option. It's a napa unit based on a lucus A127 75amp alternator. Off the shelf in the UK for £60 and mounts up with minimal mods....
Today's job is uprating all the wiring!
Adding warning lamp also.. Will post up results.



ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
21,735
Location
EAST COAST
Website
vintageteqparts.com
Hey chaps,

I've been enjoying running my truck this summer over here in the UK after getting the engine running nicely. Only purchased before summer.
However the charging system does not work at all. When I purchased the truck a few months ago, it ran really poor under load. After some digging and new parts, turns out the charging system was kicking out way too many volts and upsetting the ignition system (18v plus)
I simply disconnected the external regulator and that cured the running issue.
So, now I'm onto rectifying the charging system after ignoring it for a while. I firstly swopped out the regulator for a new unit that matched the one on the truck. But made no difference.
Regulator fitted is a FD ELECMAN 6 wire unit.
The annoying thing is, the wiring loom has been hacked and chopped. Looks as though someone has tried wiring in a 6pin regulator to a 3pin loom... But there could be some wire wire tucked away in the loom. There are joins everywhere, and looks as though some wires have got very hot. I was going to repair the wiring, and wire in the new regulator properly but I would like to convert to an internal regulator unit.
After lots and lots of research, I think my best route for where I live, is a CS130 unit. And I'll run some new cabling and remove ammeter.
The questions I have for u clever chaps is..... Being this is a rhd model and I'm in the UK with limited off the shelf options, what might be the best alternator to go for? The 10si and 12si seem hard to find over here too. Also Fj60 option seems limited over here. Is there a certain model of cs130 to look for?

I won't need any more than 90amp but obviously I'd rather it was bigger and don't need it than the other way.
Currently has a Toyota alternator fitted with pn 27020-60070? (unable to confirm last 2 digits but belive to be this)

Any help or other recommendations appreciated, I'll post some pics of my currently layout

View attachment 3068437

View attachment 3068438

View attachment 3068439

View attachment 3068440



- your old JAPAN original NipponDenso unit was a 27020-60070 12V / 35A

- your NEW CHINA lucus unit A127 is 12V / 75amp

- where are you going to put the EXTRA 12V / 45V you now will have ?

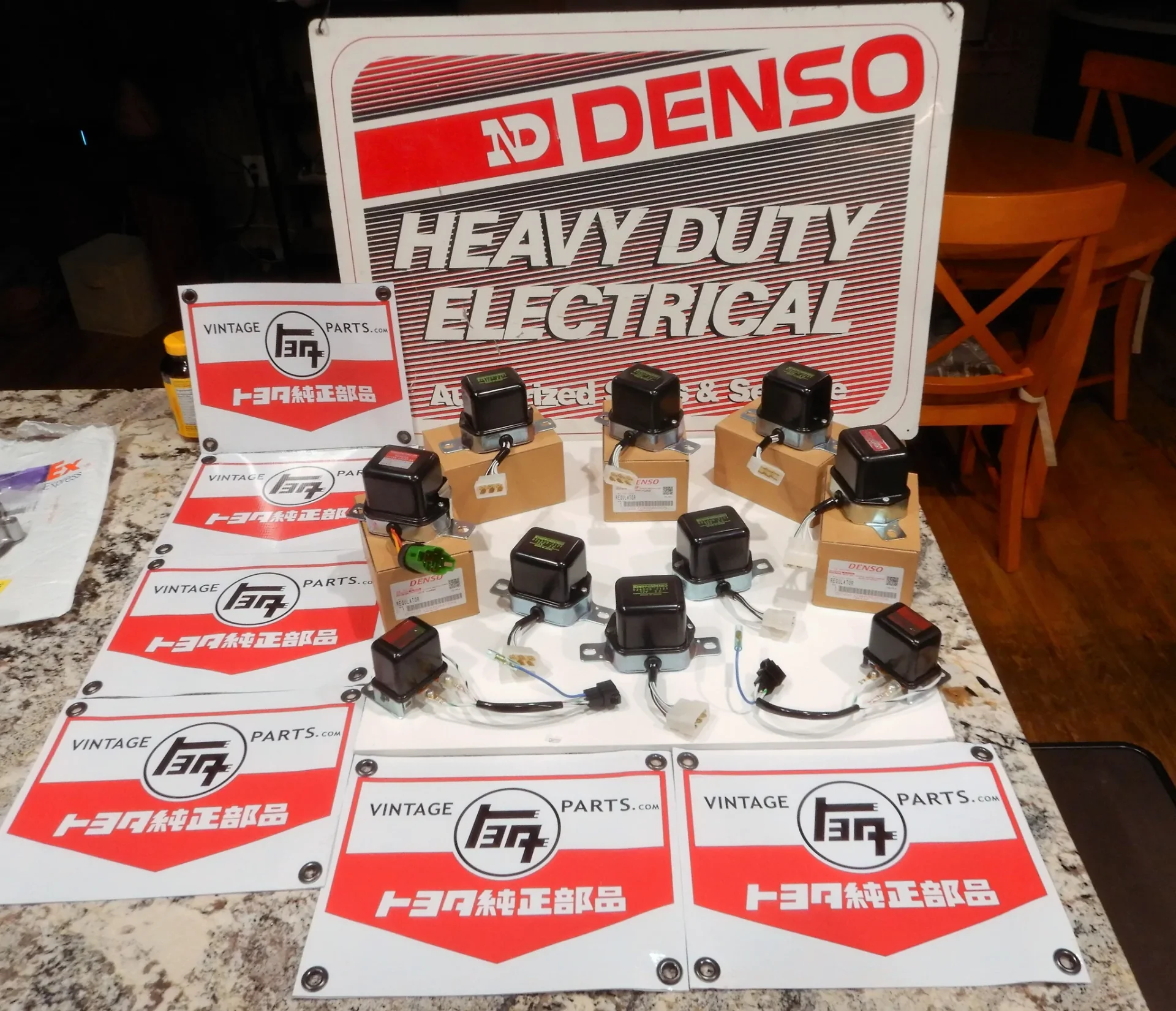

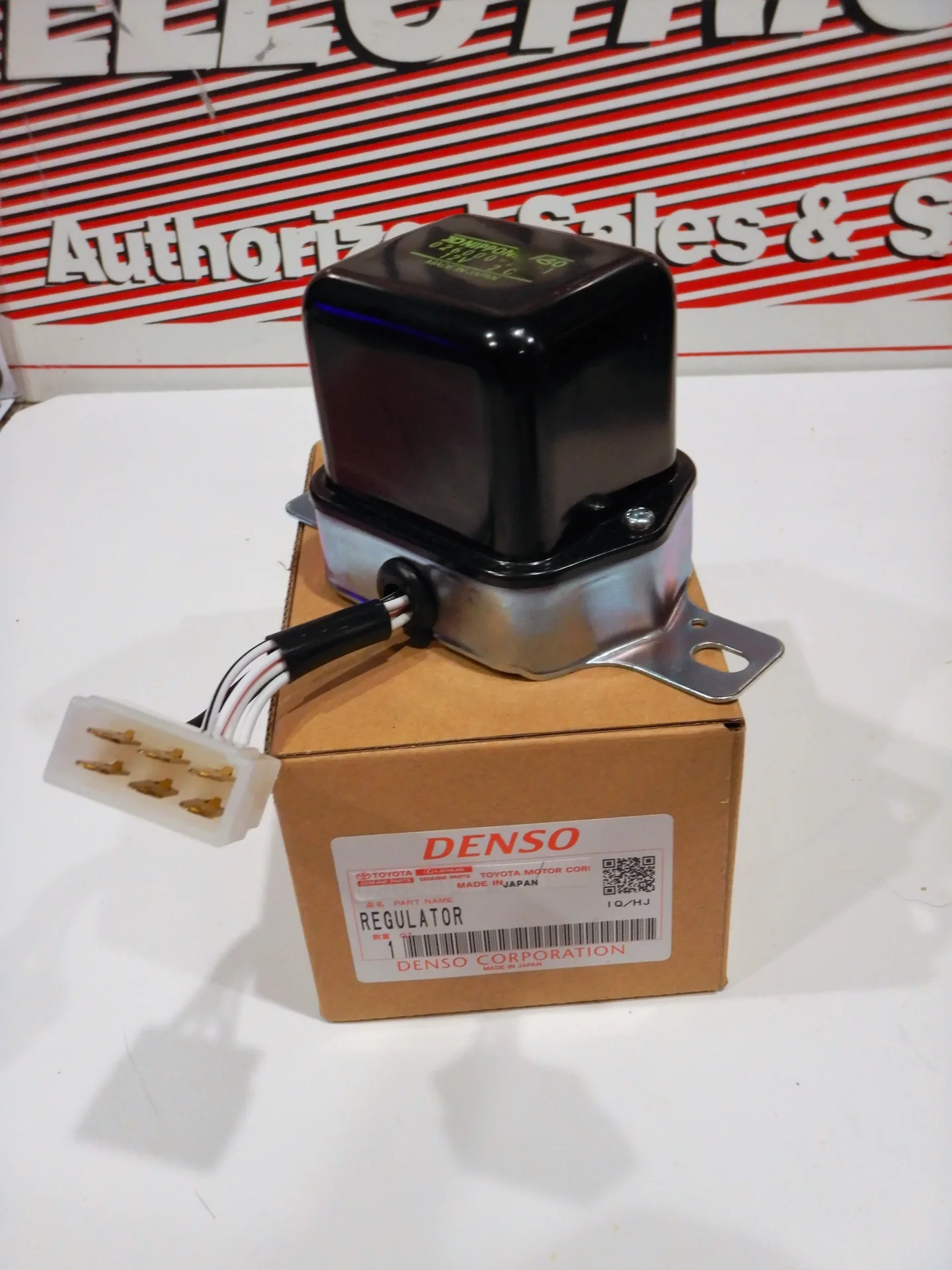

- here is the genuine JAPAN NipponDenso Voltage Regulator you need / 6 WIRE and will support up to a 90A unit ...........






















denso 1.jpg







22248_contents4 - Copy.gif

Joined
Apr 19, 2022
Messages
15
Location
Cornwall
This is internally regulated alternator. I'm deleting the external regulator.
Extra amps will be for the accessories I'll be adding
