72 Brake master cylinder rebuild rubber plug questions. (1 Viewer)

[mccaleb77]

I am needing some clarification. Below is a snapshot of the rubber plugs that insert into the spring. To me it looks like they go into the body of the Master Cylinder, however when I pulled apart the BMC I bought used, the plug was against the "bolt" side, not inserting into the cylinder first. It's been a long time since I've rebuilt one and want to make sure I do it right the first time. Any input/advice is more than welcome.

Thanks,

Mike



[Pighead]

Is those the residual valves?



[mccaleb77]

Is those the residual valves?

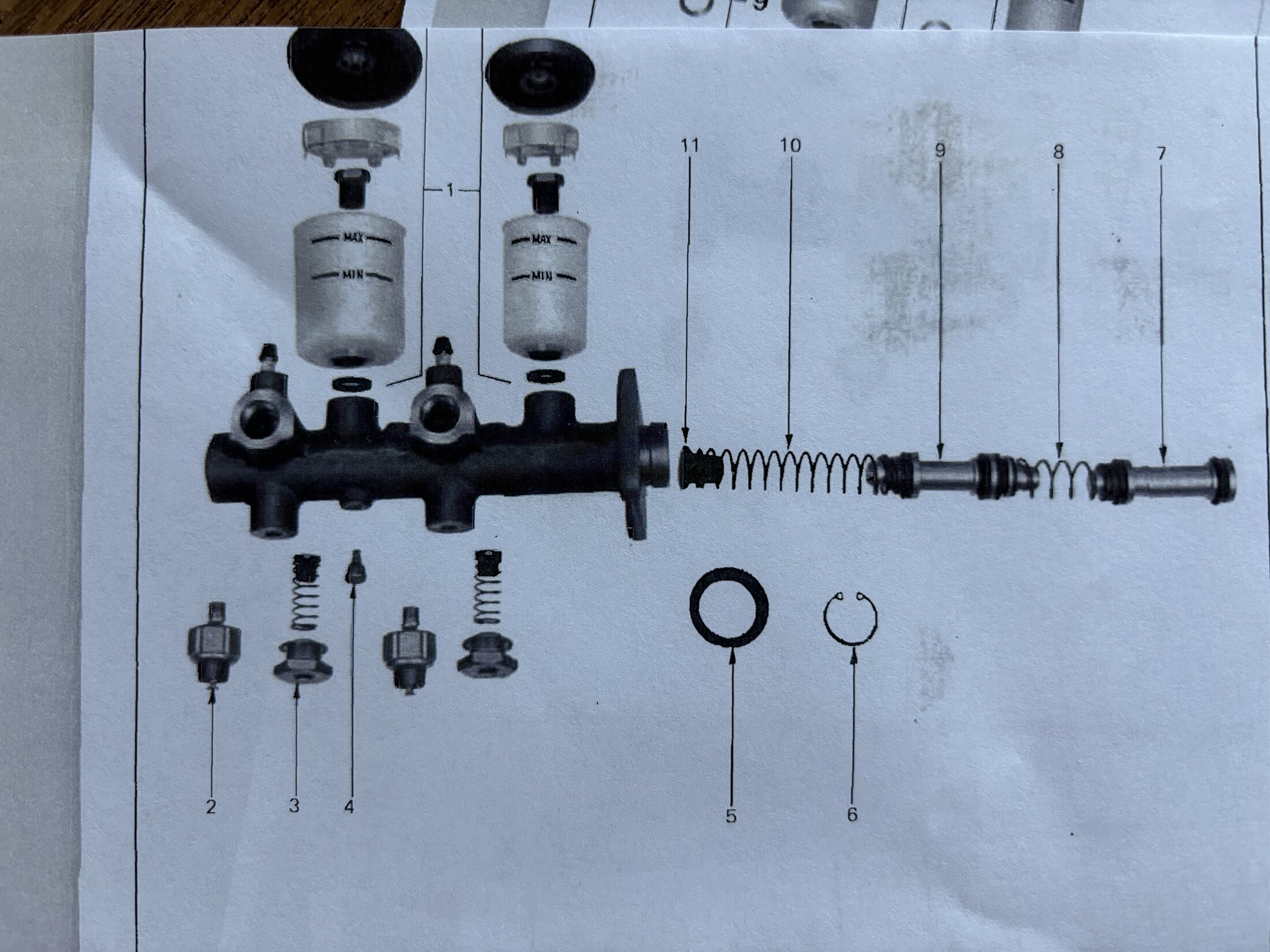

That seems like the appropriate name for them but the calls them plugs. I just finished assembling it. I put the plugs in first because it makes sense to me - in order for there to pressure in the lines. Below is the full image from the manual.



[charliemeyer007]

1958-1/90 FJ40, FJ45, FJ55, FJ60 and FJ62 Land Cruiser Brake Master Cylinder and Rebuild Kits - Specter Off-Road

Toyota Land Cruiser parts since 1983. From the oldest FJ25 and to the newest Land Cruiser, Non USA or domestic 40 Series, 60 Series 80 Series or 100 Series, SOR has the largest selection of top quality new and used OEM and aftermarket Land Cruiser parts in stock in the world. Specializing in...

www.sor.com

Used parts - could have been "monkeyed with"



[mccaleb77]

1958-1/90 FJ40, FJ45, FJ55, FJ60 and FJ62 Land Cruiser Brake Master Cylinder and Rebuild Kits - Specter Off-Road

Toyota Land Cruiser parts since 1983. From the oldest FJ25 and to the newest Land Cruiser, Non USA or domestic 40 Series, 60 Series 80 Series or 100 Series, SOR has the largest selection of top quality new and used OEM and aftermarket Land Cruiser parts in stock in the world. Specializing in...

www.sor.com

Used parts - could have been "monkeyed with"

Thanks. The FSM diagram certainly is deceiving. I’ll switch the location of the plug.
