I've posted bit and pieces of this process in some threads, but since I've finally got to a significant stopping point I'm going to compile a write-up of my install. This was done in little steps over a span of 5 months.

Posting to provide some ideas for those wanting to go a similar route.
Also, being totally honest its nice to show off your work:p


The Goals:
  1. Achieve great audio quality
  2. Use used components where possible
  3. No drilling big holes or cutting/splicing


I purchased a used Alpine ILX-207 from eBay, surprisingly it was made in Japan, so I am happy to have kept with the theme of a quality Japanese vehicle.
It has 4volt pre-outs, car play, nine band EQ, and FLAC capabilities. all boxes ticked.

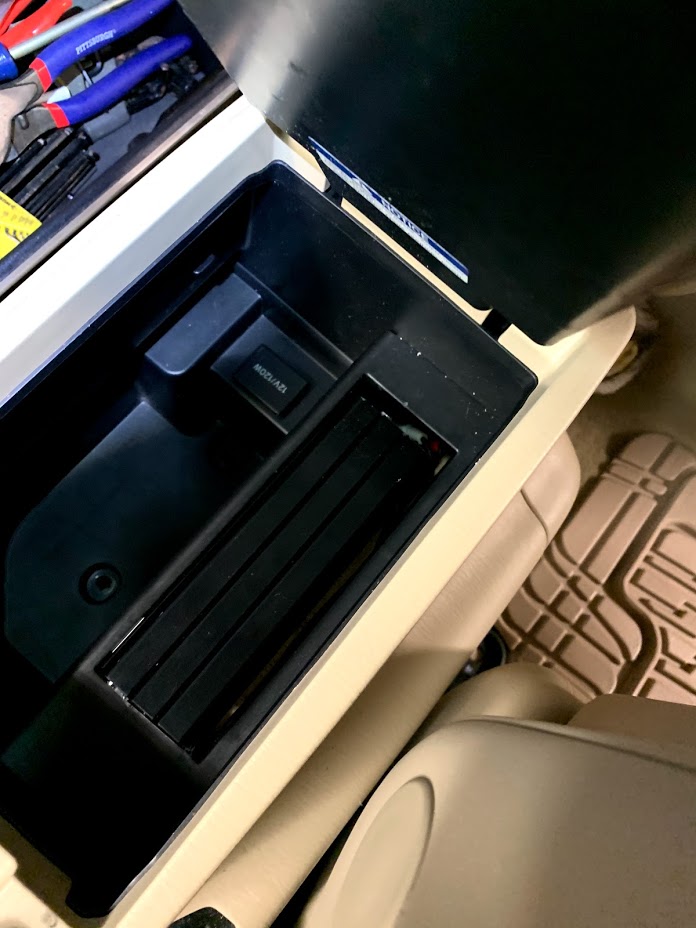

The plan was to put an amp underneath the driver seat and passenger, but I quickly discovered the heater blower under the driver's seat. So I ordered an Alpine MRV-M500 which has a small footprint and I planned to install it in place of the CD Changer.
Door speakers are Boston Acoustic ProSeries 5.4LF and 6.4LF
Subwoofers are 2 x Boston Acoustics 10.5LF
I would say these mid-90s speakers were considered the best of their time and are amazing today.

I decided the factory unit was insufficient for my needs, the nav was dated and the sooner I acted the easier it would be to get non-nav conversion parts.

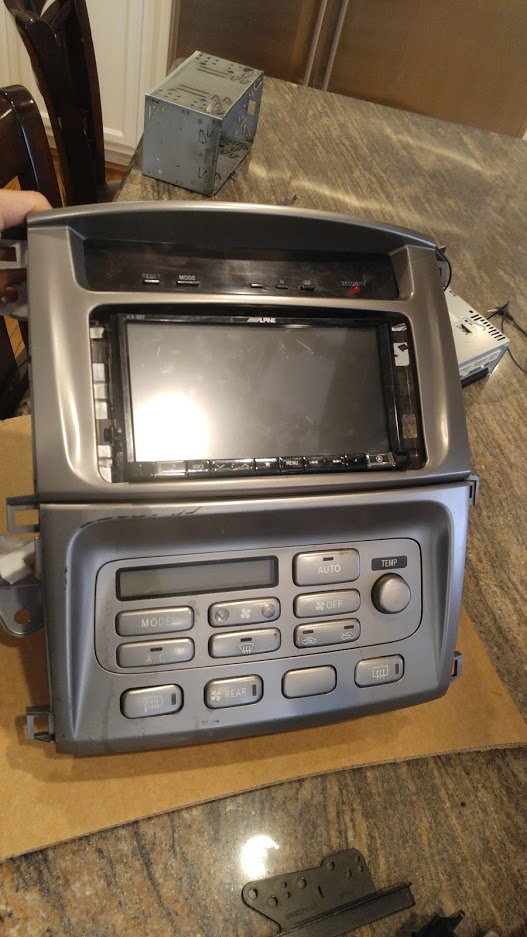

The AC controls and clock from a wrecked Aussie 100 series were sourced and shipped to the US. I would have been able to do exactly zero percent of this process if it were not for @jerryb's knowledge and his thread. The specifics of the conversion are all over there.

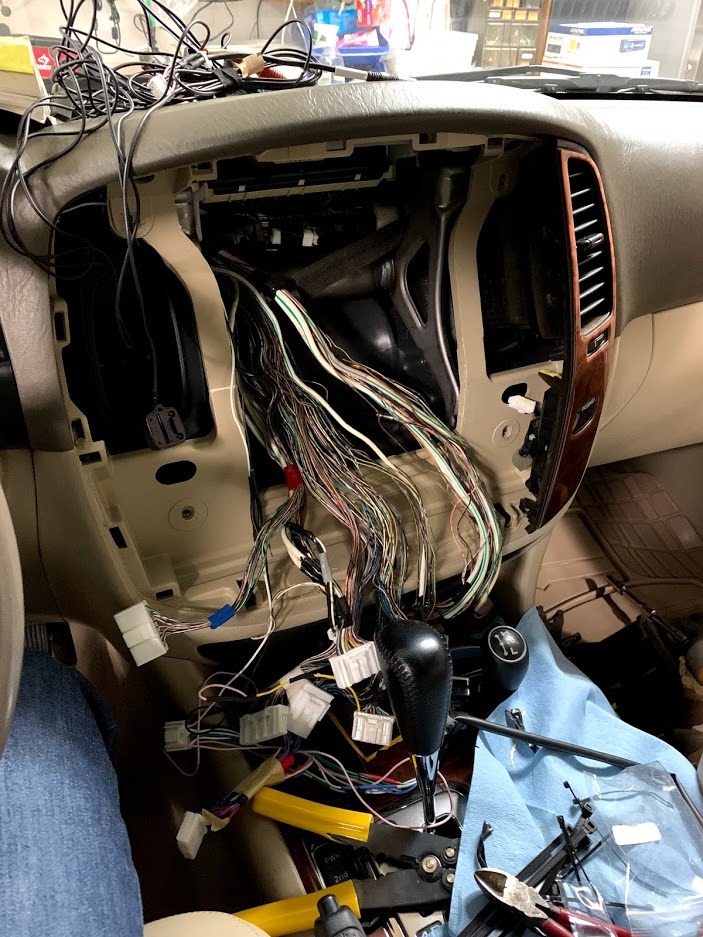

Interior pulled

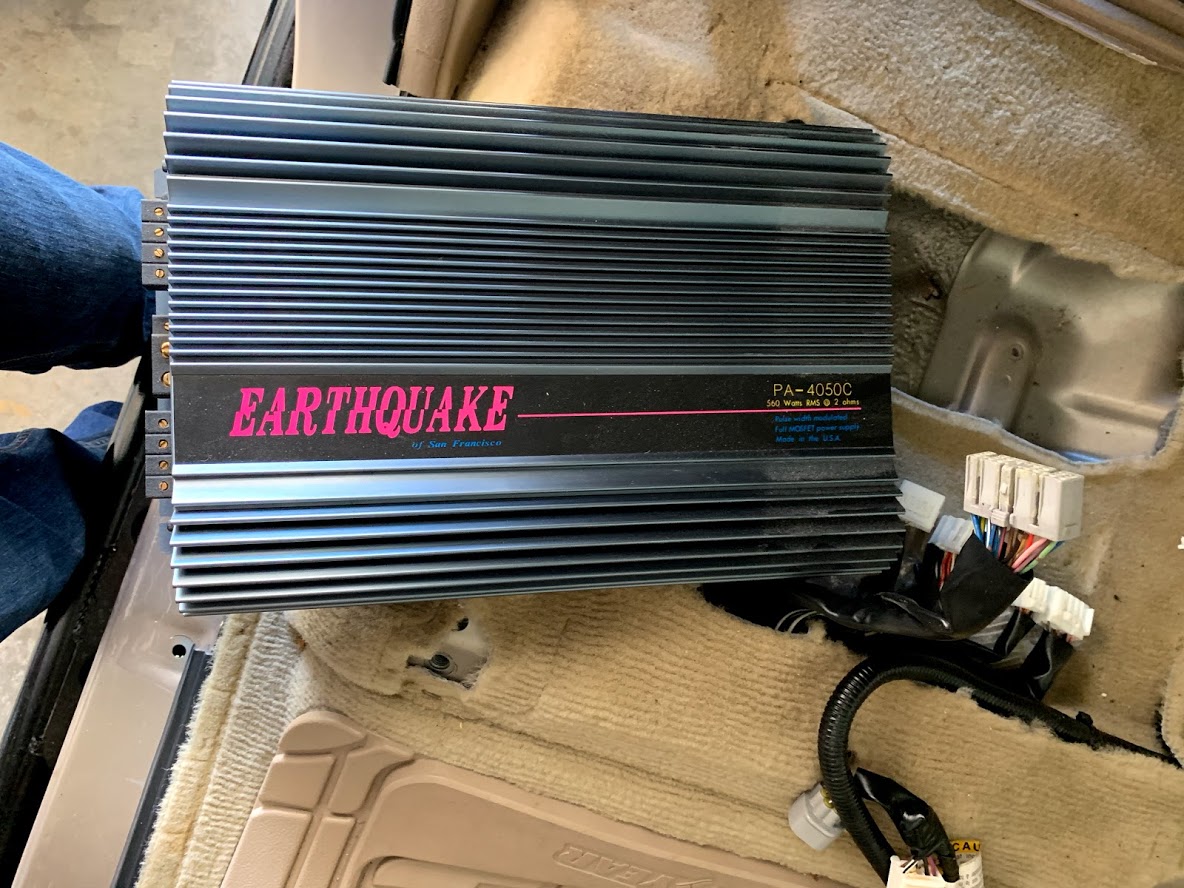

The amp for the front and rear speakers is an Earthquake PA-4050C, from eBay. It is made in the USA, Class AB and is conservatively rated for 90watts per channel @ 4ohms.

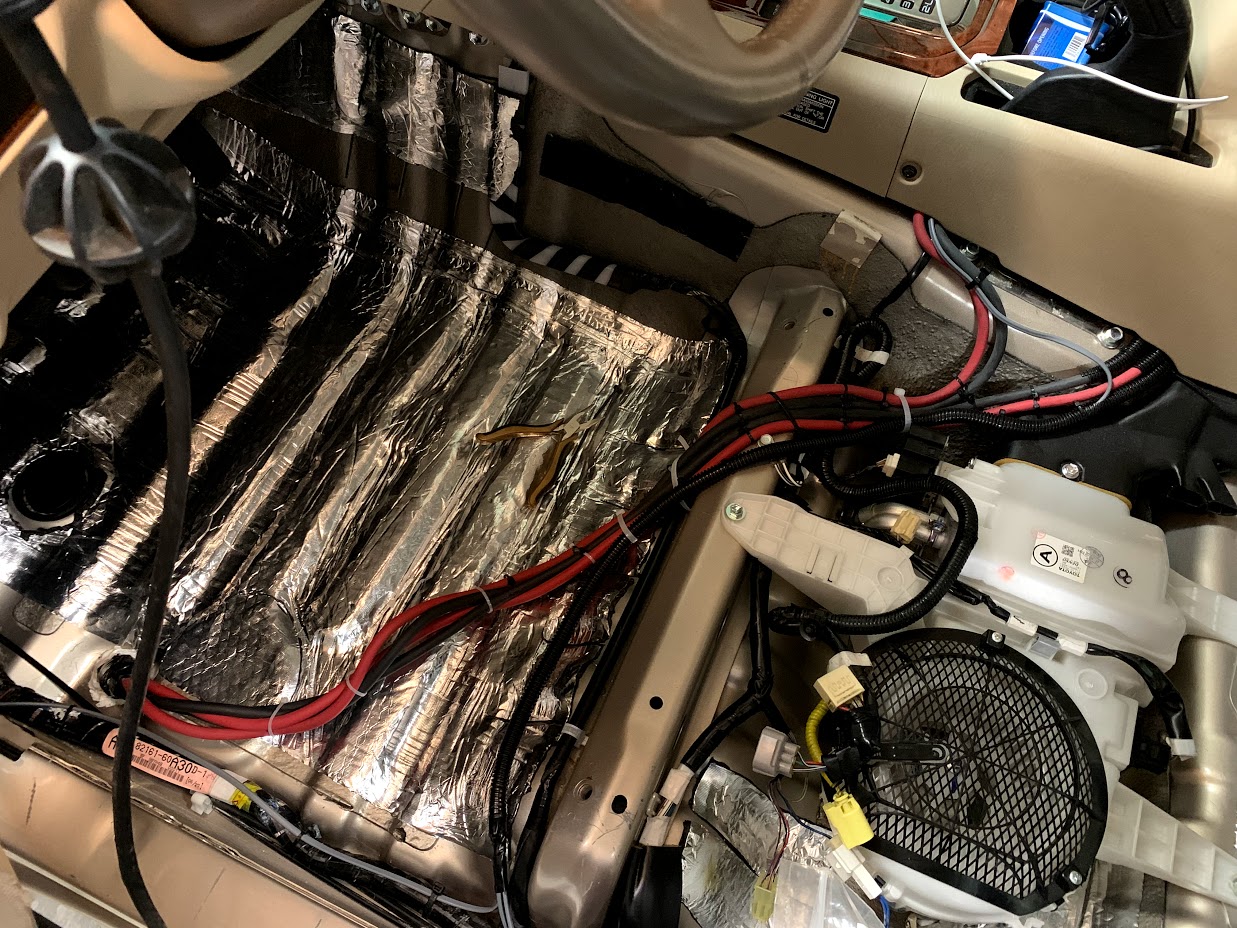

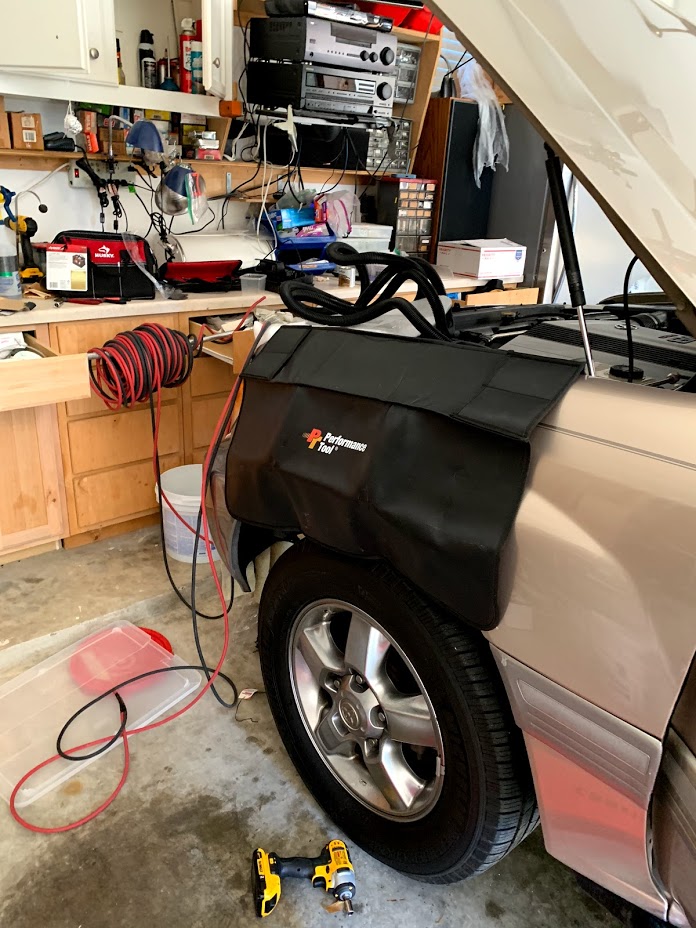

4 Gauge amp power wire was run from the battery, under the firewall and in through the driver's side drain plug, sealed with some silicone. All the wires were in split loom that had a non-adhesive vinyl wrap. Light metal brackets hold the loom in place.

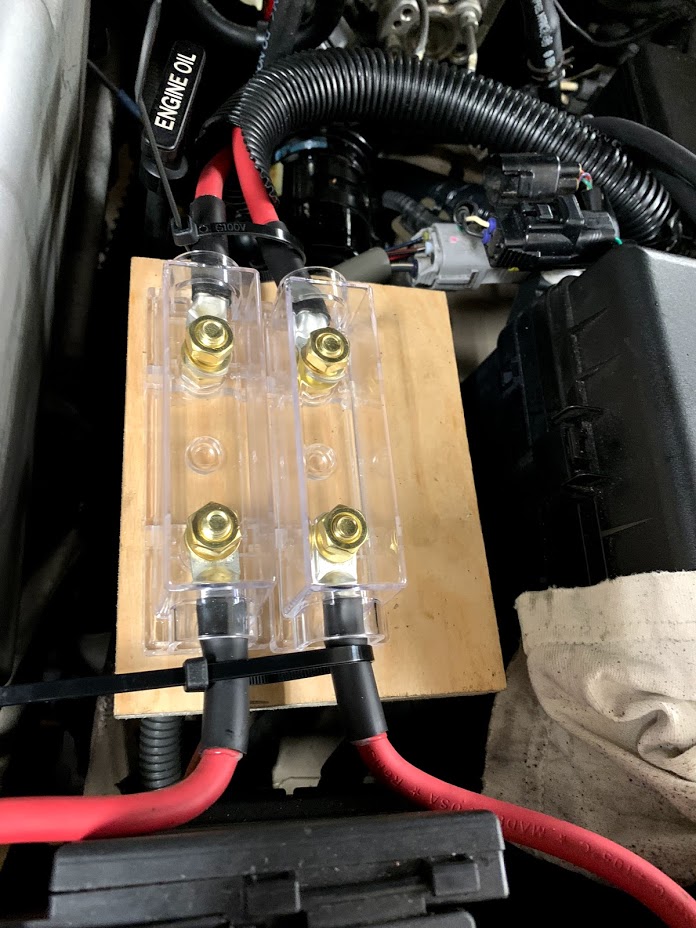

A fuse holder was prototyped using plywood, soon to be placed by ABS. Lugs were crimped and heat-shrinked

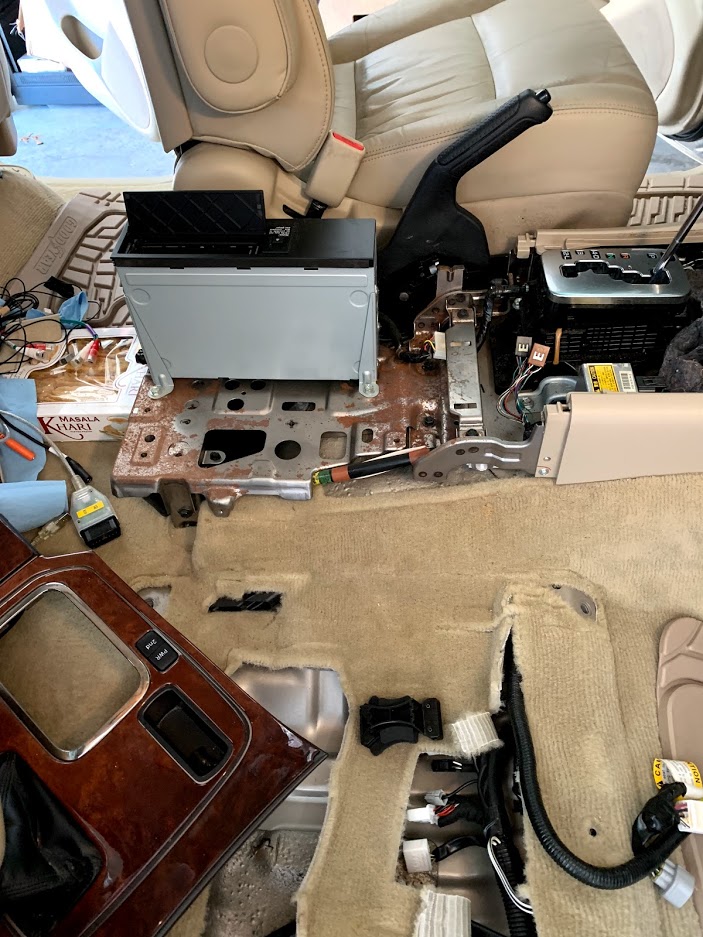

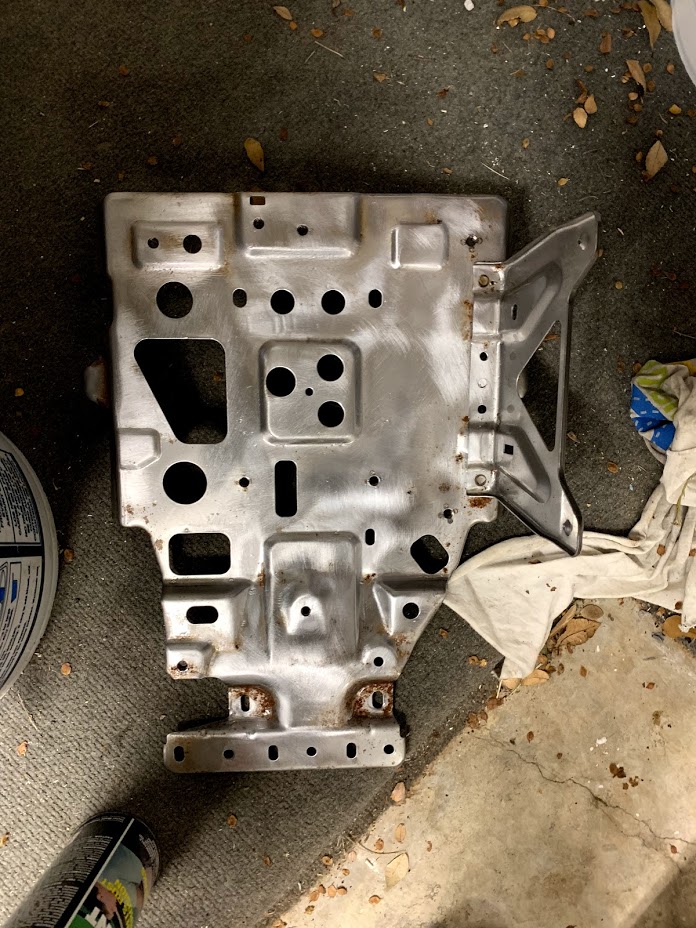

Couldn't resist cleaning the center console mounting bracket, so I wire-wheeled it and applied silicone. It could never rust enough to become a problem during the life of the vehicle(that's why they aren't painted from the factory), just was an eye-sore.

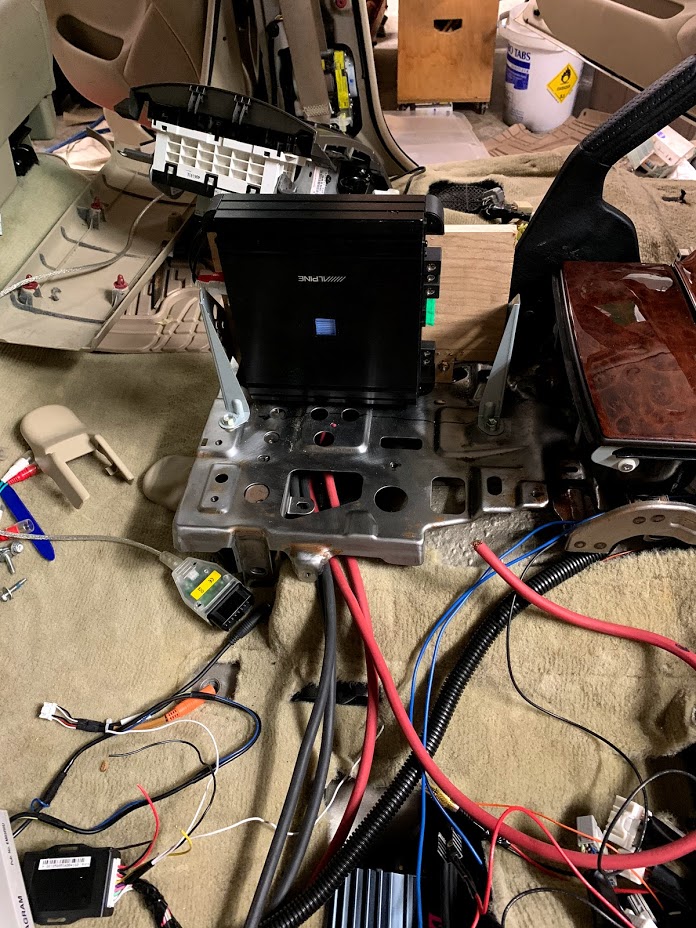

A piece of 1/2 plywood mounted the Alpine amp to the cd changer brackets.



I ran all new speaker wires and wired the head unit in using a metra 70-8113 for antenna and power/ground
Metra 70-8114 allows the use of the factory steering wheel controls in conjunction with the ASWC-1
The factory backup camera was retained. Details are in the non-nav conversion thread.




I ran the RCAs and amp remote trigger down the center console from the head unit. No need to go behind the glove box.
Here is a picture showing the amp mounted with a little bracket and standoff and the sound deadening sheets.

Now, onto the speakers.
In the very back, I built a subwoofer enclosure from 3/4 plywood.


For each door I created custom mounting plates from 3/4 plywood. The thin aluminum shields will hopefully prevent any water dripping onto the voice coils.

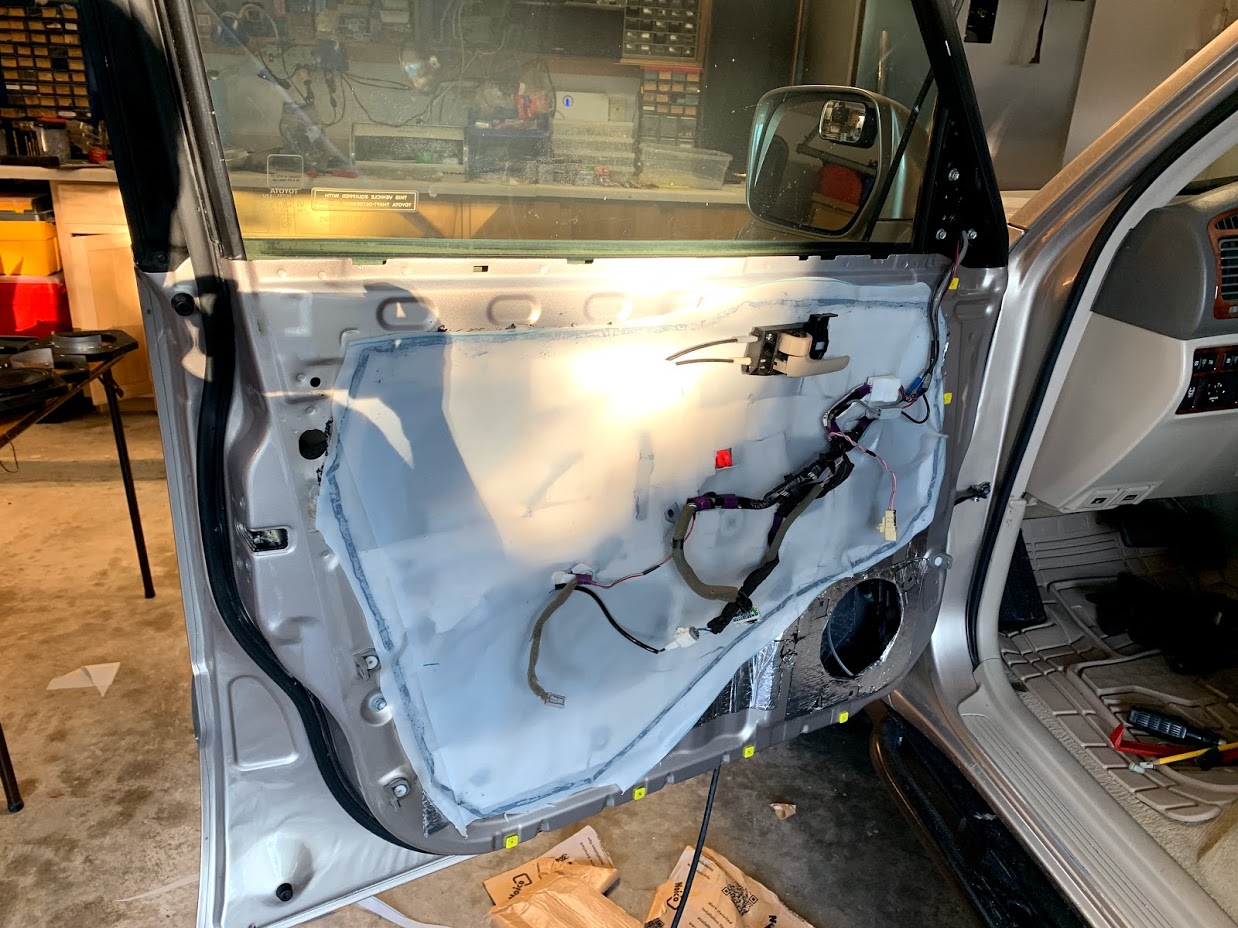

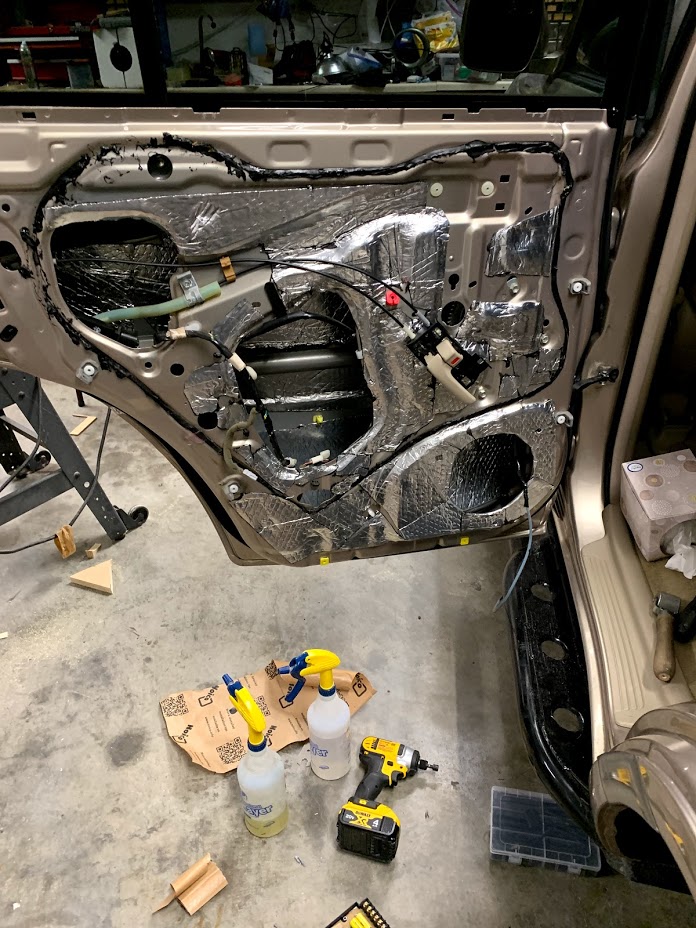

I deadened each door inside and out and installed the speakers. The crossovers fit nicely behind the door panel, differently for front and rear though.
In the rear door, the speaker mounting plate incorporates a tweeter mount. the driver's side door needed a new vapor seal. The tweeters mount in custom made pods(see the last pic).



The Land Cruiser is a quiet, smooth vehicle from the factory. This makes it deserving of a quality sound system. The result of all this effort is a fantastic audio experience.

Very nice work! Having just gone through this, I appreciate what you've done even more. The sound deadening is a great improvement. I'd like to do this at some point in the future.

Lol @ boston acoustics being top notch 90s equipment. Phoenix gold and rockford fosgate high on your list too?

No dynaudio no care



Jk good job

Lol @ boston acoustics being top notch 90s equipment. Phoenix gold and rockford fosgate high on your list too?

No dynaudio no care

Jk good job
Perhaps I was a little liberal in my praise for Boston proseries:p
but at over 20 years old I would say they hold themselves well against the newest stuff in value.

It would be awesome to have esotars or a 3 way dynaudio system. But as I said in my post saving money was an objective.

Something like this would be a dream build.

That radiator standoff for a breaker idea is great. I'm off to home depot.


Great install man! I love all the components you used. those Boston acoustic speakers still perform awesomely even with all the new and more expensive stuff out now. Is that earthquake a class a/b...unless your particular a class d might be a bit less draw on your electrical. Food for though if your amp ever starts acting up.

Imo unless your going active and really piecing together door setups in a super closed environment there’s not going to be much audible difference in a marginally treated door from a older higher end set of components to some Uber expensive set that is available today.

A few things for anyone that’s thinking something like this
- that cd changer mount is a great location for amp placement. Regular amp tuning access is not optimal though so a good hu is a must...or a dsp(Dayton makes a 150$ performer)
- replacing the plastic speaker rings in the doors with wood is a must. It will allow you to support and use a heavier larger driver (and give you some additional mounting depth). Use the plastic as a template
- i everyone wants to use 500 yards of dynamite in their install but in the door spear locations some closed cell foam will also help keep the midbass in your vehicle. Go buy a 5$ yoga mat at Ross, cut circles a bit bigger then the opening of the door cavity and spray glue that circle on top of the dynamite to the inside door cavity where the speaker will go into.
- for those with existing suspension and gear, remember that a plywood enclosure/subs and potentially a rear battery also adds constant weight to your rear load.
-also for a sub enclosure is you put those rear seats up and aim for a box width for right in between them(I think it’s around 35”) and adjust your box height depth accordingly, you can have it firing if the the back for optimum throw, place your ports optimally, put stuff on top of the enclosure when you travel, and have room in front of the enclosure.

Appreciate the words.
I liked the AB because I feel like maybe it’s cleaner than a comparably priced class D but maybe that s all snake oil. Got it for a good price and it’s yet to have a problem even under a seat with little moving air.
The alpine amp can be tuned by removing the console cup holder assembly(2-4 clips). I drilled holes in the bracket to allow access to the little knobs.

35 inches is correct.

Appreciate the words.
I liked the AB because I feel like maybe it’s cleaner than a comparably priced class D but maybe that s all snake oil. Got it for a good price and it’s yet to have a problem even under a seat with little moving air.
The alpine amp can be tuned by removing the console cup holder assembly(2-4 clips). I drilled holes in the bracket to allow access to the little knobs.

35 inches is correct.
Yeah I wouldn’t write it off as snake oil but i mean it’s a Landcruiser not a Bentley. I have access through that cup holder too but as you know it’s just not fun for regular tuning and tinkering.

Njck22, Great write up, thanks.

One quick ?, I have an 04LC with the changer in the center console, making room for a ham radio. I use a bluetooth hookup and stream everything I listen to, Podcasts, music, etc.

Any issues with just deleting the changer? Remove the center console then unbolt and unplug? Leaving everything else in place?

Thanks again.
M

Njck22, Great write up, thanks.

One quick ?, I have an 04LC with the changer in the center console, making room for a ham radio. I use a bluetooth hookup and stream everything I listen to, Podcasts, music, etc.

Any issues with just deleting the changer? Remove the center console then unbolt and unplug? Leaving everything else in place?

Thanks again.
M
Yes, console comes out and the changer will remain bolted down with 4 10mm bolts. Remove them, disconnect the connecter and you’re good.

Thanks for sharing and nice work. I was more of an Infinity Reference Series guy in the 90's but had my fair share of Kenwood...Alpine..Rockford...

Tripper

Yes, console comes out and the changer will remain bolted down with 4 10mm bolts. Remove them, disconnect the connecter and you’re good.
Awesome, thanks
