SOLD WI FJ40 Roll Bar

[miller]

Location

United States

$325.

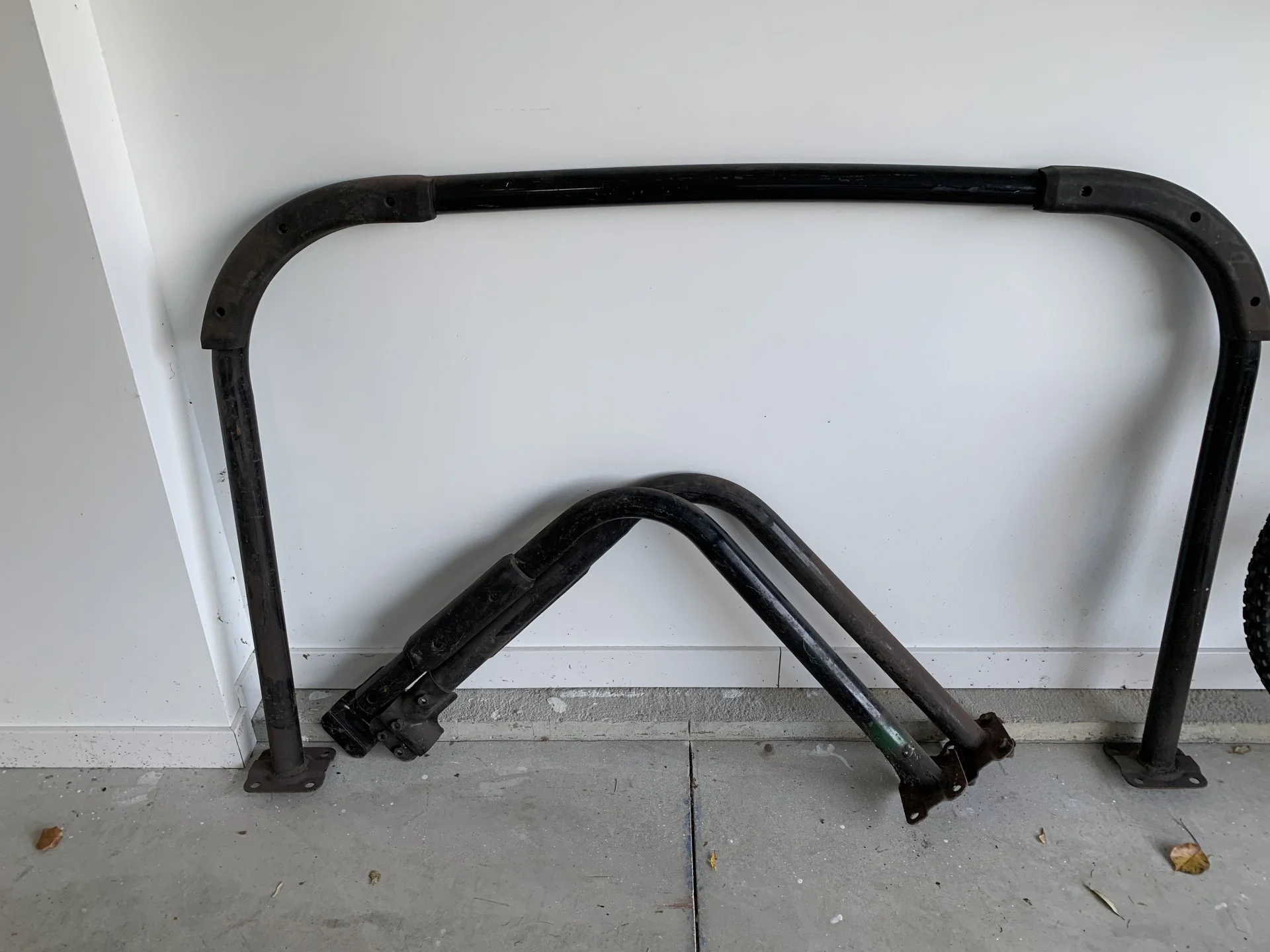

Roll Bar with pads. The brackets that secure each side are missing. I will drop off at a fastenal location if shipping is desired.



[Baja73]

$325. View attachment 2884531Roll Bar with pads. The brackets that secure each side are missing. I will drop off at a fastenal location if shipping is desired.

I have the parts you are missing. We can work it out or the person who buys the bar can contact me to work it out. Let me know.



[miller]

I have the parts you are missing. We can work it out or the person who buys the bar can contact me to work it out. Let me know.

Thanks how much for two pieces?



[4Cruisers]

What year FJ40 is the roll bar from? The design changed in 1977 to accommodate the kick-out vent windows and again in 1978 (?) to accommodate the bracket for the front seat belt retracting mechanism.



[miller]

Not sure it came with the 70 I bought. How do I tell?



[BreckenridgeCruiser]

The main hoop doesn't have the seat belt provision so it's probably pre 78.



[4Cruisers]

In looking at the photo, I don't see seat belt mounting brackets on the main section of the roll bar. The way to tell between a '77 roll bar and earlier roll bars is the radius of the bend on the two rear sections. The '77 roll bar has a smaller radius, approximately six inches.



[miller]

Ttt



[Living in the Past]

The main hoop doesn't have the seat belt provision so it's probably pre 78.

In looking at the photo, I don't see seat belt mounting brackets on the main section of the roll bar. The way to tell between a '77 roll bar and earlier roll bars is the radius of the bend on the two rear sections. The '77 roll bar has a smaller radius, approximately six inches.

8/76 start of the 77 is when the radius changed to allow excess to the handle to open the vent window that started at the same time. Interesting Amayama only shows one part number up to 2/78 for the side bars even with the radius change. But does a change 2/78. Same with the bracket used to connect the sides to to the main bar. Would have to check be I believe 2/78 there is a change to support the top of the three point seat. That because that is when the bracket was added at the base of the main bar.
Obviously the bracket for the seat belt started mid 78 model (2/78).



[BreckenridgeCruiser]

I think there is also a center bolt through the clamps on the later roll bars... My main hoop with seat belt provision also has a through hole where the support bars clamp on. I think there is a bolt supposed to go through there?



[Camotubebender]

PM sent



[miller]

Bump. I also now have side brackets so it is complete.



[greenseaman]

Pm sent
