Perused many threads on disabling the EGR, pretty straightforward, but seems my EGR Temp Sensor is not where it's supposed to be?

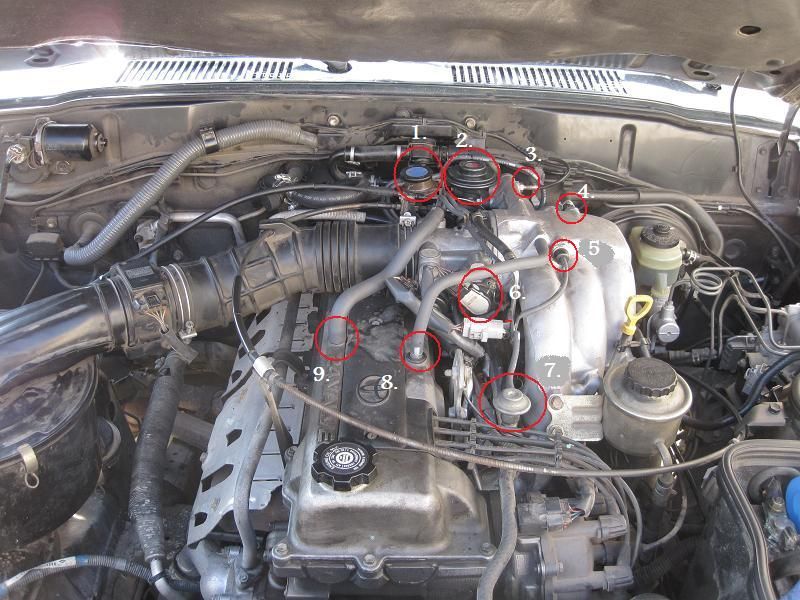

According to cahill's thread, PO401 and EGR/air intake manifold with pictures it is #3 in this photo:

And here is mine:

Should be where my finger is pointing, or am I losin' it?

And just to double check, aren't these the vac lines to loop/cap in order to disable?

Thanks for the help guys!



[bigredmachine]

the temp sensor is in the egr, it looks like a small o2 sensor and has a 2 wire connector on it, should be #3.

also looks like you have a bit of a coolant leak, might need new clamps



[TerraNerva]

Rear heater bypass is on the list. Seems the temp sensor is hidden under the EGR valve in pre-95's.



[bigredmachine]

ya sensor is on the back side of the valve. lucky you that you have an obd1 truck so you can just disable the egr system and not worry about it



[bigredmachine]

Who has deleted EGR on 1FZFE?

deleting the egr on obd 1 trucks will not cause a check engine light if you jump the harness for the temp sensor



[tech_dog]

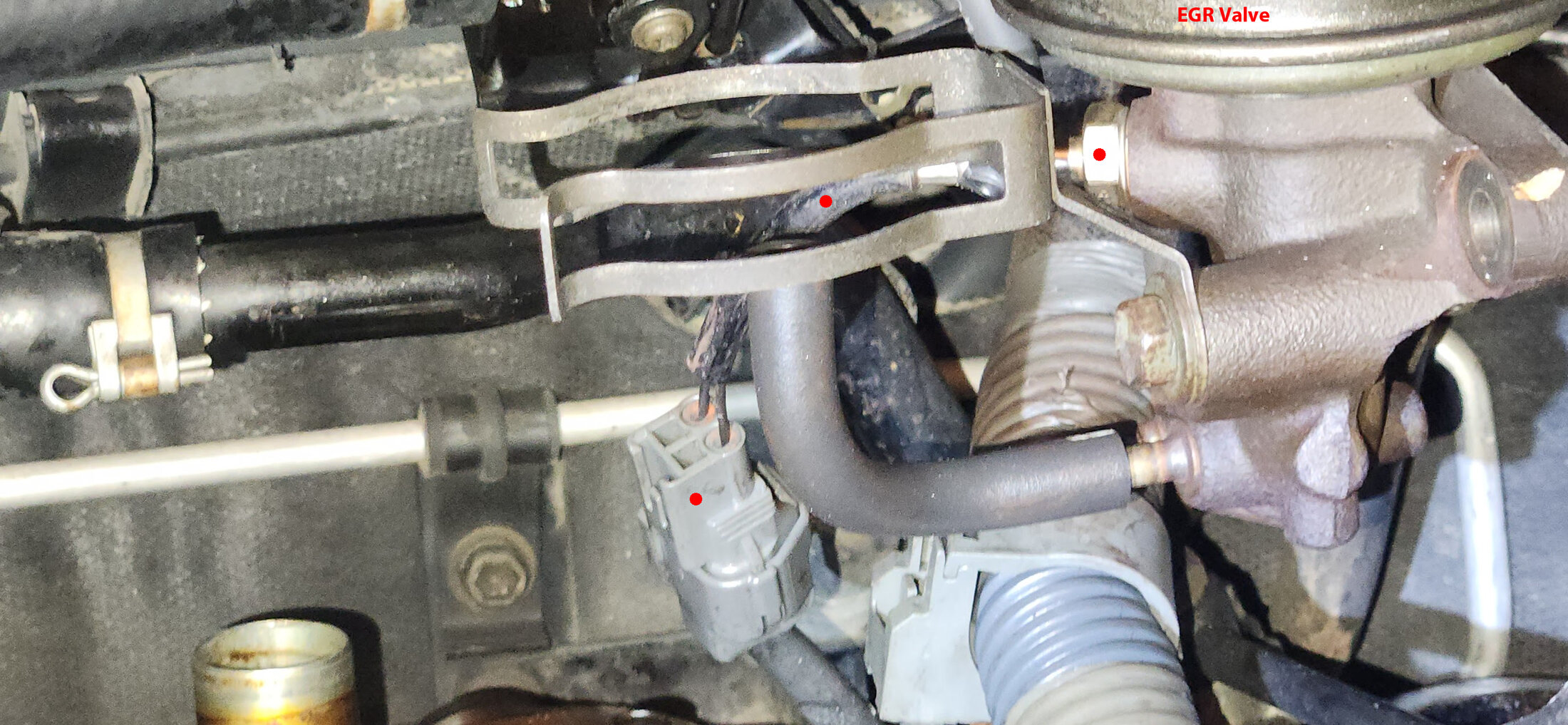

Here's a decent shot of the EGR Temp Sensor (89412-50010) on a December 1994 California FZJ80, with the plug, wire, and actual sensor marked with red. I've never seen a diagram that shows it like this.
