I've owned Ftoy #5 since 2006. I did not build it originally but at this point I've gone through everything on it. I'm building another buggy that fits my style of wheeling now with my family and it's time for this one to move on.
It is a 1986 4 runner frame with a front range off-road front crossmember to adapt to a solid front axle. The front frame is completely boxed in and has the sky off-road reinforcement kit in addition to heavier wall frame from the rear hanger forward.

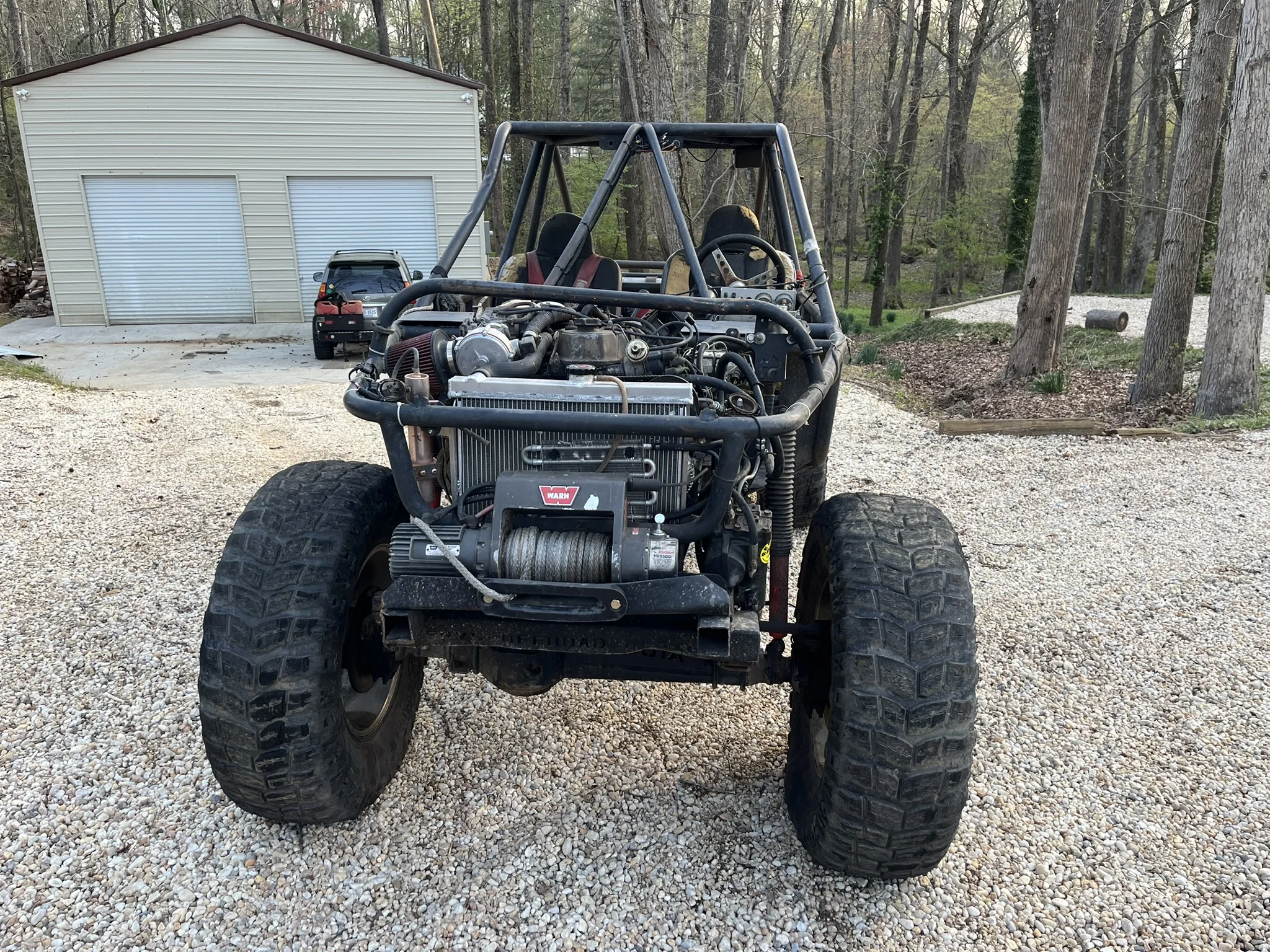

It has a 22RE that is converted to propane with a got propane conversion and was tuned by Cary when I lived in Phoenix in 2008.
New 4 core aluminum radiator (2024)
new alternator (2025)
New power steering cooler (2024)
York 210 onboard air with a 2.5 gallon air tank and air chuck for inflating tires or air tools
CNC brake master cylinder
It has a 5 speed toyota transmission with a doubler.
The front case is a 2.28 and the rear case is 4:1.
It has a chromoly output shaft on the rear case.
It has high angle driveline shafts on the front and rear
Budbilt skid plates with flat bottom
Trail gear power steering fluid reservoir
New power steering hoses (2024)
Front axle
Front range truss and custom diff cap
4:10 gears
ARB locker
30 spline OG chromoly longfield birfields
Hydraulic assist steering with a redneck ram and ported steering box
High steer arms with 6 shooter knuckles
Trail gear creeper flanges
Trail gear chromoly axles hubs
Trail gear +3 springs
BBCS
extended shackles
Rebuilt the knuckles and bearings 5 years ago
Rear axle
4:10 gears
Spool
Front range axle truss
Sky's offroad 63" springs
Orbital eye rear shackles
Rancho 5000s shocks
stock rear shafts but I have Chromoly rears that will go with it just never broke a stock one
Tires and rims
40" Pro-comp sticky tires
20" aluminum rims
Internal double beadlocks
Ability to run water in either set of tires
40" spare on aluminum double beadlock (brand new)
I am going to keep the winch because it is currently not working and I'm going to reuse it on my new buggy
It's a 25 year old buggy that I've refined over the years. It's been very reliable and when there is an issue to can pretty much fix it with a 14mm and a hammer. I've driven it all over the Hammers, AZ trails and for the past 6 years east coast trails in WV, PA, TN and VA.
I'm sure there are tons of details I haven't included but feel free to ask.
I'm in Richmond, VA and could deliver for the cost of fuel within a couple of hours
I have some spare parts that will go with it:
toyota steering box
knuckle rebuild kit
Sky's swap kit and ubolt flip kit
SKy's offroad boomerang shackles and front ubolt flip kit
Multiple sets of springs:
Stock toyota springs
63" chevy springs
Text or call
210-three one zero-5955
