Skid Plate/ Crossmember

Joined
Sep 12, 2005
Messages
214
Location
South Denver

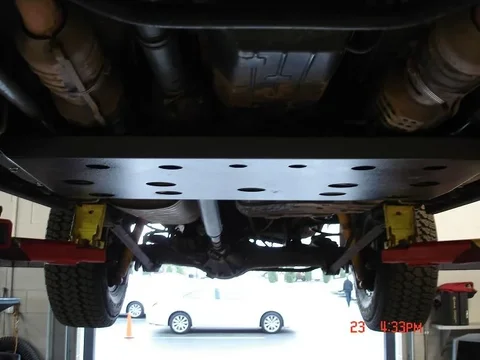

Thought I'd post up a few 100 series pics of moab and the new skid plate/cross member.


What do you guys think? We're talking about stamping some out. Anyone interested?




Joined
Sep 12, 2005
Messages
214
Location
South Denver

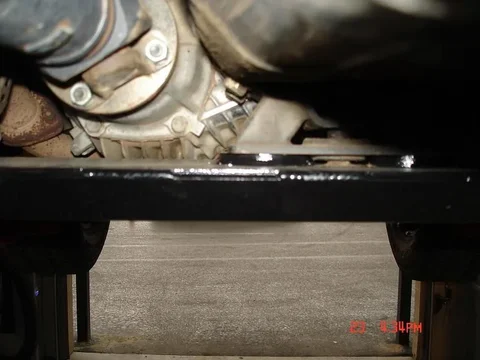

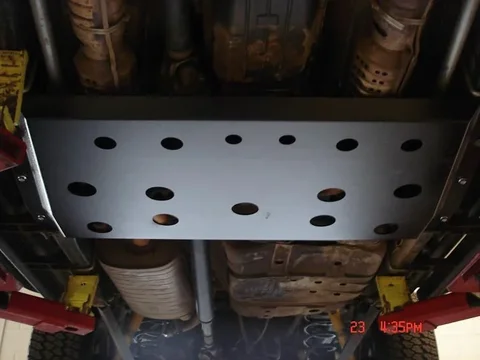

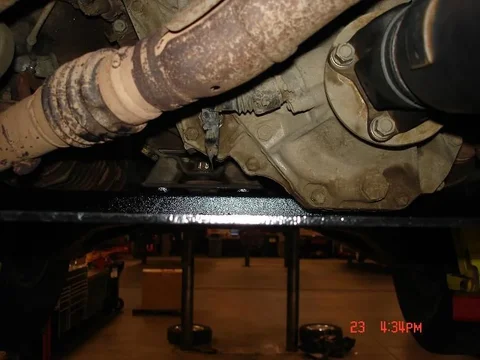

Few more

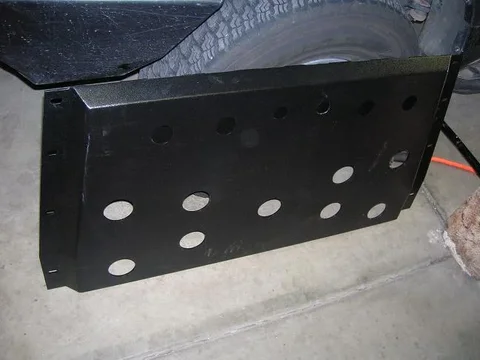

Details is you loose your factory crossmember and this takes its place. You do have to drill two holes in the frame for the back holes. I fished nuts onto the backside, but you could also do a nutzert. Whole thing is 3/16. I beat the crap
out of this thing in moab and it didn't move. Still have a couple of little tweaks but not much. If there is some interest I will make more if not I won't worry about it.

Joined
Jul 12, 2006
Messages
2,505
Location
Fort Collins, CO
Might be interested. Price?

Joined
Mar 3, 2004
Messages
2,080
Location
OZ
Looks good, but to OZ might be a bit rich!!!!


spressomon

glutton
Moderator
SILVER Star
Joined
Jan 9, 2005
Messages
12,857
Location
Northern Nevada
Looks good. Does your design afford any additional ground clearence compared to the stock cross member? Is it as rigid a support for tranny/t-case as the OEM crossmember? Can you drain/fill t-case without removing? Price?


e9999

Gotta get outta here...
Moderator
Joined
Sep 20, 2003
Messages
18,354
Location
US
too thick for dimples?

Joined
Jun 6, 2003
Messages
2,603
Location
Cuyamaca, CA and Las Vegas, NV
Any additional vibrations?

I'm very, very interested BTW.

Any plans for protection between the front skid and the new cross member?

Joined
Nov 18, 2005
Messages
259
Location
Rowland Heights, CA
I'm also very interested and ditto Calmaridog's questions. Great idea, by the way.


bluecruiser

SILVER Star
Joined
Jun 26, 2005
Messages
3,517
Location
DEN
I saw these skidplates in person..awesome design, gets rid of that wimpy crossmember..covers every major component in the front area currently covered by that fiberglass skid thing Toyota gave the 100.../

I would be interested...thanks Ben..

Joined
Sep 12, 2005
Messages
214
Location
South Denver
Might be interested. Price?

Still working out a few last things, not sure about final price yet. Probably going to be around $500.

Joined
Sep 12, 2005
Messages
214
Location
South Denver
Looks good. Does your design afford any additional ground clearence compared to the stock cross member? Is it as rigid a support for tranny/t-case as the OEM crossmember? Can you drain/fill t-case without removing? Price?

I don't think there is any additional ground clearance. You do have the confidence of knowing that you can whack it on anything and not have to worry about bending anything.

It's probably at least twice as rigid as the stock crossmember. The stock on is roughly 11 gauge steel. This is 3/16 plate.

You can fill and drain the t-case without taking if off. A guide (cut up coolant bottle) will help direct the fluid in the right direction instead of all over the crossmember.

Rough price estimate is in above post. We will know more as we finalize the design.

Joined
Sep 12, 2005
Messages
214
Location
South Denver
Any additional vibrations?

I'm very, very interested BTW.

Any plans for protection between the front skid and the new cross member?


No additional vibrations. Same as stock crossmember. Probably similar to the little cleat you took off the frame a long time ago. Might be a vibration but extremely hard to notice unless you tune into it. I have not noticed one yet.

Next one to work on is the front one that covers the oil filter. Mine looks like a giant bowl, need to beef that one up next. Then probably something to tie the two together.

Joined
Feb 23, 2005
Messages
1,081
Nice design Ben, it looks plenty stout enough to get the job done.


I`d be interested in a copy if the price was more in the $300 range though.

I cant wait to see the front section you build, the 100`s can surely use plenty of extra protection up there... keep up the good work !

Lee


e9999

Gotta get outta here...
Moderator
Joined
Sep 20, 2003
Messages
18,354
Location
US
For What?:confused: :confused:

dimples where the holes are...

but it's too thick. You'd need well over a 20 tons press for 3/16" (edited) I would think. Could make it thinner though and be as strong with dimples.

Last edited:
Joined
Jan 29, 2006
Messages
155
Location
Salt Lake City, Utah
I'm definitely interested. I've been looking for something like this for a long time.

Joined
Jan 29, 2006
Messages
155
Location
Salt Lake City, Utah
I'd also like to see a skidplate for the gas tank.


spressomon

glutton
Moderator
SILVER Star
Joined
Jan 9, 2005
Messages
12,857
Location
Northern Nevada
dimples where the holes are...

but it's too thick. You'd need well over a 20 tons press for 3/8" I would think. Could make it thinner though and be as strong with dimples.


FYI: He stated it was constructed from 3/16" plate...


e9999

Gotta get outta here...
Moderator
Joined
Sep 20, 2003
Messages
18,354
Location
US
ooops, yes, 3/16, typo, thanks

Joined
Nov 18, 2005
Messages
259
Location
Rowland Heights, CA
Ben,

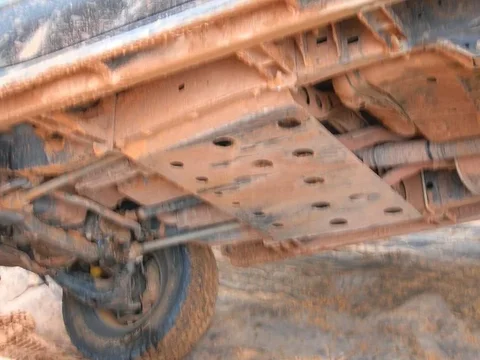

After seeing the pictures of you wheeling in Moab I understand your interest in fabing up some underside protection. That was some serious proto type testing. Put some of those pictures in the "Wild Wheeling" thread.

Current price estimate is a bit steep for me, but where else are we going to find this type of product for our 100s? Maybe if enough forum members sign on, cost could be brought down. Keep us updated and thanks.:beer:
