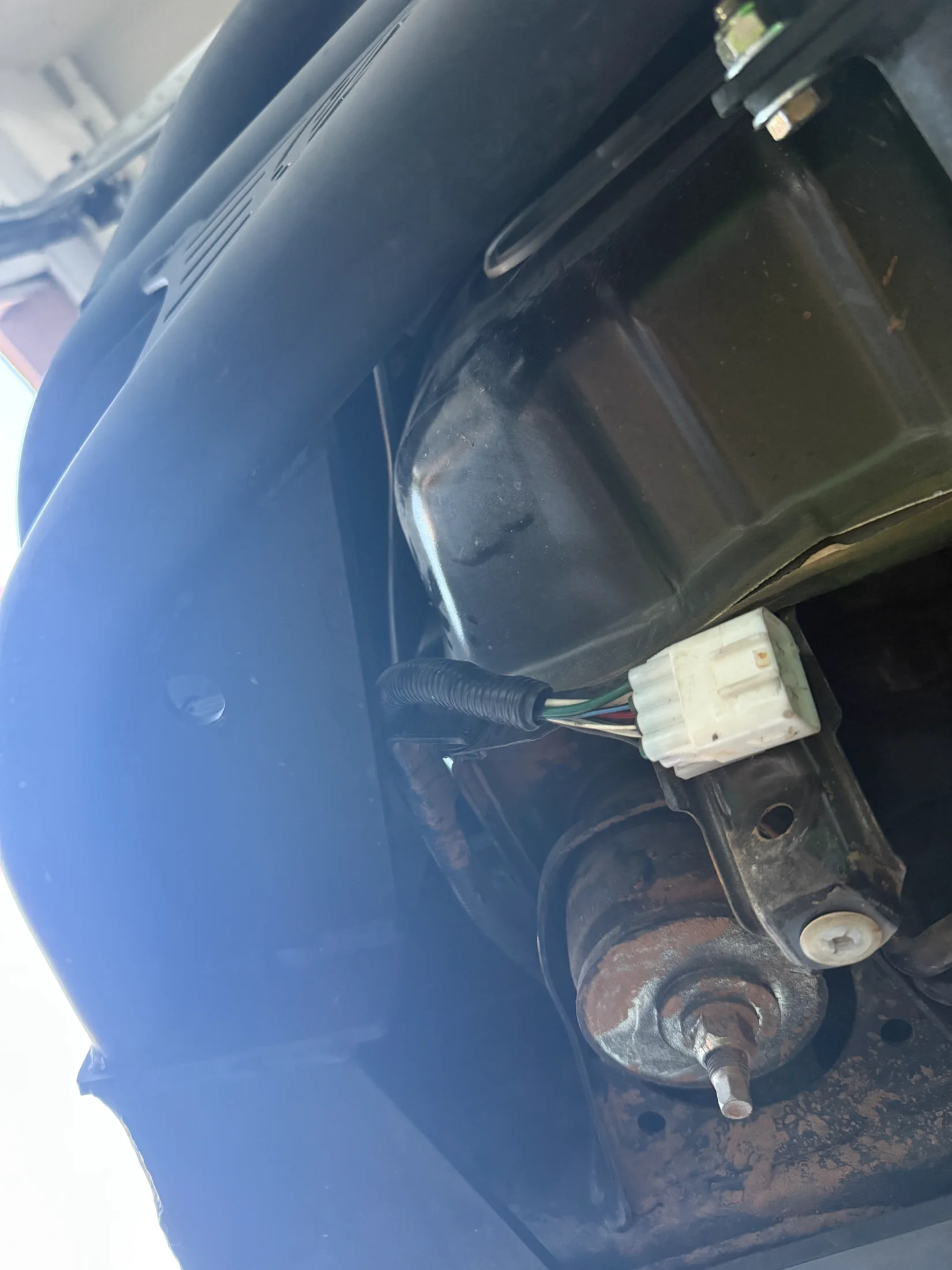

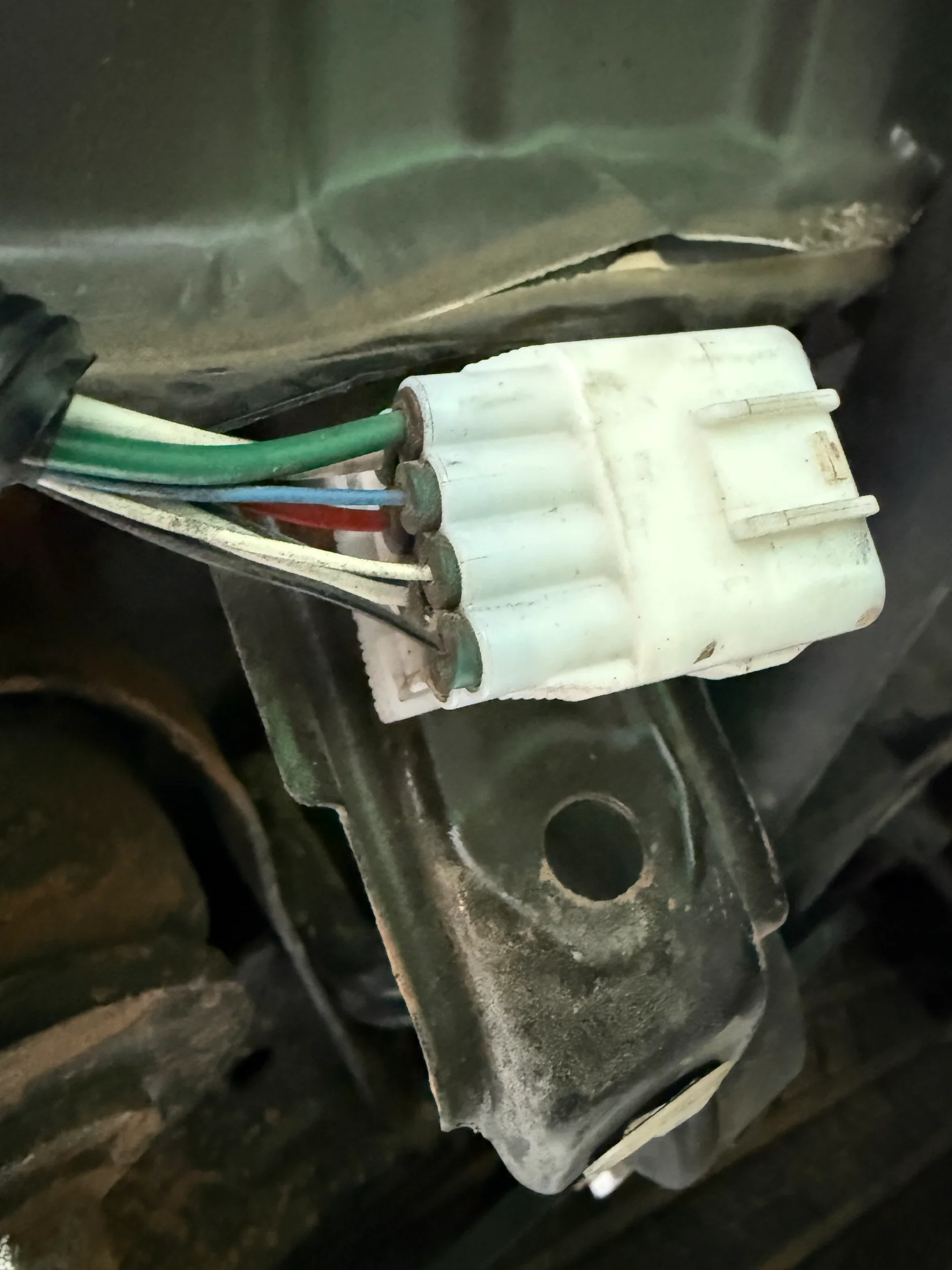

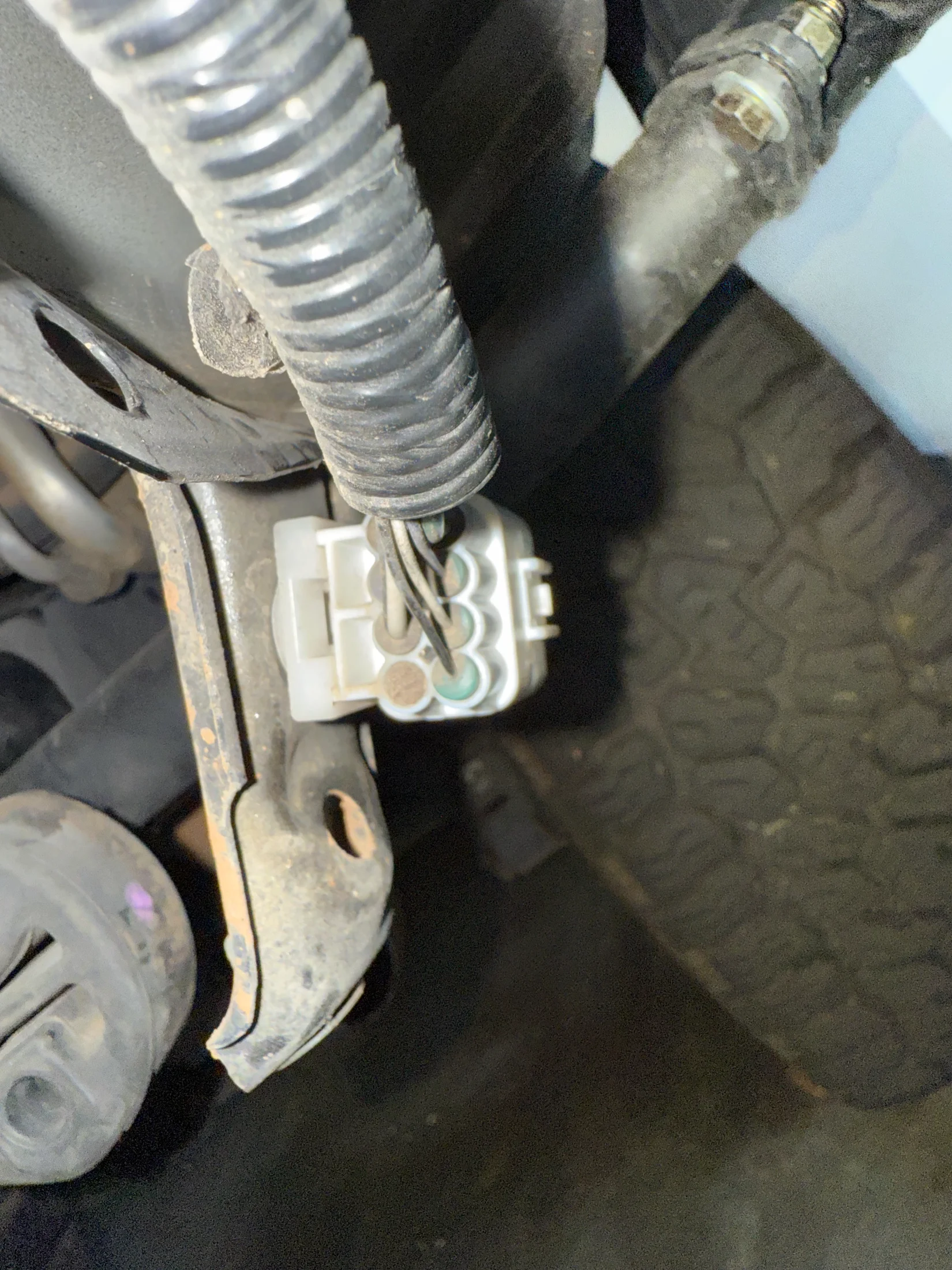

Installed Lil B's new rear bumper on my 460 and did a parking sensor delete so I just threw out my bumper side harnesses without thinking much of it. The drive side has a normal 2 wire pigtail that will be easy to put a new harness on but the passenger side is a largers harness with lots of wires. I believe it is a combo for the parking sensors and lights.

I'm pretty sure I know which two wires I need. But before I make a mistake, thought I would run it by you guys.

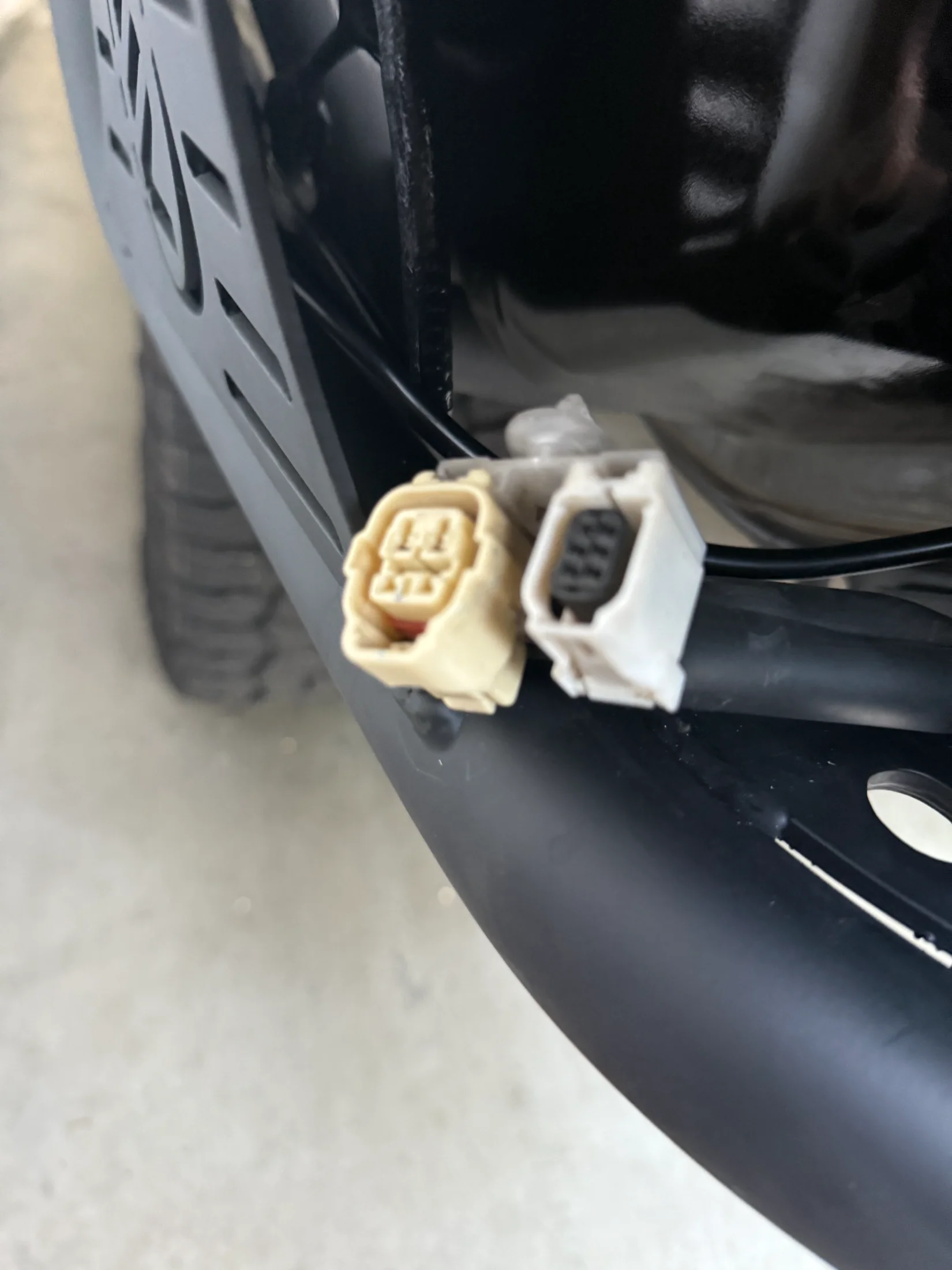

Bonus shot of the driver side to confirm I'm using the two pin connector.

Thanks in advance. Pics and review of Lil B's new rear bumper once I figure out these reverse lights.










You should be able to disassemble the connector so you can test each pin. Remember to take a picture of the pin layout in the connector first.


Thanks. I found a pic of the wiring harness on ebay and was able to identify the colors from that.

Red and White with Black for anyone else who may need this thread in the future. The other wires are for the parking sensors which I deleted.
