Installing new rear shocks, what's the order of washers and bushings? Didn't come with any documentation.

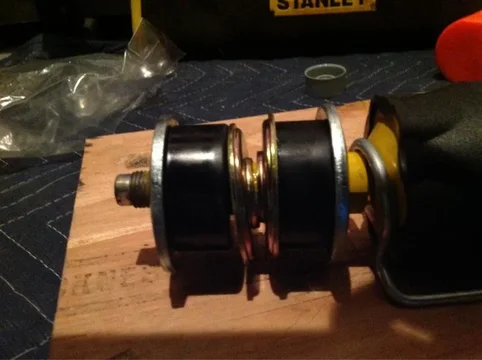

This is how I assumed it goes from a couple other pictures, but the metal on metal at the bottom bushing seems weird... Thanks

Sent from my iPad using IH8MUD



[Anthony.L]

I feel like you are missing a washer in that picture. The rubber bushings should be "sandwiched" by a metal washer on each side is my recollection....however that was a long time ago. That gap shown in your picture between the bushings is where the mount on the LC goes.



[1loudLX]

I think the smaller washer goes on the top side, not the bottom. Or you're missing the the 4th one.



[WhiteElephant]

So this way then?



I thought the fourth one went between the bottom bushing and nut.

Sent from my iPad using IH8MUD



[Anthony.L]

Bingo, that's perfect!



[WhiteElephant]

Cool thanks, just reuse the OEM nut and washer on the lower attachment?

Sent from my iPad using IH8MUD



[Anthony.L]

Correct



[KlausVanWinkle]

Cool thanks, just reuse the OEM nut and washer on the lower attachment?

Sent from my iPad using IH8MUD

The FSM says to replace them. Your call. I replaced them for the $3.



[WhiteElephant]

Yeah I'll source some new ones. Need to get the wheels back on first though haha. The different size nuts for the shocks posts threw a wrench in works.

Sent from my iPad using IH8MUD



[cruiseroutfit]

Were the bushings and washers not in a bag? The generally ship in a bag withing the box and the bag has the install instructions & specs. Regardless it looks like you have it addressed



[WhiteElephant]

Yeah they were in bags but there was nothing printed on them.



[cruiseroutfit]

Hmmm, can't say I've every seen that. If you still need a hand let me know and I could likely scan a bag.



[1loudLX]

Can you scan a bag and post it on mud in this thread? That way the next guy that gets yelled at to "search, there already is a thread about this" can find the info?
