*NEW* 40 series winch bumpers *NEW*

[RLMS]

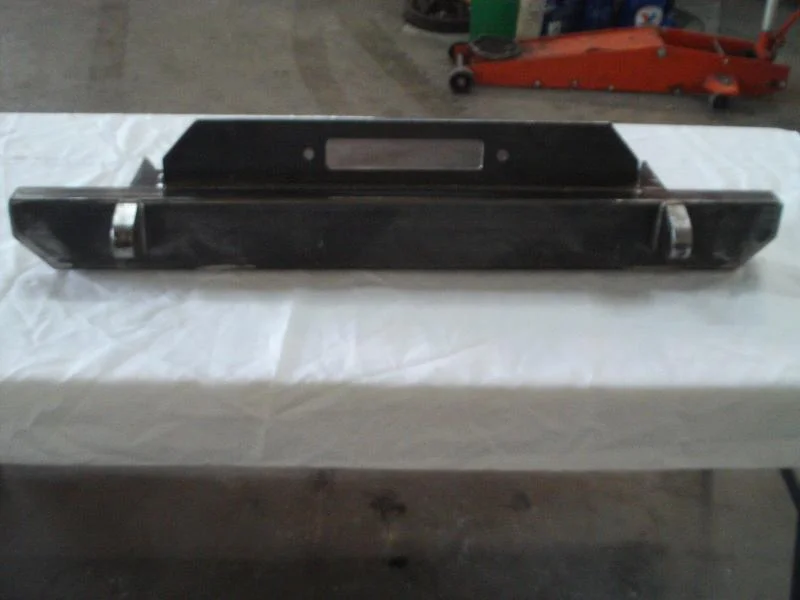

We have finially finished our 40 series bumpers! With over 6 months in design , Red Line is proud to put these on the market!

Here are our design functions...
- Dsigned to work with any saginaw PS conversions in the front frame rails.
- Alows for a standard winch pattern of 10x4.5!
- Bumper to frame brackets are bolt on, or weldable
- Frame horns must have factory brackets removed
- 4 versions availble, and are as follows

*Full Bumper, WITH winch mount, AND stinger...$298.58
*Bumper WITH winch mount, NO stinger...$273.88
*Bumper with OUT winch mount, WITH stinger...$218.58
*Bumper WITH OUT winch, and WITH OUT stinger...$193.58

Specs include the following....

-4x2x3/16 req. tube base
-Custom 1/4 thick frame brackets
-Custom 1/4 thick winch plate, to allow saginaw box clearance
-1.5" x .120 wall DOM stinger
-1" x 3" D-Ring mounts, with a .750 diameter hole
MUST SPECIFY the use of Rope or Cable!
SOLD IN RAW form.



[lukebz]

another AWESOME new Red Line product!! congrats, looking forward to ordering one of these fine items from you!



[kbahus]

I wish bumpers for the 80 cost that much. Looks like a nice bumper too!



[woytovich]

How wide is the bumper end to end?

Mark



[RLMS]

How wide is the bumper end to end?

Mark

It is 40.375"
the outside to outside of the 40 frame is 28 7/16". So 5 15/16 of an inch will be protruding out from the frame!

Justin



[woytovich]

It is 40.375"
the outside to outside of the 40 frame is 28 7/16". So 5 15/16 of an inch will be protruding out from the frame!

Justin

So it is much shorter than a stock 40 bumper, right?



[subzali]

What types of winches would be able to mount to the bumper? Not an 8274 it doesn't look like?



[RLMS]

So it is much shorter than a stock 40 bumper, right?

you got it!

Justin



[RLMS]

What types of winches would be able to mount to the bumper? Not an 8274 it doesn't look like?

This is a NON 8274 winch bumper!

Justin



[subzali]

not trying to be a jackass, but why build a bumper that doesn't accommodate one of the most popular winches that people put on FJ40s?



[RLMS]

not trying to be a jackass, but why build a bumper that doesn't accommodate one of the most popular winches that people put on FJ40s?

Reason 1... is the cost of a new 8274 is 1500$ a used 8274 is 500-1000$, Compared to the fact that a standard pattern new winch can be as low as 400$

2nd reason is... how many people can't use a standard winch due to the fact that the only bumpers on the market for the 40 series are 8274?

3rd... Red line wants to bring this type of winch bumper out to the market due to the reason above!

and 4th... We will get an 8274 style bumper made in the future!

Justin



[woytovich]

FYI I have an 8274 waiting to go on the front of my my 40....

While I applaud your plan to give non-8274 winch owners a nice bumper choice I think you will be well server to get the 8274 version ready!



[RLMS]

Have no FEAR 8274 owners, We will get one coming!

Justin



[RLMS]

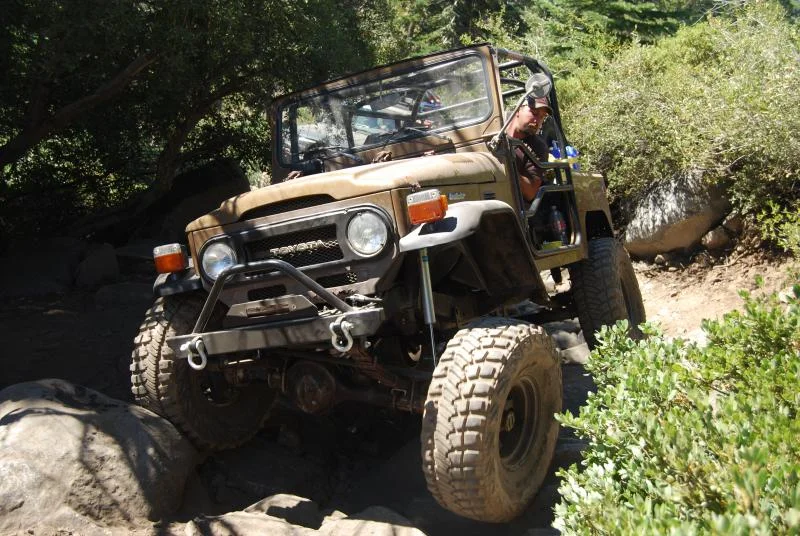

Here is a pic of one, on the Rubicon this year!

Justin



[lrowe_csp]

Hi Justin
I have a Warn 8274 just waiting for your bumper. Would I be able to order the bumper 12" longer total length if you do come out with the 8274?



[RLMS]

Hi Justin
I have a Warn 8274 just waiting for your bumper. Would I be able to order the bumper 12" longer total length if you do come out with the 8274?

I can do that for you no problem!


Justin



[MAD40er]

Does this work with a Sag PS setup?



[RLMS]

Does this work with a Sag PS setup?

Yes they do! They were designed to allow any sag box mount with out interference!!!

Justin



[Rockets2000]

I can do that for you no problem!


Justin

What's the latest on the 8274 bumper? I would be interested in the longer version too.



[RLMS]

We should have a 8274 bumper with in 1-2 months, Right now we are behind, a little!!


Justin
