Dash Configuration Reference

Discussion in '40- & 55-Series Tech' started by woytovich, Apr 8, 2011.

  1. woytovich

    woytovich GOLD Star

    Messages:
    8,253
    Location:
    Metro NY
    I would like to start a reference thread documenting the stock layout of 40 series dashboards. I think it would be useful to show a picture of the entire dash, side-to-side... or maybe 2 slightly overlapping pictures to increase our ability to see what is there. Along with this we can add descriptive info identifying unlabeled indicator lights and such.

    If you have a stock dash and can upload good quality pictures where we can read the knob labels etc. please do so. And include the model and build month/year. And identify anything that might not be obvious...

    Thanks!

    Mark
  2. woytovich

    woytovich GOLD Star

    Messages:
    8,253
    Location:
    Metro NY
    This is not mine... but it gives you an idea of what I think would be good.

    12/78 FJ40
    side window vent tubes
    under dash parking brake
    100mph speedo
    "Brake/Fasten Belts" light to the right of the cluster
    "Unleaded Fuel Only" sticker to the left of the cluster
    note style of heater
    note style of horn button
    do not know if radio is stock
    p12.jpg p13.jpg
  3. woytovich

    woytovich GOLD Star

    Messages:
    8,253
    Location:
    Metro NY
    1966 FJ40

    3 speed on the column
    ignition key on left end of dash
    windshield levers
    heater style with detached control knob panel (3 knobs for...?)
    4wd engage lever on dash
    steering wheel and horn button style
    no provision for a radio
    steel defrost deflectors at bottom of windshield
    3 embossed horizontal stripes across middle of dash
    no dash pads
    3 dash indicator lights for...?
    dash knobs:
    "LIGHT", WIPER"...?
    1094165_20.jpg 1094165_21.jpg 1094165_22.jpg
  4. 3_puppies

    3_puppies SILVER Star

    Messages:
    7,090
    Location:
    Helena MT
    it's a 45 not a 40 but should be the same. 1965. winch controls below the ignition switch.
    P4090001.JPG P4090002.JPG P4090003.JPG
    Last edited: Apr 9, 2011
  5. 3_puppies

    3_puppies SILVER Star

    Messages:
    7,090
    Location:
    Helena MT
    and my Feb. 1980 40 series with factory A/C. ashtray is missing with a PO installed equalizer, and an extra hole that was for an extra gas tank toggle switch next to the headlight switch.
    P4090004.JPG P4090005.JPG P4090006.JPG
  6. 3_puppies

    3_puppies SILVER Star

    Messages:
    7,090
    Location:
    Helena MT
    last a pic of switches from a Mar 81 40 series
  7. 3doghouse

    3doghouse

    Messages:
    571
    Location:
    Augusta, GA
    Great idea for a thread!

    For those of us who rescued our cruisers from booger eaters with such innovative technology as drilling a bunch of 1/16 holes in a 1/2 inch circle instead of getting the right sized drill bit, pictures of the "empty" dash - showing correct holes without lights and knobs - would also be very helpful.

    Here's a boogered '76:
    [​IMG]
    Last edited: Apr 9, 2011
  8. woytovich

    woytovich GOLD Star

    Messages:
    8,253
    Location:
    Metro NY
    Anyone else?... come on... grab a camera and post some pics of your dash!
  9. Pistorman

    Pistorman

    Messages:
    819
    Location:
    Dallas, TX
    Oh tell me about it.... PO's drill practice on mine, finally restored to as new condition :)
  10. woytovich

    woytovich GOLD Star

    Messages:
    8,253
    Location:
    Metro NY
    So how about some pictures?
  11. ArkansasLarry

    ArkansasLarry

    Messages:
    104
    Location:
    Fort Smith, Arkansas
    Here is a pic of my '78 fj40 dash. This is the condition before the restore.

  12. woytovich

    woytovich GOLD Star

    Messages:
    8,253
    Location:
    Metro NY
    The switch under the seatbelt light is non-stock right?
  13. merlinridesagain

    merlinridesagain

    Messages:
    246
    Location:
    Cupertino, CA

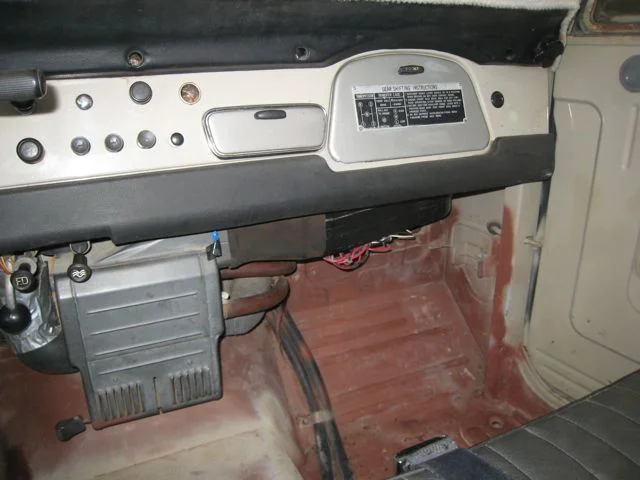

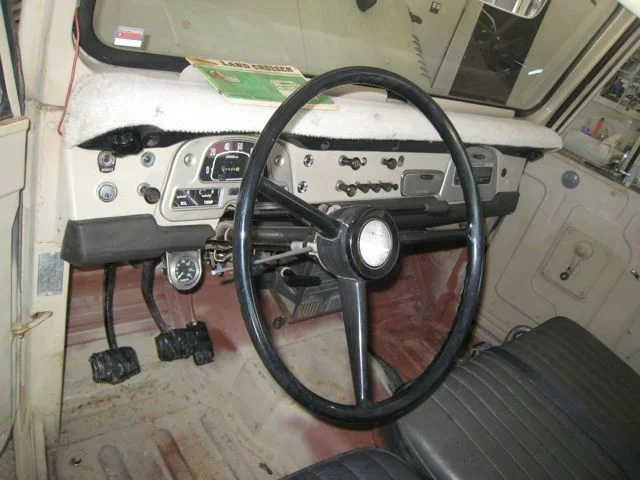

    8/71 if you ignore the improvised dash pad cover and the temp gauge below the drivers left pad it should be close to stock. The empty hole next to the hazard light pull is the lighter socket. That knob is in the glove box.

    There are two blanks. One between the choke and the hazard that was the hand throttle? And one on the far right past the glove box that was the soft top light?

    HTH


    IMG_6937.jpg IMG_6935.jpg
    Last edited: Apr 27, 2011
  14. ArkansasLarry

    ArkansasLarry

    Messages:
    104
    Location:
    Fort Smith, Arkansas
    Woytovich -

    Correct, it appears to be a fog lamp switch the PO had put in.
  15. jdayment

    jdayment

    Messages:
    417
    Location:
    Raeford, NC
    I am wondering the same thing I just got my 40 this week and it's a 78 and has the same switch I am not sure what it does yet haven't dug into my wiring.
  16. Living in the Past

    Living in the Past SILVER Star

    Messages:
    8,871
    Pictures of my stock 10/75 dash on my 76 FJ40.
    IMG_0015.jpg IMG_0020.jpg
  17. numby

    numby

    Messages:
    745
    I thought the sticker didn't show up until '79 with the cats. Kinda looks like a "foremost' restoration pic.
  18. ATXLandCrusher

    ATXLandCrusher

    Messages:
    97
    Location:
    Austin, Texas
    My April 1978 FJ40 has the same sticker.
    DSC_4546.jpg DSC_4542.jpg DSC_4545.jpg
  19. erics

    erics

    Messages:
    952
    Location:
    Iowa
    good addition in the third pic here is the Warn locking hub sticker on the passenger end of the dash... have seen this on several trucks - I assume the dealer installed these when they installed the lockouts as a dealer option?
  20. ss70

    ss70

    Messages:
    31
    Location:
    West Virginia
    This dash is for an April/72 40, no idea if it's stock correct...

    Top...from left to right

    Choke (wrong/non-working knob) - blank - hazards - lighter

    Bottom...left to right

    white knob (no idea what it does) - wipers - rear heater - front heater - fresh/recirc air vent - interior light

    the cowl vent is down by the heater
    front dash.jpg
