need some real time help with coil/dizzy starting issue

g-man

SILVER Star
Joined
Sep 5, 2006
Messages
3,784
Location
Charlottesville VA
OK Spike, I see this from Jim C. I'll try to test it today. Also pull the dizzy cap and make sure it spins and the signal generator isnt loose.
Ow, my head.
I only tried a 81-87 dissy just now. If the DVOM was set to ohms and beep, as long as the dissy wasn't moving it showed 160ohm and no beepy. If the rotor tip moved by the stator, then there was a beep, and a flicker on the readout. If DVOM was switched to low voltage AC, and the dissy spun at 400RPM, then it showed 600mV AC. On DC it showed just a tiny flicker, a few random mV, plus or minus. This thing is a tiny magneto, but the discharge spike is only a volt, instead of 10KV.


OSS

SILVER Star
Joined
Jun 30, 2017
Messages
4,884
Location
Oblivion

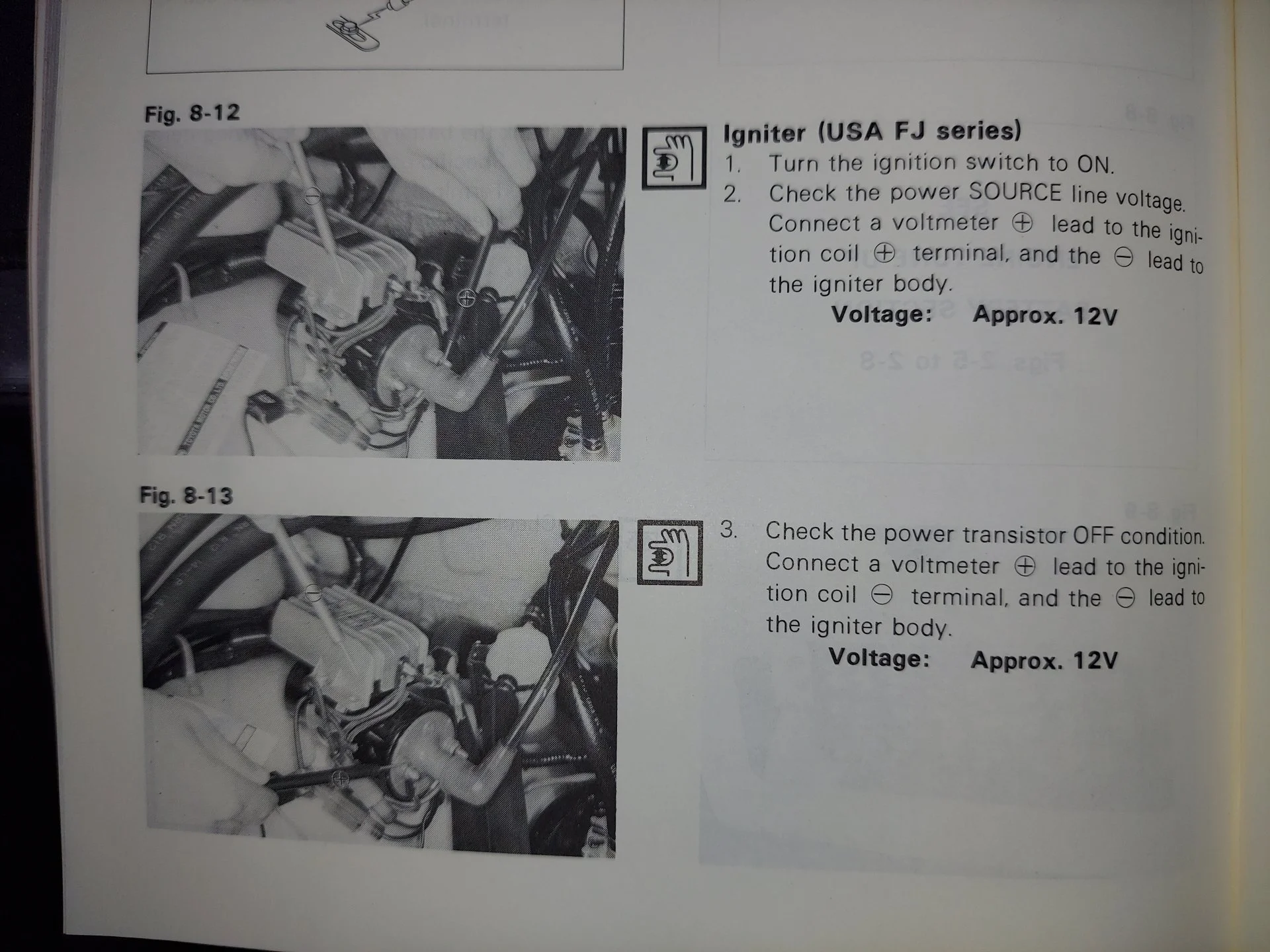

I can’t explain exactly how the igniter works, but this is how I “think” the electronic ignition works in a general sort of way:

The signal generator inside the distributor is basically a spinning shaft with magnetic blades on it. As each magnetic blade passes ever so close (but not actually touching) the magnetic pickup, that very faint magnetic pulse as a blade passes near is detected by the sensor which then transmits a very faint signal pulse to the igniter. Its known as a Hall Effect sensor.

Why to an igniter and not just the coil?
The signal pulse coming from the signal generator is extremely faint, so faint that no coil can boost it up to the necessary 40,000 volts to send out to the spark plugs.

So the igniter is there to act as a voltage pre-booster to the coil to supply it with a signal that the coil can use. Sort of like a preamplifier in a stereo.

Igniters are all solid state, so its the transistors inside it that boost up the signal. If one of those transistors burns up, no more ignition.
