Need picture of 1982 Alternator wires

[jkl72-40]

Howdy I need a picture of the alternators wire where if bolts to the back of the alternator got any?
1982 rr2 with ac 4wd



[msahr]

I'm guessing it's not charging? Missing wires?

Is yours the stock alternator and regulator? Regulator is on the driver's fenderwell.

I have an 83 it's a 22R with AC and PS I'll grab a pic when I get home.



[jkl72-40]

My son pulled it and didnt take any pictures had it rebuilt and we installed it and its not charging so want to make sure its right..



[pappy]

My son pulled it and didnt take any pictures had it rebuilt and we installed it and its not charging so want to make sure its right..

I hate to suggest this, rebuilt or not, but I would pull it and take it to an auto-box store and have it tested.



[msahr]

I hate to suggest this, rebuilt or not, but I would pull it and take it to an auto-box store and have it tested.

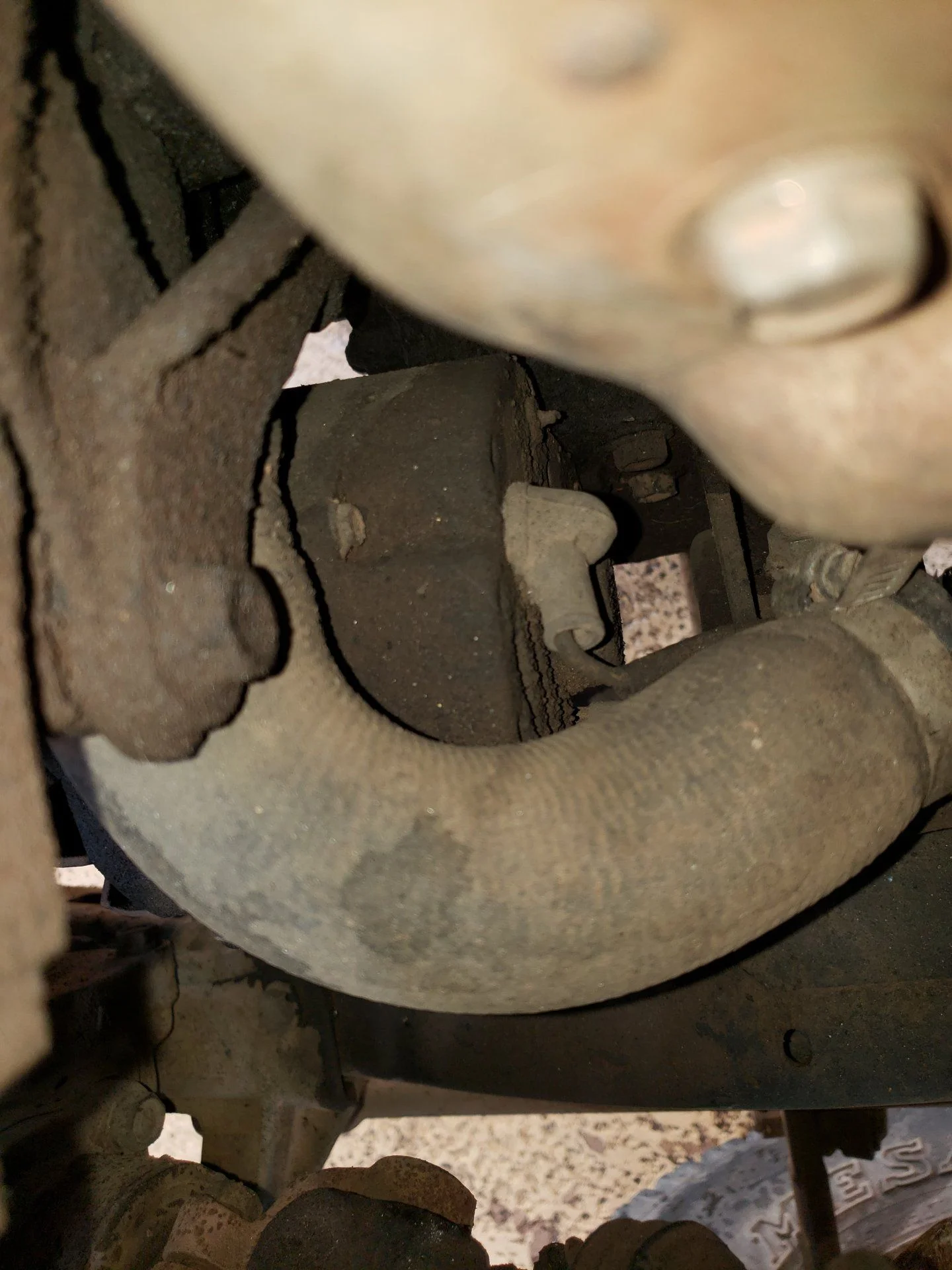

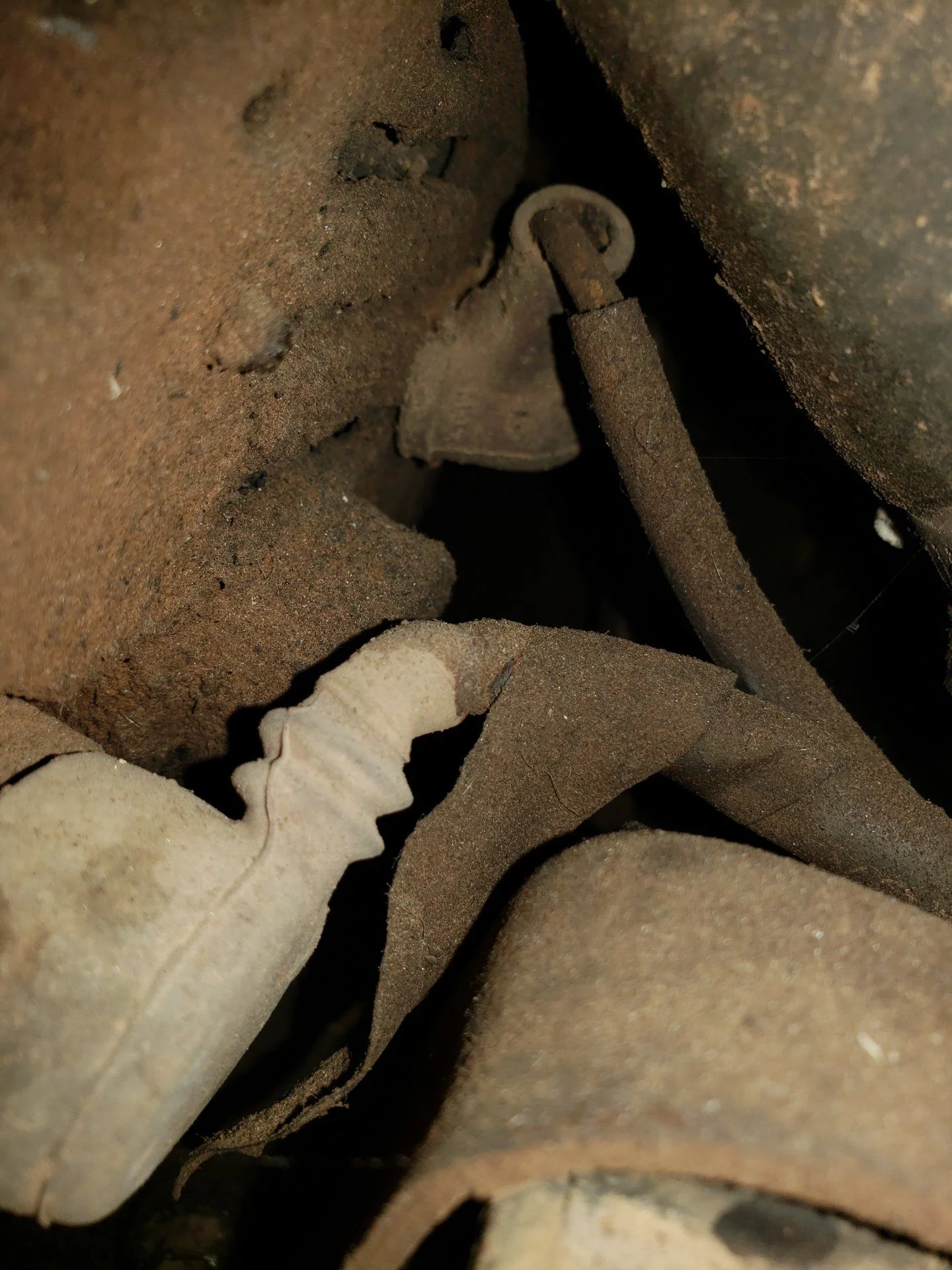

These are the best I can do. Lots of stuff in the way as you know.



[msahr]

Do you have a wiring diagram? Easy to find online as well as likely much better pictures.



[jkl72-40]

Thanks for the pictures! Ill find a wiring diagram as well
