    I've been looking for a 3RZ for probably 5 years, mostly at my local U-Pull. They have had a few 2RZ Tacomas, but never a 3RZ in anything. Recently I decided to suck it up and start watching the local full-service boneyards. Last week, there was a "new arrival" at one of the yards. A very wrecked 2WD 1998 4Runner. I went. I looked. It was pretty messed up and I could see lots of damage to the engine. I had them give me a quote, and they agreed to sawsall the engine out so I could get a closer look.

    While I was waiting for them to perform surgery on the 4Runner I did a little homework on the truck. On the quote was the VIN. This truck started out its life in Texas. Over the course of its life it never once, ever, saw a Toyota dealer for service. In fact, the only service on the Carfax was only after it appeared in New Mexico. The truck had around 250K miles on it.

    They called. I went back. I looked again. The damage was bad, but nothing I couldn't fix. So, I bought. Yesterday, with the help of a few buddies, that engine came home. Yesterday and today I stripped everything off the long block. Now, I wait.

    Because of this little thing called "budget" this is going to be a long term project. If I'm going to go through all the effort to drop this between the rails of my 4Runner I want it to stay there for a long time. Which means rebuilding and base-lining. I intend on taking care of anything that would be easy to fix with the engine out, and a challenge to fix once it's installed. So, let the journey begin. Here are the required pics.

    First, the damage.

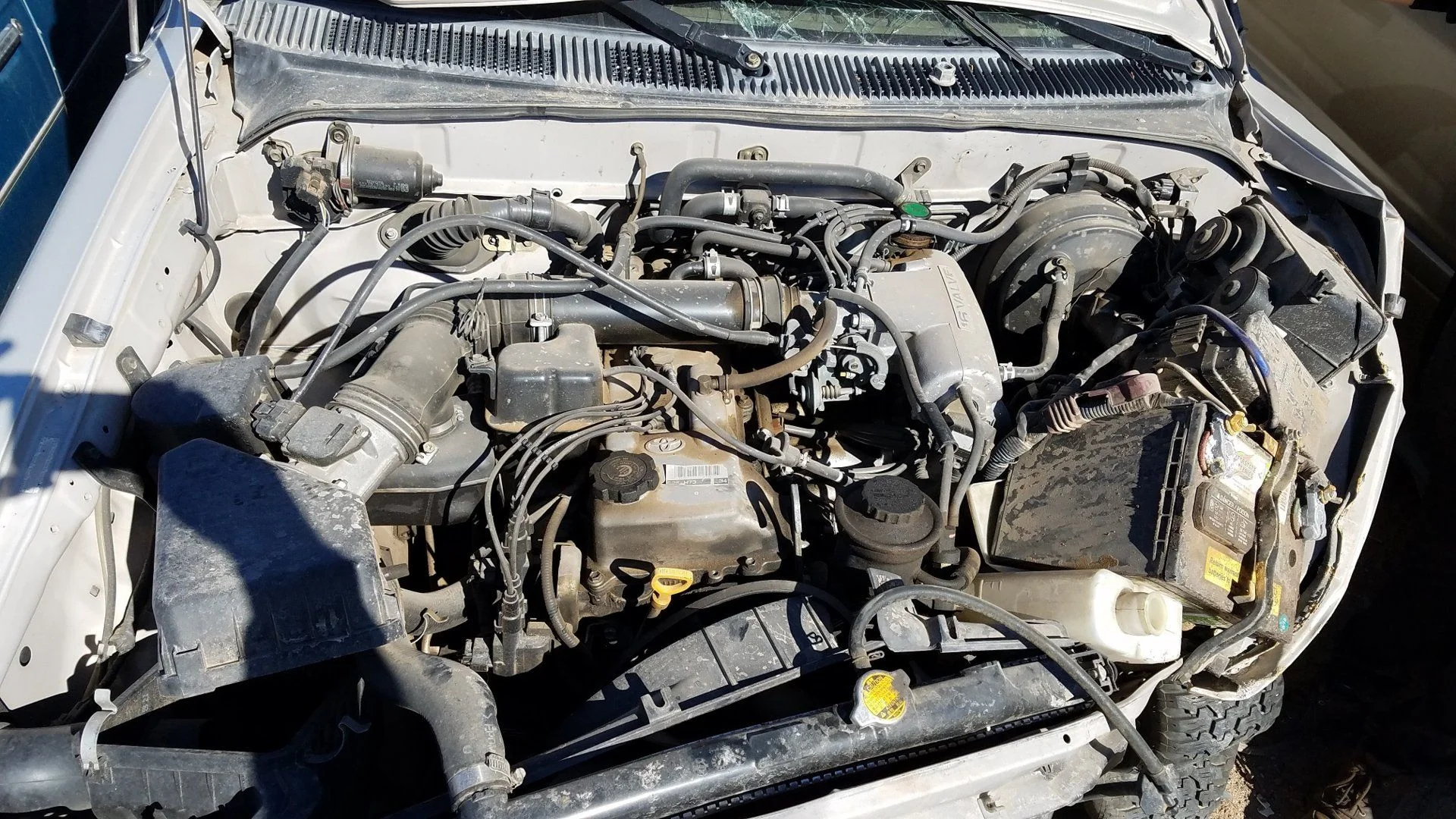

    Four Js 1998 4Runner (1)_sm.jpg

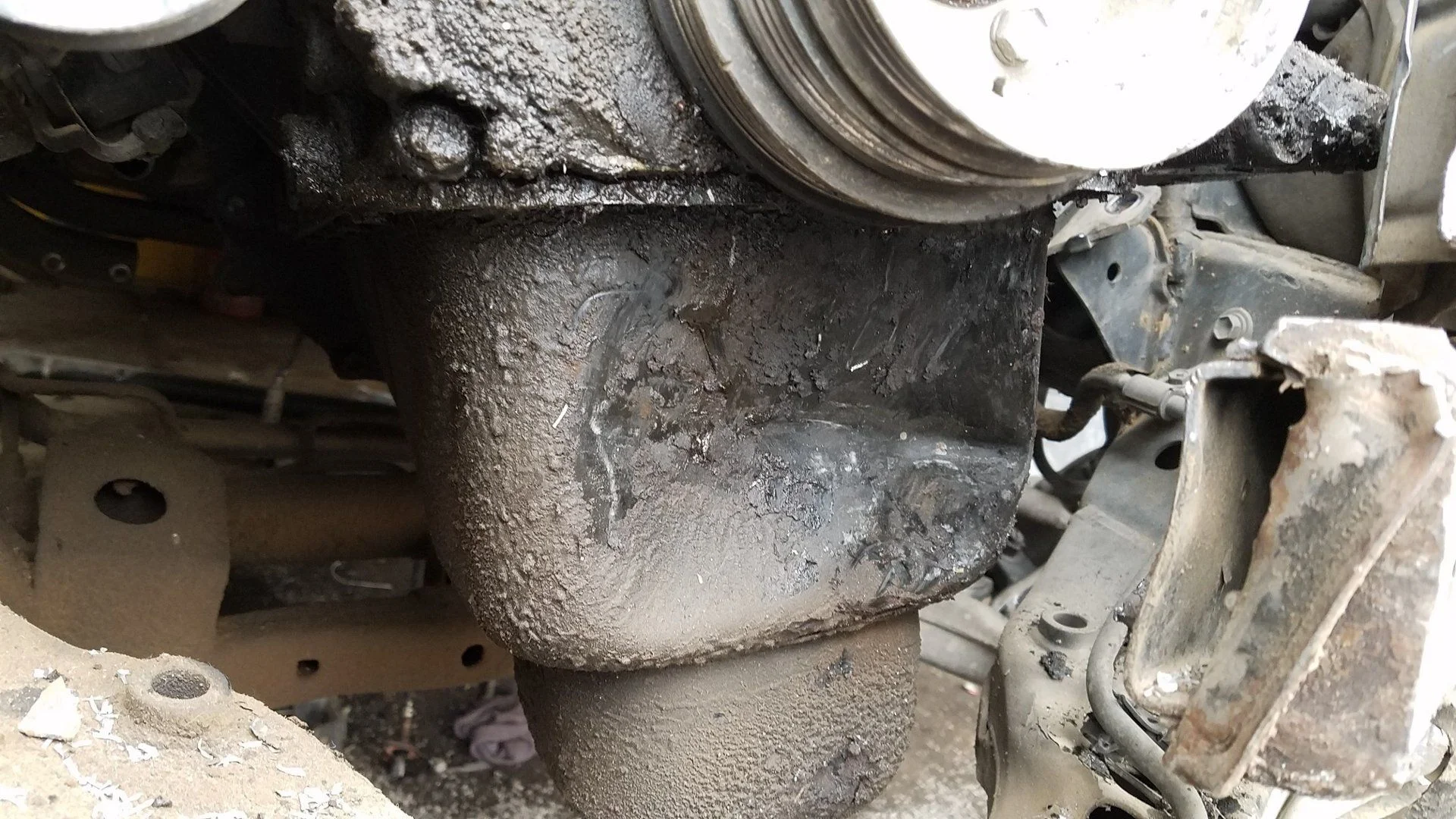

    Oil pan_sm.jpg

    Crank pulley_sm.jpg

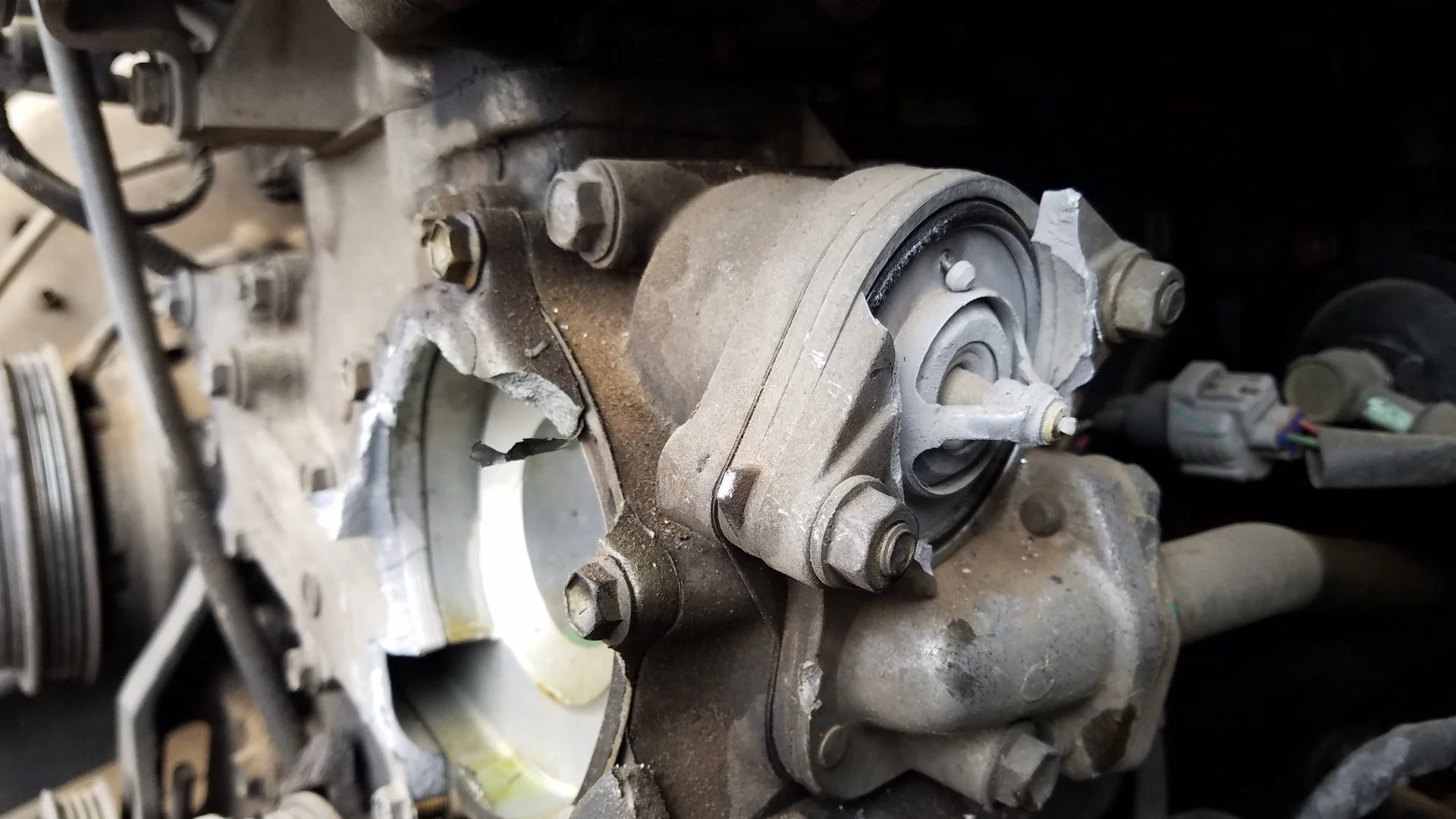

    Thermostat housing_sm.jpg

    RAGINGMATT and The Eradicator like this.
  2. pappy

    pappy photosynthesizing Moderator

    Messages:
    9,080
    Media:
    67
    Albums:
    6
    Likes Received:
    1,133
    Joined:
    Oct 7, 2003
    Location:
    Too far north. Too far east.

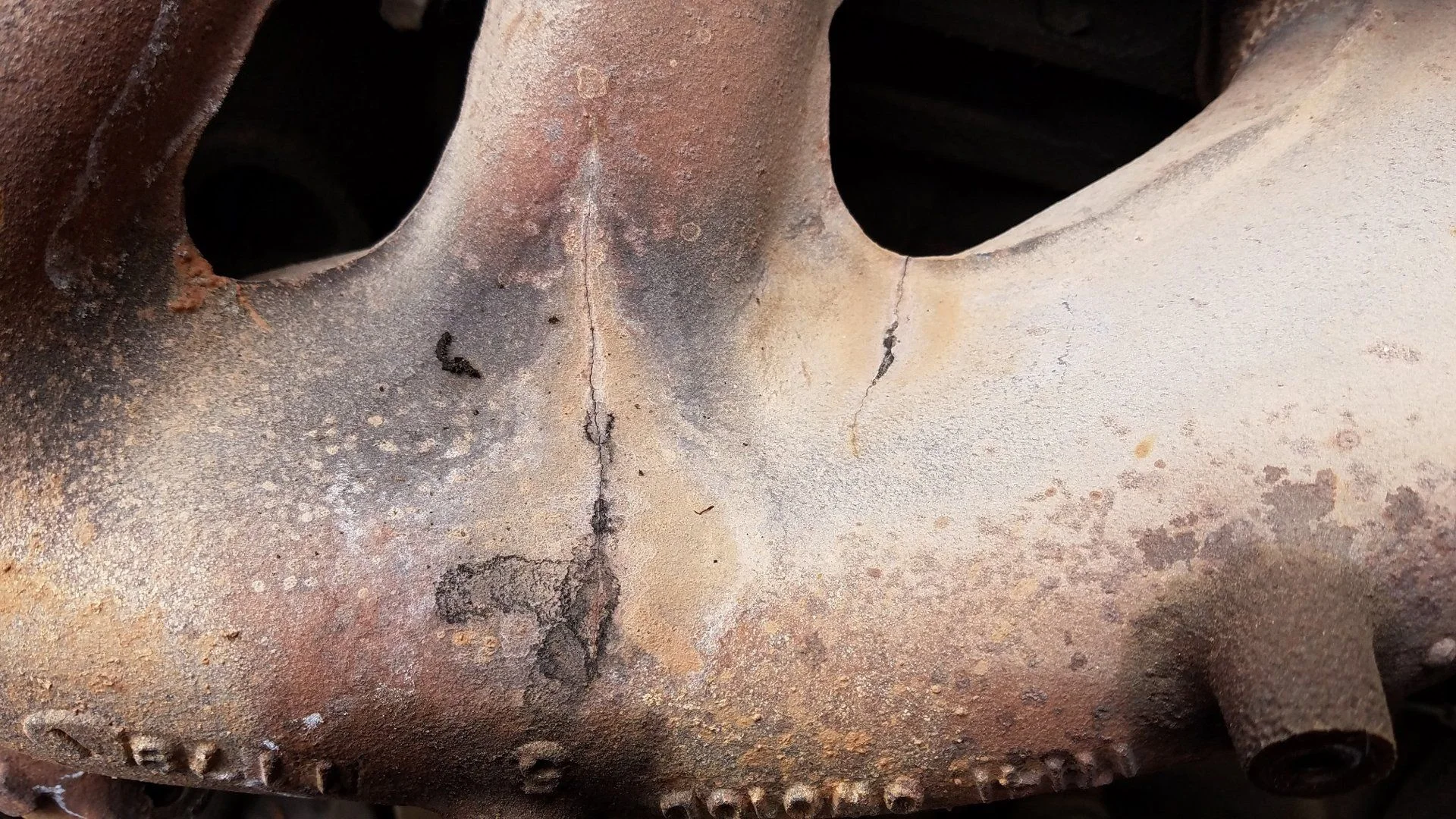

    They wrapped this thing up tight, so I was unable to make sure everything was there. It wasn't, but I took care of that this morning. It's a known issue with this engine that the exhaust manifold cracks. Mine was not an exception. No big deal. I'll replace with the mini-header installed in 2001+ Tacomas. Same with the oil pan since I need to install a pan from a T100.

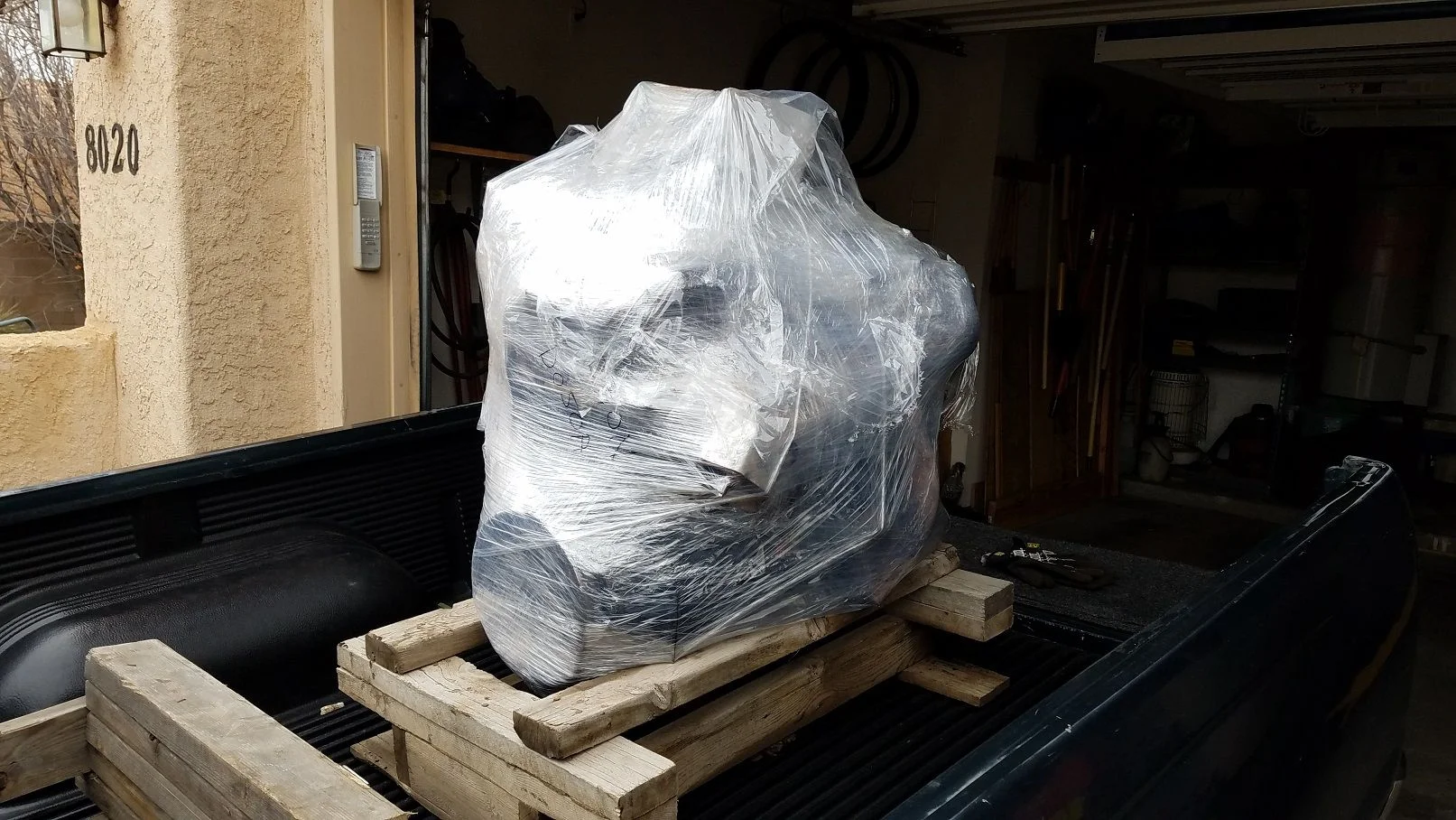

    wrapped up.jpg


    exhaust manifold.jpg

    Here is the engine after getting it unwrapped and on the engine stand.

    Engine before cutting.jpg

    Last edited: Mar 13, 2018
  3. pappy

    pappy photosynthesizing Moderator

    Messages:
    9,080
    Media:
    67
    Albums:
    6
    Likes Received:
    1,133
    Joined:
    Oct 7, 2003
    Location:
    Too far north. Too far east.
    After spending time with the engine last night, and again this morning it's down to the basic long block. For chuckles I did pop off the rocker arm cover to take a peek. I was very pleased. So clearly this engine had received some maintenance. And, for the record ... the screws that hold on the oil pump cover SUCK - SUCK - SUCK. I had to drill out 5 of the 9.

    Drivers side stripped.jpg

    passanger side stripped.jpg



    RAGINGMATT, TOYOTARIG and Gumby like this.
  4. KLF

    KLF Frame waxer SILVER Star

    Messages:
    7,386
    Likes Received:
    2,044
    Joined:
    Apr 5, 2003
    Location:
    Southern NH
    Nicely done. Wow that engine got whacked in that wreck. Good luck and Godspeed, I will be watching this thread closely.

    pappy likes this.
  5. Mudder

    Mudder

    Messages:
    1,930
    Likes Received:
    826
    Joined:
    Nov 10, 2013
    Location:
    Between states
    Not what I wanted to hear about the screws. I'm happy to see another 3rz thread, it'll be perfection for sure.

  6. muddpigg

    muddpigg

    Messages:
    251
    Likes Received:
    50
    Joined:
    May 9, 2007
    Location:
    Watertown, NY
    Man all these awesome 3RZ swaps got me drooling over the idea. Will keep an eye on your progress.

  7. pappy

    pappy photosynthesizing Moderator

    Messages:
    9,080
    Media:
    67
    Albums:
    6
    Likes Received:
    1,133
    Joined:
    Oct 7, 2003
    Location:
    Too far north. Too far east.
    Well, this thread will be interrupted by cobwebs and crickets. At least until this summer when the budget improves.

  8. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    2,510
    Media:
    21
    Likes Received:
    1,312
    Joined:
    Aug 12, 2007
    Location:
    East Coast
  9. Gumby

    Gumby Supamod Staff Member s-Moderator

    Messages:
    12,213
    Likes Received:
    664
    Joined:
    Dec 13, 2002
    Location:
    Knee deep in hookers and gin
    Those oil pump screws are pretty similar to 1FZ-FE oil pumps. very localized heat, an impact driver and, usually, a drill is required to get them out. My front pulley doesn't want to seat all the way in. I'm afraid I'll have to pull my oil pump too.

  10. pappy

    pappy photosynthesizing Moderator

    Messages:
    9,080
    Media:
    67
    Albums:
    6
    Likes Received:
    1,133
    Joined:
    Oct 7, 2003
    Location:
    Too far north. Too far east.
    I was using one of those hand impacts you smack with a hammer. It worked great when I did my FJ40. It only stripped those screws on the 3RZ. The drill was my friend and actually worked pretty good. Putting it on record, a 1/4" bit is what I used and it was perfect. The screws are only $1.09 list at Toyota and I'm going to replace all nine. When I pulled the oil pump cover off the gasket underneath was about as stiff as coat hanger wire.

    I wonder if you cocked the woodruff key. It's way back there.

  11. subzali

    subzali

    Messages:
    3,353
    Likes Received:
    323
    Joined:
    Jan 31, 2005
    Location:
    Denver CO
    My dad just rebuilt the 3RZ for his ‘97 Tacoma. Always liked that engine, too bad about the exhaust manifold issue. It cracked the head on my dad’s engine, cause for the rebuild. Always thought a turbo would be sweet.

  12. pappy

    pappy photosynthesizing Moderator

    Messages:
    9,080
    Media:
    67
    Albums:
    6
    Likes Received:
    1,133
    Joined:
    Oct 7, 2003
    Location:
    Too far north. Too far east.
    Here ya go:
    Street Turbo Kit(Low Boost) - 3RZ

  13. Gumby

    Gumby Supamod Staff Member s-Moderator

    Messages:
    12,213
    Likes Received:
    664
    Joined:
    Dec 13, 2002
    Location:
    Knee deep in hookers and gin

    That's my guess. I'm gonna pull the grill and see if I can see back there.

    RockAuto has a kit with a pump, cover, gasket and new bolts.

  14. Gumby

    Gumby Supamod Staff Member s-Moderator

    Messages:
    12,213
    Likes Received:
    664
    Joined:
    Dec 13, 2002
    Location:
    Knee deep in hookers and gin
  15. pappy

    pappy photosynthesizing Moderator

    Messages:
    9,080
    Media:
    67
    Albums:
    6
    Likes Received:
    1,133
    Joined:
    Oct 7, 2003
    Location:
    Too far north. Too far east.

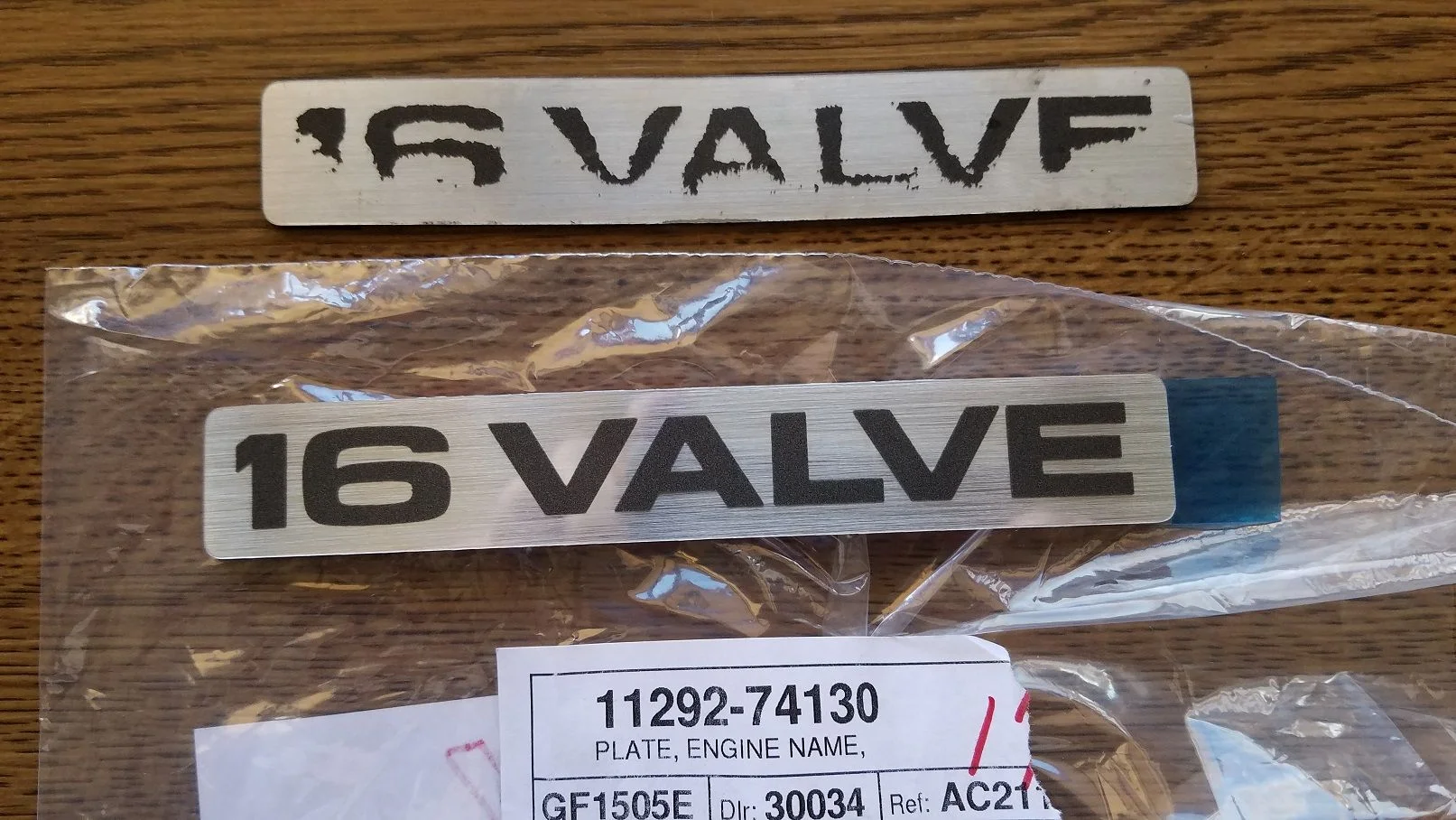

    Why? Because sometimes bling really does matter. $3.53 list. Your price might be different. I might need to get another to keep my go-fast stickers company.

    Engine plate.jpg

  16. pappy

    pappy photosynthesizing Moderator

    Messages:
    9,080
    Media:
    67
    Albums:
    6
    Likes Received:
    1,133
    Joined:
    Oct 7, 2003
    Location:
    Too far north. Too far east.
    Probably.

  17. Prairie Swamp

    Prairie Swamp

    Messages:
    718
    Media:
    113
    Albums:
    3
    Likes Received:
    610
    Joined:
    Aug 22, 2015
    Location:
    Ohio
    Nice score. I love the spring loaded split gear to maintain zero lash between cam drive gears. Did you happen to measure valve clearance? Just curious as these are shim and bucket I bet most never get adjusted.

    Based on my research on turbo kits (have not pulled the trigger) the stock injectors are very limited in terms of flow. So I think that's why they call it street/mild/5 PSI. I think 200 HP is the max with stock injectors (up from 150 stock?)

  18. esh

    esh

    Messages:
    2,052
    Media:
    3
    Albums:
    1
    Likes Received:
    168
    Joined:
    Apr 22, 2003
    Location:
    Oregon
    My '96 Tacoma's 3RZ is weird. It was replaced at some point and has the cleanest oil when doing a change that I've seen out of any vehicle. So I don't know if this is a common thing or if we're just lucky. Mine is getting clackity from what sounds like the timing chain stretching so it'll need to get that done before long.

  19. Prairie Swamp

    Prairie Swamp

    Messages:
    718
    Media:
    113
    Albums:
    3
    Likes Received:
    610
    Joined:
    Aug 22, 2015
    Location:
    Ohio
    I have experience with Mazda 80s/90s vintage 4 cylinders that always still had color to the oil at 3,000 miles even on very high miles engines. My 3RZ acts the same way. With Mobil1 I usually push changes to about 4K miles and the oil is not close to full black. Tight motors.

    Have you checked your valve clearance? These are solid lifter motors and should be checked every 60K.

  20. Frankenfab

    Frankenfab

    Messages:
    4
    Likes Received:
    0
    Joined:
    Dec 16, 2017
    Location:
    Portland, Oregon
    Super rad start!
