Need 1991 FJ70 3F Vacuum Diagram Information

Joined
May 7, 2018
Messages
47
Location
SA
I spent all day looking for the diagram, I promise I flipped the internet upside down looking for this.

I found a lot of stuff, 22r engine, toyota celica, toyota fuel injected engines. But couldn't find my application.

The closest thing to what I want was posted here in the post #2, but the image is old and was deleted:

3F vacuum diagram (aussie)

Does anyone have that image? Or how to find my specific diagram? Or the label that was supposed to be under the hood? Thank you

FJ70LV-MRV

Joined
May 7, 2018
Messages
47
Location
SA
Yes I have a working AC.

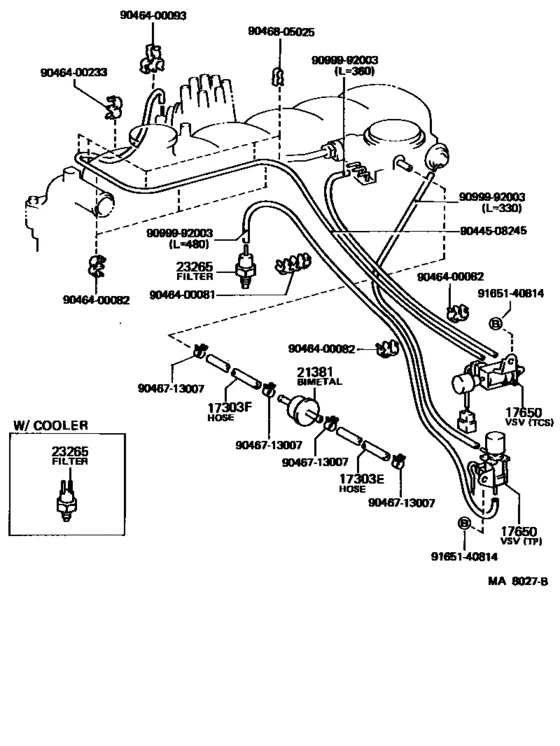

Thanks for that image but it seems lacking a lot of information. Particularly the carb side lines and vacuum valves hanging on the fender. I'm very interested in this side because to me it look like a jungle mess. I can't understand it. And I suspect someone misplaced some lines probably. Because I have low vacuum pressure and I'm trying to find the cause. (the other probability is bad valve adjustment job).

Joined
Aug 16, 2015
Messages
1,717
Location
78229
Where are you located MalcolmY?

I have noticed that the 3F vacuum layout can vary depending on the market. Maybe I am wrong though.

My 3F powered FJ73 is from Colombia. Mine also has working A/C as well, converted to R-134a.

Joined
May 7, 2018
Messages
47
Location
SA
I'm in Saudi Arabia. I noticed the regional variation in the FSM too. Like the extra adjustment screw just for Saudi Arabia carb. That's one of the reasons I'm tracking down the vacuum diagram. Something is not right when I'm tuning that screw.
Also I have only 11 inches of vacuum from the intake manifold.

Joined
May 7, 2018
Messages
47
Location
SA

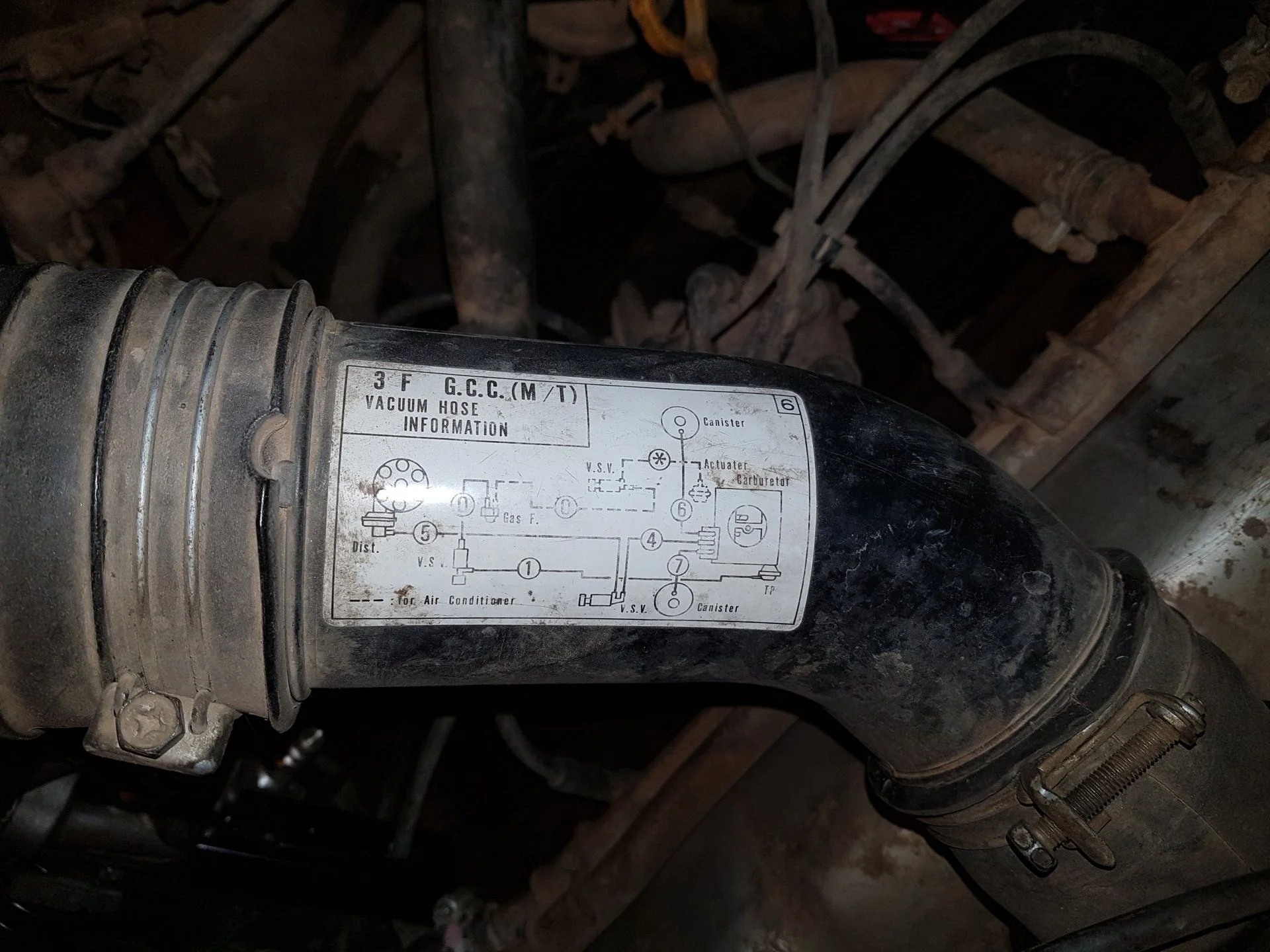

Okay I found it, it was right in front of me the whole time. It was on the air hoe over the engine. It seems understandable enough. I just couldn't figure out the star-like symbol.

If yours has AC, FJ73Texas, then I guess this is applicable to you too.

Vacuum info.jpg


Vacuum info.jpg


roscoFJ73



Joined
Jul 22, 2003
Messages
17,188
Location
Perth Western Australia

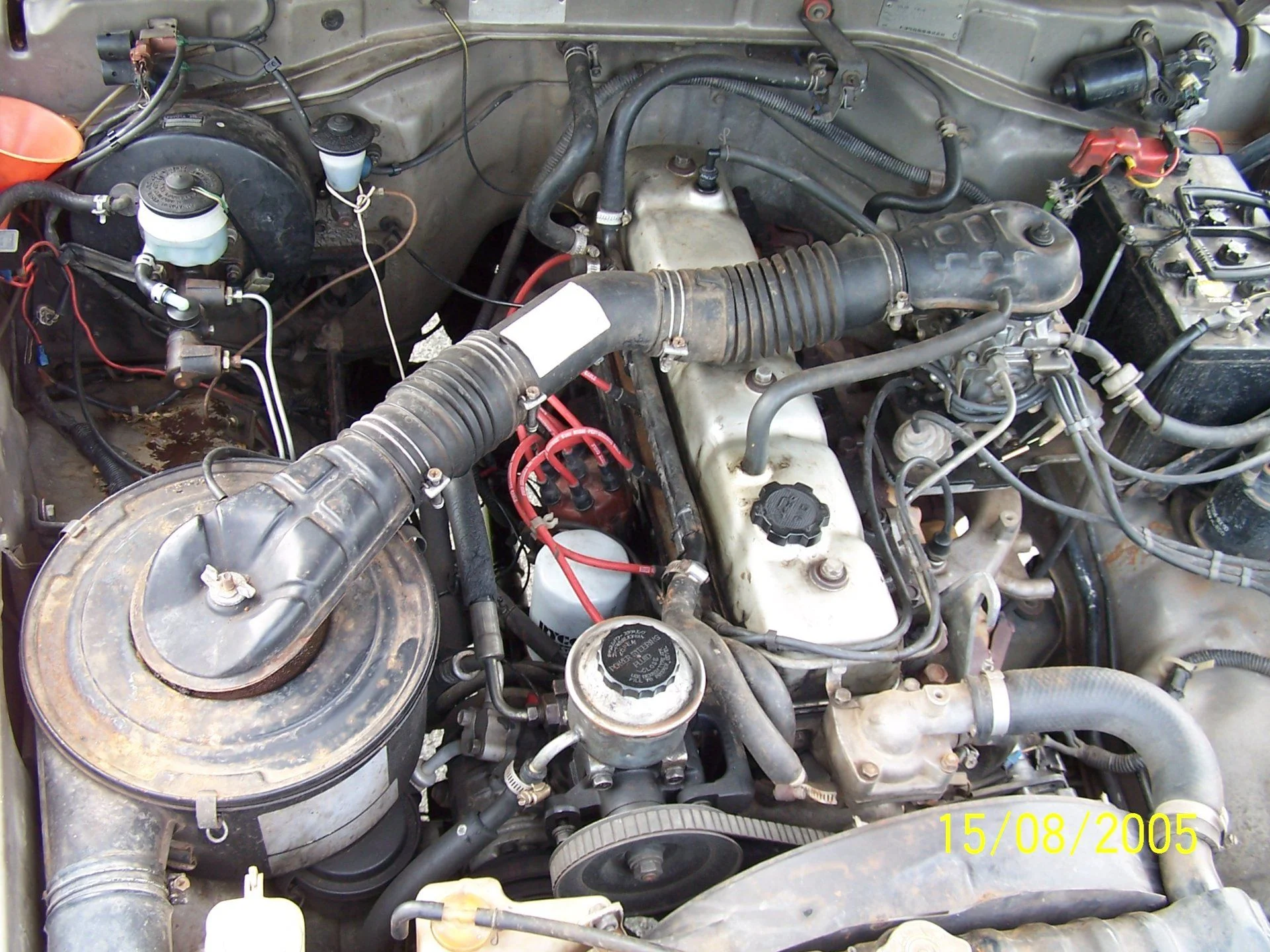

There wasn't much to the carb on mine. Most of it was for the solenoids that activated the fast idle when you turned the aircon on. I was looking for these pics and couldn't find them but here they are . I bet that sticker on the air tube was the diagram for mine.

robs pics 003.jpg
robs pics 002.jpg

Joined
Feb 4, 2018
Messages
6
Location
Colombia
There wasn't much to the carb on mine. Most of it was for the solenoids that activated the fast idle when you turned the aircon on. I was looking for these pics and couldn't find them but here they are . I bet that sticker on the air tube was the diagram for mine.

View attachment 1698537 View attachment 1698538

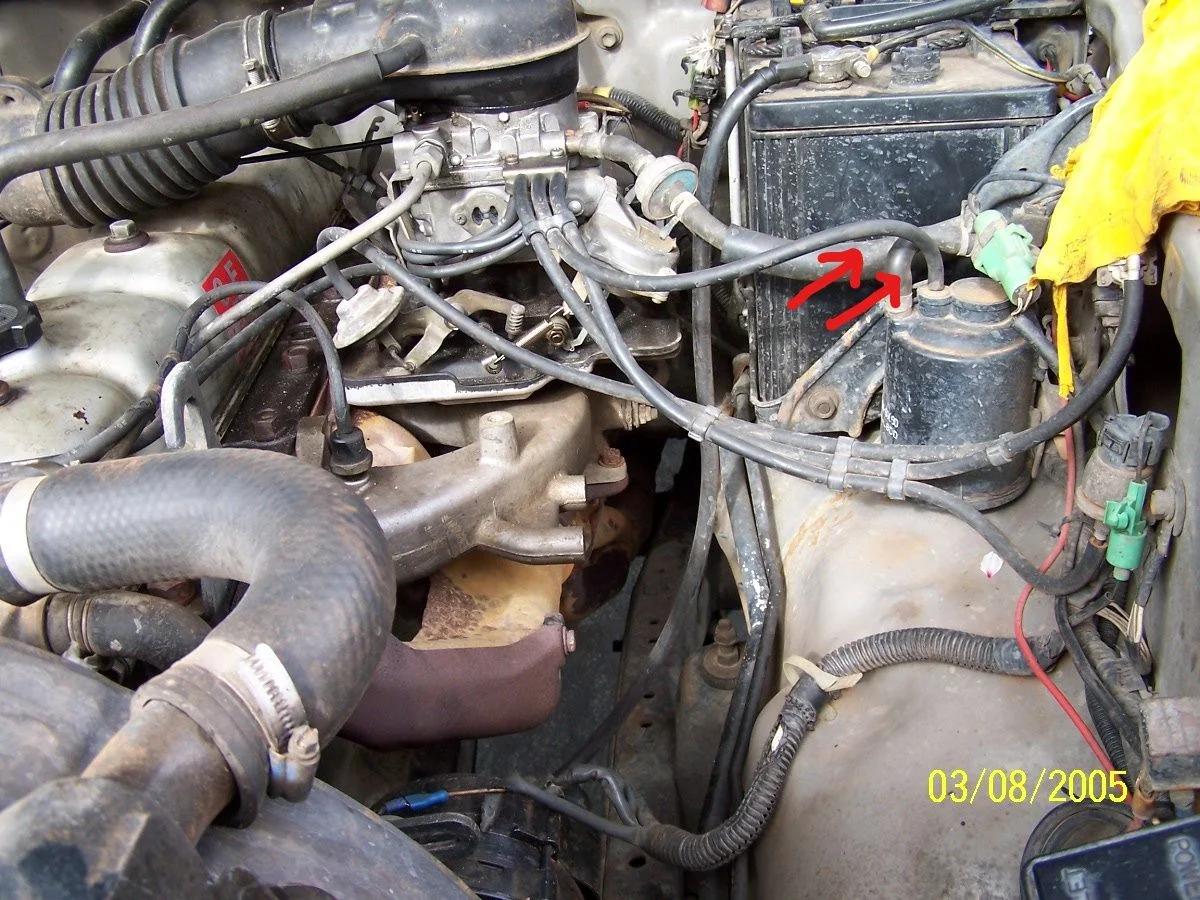

Could you tell me where these vauum hoses go? I am pretty sure it going to a vacuum switch.
Inkedvacuum pic_LI.jpg


roscoFJ73



Joined
Jul 22, 2003
Messages
17,188
Location
Perth Western Australia
That engine was from 15 years ago. Thats a charcoal canister, I think the vacuum opens or closes fumes going/coming from the canister. And yes, at least one is going into the vacuum switch.

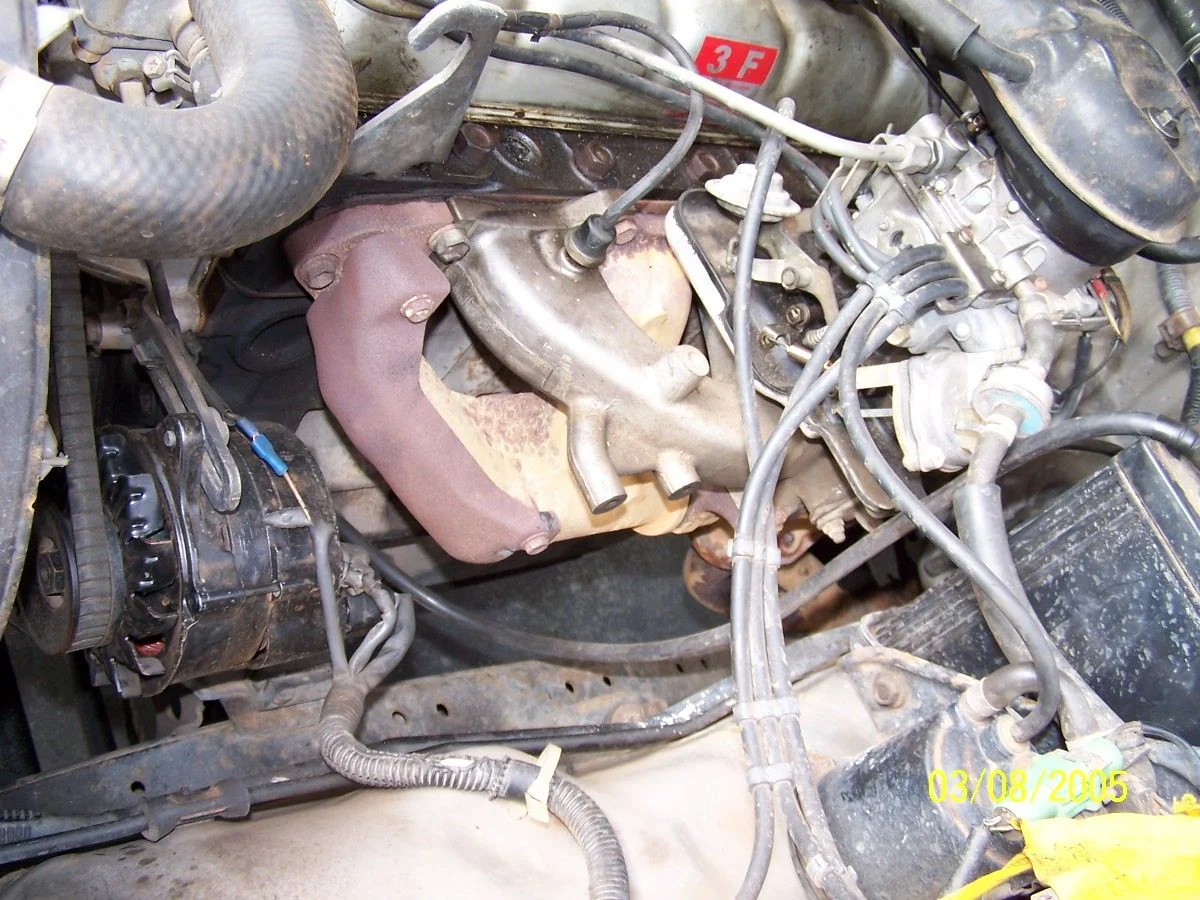

This is the best other pic I have. This engine was on its way out with a worn cam and poor compression, so I wasnt to interested in how it all worked

robs pics 001.jpg

Joined
Feb 4, 2018
Messages
6
Location
Colombia
That engine was from 15 years ago. Thats a charcoal canister, I think the vacuum opens or closes fumes going/coming from the canister. And yes, at least one is going into the vacuum switch.

This is the best other pic I have. This engine was on its way out with a worn cam and poor compression, so I wasnt to interested in how it all worked

View attachment 2208109
Thanks! It goes to the outer vent vacuum first then to the canister


Honger

Joel, TLCA #21509
SILVER Star

Joined
Aug 11, 2005
Messages
1,727
Location
Phoenix, AZ
Whoa... this is a handy thread. If for nothing else than the pic on the air hose. Mine doesn’t have that. At some point I need to go through and refresh all my hoses, vacuum switches, and canisters...
