I'm in the process of refurbishing and modifying an 8/80 and later big cap 2F distributor for a fellow MUD member's '74 FJ40. He wanted to go with a Pertronix set-up instead of a points set-up like the one I built last year (Distributor Tech - Points Distributor with Shaft Bearing and Weatherproof/Vented Cap - https://forum.ih8mud.com/threads/distributor-tech-points-distributor-with-shaft-bearing-and-weatherproof-vented-cap.1228894/). @ToyotaMatt's "Skunk Works" mentality continues unabated in my shop. This modification provides several benefits over the typical F/2F Pertronix set-up - a bearing supported shaft and a weatherproof/vented cap. However, it does require the use of an 8/80 and later dented side cover.

This first prototype uses many new Toyota/NipponDenso parts:

- single diaphragm vacuum advancer
- shaft O-ring
- cam
- cam grease plug
- mechanical advance weights with sleeves
- breaker plate
- distributor cap
- distributor cap dust proof packing (O-ring)
- rotor
- wire clip
- miscellaneous hardware

I also replaced the missing mechanical advance stop pin bushing with a new nylon bushing from my local hardware store.

The only original parts remaining are the distributor housing, distributor shaft, distributor gear/pin, shaft bearing, and mechanical advance springs.

This turned out to be a nice, clean set-up.

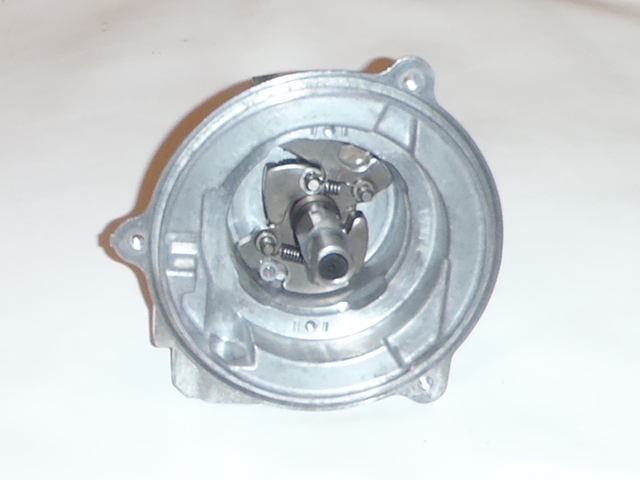

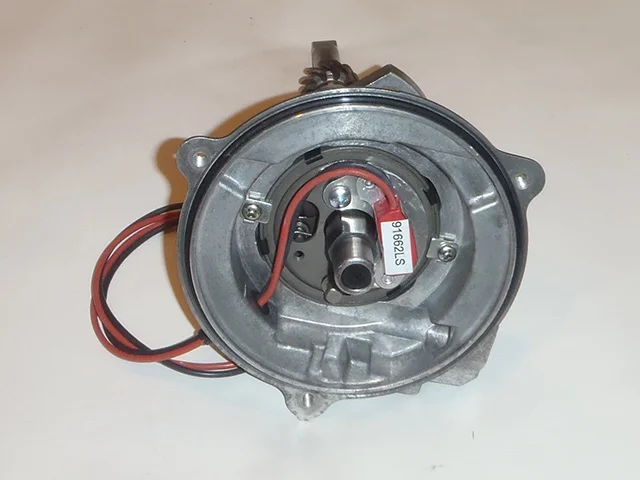

Here are some in progress photos, without the new NipponDenso advancer:





ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
16,131
Location
EAST COAST
Website
vintageteqparts.com
Its Simply Amazing John to watch you break further into new ground and territory , and dive ever deeper into the whole Vintage NipponDenso Ignition Topic in

general . Pushing the limits of and Improving upon WWII era Technology is a Fascinating thing ! :D


Im glad your out there making this Nitch Trade-Craft Happen , folks need help with there BIG CAP 2F Units more and more all the time ..

and your making it happen !


SIMPLY BLISS Brother :)






ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
16,131
Location
EAST COAST
Website
vintageteqparts.com
So using the Pertronix in a FJ60 dissy you won't need the igniter?


i will take a WAG ..........

and say NO , Alf

all it requires is a Coil with a Internal Resister



@4Cruisers / John can you use a external ballast resister coil Toyota oem on a Pertronix System install ?

Exactly like this one here listed below ?








Last edited:

4Cruisers

Supporting Vendor
SILVER Star
Joined
Apr 2, 2015
Messages
6,858
Visit site
i will take a WAG ..........

and say NO , Alf

all it requires is a Coil with a Internal Resister



@4Cruisers / John can you use a external ballast resister coil Toyota oem on a Pertronix System install ?

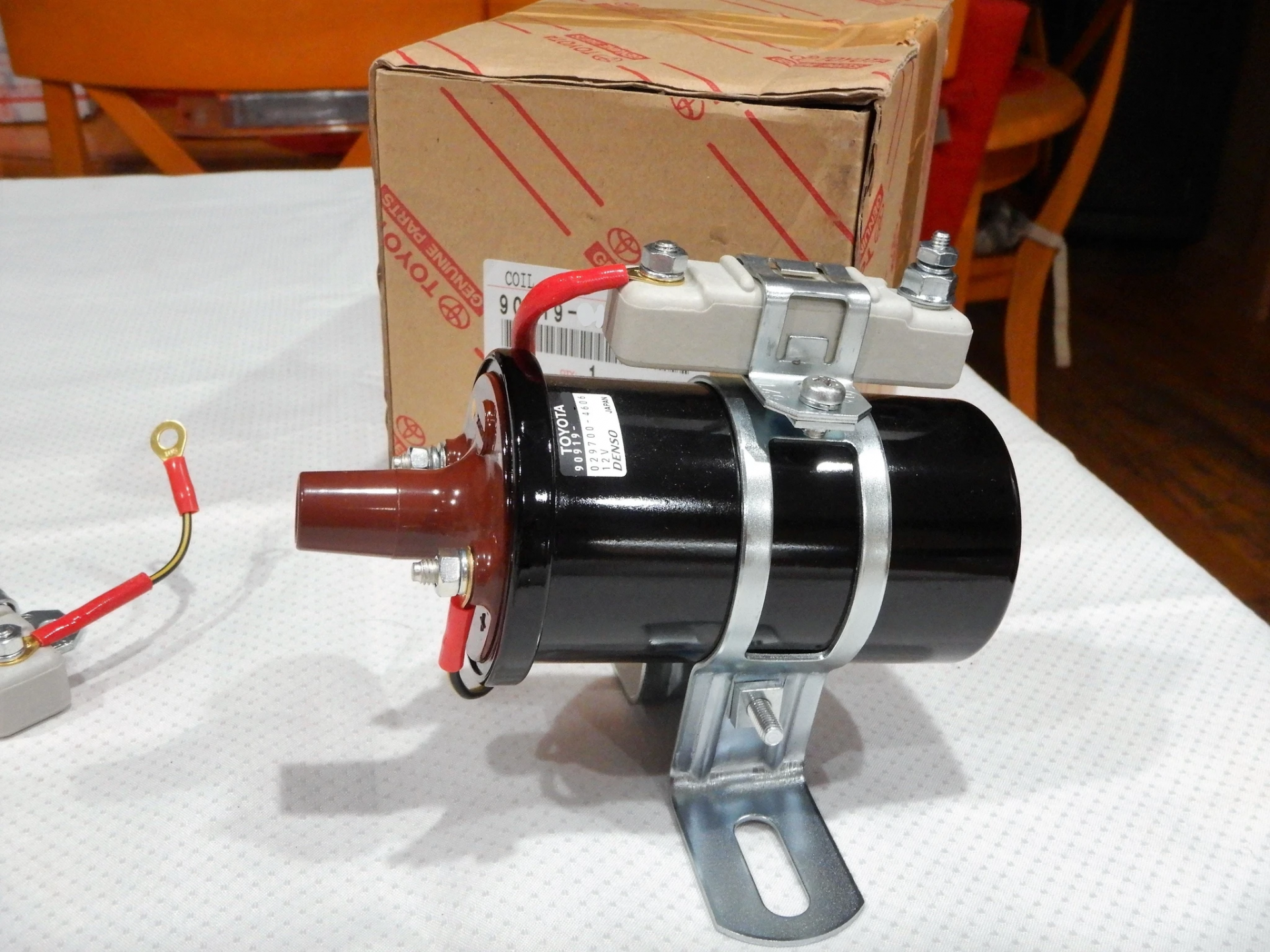

Exactly like this one here listed below ?






View attachment 2735169
The Pertronix instructions state the following:

"Many vehicles came equipped with a ballast resistor or resistance wire. To achieve optimum performance we recommend the removal of all external resistance, allowing the coil to receive full running voltage."


ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
16,131
Location
EAST COAST
Website
vintageteqparts.com
The Pertronix instructions state the following:​

"Many vehicles came equipped with a ballast resistor or resistance wire. To achieve optimum performance we recommend the removal of all external resistance, allowing the coil to receive full running voltage."


DR. NipponDenso Speaks ...........:D

ToyotaMatt Listens & Learns ....... :)
