Wanted Jack handle pieces

JackA


Joined
May 15, 2008
Messages
2,638
Location
Phoenix
I bought the hooked piece from my local dealer not too long ago.
As for the crank handle, not sure where to get one. I am looking for one as well.


Michael B

SILVER Star
Joined
Aug 1, 2012
Messages
3,718
Location
Huntsville Al

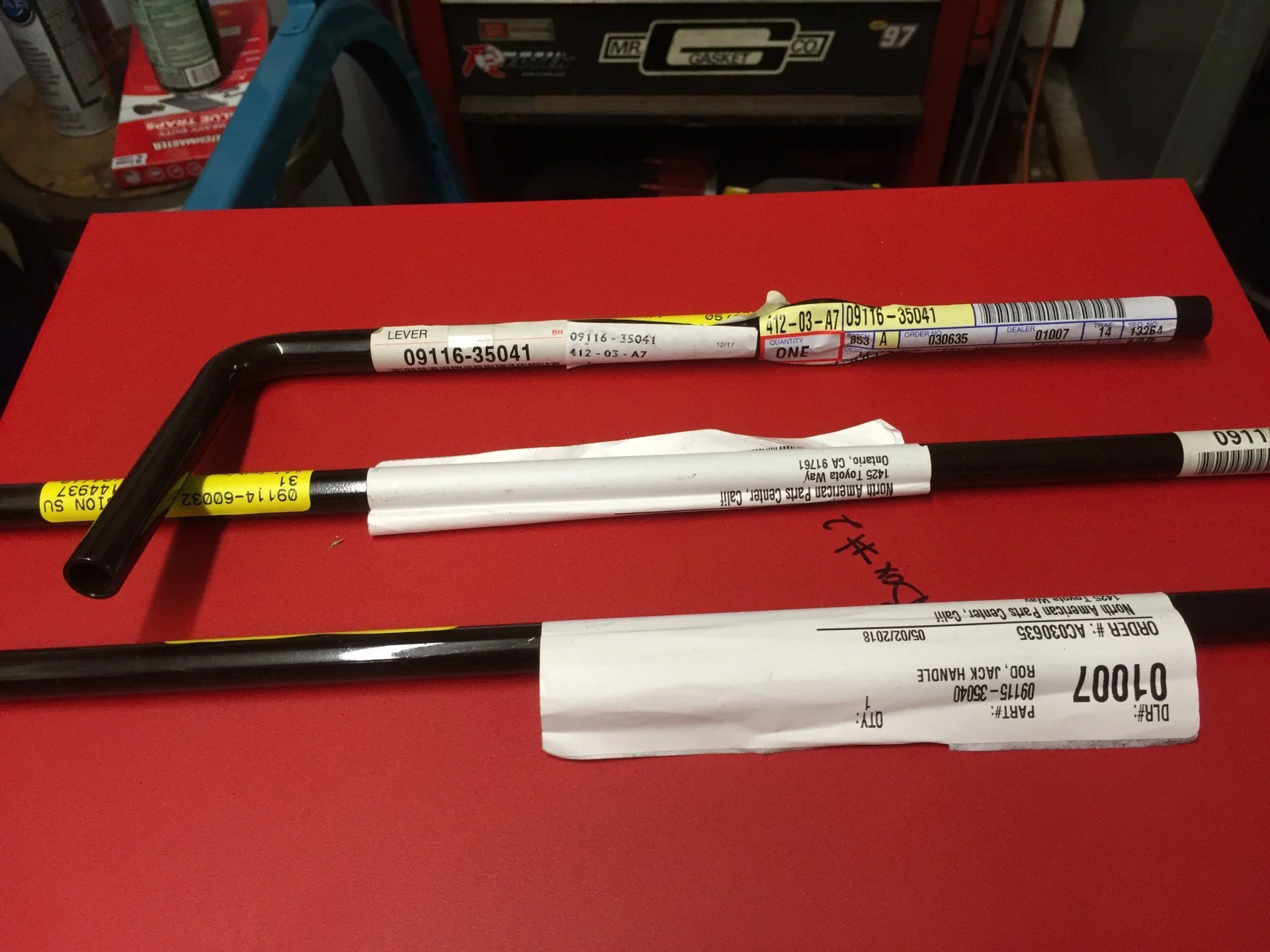

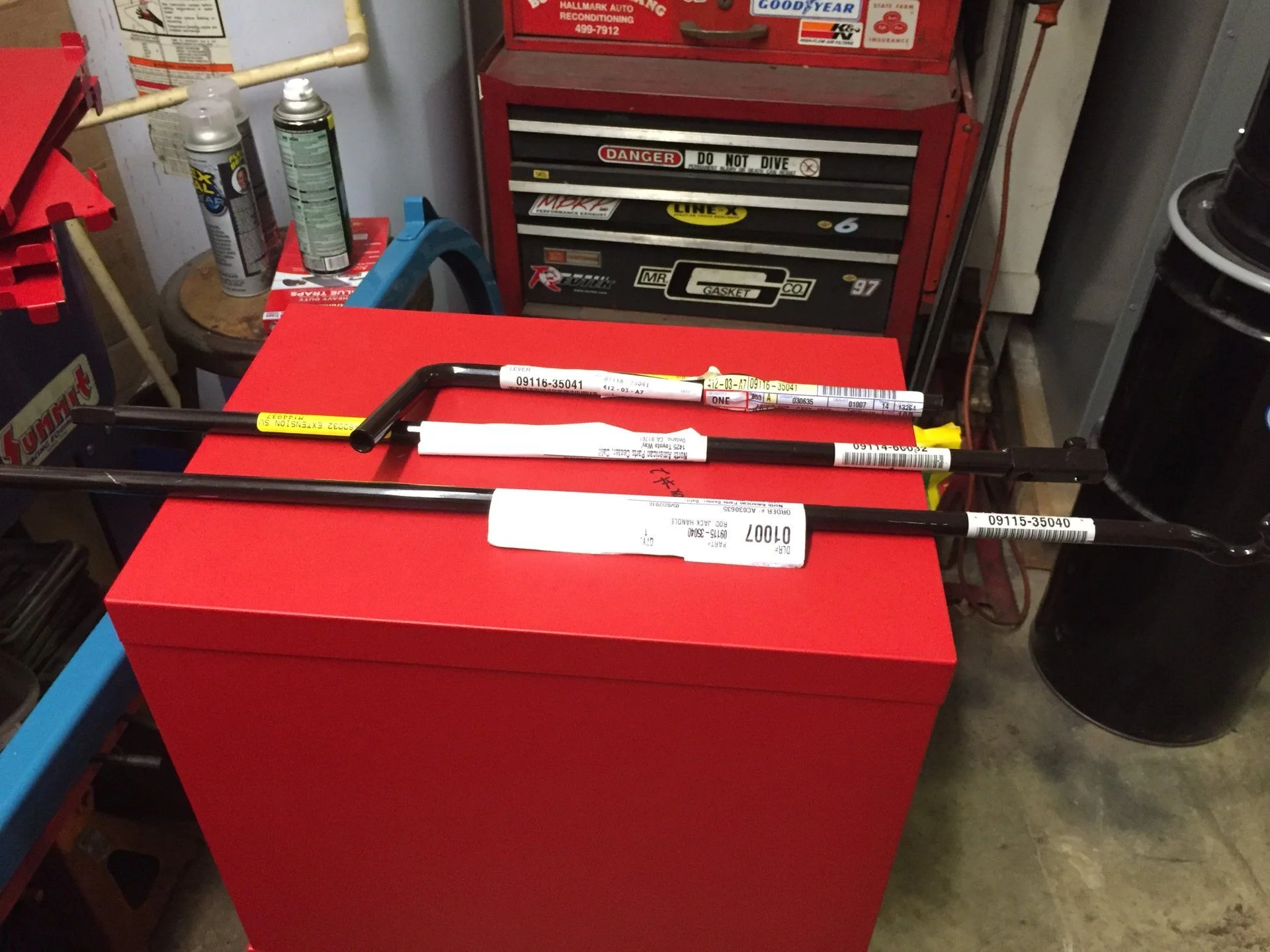

I took Jack’s advice and ordered the complete jack handle from my local dealership. This is what I received when we ordered it for a 78’ FJ40. I’m pretty sure the crank is for a newer vehicle but I don’t know about the other two pieces. They will at least work even if they are not period correct. Maybe Bill @wscbill can shed some light the subject?



Michael B

SILVER Star
Joined
Aug 1, 2012
Messages
3,718
Location
Huntsville Al

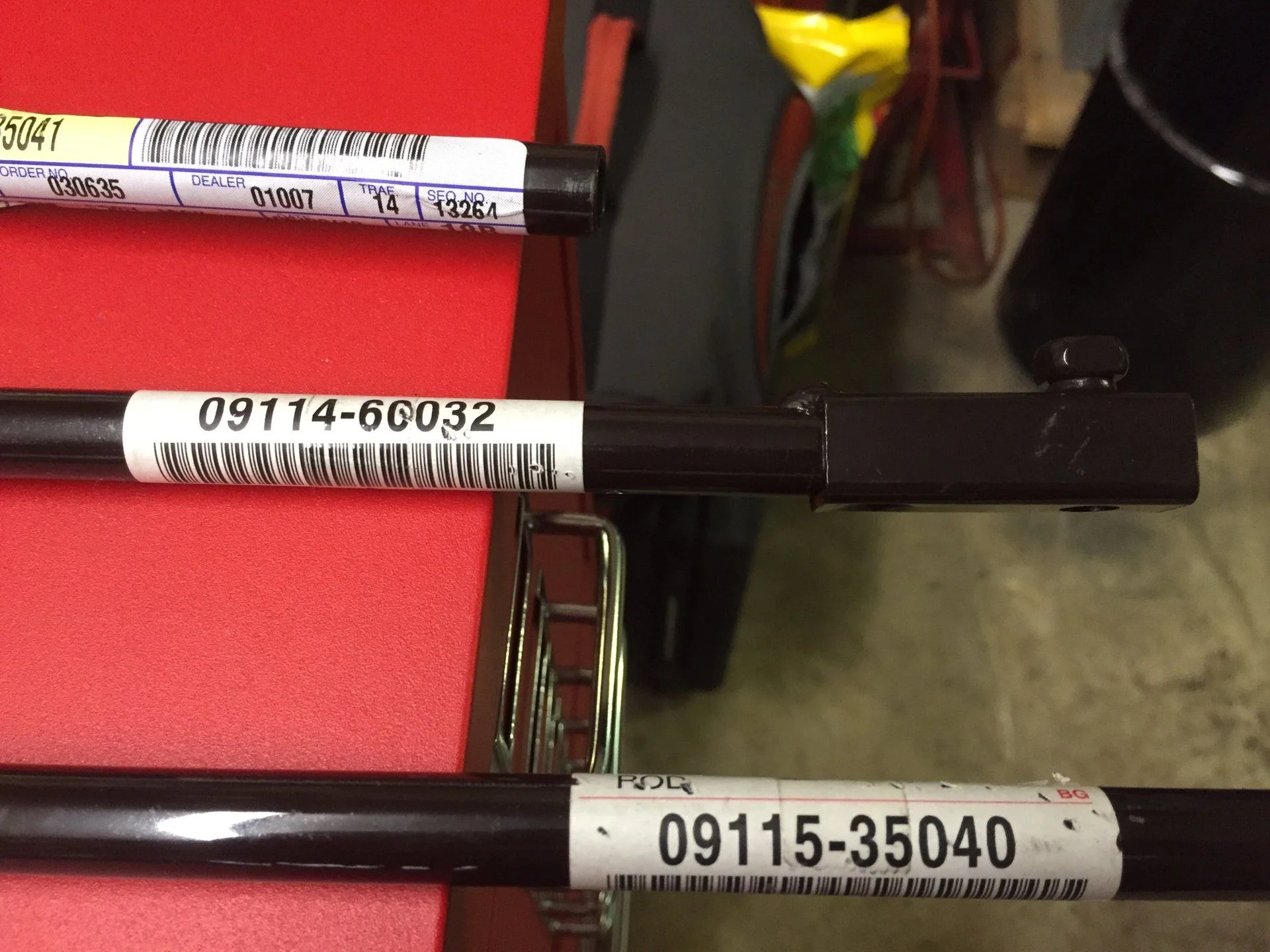

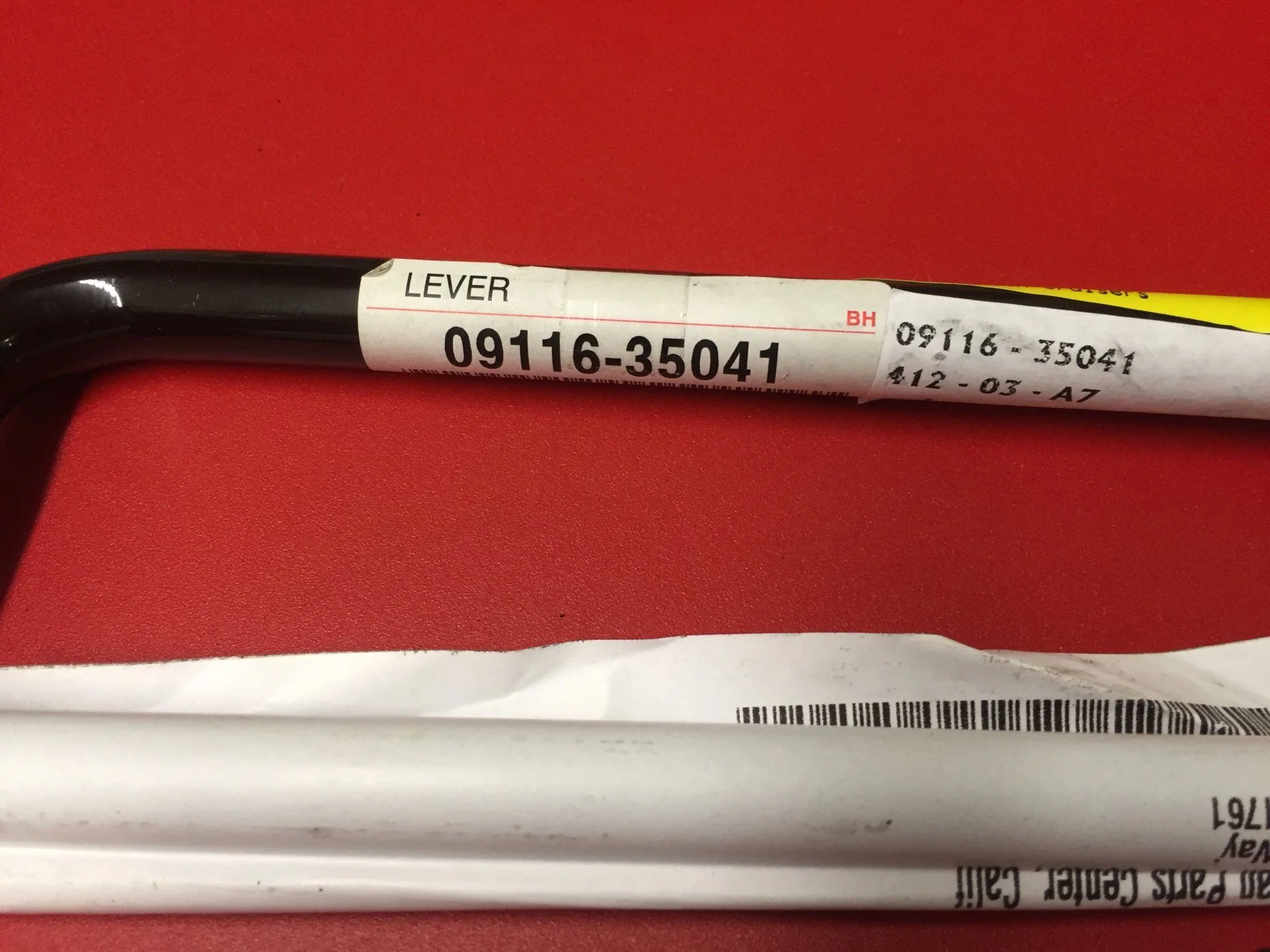

Nolen I ordered them last week so they are definitely still available. I tried to get a clear picture of the part numbers so others might use them. With our club discount at the local dealership it was about $56.00 with tax.


Living in the Past

SILVER Star

Joined
Apr 21, 2005
Messages
17,650
Was the 78 the last year of the yellow cast jack and handle? Doesn't surprise me Toyota sells these as a replacement for the earlier style. Prime example is the amber bib lights that were used in 68/69 being the replacememt for the earlier bib lights used from 58-67 on cruisers imported to the US.

Is the crank handle you got solid or hollow? I collected a number of parts over the years. Think the one I got from a 94 80 series was hollow.

Did the 78 still have the engine starting crank handle? Thought it was interesting they dropped it in the FJ40 but had it in the FJ45LP-B. Makes it nice having a place for the handle when I replace the spare tire carrier for the modern version with a winch.


Michael B

SILVER Star
Joined
Aug 1, 2012
Messages
3,718
Location
Huntsville Al
The crank handle is hollow. I do have the spare tire let down rod/engine crank handle. I’m not certain if 78’ was the last year for yellow paint.


Living in the Past

SILVER Star

Joined
Apr 21, 2005
Messages
17,650
The crank handle is hollow
I just looked at my 60 series jack handle, it's a stamped piece with a hollow tube for a handle. Painted yellow would look a lot more like the yellow cast ones used in the 40 series. My guess if you got one from a dealer would be just like the you just purchased. Used might be easier to find than the cast one.

Dug up a picture of my 89 FJ62 tool kit and it has the tube style handle. Not sure of the year of the one from the FJ60 or when the changed happened.

Last edited:
