Finally I have acquired a suitable gearbox for the rear of the 1KZ-TE

It's from a V6 4runner, it's been out, and open for a while, so water got in, but Im keen to open it up and check it's condition, it spins easy and there are no noises heard even when spinning with a drill and shifting the gears...

However, I may use this as a spare gearbox only, because I also found a better one, out of a 1KD-FTV toyota (2005) which has lower gear ratios in 1st and 2nd gear much like the 4cyl. gasoline turbo R151 gearboxes did

This gearbox is really common here in Iceland and europe in general, coming from the facelift Toyota Hilux KDN165 body with the 2,5 turbo diesel engine



[Miloslavich]

This is really cool. Nice work sir.

what do you use for diesel heating / oil heating on your hilux?



[Saevar Orn]

Hello Milo - thanks for your comments.


My LN165 Hilux is fitted with an on board fuel filter housing heating element from the factory.
However, this is not very necessary in the Icelandic climate, as it doesn't really get that cold here at all during winter.
The lowest we see (rarely) is around -20°C e. (-4°F) and this is extremely rare in the inhabited areas of the country.

Google photo of an identical piece of kit:



[Saevar Orn]

Good afternoon, how are ya!

Ive been traveling with the land cruiser(red one) for a few weeks, but back now and on holiday for the next 3 weeks

Icelandic KZJ95 (LandCruiser/Prado) - https://forum.ih8mud.com/threads/icelandic-kzj95-landcruiser-prado.1310210



Been pretty busy with stuff, not much hilux stuff though, literally haven't started the thing for over 2 months since I got the gearbox I think!!



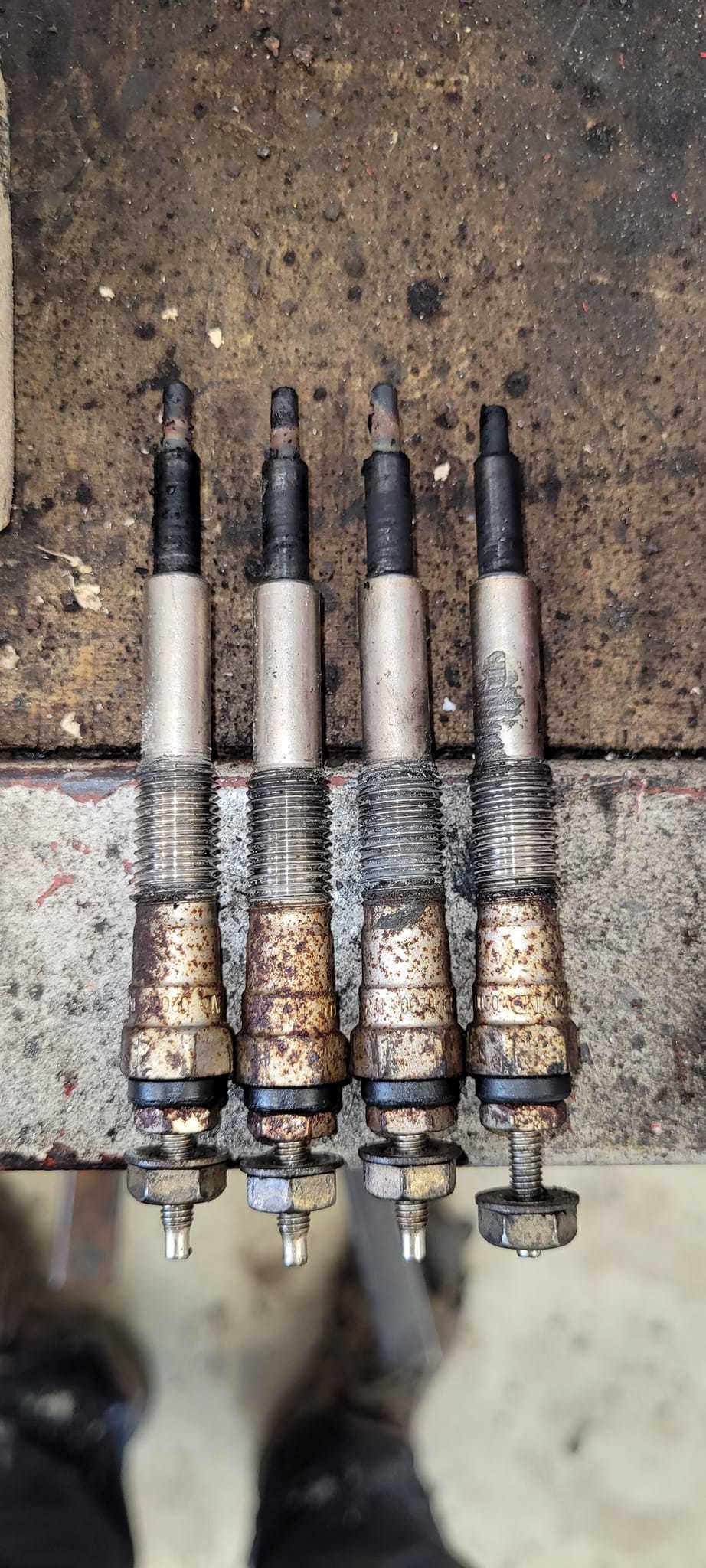

Anyway, started the teardown of the 1KZT-E engine... was aiming for just replacing gaskets and oils and letting it go on... but decided otherwise once opened up...

Turning in to a full on restoration now... can you believe it? doh...

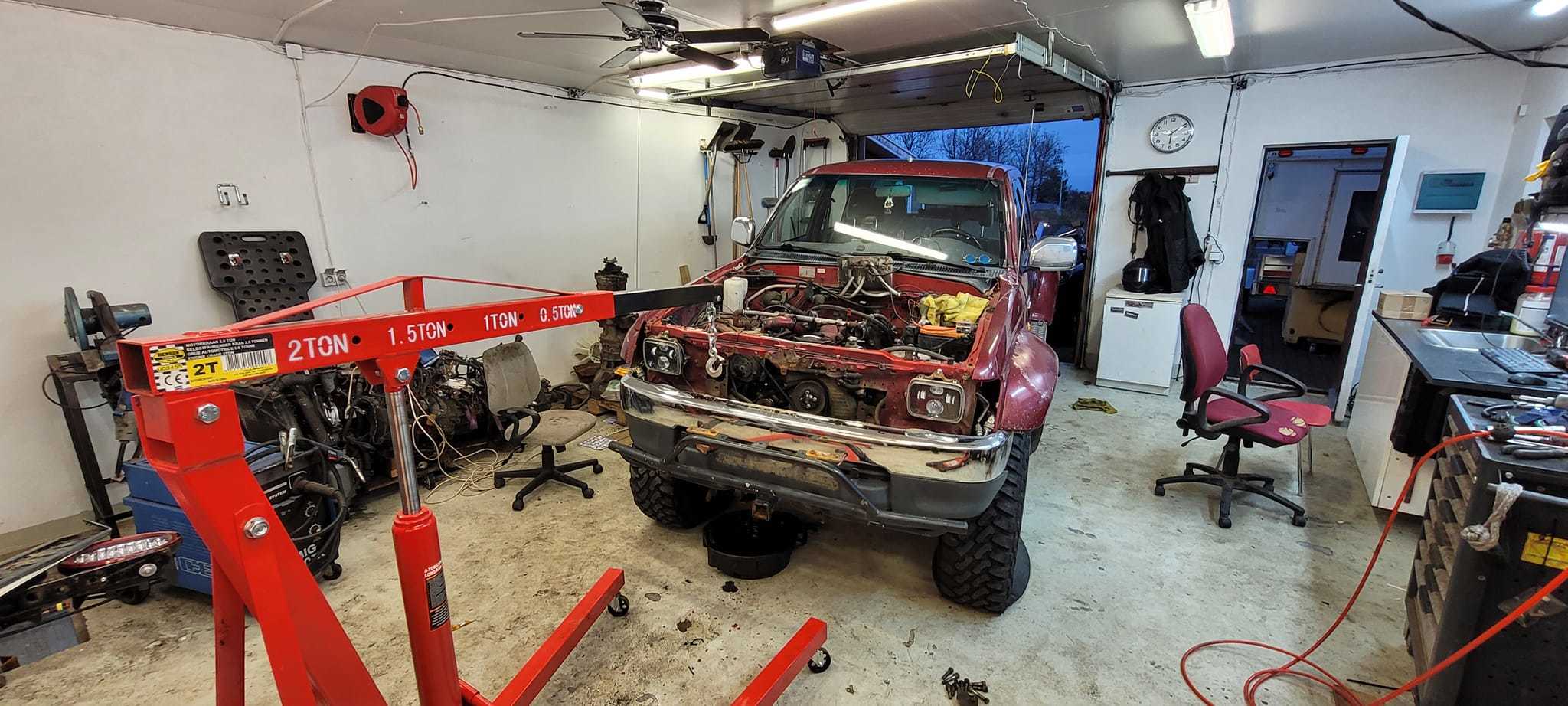

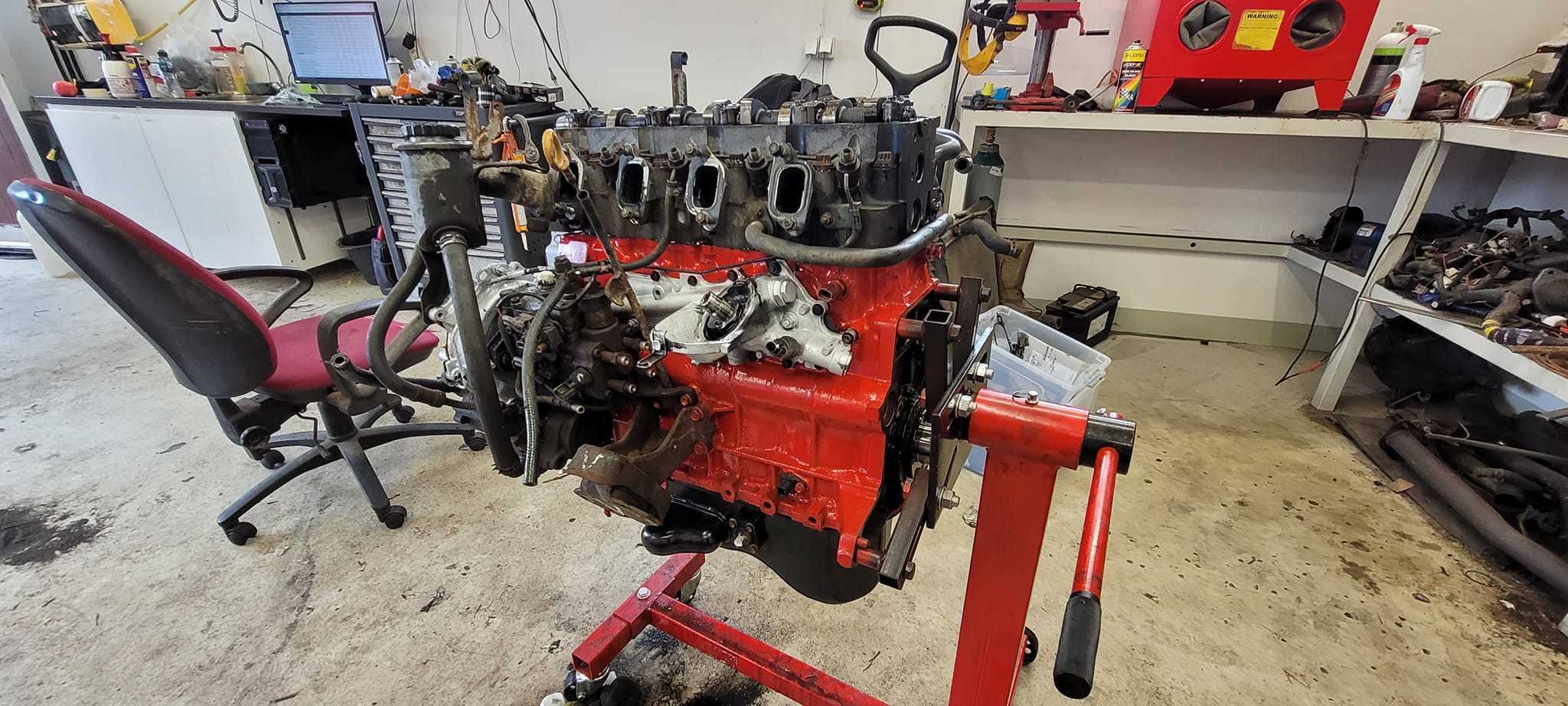

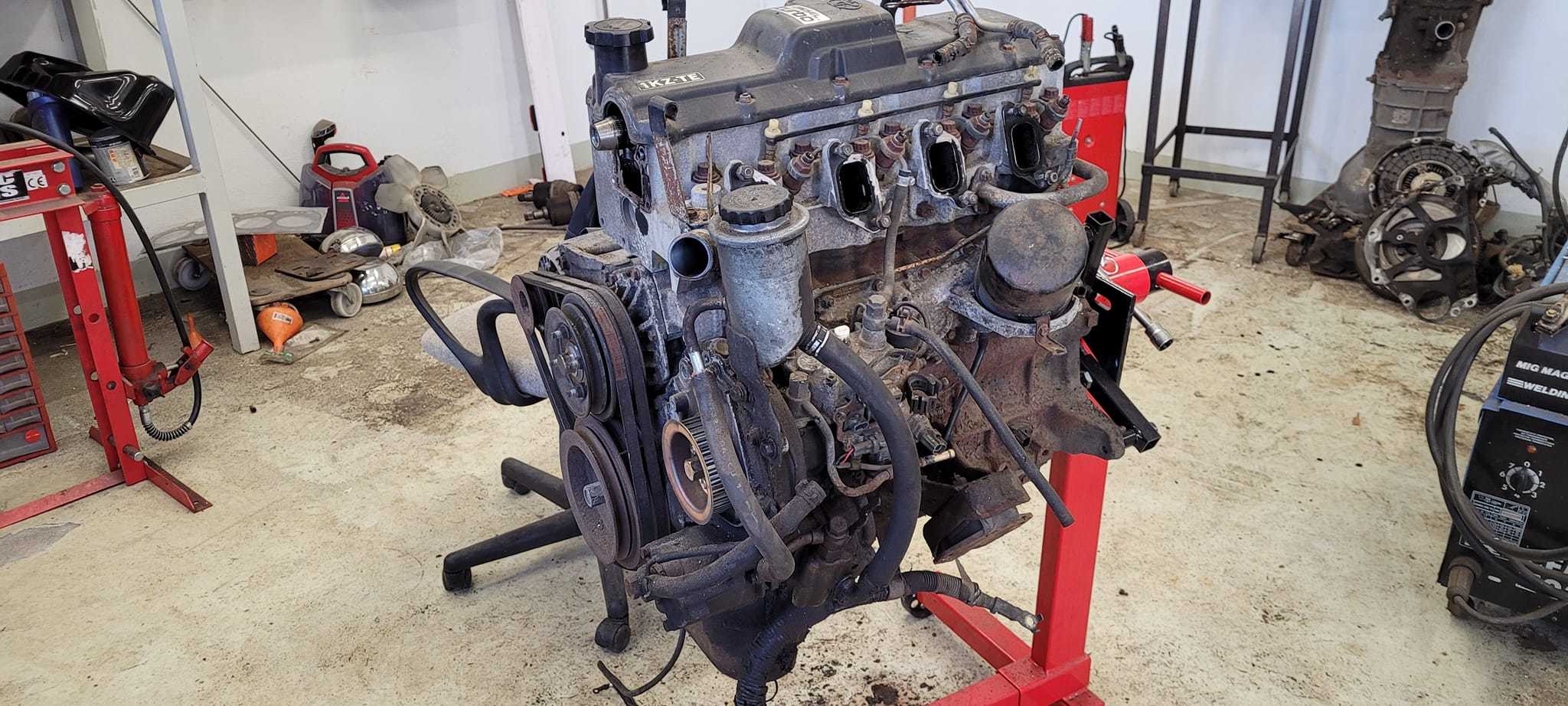

Gearbox seperated from off engine, engine put into stand



Engine flipped, sump removed (can confirm that 1KD-FTV engine sump will fit and interchange for my LN165 application IFS.

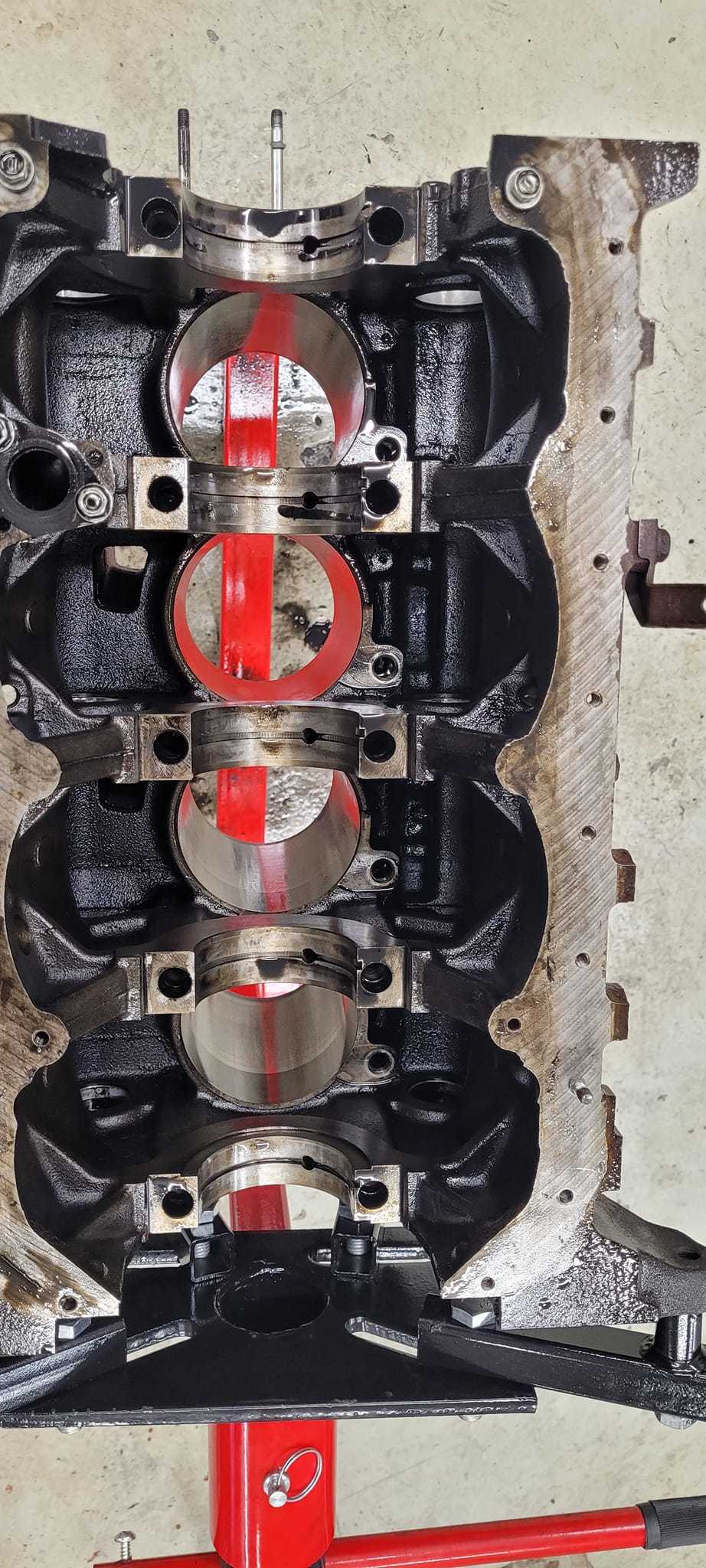

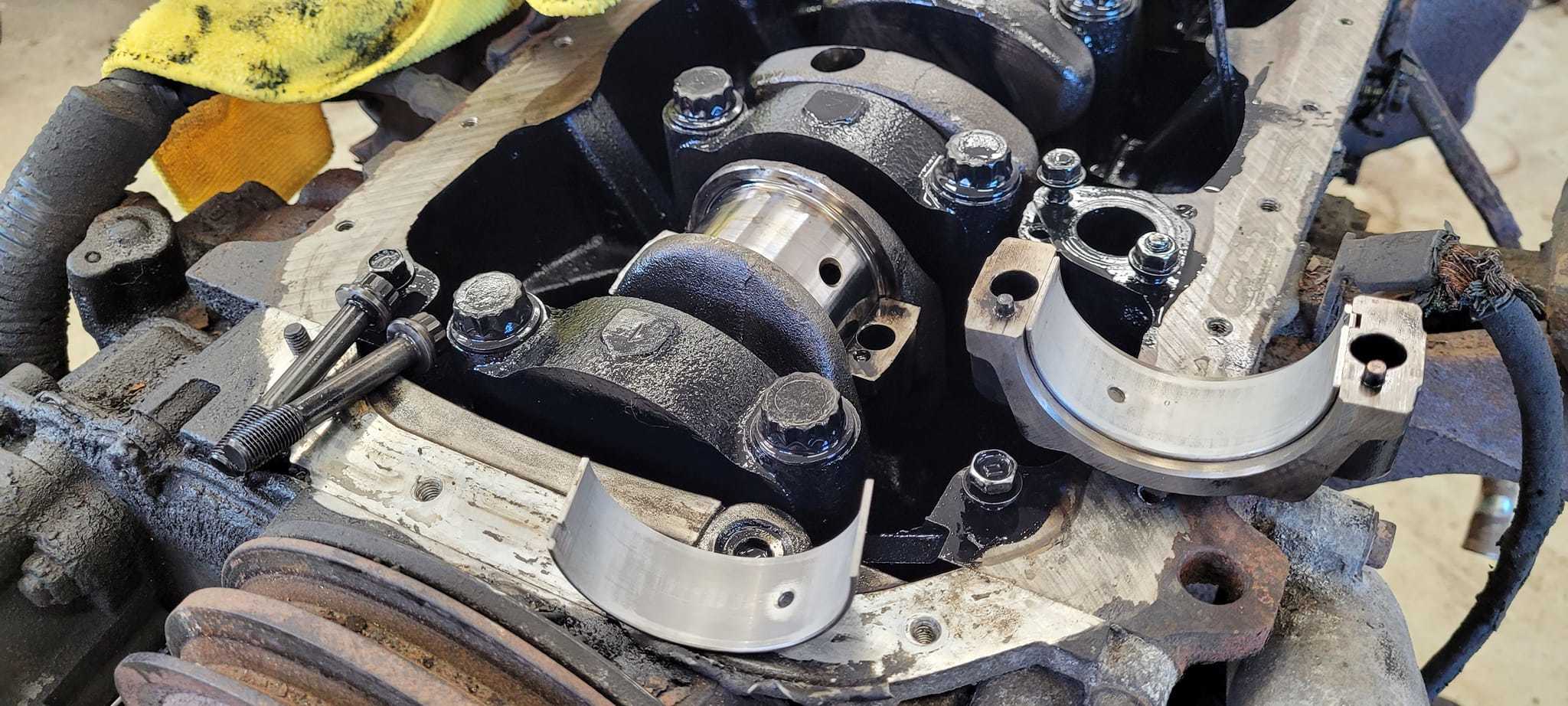

Bearings look mint (considering 450.000 kms). Must've had a good service life. I'll replace them with new standard ones.

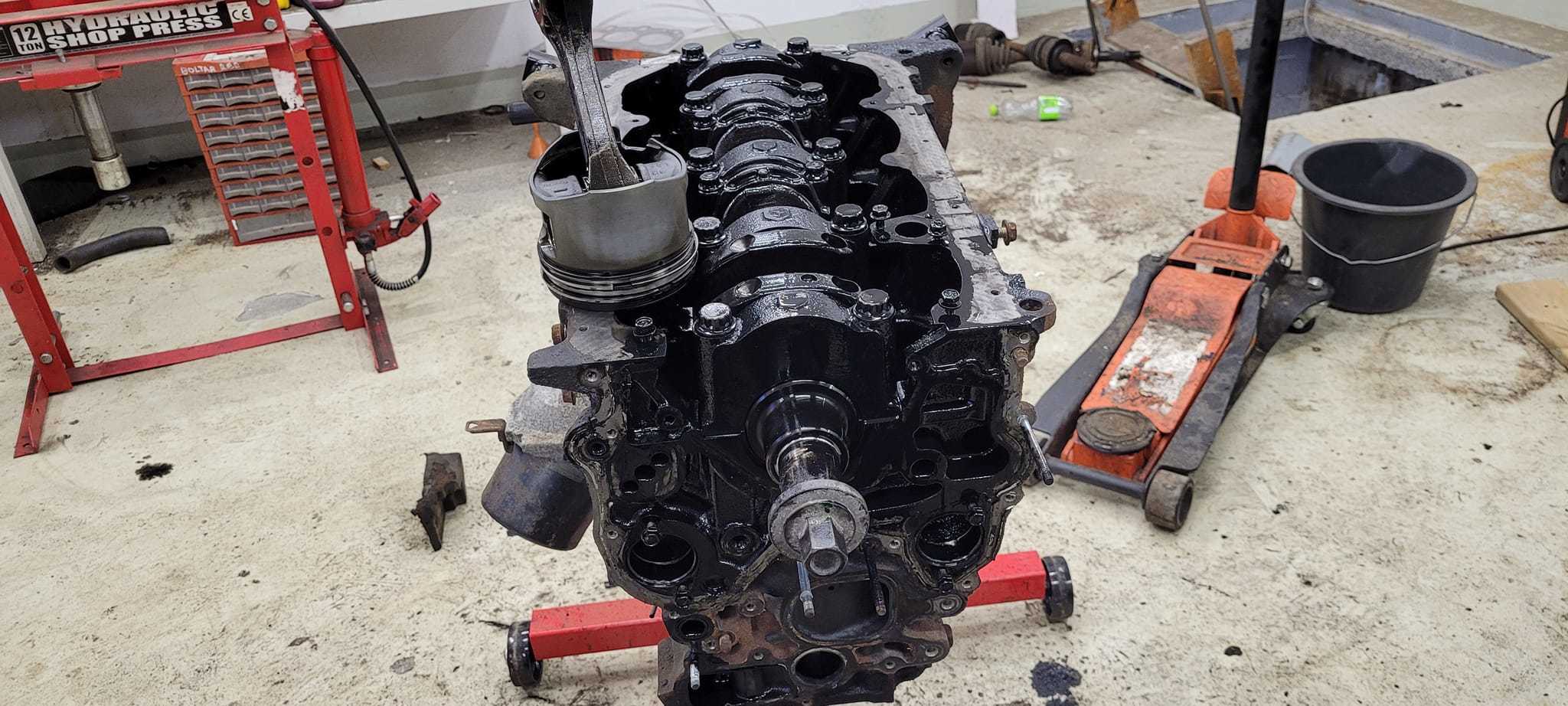

Pistons are out, one has damage in it, so all are getting replaced and genuine piston rings too. Also ordered a cylinder hone as my old one is in dire state.

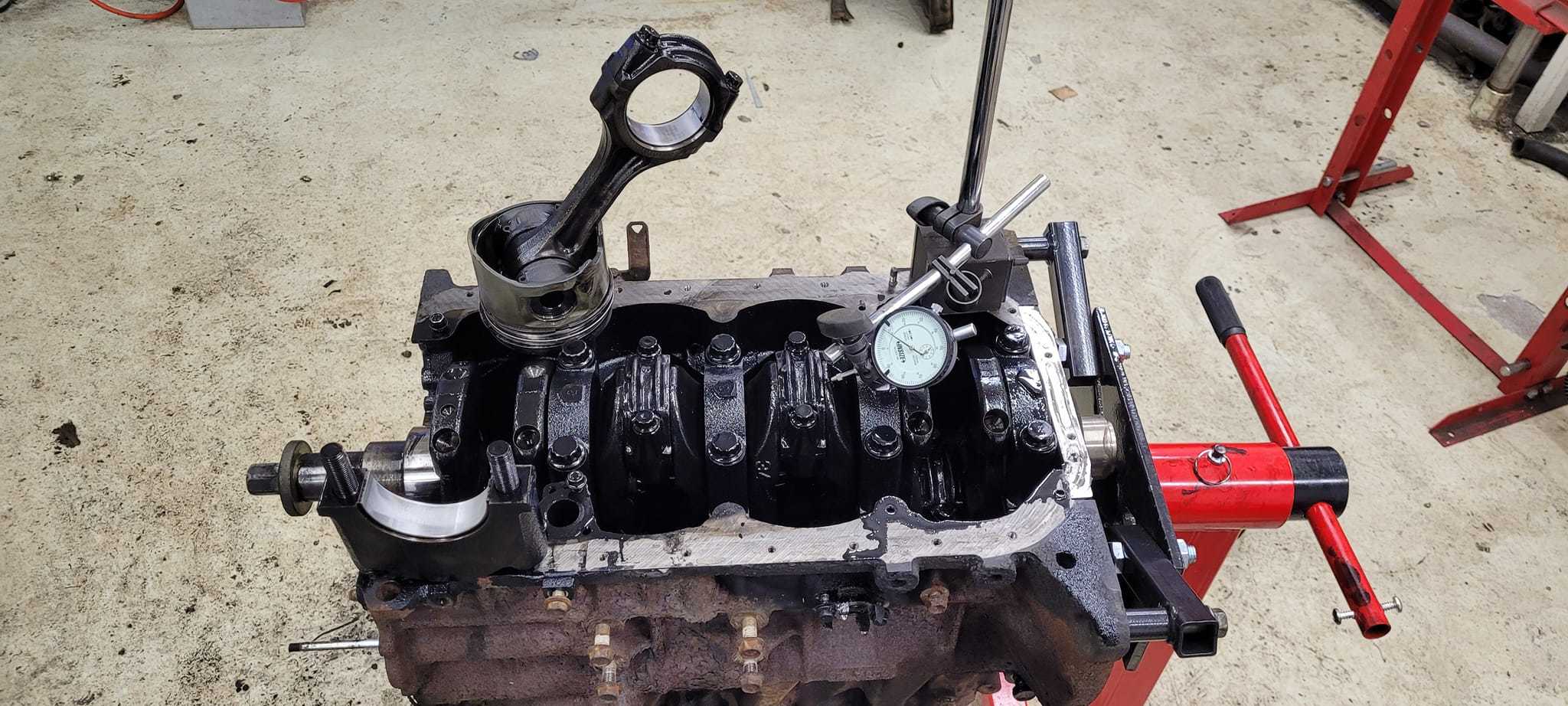

Thrust bearings are mint, on the tighter end of manufacturer spec, proving again that this engine has had a decent/good service life, it was a manual transmission engine.





More later... parts on the way for all the $$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$s



[Saevar Orn]

continuing the rebuild, I found this in one of the pistons, I guess EGTs are just a myth... this engine was(and will continue to be) chipped. So I guess an EGT gauge is high on the wishlist after spending a fortune on genuine pistons on top of all of the other things I'm putting in new

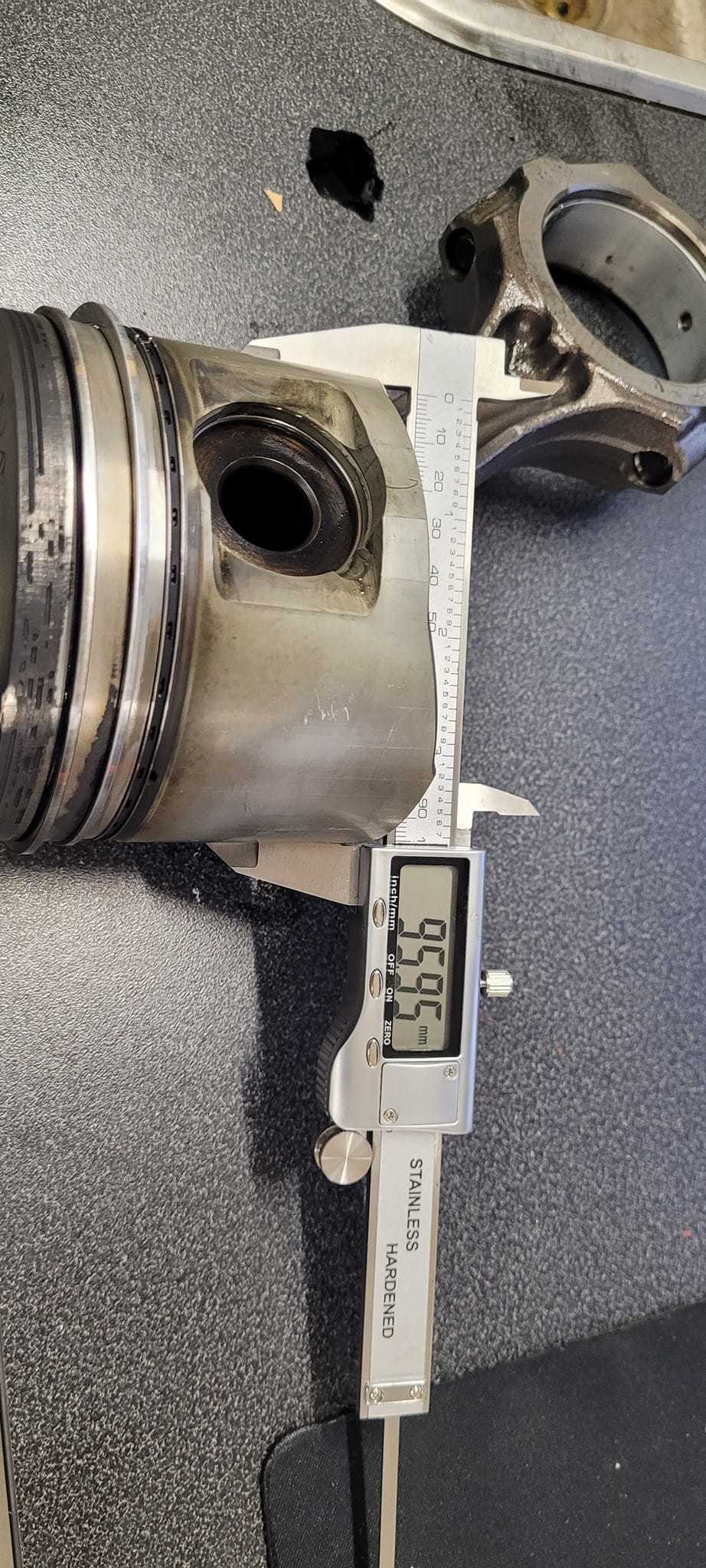

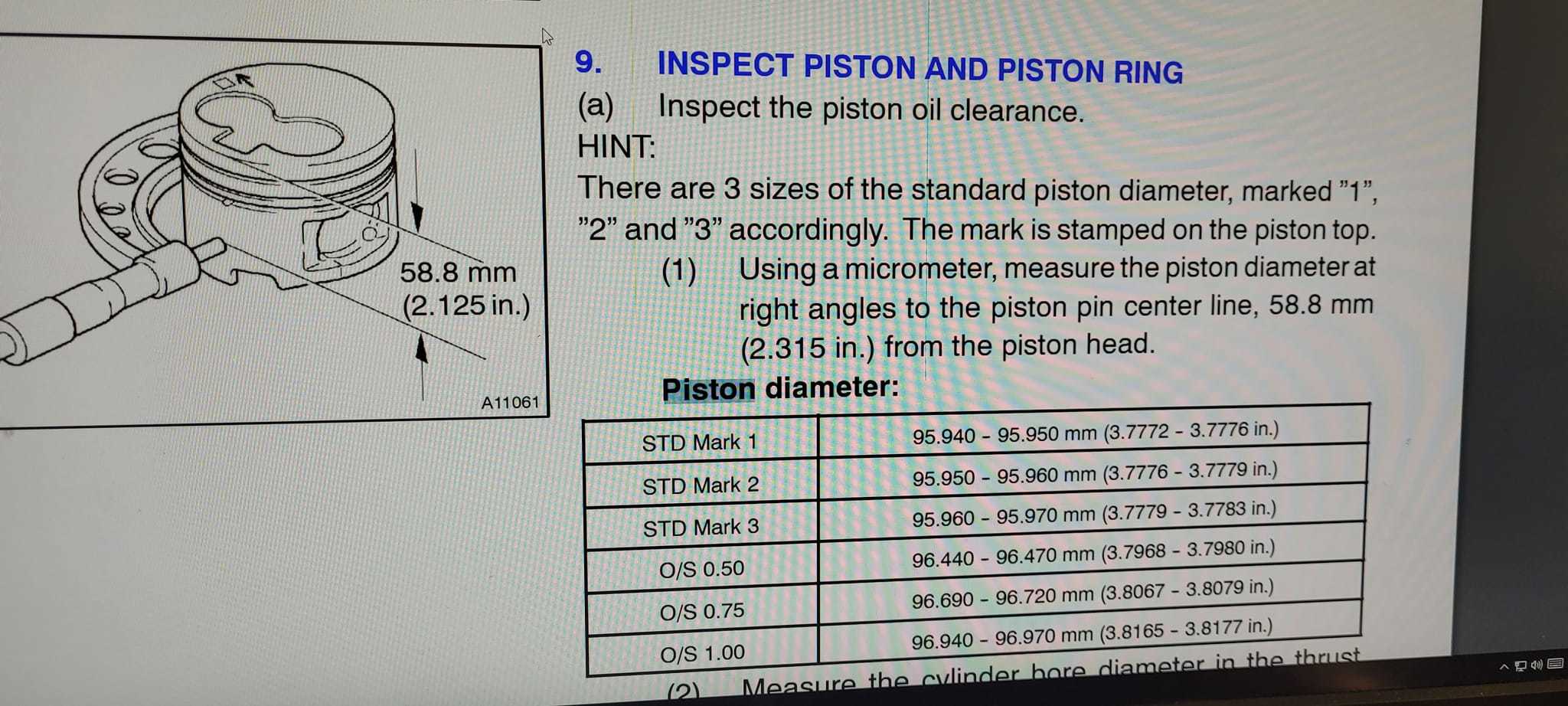

Toyota offers 3 different piston widths up to a hundreth of a millimeter...







The bottom line is (coming from me, the mechanic) this engine is a strong lump, it has a lot of iron in it, and big bearings, great oil cooling, piston cooling from jets underneath, so no wonder they go for so long without trouble!

You can see where there is a designated hole for the dipstick on both sides of the engine block (behind the engine mountings) and I will have to move the dipstick to the opposite side after swapping the sumps, and probably redesign the length of the dipstick(or use my 2L-t one) as I belive the sump on the LandCruiser is much deeper, I guess I'll see about that later, I'll just pour in the manufacturer specified amount of oil for a KZN165 and make a new mark if necessary

Adíos!



[clx16]

I'll just pour in the manufacturer specified amount of oil for a KZN165 and make a new mark if necessary

And that's how it's done! Nice work man!



[Saevar Orn]

So the engine rebuild continues, finally all parts necessary arrived, so reassembly could continue.


This is a set of photos taken anytime between aug. 1st and aug. 13th which was start-up day.

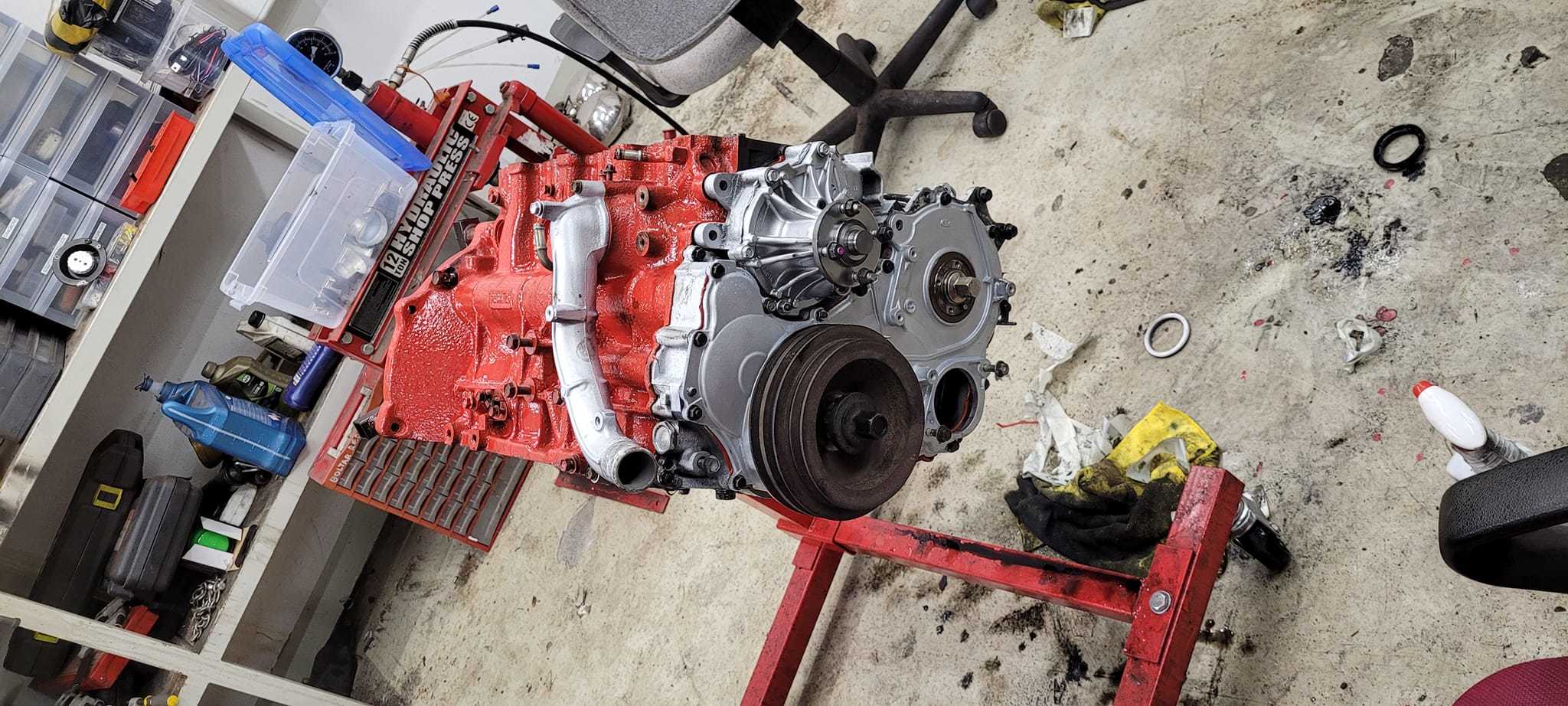

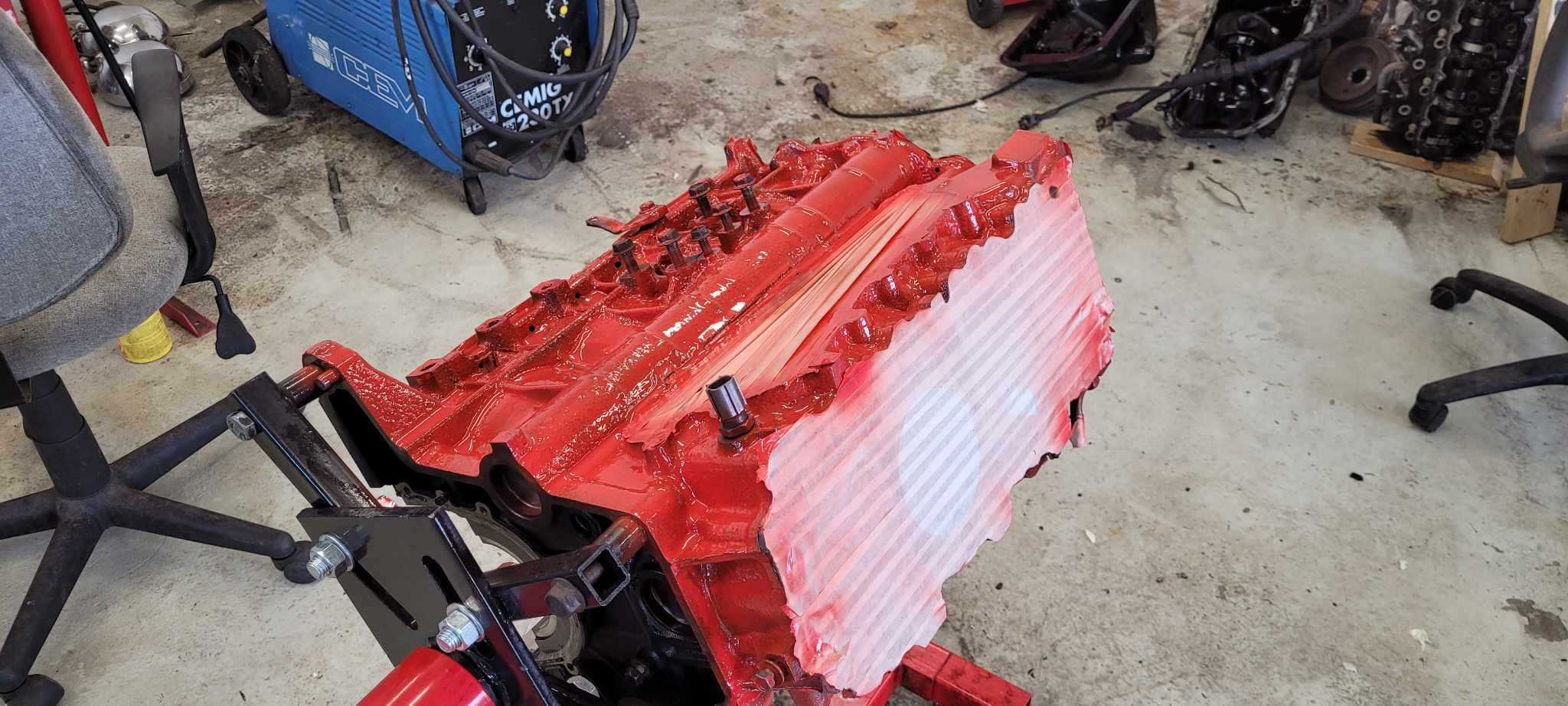

Just some cleaning..

Volvo red beats Ford blue in my opinion..

This plug sits behind the engine mount on the drivers' side(for Iceland) But I remove it to accompany a new location for the dipstick, this plug then gets moved over to the opposite, passenger side, for those of us driving on the correct side of the road... ehhhrmmm

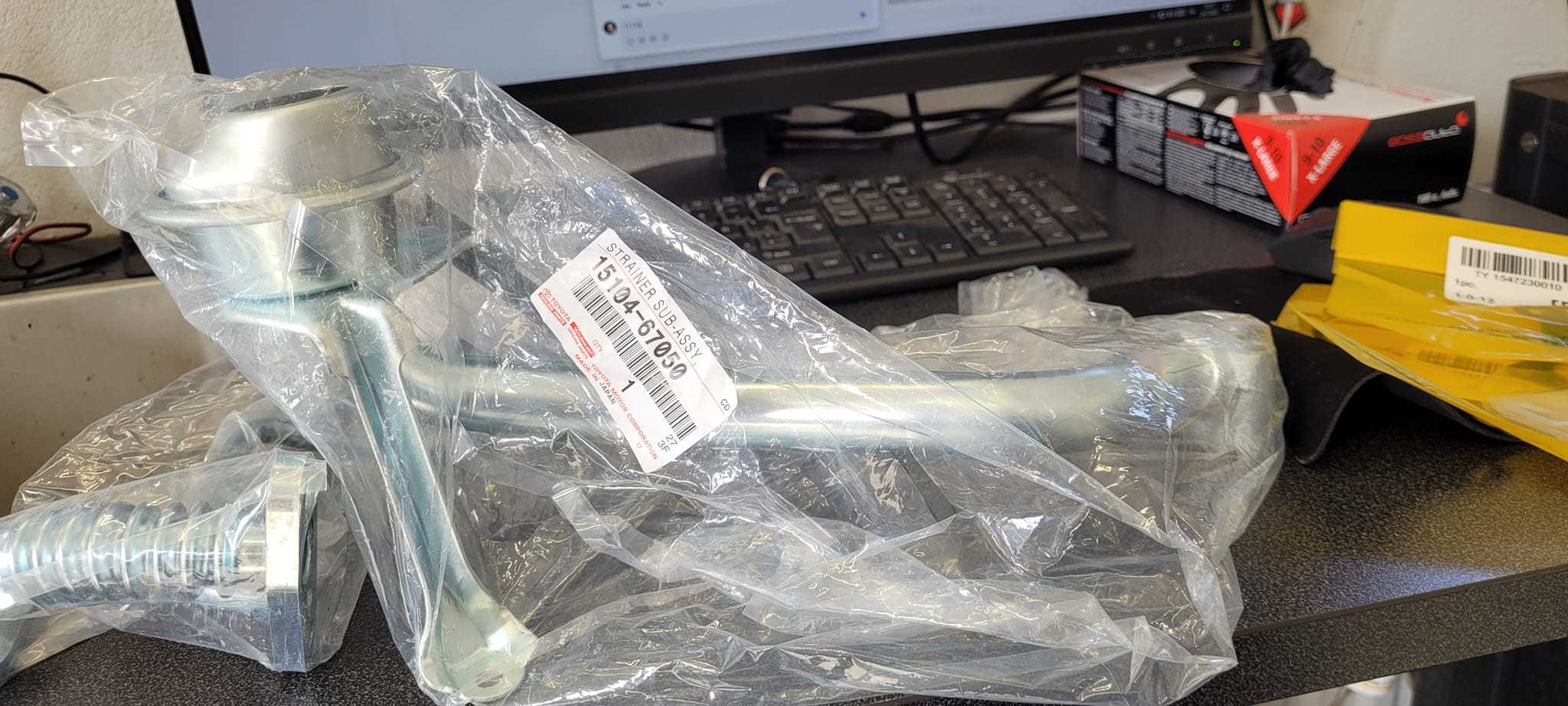

New strainer to suit the new pan, works great, was ment for a 1995 surf / 4 runner if I remember correctly, did need an extended bolt stud for one of the holes though, this one has a much thicker flange than the stock landcruiser strainer

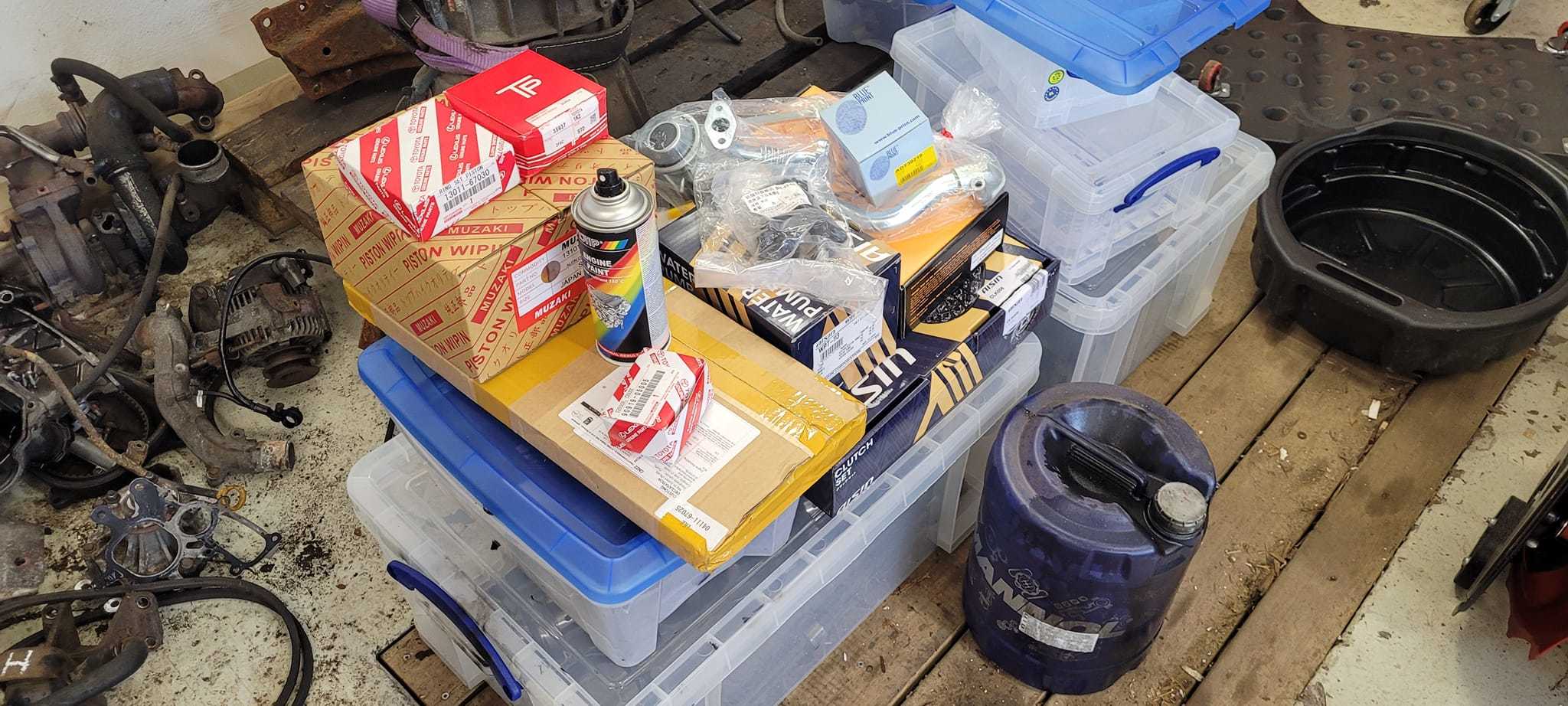

More parts arrived $$$$$$$$

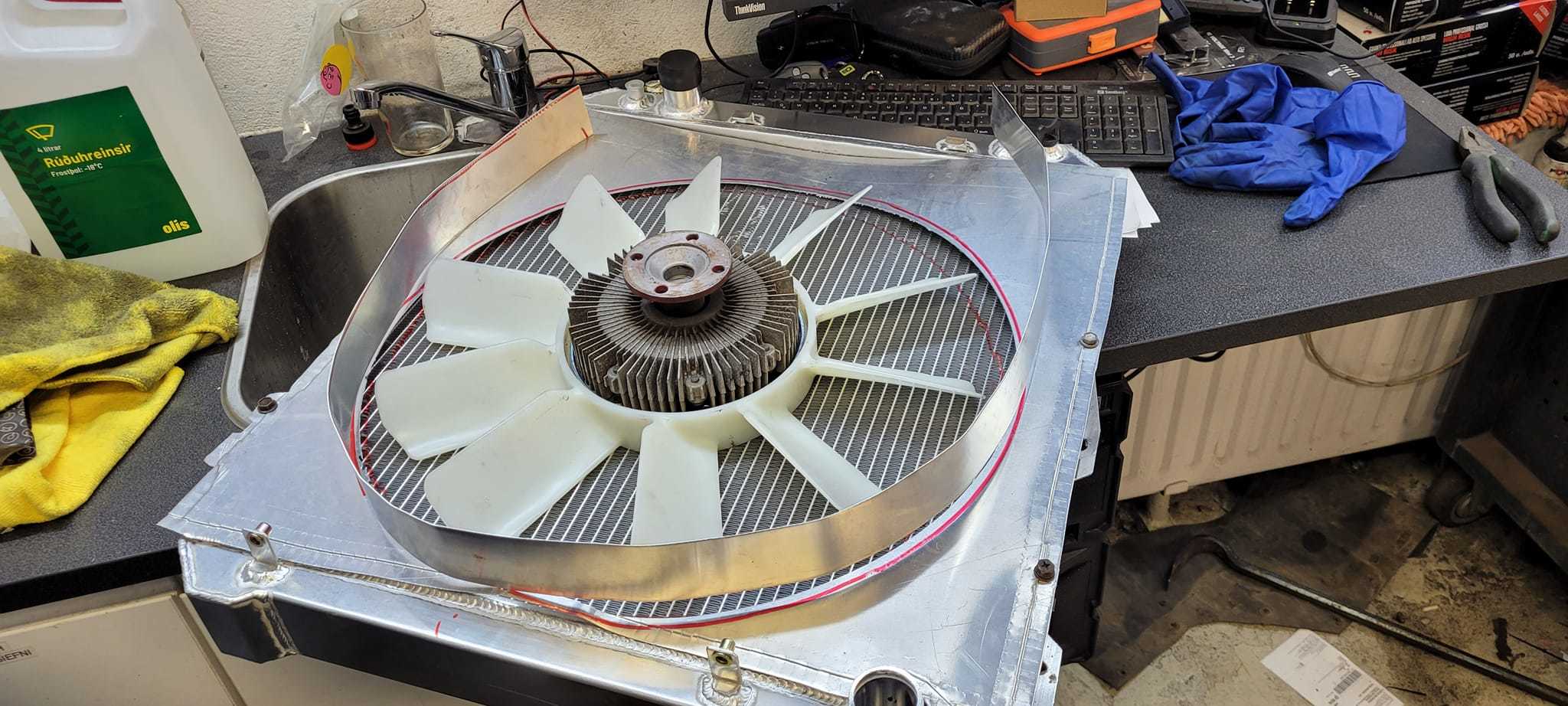

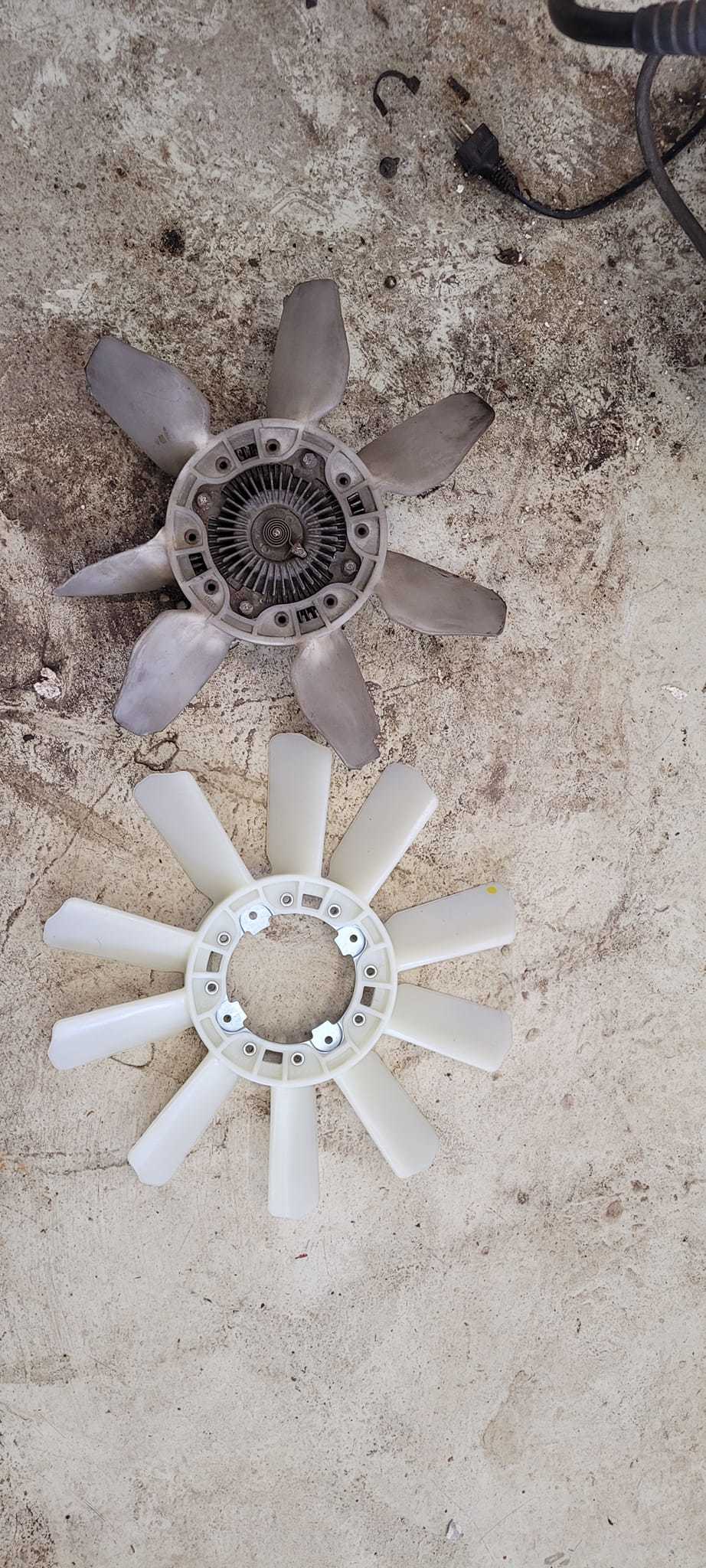

Removing the engine I broke the fan blade so what better time to upgrade to aisin 10 blade

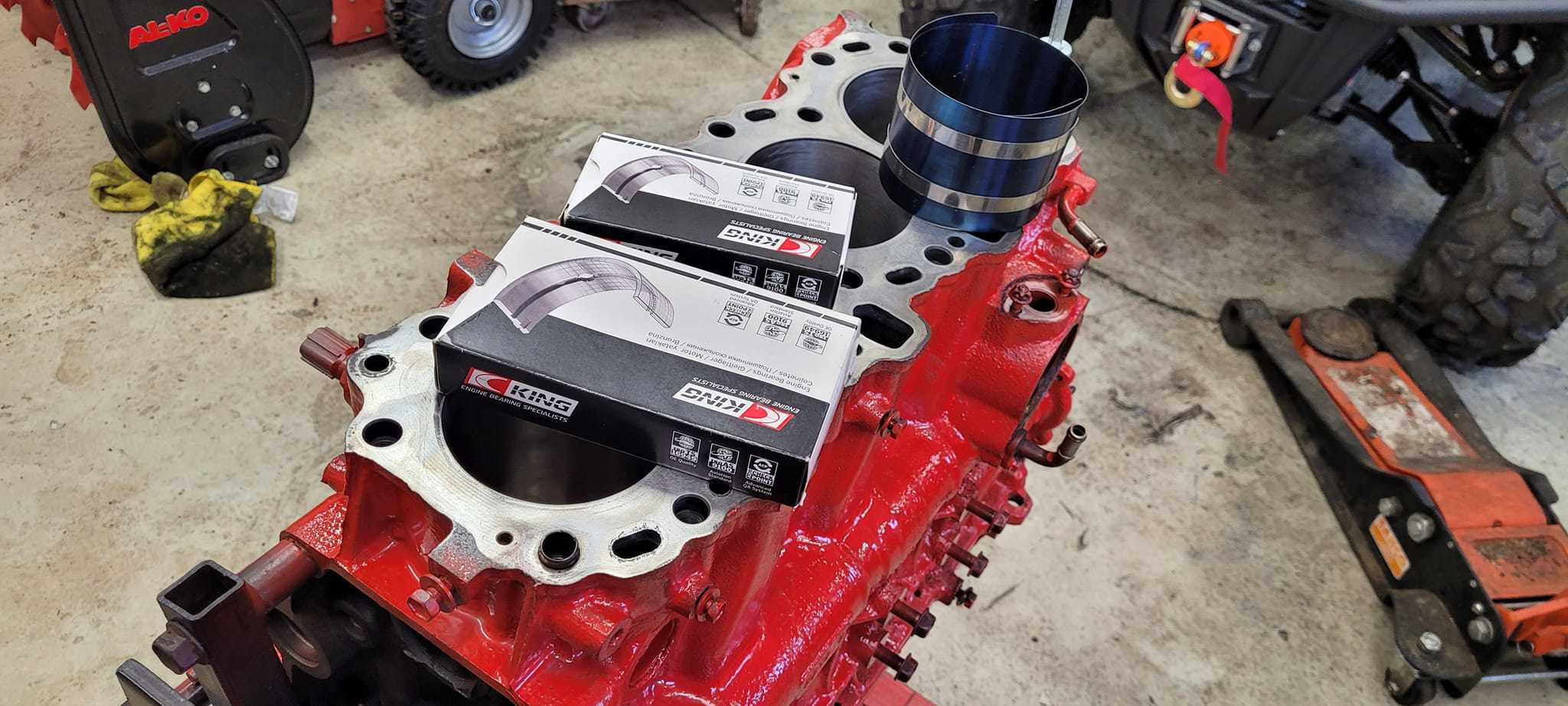

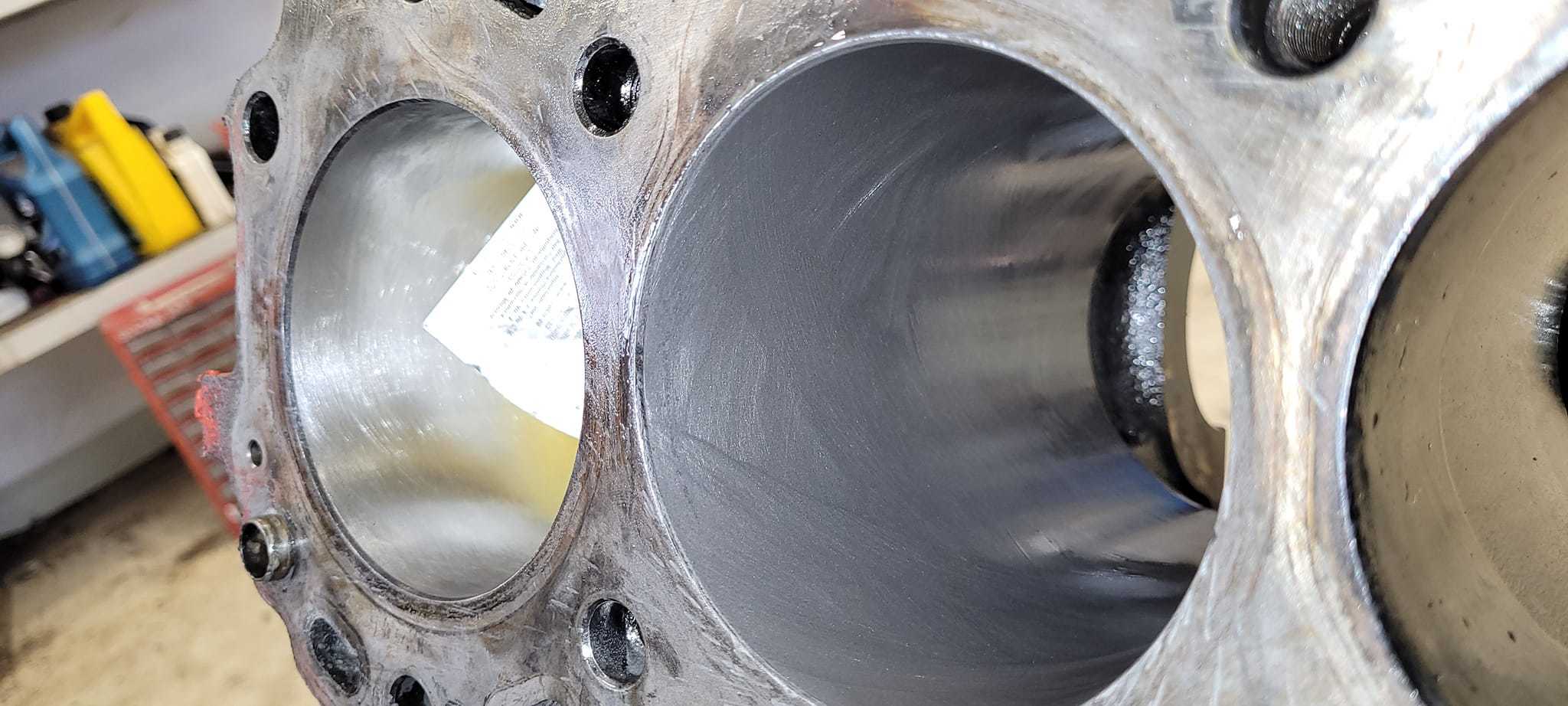

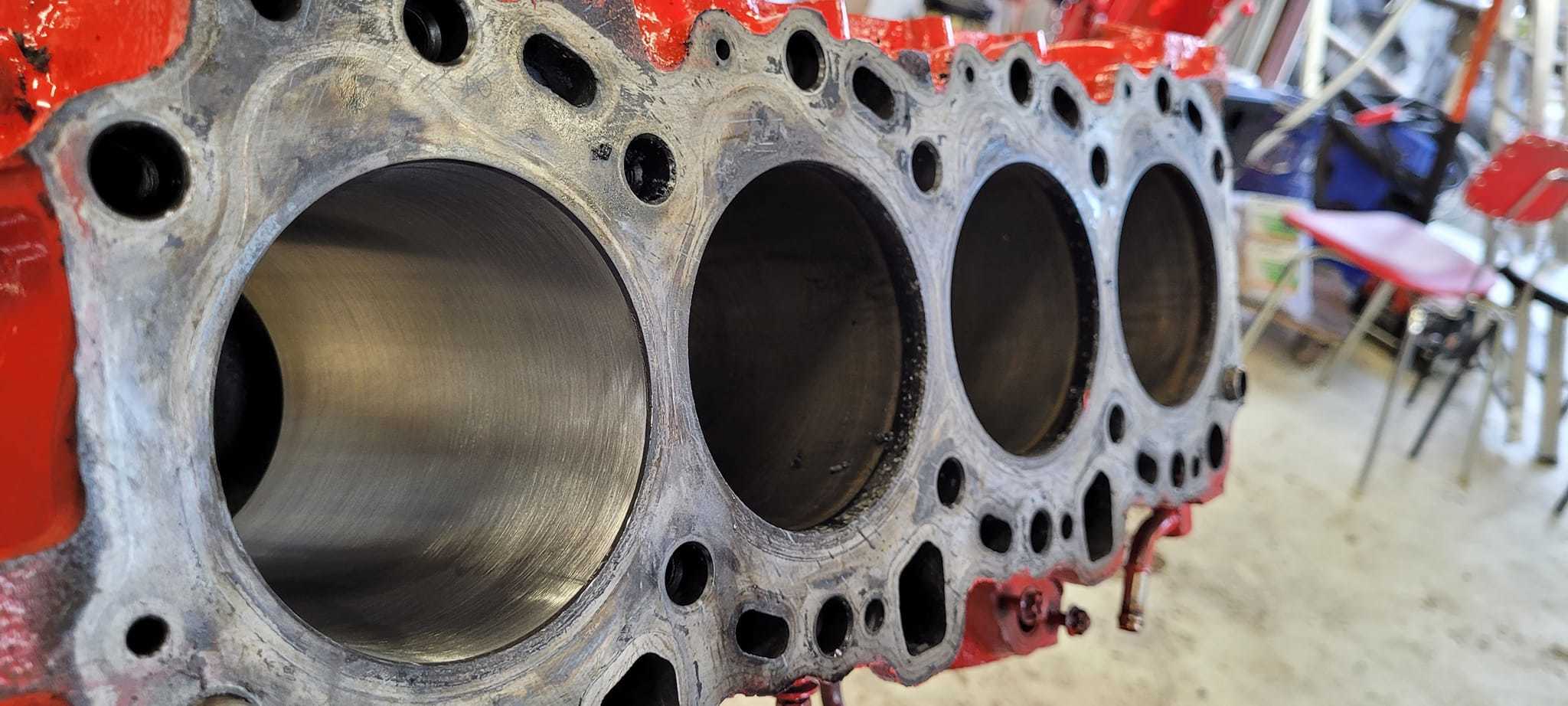

1st hone pass cleans up nice

free-handed honing on a cordless drill, I did my best to cross hatch at 45° and seems to work fine

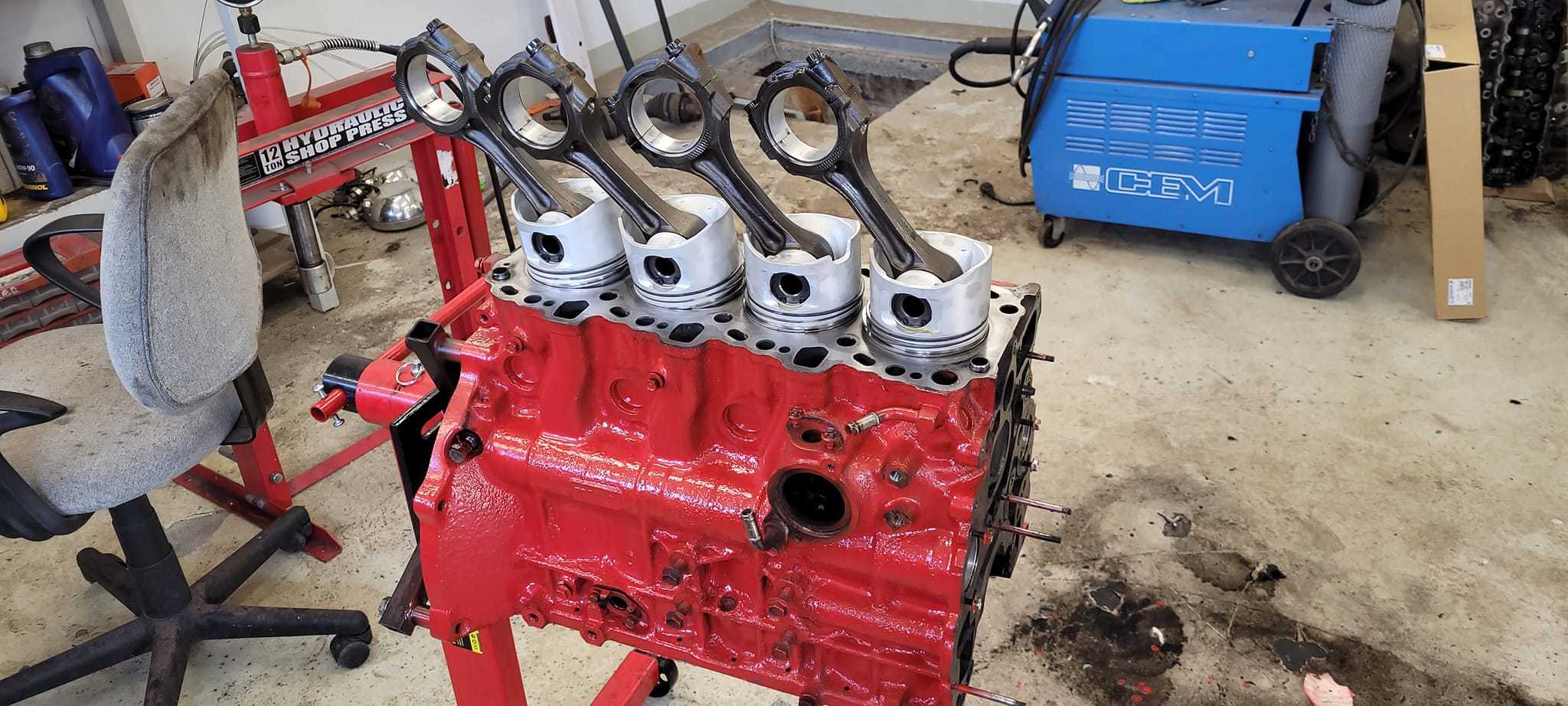

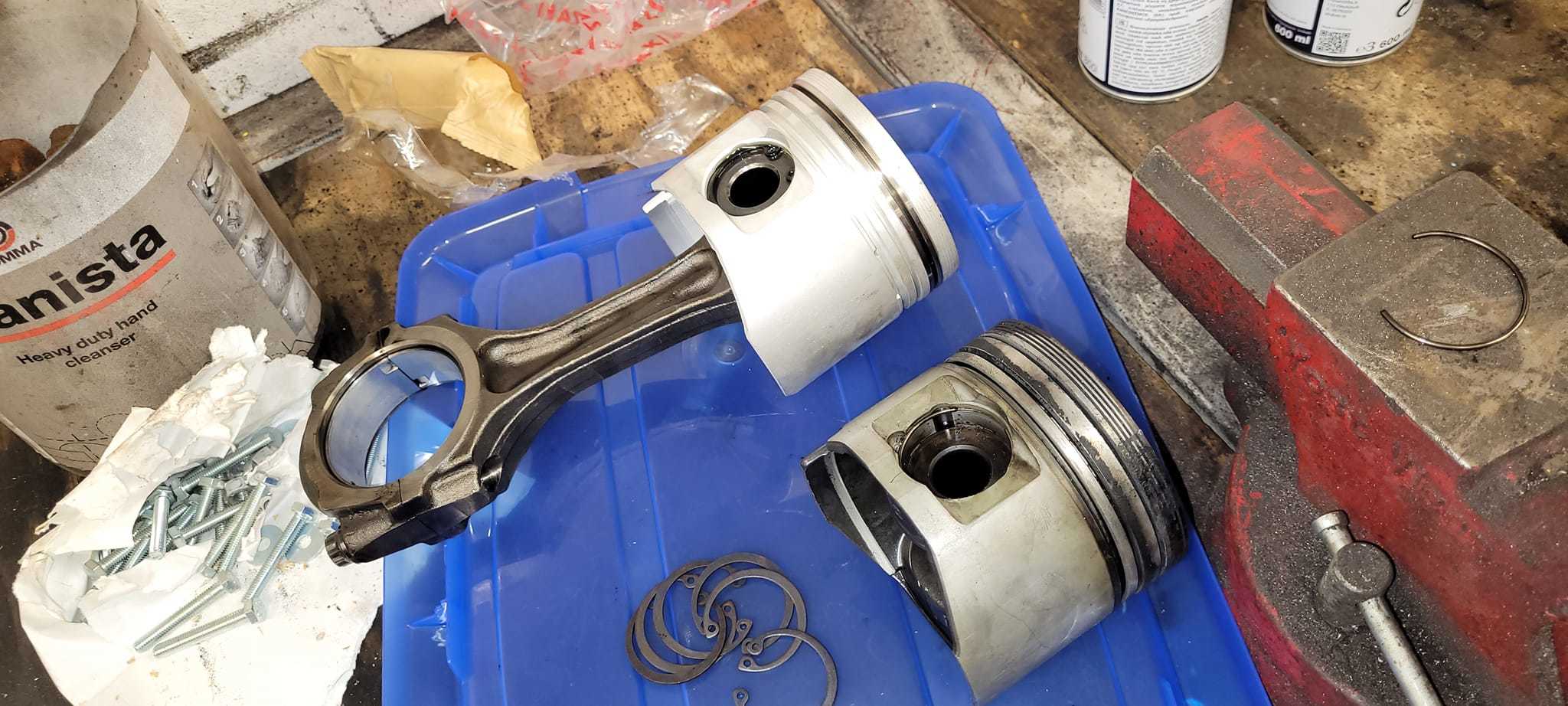

New pistons, rings

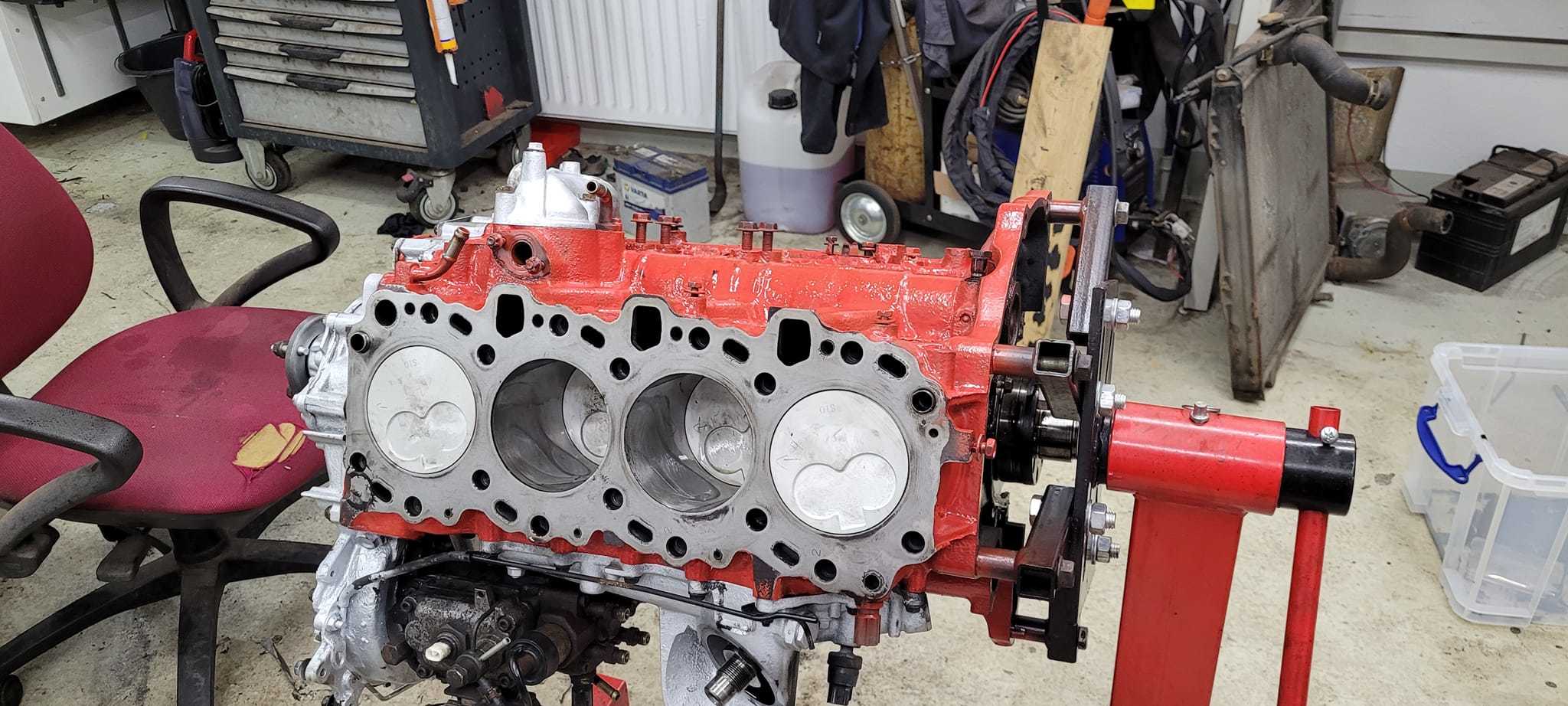

Ready for assembly

Detail for retail..?? had left over, and was waiting on bearings to continue reasembly, sooooo....

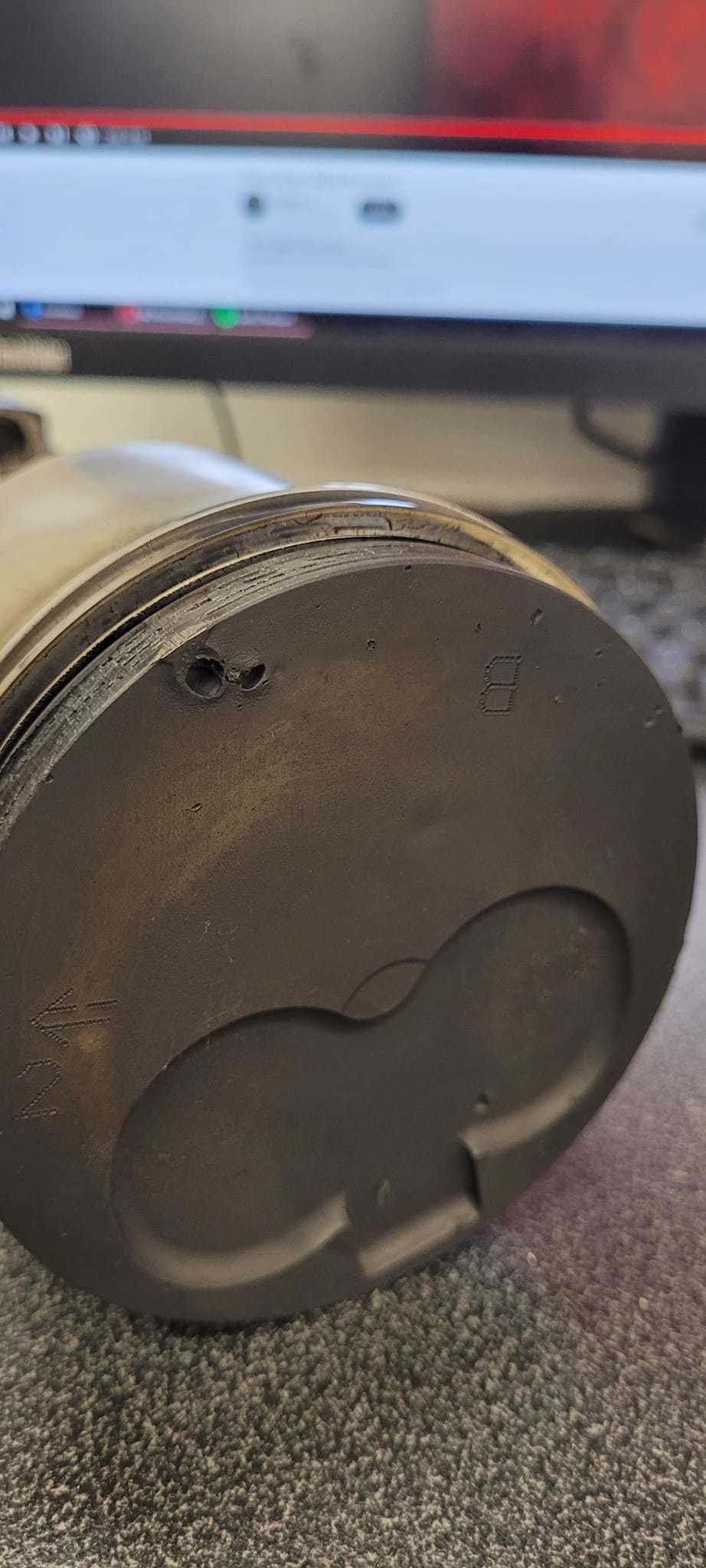

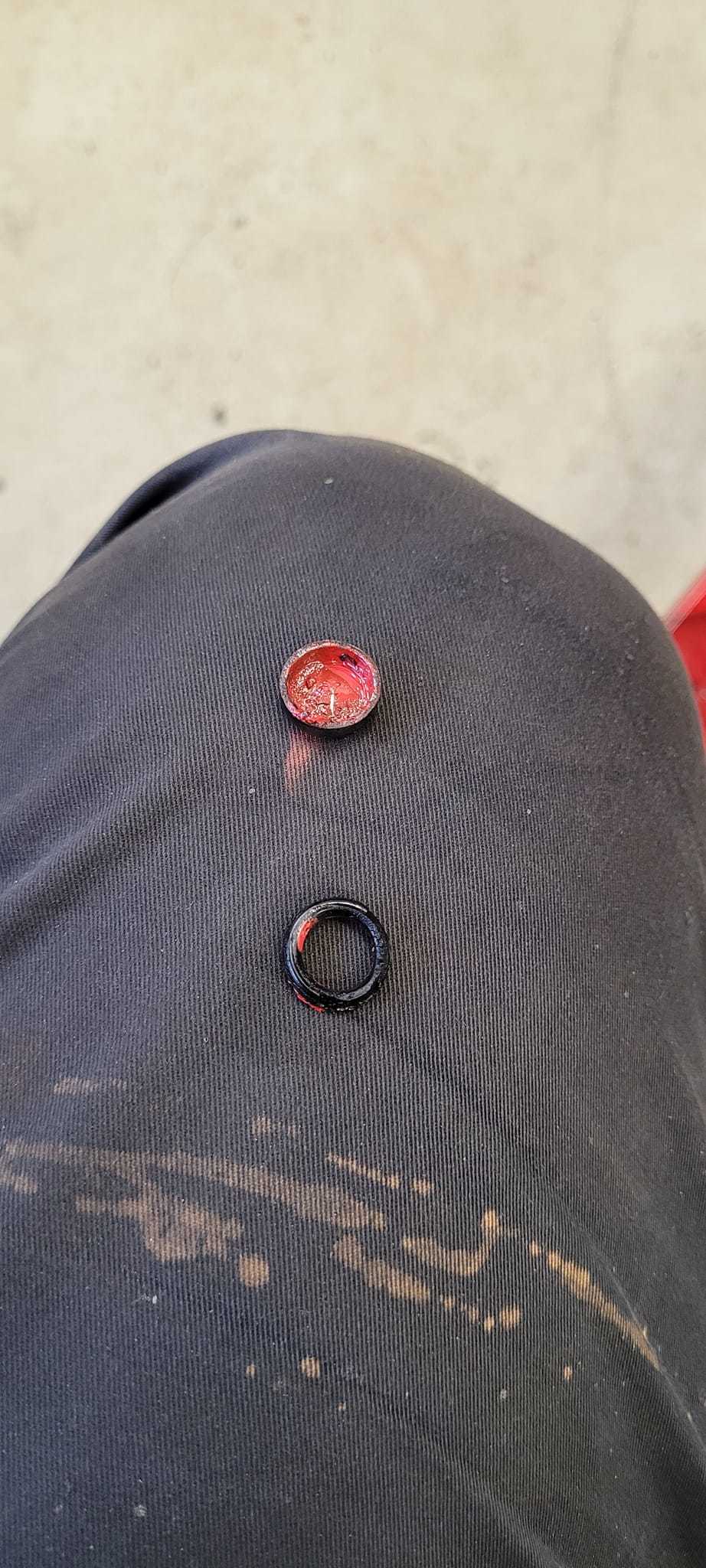

Upon further inspection the culprit for the damaged piston was found...

Bearings came in, woohoo!

Bearings in, pistons in, timming gear ready

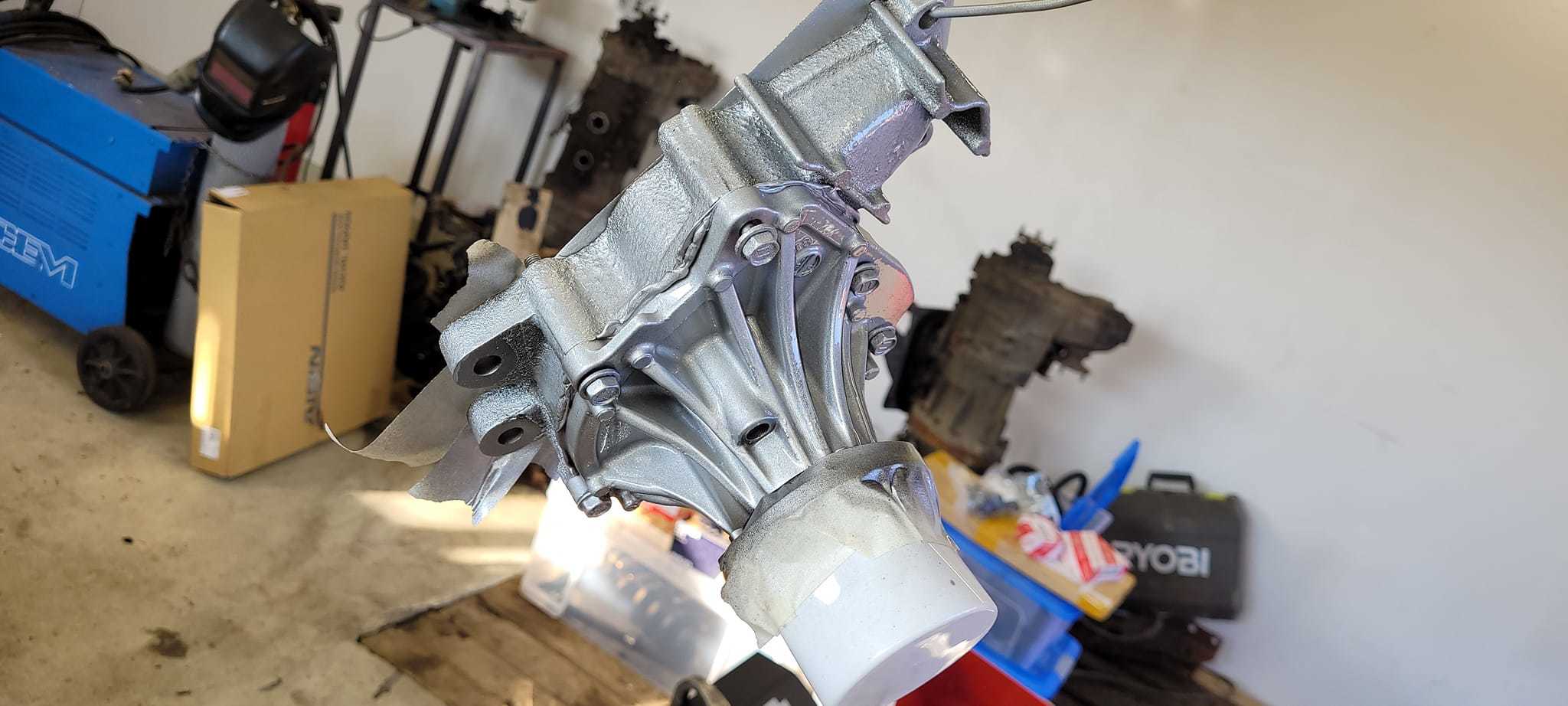

Fuel pump timed, oil cooler on, all is well

Head is on, you can see there was no time here for paint etc... just get it done kind of attitude now

Engine starting first time, sounds good


That's alll folks!



[Saevar Orn]

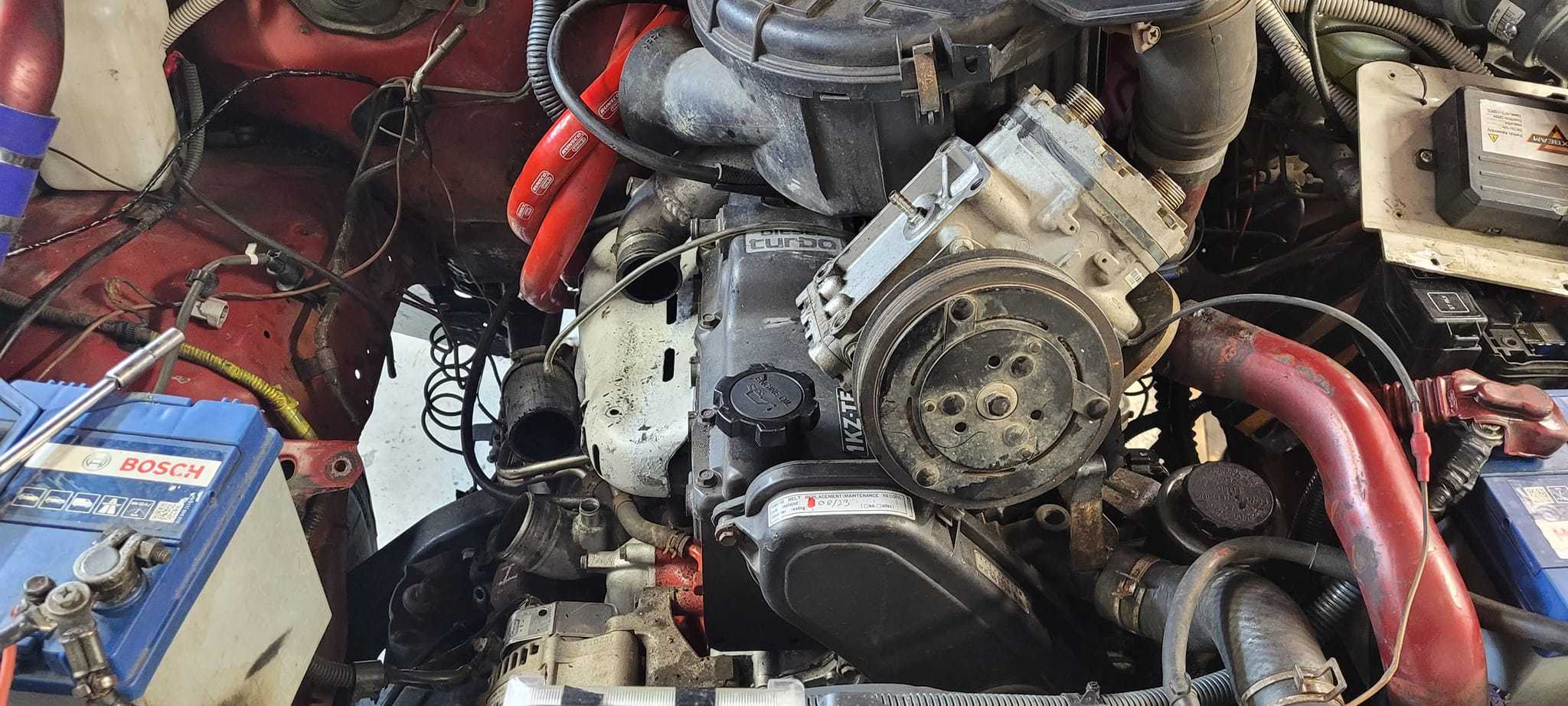

progress... this is october- november... car is driving already and working well, smaller details remain...

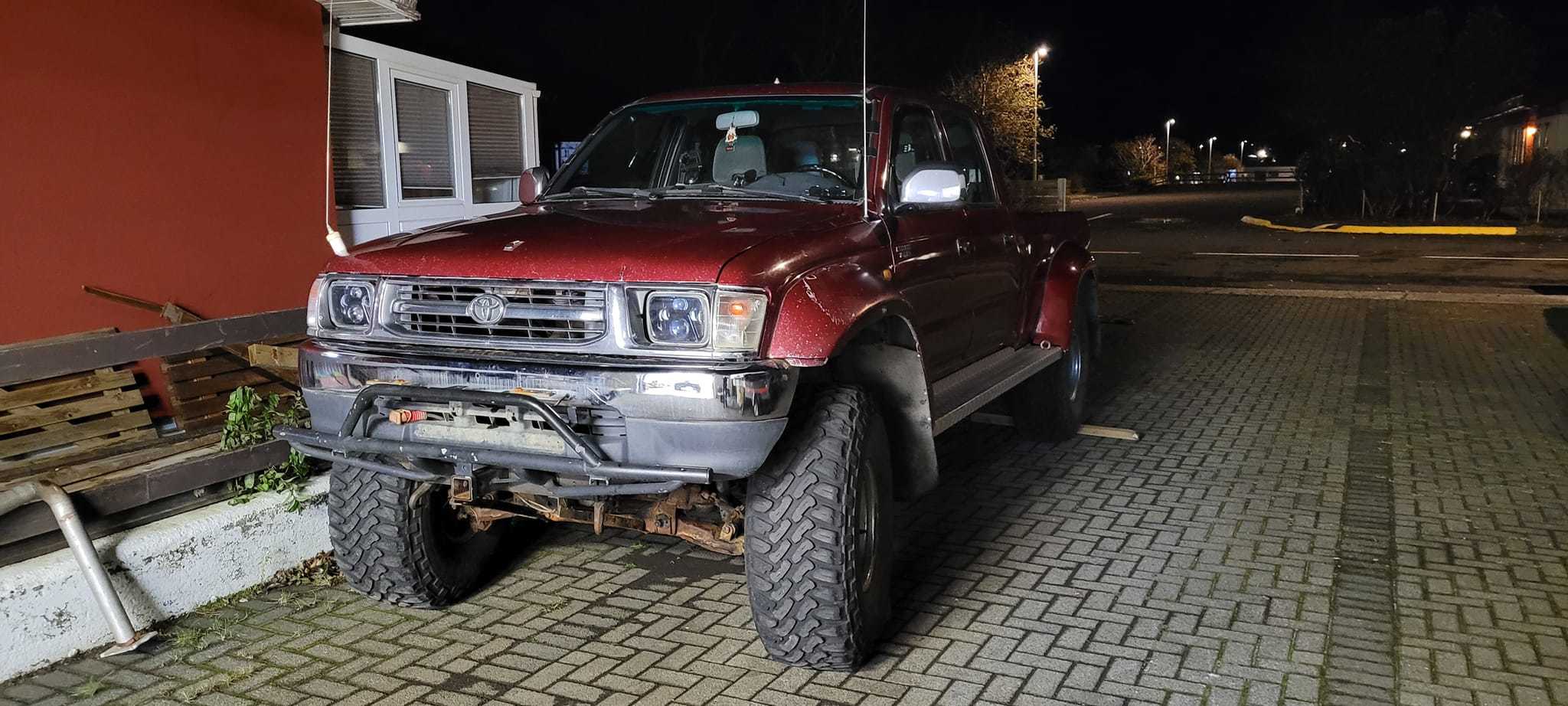

I aquired new-ish 38s instead of my 2013 ones... these are 2020

2lt on its way out for one last time

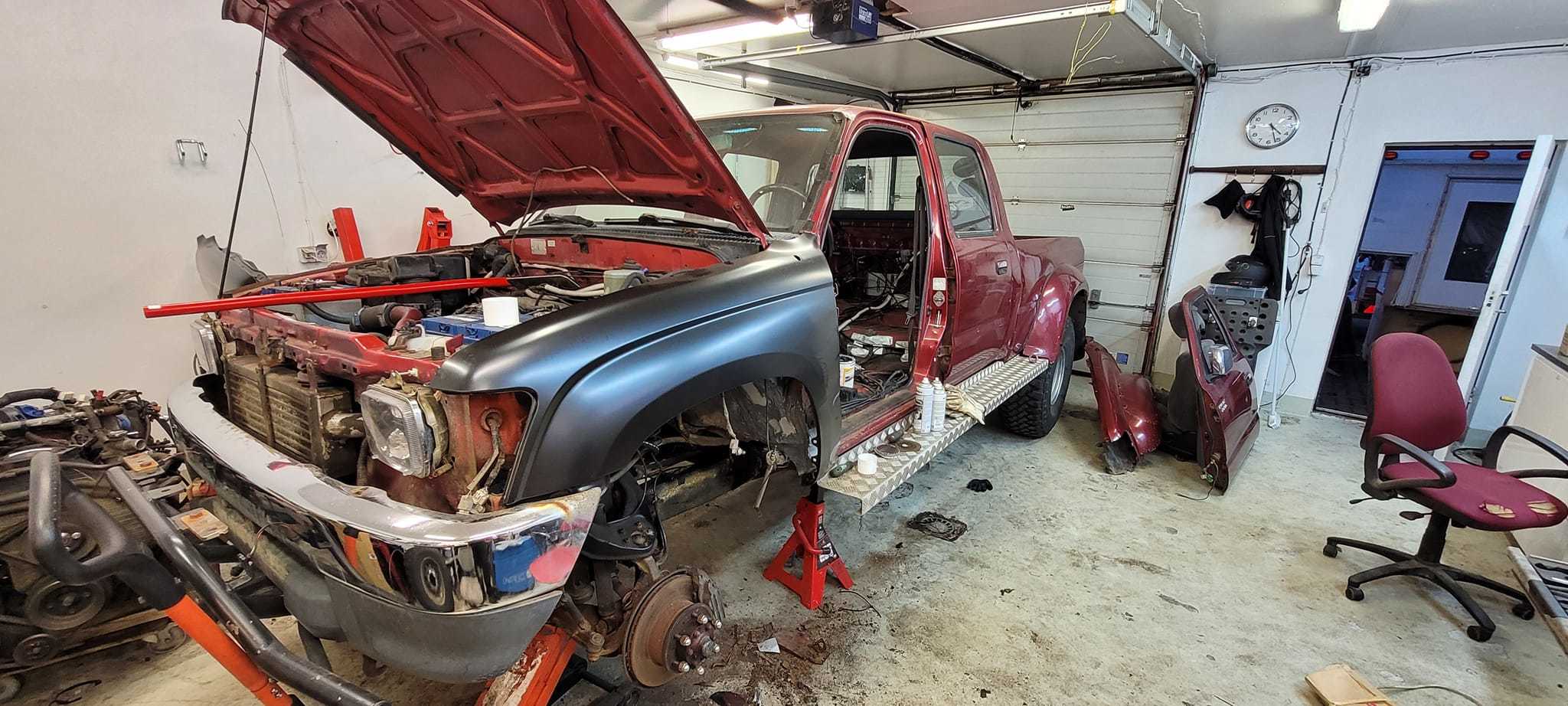

no engine

Tetris puzzling means every(one) gets to enjoy the warmth of being inside for winter time

Some rust repair.. of course, why wouldnt there be...

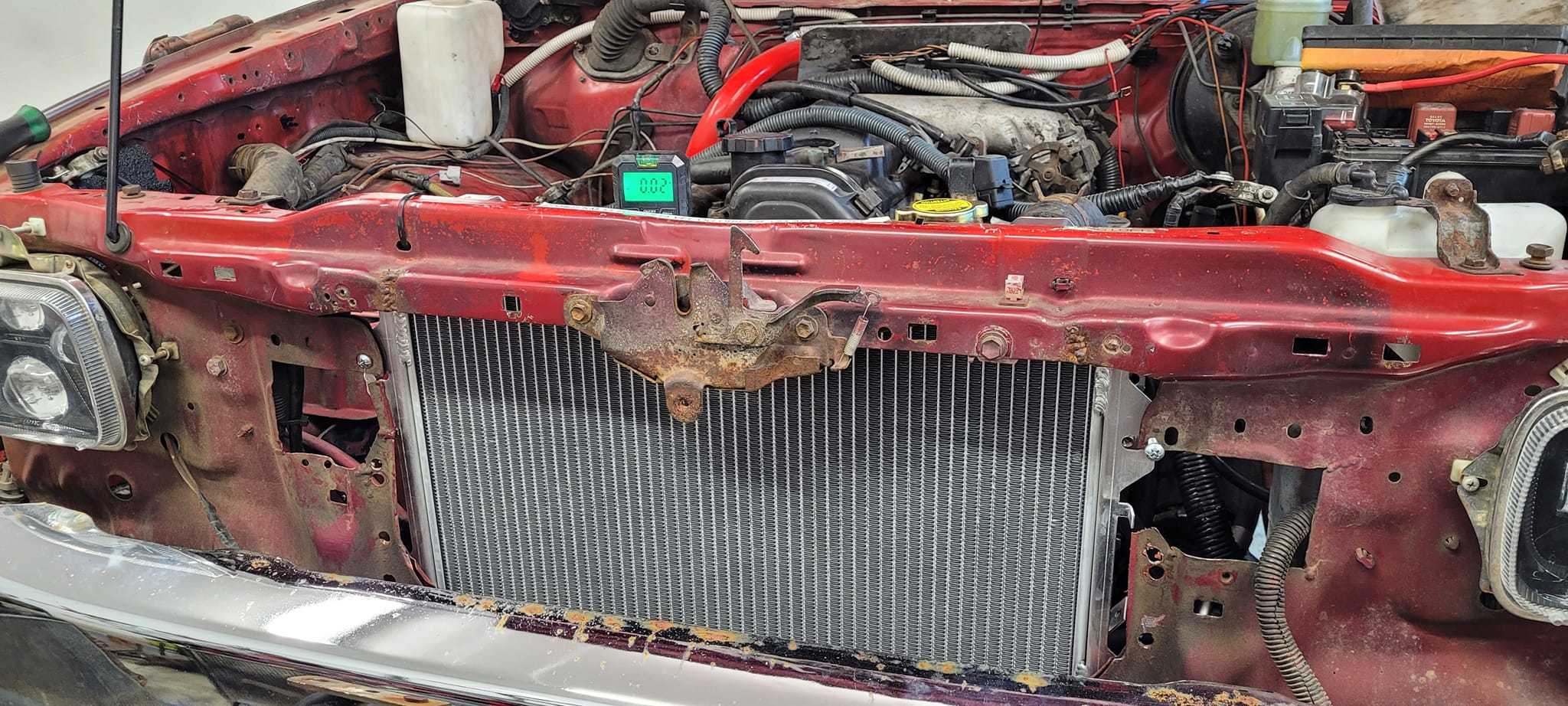

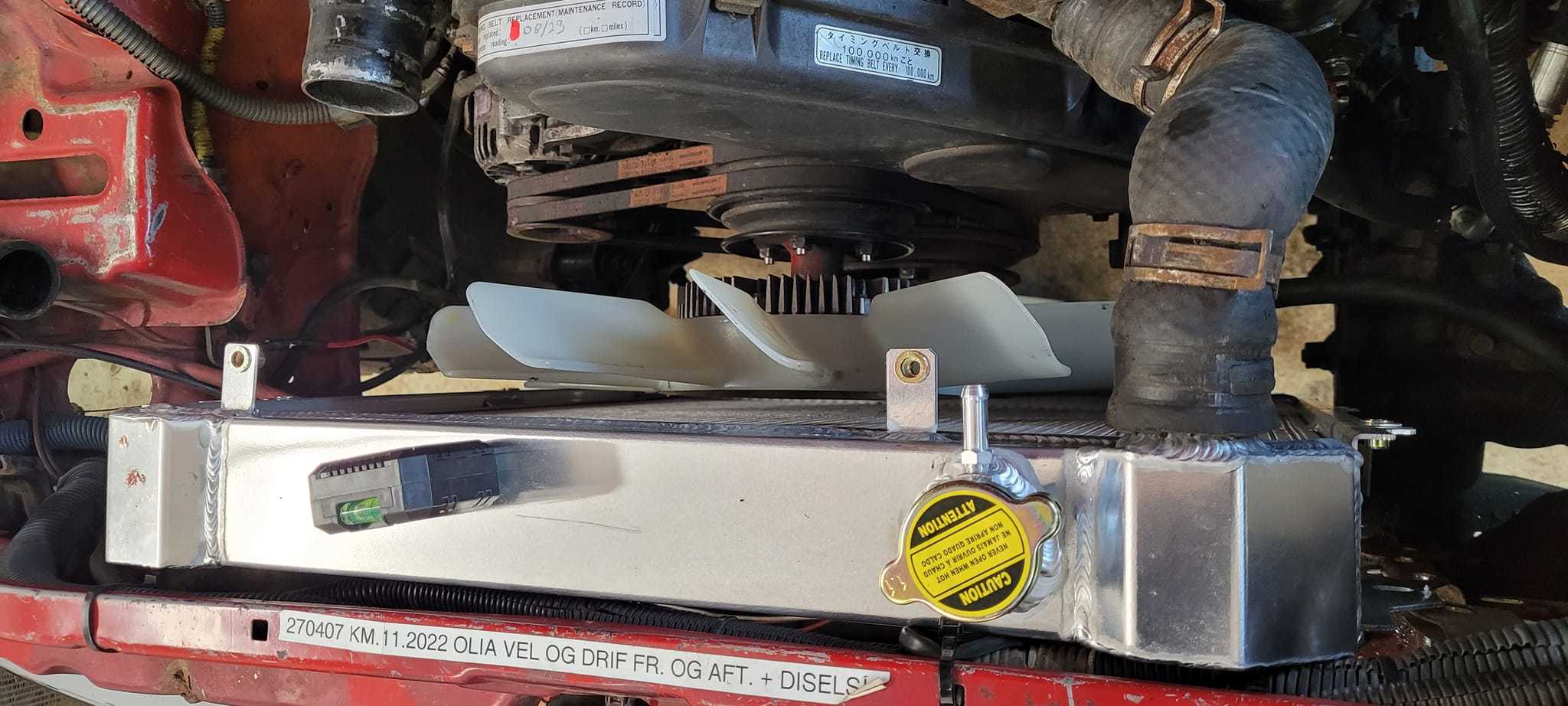

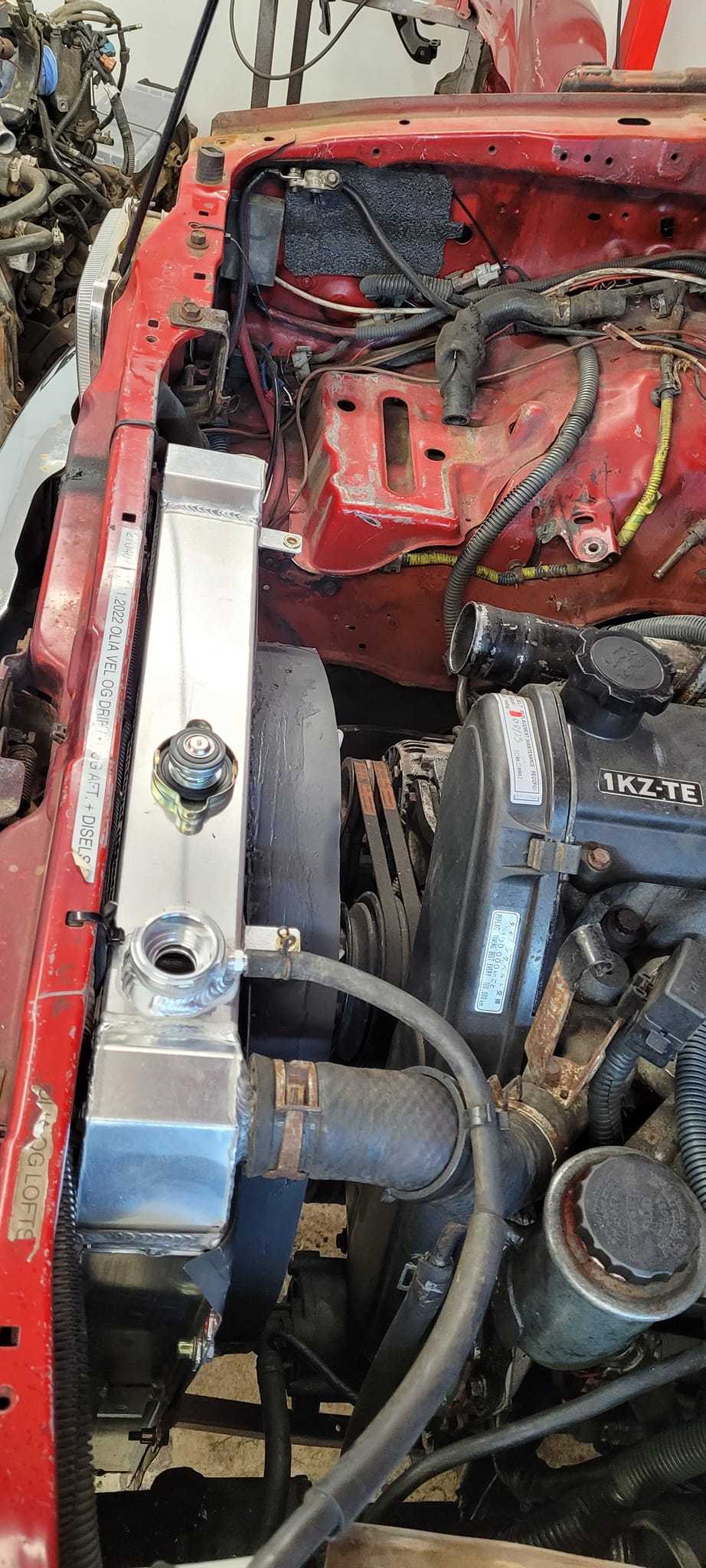

4 row ebay rad.



[Saevar Orn]

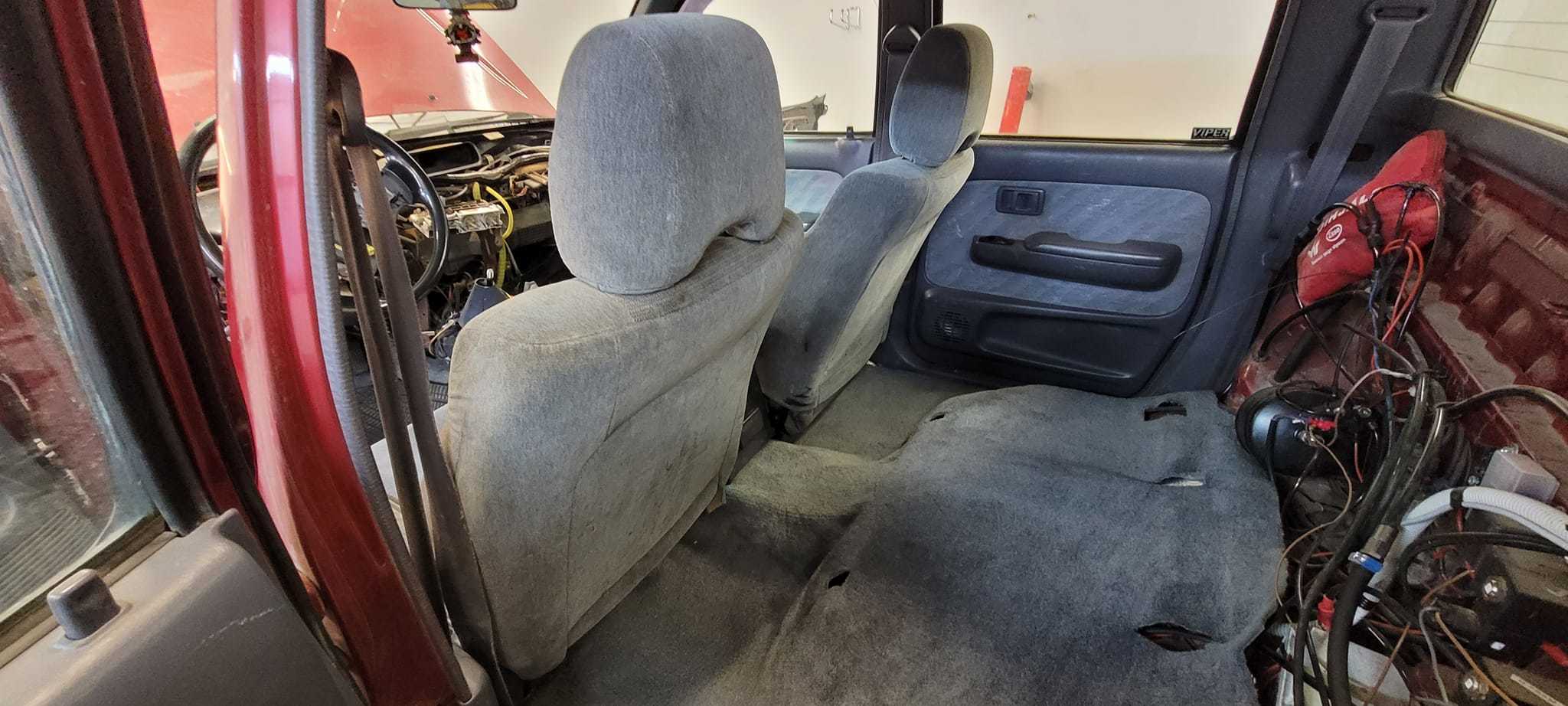

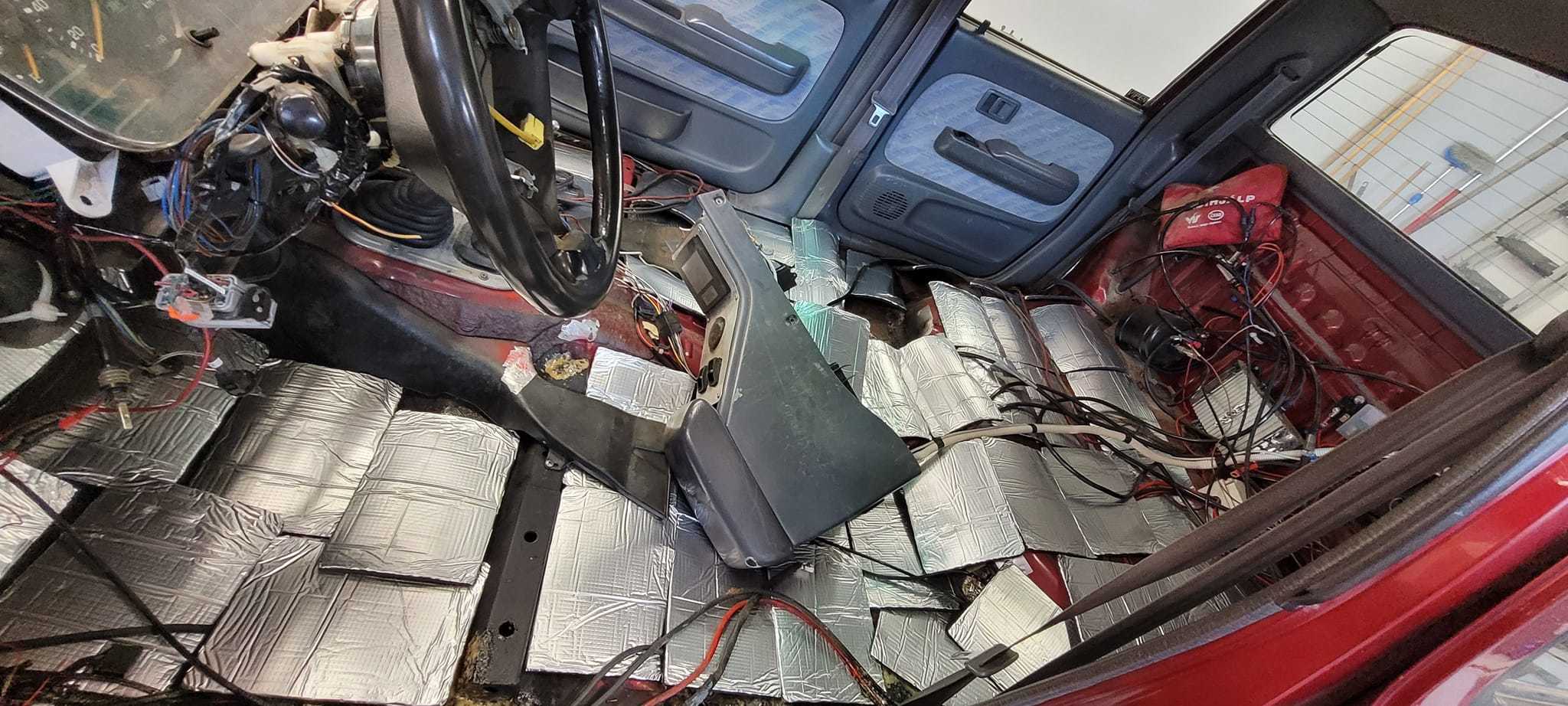

attempt at making the ride more enjoyable

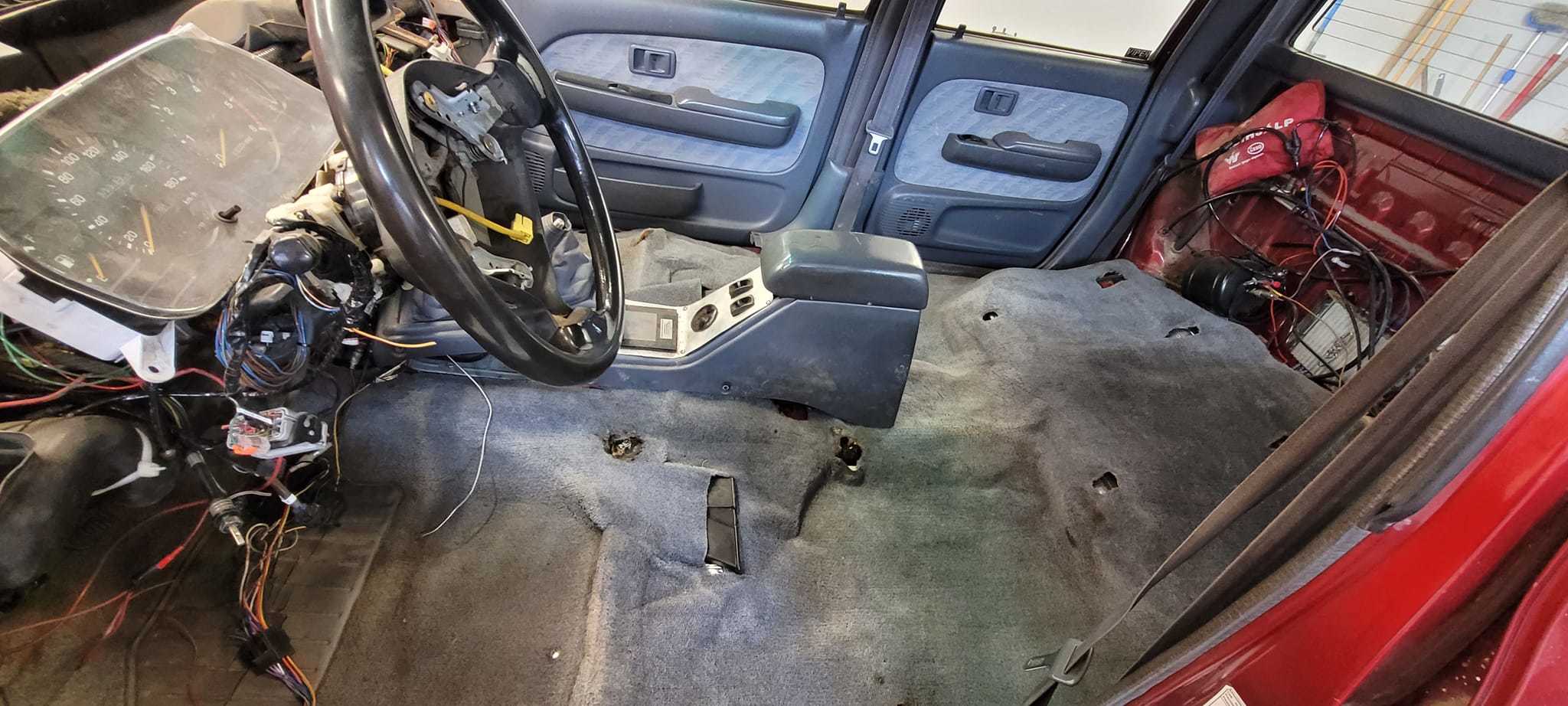

carpet it s***e, want a new one, rockauto.com offers carpet for 4runner u.s.a. and I think it fits the hilux well.. I'll try it soon...

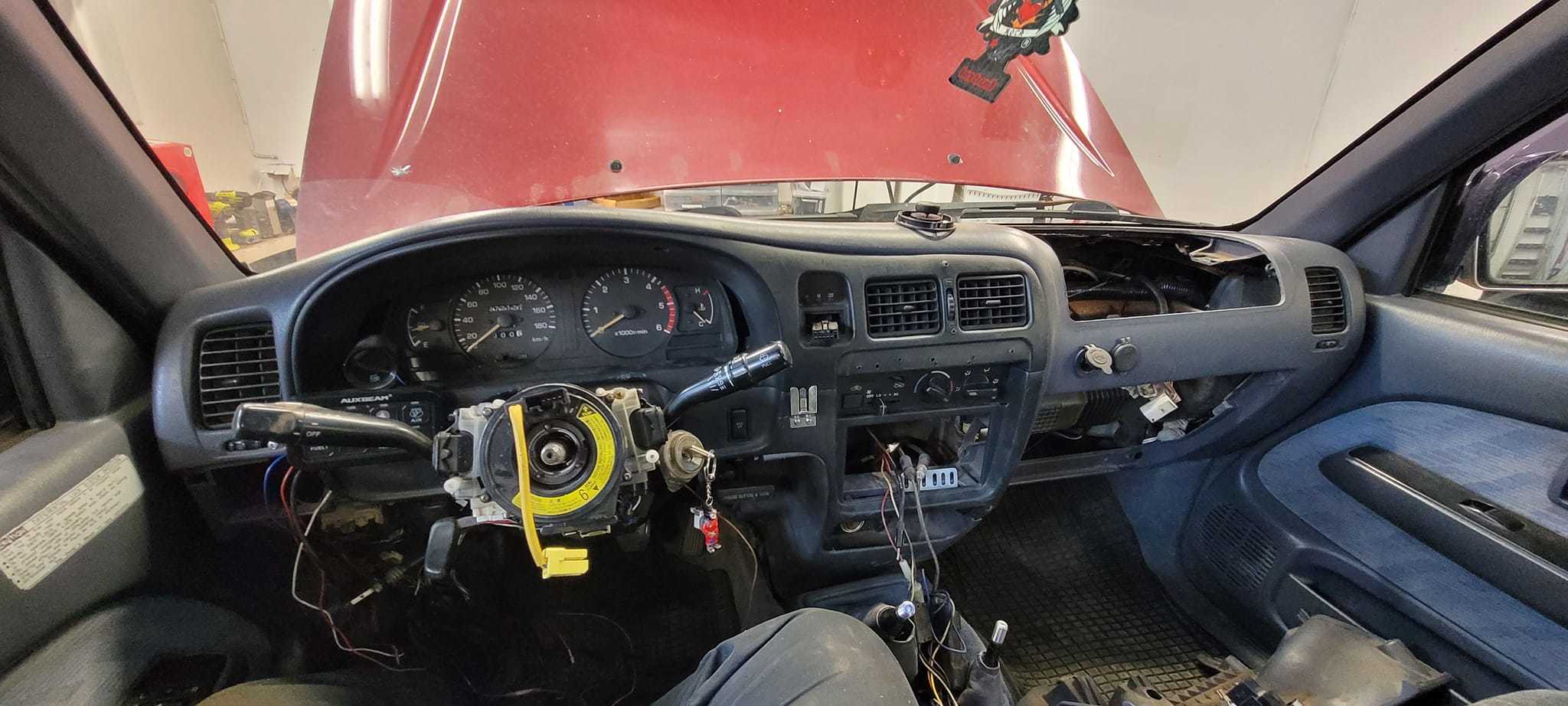

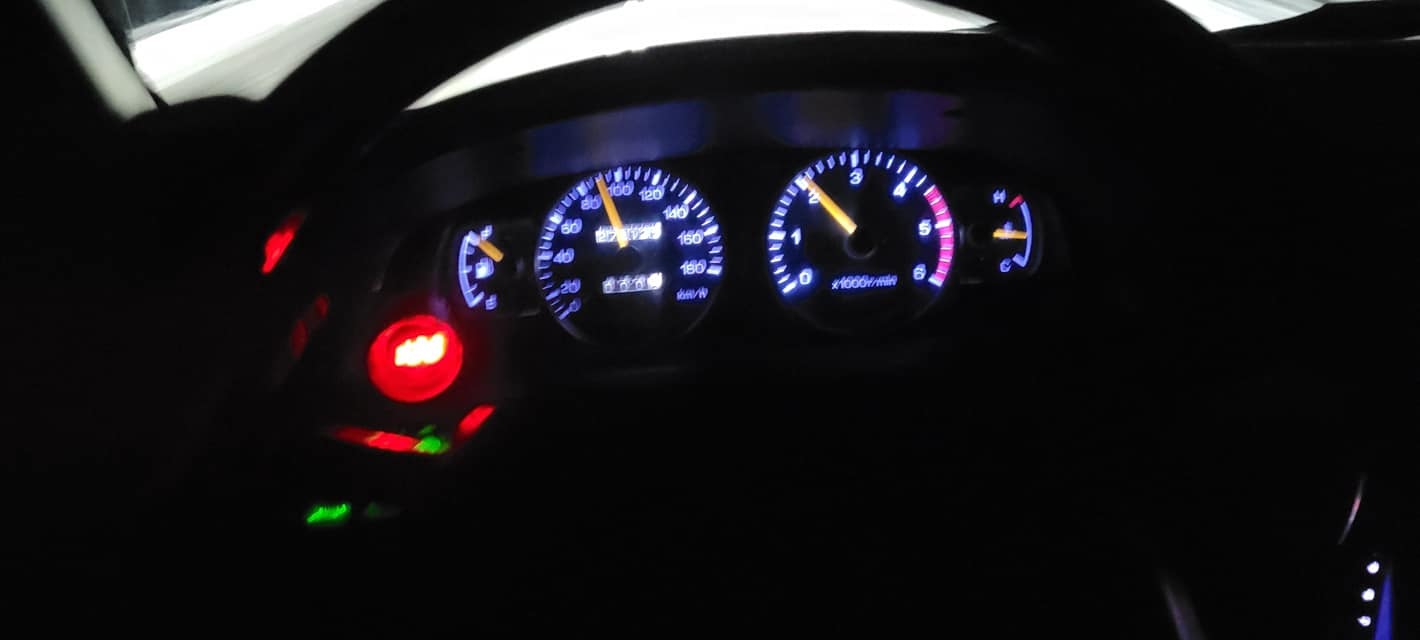

All coming together, land cruiser meter gauges fit surprisingly well inside hilux ln165 dash.



[clx16]

So for rust prevention what is common for your area?

Here we have anything from fluid film to cosmoline films...or any number of oils that people spray on.

Your stuff never looks very rusty so I wonder if you all don't use salt as much as we do in our colder regions



[Saevar Orn]

So for rust prevention what is common for your area?

Here we have anything from fluid film to cosmoline films...or any number of oils that people spray on.

Your stuff never looks very rusty so I wonder if you all don't use salt as much as we do in our colder regions

Good morning, I use fluid film (annually) from a spray gun. Completely soak the undercarriage and the inside of any floor profiles etc. - wheel wells.

I like fluid film because with solvents I can wash it off, and I like that, for welding, etc..

While other, thicker, tar like substances are more resilient, they make working on the car later a nightmare.


Just my 2 cent.. Fluid film is cheap as,, too, and so am I


We use a lot of salt on roads here, as well as being an oceanfront island pretty much, all pretty much all villages are close to the sea, so we are exposed to airbourne salt and salty rain, none of which is helpful. - On top of that we have geothermal heating and regular volcano eruptions which spew out a bunch of acidic fumes and airbourne dust. So yes, we have a lot of rust here - probably similar to that of the 'rust belt' of the U.S.



[Saevar Orn]

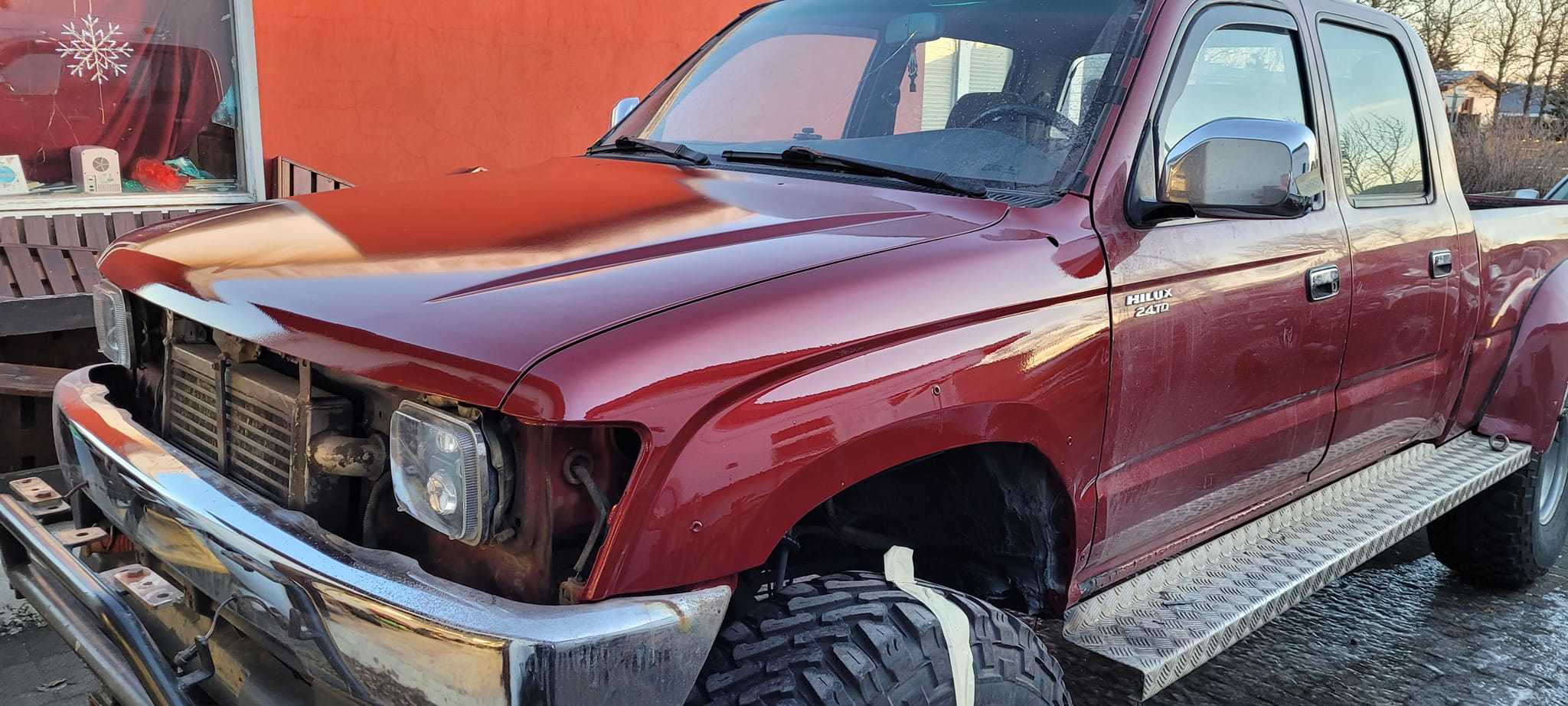

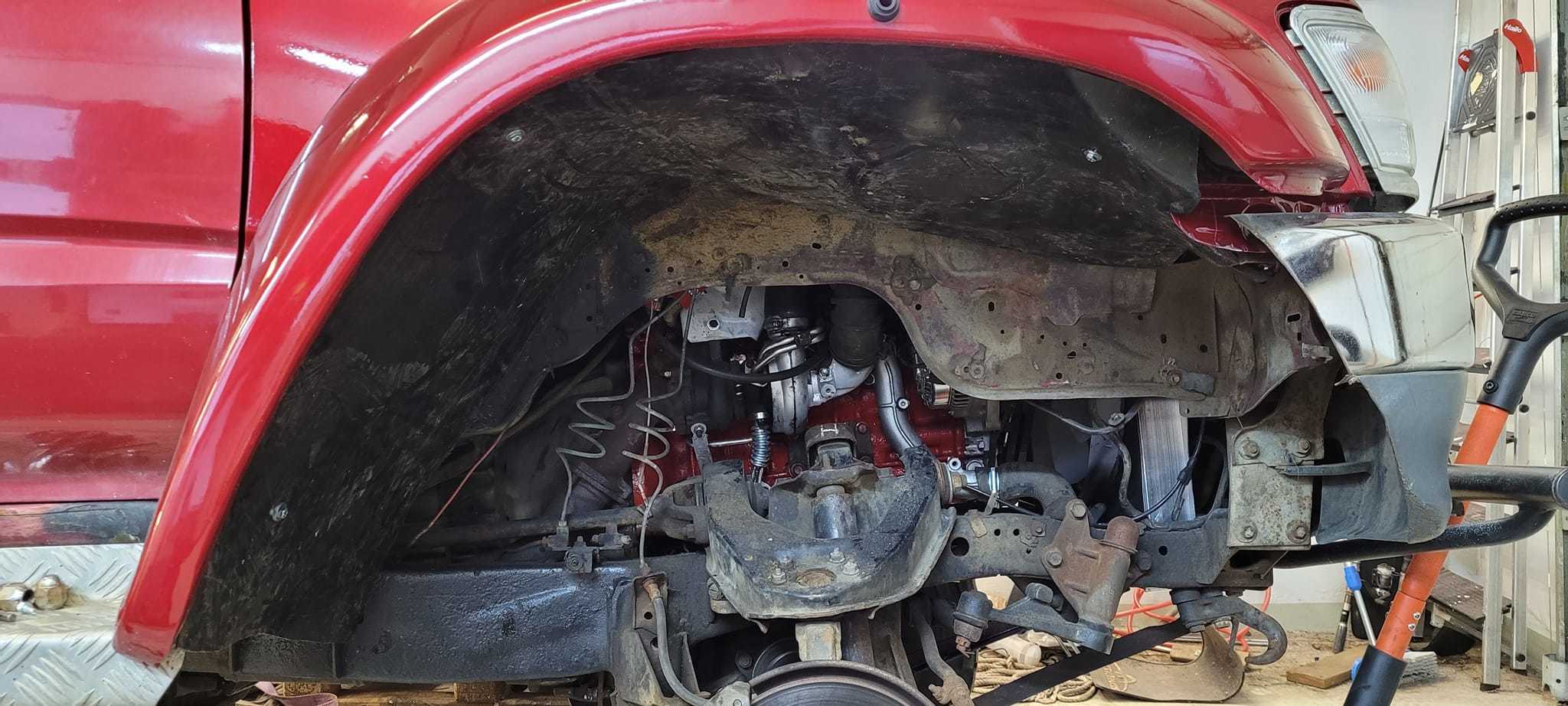

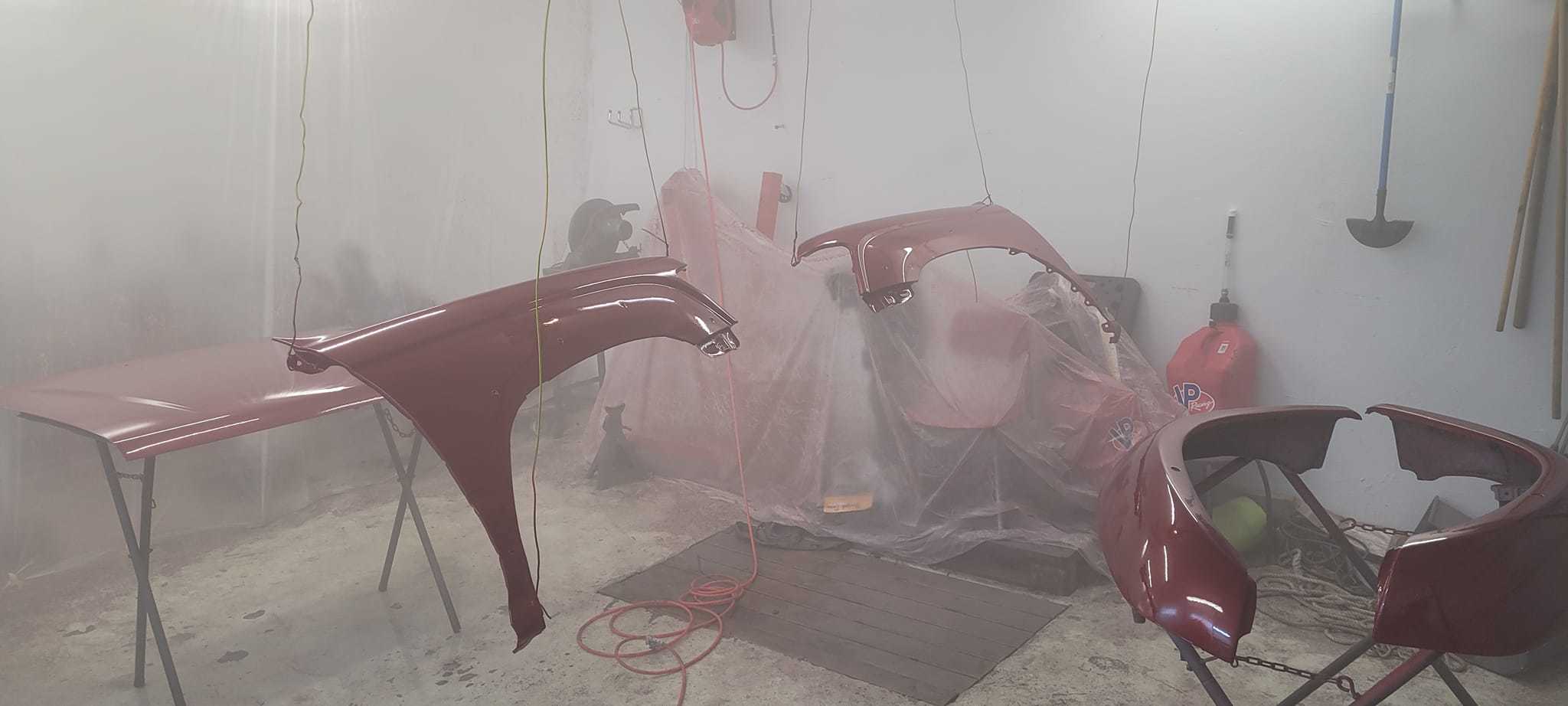

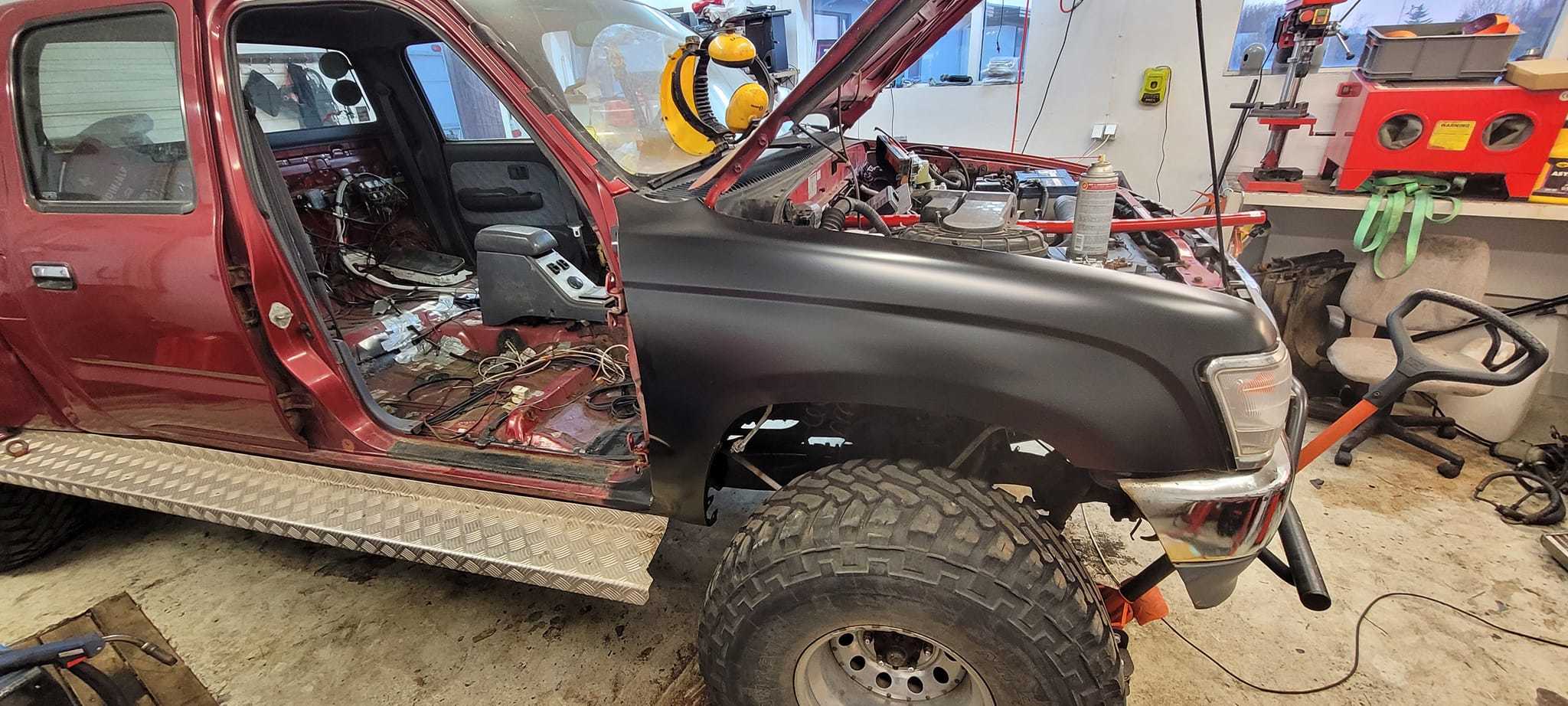

New fenders from Taiwan fit a charm

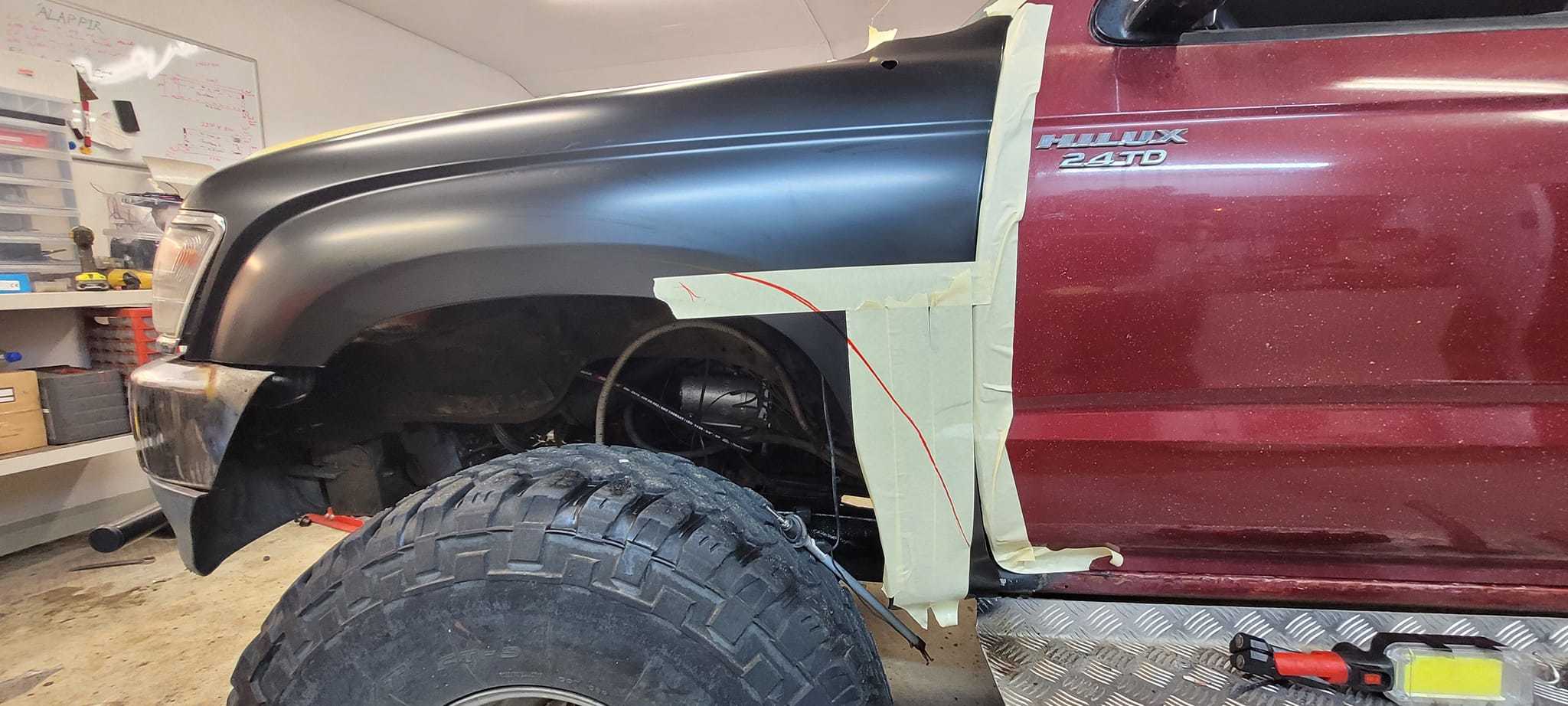

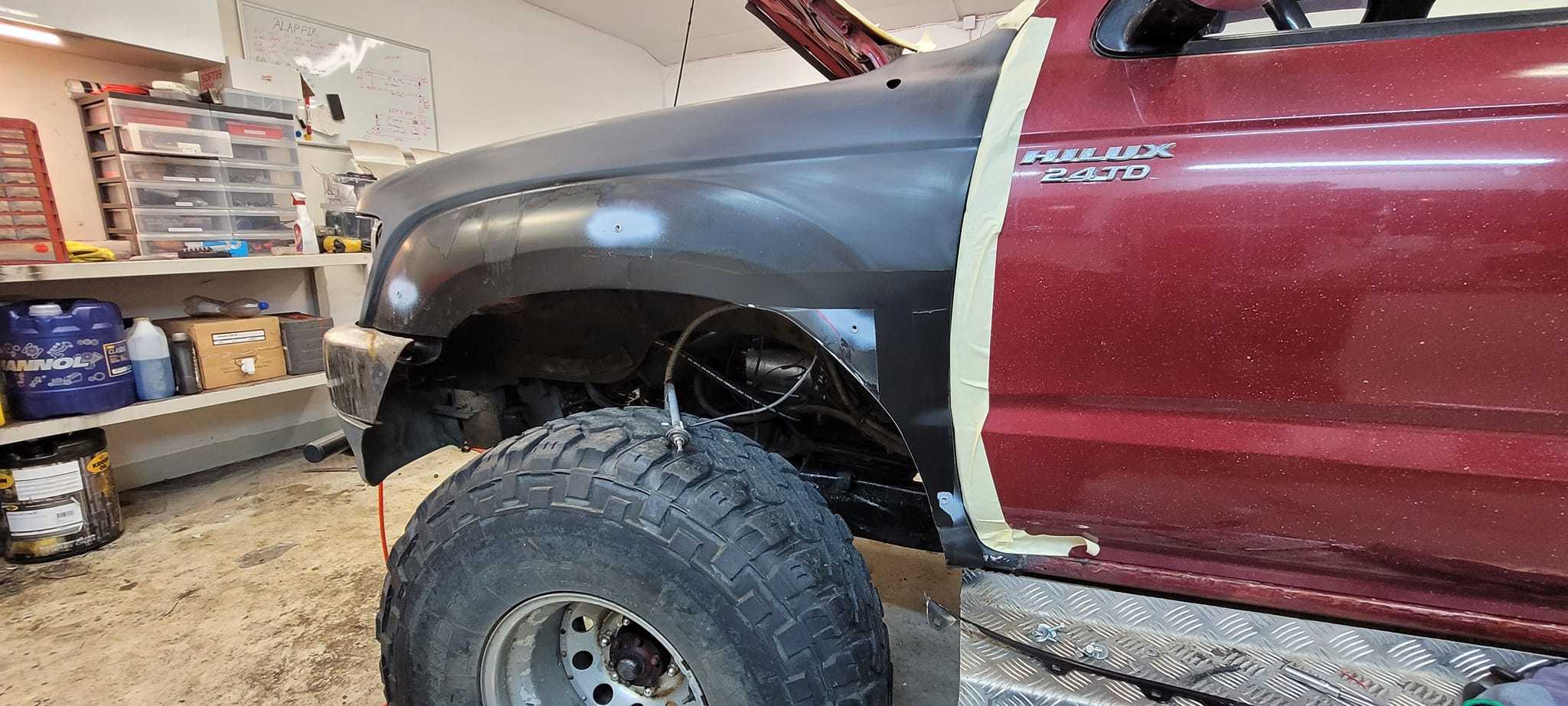

Mark the cut

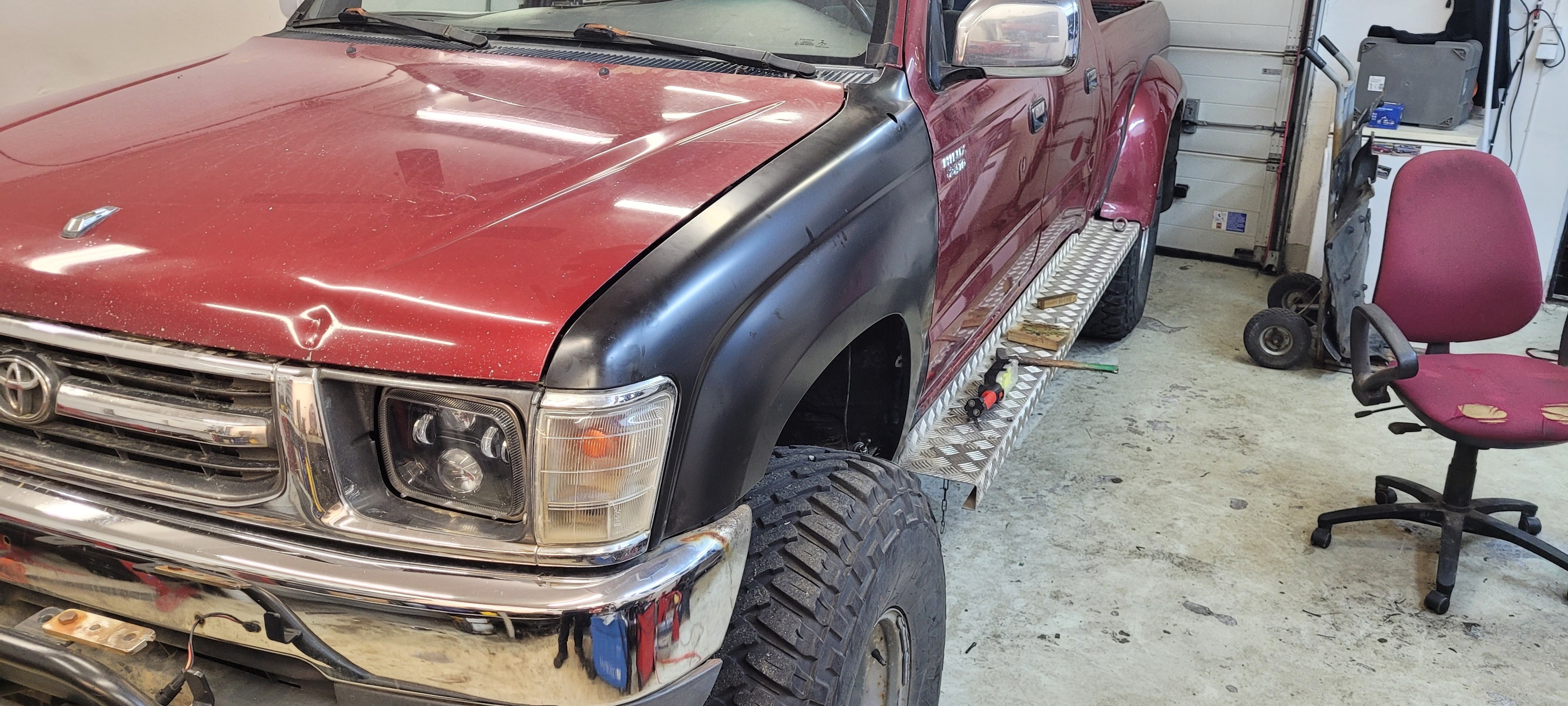

Cut done, 38s will now fit

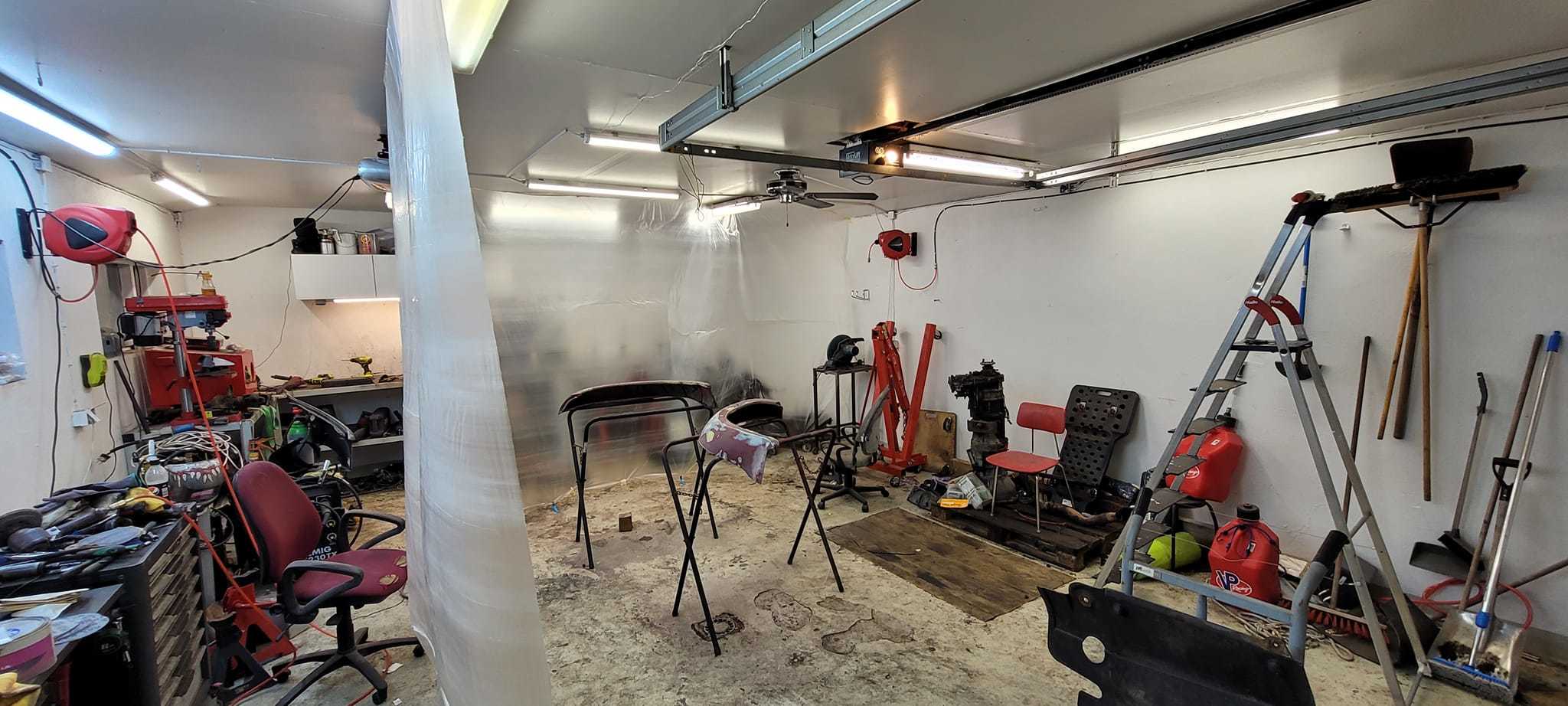

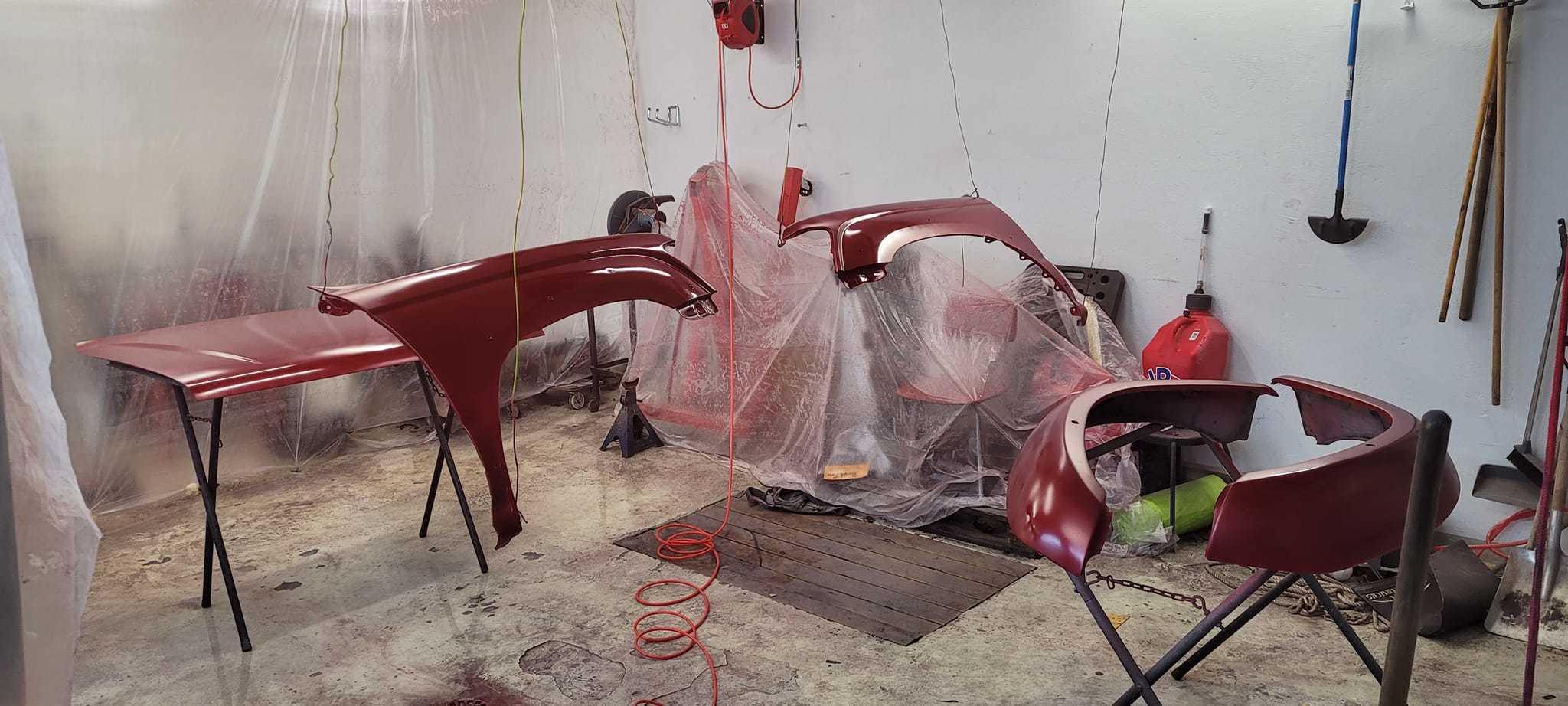

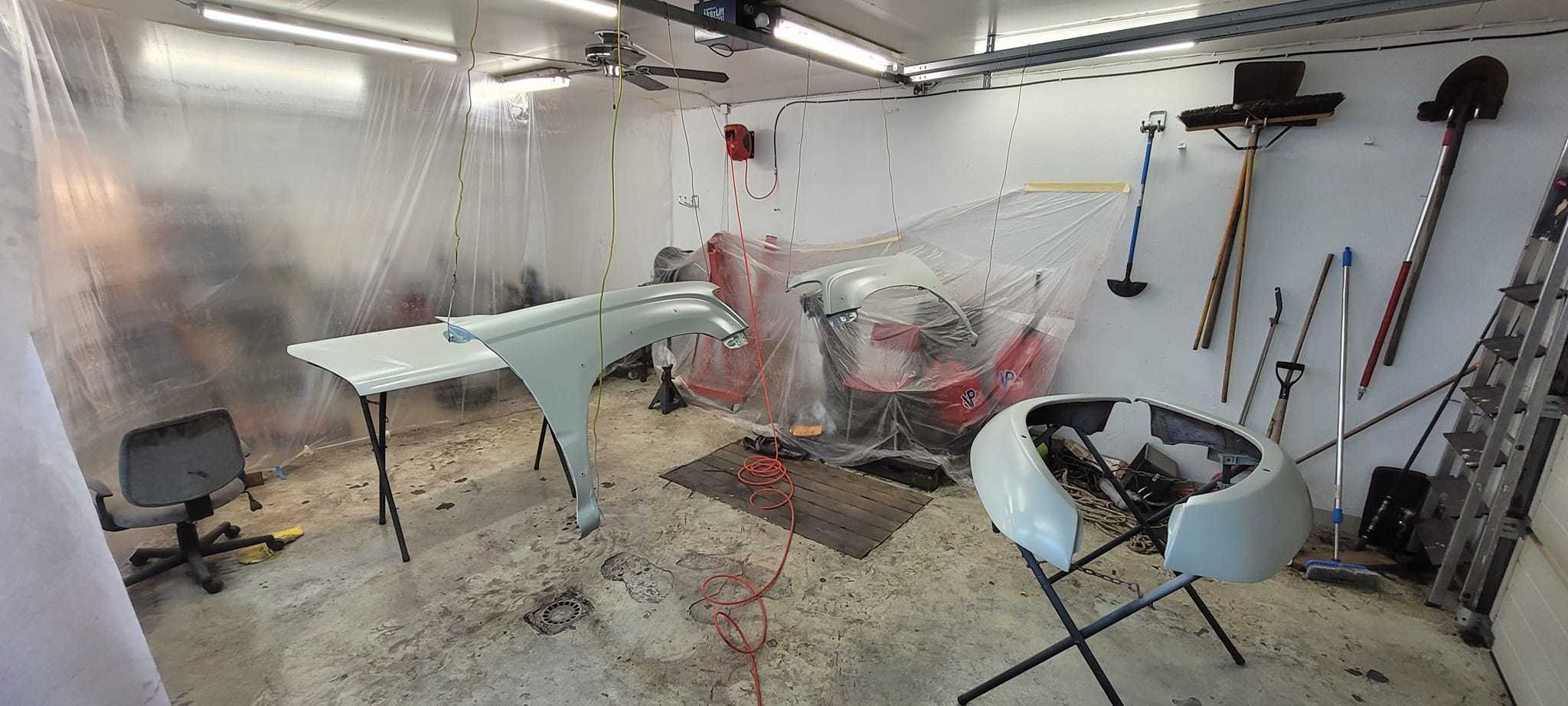

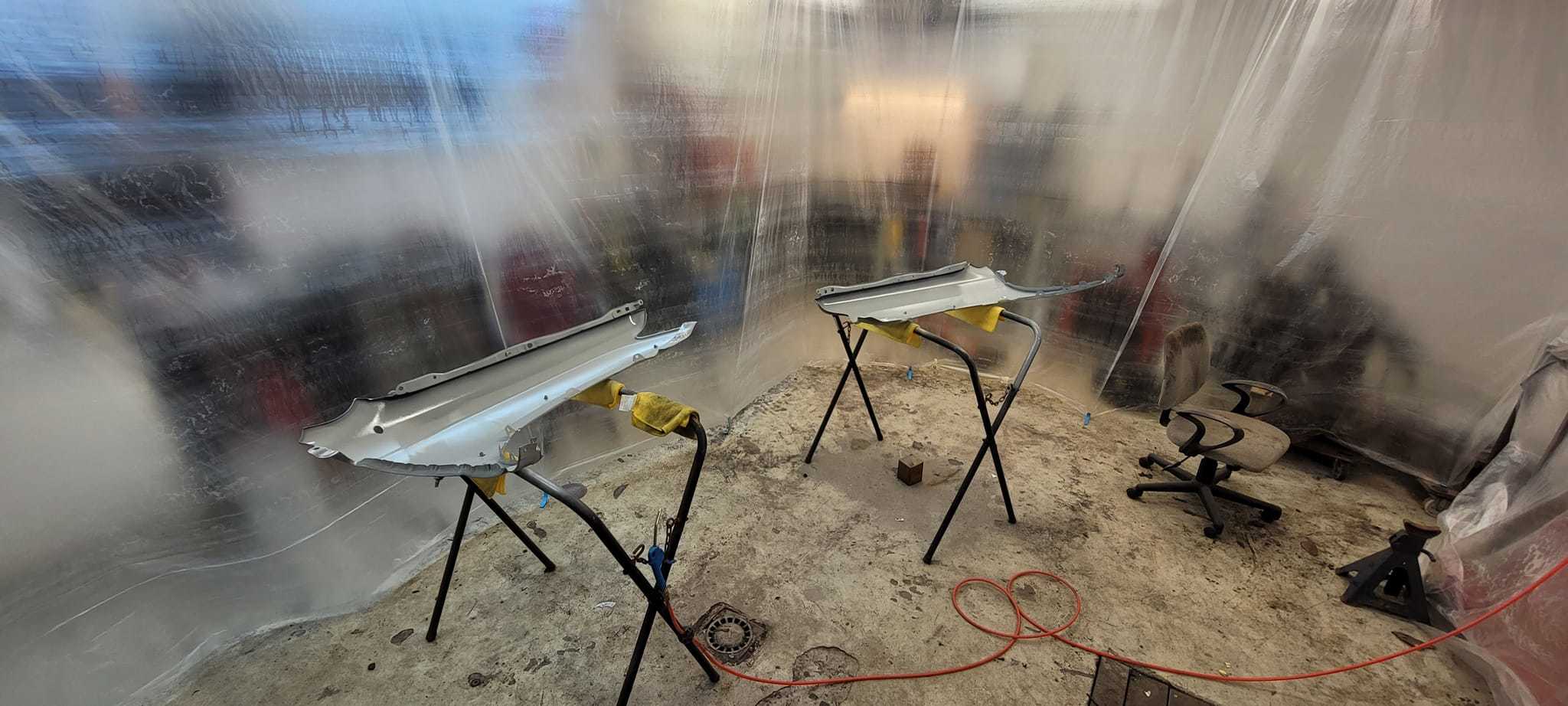

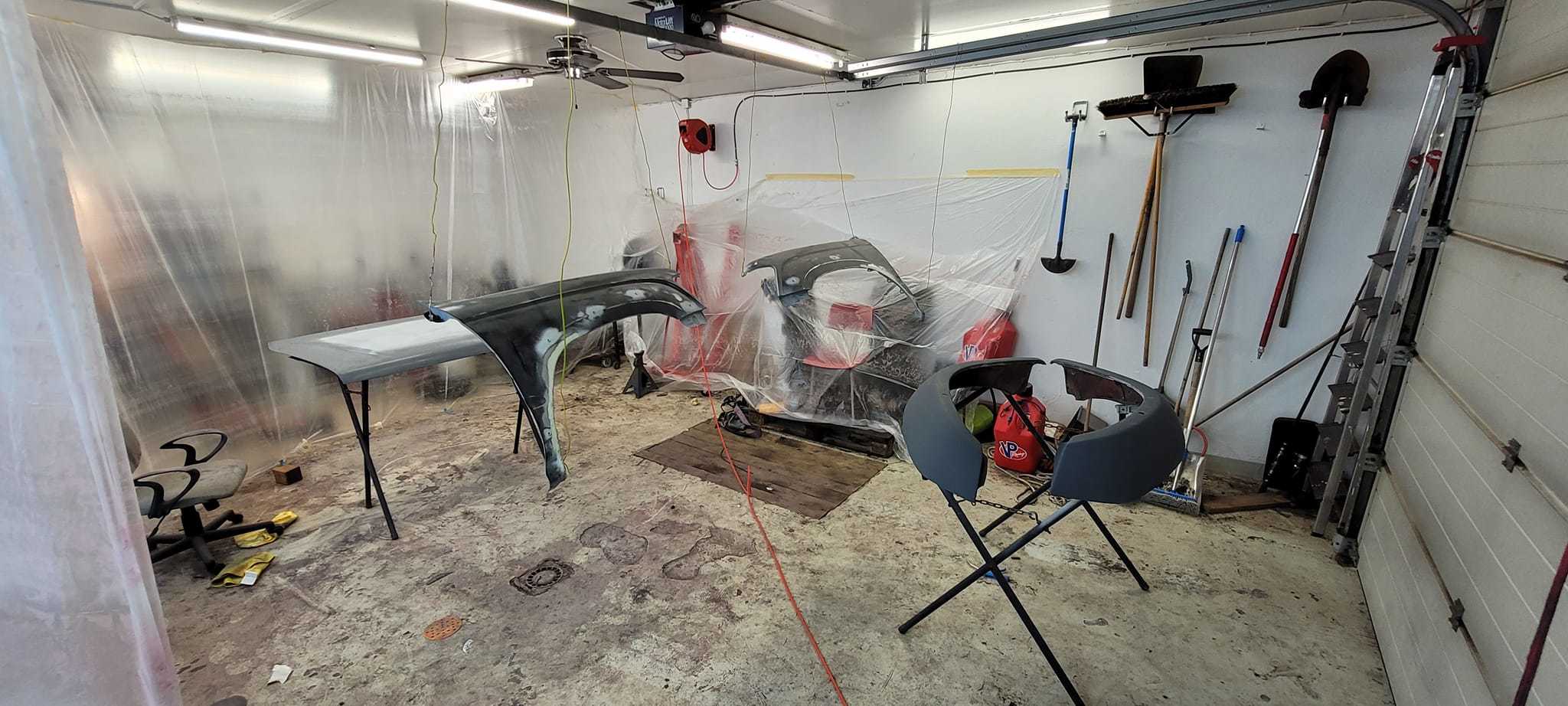

"paint booth"

The fenders are painted inside and outside equally to prevent rusting

Filler primer, I also had to pull out a dent and fill a hole(from the Toyota emblem) on the hood. You can see these on the first picture in this post...

More primer, you can see me use a different primer on the fender flares as they are fiber plastic, so this primer is more elastic and has an adhesion agent... I dont know... just the salesman told me to do this...

Good filtering equipment is key to success

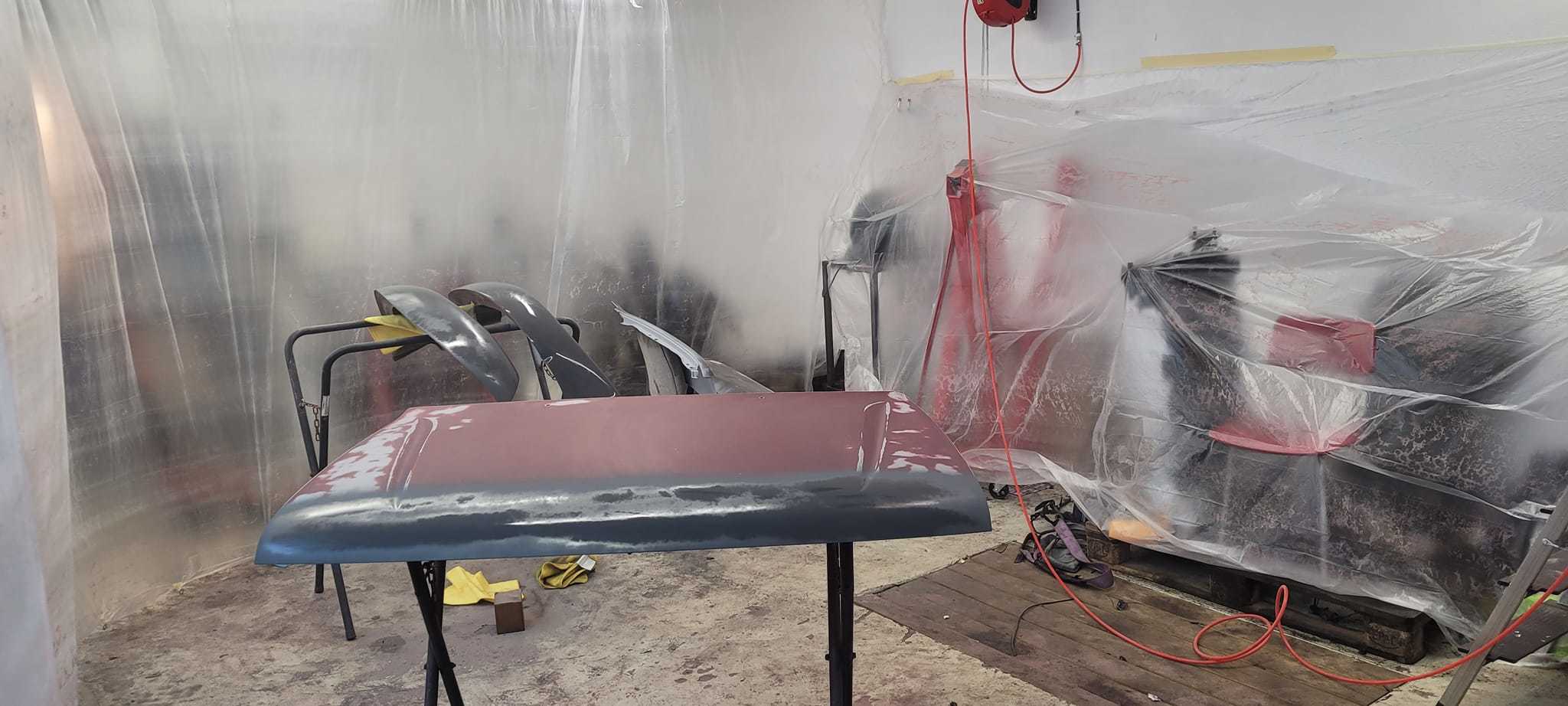

Filler primer over everything, 3 layers, wet on wet

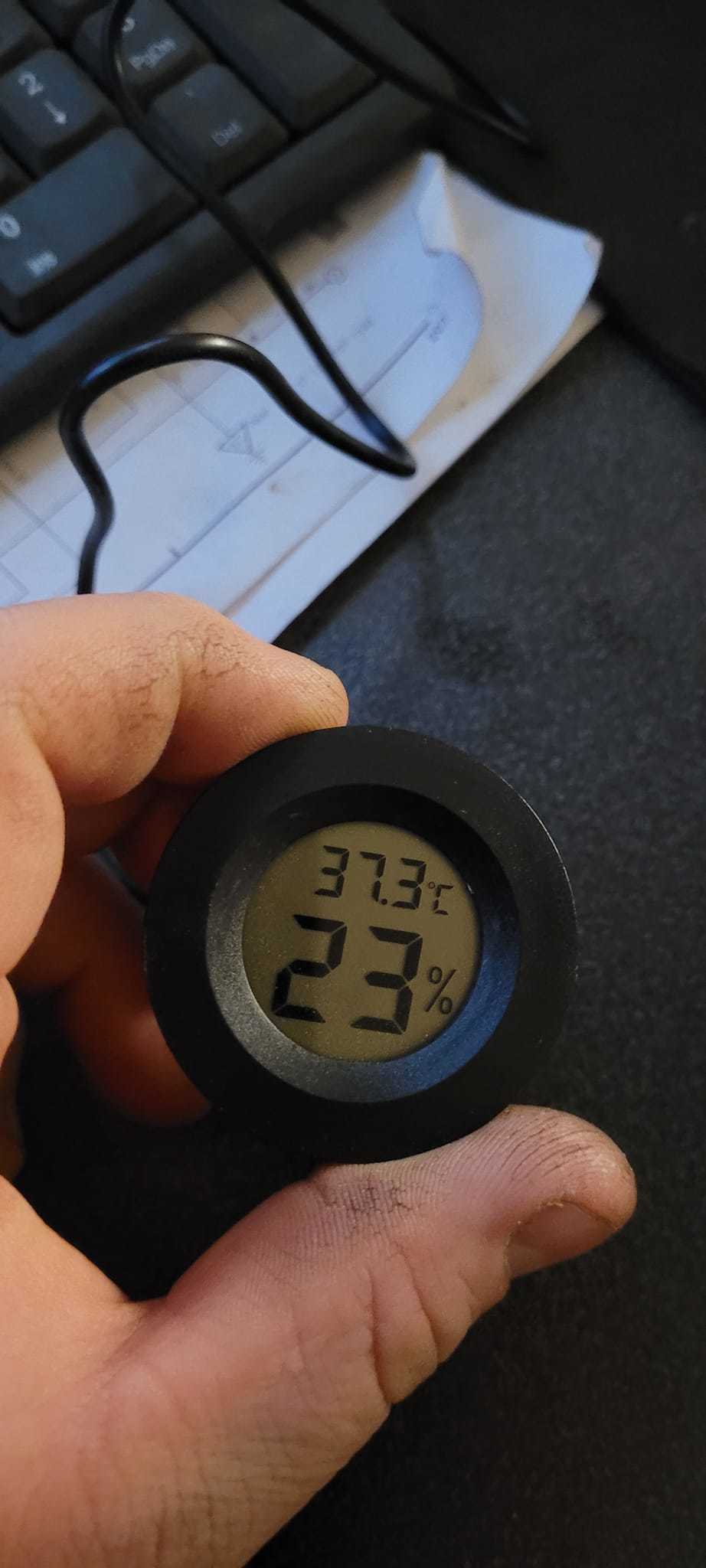

Nice to have good heating in the garage, big radiators, the temperature ~35-40°C (95-105°F)

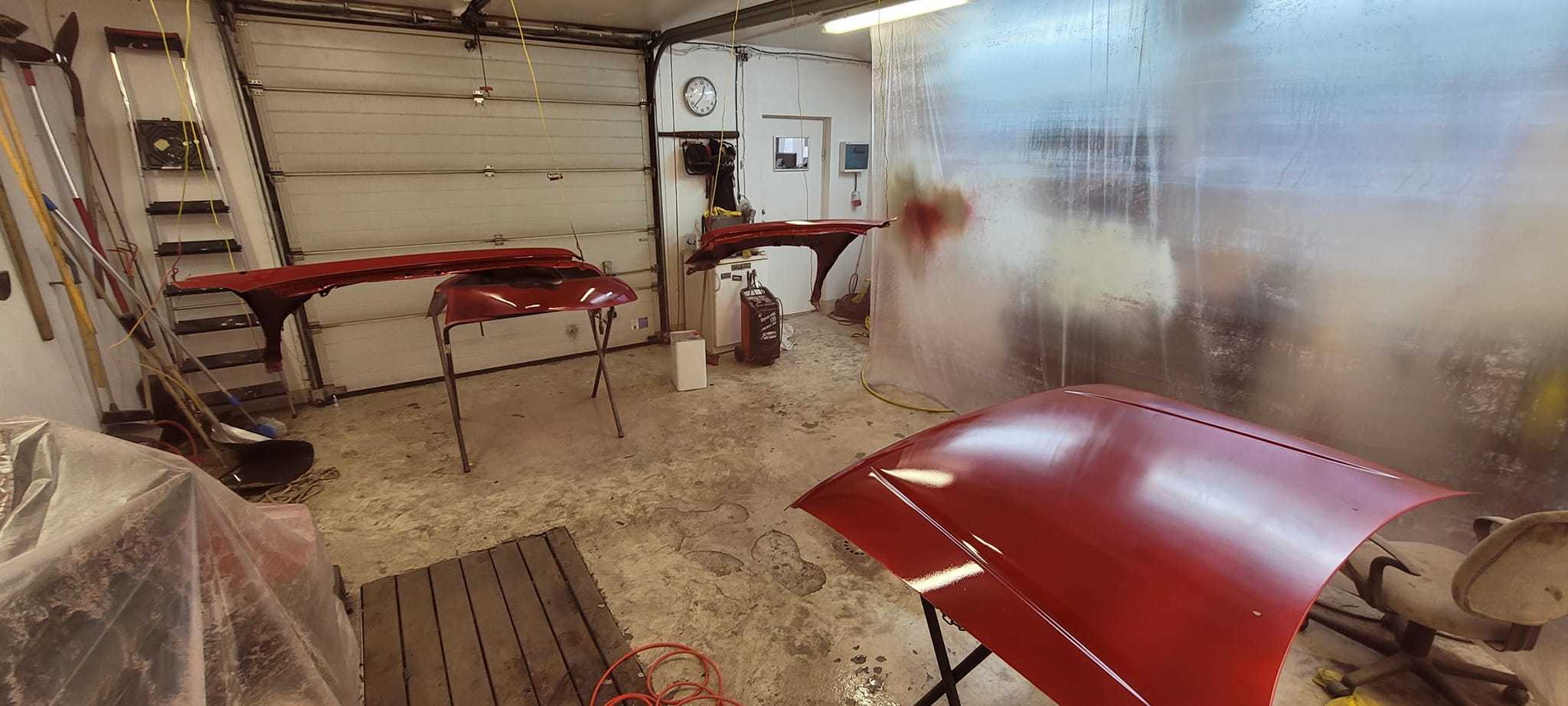

Basecoat three layers

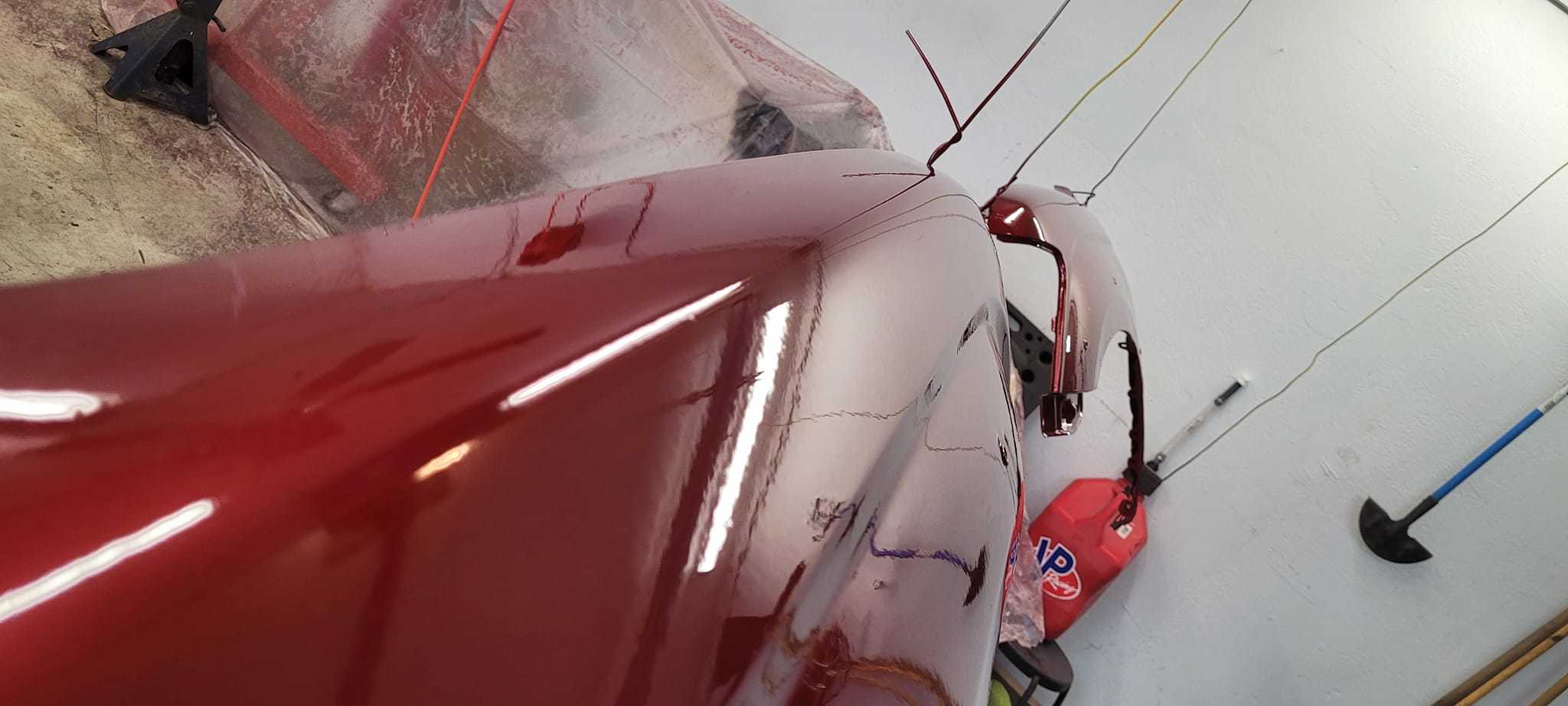

Clear coat three layers

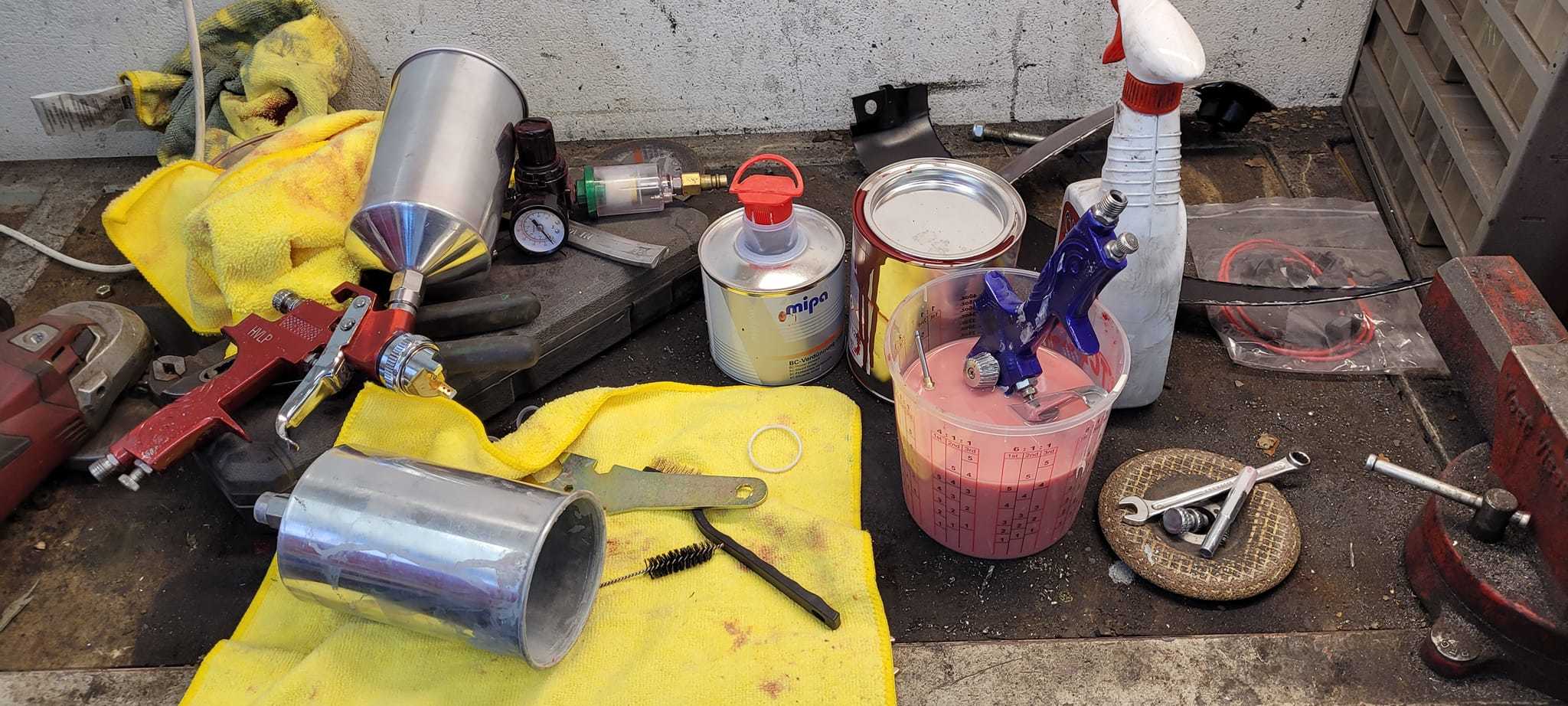

I will admit, I am surprised this even worked judging by the equipment and the layout I'm using to blend the cups... lol

24 hours later after baking...

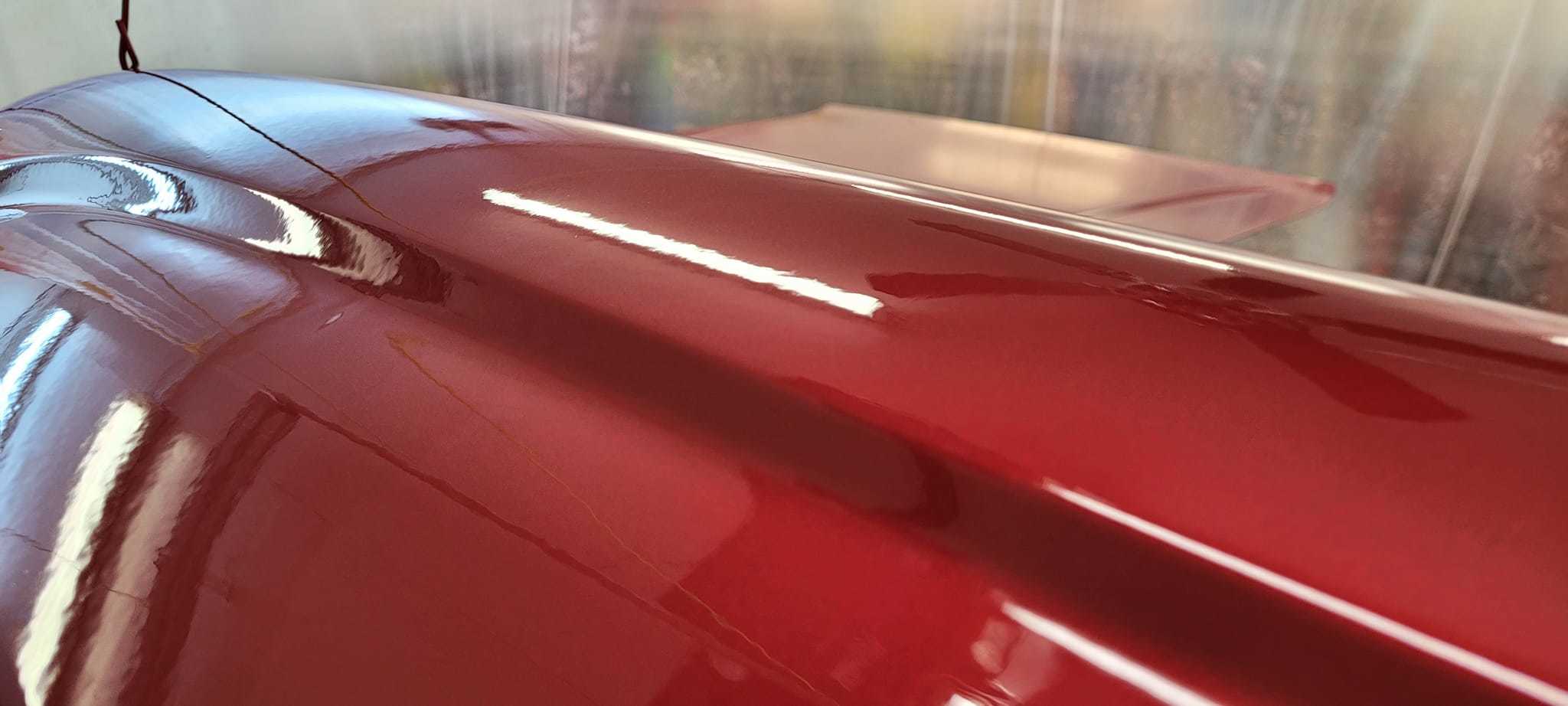

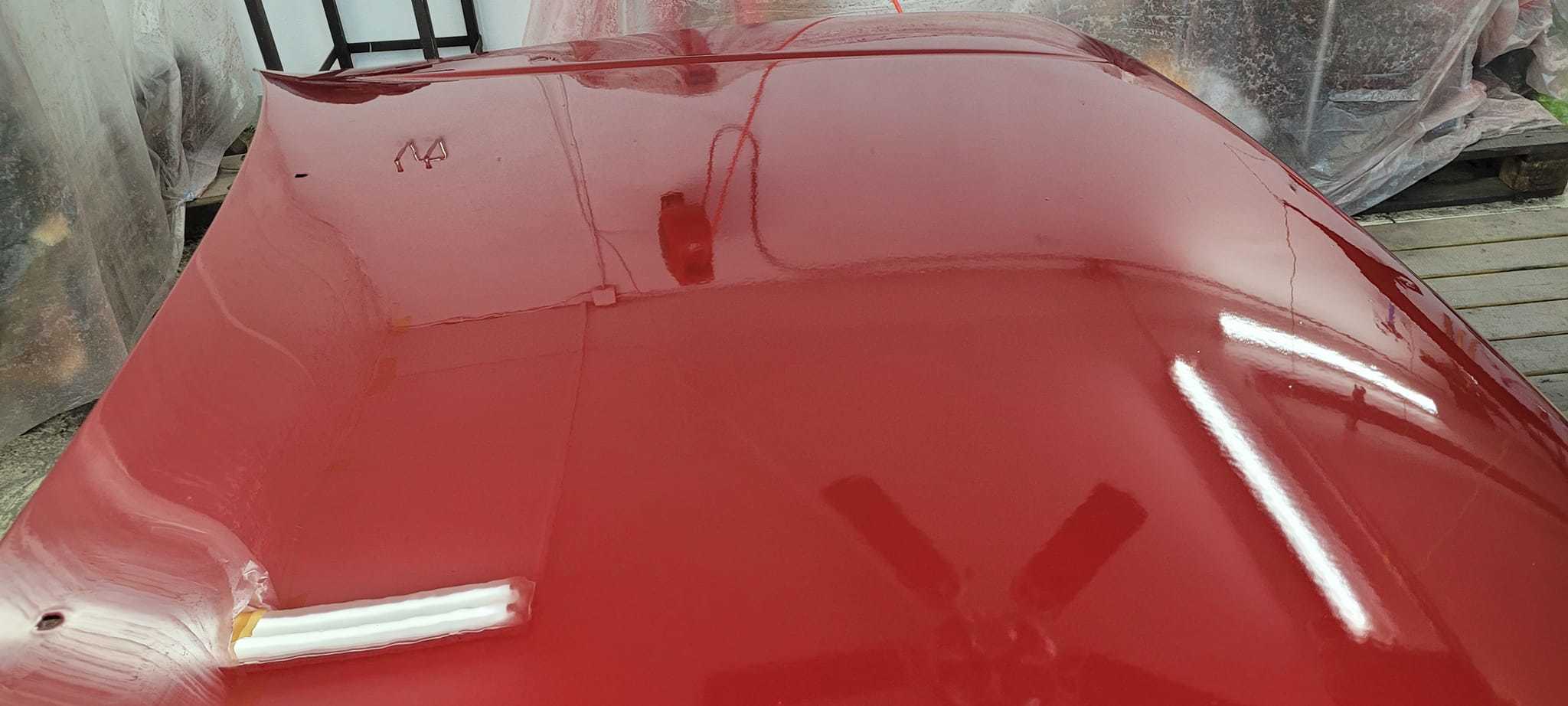

Reassembly, I will cut and buff the hood to give more shine, it is borderline orange peely here, after that, it will look like a Ferrari



[clx16]

That looks sharp! Wish i was the painter you are! and you did it without really being able to see out of your face mask!



[Saevar Orn]

It's like a sauna bath man at these temps... I need a mask without the face coverage, lol..

Thanks anyway, this is the 2nd time in my life I do a semi pro. paint job on a car, the first was when I painted the pick up bed on this car in 2020 with similar results..



[Saevar Orn]



[Saevar Orn]

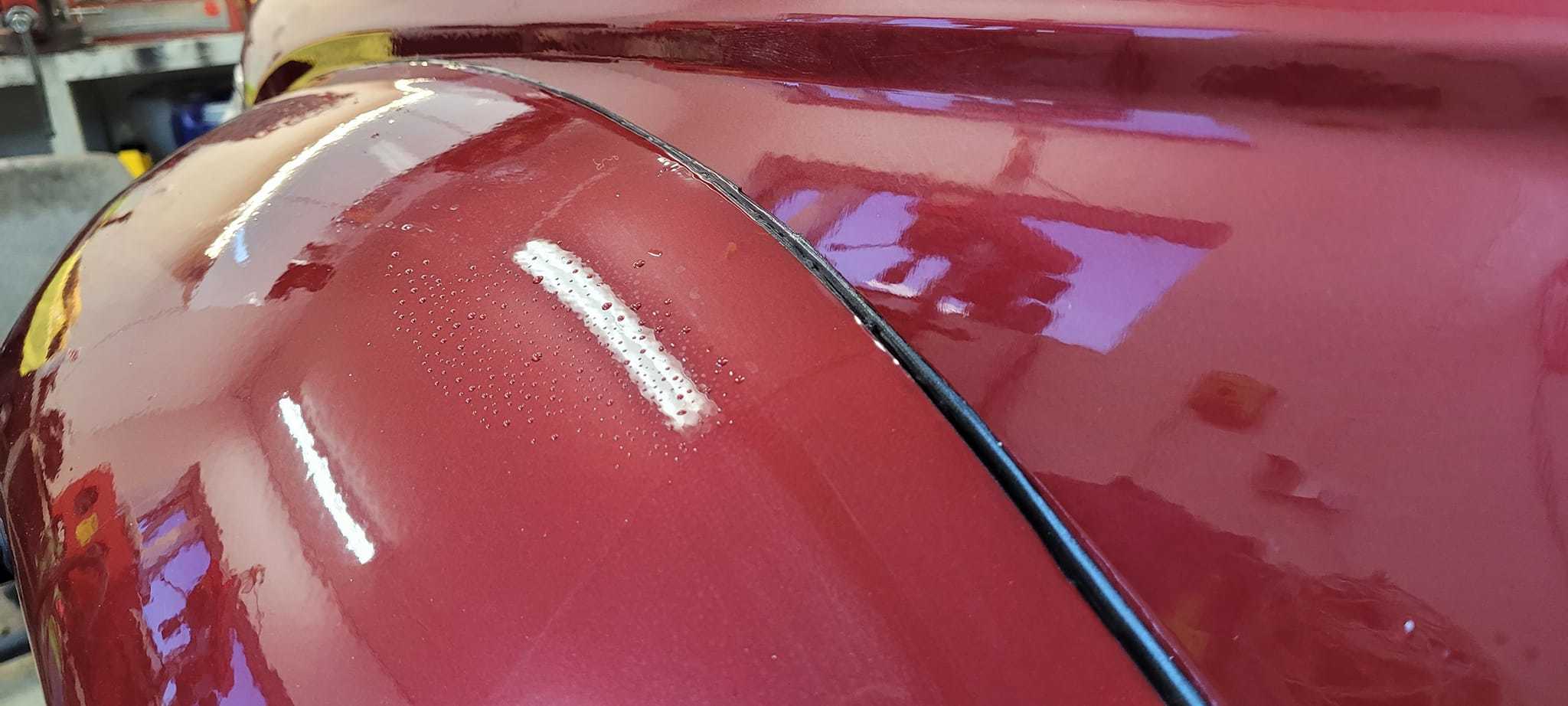

Fender flares are mounted with adhesive only, it's almost surgical, but it looks so satisfying and beautiful once done

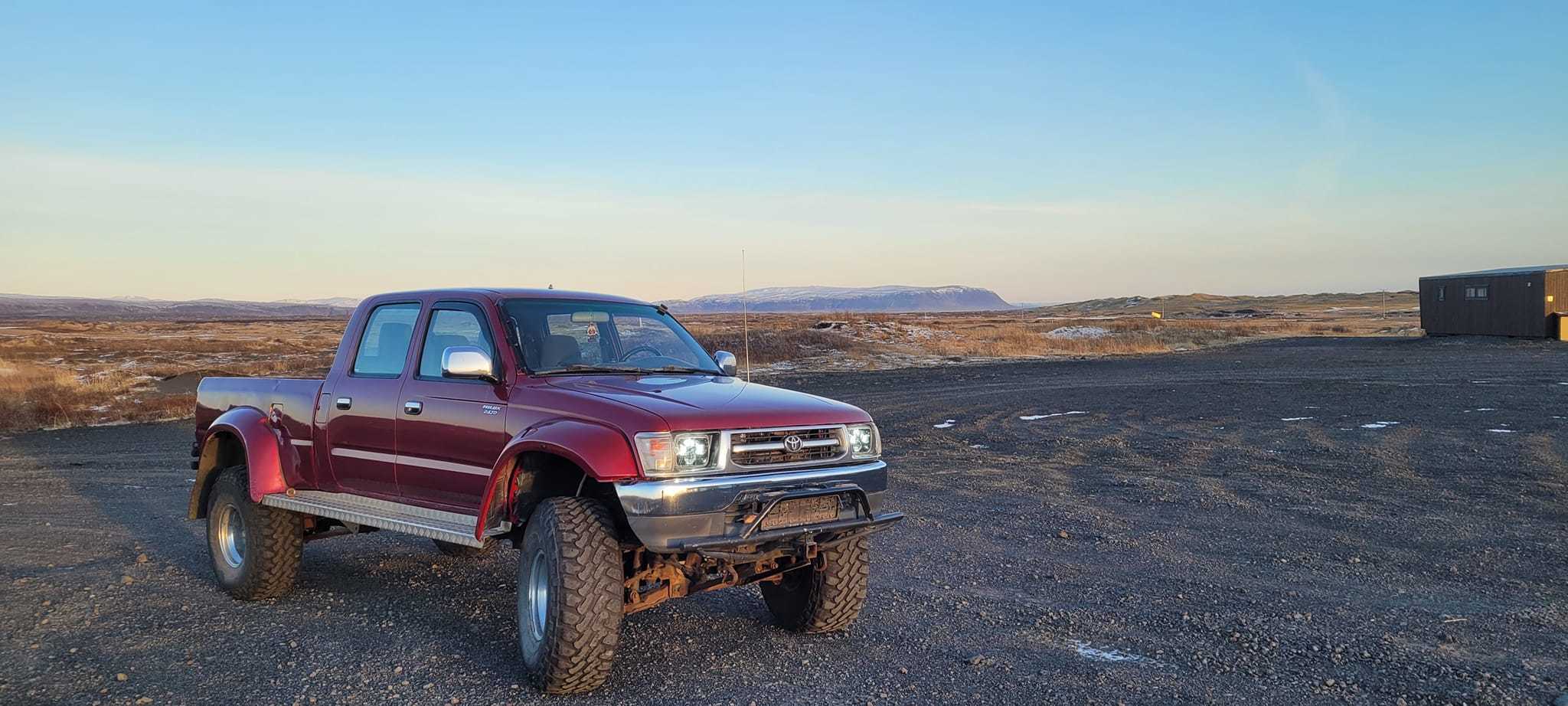

First test drive at home, still no licence plates on... sssshhhh

Inner fenders made from hard plastic plate, the void between engine bay and wheel well will be closed with softer rubber plate similar to original

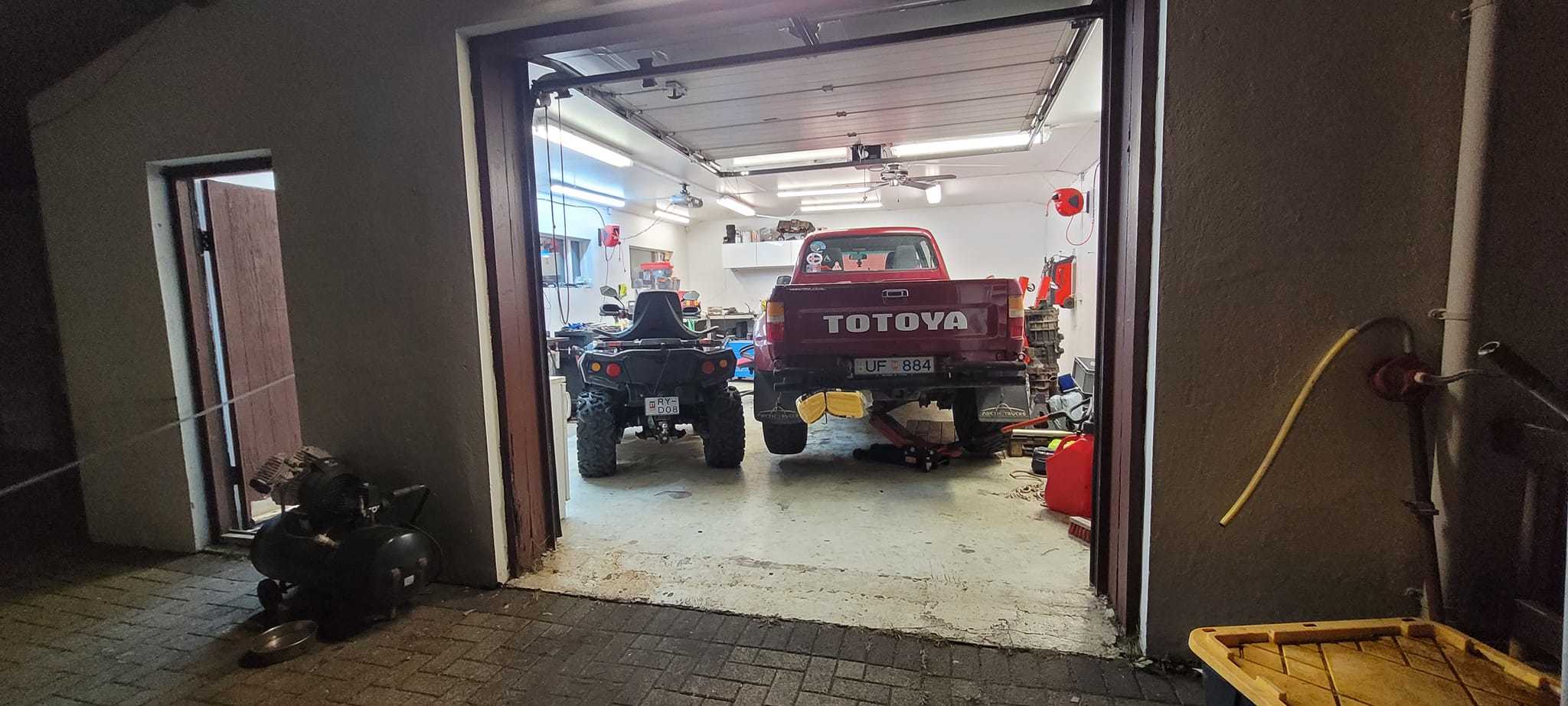

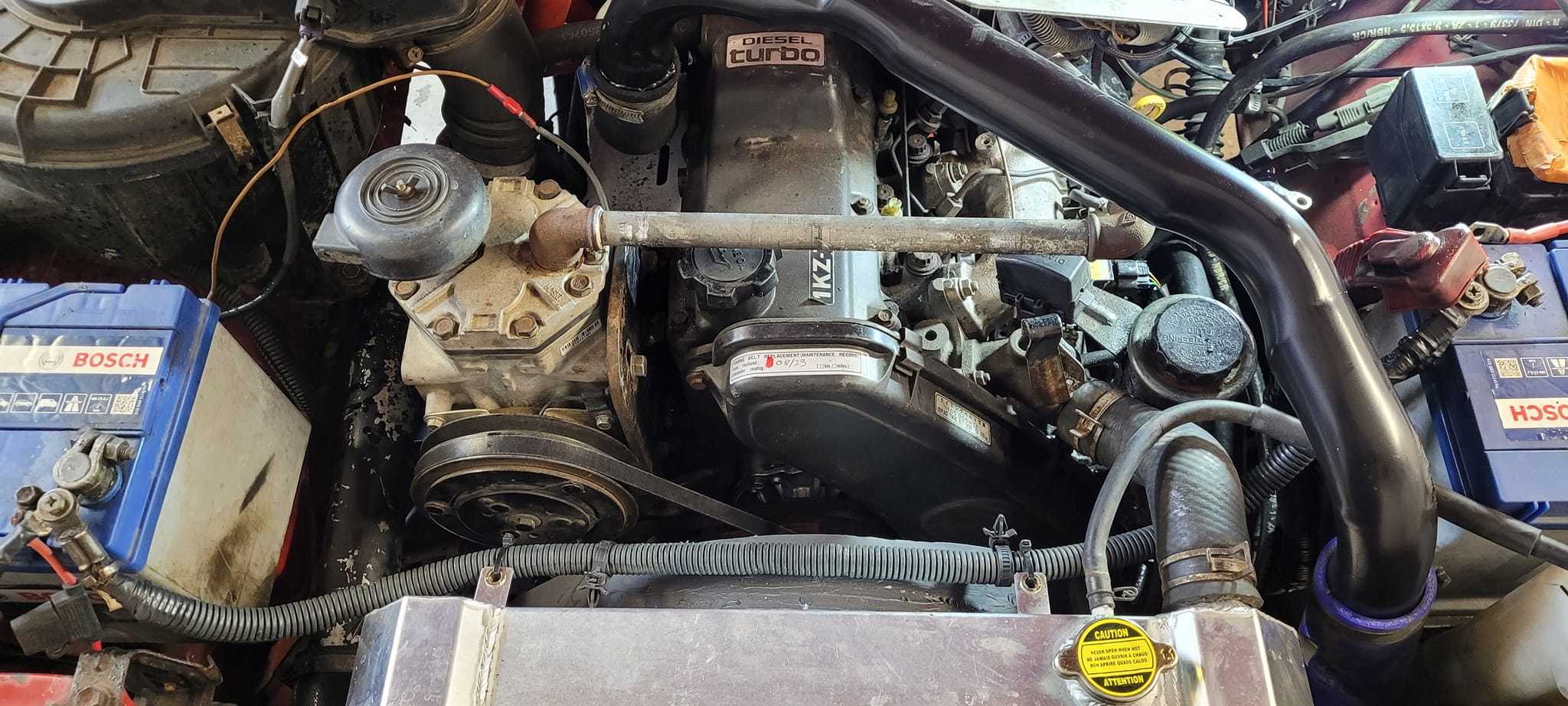

Air compressor found its new home

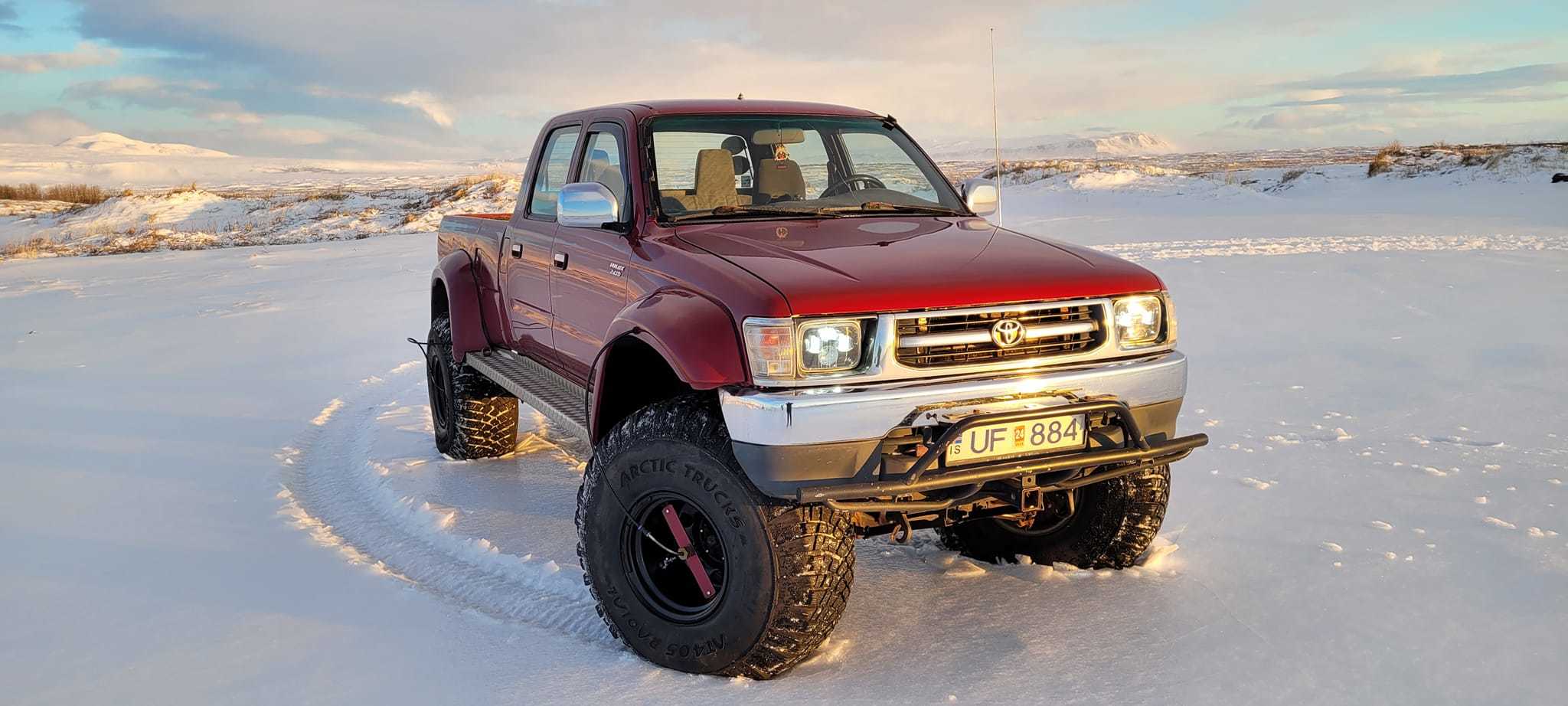

Back on the winter tires, new rims got CTIS equipment, really liking the look of all this now

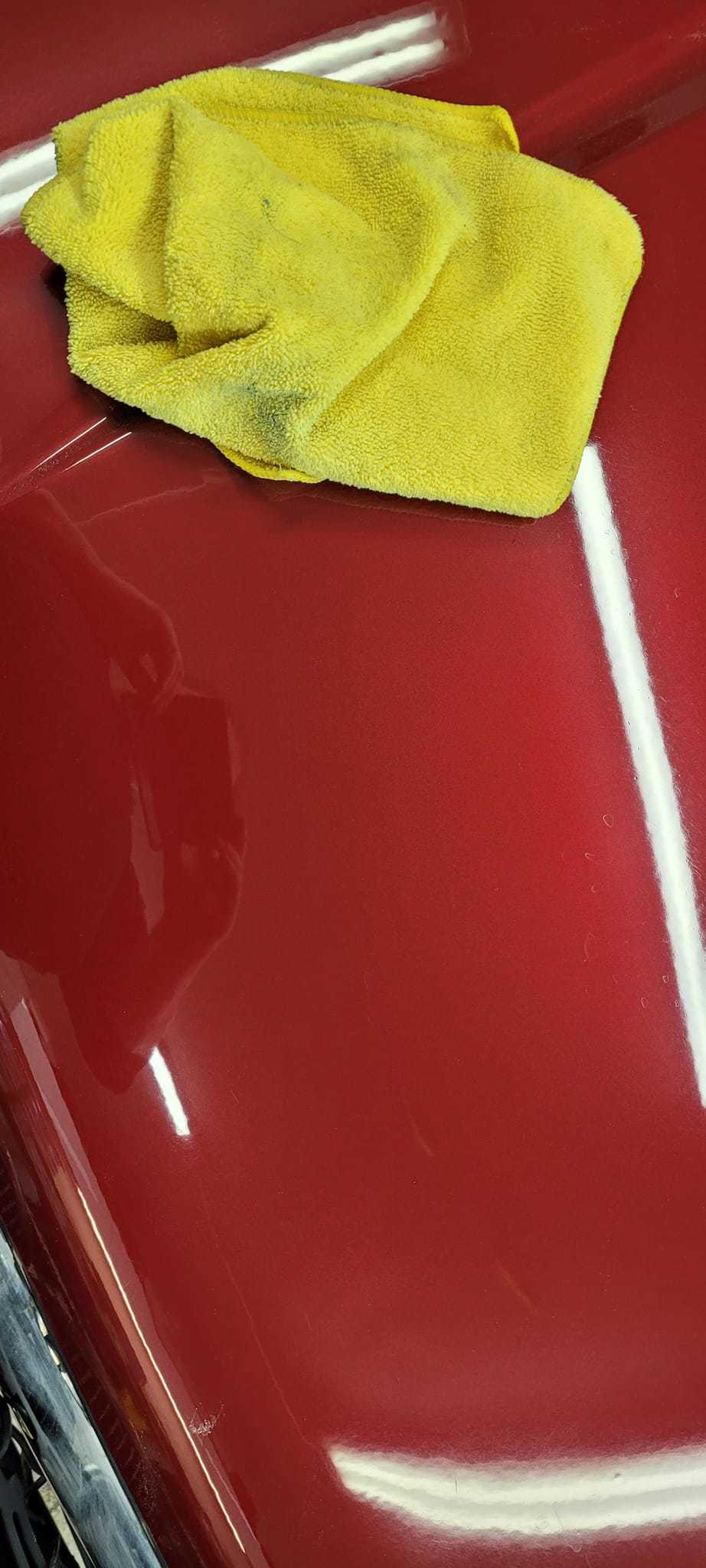

It's all microfibre cloths etc. from now on... is it a toyota pick up or a Ferrari? who can tell...

Speedo is now correct, and engine revs. ~2100 at 90kph. - fuel milage measurements will be interesting to see later..
