Stupid question, but I have been trying to figure out why my CDL doesn't engage. I installed a new CDL sensor (on the T case), and have read many threads that say to jumper the CDL switch? to see if the light will come on. How do I do that? Any pics anywhere? When I shift into 4L I get nothing- no sound, no lights, etc. It goes into Low but that's it. Any help is greatly appreciated. Thanks, Dan.
How to jumper the CDL?
- Thread starter LCWannabe
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
I believe they are talking about jumping the switch (or sensor) you replaced on the TCase.
Unplug the sensor, and jumper the wires to see if the light will come on. If it does, plug the new sensor in (while it's unscrewed) and push the end of the sensor in and see if the light goes on.
If all is good, it is safe to assume your "switch" is fine, and the CDL is not being engaged. If the light does not come on, then your CDL may be engaging but the switch or wiring needs to be addressed.
Unplug your Hazzard switch (if you have a 95+ plus rig) and plug it into the cdl harness in the upper dash button area. There will be a shunt plugged in. Remove it. The Hazzard switch has the same pin operation as the factory cdl switch. This way you can engage and disengage the cdl at will.
- Thread starter
- #4
OK, so I jumpered the CDL sensor/switch and the lights came on, I heard the click in the kick panel, and I could hear the lockers move when I turned the dial. So, that means that my CDL is not engaging, correct? So, now I will have to possible rebuild the CDL? Thanks for the replies guys! I am excited to know that my lockers will work- I've had this rig for over a year now and they have never worked- too many other things to do first. Now if I can just get the CDL figured out, it will be awesome.
PS. The switch/sensor is new.
PS. The switch/sensor is new.
Last edited:
ppc
M Go Blue
There are two switches, the first is the 4Low sensor that gets activated when you shift to low range. It fires the signal to lock the center diff. The second switch indicates when the center actually locks. Check both switches.
ppc
M Go Blue
Yes, but it can be a wiring issue also. The last thing I would do is to mess with the CDL actuator.
ppc
M Go Blue

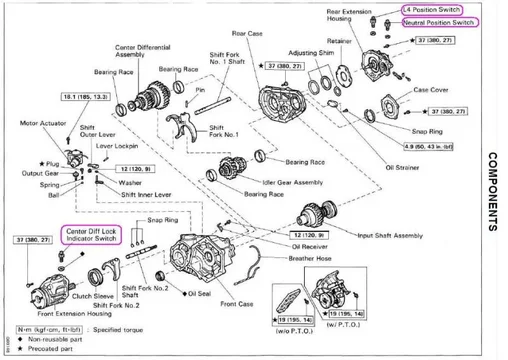

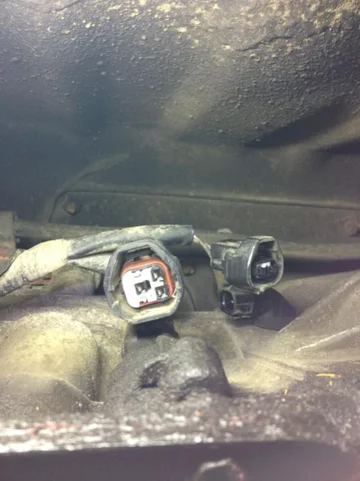

I can't tell much from the pictures. The L4 switch and the Neutral switch are located on the rear of the transfer. Looking towards the front the switches are at 2 o'clock and 11 o'clock positions respectively. The CDL indicator switch is on the front. You should be able to search and find some pictures. You should be able to test each one by jumpering the connectors. With the ignition on begin with jumpering the L4 switch and you should here the CDL actuator activate.
Finnyfam60
Driving miss daisy
Hope you got this all fixed, BUT, I need to formally reprimand you that this should have been done a year ago!!!!
- Thread starter
- #18
Any tips for getting the 4L switch out? I can't get a socket on it and there is not much room for a crescent wrench either. Any suggestions welcome!
It not because I haven't been working on the Cruiser
It not because I haven't been working on the Cruiser
Last edited:
Finnyfam60
Driving miss daisy
Any tips for getting the 4L switch out? I can't get a socket on it and there is not much room for a crescent wrench either. Any suggestions welcome!
It not because I haven't been working on the Cruiser
I used a "shorty" crescent wrench (only about 4-5" long) on the cdl switch...
