Hi, can we install a usb charger on the driver side lower dashboard? I found there are couple of blank mould there. If possible please let me know how to do it or any information about this. Thanks!
How to install a usb charger on driver side lower dash? (1 Viewer)
- Thread starter zhloea
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
Are you just looking for wiring info for that area? It looks like you’ve found a plug insert you like.
What model/year is your truck?
What model/year is your truck?
- Thread starter
- #3
Mine is 04 lc100, I didn't find the plug, I just want to install a plug like that. I want to know if there is a plug like that we can use for lc100. Thanks!
- Thread starter
- #4
After some research, I found some options:
1. Charge plug/port with "Fuse tap"
2. Charge plug/port with a connector for cigarette lighter
Seems both will do the work, Any suggestion about the choice?
If I chose the first one, is there any common tutorial for that?
If I chose the second one, should I get some very long extension wire to wire the plug from driver side corner to the cigarette lighter at the center?
1. Charge plug/port with "Fuse tap"
2. Charge plug/port with a connector for cigarette lighter
Seems both will do the work, Any suggestion about the choice?
If I chose the first one, is there any common tutorial for that?
If I chose the second one, should I get some very long extension wire to wire the plug from driver side corner to the cigarette lighter at the center?
There is switched 12V available behind those switches that you can tap into:
- 12V to the Power Mirror switch is active with the key in the ACC position. It's the solid green wire on the Power Mirror switch connector
- 12V to the Rear Window switches is active with the key in the IGN position. It's the red-with-light-blue-stripe wires going to either switch.
- Ground can be found on the white-with-a-black-stripe wires at any of the above switches.

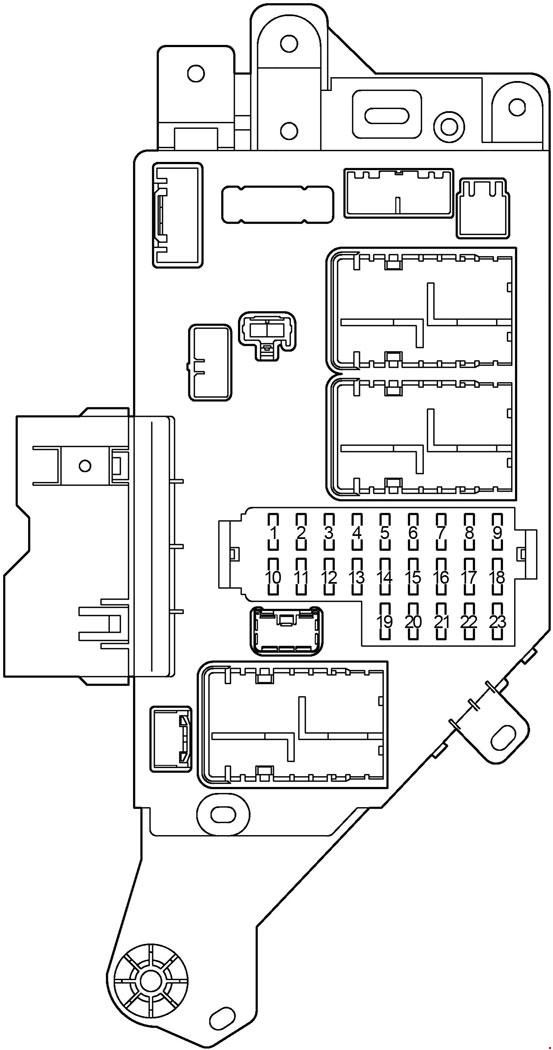

If you want the USB outlets to be constantly powered you'd need to install a Fuse Tap in the fuse panel behind the driver's kick panel. Fuse #20 (for the driver's power seat) is always active and would provide plenty of power (30A) for simultaneous operation of the USB outlets and seat motors. Again, ground can be found on any white-with-a-black-stripe wire, or attaching a wire to the chassis metal.
To access behind the switches you'll need to remove the lower trim panel. The black switch panel in your pic is part of the larger panel and does not pull out.

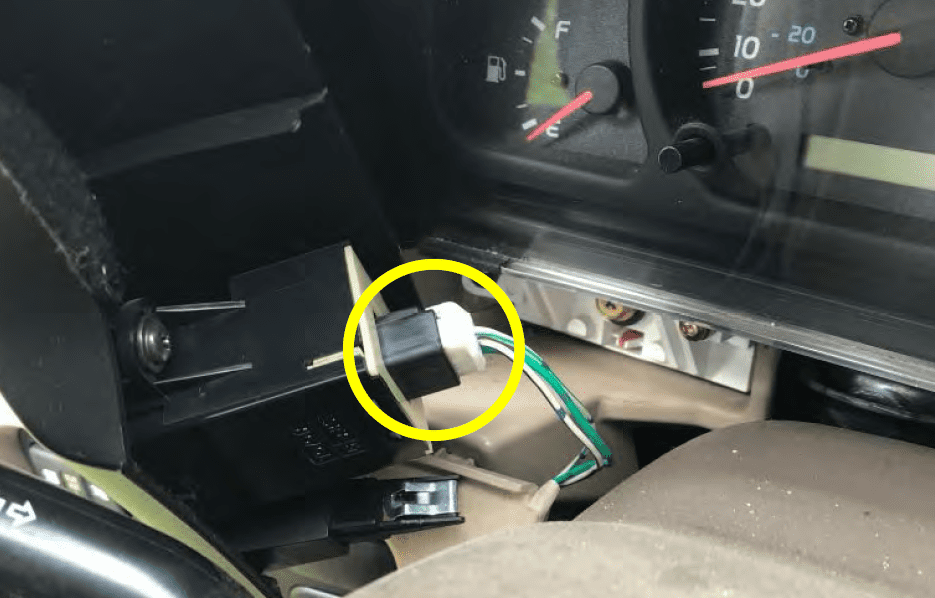

1. Remove the black instrument cluster trim panel by simply pulling it outward and unplugging the dimmer connector:

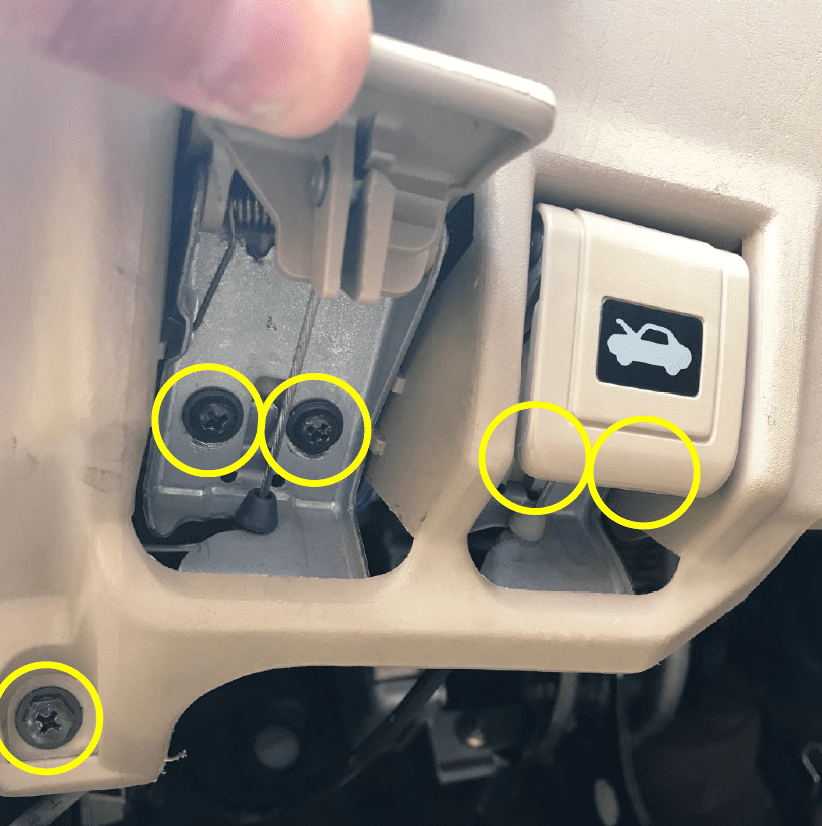

2. Then unscrew the Fuel Door & Hood release levers and the lower left trim panel screw:

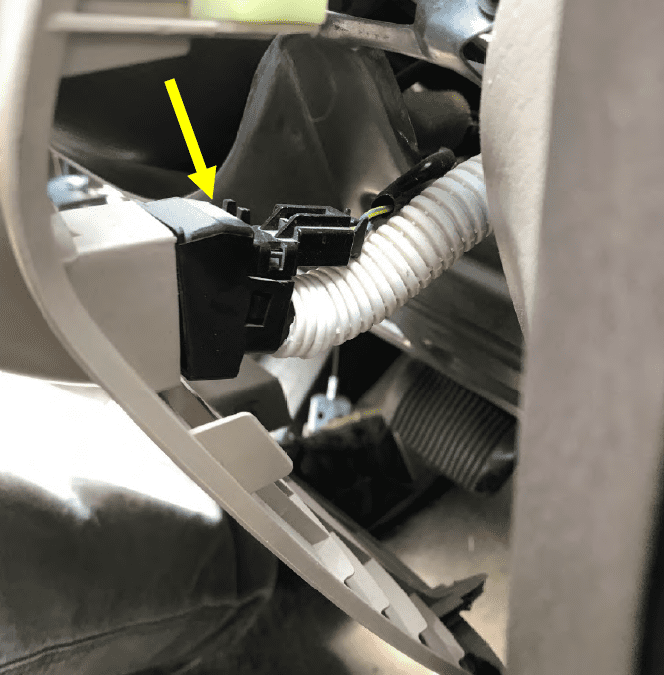

3. The lower trim panel can now be pulled off, releasing five push-in fasteners around its edges while watching out for the Cabin Air Sensor hose on the right side of the steering wheel:
- 12V to the Power Mirror switch is active with the key in the ACC position. It's the solid green wire on the Power Mirror switch connector
- 12V to the Rear Window switches is active with the key in the IGN position. It's the red-with-light-blue-stripe wires going to either switch.
- Ground can be found on the white-with-a-black-stripe wires at any of the above switches.
If you want the USB outlets to be constantly powered you'd need to install a Fuse Tap in the fuse panel behind the driver's kick panel. Fuse #20 (for the driver's power seat) is always active and would provide plenty of power (30A) for simultaneous operation of the USB outlets and seat motors. Again, ground can be found on any white-with-a-black-stripe wire, or attaching a wire to the chassis metal.
To access behind the switches you'll need to remove the lower trim panel. The black switch panel in your pic is part of the larger panel and does not pull out.
1. Remove the black instrument cluster trim panel by simply pulling it outward and unplugging the dimmer connector:
2. Then unscrew the Fuel Door & Hood release levers and the lower left trim panel screw:
3. The lower trim panel can now be pulled off, releasing five push-in fasteners around its edges while watching out for the Cabin Air Sensor hose on the right side of the steering wheel:

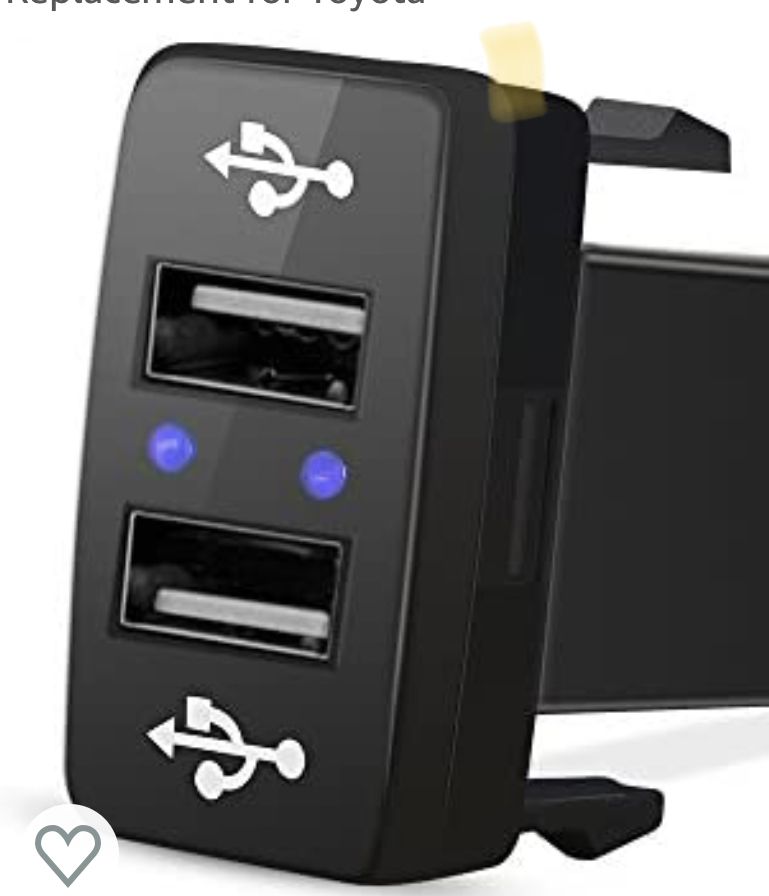

This 4.8A double USB: Amazon.com : Blue Sea 1045 12/24V Dual Usb Charger 1 1/8" Hole Mount (Part #1045 By Blue Sea Systems) : Camera & Photo
and 1 1/8" Hole Saw: https://amzn.to/2EgrO0L
and 1 1/8" Hole Saw: https://amzn.to/2EgrO0L
Amazon product ASIN B010T3CR8A
Just an example. There's lots of USB ports made for the standard size Toyota truck blank panels. I've thought about doing the same on my LX for easy power to devices on the pillar side.
Just an example. There's lots of USB ports made for the standard size Toyota truck blank panels. I've thought about doing the same on my LX for easy power to devices on the pillar side.
- Thread starter
- #9
Thanks for these info
- Thread starter
- #10
These looks nice, thanks!This 4.8A double USB: Amazon.com : Blue Sea 1045 12/24V Dual Usb Charger 1 1/8" Hole Mount (Part #1045 By Blue Sea Systems) : Camera & Photo
and 1 1/8" Hole Saw: https://amzn.to/2EgrO0L
There is a youtube vid on Blue Sea install center console. Not exactly what's being discussed here but similar. I'd like to use the cig lighter port on my FJ60 for this purpose. Also would like to install a 12v port in the rear cargo area (side panel) to run a 12v ice box/reefer. Here is the youtube link.
Last edited:
gregnash
Anal Retentive Analyst
This is what I have as well, just used the center cig lighter in the lower dash molding vs. the 120w power outlet.
