Hood Vent Louvre Measurements

Joined
May 4, 2021
Messages
78
Location
AF, Utah

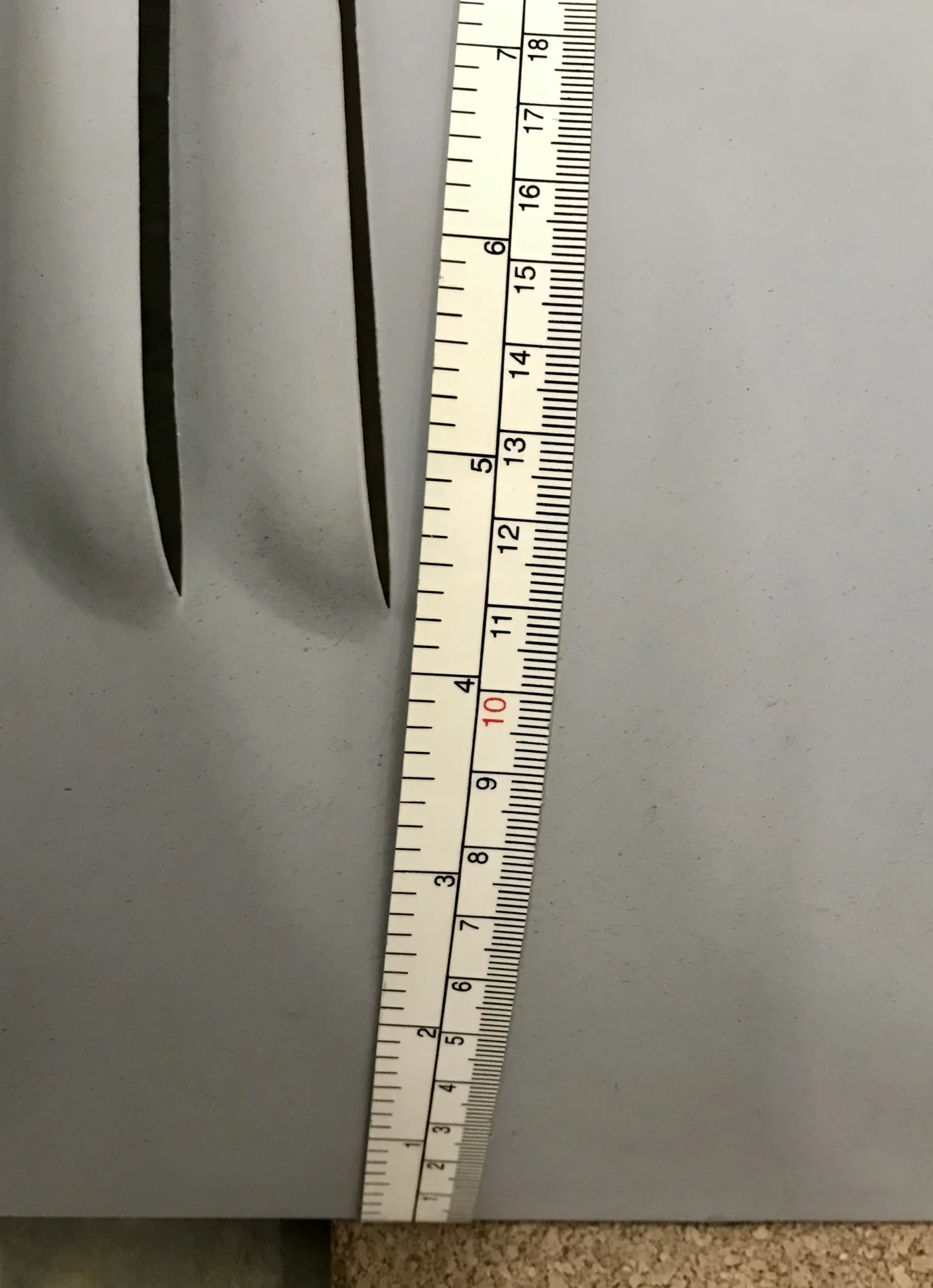

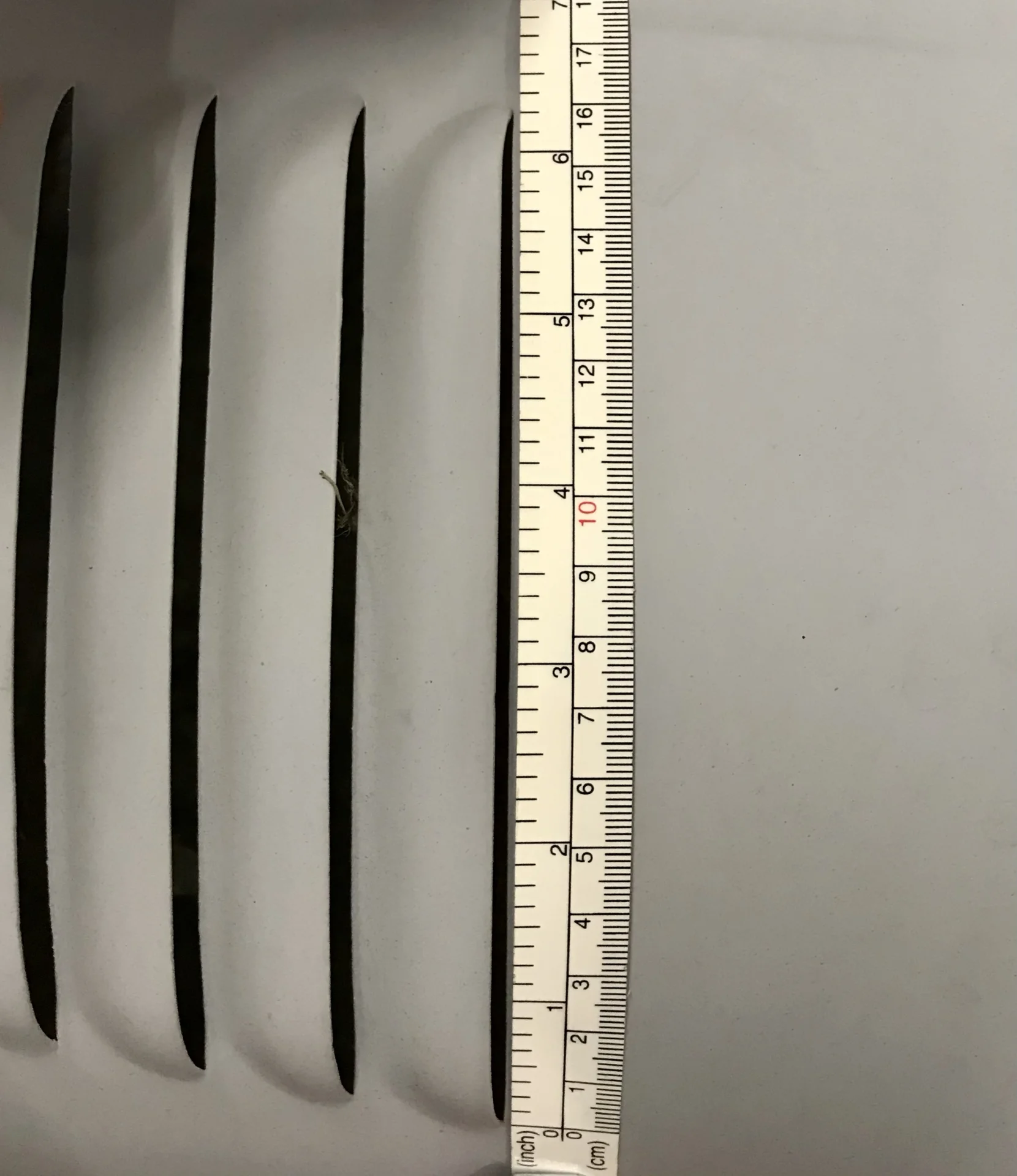

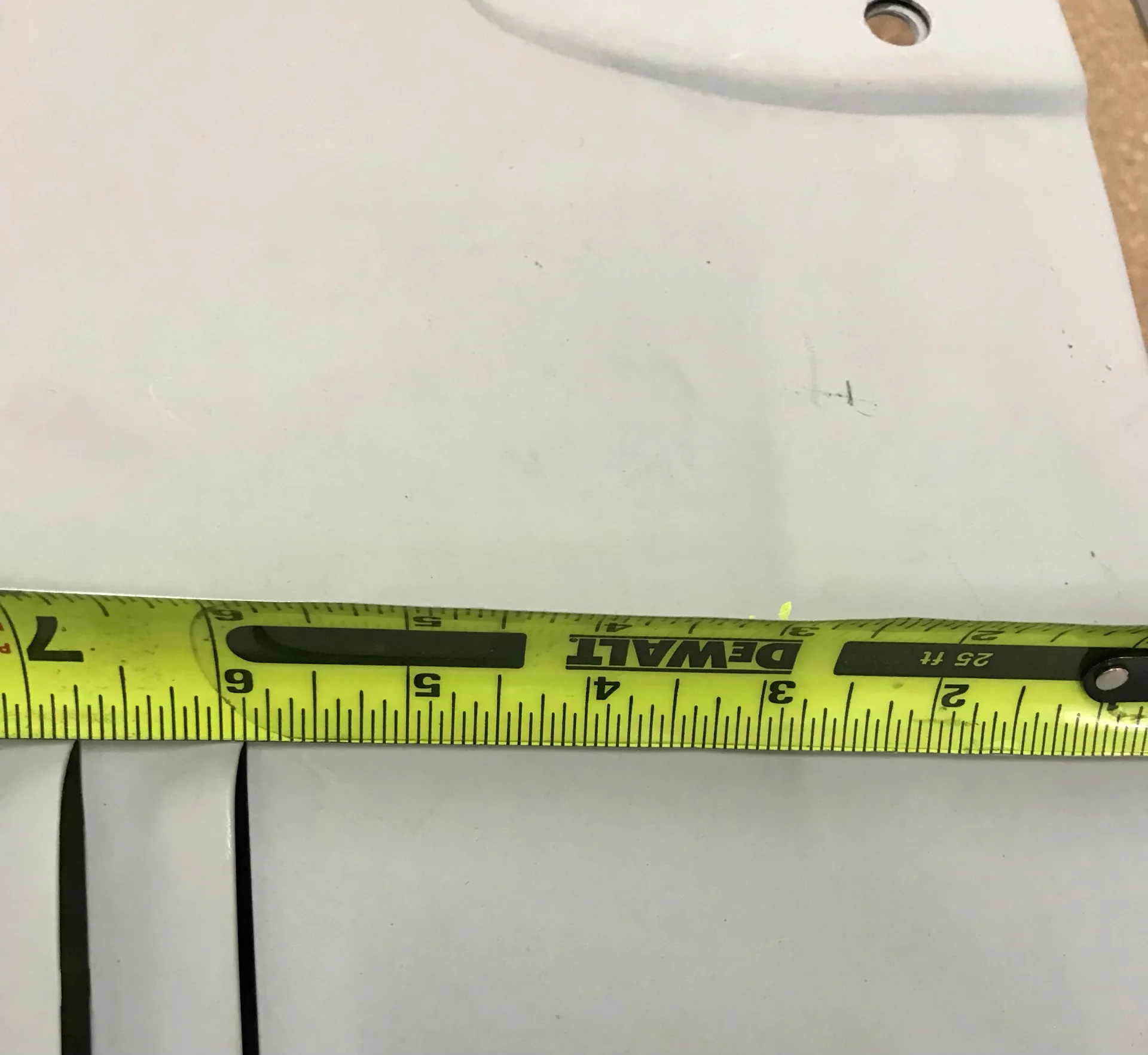

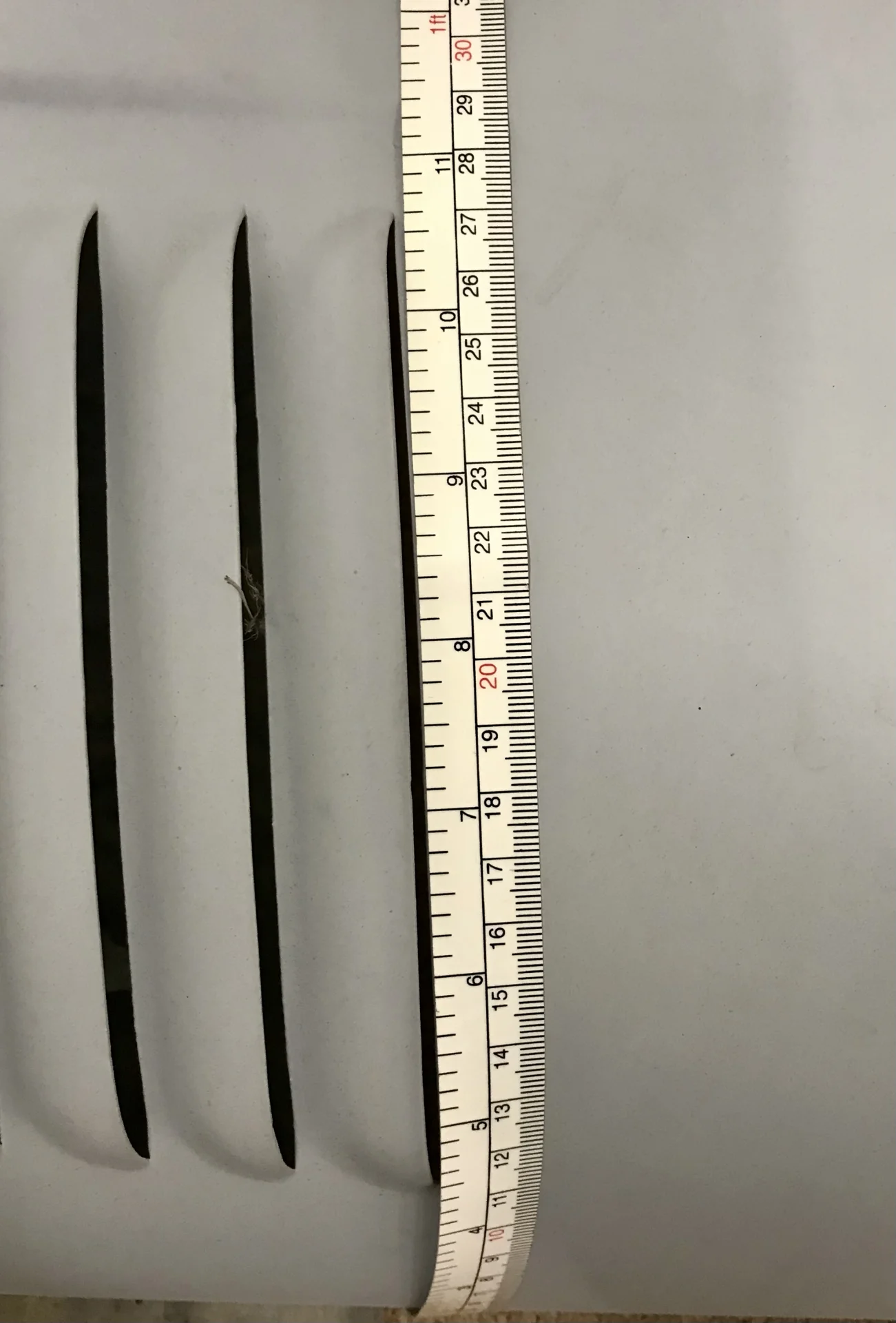

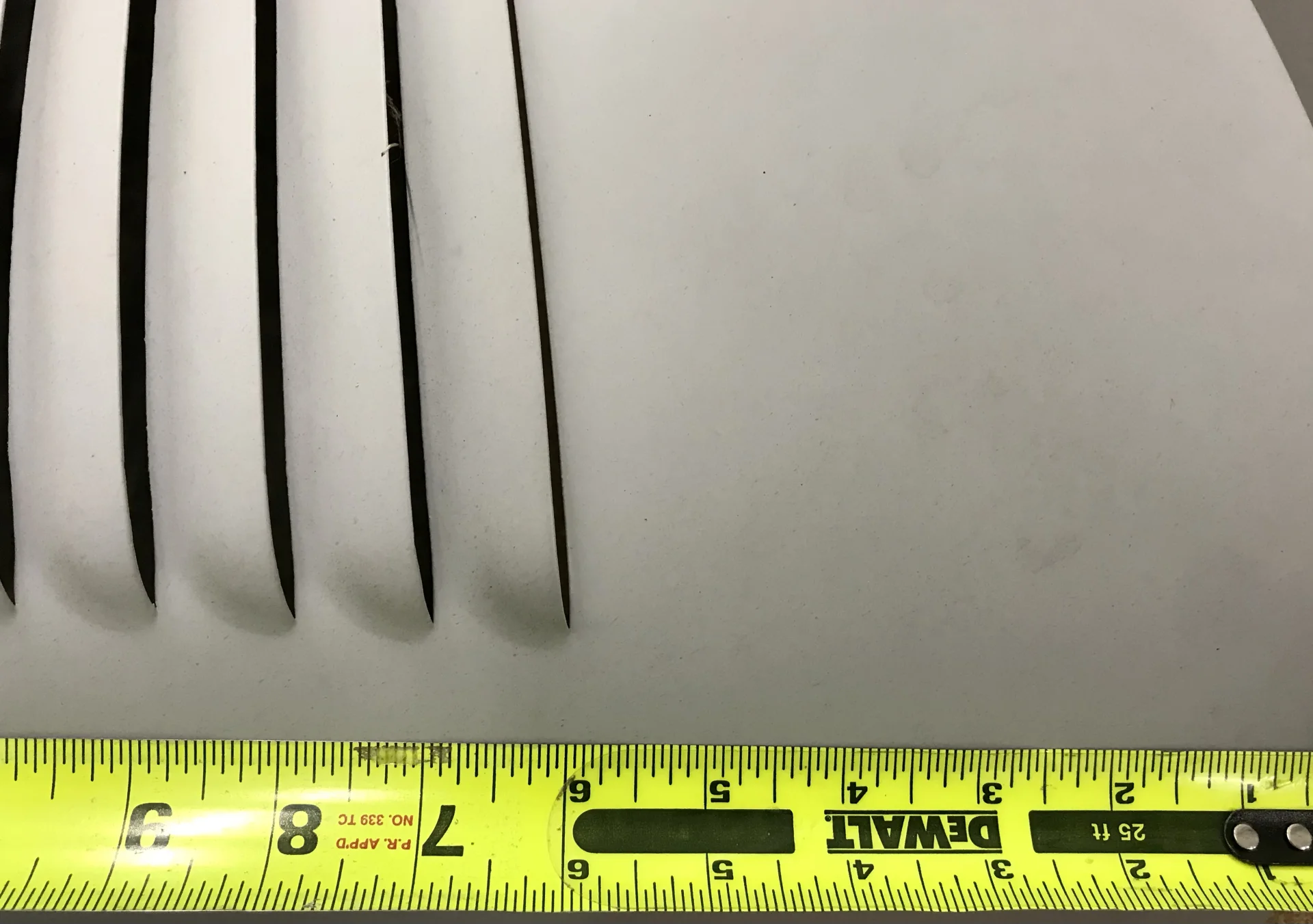

Can anyone take some measurements off of the hood vent louvres on a 40 series hood for me please? I am looking for how high up the louvre opening is above the hood and the spacing between the louvres.

If you could use a measuring tape or ruler and take pictures of it that would be greatly appreciated.


Joined
May 4, 2021
Messages
78
Location
AF, Utah

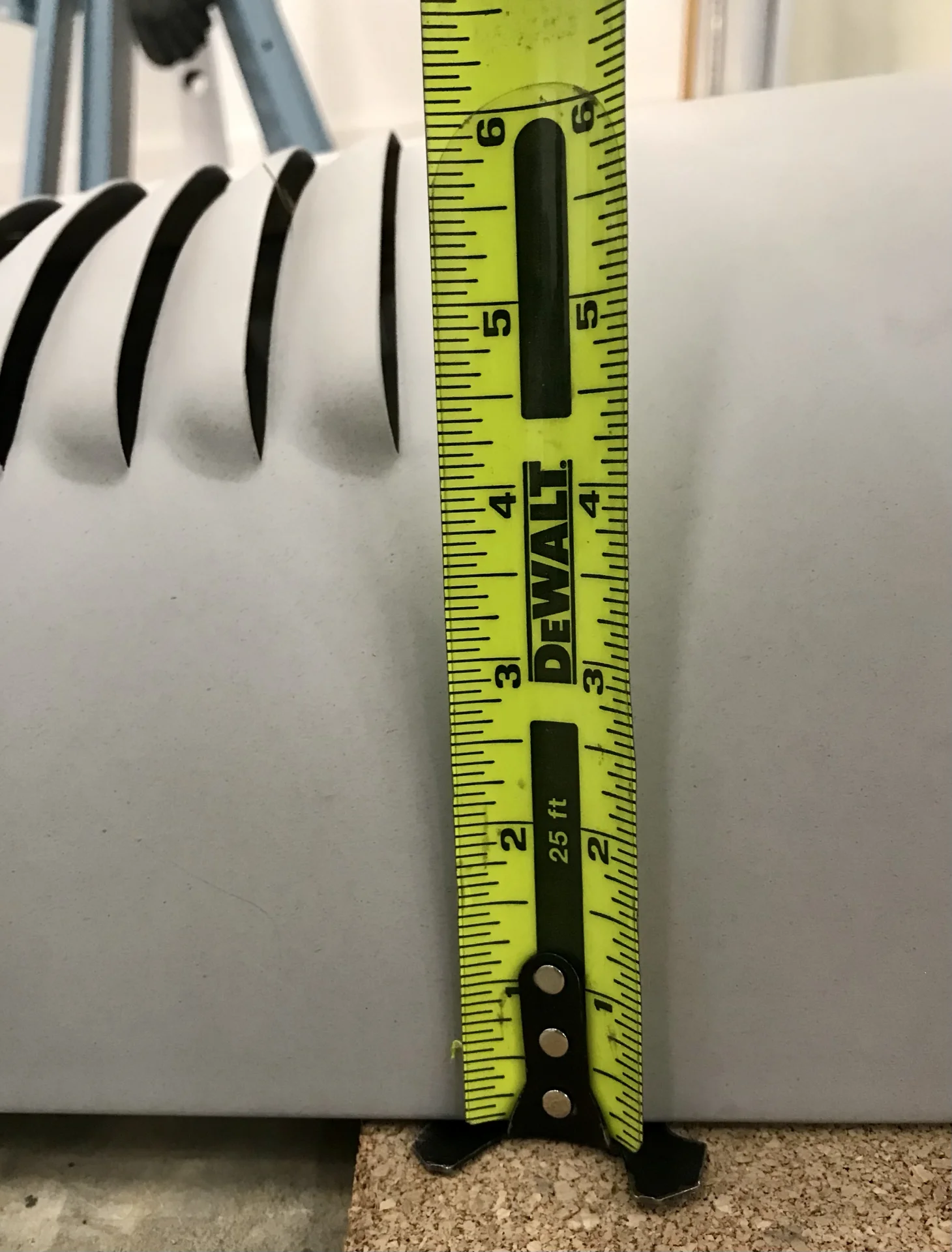

Thank you for those. There is one more I would like to request. The vertical height of the louvre itself. Can you put the tape against the last louvre and measure how high it sticks up?

Joined
Apr 21, 2005
Messages
22,066
The original picture appears to be on a FJ45LV. Those all had the two piece hood that louvers went almost all the way down on the sides.

Joined
May 4, 2021
Messages
78
Location
AF, Utah
I don’t care about the shape of them. All I was asking for was the spacing and the height. I’m replicating the generic dimensions of this on my flat hood 80.
