ARCHIVE HD Soft Shackle Recovery Points for 60/80/100

[CPACruiser]

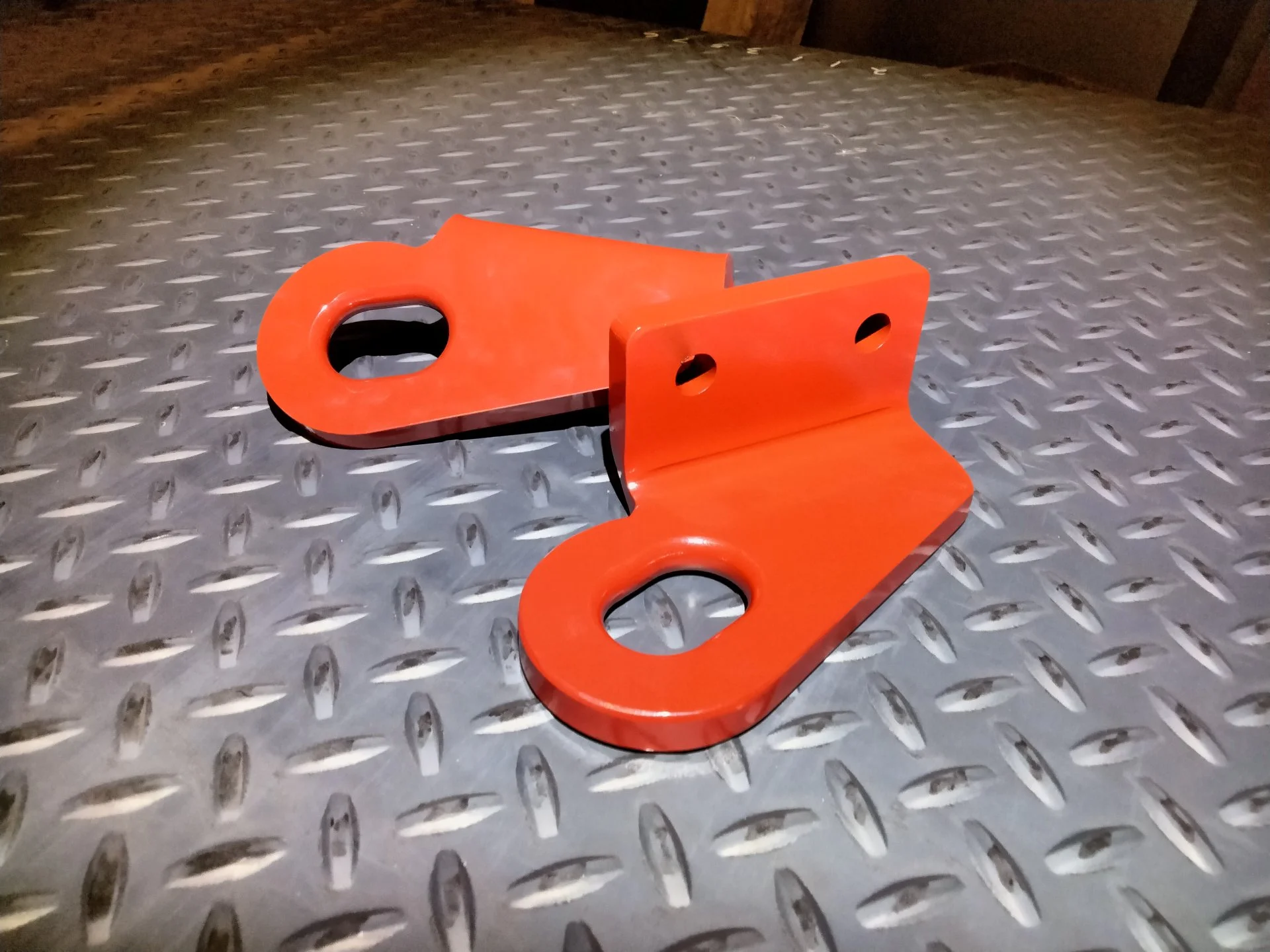

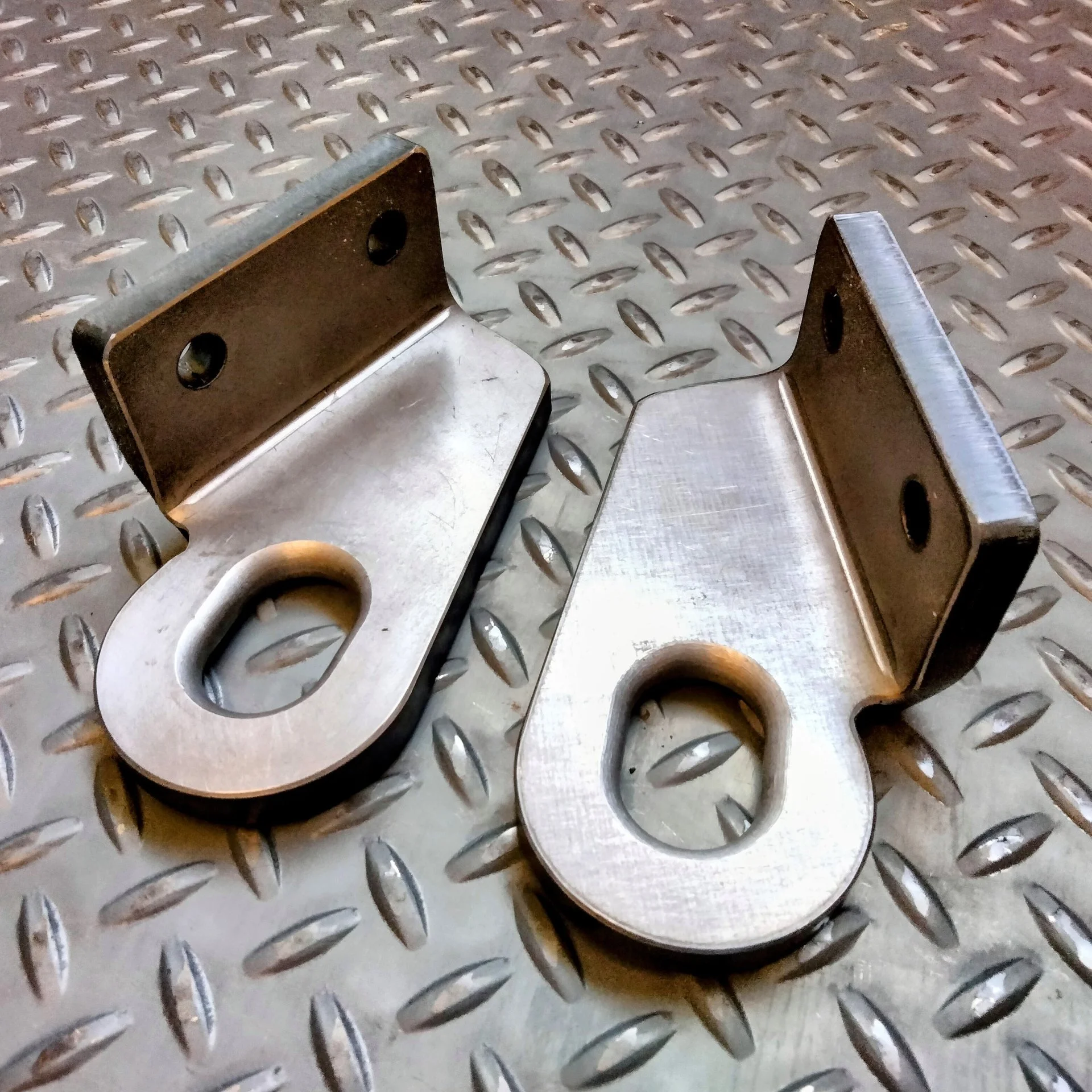

HEAVY DUTY Soft Shackle Recovery Points / Steel Shackle Recovery Points

CNC Laser cut, CNC bent, CNC Precision milled, full radius 1" opening elongated slot soft shackle pass thru. 60mm frame bolt pattern for mounting in place of factory tie down hoops. Manufactured out of 1/2" steel...they're beefy.

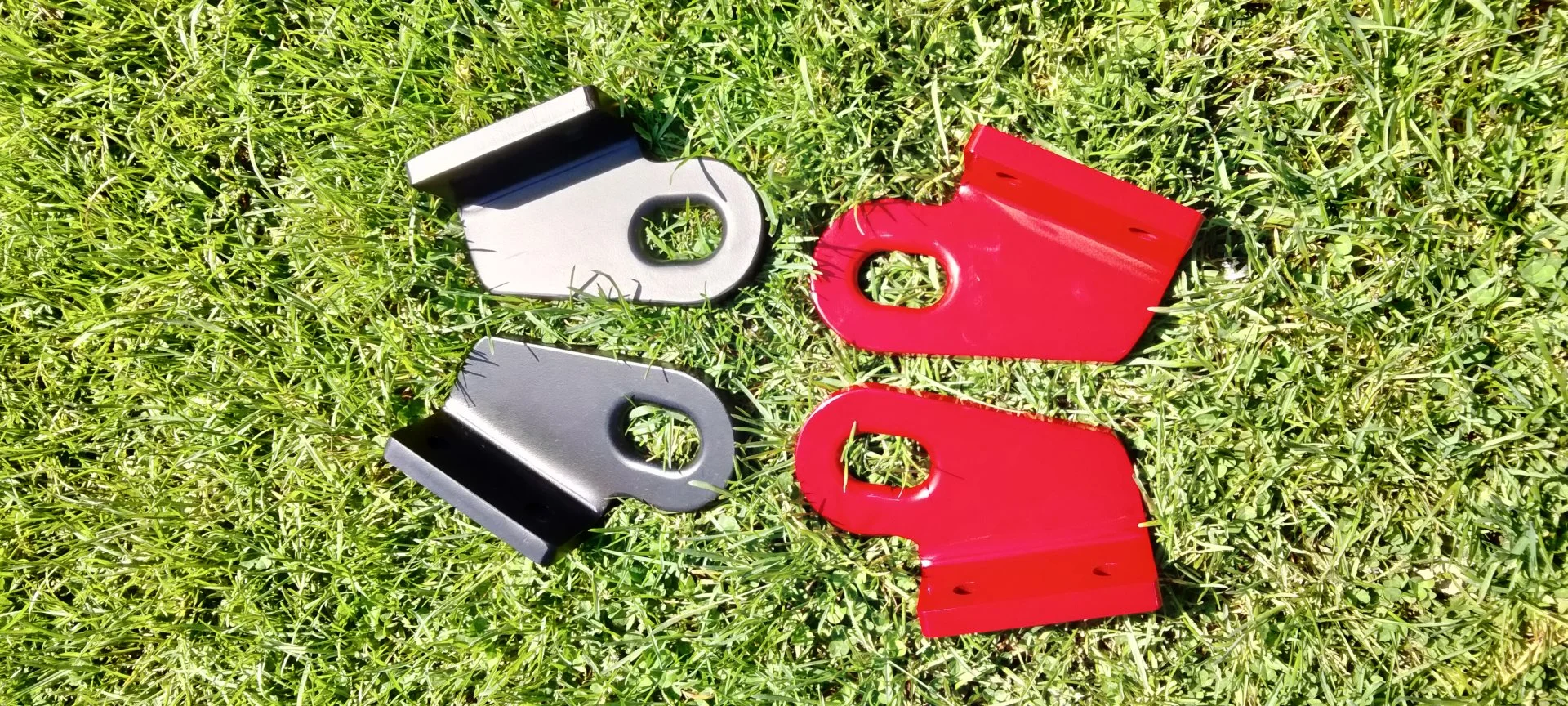

Available in bare metal, black powder coat and red powder coat. Custom colors available at additional cost.

ALWAYS USE TOW POINTS AS A MATCHED PAIR WITH AN EQUALISING BRIDLE. Failure to use tow points correctly can result in tow point fatigue and/or bending.

Never use a single point combined with a side load/pull.

(Prices per set of 2)

Bare metal $155
Powder Coated $175

Bare metal NO RADIUS $100
Powder Coated NO RADIUS $120

1 pair shipping is $8.50
Up to 4 pair ship for $14.50

Will fit 60mm apart M12 frame holes. (Factory shipping tie down locations)

May need to varify fitment on certain aftermarket bumpers. Does work with ARB bull bar.

**(Hardware not included, recommend using a set of 4 zinc coated 8.8 or 10.9 m12-1.25x50mm with washers, 70mm length for ARB Bull Bar applications)**


10% discount for service members including but not limited to Military, Police & First Responders.



[CPACruiser]

I have 10 sets available for pre order on the next run which should be ready to ship in two weeks



[CPACruiser]

**Now 7 sets available for pre-order**

This next batch will ship before the end of April

Thank you



[MountaineerLC]

Those look awesome! Do you happen to know if they are compatible with the ARB front bumper for the 100?



[DUTCHDJ1]

Those look awesome! Do you happen to know if they are compatible with the ARB front bumper for the 100?

I have the same question for an ARB front bumper for the FJ62. Don't expect you know everything. But even if you know which measurements matter for me to measure I can do that. I'm new to the forum and outfitting a 1990 FJ62.



[CPACruiser]

I have the same question for an ARB front bumper for the FJ62. Don't expect you know everything. But even if you know wish measurements matter for me to measure I can do that. I'm new to the forum and outfitting a 1999 FJ62.

If you can send me a pm with measurements of the recovery point mounting point area we can get it figured out welcome to the MUD



[CPACruiser]

Just an update the next batch of 10 sets will be ready by the end of this week, powder coating next weekend.

Thanks



[CPACruiser]

I have the same question for an ARB front bumper for the FJ62. Don't expect you know everything. But even if you know wish measurements matter for me to measure I can do that. I'm new to the forum and outfitting a 1999 FJ62.

All I need is the depth and width of the "box" where the recovery points mount, that way I know what size spacers you need. For instance an 04-07 100 series needs roughly 7/8" spacing between recovery point and the mounting location to clear the box on the bottom of the bumper.



[CPACruiser]

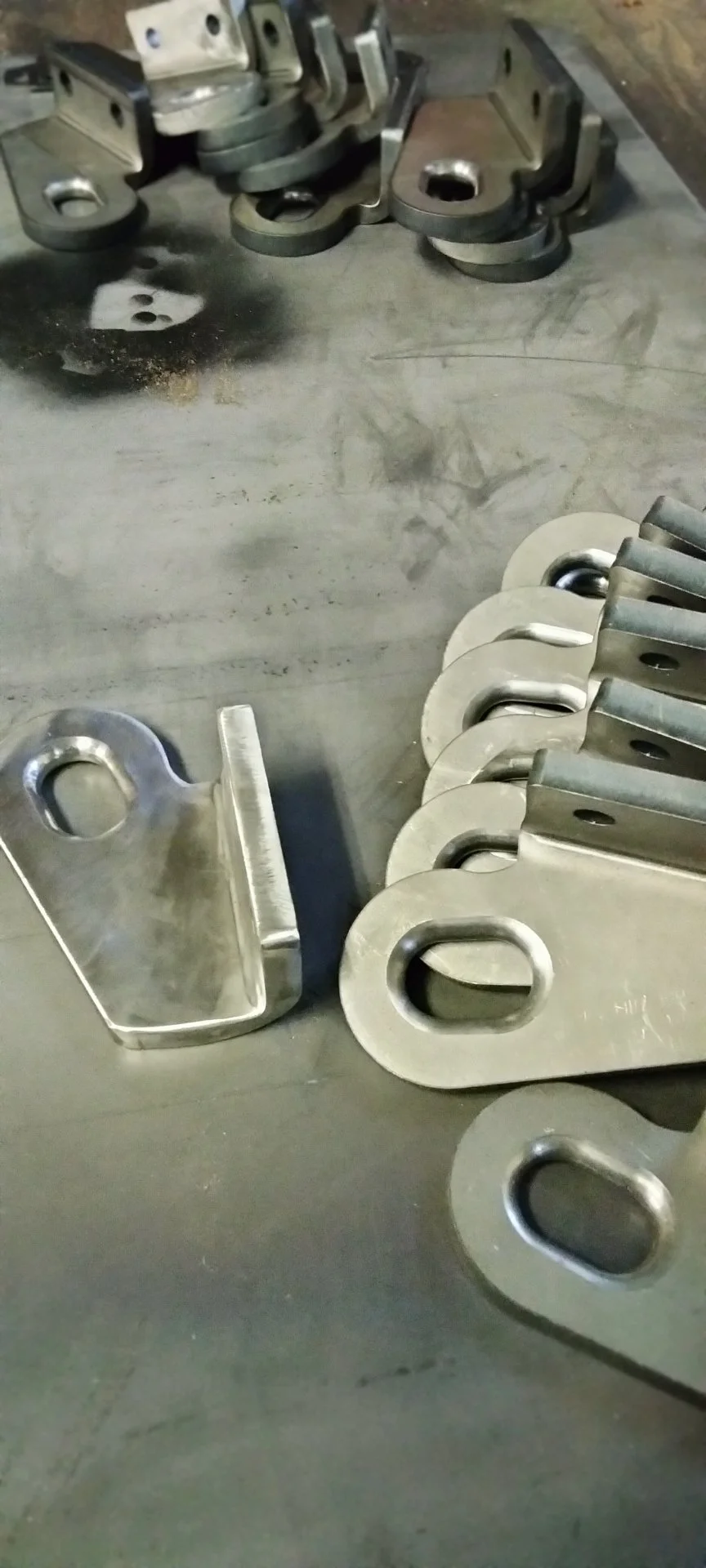

10 sets hot off the mill today, hoping I'm able to get them bent today or monday

Only 7 sets available

Powder coating per request

Silky smooth beefy boys



[jeffsclan]

Can we pick the powder coat color?



[CPACruiser]

Can we pick the powder coat color?

At this point I have black and red powder in stock, however I could order a specific color from prismatic for an additional charge.



[CPACruiser]

Cleaning up the metal for the powder coat orders, bare metal orders will ship tomorrow



[Brandon98]

Is there any downside to using the radiused tow points with a conventional Crosby shackle other than increased cost?



[CPACruiser]

Is there any downside to using the radiused tow points with a conventional Crosby shackle other than increased cost?

Not at all



[CPACruiser]

Shipping out today gents



[John McVicker]

Just to be certain…will these fit a front 60 ARB bumper with an unmodified frame?



[CPACruiser]

Just to be certain…will these fit a front 60 ARB bumper with an unmodified frame?

As long as you have two open threaded holes in the front bottom of the frame 60mm apart you're golden.



[NudeLobster]

any plans for Prado (GX/FJ/4R) points?



[CPACruiser]

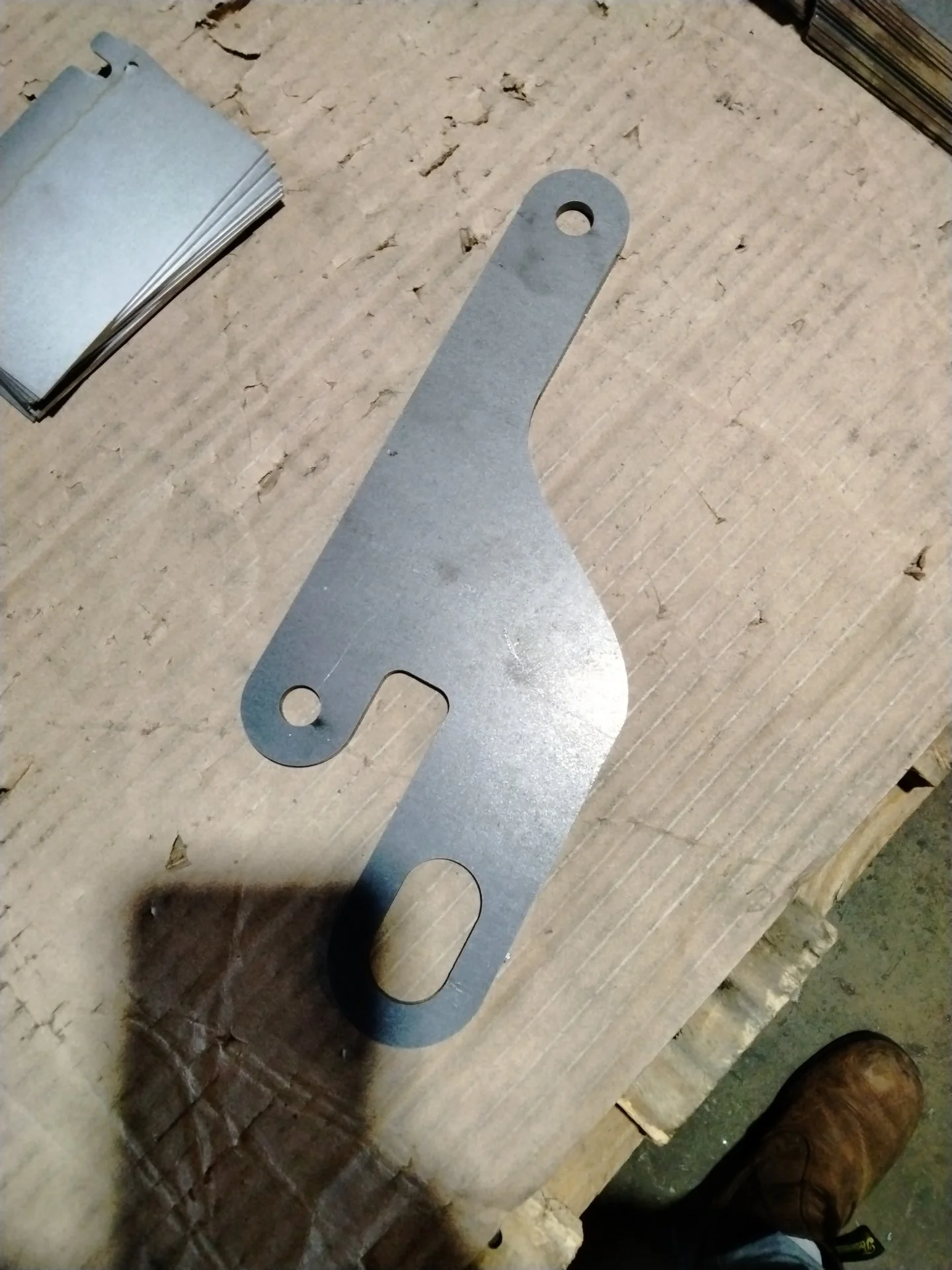

Already have made a set actually my buddy has a GX and we prototyped his a few weeks back



[NudeLobster]

Already have made actually my buddy has a GX and we prototyped his a few weeks back

View attachment 3013933

I’ll keep an eye out for the release/listing!
