H55F Swap Checklist: Post 85

HemiAlex

TLCA #24987
SILVER Star
Joined
Sep 28, 2015
Messages
1,900
Location
Houston
I'm getting ready to do this swap with my friend @FARMAN33

I've got a new H55F and rebuild split case from Georg. That will make most of this a direct swap into my 87. We will not be using anything from the old set up aside from the t case linkage.


Here are the odds and ends that I've got:

CKT032 Aisin Replacement clutch and pressure plate with throw out bearing
Master/Slave and rubber line are both recent Aisin/OEM

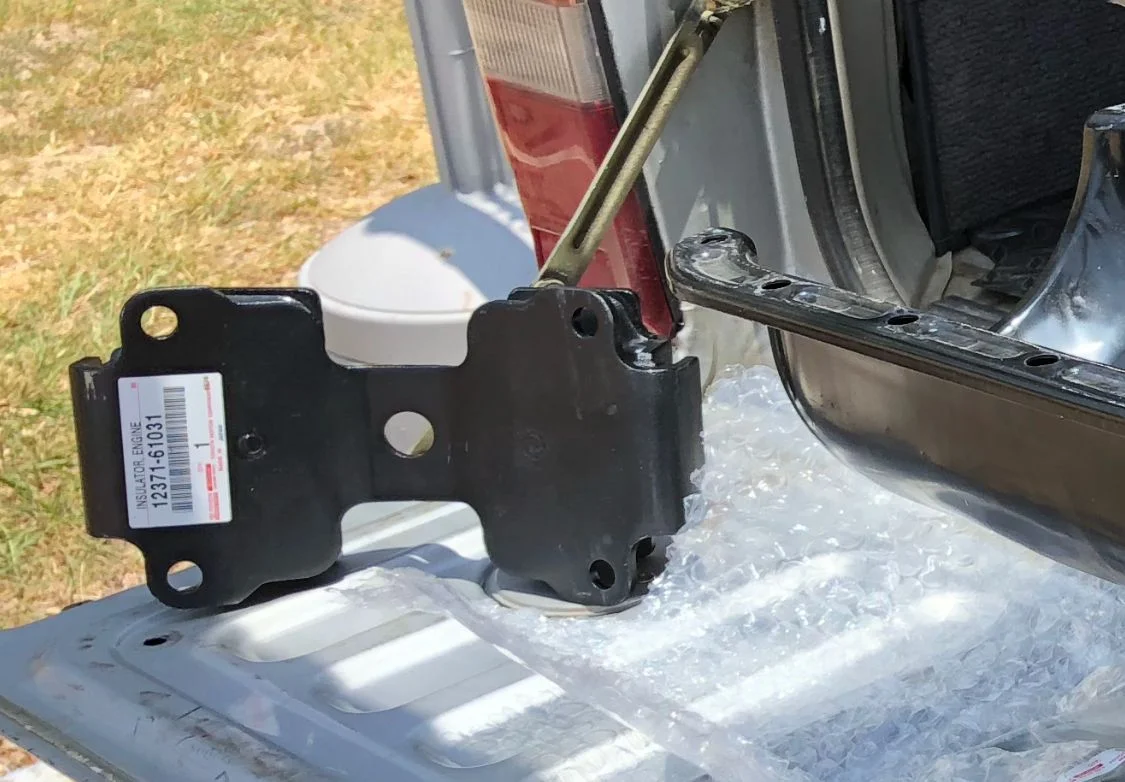

12101-61013 Oil Pan
15600-41010 Oil Filter
OEM rear main
OEM Pan Gasket
00295-01281 Toyota FIPG
33530-60160 Shifter handle

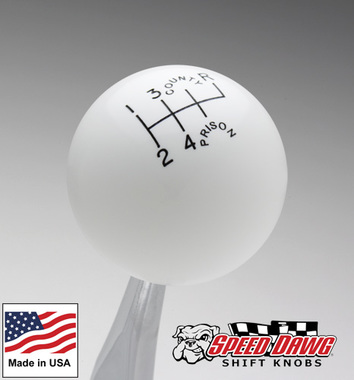

City Racer 5 speed knob
Resurfaced OEM Flywheel
Recently Rebuilt Rear Driveshaft with OEM U Joints.

Aside from trying to get a new set of driveshaft bolts as a just in case. I'd like to mod the bracket for the 2LO Mod also.

Brian is no rookie, so on the mechanical side were covered. I'm just trying to make sure I'm not forgetting anything. Please enlighten me. Thanks!


OSS

Joined
Jun 30, 2017
Messages
1,948
Location
?
I'll state the obvious: good transmission jack, alignment dowels, and I assume Georg modified the transfer front plate with a plug and 5th gear snap in oiler.


Godwin

Resident Herpetologist
SILVER Star

Joined
Dec 4, 2004
Messages
4,801
Location
Alabama
GL4 oil for the H55F. GL5 for the transfer case.


HemiAlex

TLCA #24987
SILVER Star
Joined
Sep 28, 2015
Messages
1,900
Location
Houston
I'll state the obvious: good transmission jack, alignment dowels, and I assume Georg modified the transfer front plate with a plug and 5th gear snap in oiler.
He did. I saw it on the invoice.


Godwin

Resident Herpetologist
SILVER Star

Joined
Dec 4, 2004
Messages
4,801
Location
Alabama

g-man

SILVER Star

Joined
Sep 5, 2006
Messages
2,187
Location
Charlottesville VA
NGLI #2 grease ...I like the red tacky stuff for throw out bearing and clutch fork pivot points. I think you may also need to put some on the trans input shaft.

the pilot bearing comes in that clutch kit.

I also used Sta-lube in the trans and t-case. Redline MT 090 is better but also more expensive.

Check to see if you need a (edit) shift fork boot at the side of the clutch housing where the fork goes in. Now would be the time to replace if it's missing or chewed up.

Looks like your prepared!

Last edited:

OSS

Joined
Jun 30, 2017
Messages
1,948
Location
?
I highly recommend using the exact same gear oil in the transfer and new transmission. Also drain & fill the transmission after a few hundred miles "break in" and after 1000 miles. Then again one year later. Then follow severe maintenance schedule from there on out.
You'll see a fair amount of metal shavings on the magnetic plug early on as the gears break in. That metal dust in the oil acts as a grinding slurry.


HemiAlex

TLCA #24987
SILVER Star
Joined
Sep 28, 2015
Messages
1,900
Location
Houston
When I first bought the truck you helped me rule out a trans knock as a tune up issue. I bought the Delvac 50 as a fix but never used it.

I wanted to run a Dino oil for rhe first few hundred and then swap that into the transmission.


NGLI #2 grease ...I like the red tacky stuff for throw out bearing and clutch fork pivot points. I think you may also need to put some on the trans input shaft.

the pilot bearing comes in that clutch kit.

I also used Sta-lube in the trans and t-case. Redline MT 090 is better but also more expensive.

Check to see if you need a (edit) shift fork boot at the side of the clutch housing where the fork goes in. Now would be the time to replace if it's missing or chewed up.

Looks like your prepared!
I’ve got the new boot. Mine was saturated and torn from the last leaky slave cylinder.


gregnash

Anal Retentive Analyst
SILVER Star
Joined
Nov 4, 2011
Messages
9,684
Location
Carson City, NV
Other thing to look at is the small ancillary parts that may be around it that should be replaced.. Stuff like the clutch fork boot, new screws for the flywheel inspection pan, etc.

Also, I thought at one point Georg (@orangefj45 ) and purchased an extra set of the tranny to bellhousing bolts and cut the heads off them to act as guide bolts as you are putting up the new tranny. Or am I miss remembering things again???

Also, what about the allen head diff, tranny, t-case, oil pan bolts to replace the stock ones?

Joined
Jul 26, 2014
Messages
15
Don't want to hijack the thread, but I have a question about the h55f swap, what is the proper way to deal with/bypass the neutral safety switch?

I ask because my Fj62 has a h55f and I'm having all sorts of starting issues and judging by the mess of wiring everywhere else in the vehicle I'm starting to think the previous owner might have screwed something up with the wiring when doing the swap.
