FJ40 Instrument Panel Restoration (1 Viewer)

Joined
Sep 18, 2015
Messages
112
Location
Fort Worth Texas
Has anyone on here resurrected their old FJ40 instrument panel before?

I'm trying to see if I can do just that with my old '65 instrument panel as I have seen they are pretty expensive to replace, at least for a college kid like myself! :D

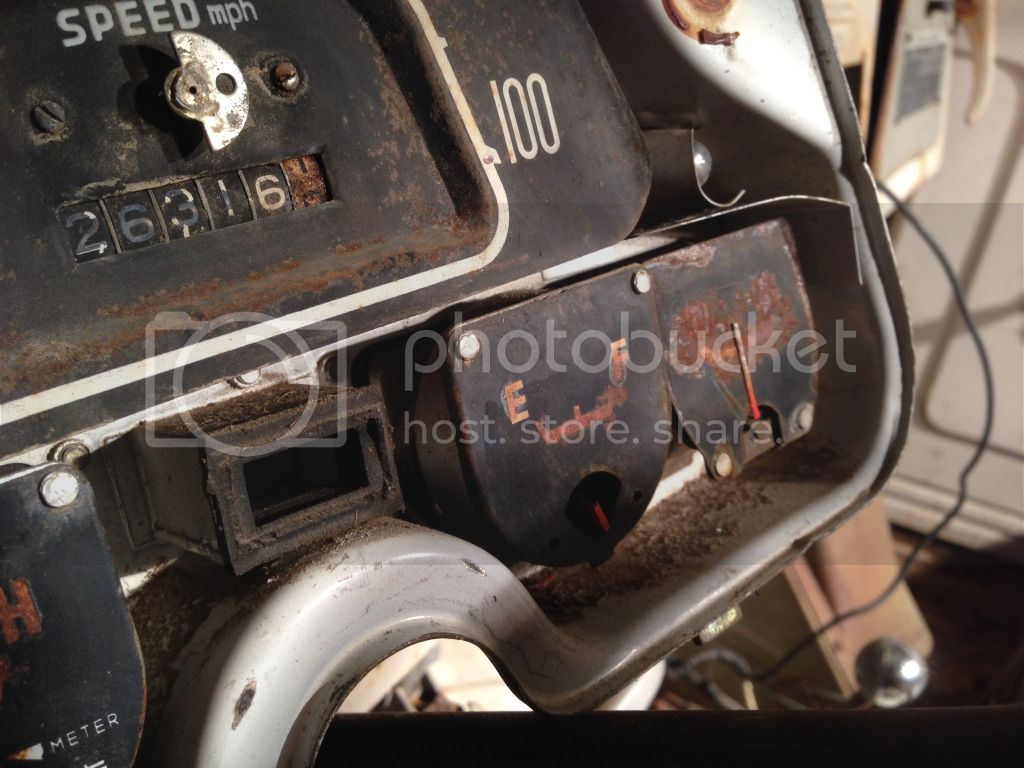

Here's what it looks like;






Any suggestions/resources?

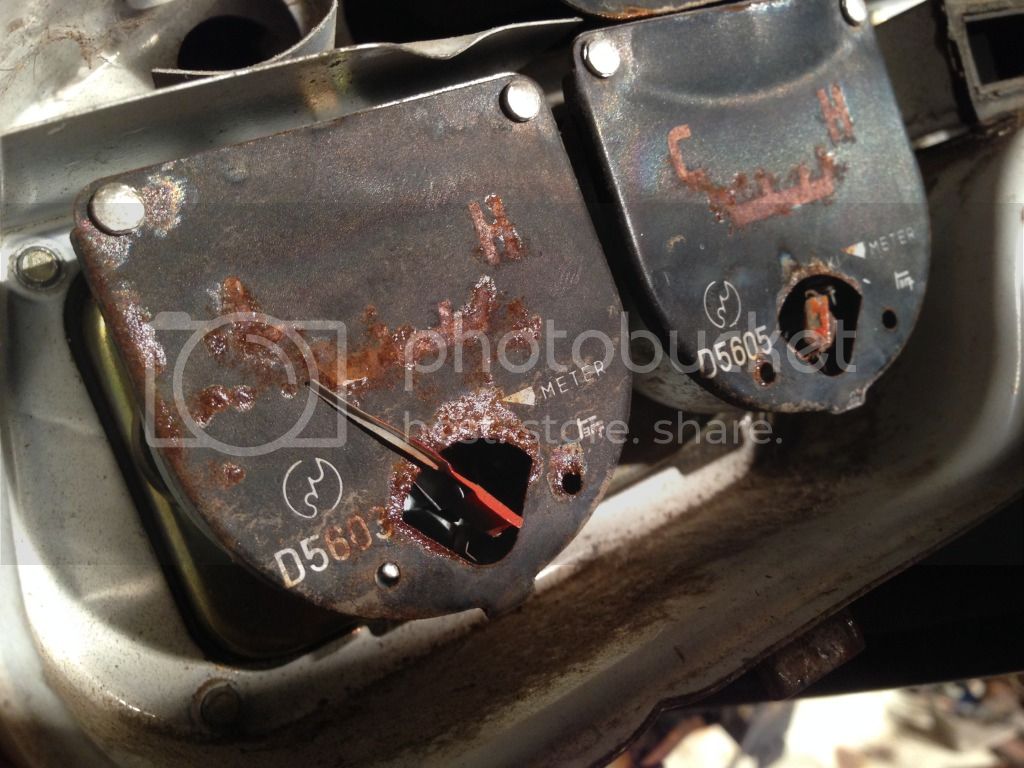

It appears that the panel itself is in good (enough) shape and I'll obviously clean it up and repaint it and all. I also have the front cover glass thing too.

Seems like I just need new components...all the needles are broken...anyone know where I can purchase the components (gauges/meters) seperately?

Or maybe you're just feeling uber generous today and would like to mail me a new one so that we don't have to do all of this problem solving!:lol:

Oh yeah, also, the FJ is not running currently <---#punsfordays) so I can't see whether or not any of the instruments are working right now...I'll have it running soon though! Check out some of my other threads if you're into electrical and engine work, or if you're just a handy helpful person in general! ;)

I look forward to hearing y'all's advice!

*insert catchy cruiser owner slogan (you guys really need to teach me all of the cool sayings that come with the privilege of being an FJ owner!) :D

Joined
Oct 10, 2005
Messages
285
Location
Cartersville, GA



By the looks of it, yours is too far gone. The individual components to fix yours would cost more than the whole. Bite the bullet.

I'm sure you've already seen, but there are brand new ones on the bay for 266ish with free shipping.

Sent from my iPhone

Joined
Oct 10, 2005
Messages
285
Location
Cartersville, GA



By the looks of it, yours is too far gone. The individual components to fix yours would cost more than the whole. Bite the bullet.

I'm sure you've already seen, but there are brand new ones on the bay for 266ish with free shipping.

Sent from my iPhone
Wait... I missed the part where you said it wasn't running. My advice... get it running first. Forget about the gauge cluster for now.


Sent from my iPhone

Joined
Sep 18, 2015
Messages
112
Location
Fort Worth Texas
Wait... I missed the part where you said it wasn't running. My advice... get it running first. Forget about the gauge cluster for now.


Sent from my iPhone
Right, but will the functionality of the gauge cluster, specifically the amp meter portion, effect the ignition circuit if it is not working?

Joined
Sep 18, 2015
Messages
112
Location
Fort Worth Texas
So you're not getting power to anything? I'm assuming you've read this?

No power - to anything ! No power - to anything !


Sent from my iPhone
Not necessarily what I'm saying. I haven't actually had much of a chance to try to start the engine as I have been rewiring the whole thing, just finished wiring up the ampmeter and completing the ign circuit tonight. I have to double check some things before I try to start the vehicle, but in the event that it still won't start after I have rewired it, I was curious of whether or not the broken instrument cluster might block the circuit, thus preventing the engine to start.

Joined
Dec 24, 2013
Messages
181
Location
Qatar

happy to sell my old panel; except its km/h and oh; I'm in Qatar so shipping maybe more than the actual unit:meh:


Coolerman

SILVER Star
Joined
Jan 5, 2004
Messages
6,666
Location
Paint Lick, KY



If the Amp Meter does not work when you try it, just take one Amp meter wire loose and put it on the same terminal as the other one. This bypasses the amp meter, but completes the power circuit.

If this engine hasn't been started in a while and/or you have removed and replaced the distributor, READ THIS!

The distributor is driven by the cam gear AND it drives the oil pump. Failure to get the distributor seated properly when re-installing means the oil pump WILL NOT BE PUMPING OIL! This is not good...

It's highly recommended you get an aftermarket oil pressure gauge installed BEFORE you try starting the engine. Without a oil pressure gauge you won't know if the engine has no oil pressure which leads to bad things happening to it.

Last edited:
Joined
Jun 5, 2007
Messages
4,978
Location
Brea, Calif.


(1) Quit working on the rig and concentrate on "grades", you have plenty time for the FJ40 project after you get your "Bachelors".
(2) I totally agree with Colerman's post above, especially if it has a non-Toyota distributor.
(3) I picked up a used gauge cluster with chrome bezel at the swap meet, your's for 150 bucks ($250 to non-student), complete with all gauges and needles, but not tested.


Indygbd

SILVER Star
Joined
Dec 8, 2014
Messages
3,846
Location
Indiana

I am with everyone else. Yours is too far gone to restore. You can find a nice used one for 150.00 range. I would go that option. All the new ones you see floating around are in km. Don't get tricked into buying one of those. I would only go that route if you wanted new 12V gauges and the new cover and glass. Otherwise go used. Good luck. Gabe


Trollhole

THC
Supporting Vendor
Moderator
Joined
Mar 6, 2005
Messages
20,967
Location
Mauldin, SC



Save your money and buy one from Racer65. I'd rather rake leaves for a week and buy a new one than deal with that. The only place that belongs is in the trash. Fix the cluster before you get it running.

Joined
Sep 18, 2015
Messages
112
Location
Fort Worth Texas
If the Amp Meter does not work when you try it, just take one Amp meter wire loose and put it on the same terminal as the other one. This bypasses the amp meter, but completes the power circuit.

If this engine hasn't been started in a while and/or you have removed and replaced the distributor, (The distributor is driven by the cam gear AND it drives the oil pump. Failure to get the distributor seated properly means the oil pump IS NOT PUMPING OIL!) then it's highly recommended you get an aftermarket oil pressure gauge installed BEFORE you try starting the engine. Without a oil pressure gauge you won't know if the engine has no oil pressure which leads to bad things happening to it.
Thanks for your input Coolerman!

This is very valuable info to me as I am quite the automotive novice. I have removed my distributor just to see what kind of shape it was in. Everything looked nice and clean and I put it right back in the engine. When I put it in the first time, it didn't fit into the grooves correctly and was standing off of the engine by maybe a 1/4". Last night I was able to make a slight adjustment to it, kind of gently moved it back and forth until it found the grooves and it slid right back in very tightly and flush with the engine mount. I feel pretty confident that it has been seated properly now.

But yeah, the previous owner said that it hasn't been running for a little over two years so I guess I should look into getting that aftermarket oil pressure gauge installed.

Joined
Sep 18, 2015
Messages
112
Location
Fort Worth Texas
I am with everyone else. Yours is too far gone to restore. You can find a nice used one for 150.00 range. I would go that option. All the new ones you see floating around are in km. Don't get tricked into buying one of those. I would only go that route if you wanted new 12V gauges and the new cover and glass. Otherwise go used. Good luck. Gabe
Thanks Gabe! I appreciate your feedback!
