Measured the two dizzys I have at work and over all though side buy side they look a little different I recon the 3F-E dizzy will fit a 2F block.

Now saying that there were a few minor differences.

The 2F dizzy measured to the point where it seats in the block 122mm from the tip that locates in to the oil pump. The 3F-E dizzy measures 120mm which means when bolted up their is 2mm less engaged to drive the oil pump.

The gear all though the same distance from the tip of the dizzy will sit 2mm higher as well.

The easiest soloution seems to be to strip the 3F-E dizzy down and machine 2mm off where it seats to the block. Not too hard to do.

Before I go down that road does any one have a 2F dizzy laying around they can measure for some comparrisons.


Last edited:

Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
lots of people have used a 2F block and a 3F Fuel injection/head.

Drop it in and run it..


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,671
Location
Alabama
The 2F distributor with electronic ignition has the same body type as the 3FE distributor. The 2F you're showing is an earlier type.


Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
A 2F dizzy with the full electronic ignition looks nothing like the 3fe dizzy pictured..

Joined
Jan 11, 2006
Messages
2,380
Location
Melbourne
i replaced mine 2 weeks ago just checked the one i pulled out
and it is indeed 122mm
i have an 84 fj 60
hope this helps
:cheers:

Thanks for that been an 84 model I'll take a guess at that been a 2F.

The 2F dizzy I used came from around 1976 so it seems so far a 2F sits 122mm.

Keep them cumming boys

The reason for this question is on both the above dizzys there is a contact wear mark each 5mm long (you can see it in the photo). If the 3F-E is 2mm shorter when seated this reduces the contact by almost 50%. Hence my Q, I agree you could just drop it in BUT are we/ am I pushing the limit?

Last edited:

Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
I don't see how 2mm can reduce the contact patch by 50%.

I would suspect that the contact patch moves to make up for the distance difference

Joined
Jan 11, 2006
Messages
2,380
Location
Melbourne
I don't see how 2mm can reduce the contact patch by 50%.

I would suspect that the contact patch moves to make up for the distance difference

I think you miss understand, the contact/wear mark is on the leading edge of the shaft that engages the oil pump best seen here on the 2F dizzy as it's a little more worn been a good 15 years older than the 3F-E dizzy,



The depth of the contact mark is 5mm, if the 3F-E dizzy only seats to 120mm rather than the 2F 122mm this contact area will be reduced by 2mm, in doing so this reduces contact area to 3mm almost half the original contact area on both the 3F-E and 2F dizzy's.

The reason I posted this in the 60 forum is due to the fact that the 2F through to the 3F-E is covered in 60's to 62 series LandCruisers and the request for anyone to measure one if they have one laying around would help with the desision on machining the 3F-E Dizzy

Last edited:

Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,671
Location
Alabama

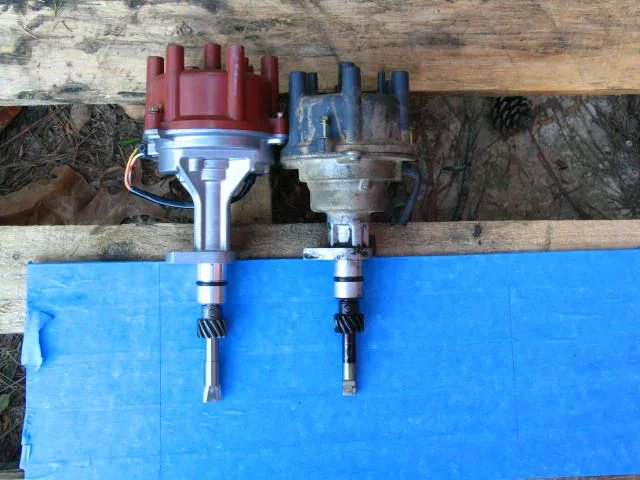

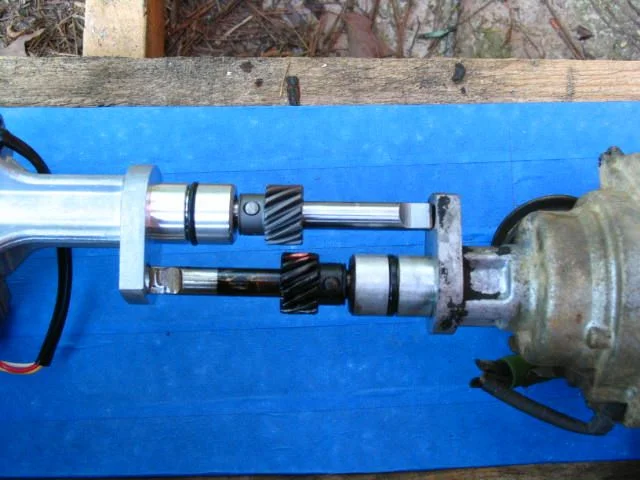

Maybe these pics will help. The distributor on the left is one for a 3FE, on the right from a FJ60. The 3FE distributor is NIB and has a plastic protector on the tip, I pulled it off for the later photo. Holding the distributors end to end I could see no significant difference in lengths with regard to the portion which is inserted into the block. This was just a quick comparison if you need other photos or measurements let me know.

Joined
Jan 11, 2006
Messages
2,380
Location
Melbourne
Maybe these pics will help. The distributor on the left is one for a 3FE, on the right from a FJ60. The 3FE distributor is NIB and has a plastic protector on the tip, I pulled it off for the later photo. Holding the distributors end to end I could see no significant difference in lengths with regard to the portion which is inserted into the block. This was just a quick comparison if you need other photos or measurements let me know.


If you have time can you tell me the measurment from tip to where it seats on the block on those. As show in the first post

Oh yeh in metric too if you don't mind:D


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,671
Location
Alabama

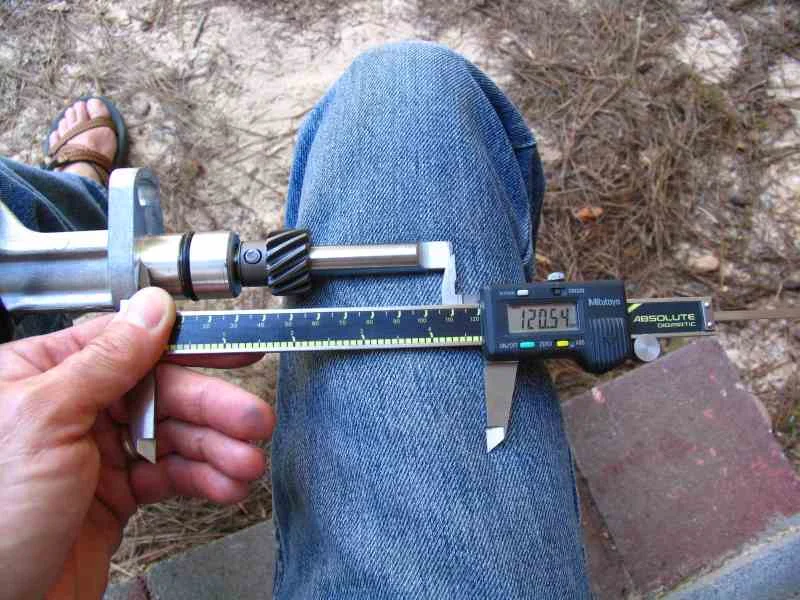

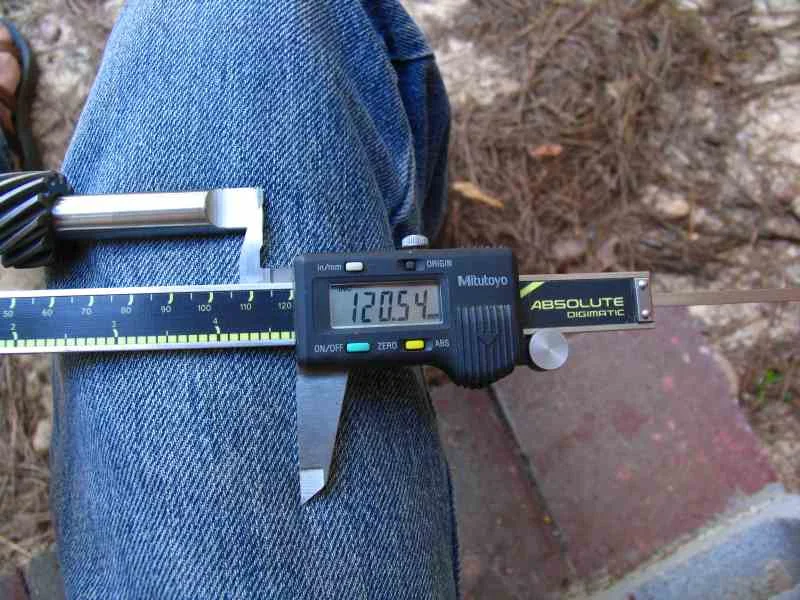

3FE distributor

Measurements on the 3FE distributor. Caliper is actually on tip of shaft although it may not appear to be so in the photo.


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
5,671
Location
Alabama

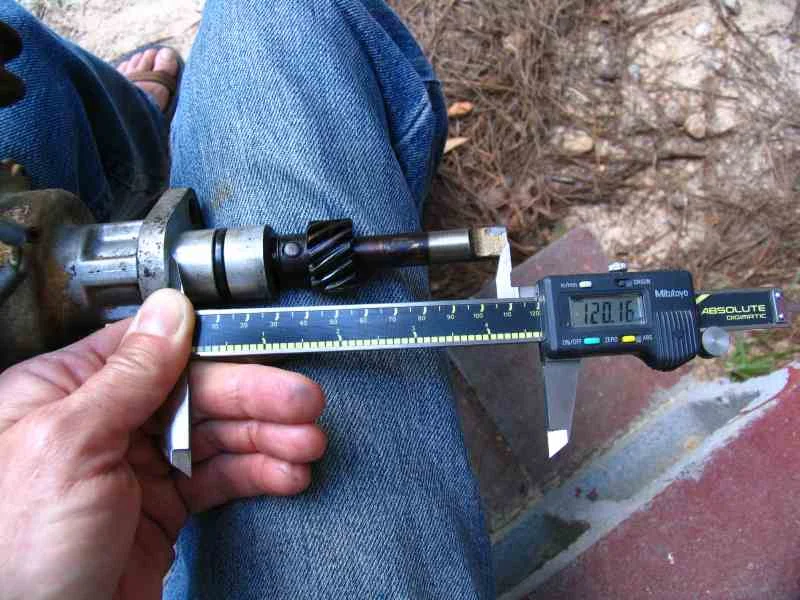

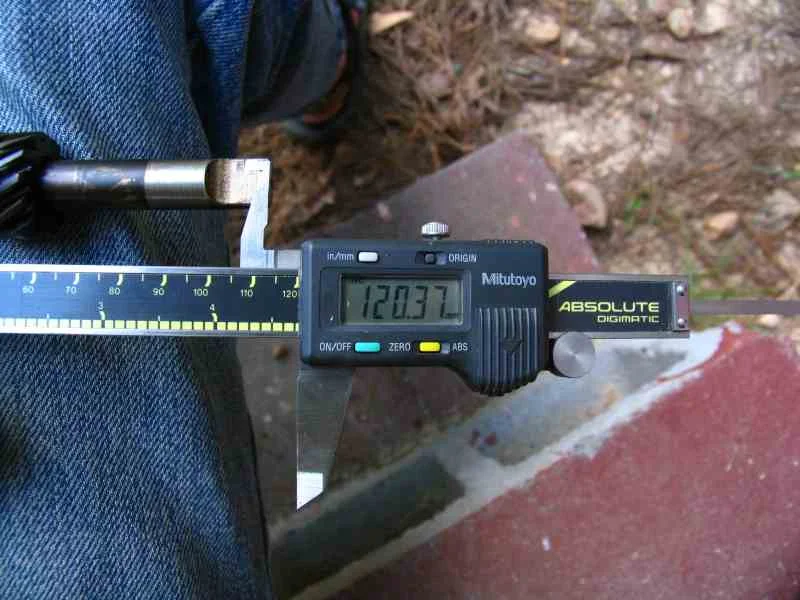

2F distributor

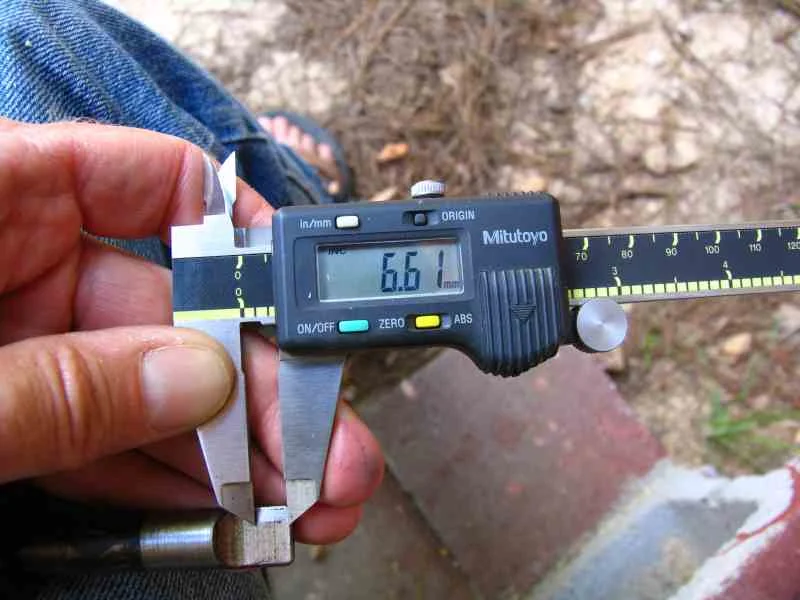

Measurments almost identical, close enough anyway. Also measured the contact patch with the oil pump.

Joined
Jan 11, 2006
Messages
2,380
Location
Melbourne
Many thanks for taking the time to do that.

Starting to think the earlier 2F's sat a littel deeper for some reason.

Joined
Jan 11, 2006
Messages
2,380
Location
Melbourne
Well if no one is going to say DON'T DO IT I think I will machine 2mm off the 3F-E dizzy where it seat on the block when the time comes:)


Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,633
Location
Las Vegas
I wouldn't even worry about that 2mm myself..

I'd just drop it in. Look at how many people use the HEI stuff..


Moby

SILVER Star
Joined
Aug 25, 2005
Messages
1,565
Location
Trying to stack dimes
OK so some 2F distributors are 122 and some (electronic) are 120. Are the blocks/oil pumps the same? If they are then it would seem that Toyota didn't find the 2mm difference to be a big deal. I'm asking because my 2FE is going together with an '84 block.

Jim - what year is the 2F distributor in your photos?

Joined
Jan 11, 2006
Messages
2,380
Location
Melbourne
OK so some 2F distributors are 122 and some (electronic) are 120. Are the blocks/oil pumps the same? If they are then it would seem that Toyota didn't find the 2mm difference to be a big deal. I'm asking because my 2FE is going together with an '84 block.

Jim - what year is the 2F distributor in your photos?


I woundered about the oil pump and block myself but until I pull my 2F apart this will remain a mystery, hence the when the time comes statement.

With my 2F-ETI been Turbo'd too I was just concerned about the reducing the contact area, as the strain on all parts will be greatly increased.
