Custom built rear bumper - installing brake lights

Joined
Sep 30, 2016
Messages
139
Location
Solano County
Website
www.transpacificdist.com
Good day....

I am looking at adding a set of brake/park/turn lights on my bumper as the swing outs I'm building would probably interfere with the visibility of them.

Looking for some input from those with experience with this issue :)

Thanks in advance!


Joined
Jul 17, 2018
Messages
1,791
Location
LUGOFF, SC
I used optronix in my trailer frame. They are really low profile and easy to install.
They come in a bunch of different lens and light configurations, so you can combine brake and reverse with a separate amber turn signal if desired.


clx16

SILVER Star
Joined
Oct 26, 2017
Messages
1,968
Location
Alpharetta GA
VehiCode LED Trailer Kit Tail Brake Stop Rear Turn Signal Running Reverse Backup White Amber Red Light Bar 12V RV Camper Utility Truck Trailer Van Exterior Surface Mount (2 Pack) https://a.co/d8IoGsA

That is what I used and I like them alot.
However you can choose to keep it simple and not wire in the backup lights if you don't want, but I did. They are not two of the same light, there is a left and right side so pay attention when installing.

Joined
Jan 2, 2003
Messages
5,227
Location
Syracuse, Utah
I found these small LED's online somewhere (can't remember where) that were designed as blinkers for motorcycles. I put two on each side of the bumper. One was tapped into the taillight/brake light and the second one (amber) was tapped into the blinkers.
Untitled by Adam Tolman, on Flickr

Untitled by Adam Tolman, on Flickr

Untitled by Adam Tolman, on Flickr

Joined
Dec 4, 2004
Messages
2,345
Location
Tucson AZ
I found these small LED's online somewhere (can't remember where) that were designed as blinkers for motorcycles. I put two on each side of the bumper. One was tapped into the taillight/brake light and the second one (amber) was tapped into the blinkers.
Untitled by Adam Tolman, on Flickr

Untitled by Adam Tolman, on Flickr

Untitled by Adam Tolman, on Flickr

I want to do something similar, but I can't decide where on the 4X4Labs rear will work. There are not a lot of vertical profiles.

Joined
Sep 30, 2016
Messages
139
Location
Solano County
Website
www.transpacificdist.com
I want to do something similar, but I can't decide where on the 4X4Labs rear will work. There are not a lot of vertical profiles.
I think I'm keeping mine really small and will surface mount them onto the arms of my swing out

Joined
Dec 4, 2004
Messages
2,345
Location
Tucson AZ
I think I'm keeping mine really small and will surface mount them onto the arms of my swing out
That is the only solution I can come up with. I was hoping to keep the wiring more hidden. It will be harder putting the lights on the arms.

Joined
Sep 30, 2016
Messages
139
Location
Solano County
Website
www.transpacificdist.com
That is the only solution I can come up with. I was hoping to keep the wiring more hidden. It will be harder putting the lights on the arms.
I plan to run the wires inside the 2x2 tubing inside wire loom. I'll use a rubber grommet to get it out of tube, and another rubber grommet to get into the quarter panel from underneath.
This is all theory of course....

Joined
Jul 17, 2018
Messages
1,791
Location
LUGOFF, SC
I found these small LED's online somewhere (can't remember where) that were designed as blinkers for motorcycles. I put two on each side of the bumper. One was tapped into the taillight/brake light and the second one (amber) was tapped into the blinkers.
Untitled by Adam Tolman, on Flickr

Untitled by Adam Tolman, on Flickr

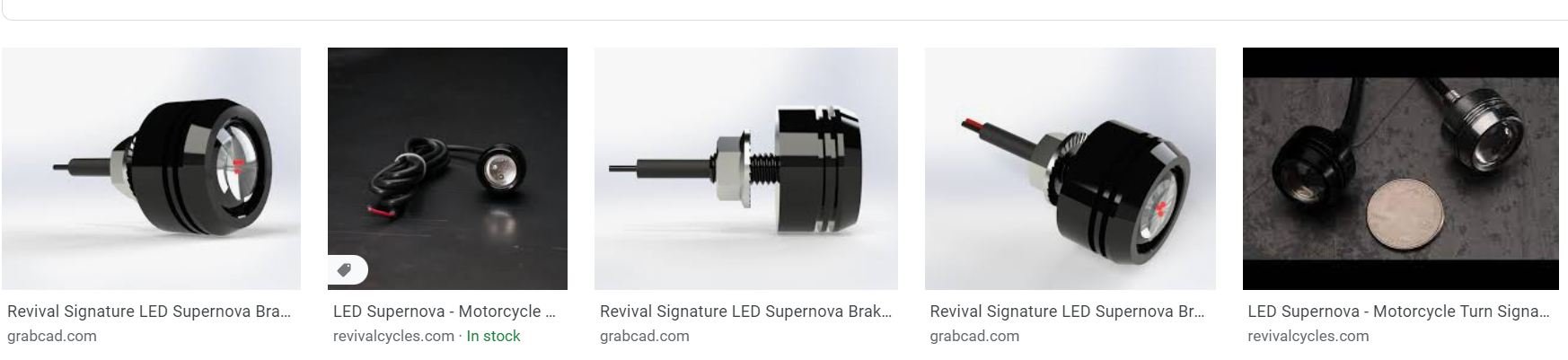

I think I found them, Revival Signature LED Supernova Brake or Turn-Signal Light - https://revivalcycles.com/products/led-light?variant=258793202&gclid=Cj0KCQjwuaiXBhCCARIsAKZLt3ldhHasUynbdU_SxHvBubc4lmXkyLX_huYRYvSDpYqSOAiRRyLMwzYaAtCxEALw_wcB

And while their web site pics suck, someone has taken the time to put a cad copy out so you can see how they mount.

https://flic.kr/p/2kNqY7k

Joined
Sep 30, 2016
Messages
139
Location
Solano County
Website
www.transpacificdist.com
Joined
Jan 2, 2003
Messages
5,227
Location
Syracuse, Utah

Yeah those are the ones I got. One thing I didn't like about them is that they black anodized aluminum housing fades over time. It wouldn't be a bad idea to hit them with a little rattle can black before install.
