CAZ's Inner Fender Gasket Template (1 Viewer)

[caz]

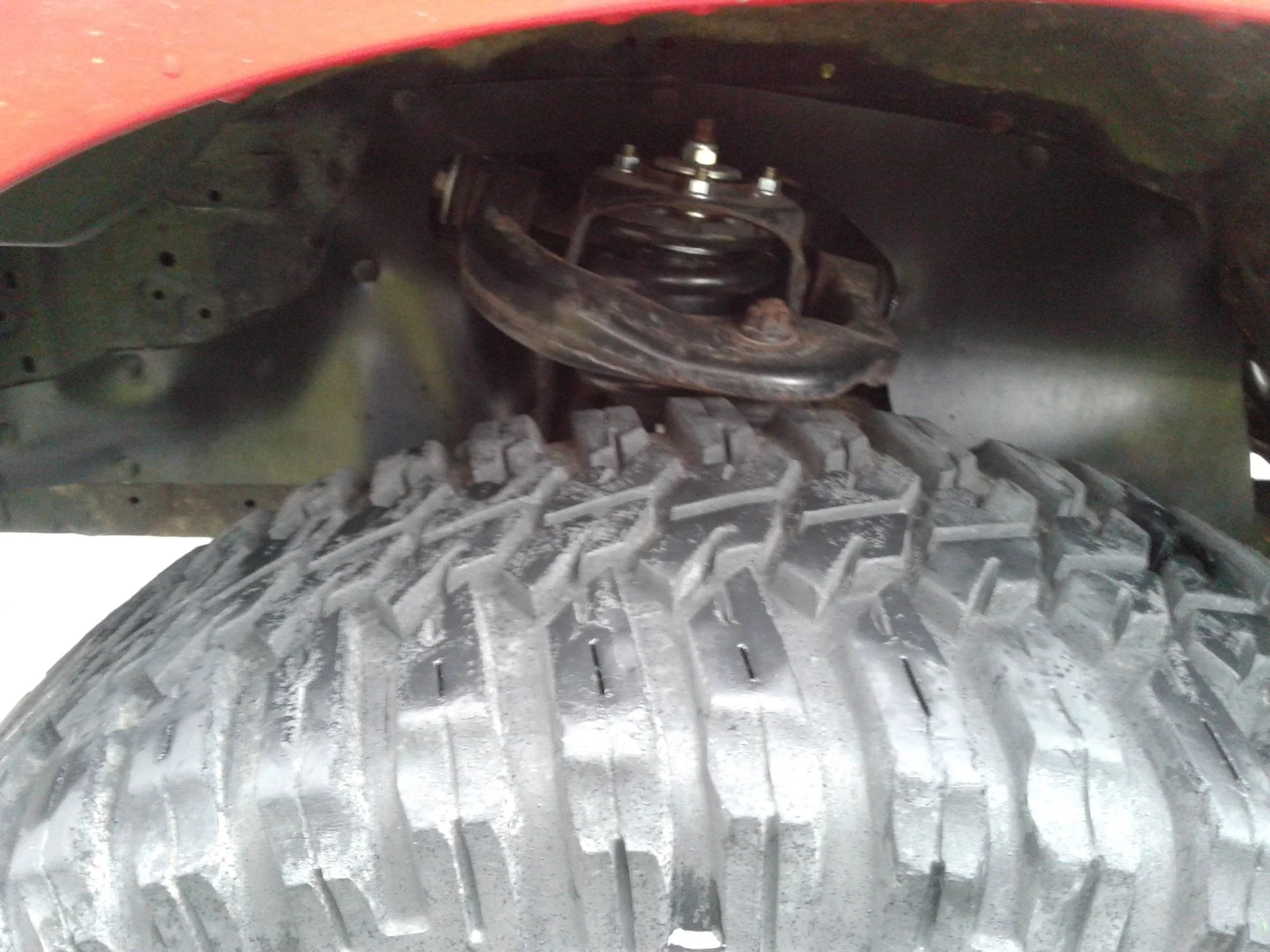

My inner fender rubber was flapping in the breeze so I decided to do something about it.

I traced my factory ones in CAD as best I could and designed/cut some new ones.

Zip file with PDF files here. Print on letter size paper and tape together for full-sized template. CAD file also included if you want to modify for your uses.

I cut a few versions out of some underlayment foam I had laying around until I got everything right. I made them a little tighter to the upper a arm than the factory pieces.

I cut the final version out of a sheet of rubber I bought at the hardware store. 2' x 3' was enough to cut two.

I have relocated my washer bottle, so both sides on mine are a mirror. You will have to shorten the pass side and locate a few holes if you still have the bottle under there.

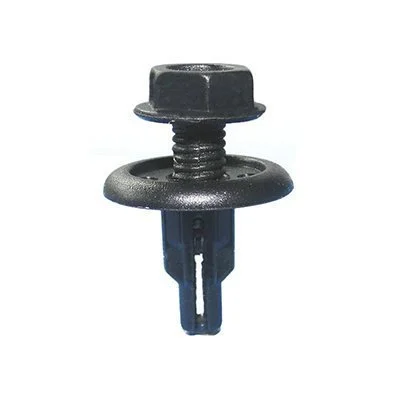

I also upgraded the clips that hold them. I had to drill out the holes in the frame just a little for these clips. All of the holes are on the passenger side where the washer bottle used to reside.

Amazon Prime link

If you use this design, let me know how it works out for you!

Thanks,
Andy



[Prairie Swamp]

Thanks for posting up your work. I just replaced my aprons and clips when I hot oiled last fall. Honestly it's pricey and who knows how long the stuff will be available. I'll have to grab some of those clips on Amazon and see how they work. I am forever in need of replacement plastic trim clips.

Thanks.



[caz]

I finally got around to installing the clips. I had to drill out the frame holes slightly but they worked in the body. They hold very well!
