Bumper mounting bits part number

[CharlieS]

I'm reinstalling my front bumper (2016 200 series Land Cruiser) and have misplaced a handful of parts. I'm sure my dealer can get them quickly, but I always find it a better approach to bring part numbers than try to explain what/where a part is.

Does anyone have part numbers for the plastic clips that bolt to the leading edge of the fender (the bumper skin clips into them)? Possibly 52116-60250 and 52115-60250?

And the plastic push pins that hold the top edge of the bumper to the horizontal radiator support? It looks like they are 52161-02020.

Diagram here:

Bumper & Components - Front for 2016 Toyota Land Cruiser | Toyota Parts Center

parts.olathetoyota.com



[bloc]

I'm reinstalling my front bumper (2016 200 series Land Cruiser) and have misplaced a handful of parts. I'm sure my dealer can get them quickly, but I always find it a better approach to bring part numbers than try to explain what/where a part is.

Does anyone have part numbers for the plastic clips that bolt to the leading edge of the fender (the bumper skin clips into them)? Possibly 52116-60250 and 52115-60250?

And the plastic push pins that hold the top edge of the bumper to the horizontal radiator support? It looks like they are 52161-02020.

Diagram here:

Bumper & Components - Front for 2016 Toyota Land Cruiser | Toyota Parts Center

parts.olathetoyota.com

Please attach pictures of where the parts go.. these little clips and such are notoriously easy to get wrong on toyota's low-resolution diagrams.

Edit: another useful tool if you haven't already is to do a google image search for a part number you find and see if that fits your memory or makes sense given the location and function. I do this quite often.



[CharlieS]

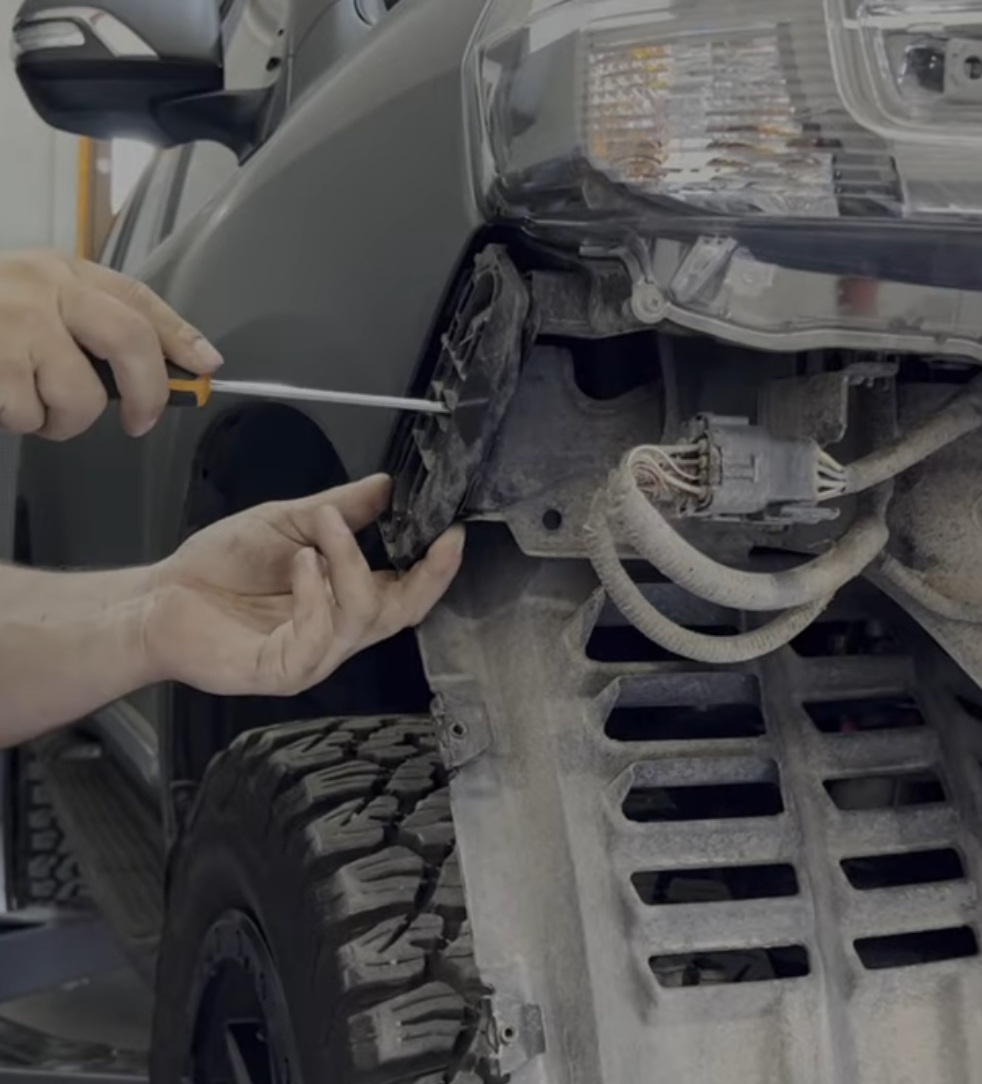

I googled bumper install, found a video and took a screenshot. The things I am looking for are the plastic piece like he is unbolting in this picture. The plastic bumper skin clips into it.



[CharlieS]

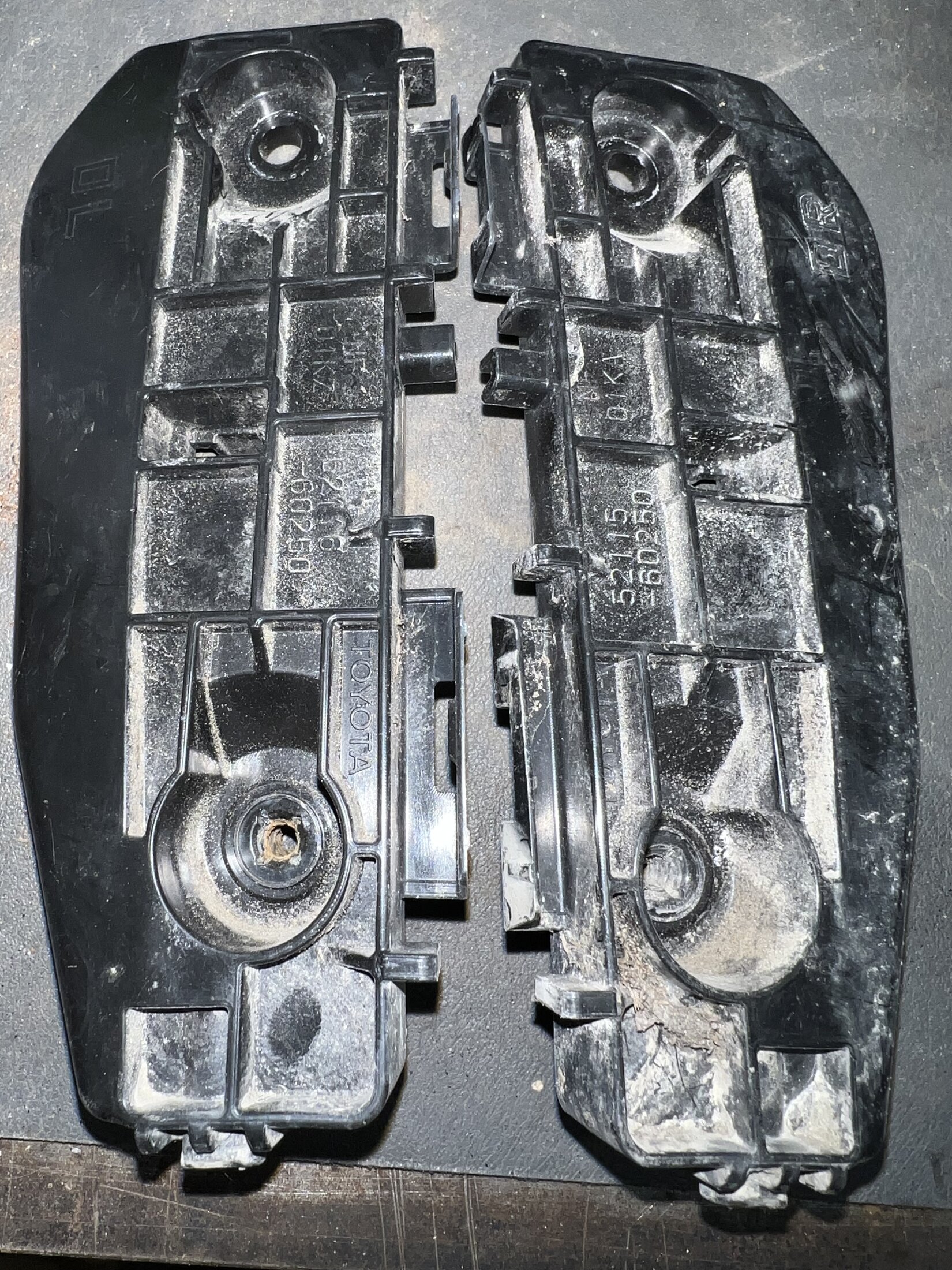

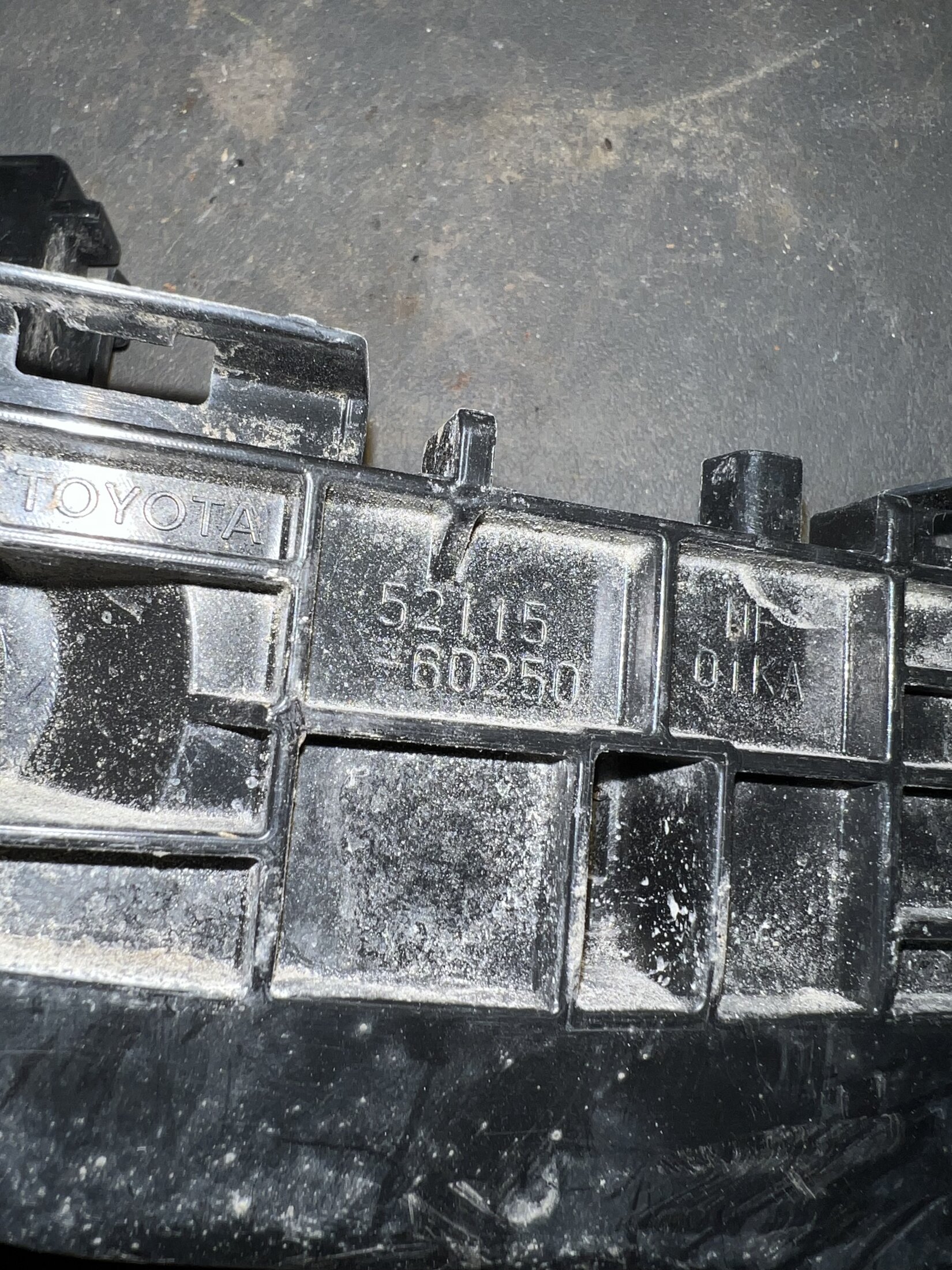

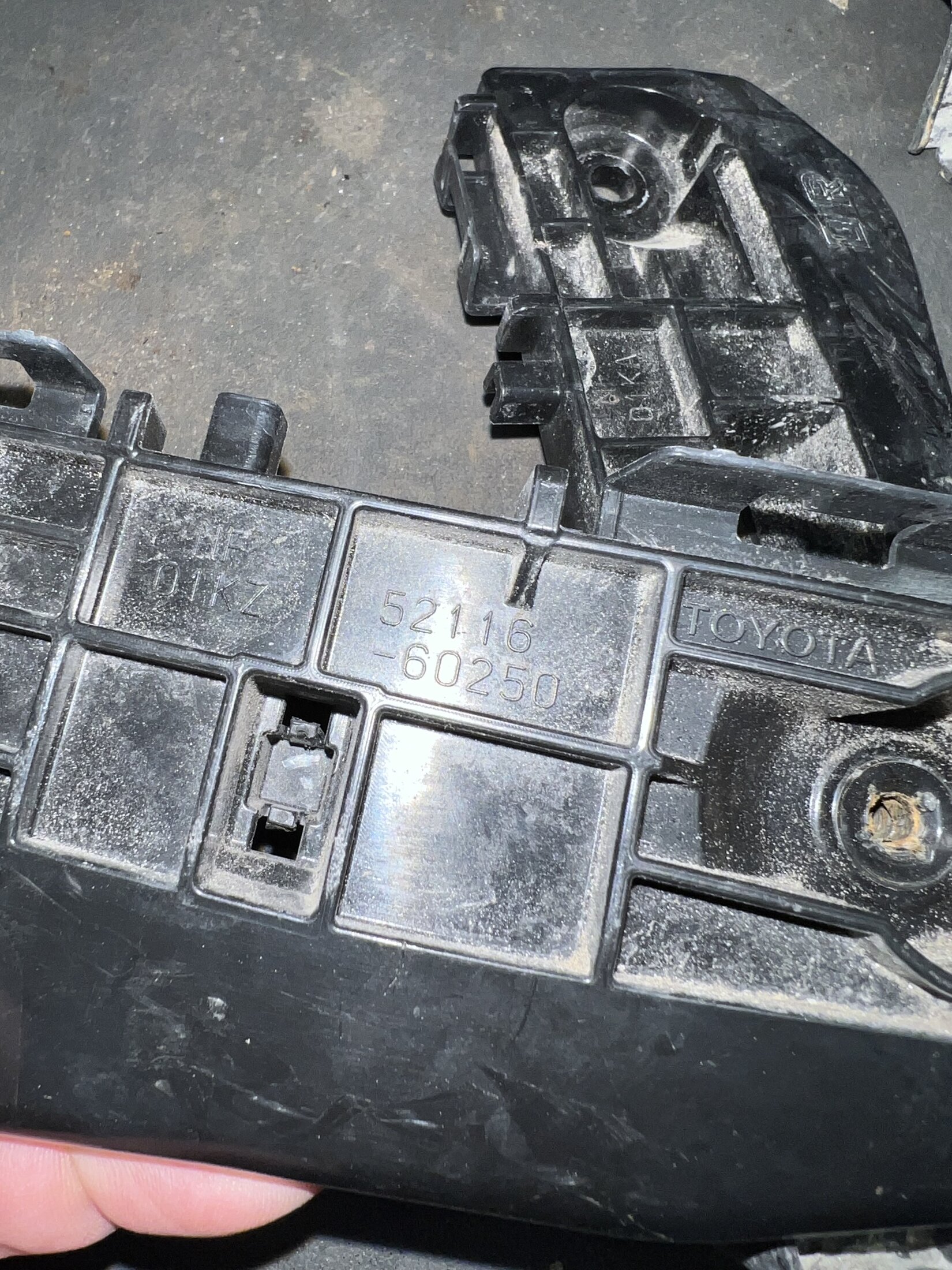

I found them!



[CharlieS]

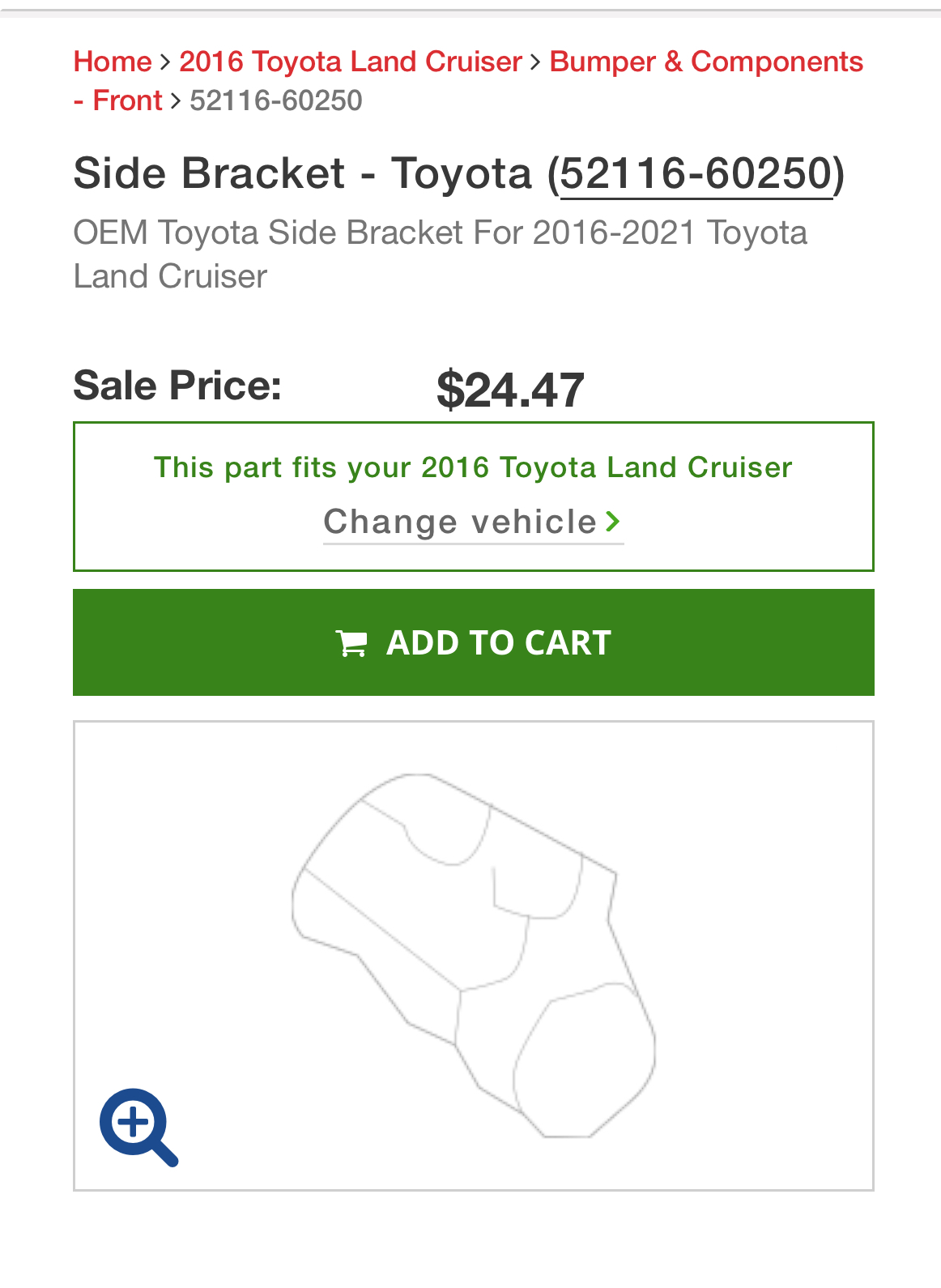

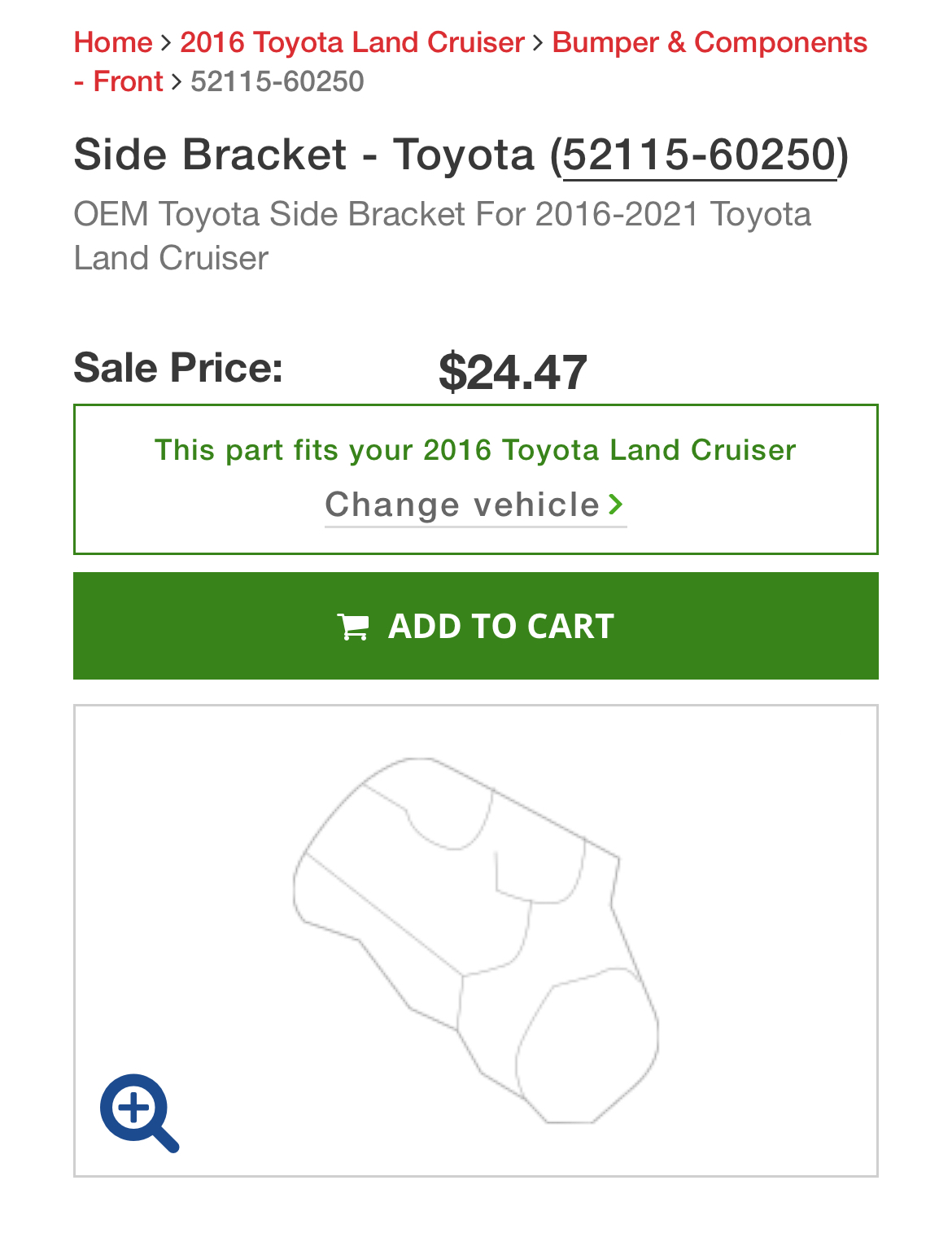

I love what the parts site has as a diagram for them:



[bloc]

Good work. Yes it's embarrassing but not unique to toyota..
