I installed a Bilstein 6112 HD front kit (and 5160 rears) on my standard-weight '10 GX460 Premium.

"But why the HD kit? Why not the standard non-HD 6112 kit?? Are you some kind of imbecile???"

Good questions! I went with the HD kit because, I reasoned, the GX460 is a heavy bish. The standard non-HD 6112 kit p/n for the GX460 is shared with the 5th gen 4R & the FJ. The HD 6112 kit (also for all 3 applications) is intended for +150-200 lb extra front weight like for a heavy-ass steel bumper and winch and other heavy bits and bobs. The stock GX carries that extra weight (and more) compared to 4R/FJ. Example, the GX460 weighs ~1000 lb more than an FJ. Roughly half of that weight sits at the front, so the HD kit would seem to be a much more suitable fit for a stock GX.

My goal for this exercise was to replace the soggy tired stock dampers with ones that had ACTUAL DAMPING, and get a modest lift. I reeeeaaally didn't want to find out that the standard non-HD 6112 was actually underdamped for the GX460. That's the exact problem I'm trying to solve! (Note, I don't know if the standard kit is or isn't underdamped on the GX. I just wanted to hedge by using the HD kit)

Plus, I wanted to stay under 2" lift. And keep the stock rear air springs. I've taken this bone stock GX on trails that were really too extreme for a bone stock GX, and the novelty of successfully wheeling a bone stock GX in those conditions has overstayed its welcome. But I also want to keep this thing sane and drivable and not go full slippery-slope and spend a ton of cash only to end up with something I hate to drive. So, <2" lift.

Moreover, stock GX460 front spring rate measures at ~715 lb/in, and the HD 6112 kit comes with 700 lb/in springs. Nice, since I am keeping the stock rear air springs and so with the HD front springs the ride frequencies will remain stock and I have just eliminated a variable.

Super. I installed the 6112 HD with the spring seat circlip in the lowest position ("#1" groove). The ride height was 3" higher than stock. Oops! That's much higher than my <2" target. Bilstein adds like 175 lb to the front plus 400 lb between the axles for their HD kits. I, however, am stock. So this result was not really a surprise. But what to do? Well, I could swap in 650 lb/in springs and get a half-inch reduction or so, but that's not enough.

So instead the 6112s went into the lathe for some fresh new lower grooves:


I cut three new grooves. To determine their location I first sort of guesstimated the front suspension's motion ratio by eyeballing it with my head craned under the bumper. I got it pretty wrong but that's why there are three grooves. I tripled my chance of getting a workable solution! It's the perfect countermeasure to sloppy measuring.

The lowest groove is 0.70" lower than the bottom Bilstein ("#1") groove. This gave approx +1" ride height over stock. Hmm.

The next higher new groove is 0.46" lower than the #1 groove and this gave approx +1.7" over stock. Boom. Done. I can use the top new groove for a softer spring, if need be.

Here, maybe this will help:



For the rear ride height I put about 3/16" stack of M8 washers under the height sensor bracket thingies. It's basically level now, maybe just a hair lower at the rear than in front. Close enough.

So that's where it is now. I haven't driven it more than a few miles and none of them were off road. So far it doesn't feel overly unyielding at the front, and exhibits promising amounts of ACTUAL DAMPING now, which I am very excited about.

oooh - I have some of the non adjustable 6112s take off oem 4R, I haven't thrown them on yet but was worried about height and adding grooves is a great idea.

I installed a Bilstein 6112 HD front kit (and 5160 rears) on my standard-weight '10 GX460 Premium.

"But why the HD kit? Why not the standard non-HD 6112 kit?? Are you some kind of imbecile???"

Good questions! I went with the HD kit because, I reasoned, the GX460 is a heavy bish. The standard non-HD 6112 kit p/n for the GX460 is shared with the 5th gen 4R & the FJ. The HD 6112 kit (also for all 3 applications) is intended for +150-200 lb extra front weight like for a heavy-ass steel bumper and winch and other heavy bits and bobs. The stock GX carries that extra weight (and more) compared to 4R/FJ. Example, the GX460 weighs ~1000 lb more than an FJ. Roughly half of that weight sits at the front, so the HD kit would seem to be a much more suitable fit for a stock GX.

My goal for this exercise was to replace the soggy tired stock dampers with ones that had ACTUAL DAMPING, and get a modest lift. I reeeeaaally didn't want to find out that the standard non-HD 6112 was actually underdamped for the GX460. That's the exact problem I'm trying to solve! (Note, I don't know if the standard kit is or isn't underdamped on the GX. I just wanted to hedge by using the HD kit)

Plus, I wanted to stay under 2" lift. And keep the stock rear air springs. I've taken this bone stock GX on trails that were really too extreme for a bone stock GX, and the novelty of successfully wheeling a bone stock GX in those conditions has overstayed its welcome. But I also want to keep this thing sane and drivable and not go full slippery-slope and spend a ton of cash only to end up with something I hate to drive. So, <2" lift.

Moreover, stock GX460 front spring rate measures at ~715 lb/in, and the HD 6112 kit comes with 700 lb/in springs. Nice, since I am keeping the stock rear air springs and so with the HD front springs the ride frequencies will remain stock and I have just eliminated a variable.

Super. I installed the 6112 HD with the spring seat circlip in the lowest position ("#1" groove). The ride height was 3" higher than stock. Oops! That's much higher than my <2" target. Bilstein adds like 175 lb to the front plus 400 lb between the axles for their HD kits. I, however, am stock. So this result was not really a surprise. But what to do? Well, I could swap in 650 lb/in springs and get a half-inch reduction or so, but that's not enough.

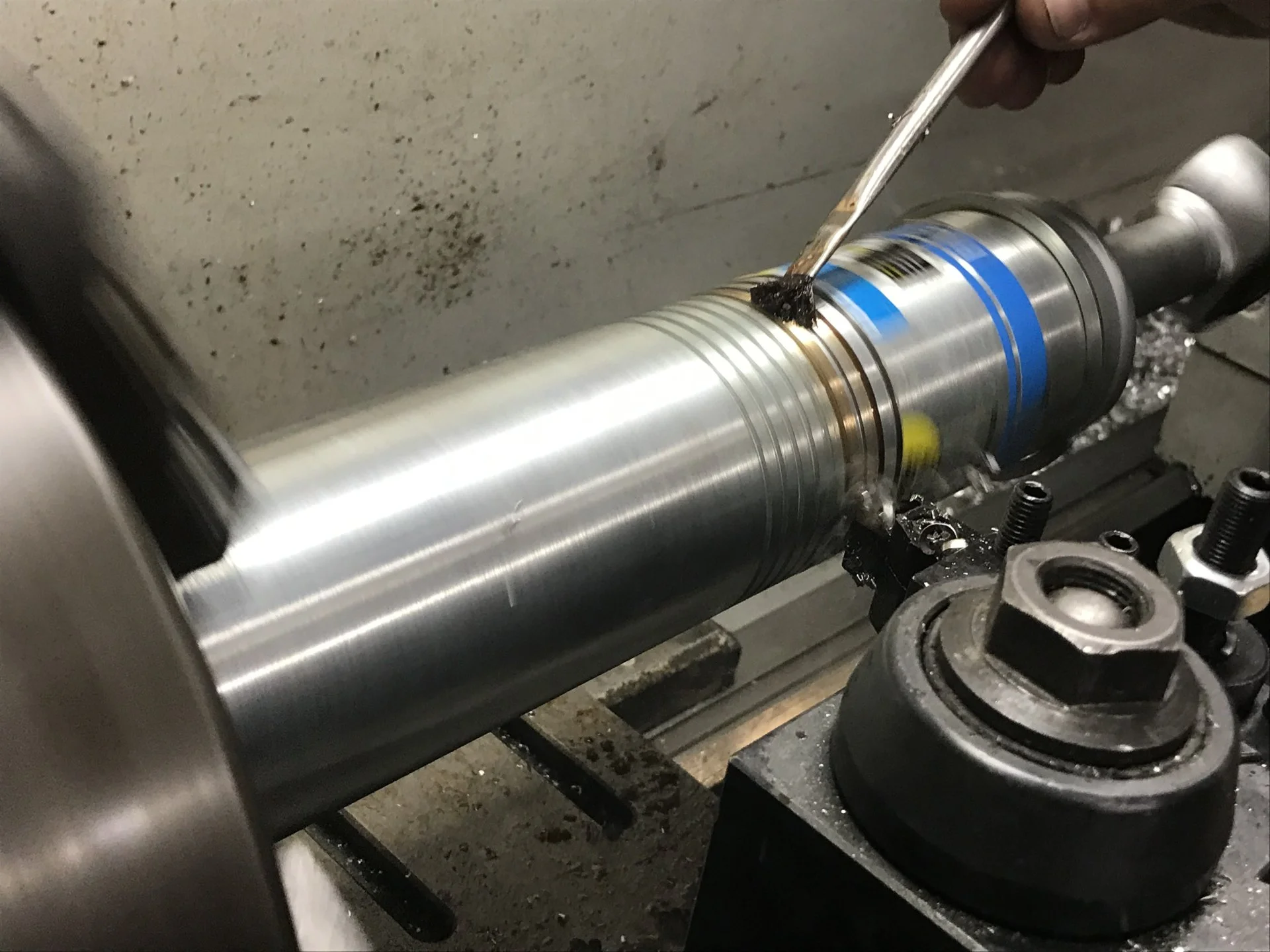

So instead the 6112s went into the lathe for some fresh new lower grooves:
View attachment 3172031

I cut three new grooves. To determine their location I first sort of guesstimated the front suspension's motion ratio by eyeballing it with my head craned under the bumper. I got it pretty wrong but that's why there are three grooves. I tripled my chance of getting a workable solution! It's the perfect countermeasure to sloppy measuring.

The lowest groove is 0.70" lower than the bottom Bilstein ("#1") groove. This gave approx +1" ride height over stock. Hmm.

The next higher new groove is 0.46" lower than the #1 groove and this gave approx +1.7" over stock. Boom. Done. I can use the top new groove for a softer spring, if need be.

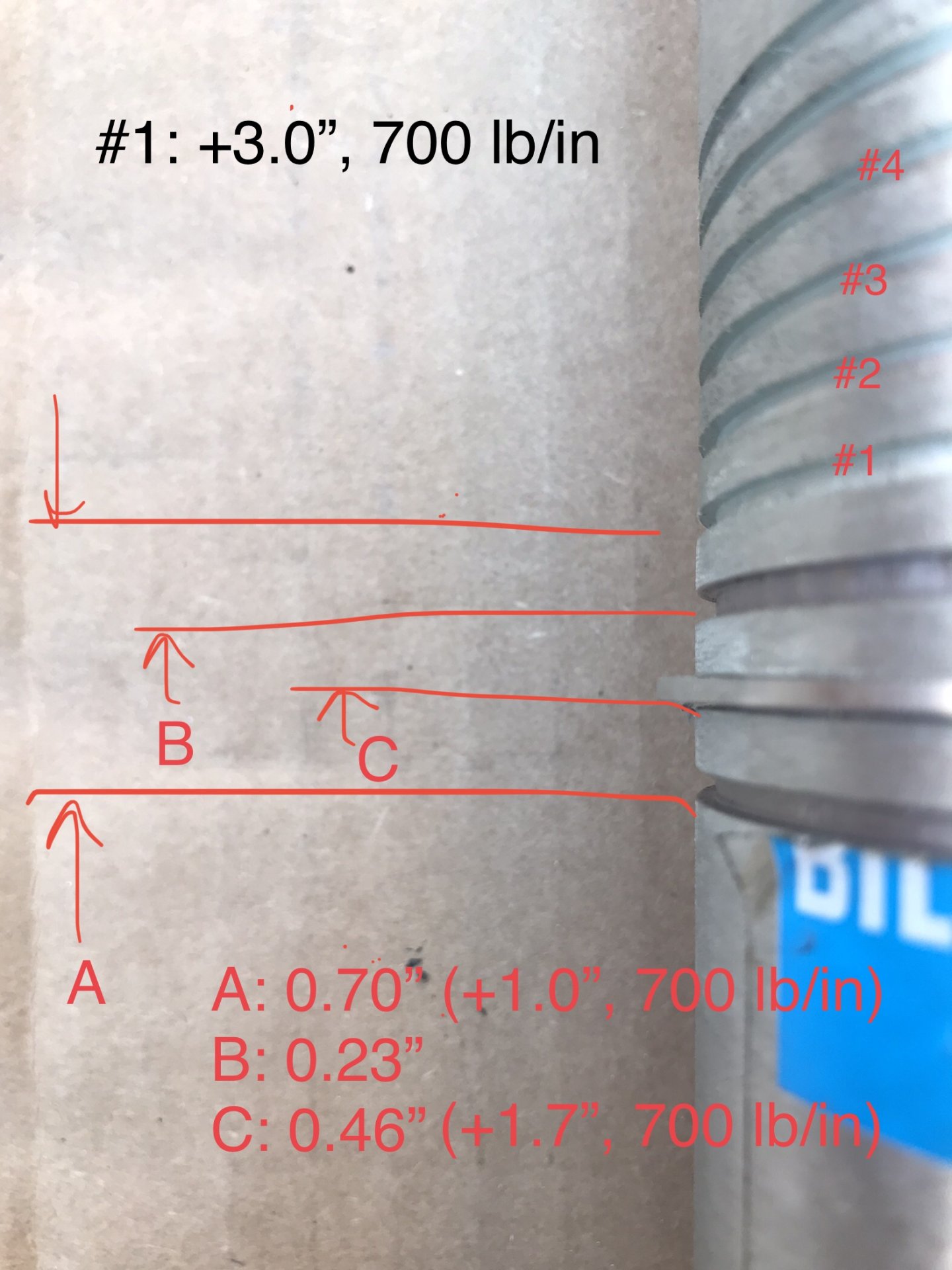

Here, maybe this will help:

View attachment 3172064

For the rear ride height I put about 3/16" stack of M8 washers under the height sensor bracket thingies. It's basically level now, maybe just a hair lower at the rear than in front. Close enough.

So that's where it is now. I haven't driven it more than a few miles and none of them were off road. So far it doesn't feel overly unyielding at the front, and exhibits promising amounts of ACTUAL DAMPING now, which I am very excited about.
I've got lathe envy...
Mine is only a Prazi bench top with about 3" throw and 10 inches for the tail stock to slide.

I just road-tripped (no dirt yet) it for the first time with the Bilstein 6112 HD fronts and 5160 rears. A 900-mile trip.

The ride is so much better now than with the tired 40k-mile stock Premium (adjustable) shocks. Same 265/70-17 LT Wildpeaks as before.

Mind you, those 40k-mile stock shocks had been on many miles of washboard, at speed, which did them no favors. They weren't fresh. The ride with the stock stuff was pretty crashy and bumpstop-y. Very very fatiguing on long road drives, and punishing when off-road.

So, I'm pleased with the road ride of the Bilstein stuff. Especially at the front. There is some high frequency / low amplitude road content that comes through, but it's not objectionable. It damps out bigger hits far more gracefully now. The 5160 rears are an improvement, too. If I had to pick nits, I might want juuust a touch more low-speed compression damping (maybe? possibly?) at the rear, but that's only if you put a gun to my head. I'm happy with these so far. I came out of the truck far fresher than when I'd done that same trip with the stock stuff.

Now, to find dirt.

I had 6112s on my FJC, liked them a lot.

i wish i had more grooves in mine. ive got 650lb springs and theyre kinda soft, and she could use more lift. my old spacer wants to be put in my 6112s
