Auxiliary fuse/relay panel (1 Viewer)

This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.

Erik, check you inbox please.

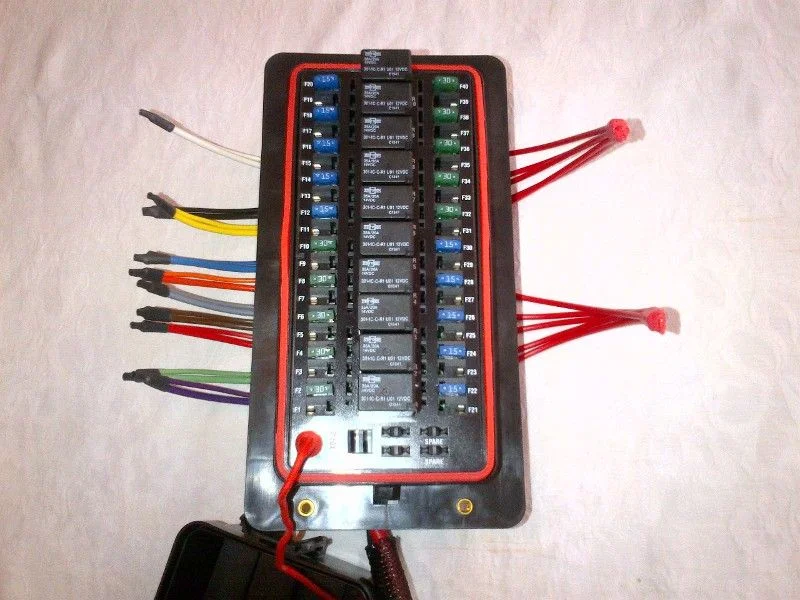

I will be caught up on everything by the end of the month, so from here on out, there shouldn't be too long of a wait from when you want one until you get one. Additionally, I have three 10 relay modules built. I was contacted by a 4X4 shop to build them some Auxiliary Relay panels with 10 relays instead of just five. Apparently he couldn't sell as many as he thought, and I have 3 of these available. These are pretty big with lots of circuits. The going price is $190. I've included a pic of the 10 amp panel below. If there is a massive interest in the 10 relay panels then I may continue to build them. Bussmann does not make mounting brackets for these guys, so you will have to fab them. There are 10 switched circuits (relays) and 10 non-switched circuits fused at 15 amps. So, if you are doing an engine swap or just need a ton of new circuits, this may be for you. It's rated at 200 amps.


interested in one of the 5 relay AUX sub panel.
Do you have them available? could you please email @ dougwierenga@cox.net

thank you. Doug

Received mine a couple of weeks ago. Excellent quality. Now I just have to install it.

Send him an email. As of the first week of September he has them pre made

slcfj62 said:
Looking for an elegant solution to controlling your Auxiliary lights and other devices? Fog lights, off road driving lights, radio circuits, and any other high power device requires it's own wire harness. You can't just tap into any old wire you find that has 12 Volts in it. It becomes awkward and dangerous to add another wire to the mess on the positive terminal of the battery every time you add a new device. There are fuse blocks available from Blue Sea and others, but if you also have a relay in your Aux circuit, where do you put that?

With quality parts from major vendors, I have developed a weather resistant fuse/relay panel that can be mounted on top of a wheel well or on the inner fender wall in the engine compartment, and will serve as a central hub for 5 relay switched Aux circuits and up to 5 always on fused Aux circuits. You run only one wire to the battery and with your switches and wires, you can control up to 10 Aux devices (5 switched and up to 5 fused).

My Aux Panel can greatly simplify your wiring. There are only two color coded wires for each relay--a skinny wire and a fat wire. The fat wire is the wire you connect to your device. The skinny wire is the control wire and is connected to a switch that you provide. When you order, you will specify whether you want the relay to be activated when the control wire is switched to ground or when the control wire is switched to 12 volts (hot). Regardless of how the relay control is configured (switched ground or switched hot), 12 Volts is supplied to the fat wire of the same color (or shade thereof) when the relay is activated. That's all there is to it. Using my Aux fuse/relay panel will take the complexity out of wiring your aftermarket devices. See post # 11 in this thread for schematics and further discussion of the switched ground and switched hot option.

https://forum.ih8mud.com/merchandise-storefront/352802-auxiliary-fuse-relay-panel.html#post5240849

The main power lead is a 10 gauge 36 inch wire that is protected by a fusible link. Please specify if you will need to locate the fuse/relay block farther than 36 inches from the battery. Mounted on the brackets, the relay module is 5 inches tall, and at the base of the mount brackets, it is 7 inches by 3.5 inches. So a good way to test for fitment is to cut a 7 inch long piece of 2X4 and use that as a model. The main power lead can be lengthened up to 10 feet total length for an additional $10.

Each individual Aux relay circuit is protected by a 30 amp fuse and each non-switched wire is protected by a 15 amp fuse. The total simultaneous load on the relay/fuse module should not exceed about 60 amps.

UPDATE Aug 2014. I was contacted by a 4X4 shop to build them some Auxiliary Relay panels with 10 relays instead of just five. Apparently he couldn't sell as many as he thought, and I have 3 of these available. These are pretty big with lots of circuits. The going price is $190. I've included a pic of the 10 amp panel below. If there is a massive interest in the 10 relay panels then I may continue to build them. Bussmann does not make mounting brackets for these guys, so you will have to fab them. There are 10 switched circuits (relays) and 10 non-switched circuits fused at 15 amps. So, if you are doing an engine swap or just need a ton of new circuits, this may be for you. It's rated at 200 amps.
Click to expand...

I may be interested in one of the ten relay panel , i put a 12 valve cummins in my 2500 gmc and i need hot switched for fuel,remote trans cooler fan ,and trans controller. Lighting ,cb,fuel transfer pumps and i'am sure there could be more better to have a few extra than not enough.

Man, I sold out of the 10 relay panels and haven't had enough interest to order the parts. I can supply you with two 5 relay panels, they take up about the same amount of space as the 10 relay panels and include mounting brackets for the same price as a 10 relay panel.

Erik

I have a couple 10's...

Are you really going to use 40 fuses though?

Have you considered making one of these for us 24V morons? I'm envisioning something that gets 12V from a 24V-12V step down converter and has 24V relays that receive 24V switched and constant power. Would be a more complex undertaking but if you're interested I would think there'd be some interest from the 24V crowd. I'd pay for one if you want to make a prototype and gauge interest...

Let me know
