Anyone Know Where This Hose, Part Number 87245-60340 Goes?

Joined
Dec 24, 2003
Messages
3,562

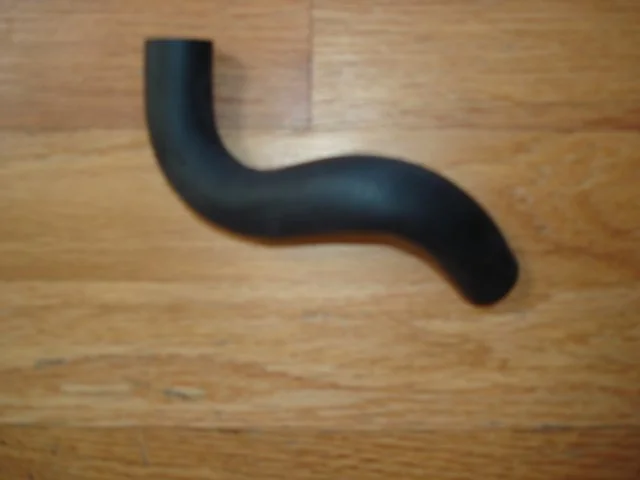

Hi fellas, cannot seem to find where this wonderfully twisty hose goes? Any thoughts? Thanks!


cruiserdan

SupportingVendor Emeritus
Moderator
Joined
Mar 27, 2003
Messages
25,413
Location
Land Cruiser Heritage Museum broom closet
To the heater pipe back at the firewall, on the RH side of the engine.

Joined
Dec 27, 2004
Messages
678
Location
Livermore , Ca.
Hey Dan
I got the fuel sending unit thank you very much.
Would you be able to tell me what wires are what?
Yellow Red
White Black
Yellow Green

Thanks Chris

Joined
Dec 24, 2003
Messages
3,562
cruiserdan said:
To the heater pipe back at the firewall, on the RH side of the engine.


Hmm, thanks Dan, I thought that this one went to the heater pipe?

Part 87245-60480

Joined
Dec 24, 2003
Messages
3,562
cpg said:
Rear Heater from the long metal pipe along the exhaust side of motor near fire wall.


That hose must be removed with the turbo kit, I dont seem to have that anywhere?

Someone have a pic in place?


cruiserdan

SupportingVendor Emeritus
Moderator
Joined
Mar 27, 2003
Messages
25,413
Location
Land Cruiser Heritage Museum broom closet
cpg said:
Hey Dan
I got the fuel sending unit thank you very much.
Would you be able to tell me what wires are what?
Yellow Red
White Black
Yellow Green

Thanks Chris


Y/R, fuel pump shut off

Y/G, sender

W/B, ground


cruiserdan

SupportingVendor Emeritus
Moderator
Joined
Mar 27, 2003
Messages
25,413
Location
Land Cruiser Heritage Museum broom closet
Yes.


cruiserdan

SupportingVendor Emeritus
Moderator
Joined
Mar 27, 2003
Messages
25,413
Location
Land Cruiser Heritage Museum broom closet
I'm going from memory and I can't find my folder that has my notes in it. I have some information at work.

Joined
Dec 27, 2004
Messages
678
Location
Livermore , Ca.
I just checked with the ohm meter Y/R is the sender.
How does the empty signal work? moving that float i cant see any different reading. The float for the empty signal that is the lever float works with the yellow red wire.

Thanks for the link Boston. I have the 13.2 gallon tank.


cruiserdan

SupportingVendor Emeritus
Moderator
Joined
Mar 27, 2003
Messages
25,413
Location
Land Cruiser Heritage Museum broom closet
OK, I was backwards. No notes, no brain........;)

The shutoff is not fed by the float arm, it's in the plastic "can" at the bottom. Turn the sender upside down and it should be open between ground and Y/G (or blue,depending on what it looks like to your eyes). When you flip the sender upright it should close.

Joined
May 21, 2004
Messages
3,566
Location
San Diego
Website
www.motobasedadventures.com
cruiserdan said:
Turn the sender upside down and it should be open between ground and Y/G (or blue,depending on what it looks like to your eyes). When you flip the sender upright it should close.

Yup, thats how i checked mine as well, that method works like a charm!

cpg said:
Thanks for the link Boston. I have the 13.2 gallon tank.

No sweat, hit me with a PM if you need anymore! I found a bunch!
