Alternator Replacement (1 Viewer)

abuck99

SILVER Star
Joined
Nov 8, 2015
Messages
4,343
Location
ATL

The dreaded battery light came on this week. I'm constantly monitoring voltage output on my scan gauge and hadn't seen any indication that ALT performance was starting to diminish, it literally went south overnight. Went to start in the morning and I noticed the battery light stayed on, I also noticed a "new" constant noise somewhat of a groaning coming from under the hood (sounded more like a weak power steering pump). Isolated the noise was coming from the alternator. Checked battery voltage (engine off) 12.7v (good). Then performed starter voltage test (11.3v)- good. The running voltage output: 12.3 at the terminals hmmm looks like ALT. Anecdotally, cold start was over 13v output but as the engine warmed up, the voltage was slowly dropping to 12.5, 12.4, 12.3.... so more resistance as it warmed up. If the VR was bad, that would reveal itself as high voltage reading (>14.8v)- right? Brushes normally give some warning via diminishing performance over time- not the case here however. And the noise- didn't sound like bearings, more electric load related. IDK. Normally I would buy a $25 brush kit and rebuild, but if it was the VR going bad or bearings its not worth breaking it down to replace when a rebuilt Denso is $113.

2007 with 115k miles; would't think the alternator would fail at this point, but this truck does have dual battery set up, previous owner let it sit for long periods of time and I am assuming that combo maybe has an impact on battery and alternator longevity.

I ordered a reman Denso 210-1100 (07-09 model) from RA for $113 + $75 core charge. It made it me in about 3 days and I proceeded to R&R. Much easier to R&R the ALT on the FJC compared to my 100 Series LC. Less than an hour to remove and reinstall. The most frustrating part was installing a new serpentine/accessory belt- that thing snakes around more pulleys and narrow weird angles under the fan pulley, I swear it took me longer to install that compared to the R&R of the ALT. It's also a good time to inspect and replace pulleys if they are loose or making noise.

Tools: 14mm socket, 12mm socket, 10mm socket and extension, flat blade screw driver or a better tool to gently pry connector, 10mm gear wrench is helpful to remove wiring bracket from ALT.

Steps:
  • Remove battery (for better access),

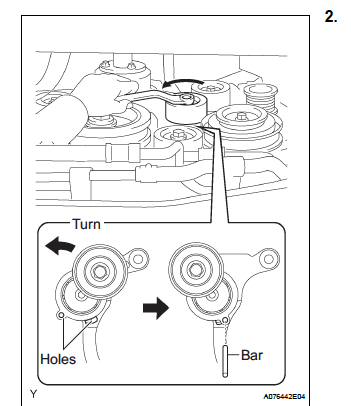

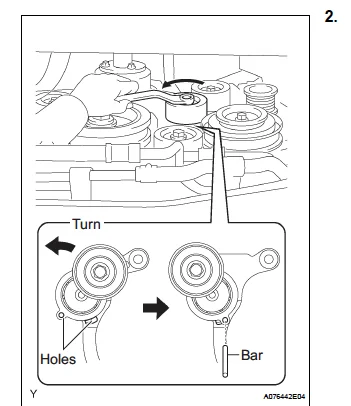

  • remove tension from accessory belt to remove it from ALT pulley and let belt hang if not replacing belt (14mm socket rotating tensioner towards passenger side-counter clockwise - see image below ),
  • optionally remove intake brace above the ALT (12mm) for better access,
  • remove two wiring harness mounts (one below/beside battery tray called "wire harness stay" 10mm) and the other two are attached to the ALT (10mm),
  • carefully in unclip the female connector on the ALT: tip: release tab is on the right side of the connector- with large flat blade screw driver simultaneously and gently pry/more like twist the blade at the bottom of connector (careful not to crack connector),
  • gently pry the grey terminal cover off, and remove charging terminal cable (10mm),
  • remove the two mounting bolts connecting the ALT to the engine block (14mm). (I used a 20" breaker bar here for better leverage)
  • check the lower mount of the replacement ALT so you can see how it slides out towards you first, then you can squeeze the alternator forward pushing the cooling hose out of the way then upward and out. As you do this be careful not to bump, rub or rest the ALT on the crank sensor wires which are exposed just under the ALT (lay a folded rag over them).
  • Reinstall in reverse order: Torque ALT mounting bolts 32ft lbs, terminal nut 71 INCH lbs (if youre measuring), all others roughly 7ft lbs.

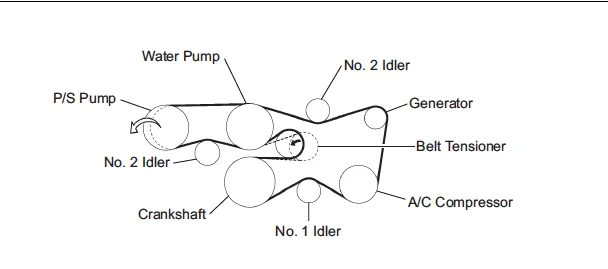

Accessory Belt Install: If your first time installing a new belt- you can remove and install it by sliding over the front of the fan- you dont have to remove the shroud. IDK_ There has to be good start & finish mounting process for this maybe some one can add to this but based on the amount of time I spent I don't think my process was very timely- but I did eventually get it.

Hope this helps any other first timers.


Screen Shot 2020-03-27 at 4.17.57 PM.png
Screen Shot 2020-03-28 at 12.06.45 PM.png

Last edited:

abuck99

SILVER Star
Joined
Nov 8, 2015
Messages
4,343
Location
ATL

Thats good info 👍- I'm still new to this platform. If I knew that ahead of replacing with the 100a, that would have been a no brainer. Same model year range in the taco 07-09?


BMThiker

I aim to misbehave
s-Moderator
SILVER Star
Joined
Sep 19, 2006
Messages
9,366
Location
Atlanta

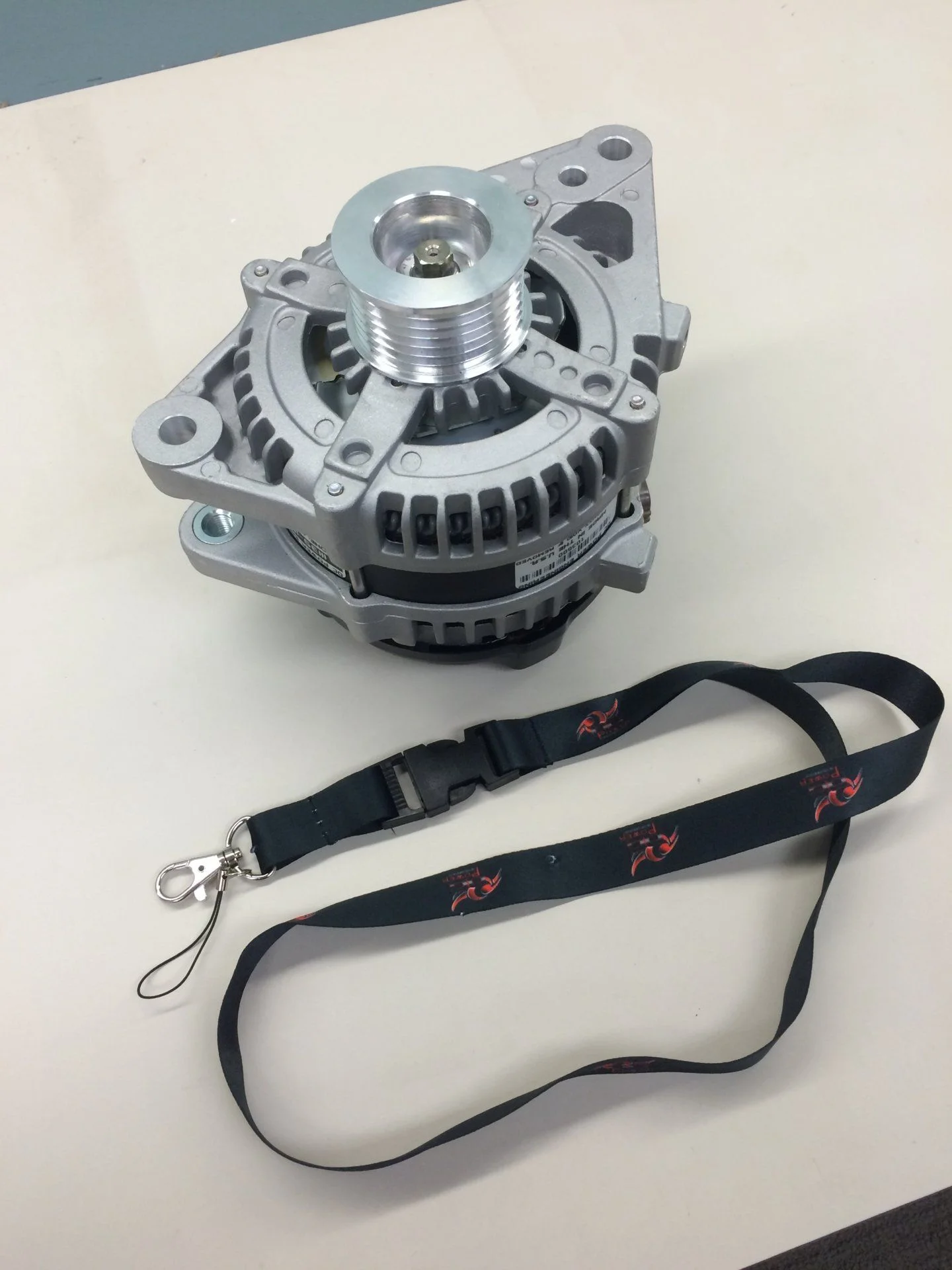

I paid too much for a 180A model from DC Power Engineering. Didn't realize the Tacoma part was a high output option. This one has been flawless for 6 years though.
2015-07_Alternator (1).JPG

2015-07_Alternator (2).JPG


abuck99

SILVER Star
Joined
Nov 8, 2015
Messages
4,343
Location
ATL

Wondered about those- good to know that they are a reliable option.


BMThiker

I aim to misbehave
s-Moderator
SILVER Star
Joined
Sep 19, 2006
Messages
9,366
Location
Atlanta


For all practical purposes its a 130A product. Peaks at 180A near redline.


abuck99

SILVER Star
Joined
Nov 8, 2015
Messages
4,343
Location
ATL

7000 rpm to get 179w lol- The only machine I own that ever sees rpms over 6,000 is my KTM990 😜- I dont think I seldom crest 3000 in my FJ or 100 series.

I like the output current table though- would be interesting to know where the 100A and 130A alternators reach their potential- maybe on a similar scale.

Joined
Jan 22, 2018
Messages
1,215
Location
Georgia
7000 rpm to get 179w lol- The only machine I own that ever sees rpms over 6,000 is my KTM990 😜- I dont think I seldom crest 3000 in my FJ or 100 series.

I like the output current table though- would be interesting to know where the 100A and 130A alternators reach their potential- maybe on a similar scale.

Alternator RPM is not engine RPM. Alternator rpm is normally higher than engine RPM.


BMThiker

I aim to misbehave
s-Moderator
SILVER Star
Joined
Sep 19, 2006
Messages
9,366
Location
Atlanta


I misread that as well - it quite plainly says Alt RPM on the x-axis. Thanks for the clarification @Whiskerz


abuck99

SILVER Star
Joined
Nov 8, 2015
Messages
4,343
Location
ATL

Alternator RPM is not engine RPM. Alternator rpm is normally higher than engine RPM.
Cool- Thanks- you helped me learn something useful today.

I then went down the rabbit hole to find a formula to calculate the RPM and found this: Accurate?
RPM Calculator
An alternator needs 1800-2000 RPM at idle to make power and will make maximum output at 6000 rpm but will fail at 16,000 RPM
Measure Alternator pulley size (for example 2.5")
Measure Crankshaft Pulley Size (for example 5")
The Ratio is 2:1 (5 divided by 2.5 = 2)
To find MAX RPM: take your Max engine Speed (for example 5800 RPM) and multiply it by the calculated ratio (5800 x 2) = 11,600 shaft RPM
To find IDLE RPM: Multiply Idle RPM x Ratio (for example 1000 x 2) = 2000 shaft RPM @ Idle

Joined
Jan 22, 2018
Messages
1,215
Location
Georgia
That looks about right. I learned drag racing years ago that most alternators die in epic ways when spun too high. The big alternator pulley reduces output at idle but keeps the alternator alive.

Last edited:
Joined
May 26, 2010
Messages
134


Hey guys, assuming my FJ is wired for 100 AMPS is that extra 30 gonna fry anything???? Do the Tacos with 130 have heavier duty wiring to handle the extra amperage??? Thanks

Joined
Jun 30, 2013
Messages
819

99% of the time the extra current isn't even used. However, if you do wire special high loads to the battery (like a winch), or to a fuse box, make sure your wiring is adequate. But my thinking is most don't bother. E.g., an 8 awg copper wire fuses around 450 amps, a 10 awg around 325 amps. Even something as small as 12 awg fuses at over 200 amps. Though, do be careful as 130 amps will warm up wires, especially any with marginal connectors along the way.

Joined
May 26, 2010
Messages
134


99% of the time the extra current isn't even used. However, if you do wire special high loads to the battery (like a winch), or to a fuse box, make sure your wiring is adequate. But my thinking is most don't bother. E.g., an 8 awg copper wire fuses around 450 amps, a 10 awg around 325 amps. Even something as small as 12 awg fuses at over 200 amps. Though, do be careful as 130 amps will warm up wires, especially any with marginal connectors along the way.
Thanks Boss.....I'm sticking with the 100 then. Appreciate it.

Joined
Jun 30, 2013
Messages
819

If you don't need 130A, then it is just extra weight. However, if you ever upgrade to a winch and dual batteries, the extra 30A might be worth it.


xlx

Joined
Oct 24, 2017
Messages
273
Location
Columbus, OHIO/TLCA #26516
I have a 2013 FJ that is equipped with a heavy duty alternator. It was a Canadian model. It also came with a block heater plug. I parked the FJ in the garage for an extended period and the battery when dead. I bought a new one and I try to start it once a week to keep it charged. I put a battery charger on it and the battery would not take a charge. I was able to jump start it today and let it idle for about a half hour. I turned it off and tried to restart it but got the dreaded clicking noise. Do I have a bad battery or is the alternator bad? I have 95,000 on the clock. Any ideas? Thx

Joined
Jun 30, 2013
Messages
819

Likely a dead battery. Once a battery is fully discharged, they do bad things internally: lead turns into lead sulfide, acid turns into goop. For $99 bucks at Home Depot you can pick up a usable battery. I'm in the market to replace my ultra dead 2 year old AGM - 4 year warranty that no one will honor: I can't recommend BOSCH brand products at this point.

Bought a $180 AGM from Autozone: A place I can almost walk to if I need warranty service. Thay may disavow the battery in a few months, of course, but at least there's a counter I can yell through my mask at a person - venting is good.

Last edited:
