I've got a few things that I'm sorting out as I put a 2F from a 60 into a 40.

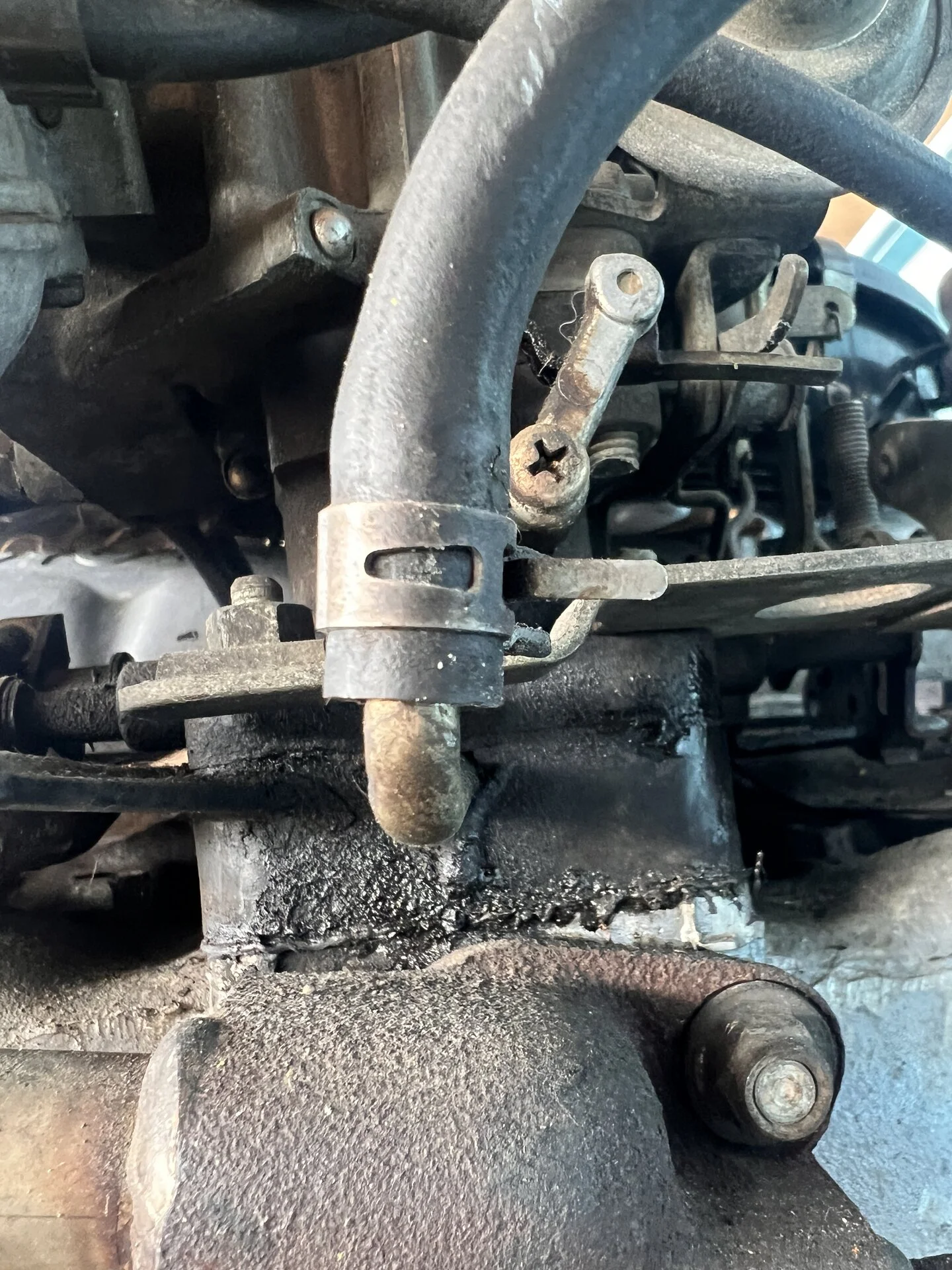

First one comes out as a hardline, goes to rubber hose, but not sure where it should go to. Anybody?

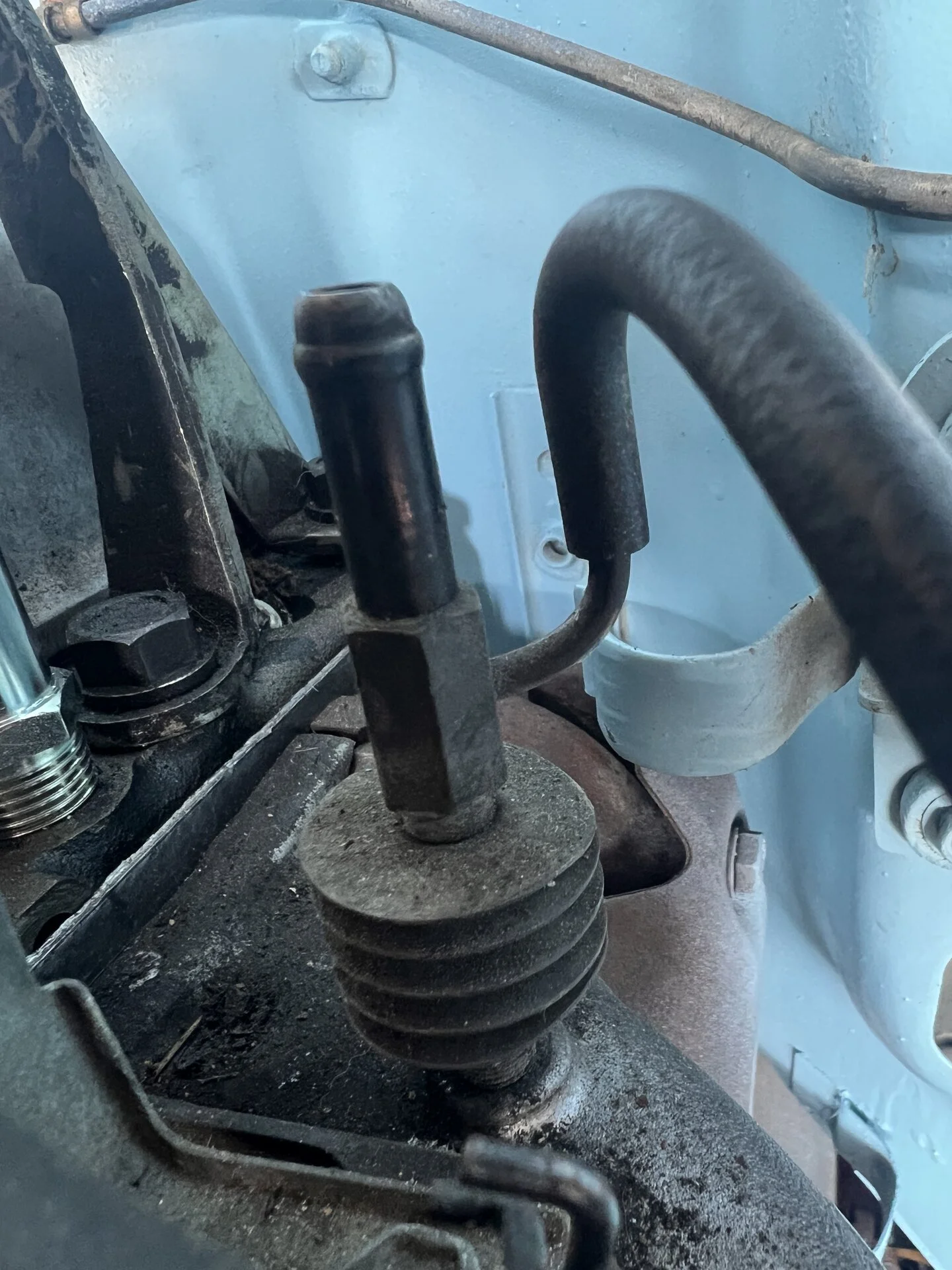

Next up is this one, rubber hose? Where to?

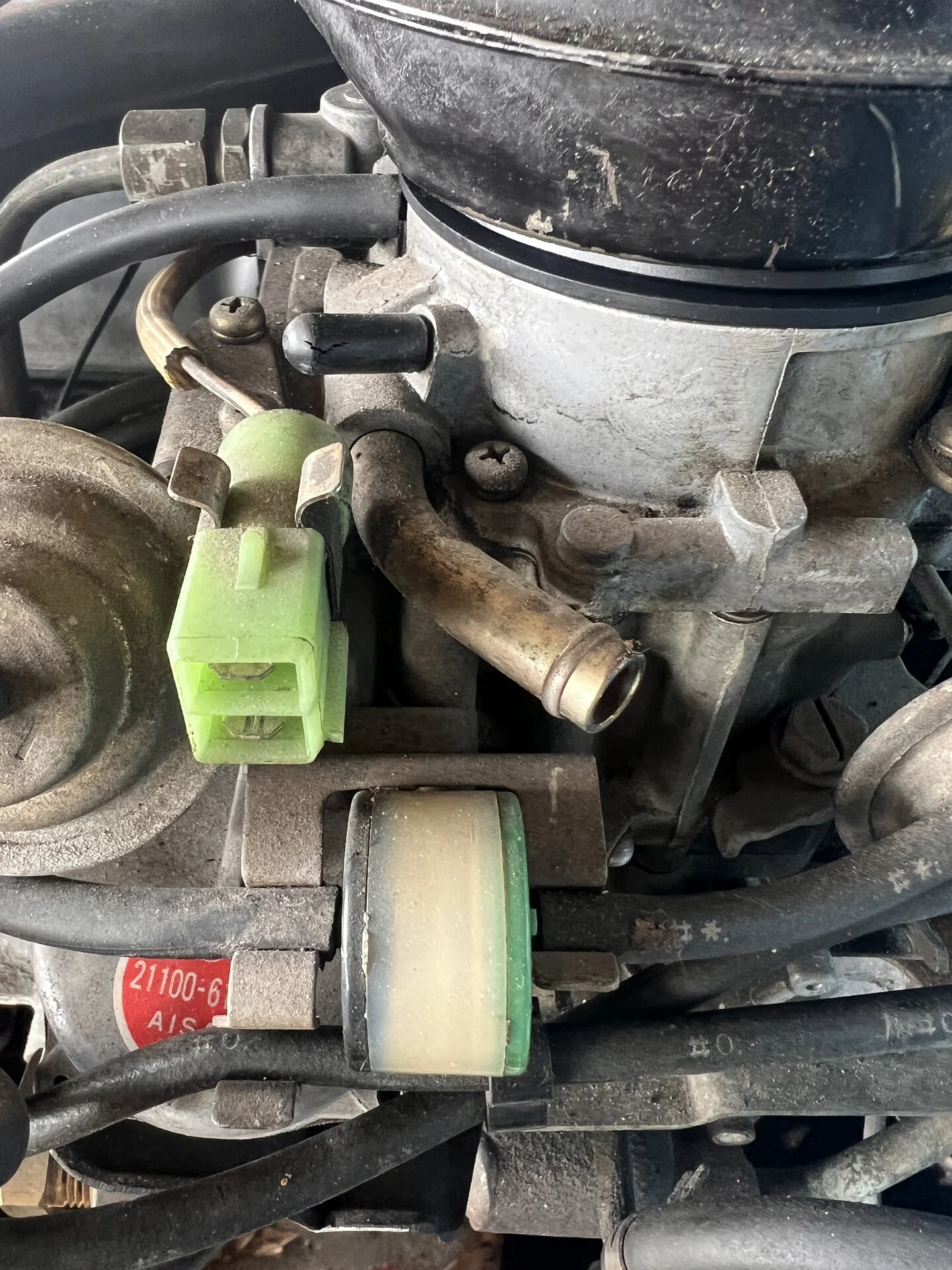

Last one this metal line, probably goes to rubber, then where to?

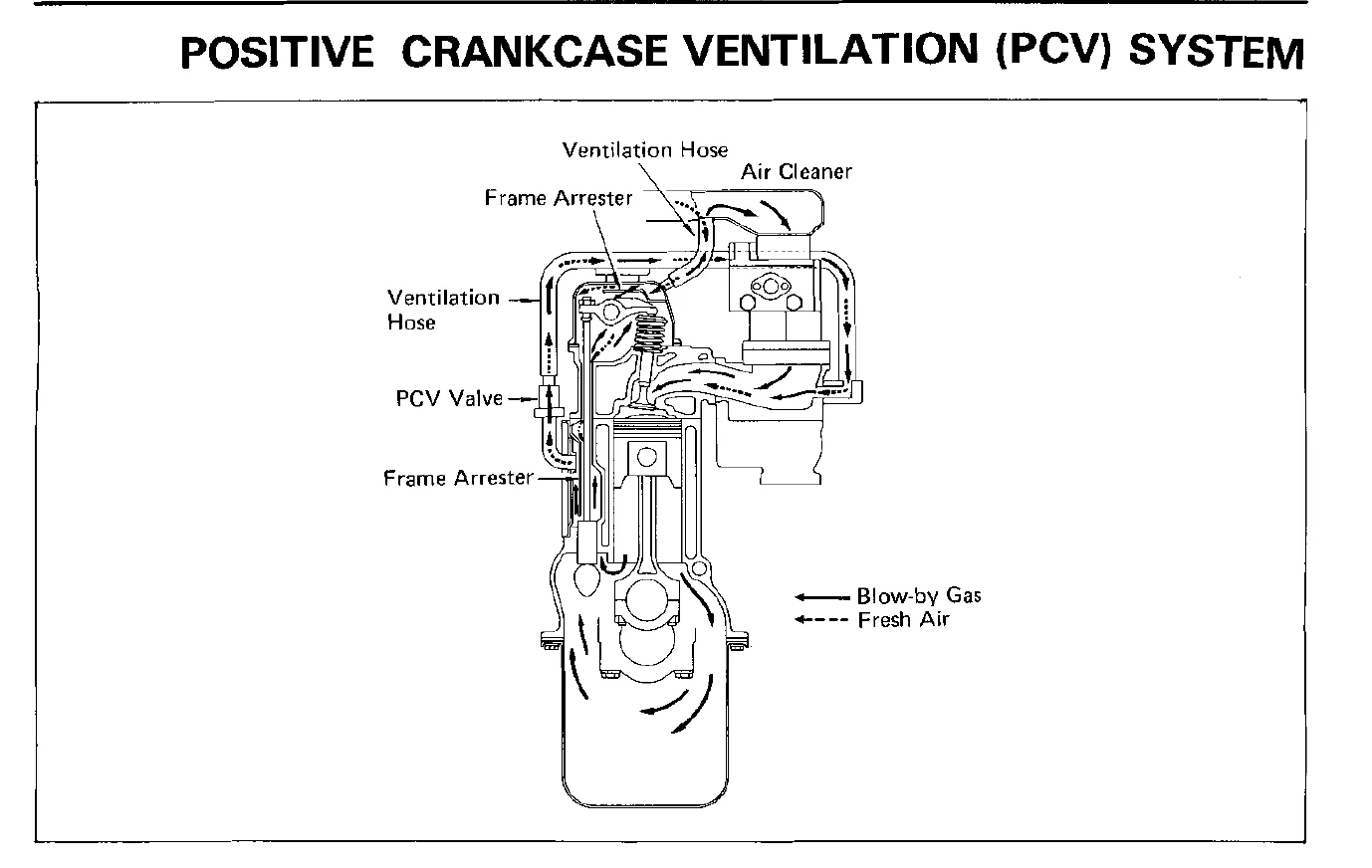

Number 1 is for the PCV system. That hose connects to the PCV valve installed to the block on the other side of the engine near the firewall.

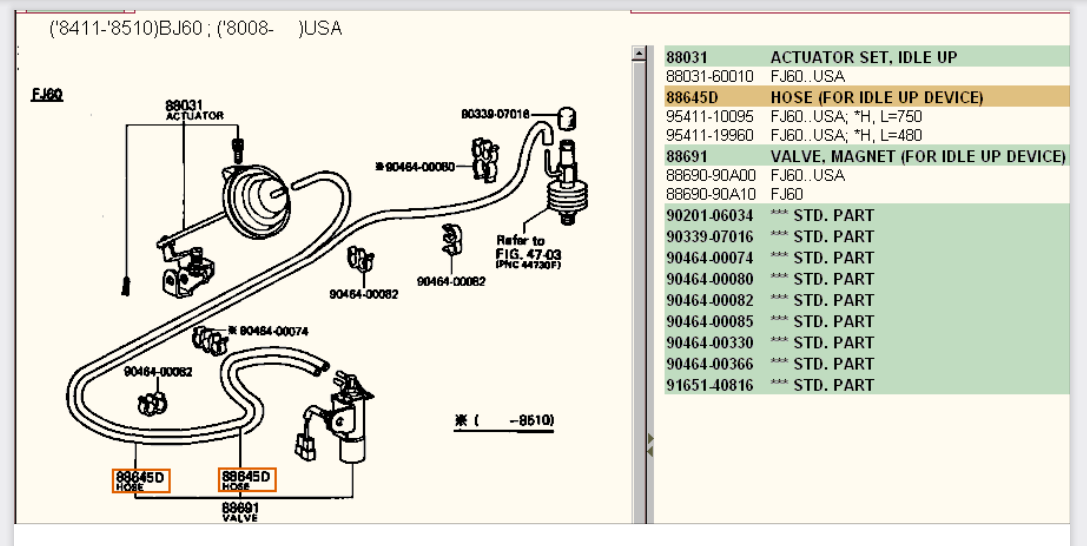

Number 2 is a vacuum source for the AC idle up circuit. That hose goes to a vacuum switching valve mounted on the drivers side fenderwell. From there another hose goes to the AC idle up actuator which is mounted on the front side of the carburetor.

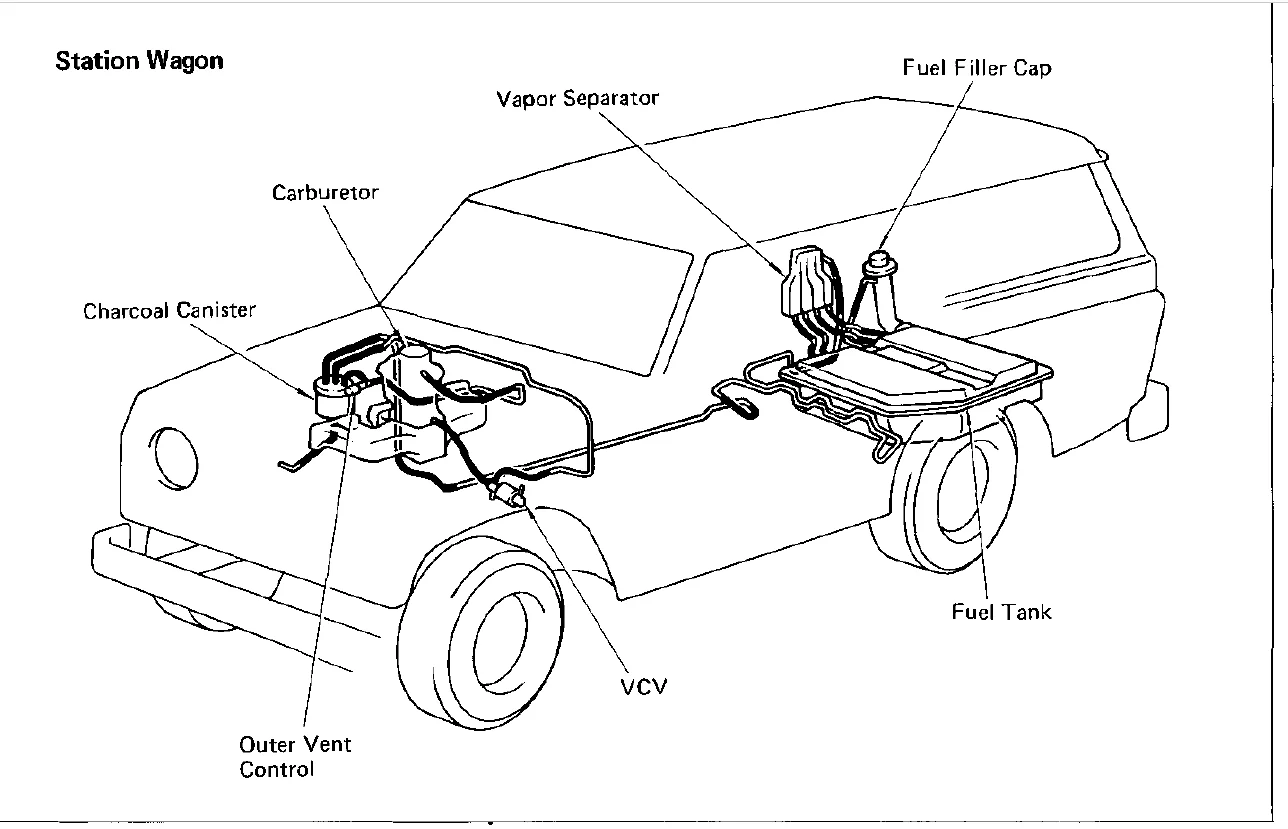

Number 3 is the float chamber vent associated with the Fuel Evaporative Emission Control system. The port is connected to the outer vent control valve located on the passenger side of the engine near the charcoal cannister.
