78 FJ40 Fuse Panel Question (1 Viewer)

Joined
Aug 16, 2014
Messages
334
Location
North Texas

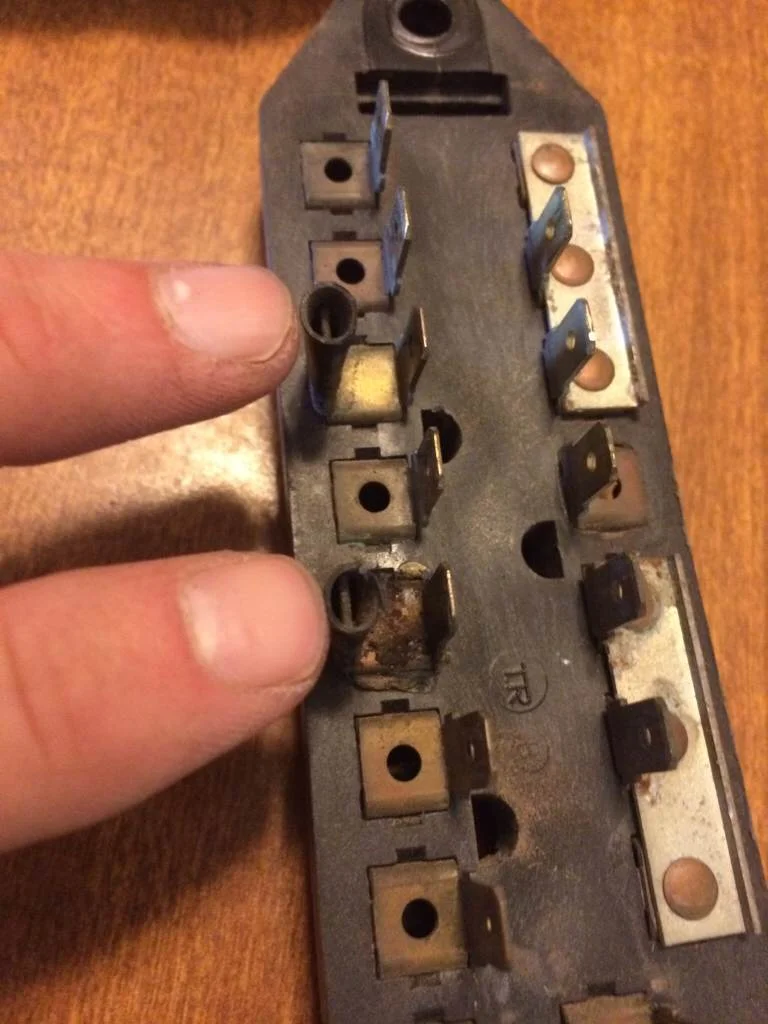

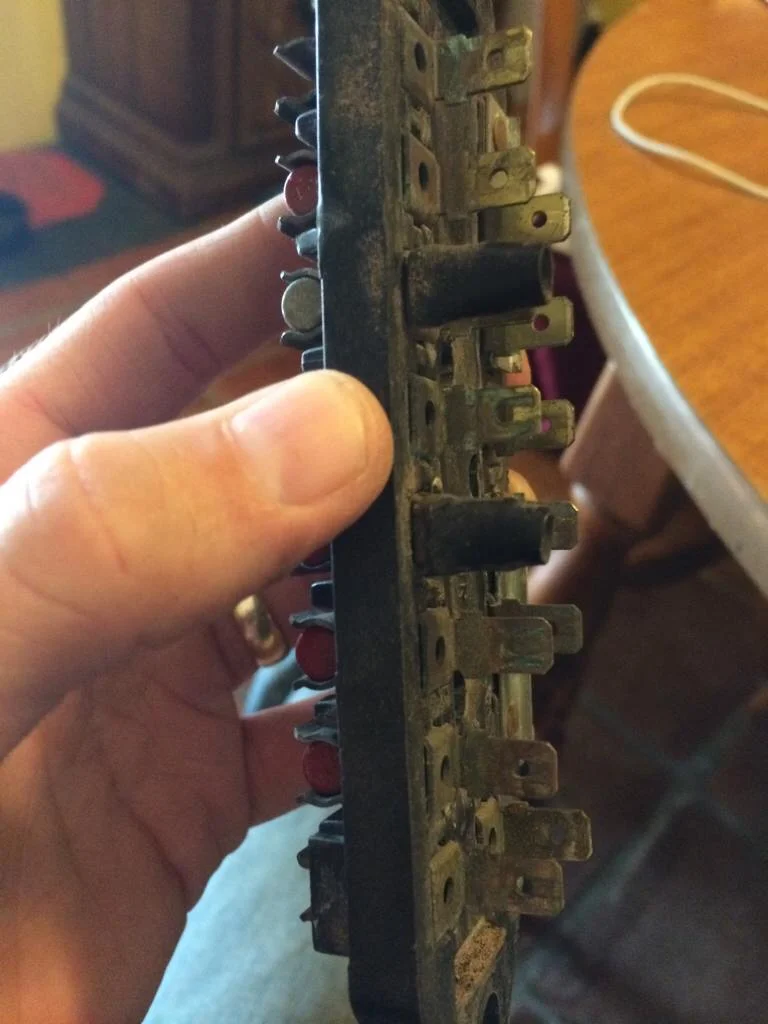

In the attached pics you can see my fuse panel I removed from my 78 (10/77) 40. My question is what are the two black parts sticking out from the back if the panel where I unplugged it? It looks like something possibly went in there but there was nothing when I pulled it.

ImageUploadedByIH8MUD Forum1410649981.180298.jpg


ImageUploadedByIH8MUD Forum1410650002.846317.jpg


ImageUploadedByIH8MUD Forum1410650016.748743.jpg

Joined
Jan 22, 2007
Messages
2,942
Location
Alva, Fl.
I have the same setup on my 77. I think they may be extras for future 12v to whatever-don't have my 78 wire diag in front of me, so not sure if they were used latter than 77.

Joined
Apr 29, 2012
Messages
258
Location
Bend, OR
if you look at the front cover, one tab should be associated to a constant power fuse and the other to a switched power fuse. they are accessory tabs for things like the interior lamp above drivers head on left. that goes to constant. the other can go to anything you want on a switched power source, amp for radio, etc.

the black sleeve is simply an insulator so if nothing is attached it wont short out.

andy

Joined
Aug 16, 2014
Messages
334
Location
North Texas
Ok. Thanks. I put it back together after cleaning it up. My headlight switch has issues I think. One of these days I will be able to get it out.
