77 apron gasket/shim clips

[FJROSS]

Would anyone know if the clips that hold the apron gaskets to the cowl are still available from Toyota. Part number??

Thanks,
Dave



[Living in the Past]

I see five different part numbers for the clip 3/69-9/83. What month and year was the apron from?



[Engineer8000]

I recently tried to order but they are on nationwide backorder. I bought the door window rubber clips instead, appear to be the same part.

window felt clips

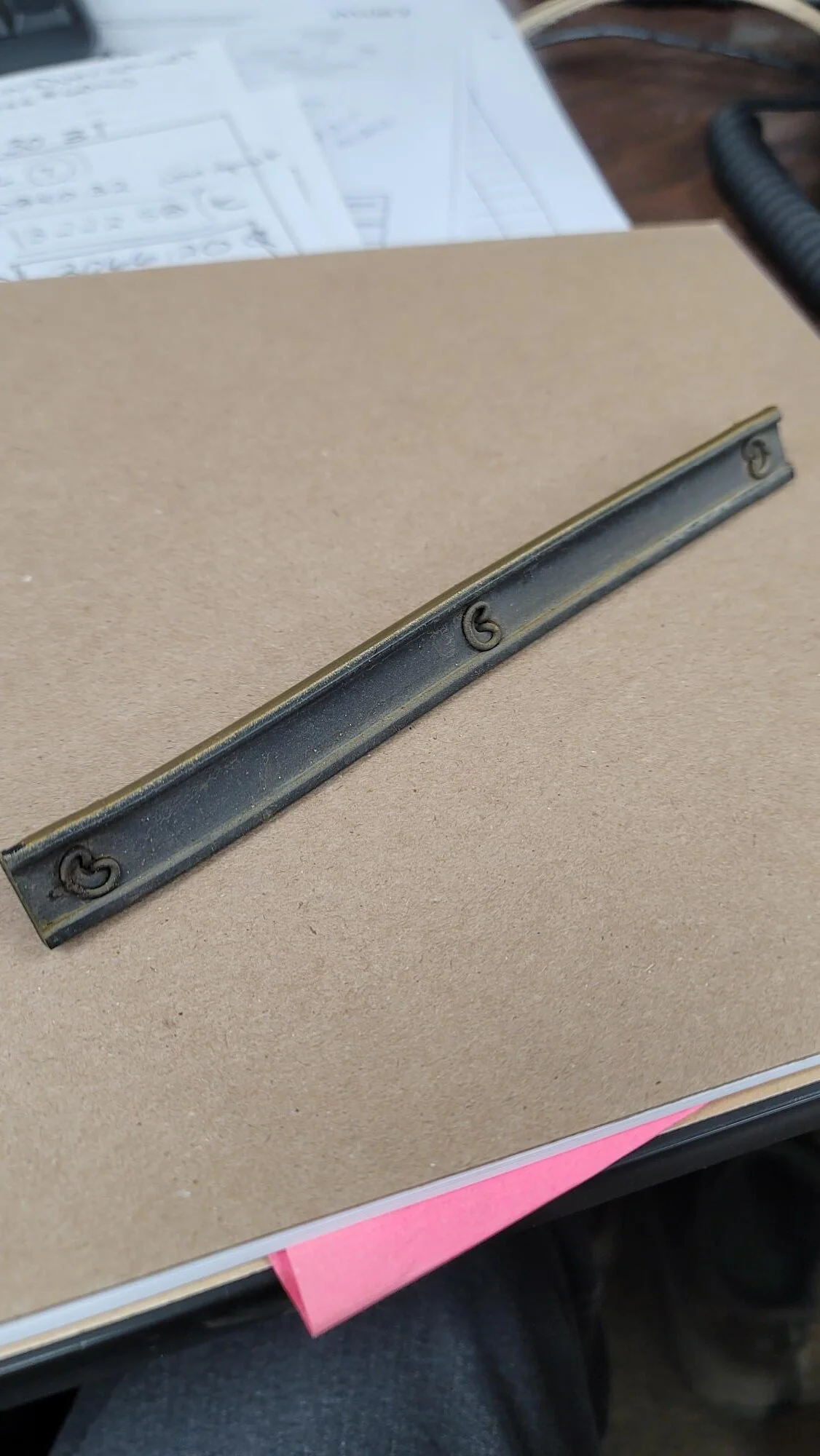

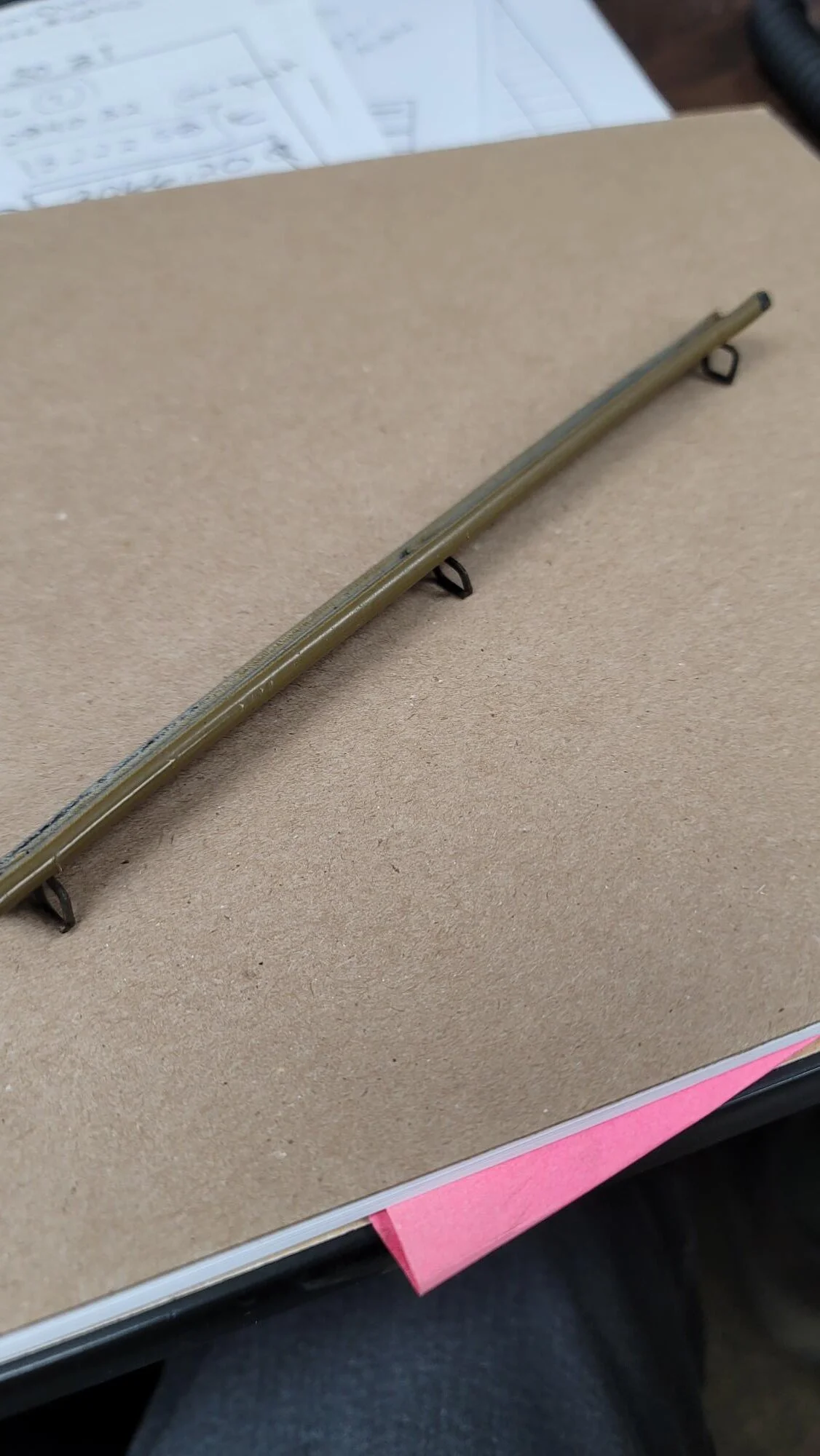

I took this picture to show the differences between clips (left to right): 90467-07160 (door window felt and squeegee) 90467-06034 (apron shim) 90467-11003 (body mount shim) I don't really see any difference in the first two part numbers. Maybe the plating is different?

forum.ih8mud.com



[GA Architect]



[devo]

Is the apron gasket still available?



[OGBeno]

Is the apron gasket still available?

Yes. 53359-90301.

Clip: 90467-06034



[FJROSS]

Yes. 53359-90301.

Clip: 90467-06034

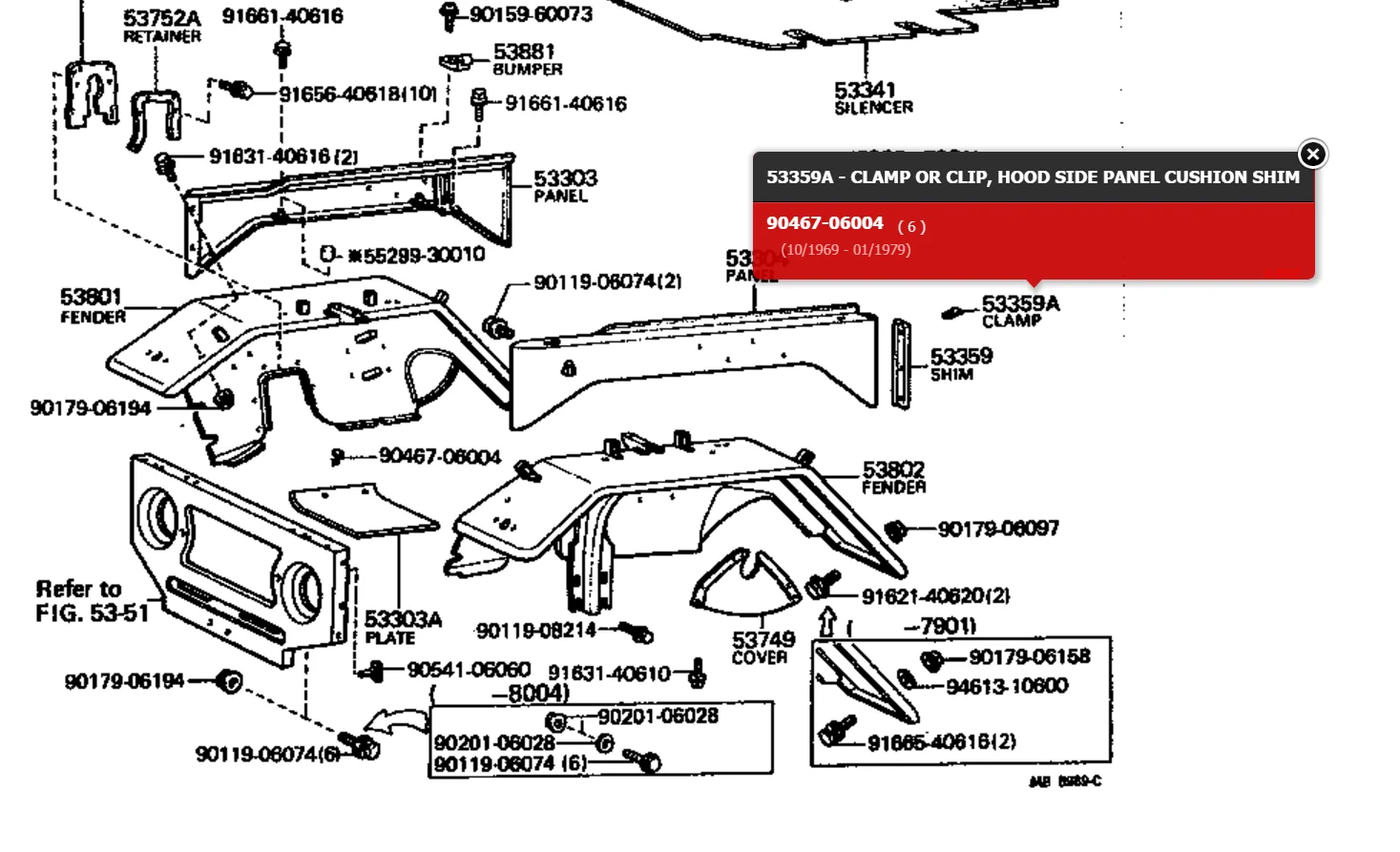

So GA Architect posted up the clip as 90467 06004 opposed to 90467-06034. When I look them up online, they both come up as (clamp or clip/hood side panel cushion clip) Are they same?



[OGBeno]

The number I posted is correct.



[FJROSS]

I see five different part numbers for the clip 3/69-9/83. What month and year was the apron from?

3/77



[Living in the Past]

The number I posted is correct.

For what time frame. I found five different parts numbers for the US market 3/69-9/83.



[FJROSS]

The number I posted is correct.

Thank you!



[Living in the Past]

3/77

10/69-1/79 is 90467-06004.



[Living in the Past]

Thank you!

The 34 part number shows 1/79-7/80. Then two more after that. That part number change was 10/81.



[OGBeno]

10/69-1/79 is 90467-06004.

It supersedes to the part number I posted above.
