Wanted 3-way Brake Line Junction (Found)

[SuperDuperCruizer]

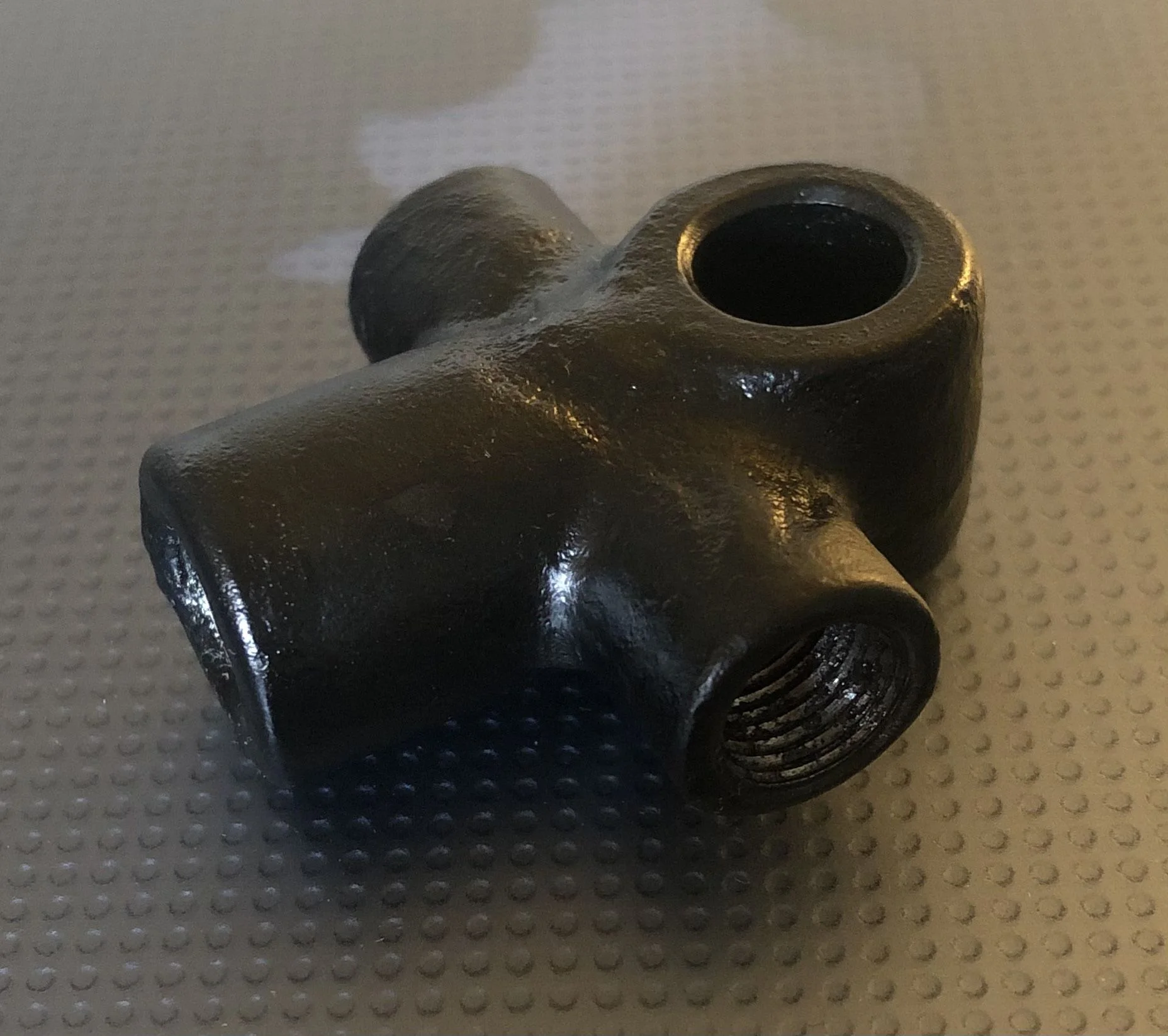

Looking for the following 3-way brake line junction (1 brake hose, 2 ports for hard lines) as pictured. M10 x 1.0 threads all around:



[Krondor]

Can't help you with OEM but here is an aftermarket solution that I used.

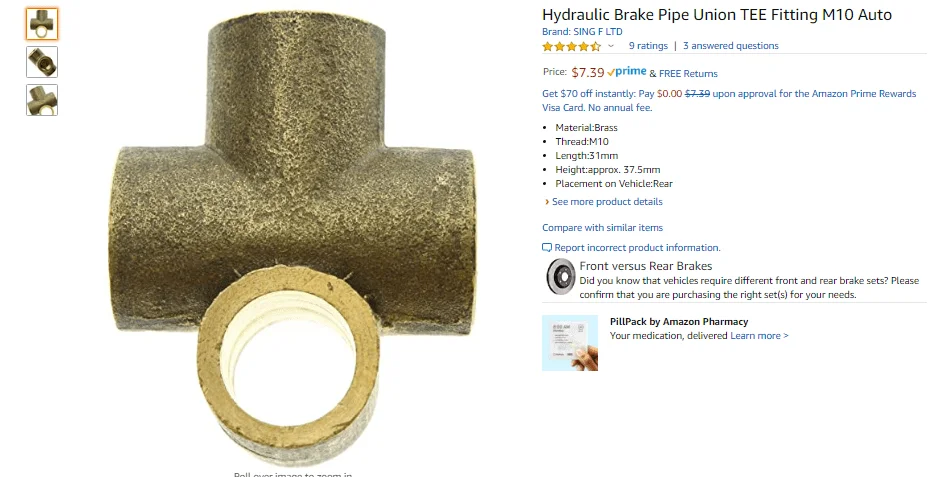

edit. amazon link not working so here is a screen shot



[3_puppies]

brass? for brake line parts?



[Krondor]

Wouldn't see that as an issue. Standard Nickle-copper brake lines has a yield strength of 16-22 MPa while brass has a yield strength of 135 MPa. Most standard automotive brake systems will have an absolute max pressure of 9MPa. I would assume that the brake line would fail before this fitting.



[SuperDuperCruizer]

A number of these metric junctions are for VW’s with a bubble flare. So, even though the threads match the tube seat is wrong. I’d still prefer a used Toyota part in good condition if someone has one laying around collecting dust.



[Krondor]

The one I posted is Not for a bubble flare. It is an inverted or double flare fitting. You’re right, it took a while to find one that was not a newer style bubble flare.



[pardion]

I have good used Toyota junctions like your photo.
PM if still needed. John



[SuperDuperCruizer]

Found what I was looking for. Thanks for the replies.



[JADCRUISER]

I have good used Toyota junctions like your photo.
PM if still needed. John

Hi do you still have one?
best regards



[65swb45]

A number of 9mm and 10mm fittings are available
