2001 lx470 w/ Lexus premium sound radio wiring harnes

[FL LX470]

hello,

I know this Topic has been exhausted, but in trying to find a suitable wiring harness for my 2001 lx470 with the premium sound 7 speaker system, I came across this Beat-Sonic SLX-82AAD (slx82aad) Aftermarket Factory Amplifier

it seems to be a plug and play harness for non-nav,premium sound (7speaker) units such as mine. Does anyone have any experience with said harness? I couldn’t find anything in the searches. Thank you in advance.



[aceLX470]

If you have the mark levinson system, this Metra TYTO-01 worked for me and retained the factory amp.

https://www.amazon.com/Metra-TYTO-01-Amplifier-Interface-Harness/dp/B00133RCCC



[FL LX470]

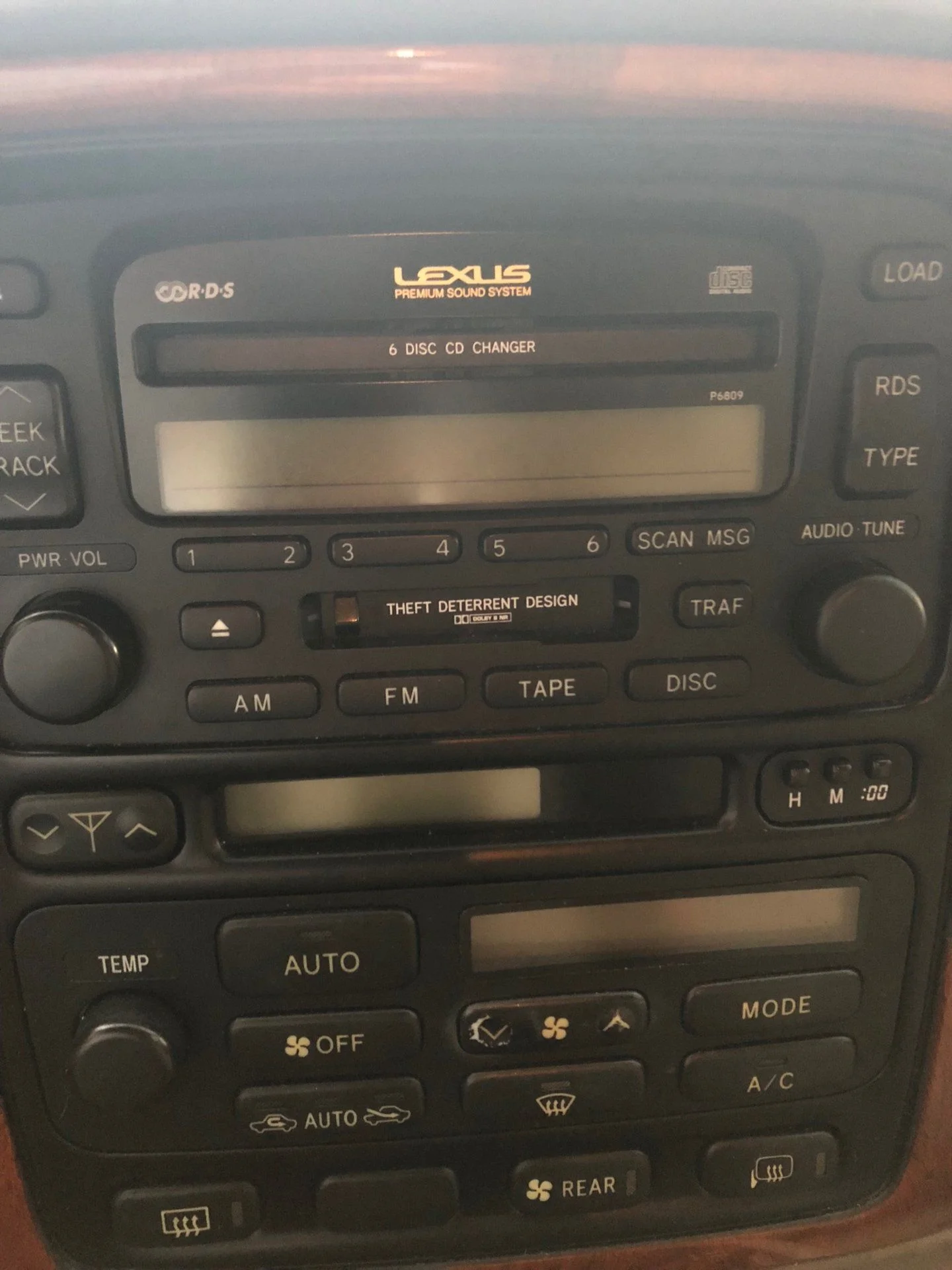

Thank you I will look into that product now. But the thing is, I have 7 speakers well 6 plus sub and this is what it looks like in front. Says: Lexus premium sound p6809




My in dash nav is en route and will be here this weekend. It has a wiring harness with it so worst case I am solder sealing and matching wires. I haven’t opened her up yet to see what the harness looks like since my radio is working and want it to remain that way till I have my replacement. Any thoughts are much appreciated.



[toyotaspeed90]

Just bypass/remove the stock amp....



[FL LX470]

Ok my new nav arrived today and I popped the dash open. 20pin connector. I have cross referenced all the pinouts with the corresponding wire color and function. I have 2 dilemmas, First, the factory harness has amp(+) and amp( -) the new harness has only one wire for remote power on(amp) ? Can I ground (-) this to the truck? If not then where can I ground it? Also my illumination wires can you tie +/- together to the one wire on the new harness? And what does the secondary ground do? Is it necessary? I want to use the factory wiring. No rca outs. Any thoughts would be much appreciated



[toyotaspeed90]

2001 LX470 everyday/4WD build/use (on the cheap)

Post numbers 13 and 14, my 01 LX had a 20 pin connector.

I found that the pinot diagrams, at least on my vehicle, were not quite accurate to those I've found online. Get a multimeter out!

Mine was a ML radio.



[FL LX470]

Thank you. My factory deck is a pioneer unit and I found its online manual with its pinouts. I am getting it all together now. I think I am ready to start shipping wires. One thing is can I tie both the positive and negative illumination wires together from factory harness to new harness?



[FL LX470]

Alright, after much hesitation and reading I have snipped the few wires @ the factory harness to power the new harness. Victory, I have power to the head unit! Working as factory. Now for the sound, I am bypassing the amp. I have run new speaker wires from the amp to the console. I know I need to get the factory speaker wires to my new head unit. Do I attach speaker wire to RCA? Or just go speaker wire to speaker wire? At the new headunit?
