Wanted Wtb: 1hdft alternator 96 hdj

[hdj8081]

Location

United States

Looking to a used rebuildable or reman 1hdft 12v alternator. Il be using it as spare since im doing long trips with my 81. Thanks in advance



[torfab]

A 1FZ alternator will work just fine, anything from a 93-97 FZJ80



[hdj8081]

Is it including the brackets like bolt on?



[TVOmax]

The charge wire on the alternator is in a different location, you can usually reroute some of the harness to 'lengthen' the wire. Or replace it like I did. Otherwise, they bolt up. You'll need to swap the pullies from your HDJ alternator to the new one.



[67azcruizr]

Looking to a used rebuildable or reman 1hdft 12v alternator. Il be using it as spare since im doing long trips with my 81. Thanks in advance

amperage? I'm guessing 80A?



[lynchmob]

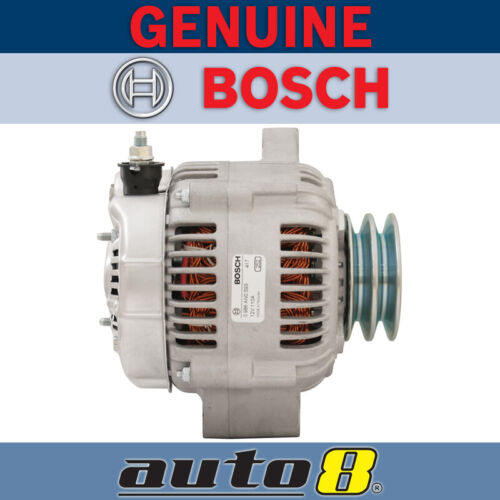

Genuine Bosch Alternator for Toyota Landcruiser 4.2L Diesel HZJ80 HZJ105 1HZ 4047023094896 | eBay

Find many great new & used options and get the best deals for Genuine Bosch Alternator for Toyota Landcruiser 4.2L Diesel HZJ80 HZJ105 1HZ at the best online prices at eBay! Free shipping for many products!

www.ebay.com



[torfab]

The wiring can be the same, only the early 1HD's had the round plug. This 96 likely has the same oval plug as factory, and I don't think the pulley needs to be changed
