These three weren't connected to anything on mine, and am wondering what they are for.
Trying to ID some connectors under center console of 2004 LX470. (1 Viewer)
- Thread starter Hatsuwr
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
- Thread starter
- #2

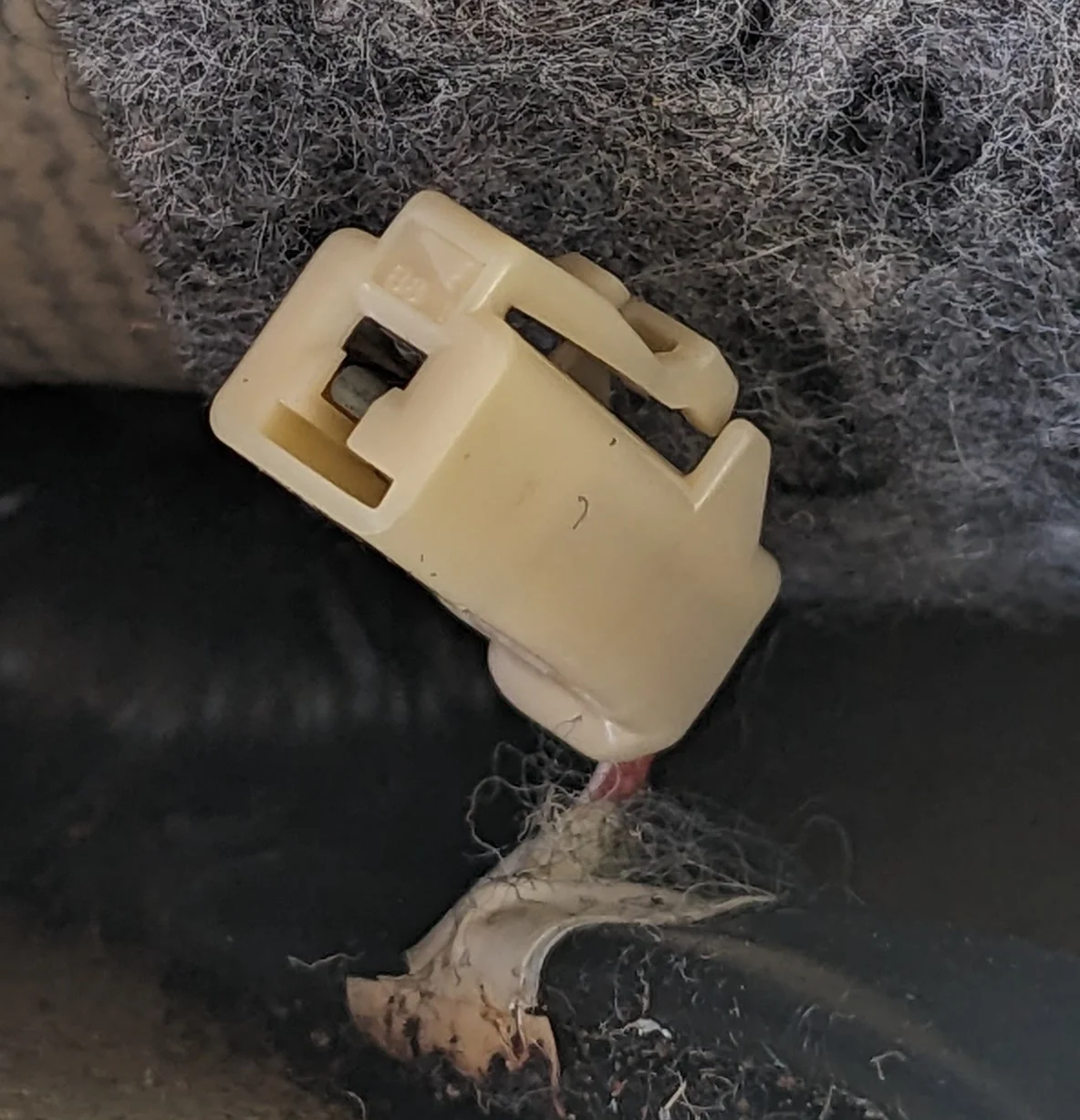

Found one more under the carpet, just to the right of the center console:
- Thread starter
- #4

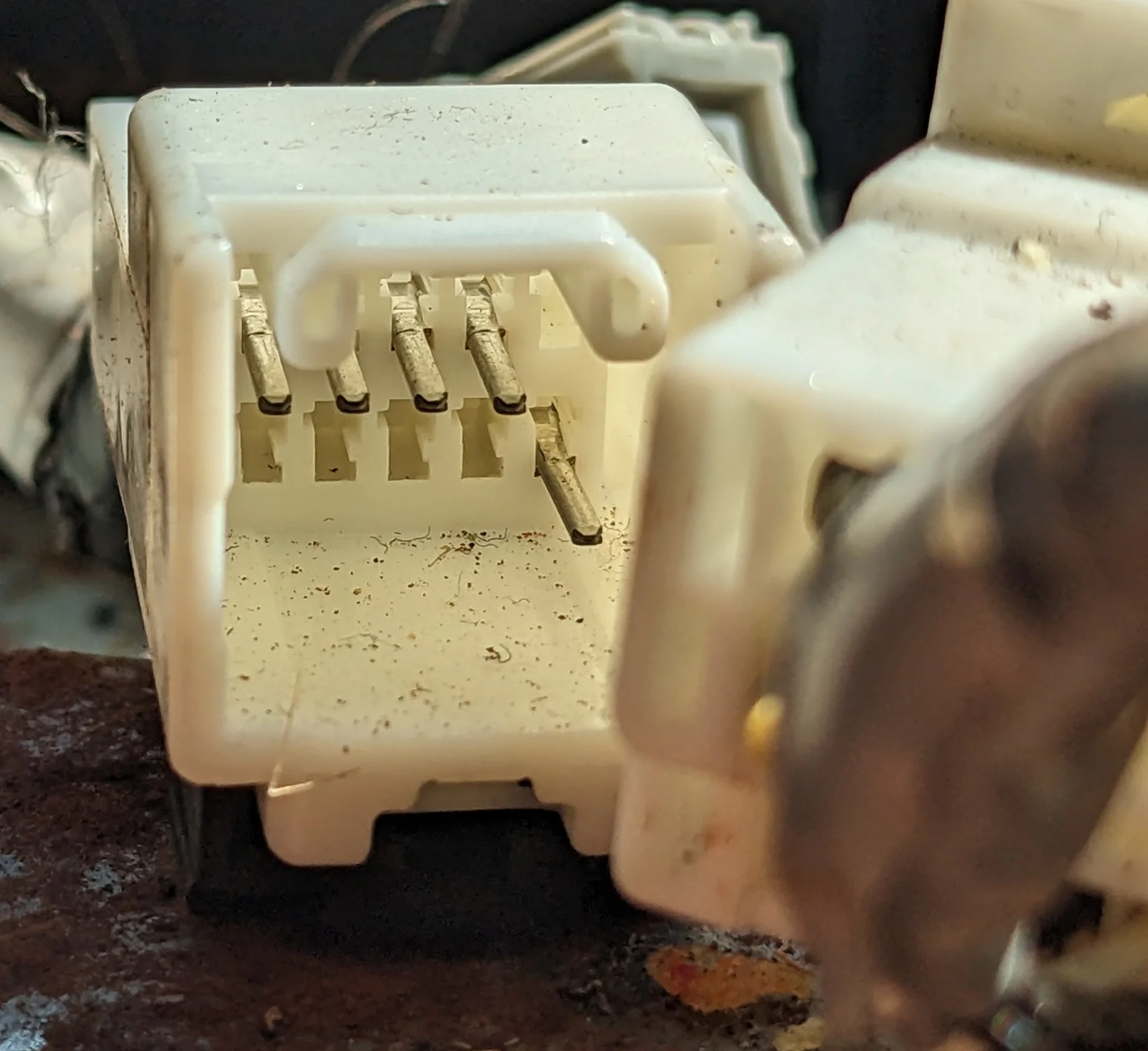

Already checked the EWD, with no luck unfortunately. Unless I'm missing something, there's no good location reference for the connectors. Trying to ID by wire color isn't much help since three of those are single wire (two are black, one red/white). The 5 pin connector is interesting. The wires are Black/White, Blue/Red, Brown/Green, Brown/White, and Black. I couldn't find matching references to those more uncommon wire colors.
Although I do think I figured out the Red/White wire connector in the second post. Seems to be for the parking break on RHD vehicles.
I did read that some non-US models came with a center console cooler. If so, that might explain the 5 pin and the 1 pin next to it. Can't find any pictures for EWD references to confirm that though, and don't even have a guess for that blue connector toward the front.
Can you by chance stick a multi-meter in them and see if they are live? I'm not that old, but blue connector looks like an older cell phone style connector. You have to remember, these trucks came in so many different setups that there will always be plugs unused and probably not in EWD's unless it's in the correct market.
2004 LC - I just had my center console out and found this same single pin connector under the carpet on the passenger side. Didn't happen to see any of the others. I'm also missing the harness that loops back into itself next to the seat heater connectors.
Edit - checked my wiring diagram, no sign of an unused single pin connector in the whole truck.
Edit - checked my wiring diagram, no sign of an unused single pin connector in the whole truck.
Last edited:
BullElk
SILVER Star

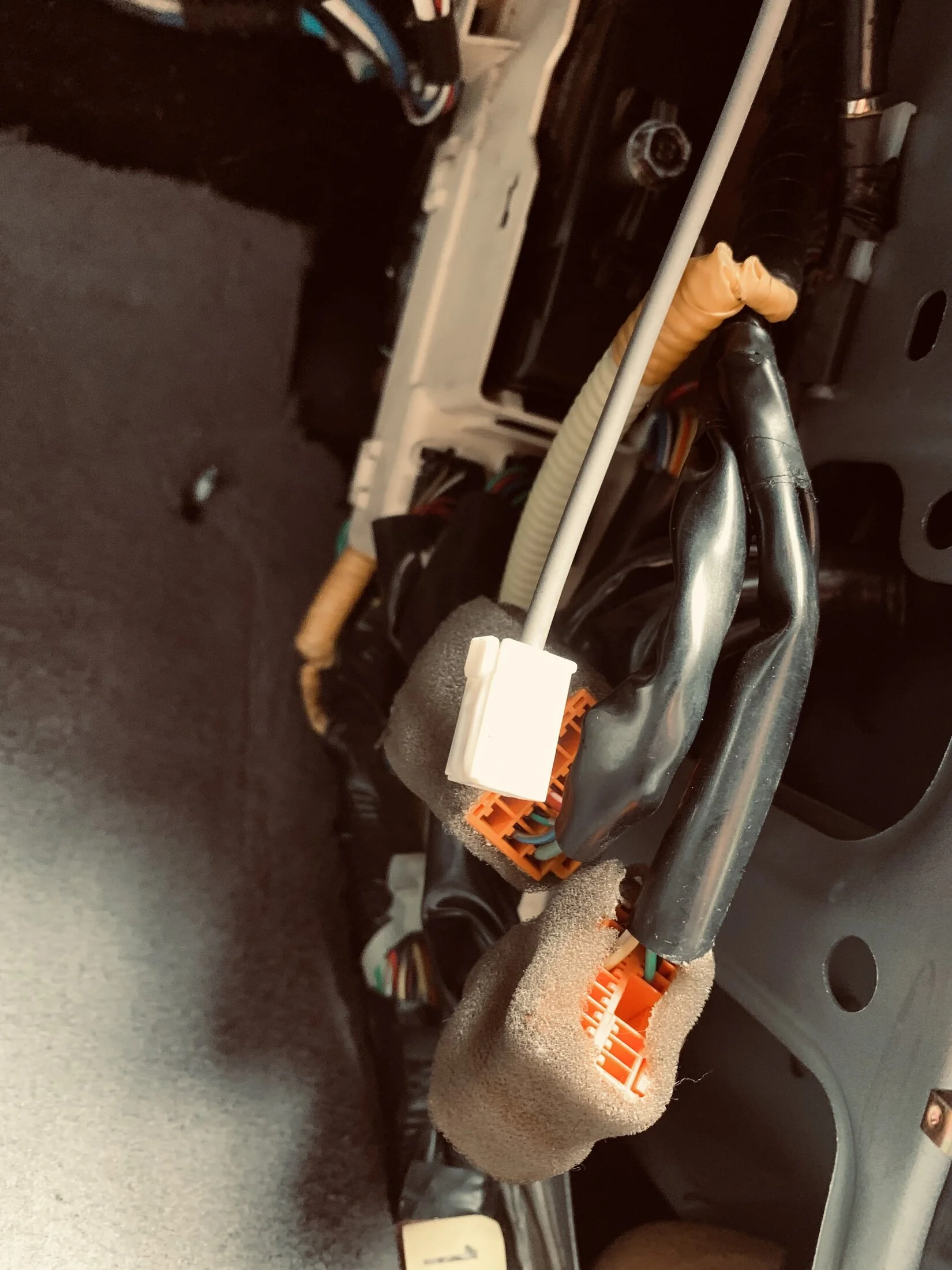

I had a similar single pin connector thingy located on PS behind plastic cover below glove box.
- Thread starter
- #8

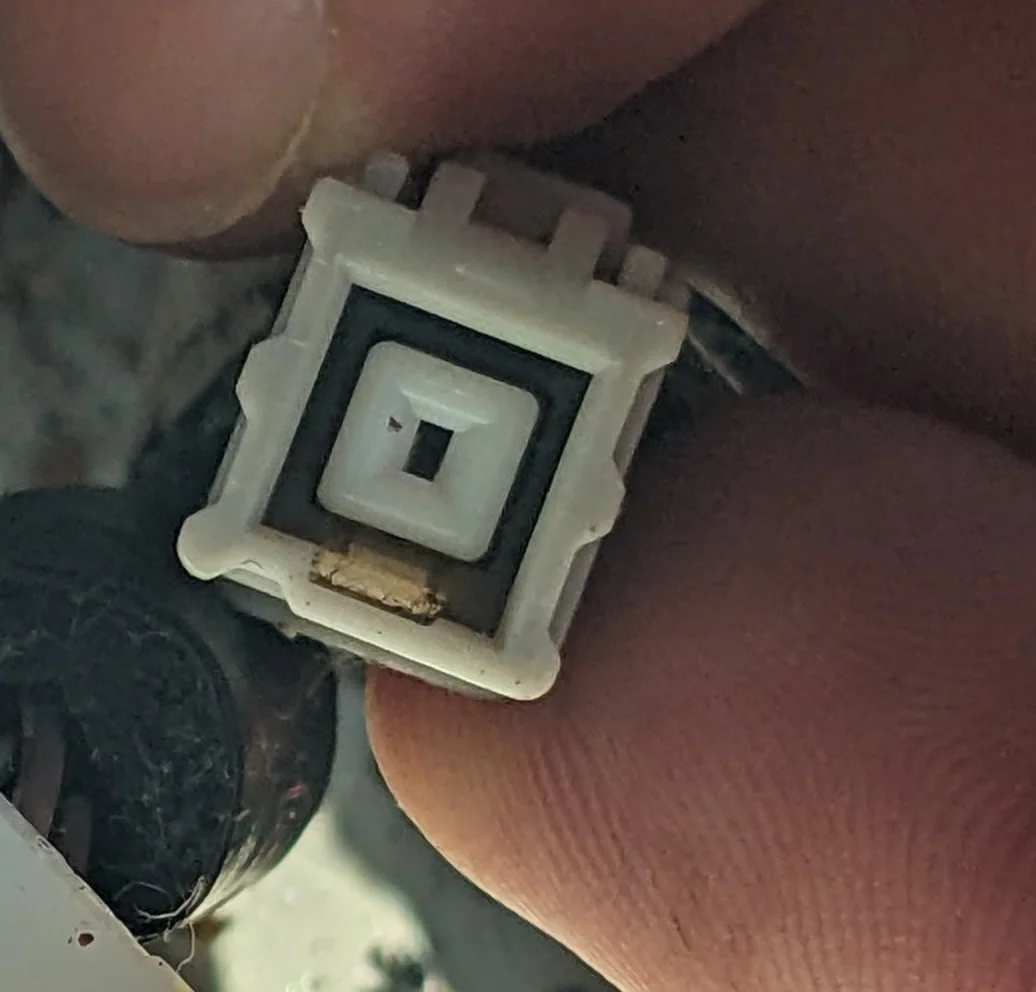

Interesting... Well, for those two connectors below the shifter, they seem to be related to the Lexus Link system. The single connector matches all references to connector M11, except that the actual pinout diagram of M11 shows 10 pins, which matches the connector next to the single connector. I'm assuming there's just a mistake, and both of those are for the Lexus Link system that I don't have.

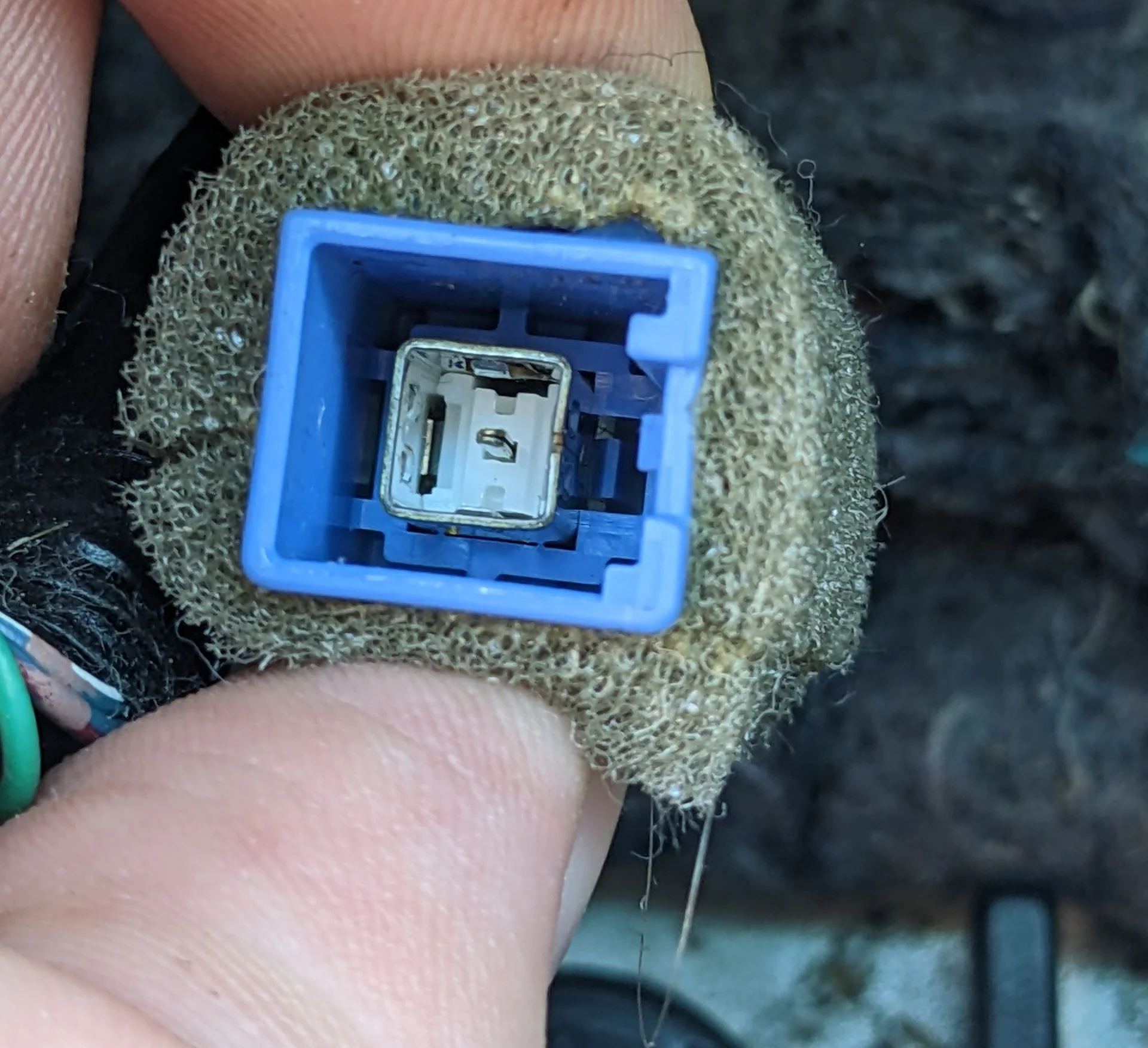

If so, that just leaves the blue single connector in front of the shifter.
If so, that just leaves the blue single connector in front of the shifter.
