T100 4x4 IFS pic/info request (alignment/ torsion bars / ride height) (2 Viewers)

[dbleon]

TLDR:
The ride height specs/method outlined in the FSM are not clear to me

Adjusting torsion bars… what’s a good way to set ride height? Droop? Hub to fender rake front/rear?

Can anyone share reference Pics/measurements from underneath front of truck looking straight back??
Distance between LCA and bump stops, LCA angle, hub to fender measurements, etc etc

Looking for stock specs/references/pics


Long story:
I completely removed a 3” trail master bracket lift that the PO installed. Returning the T to factory configuration. I’ve got the lift off and everything bolted back together with new steering parts/ joints and shocks. I’ll be going in for an alignment soon and want to dial in the ride height before I do.

It’s obvious that I have some adjustments to make on the torsion bars because I have a lean and one lower control arm is pitched lower than the other ( not equal)

Without getting too scientific here, what’s a good method for setting the ride height before I go for an alignment?

I’m noticing that the camber adjustment is maxed out on the passenger side (where the LCA is pitched down a bit).. currently camber is close to 0*. This would indicate that I cannot raise this side any more or I would end up with positive camber that I cannot adjust out. Correct?

Driver side the LCA is almost parallel to the ground but still has some camber adjustment left (again sitting at close to 0* now)

Plan of action?
-Raise driver side to be similar hub to fender measurement? Nearly max out the camber adjustment and hope it aligns.

- lower pass side equal to drivers side? .. gain some camber adjustment .. should align fine

I doesn’t seem right that the LCA angle is almost level with ground.. should have slight pitch down? Also truck would stink bug quite a bit in this configuration.

Is there a stinkbug from the factory?... most pics I found show truck pretty level.

Any suggestions ?

Thanks



[gnob]

How to Properly Adjust 1st Gen IFS Torsion Bars to Factory Specs (Via the SM) - YotaTech Forums

86-95 Trucks & 4Runners - How to Properly Adjust 1st Gen IFS Torsion Bars to Factory Specs (Via the SM) - I decided to create this write up to assist with those of us replacing torsion bars, repairing or restoring a front end. There has been a ton of mixed information floating around the 1st Gen...

www.yotatech.com



[dbleon]

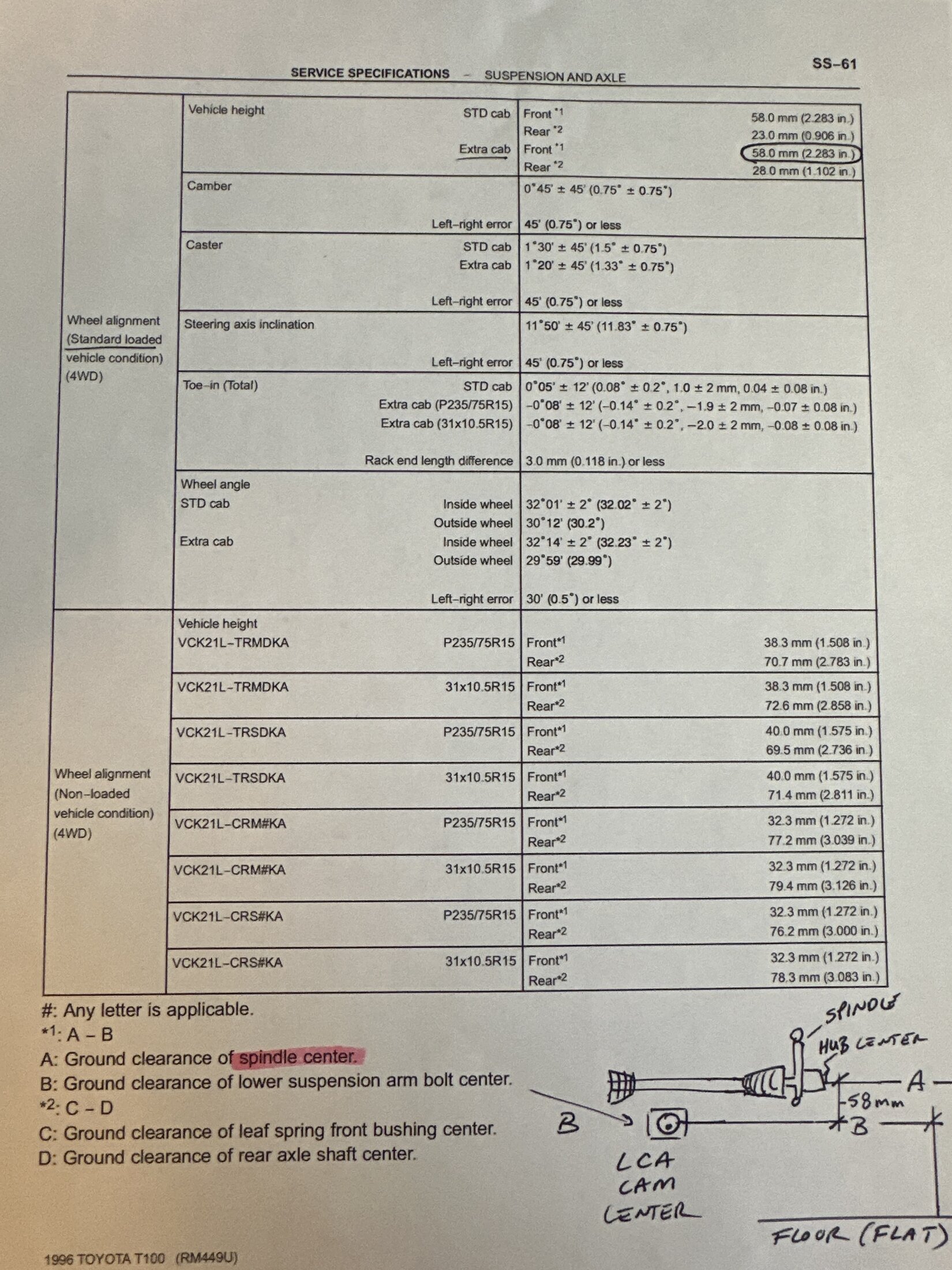

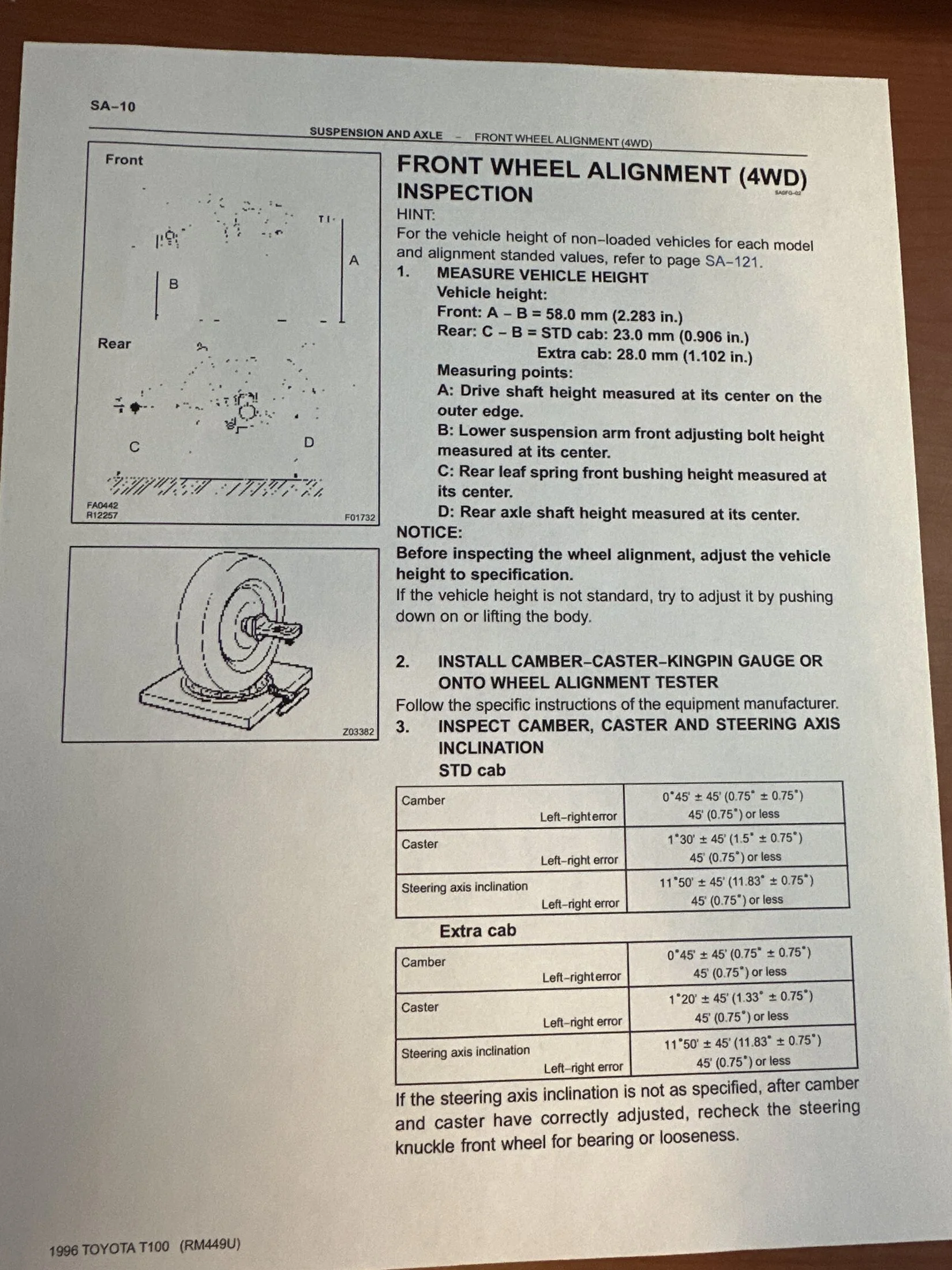

Theses are from the FSM. It lists different values for loaded and unloaded conditions .. and it’s kinda confusing me on where to start. What does loaded mean ? With gas and passengers ?

I thought it might be easier to get a rough idea on some preliminary settings from ya’ll versus the FSM



[rscoleman]

I tried doing this once when I replaced my factory torsion bars for +2mm thicker bar for running larger tires. I finally gave up and just took it in for an alignment and asked them to set height as well. I got back perfect set up even with thicker bars. I am still running those thicker bars 25 years later and any time I do an alignment I have them check ride height.



[dbleon]

Thanks for the reply I’m gonna try to get it close and have the shop look at it too



[rscoleman]

Remember to unload front jack it up from frame till both front tires are off ground. Loosen the locking nut and right to raise and left to lower. Hope I remembered that correctly. After any adjustment put it back on ground and bounce the suspension better yet drive it around the block.



[dbleon]

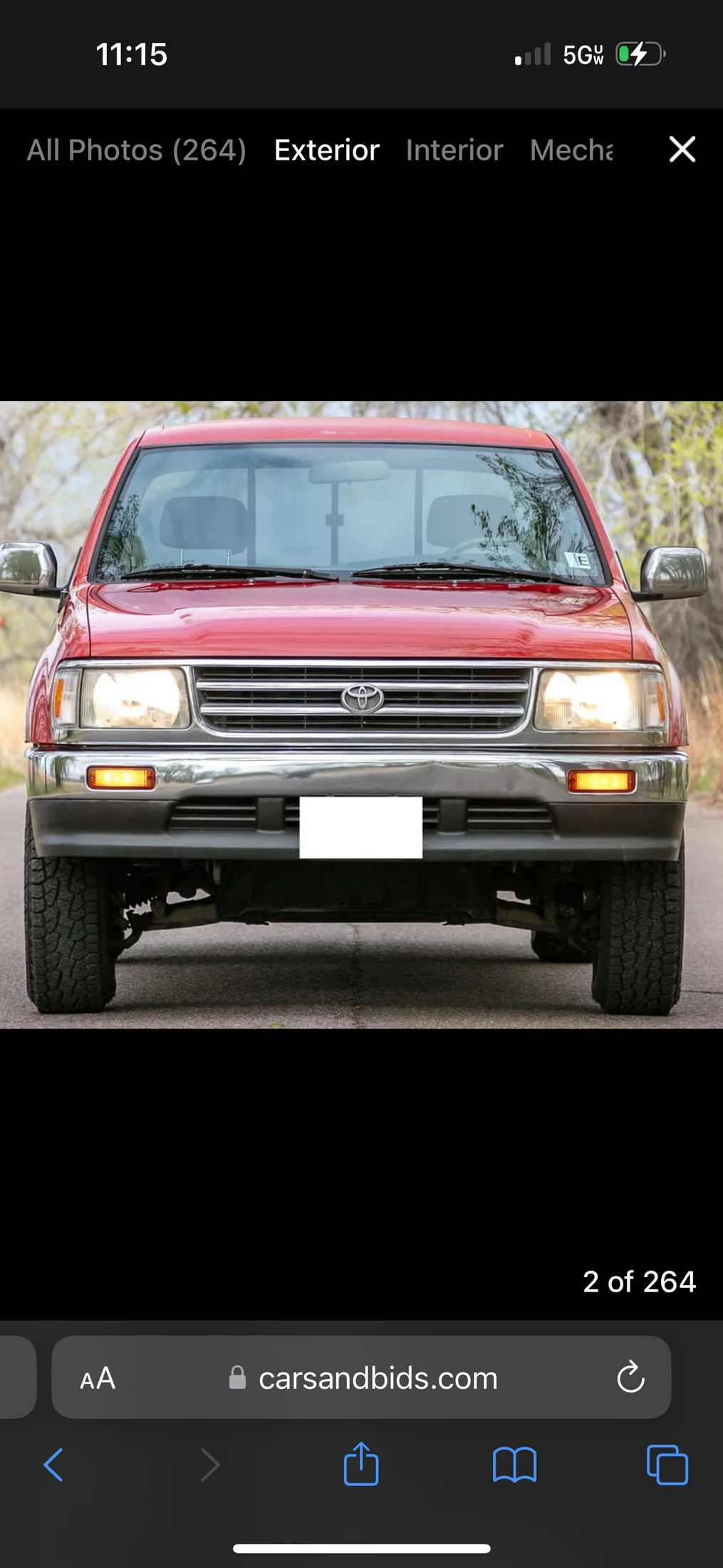

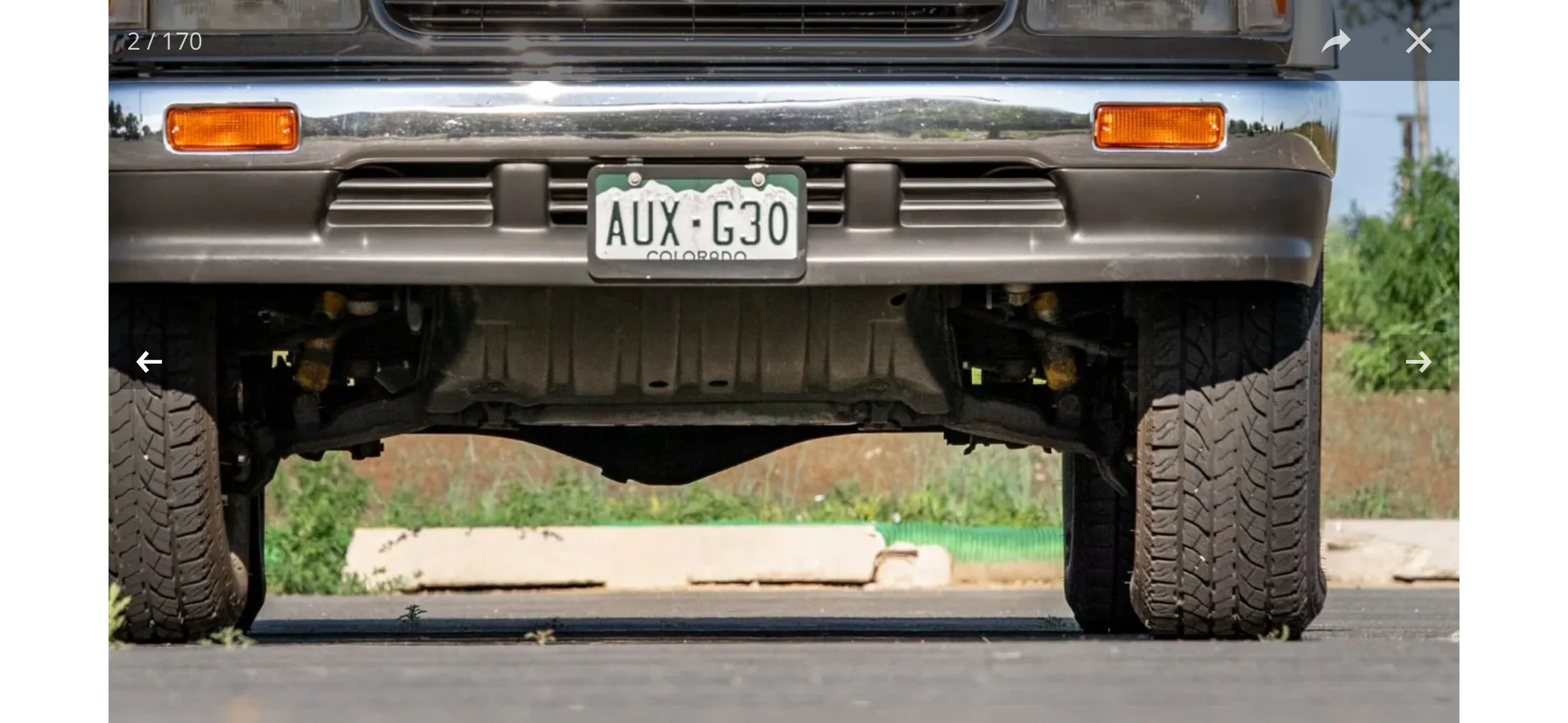

Pics I found of a clean stock truck for reference of the LCA angle



[dbleon]

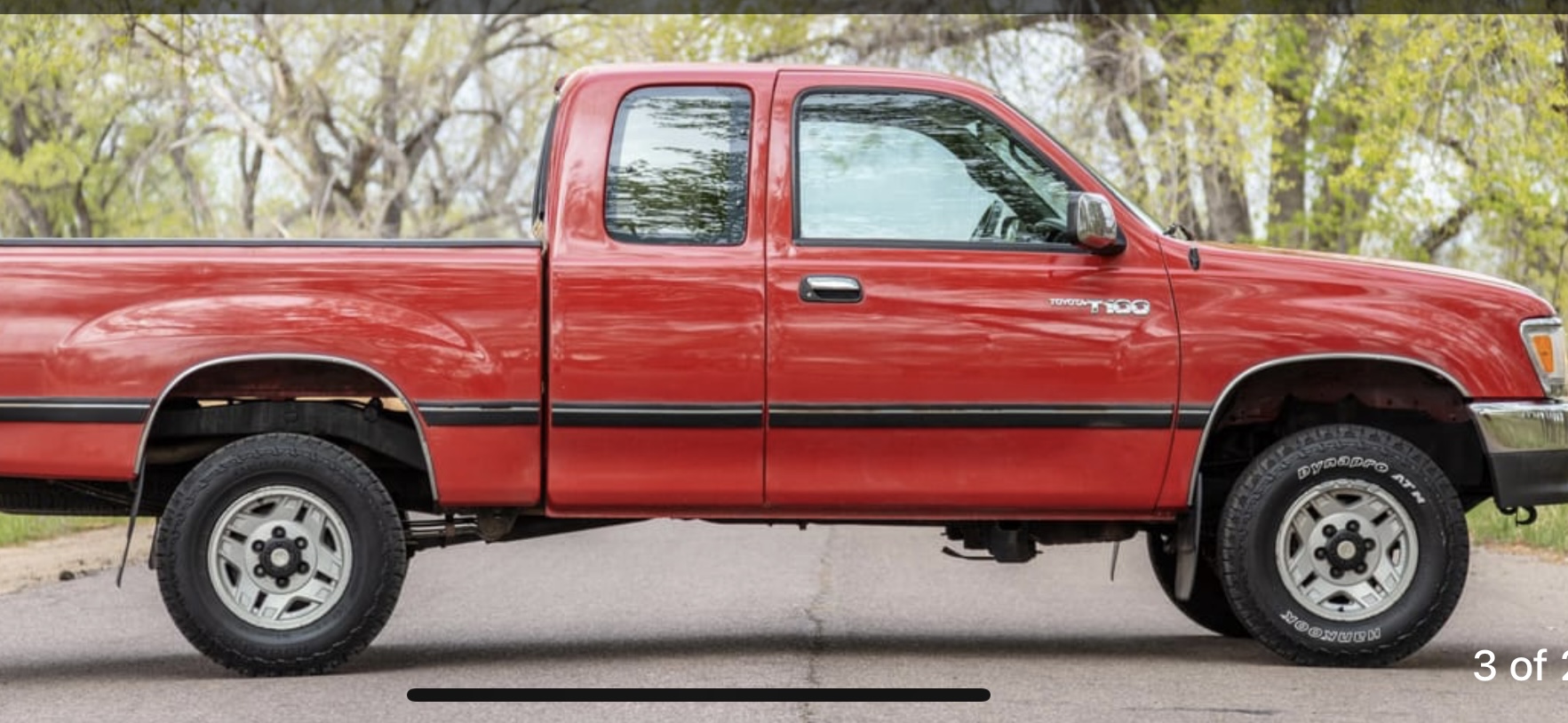

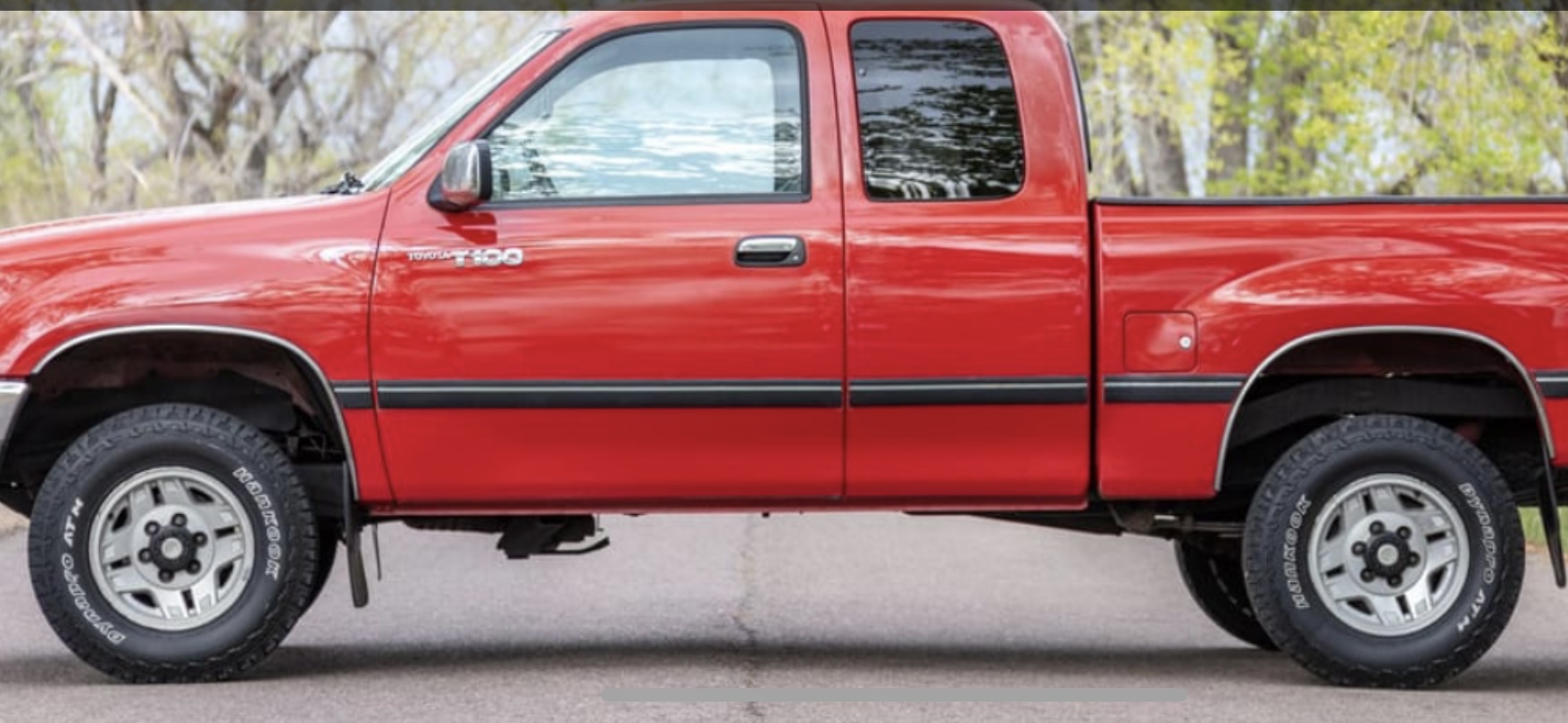

Side profile .. looks like there a just a smidge of rake from to rear . Maybe an inch
