Spare Tire Swing Out Piston Question

[1carnut]

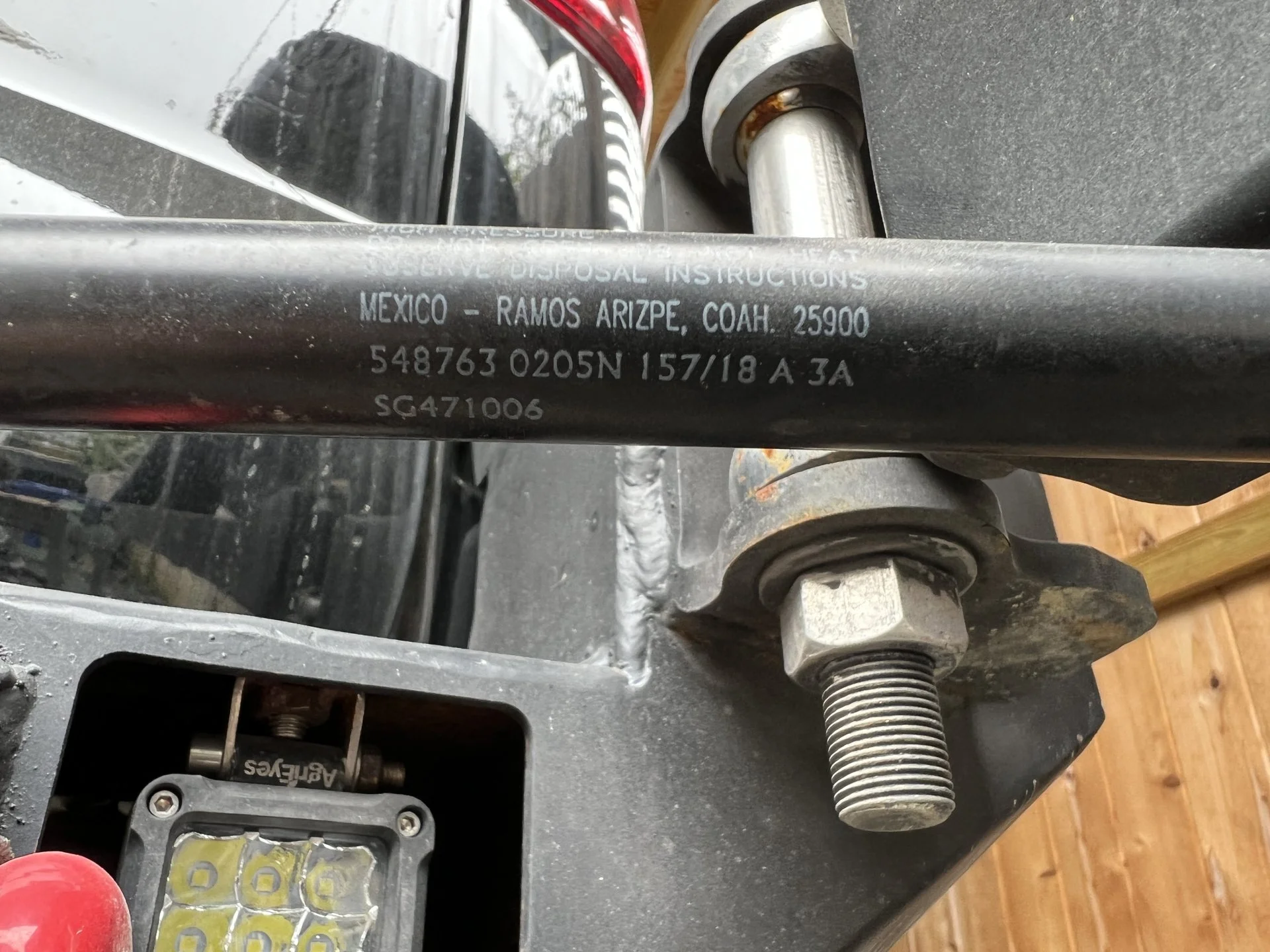

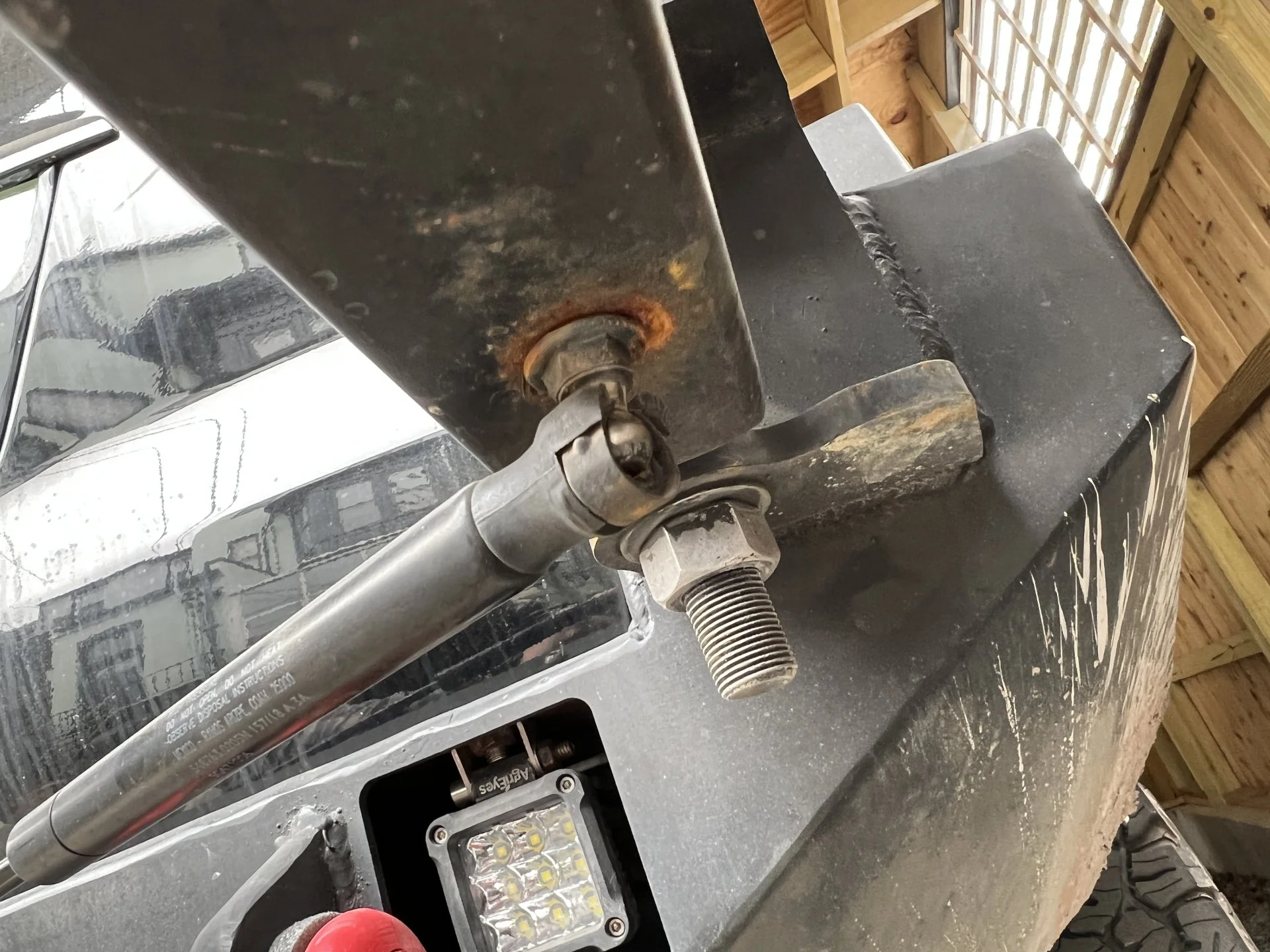

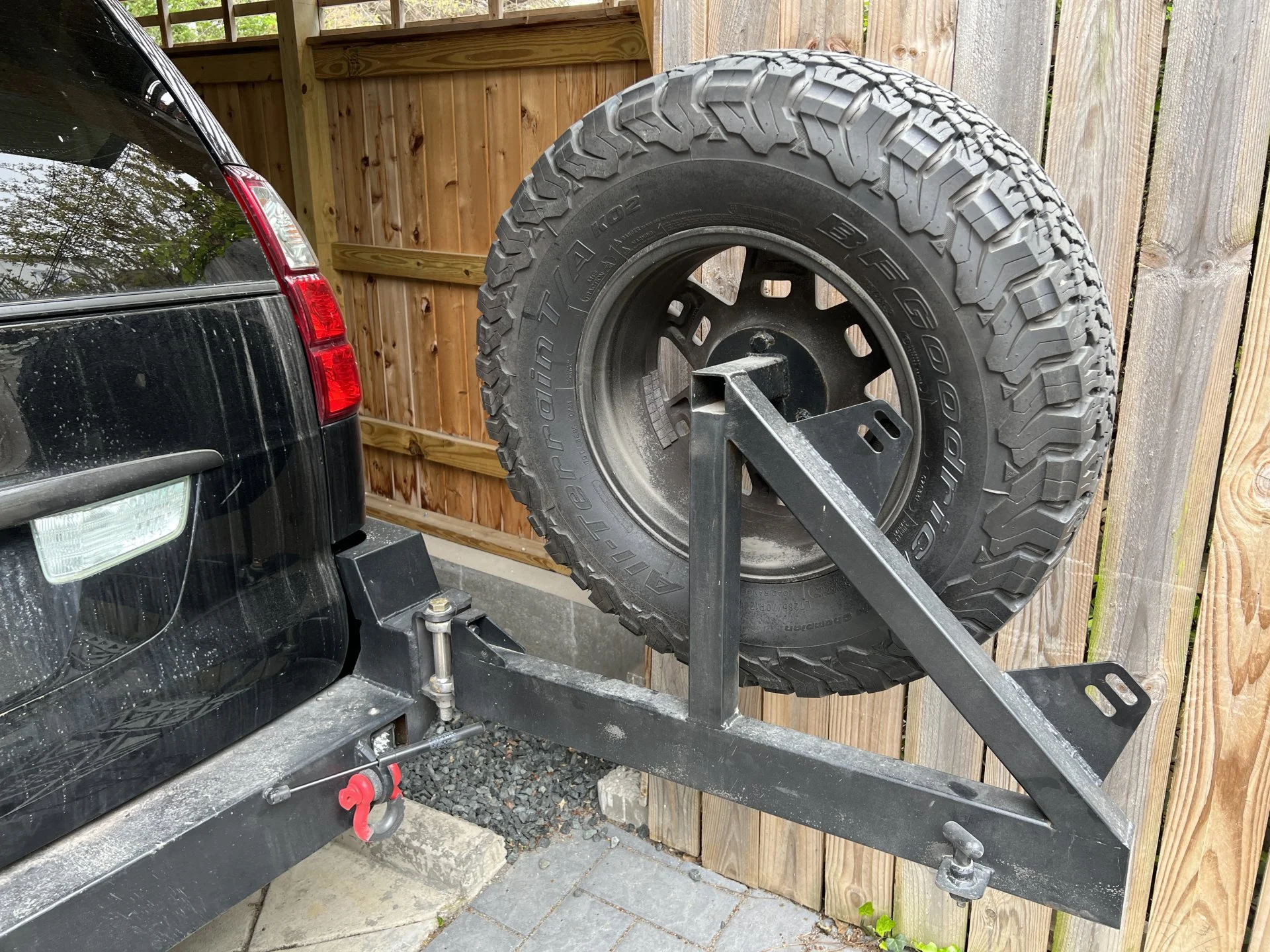

Seems the piston on my spare tire swing out wasn't quite up to the task of controlling the weight since it snapped off after the door swung out and that was on level ground. Anyone have any experience with a more heavy duty piston i could add to control the weight, speed and travel of tire swing out? Here's what i have now that busted.



[GXO]

Measure the distance stud to stud both open and closed. Take the open and closed distance and the stud size (looks like 10mm) and head to Custom Searches | Find What You Need at Lift Supports Depot - https://www.liftsupportsdepot.com/custom-search/ and put in the extended as max and min extended lengths (same value for both) and look for your closed length and strength and socket type (10mm). I found one for mine at 80 lbs.



[Shpnout]

You need a stopper on the swing... the piston and ram are not meant to stop the movement... only control movement between close and open stopper. This piston should be bit longer that the swing range to not bottom out before the stopper.



[1carnut]

You need a stopper on the swing... the piston and ram are not meant to stop the movement... only control movement between close and open stopper. This piston should be bit longer that the swing range to not bottom out before the stopper.

Thanks for the advice. Can you give me an example of what one looks like? My swing out will open Past 90% to like 120 or something so I can see where the weight on it would snap the piston without something else to control it.



[Shpnout]

Here is a pic..... I welded a piece of 1"x .5" on the frame. This is what the swing arm contacts to stop.



[GXO]

I have a steel wedge that stops mine against the quarter panel plate. Stoppers are needed indeed!



[1carnut]

I've got the figure out something for sure before installing the new piston and quickly breaking it. Was thinking of trying to rig up some sort of steel cable maybe so I can remove it when I do want to open the door further



[GXO]

I've got the figure out something for sure before installing the new piston and quickly breaking it. Was thinking of trying to rig up some sort of steel cable maybe so I can remove it when I do want to open the door further

would be easier to weld a wedge onto the bottom of the arm that hits the metal on the bumper at the desired position.



[1carnut]

would be easier to weld a wedge onto the bottom of the arm that hits the metal on the bumper at the desired position.

View attachment 2997869

says the guy with a welder and welding skills! :-(



[GXO]

says the guy with a welder and welding skills! :-(

Just find someone and offer beer haha
