Skid plates - replacement bolts?M

[GeorgeN]

Hello, does anyone know what type of bolts do I need to order to replace the current bolts on the OEM skid plates? Mine look like have been used too many times and they are getting harder to install.
Thanks



[indycole]

Any chance it’s the bolt on here?

SUSPENSION CROSSMEMBER & UNDER COVER. For 2016 Toyota Land Cruiser Base 5.7L V8 4WD AT | Toyota



[GeorgeN]

Yes, I think that’s it, thank you Cole. I’ve checked camelback Toyota for splash guard plate and I didn’t see it



[Romerca]

Hello, does anyone know what type of bolts do I need to order to replace the current bolts on the OEM skid plates? Mine look like have been used too many times and they are getting harder to install.
Thanks

Hi. Thanks for all the help found here
I am looking for part numbers for the following on a 200 series left side skid plate:

1. screws/bolts that fit into the welded nuts. Circled red in the picture
2. the foam protective element. Red arrow in the pictures

Thanks in advance



[TonyP]

The ones you want should be the 2nd number. Reference the link.

Two types:

9011908862
9167480820

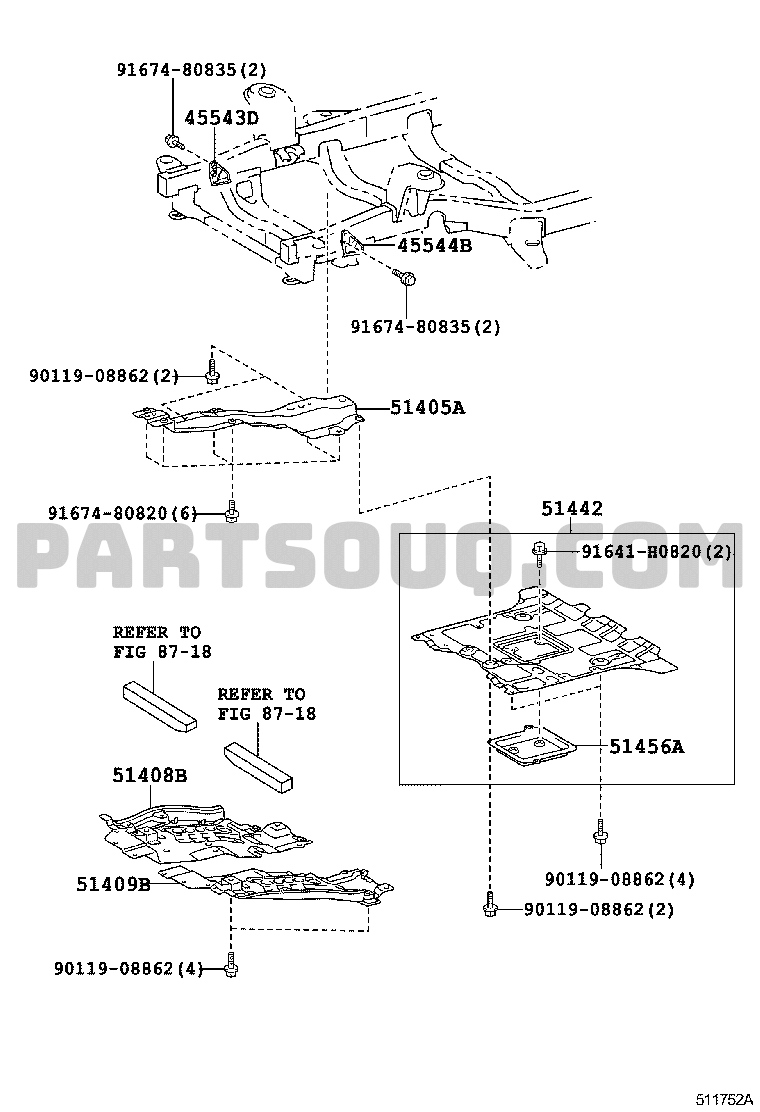

SUSPENSION CROSSMEMBER & UNDER COVER | Toyota LAND CRUISER URJ200L-GNTEKA URJ200 | Parts Catalogs | PartSouq

If you are looking for SUSPENSION CROSSMEMBER & UNDER COVER Parts for Toyota LAND CRUISER URJ200L-GNTEKA URJ200 then we advise you to pay attention to the range of our spare parts catalog for Toyota!

partsouq.com



[bloc]

The numbers Tony posted are for the m8 bolts that hold the metal splash shields on.. they have a 12mm head. I suspect the OP might actually need the M6 bolts with a 10mm head that hold the side plastic pieces on in front of the wheels.. they go into the captive nuts in the metal shields.

If so, I replaced the M6 bolts on mine last week. Six of them needed to get both sides. 90109-06375

The foam block is 88578-60391
Note that the two sides of foam are different. Driver side is shorter and as a result easier to remove that skid plate, on account of it being necessary for an oil filter change.



[Romerca]

The ones you want should be the 2nd number. Reference the link.

Two types:

9011908862
9167480820

SUSPENSION CROSSMEMBER & UNDER COVER | Toyota LAND CRUISER URJ200L-GNTEKA URJ200 | Parts Catalogs | PartSouq

If you are looking for SUSPENSION CROSSMEMBER & UNDER COVER Parts for Toyota LAND CRUISER URJ200L-GNTEKA URJ200 then we advise you to pay attention to the range of our spare parts catalog for Toyota!

partsouq.com

Thank you



[Romerca]

The numbers Tony posted are for the m8 bolts that hold the metal splash shields on.. they have a 12mm head. I suspect the OP might actually need the M6 bolts with a 10mm head that hold the side plastic pieces on in front of the wheels.. they go into the captive nuts in the metal shields.

If so, I replaced the M6 bolts on mine last week. Six of them needed to get both sides. 90109-06375

The foam block is 88578-60391
Note that the two sides of foam are different. Driver side is shorter and as a result easier to remove that skid plate, on account of it being necessary for an oil filter change.

Thank you. Yes! It is the 10 mm head. Much appreciated



[Romerca]

The numbers Tony posted are for the m8 bolts that hold the metal splash shields on.. they have a 12mm head. I suspect the OP might actually need the M6 bolts with a 10mm head that hold the side plastic pieces on in front of the wheels.. they go into the captive nuts in the metal shields.

If so, I replaced the M6 bolts on mine last week. Six of them needed to get both sides. 90109-06375

The foam block is 88578-60391
Note that the two sides of foam are different. Driver side is shorter and as a result easier to remove that skid plate, on account of it being necessary for an oil filter change.

You mention that the foam block for the left and the right are different p/n. Would you have the p/n for the right side?
Thnaks again



[bloc]

You mention that the foam block for the left and the right are different p/n. Would you have the p/n for the right side?
Thnaks again

They are different lengths on my truck, but the diagrams list the same number for both sides. Also they are categorized as “std part” so I’m betting it is cut to fit.
