ARCHIVE ( New Product Release ) Rear Motor Mount 's Bolt KITS BOTH Sides OEM Japan Spec. Parts Stainless YAHAHA Cotter Keys Modern Age Metallurgy 1961-7/80

[ToyotaMatt]

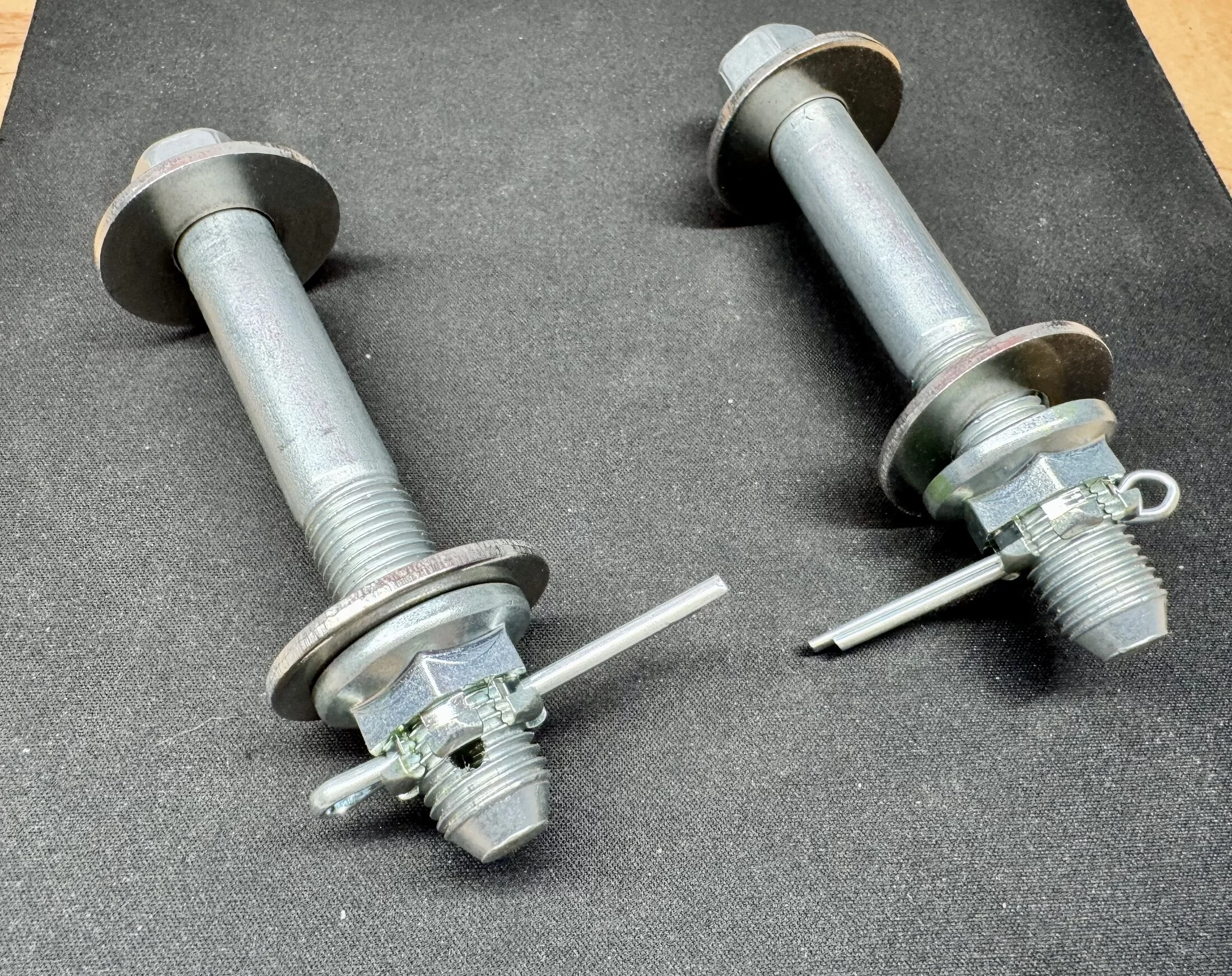

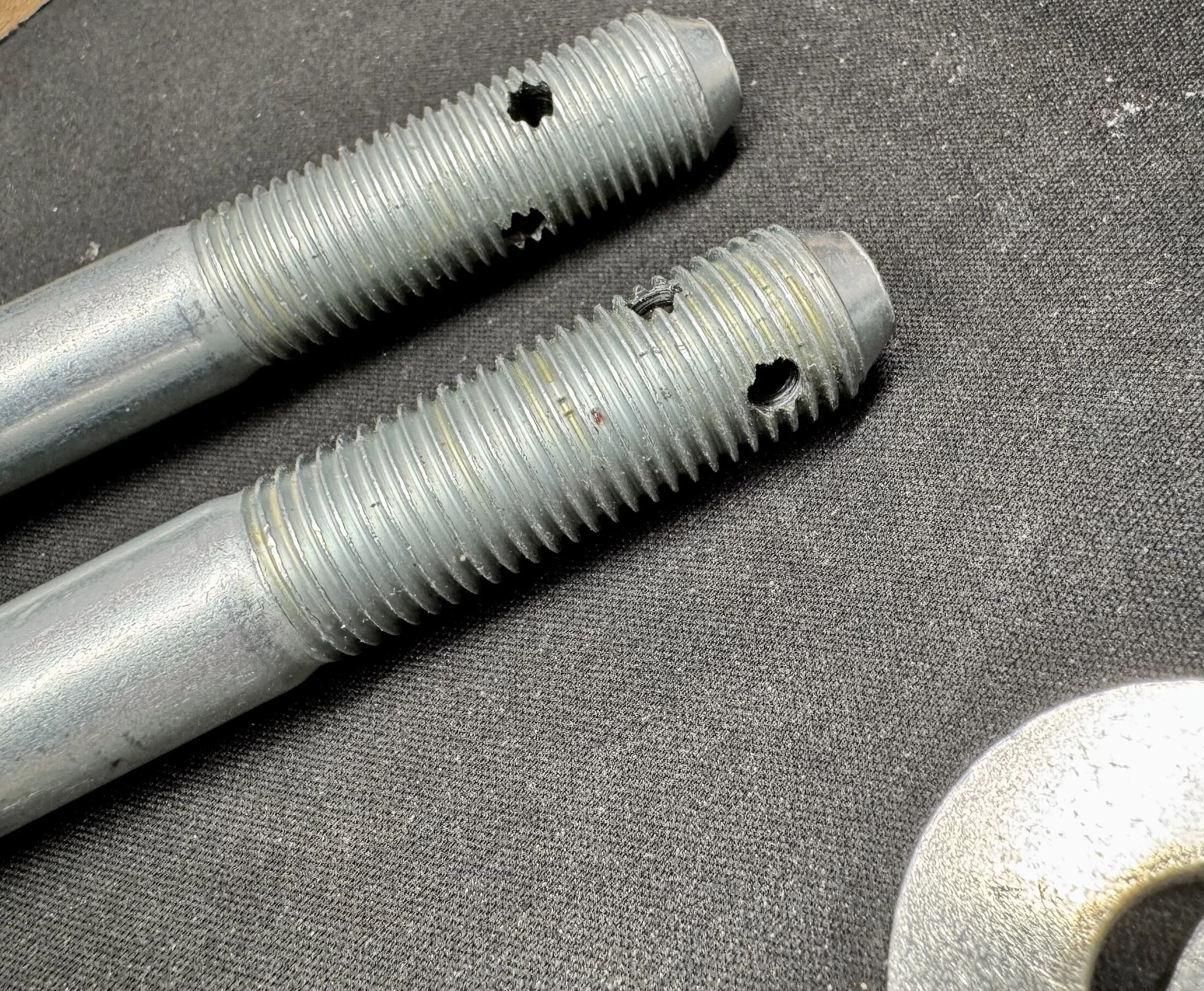

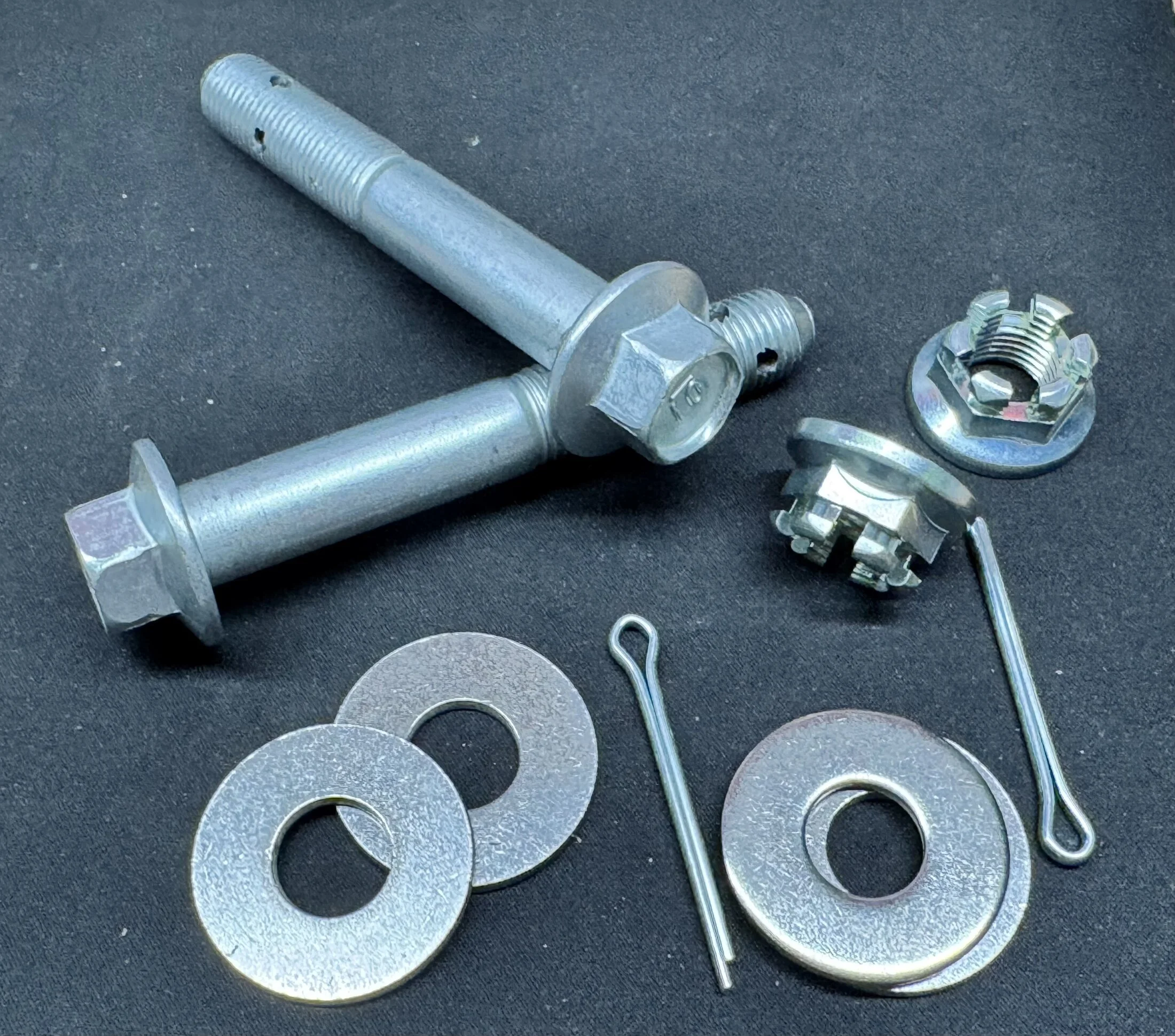

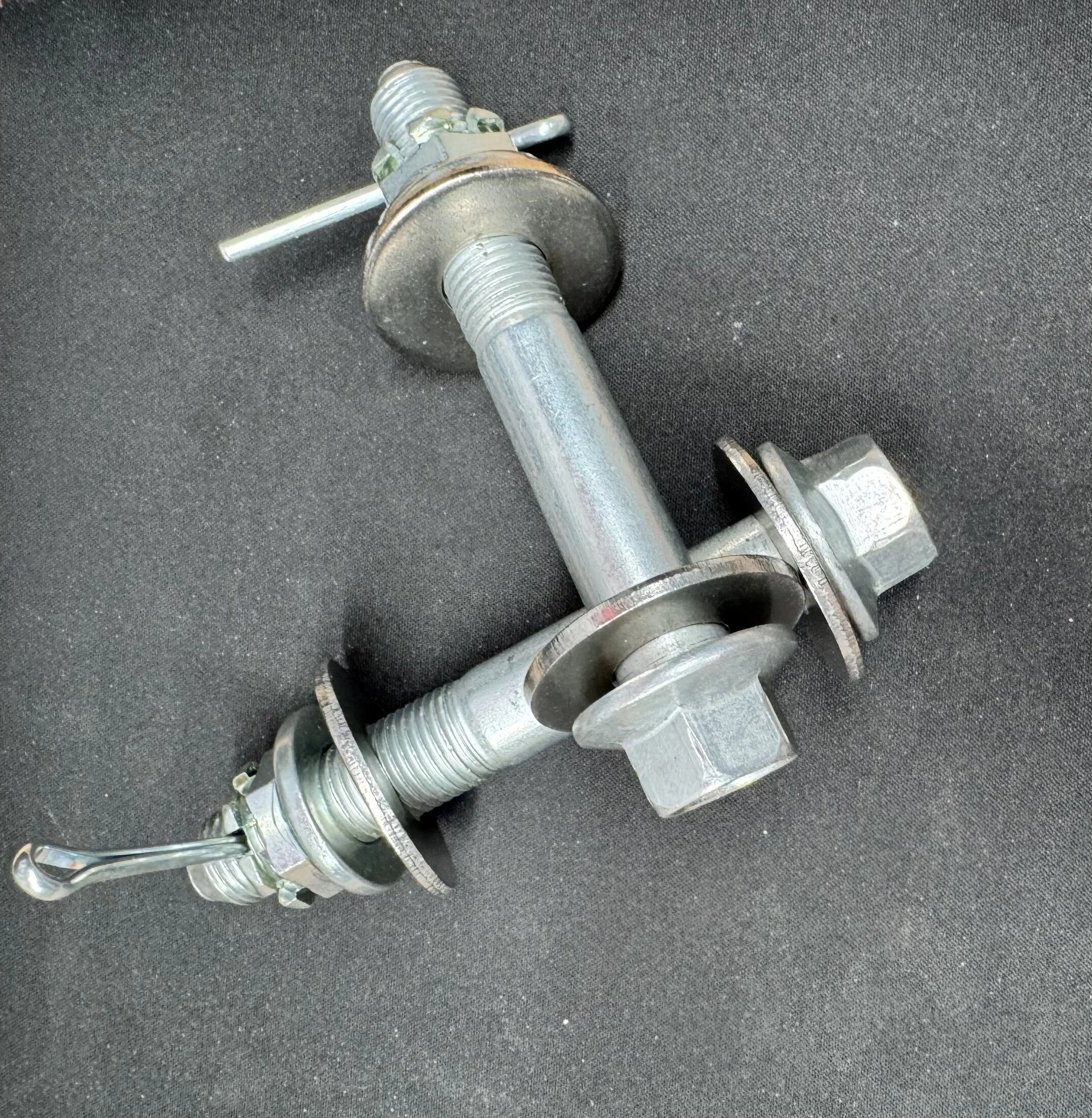

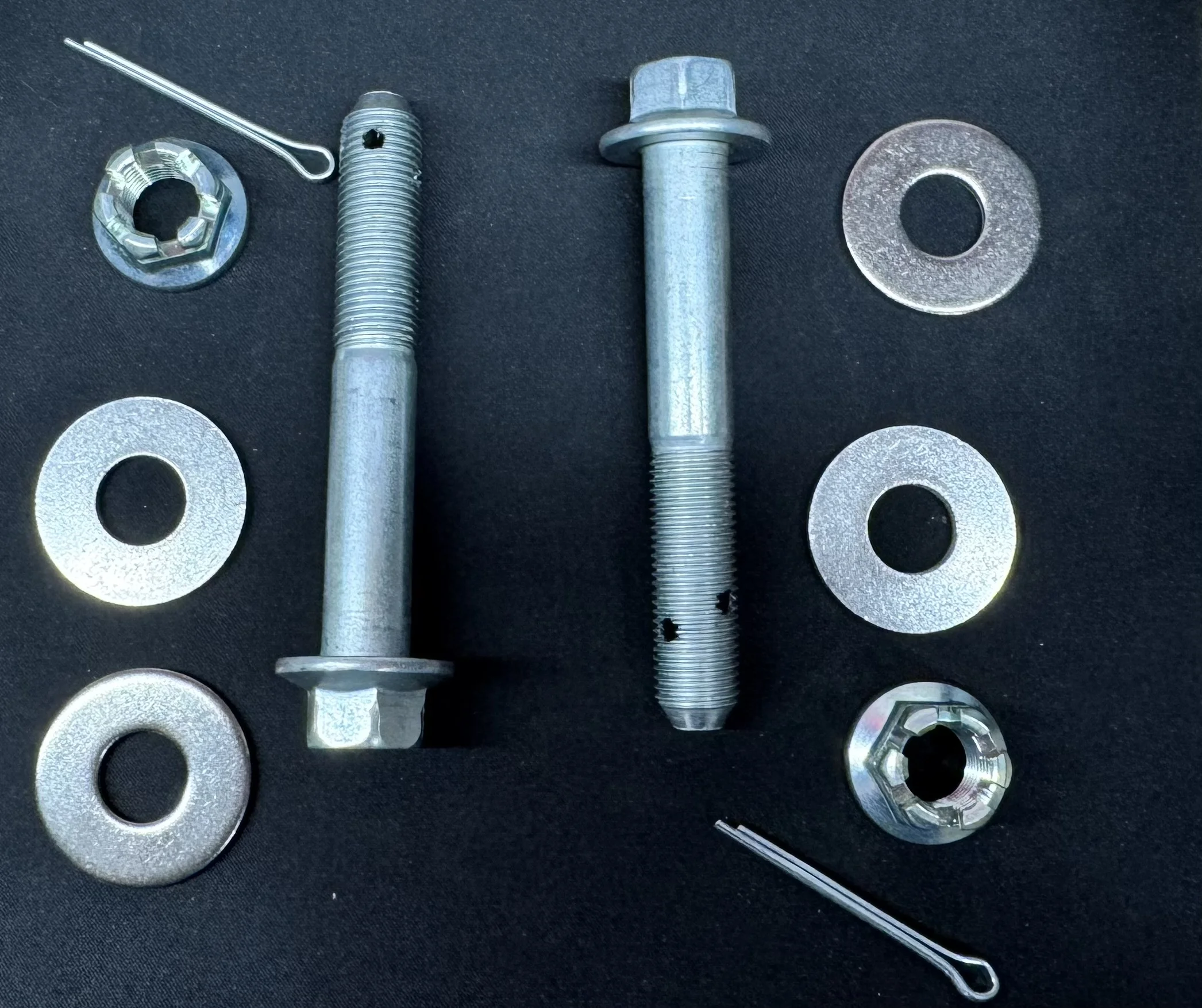

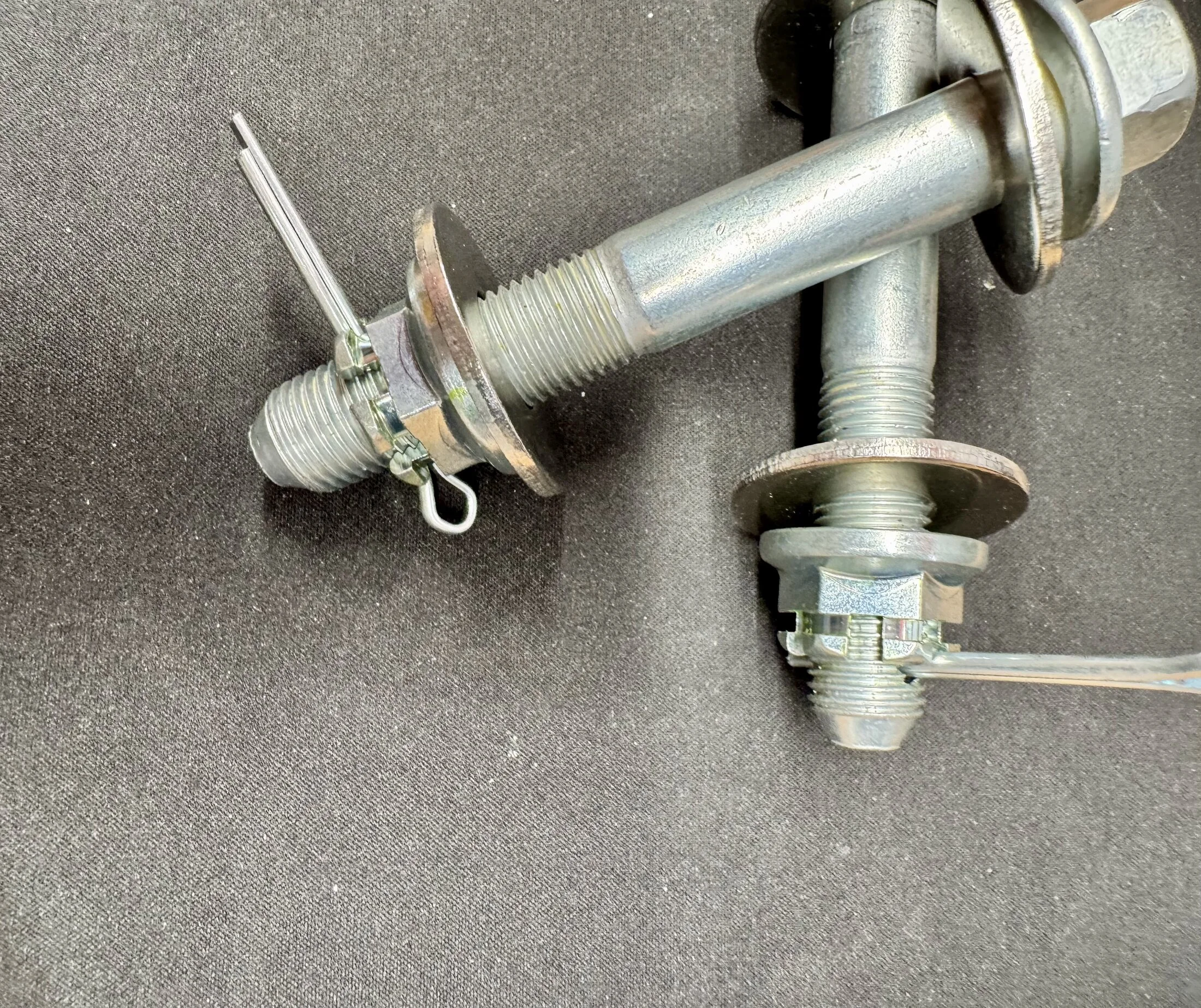

Rear Motor Mount 's Through Bolt Kit Both Sides

100% OEM japan Spec. Parts

Stainless Steel YAHAHA Cotter Keys

Modern Age 2024 Metallurgy

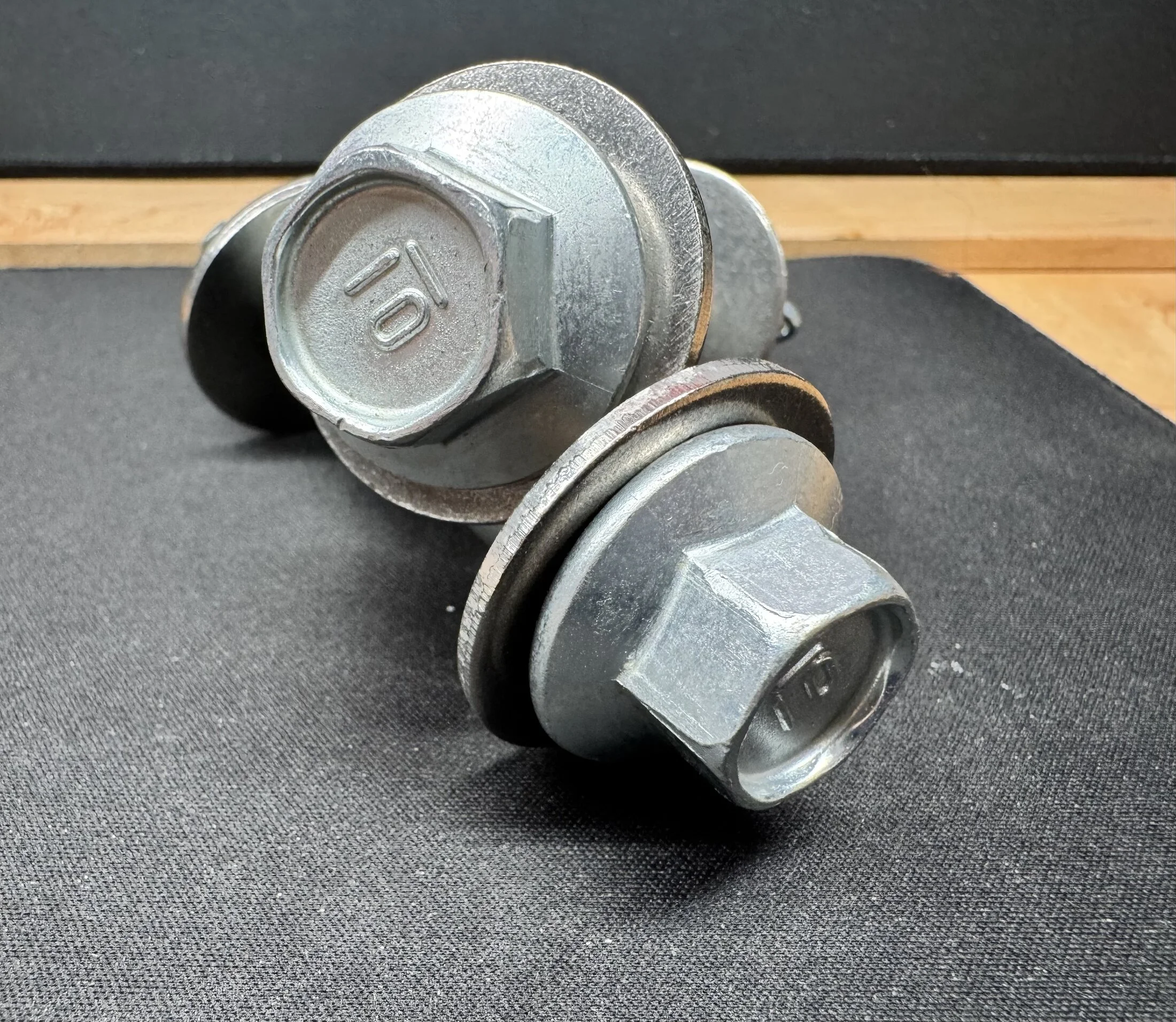

#10 Mark Head Flange Bolts / #11 Mark Head Flange Nuts

1961-7/80 FJ40 FJ45


old Toyota Part # "s 90102-13009 / 90102-13010

New Super Superseded Rising Sun Mechanical 90102-13011 / 90102-13012

Rear Motor Mount Bolt KIT Both LH / RH Sides OEM Japan Spec. Parts Stainless YAHAHA Cotter Keys Modern Age Metallurgy 3speed 4speed 1961-7/80 FJ40 FJ45 Part #'s 90102-13011 / 90102-13012 - VintageTEqParts.com

Rear Motor Mount Bolt KIT Both LH / RH Sides OEM Japan Spec. Parts old Toyota Part # "s 90102-13009 /...

vintageteqparts.com

,



[ToyotaMatt]



[ToyotaMatt]

Rear Motor Mount Bolt KIT Both LH / RH Sides OEM Japan Spec. Parts Stainless YAHAHA Cotter Keys Modern Age Metallurgy 3speed 4speed 1961-7/80 FJ40 FJ45 Part #'s 90102-13011 / 90102-13012 - VintageTEqParts.com

Rear Motor Mount Bolt KIT Both LH / RH Sides OEM Japan Spec. Parts old Toyota Part # "s 90102-13009 /...

vintageteqparts.com

/.



[65swb45]

This looks very promising Matt. I can see where it would be a superior replacement on the passenger side, where the original bolt head often ends up wallowing out the ear of the mount. Conversely, I can’t help but wonder about inserting the driver’s side one up through the confines of the framerail . What is the span across the flange below the bolt head?



[ToyotaMatt]

This looks very promising Matt. I can see where it would be a superior replacement on the passenger side, where the original bolt head often ends up wallowing out the ear of the mount. Conversely, I can’t help but wonder about inserting the driver’s side one up through the confines of the framerail . What is the span across the flange below the bolt head?

do you have a photo of what your referring to mark ?

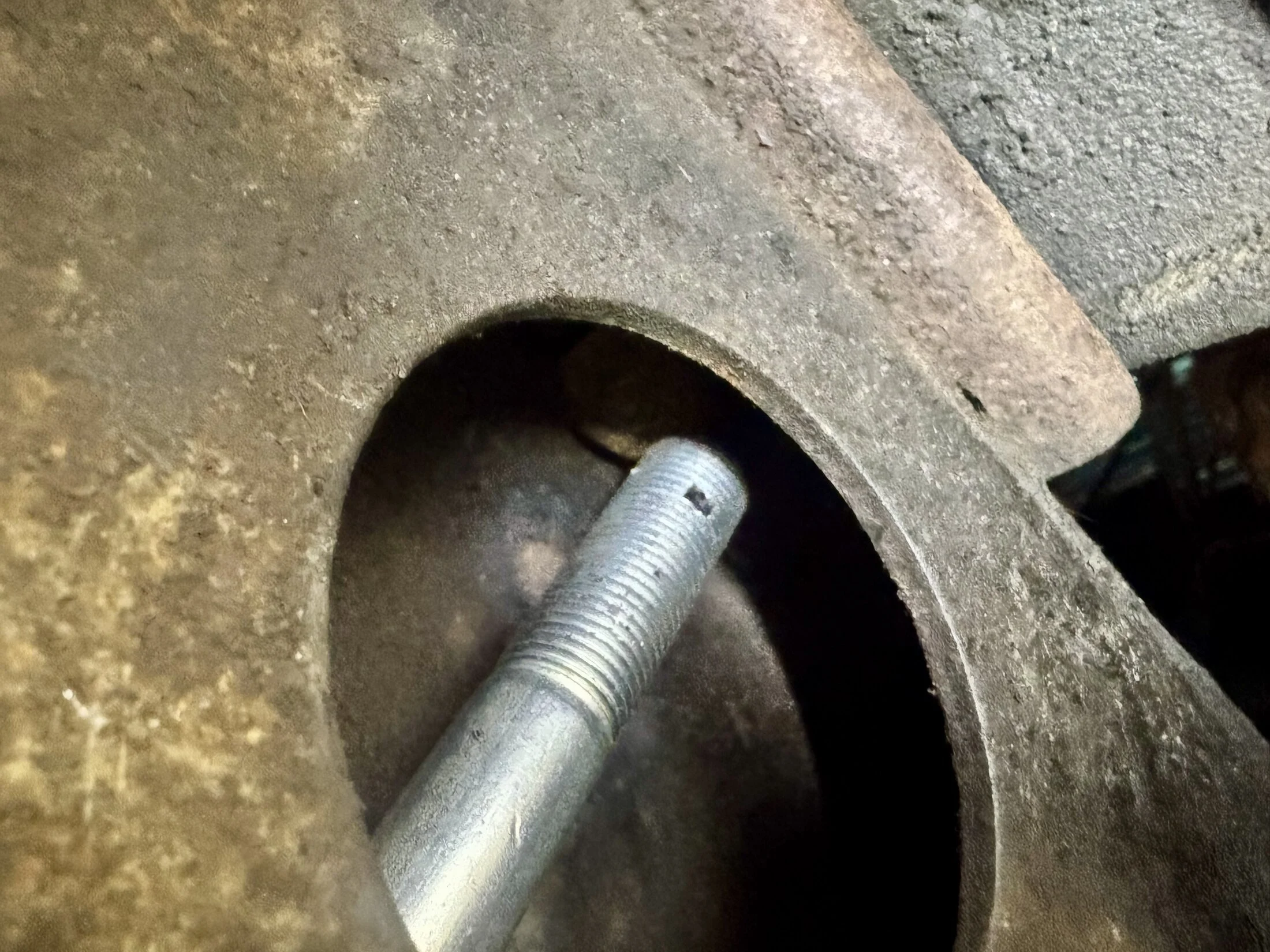

These were test fit and no interference issues were a factor ,

this is why the Thick stainless steel washers are included


thanks !

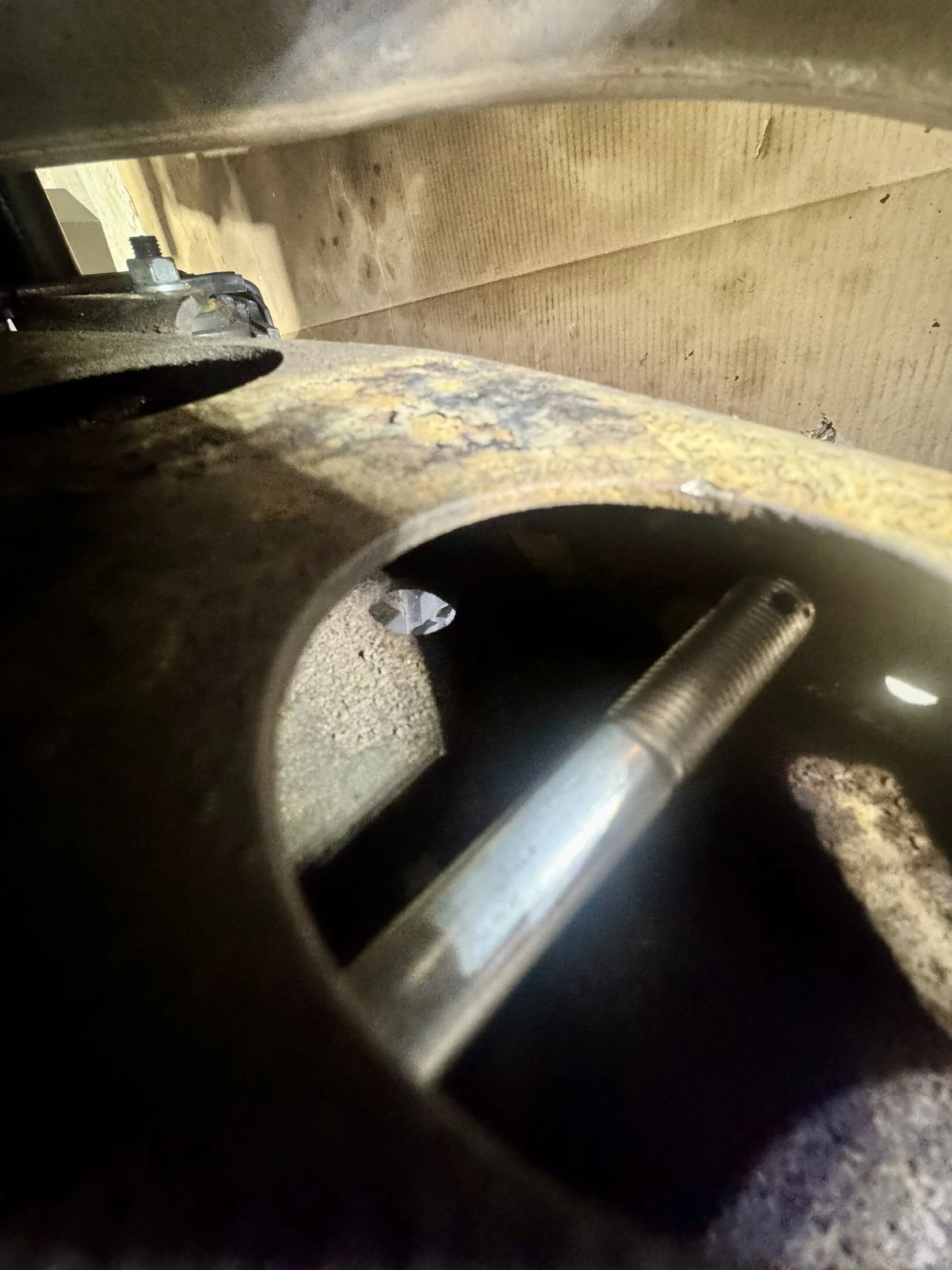

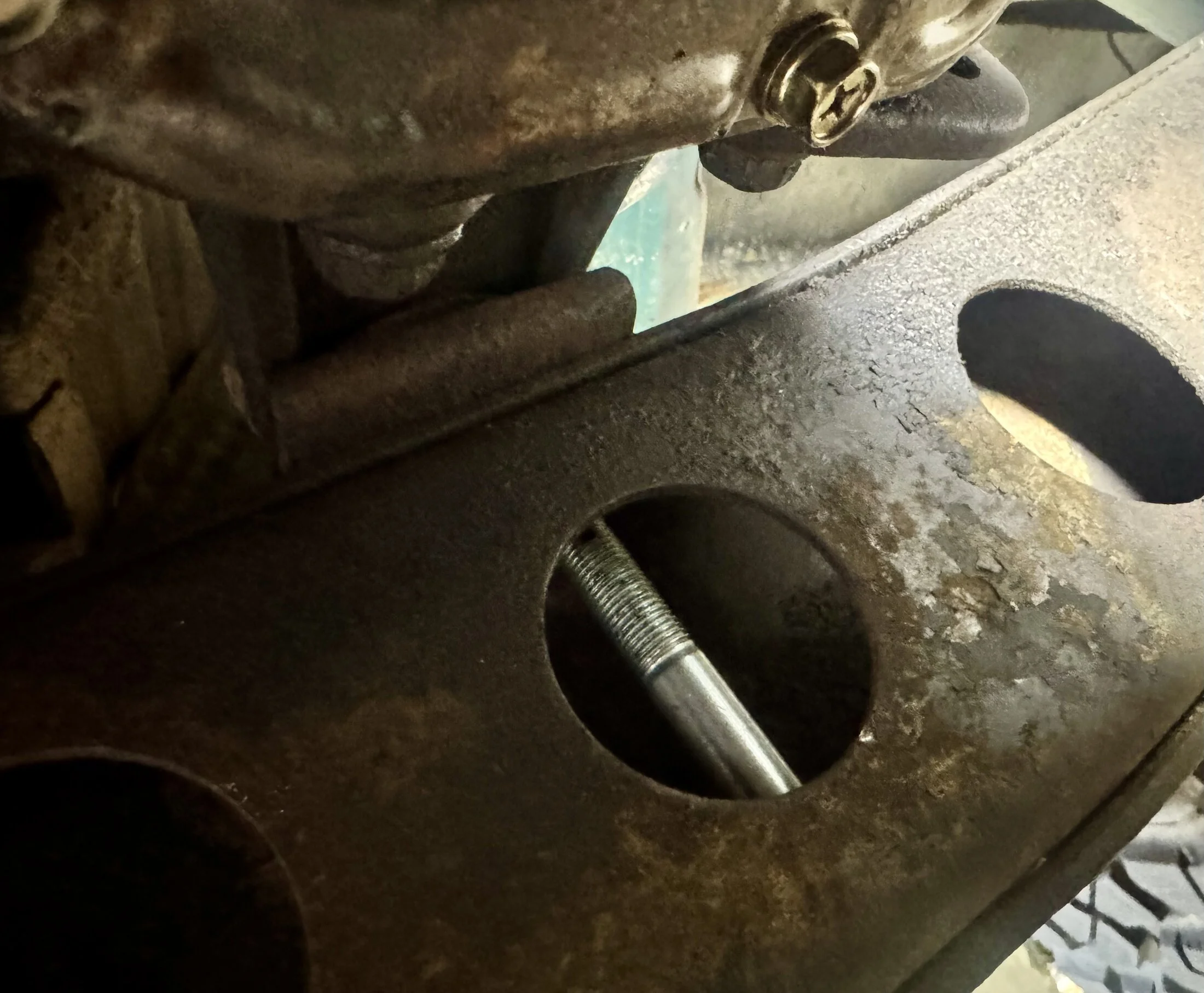

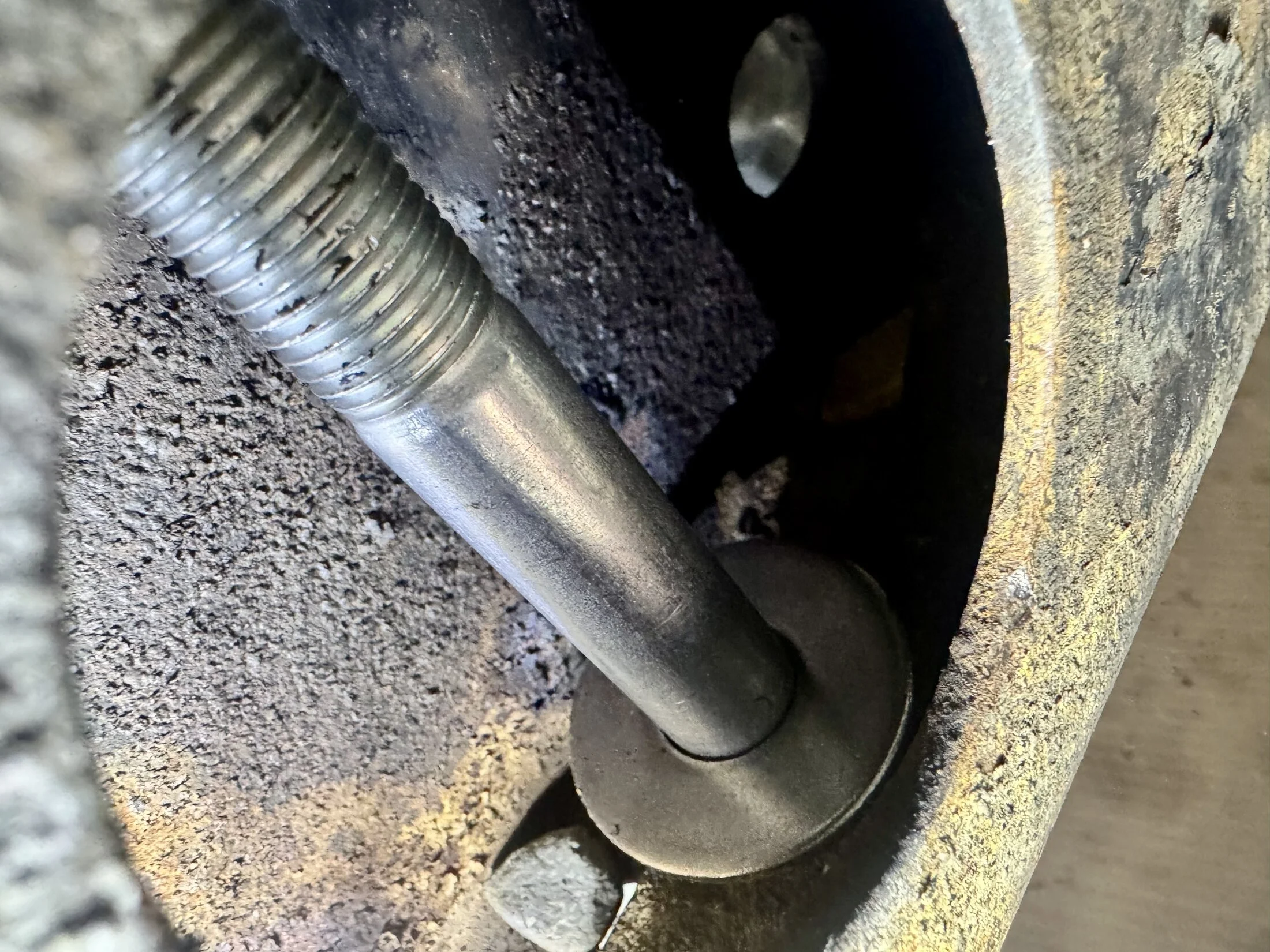

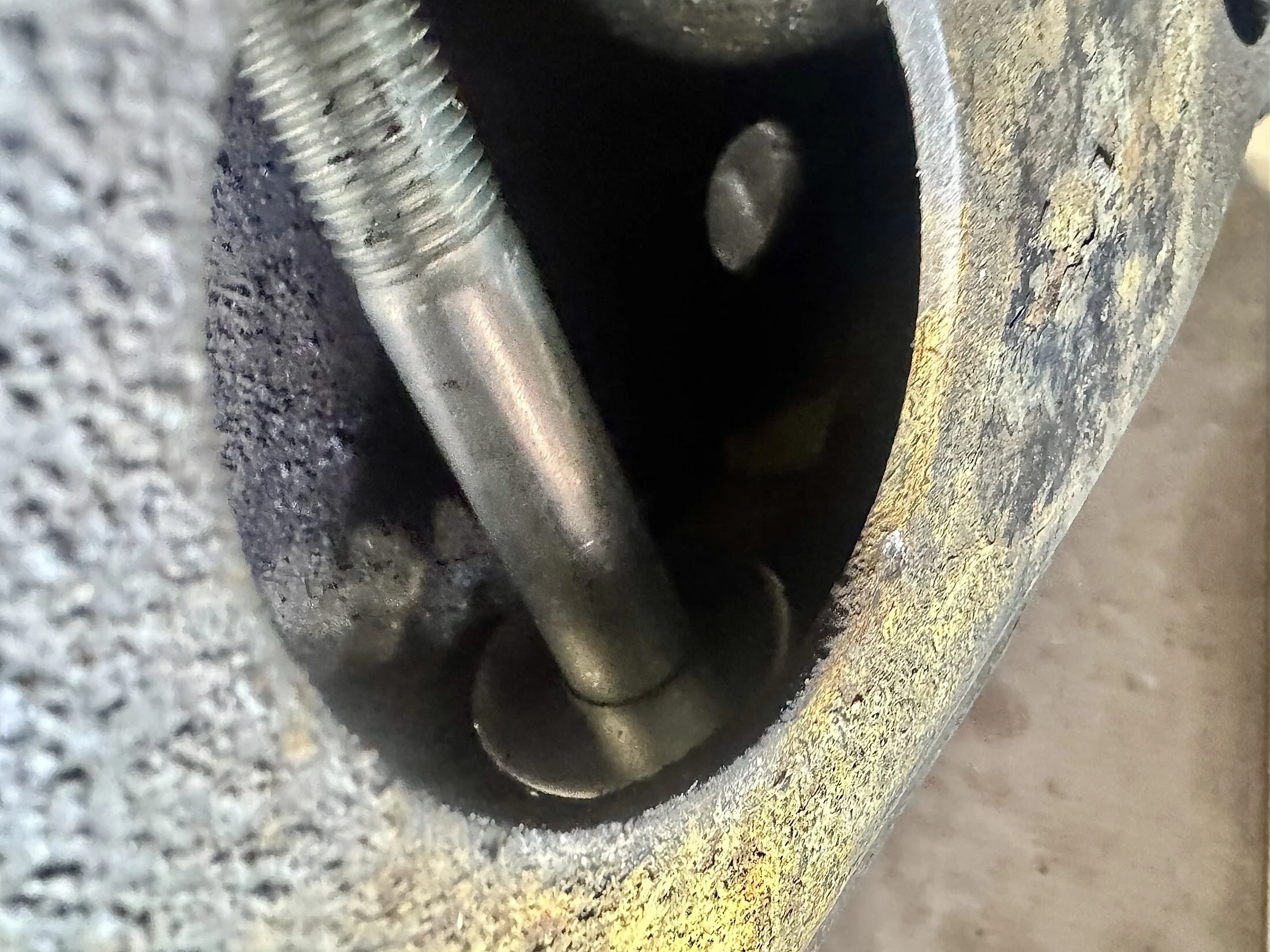

not my bolt , but drivers side below :



[65swb45]

Your bolt has an integrated flange below the head. What is the size of the bolt head, and the size of the flange below it?



[ToyotaMatt]

Factory original Bolt Head is a 19mm HEX

Mine is a 17mm HEX ( JIS )

this is why i include the thick washer on each end



[65swb45]

Factory original Bolt Head is a 19mm HEX

Mine is a 17mm HEX ( JIS )

this is why i include the thick washer on each end

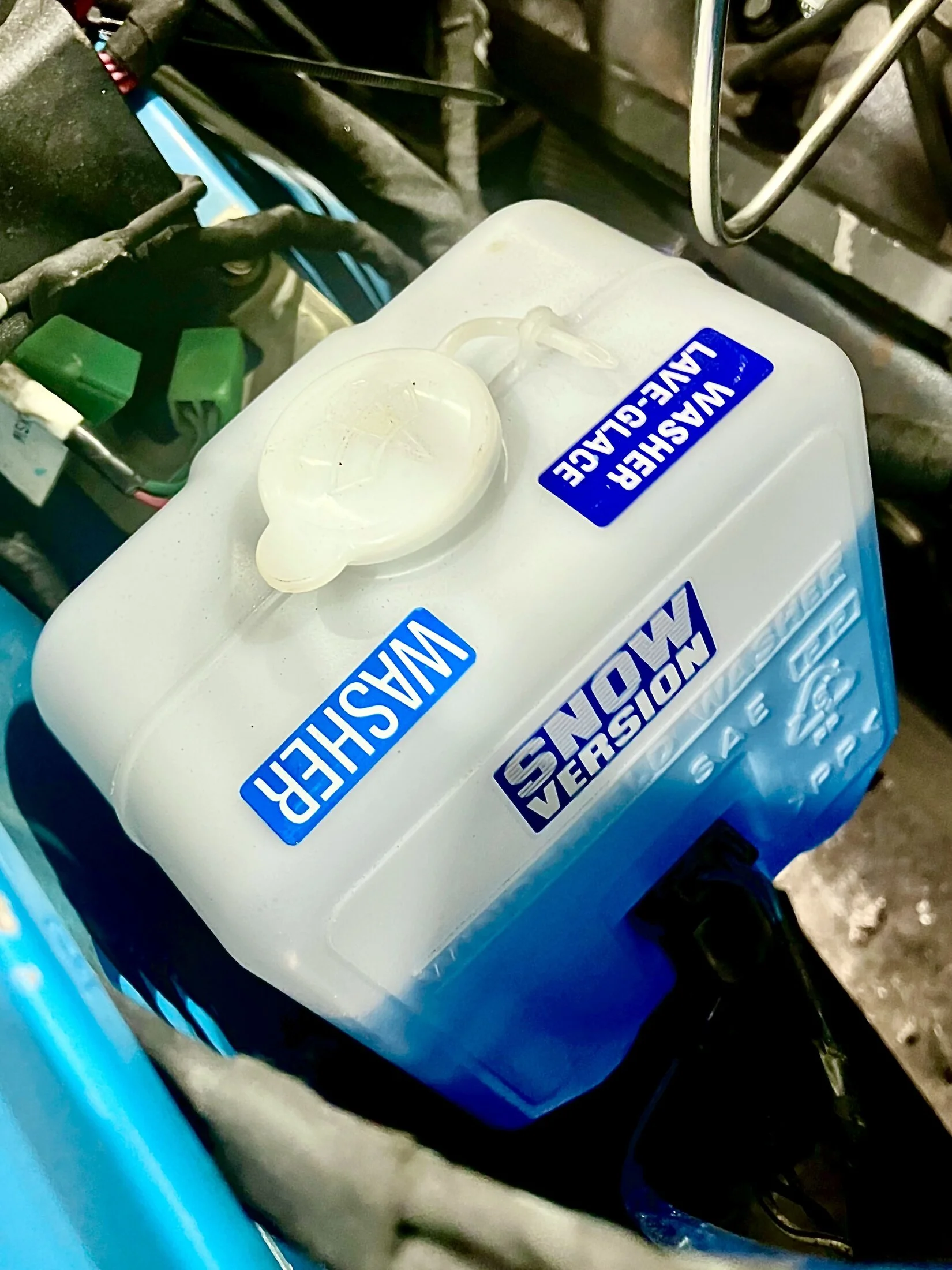

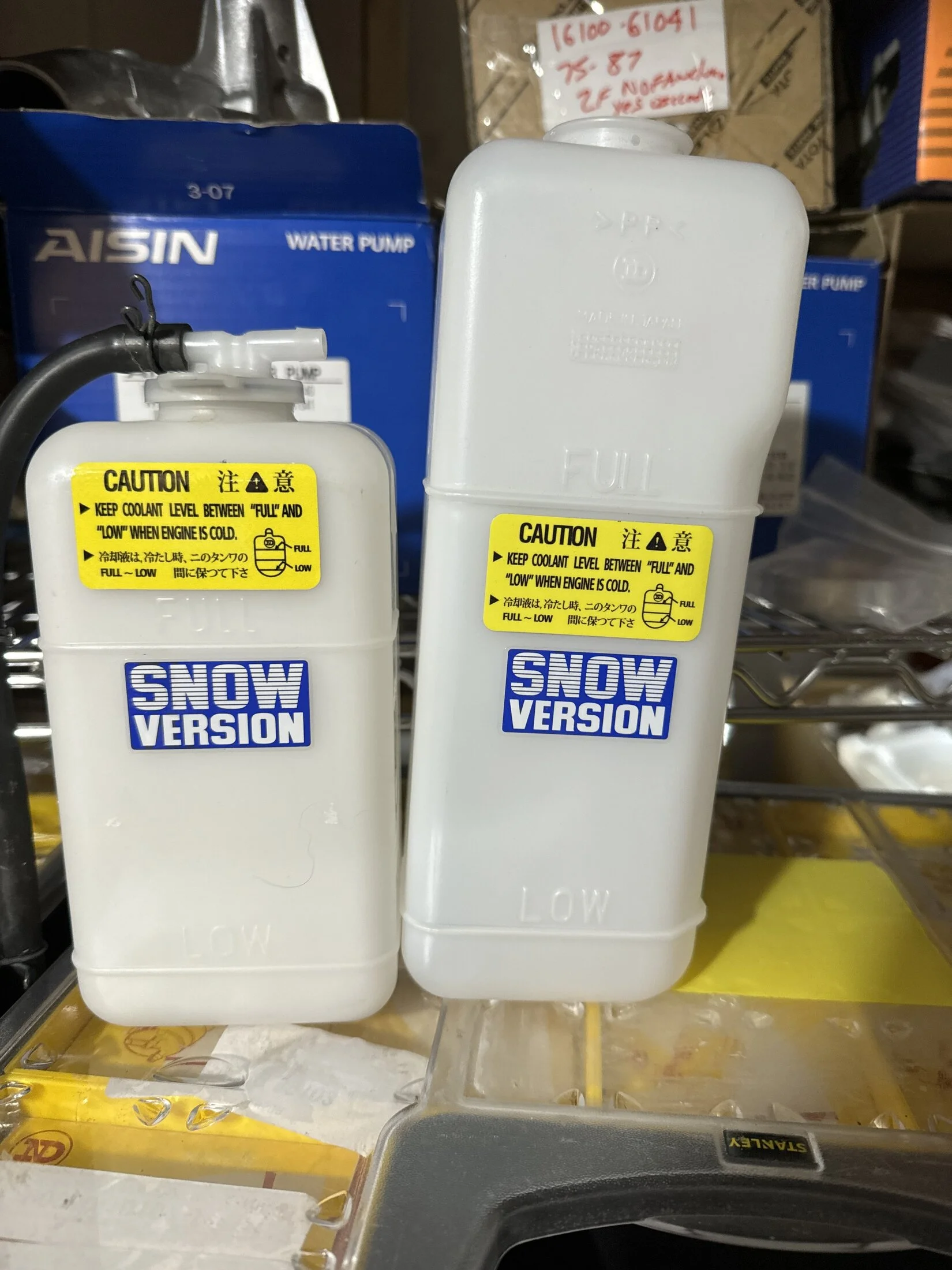

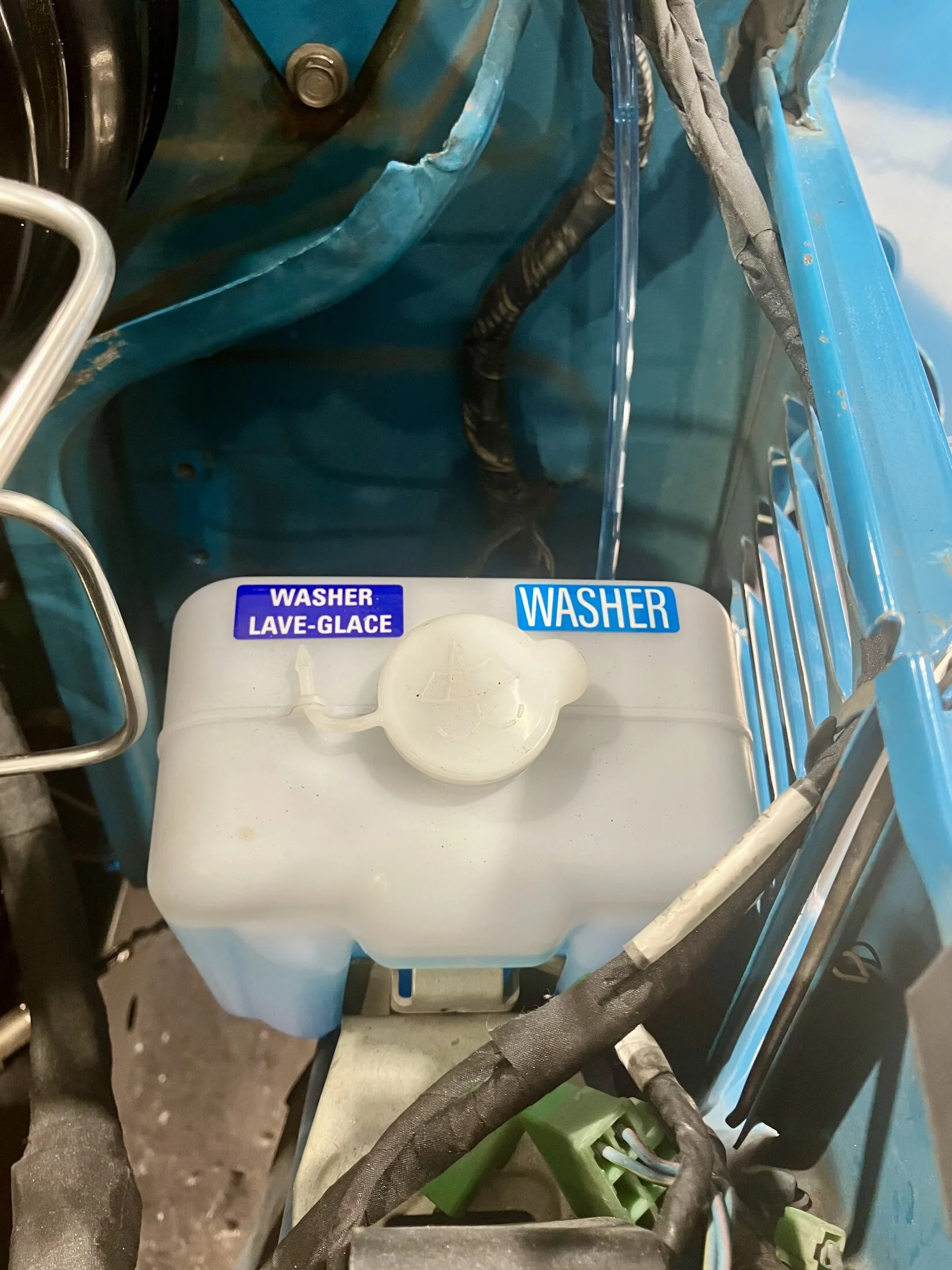

Maybe you can send one with my way overdue coolant bottle order.



[ToyotaMatt]

Maybe you can send one with my way overdue coolant bottle order.

Yes mark , happy holiday day Xmass Tree Eve

I will send you a KIT / pair / set since they’re is a LH & RH set of 2 different part #’s

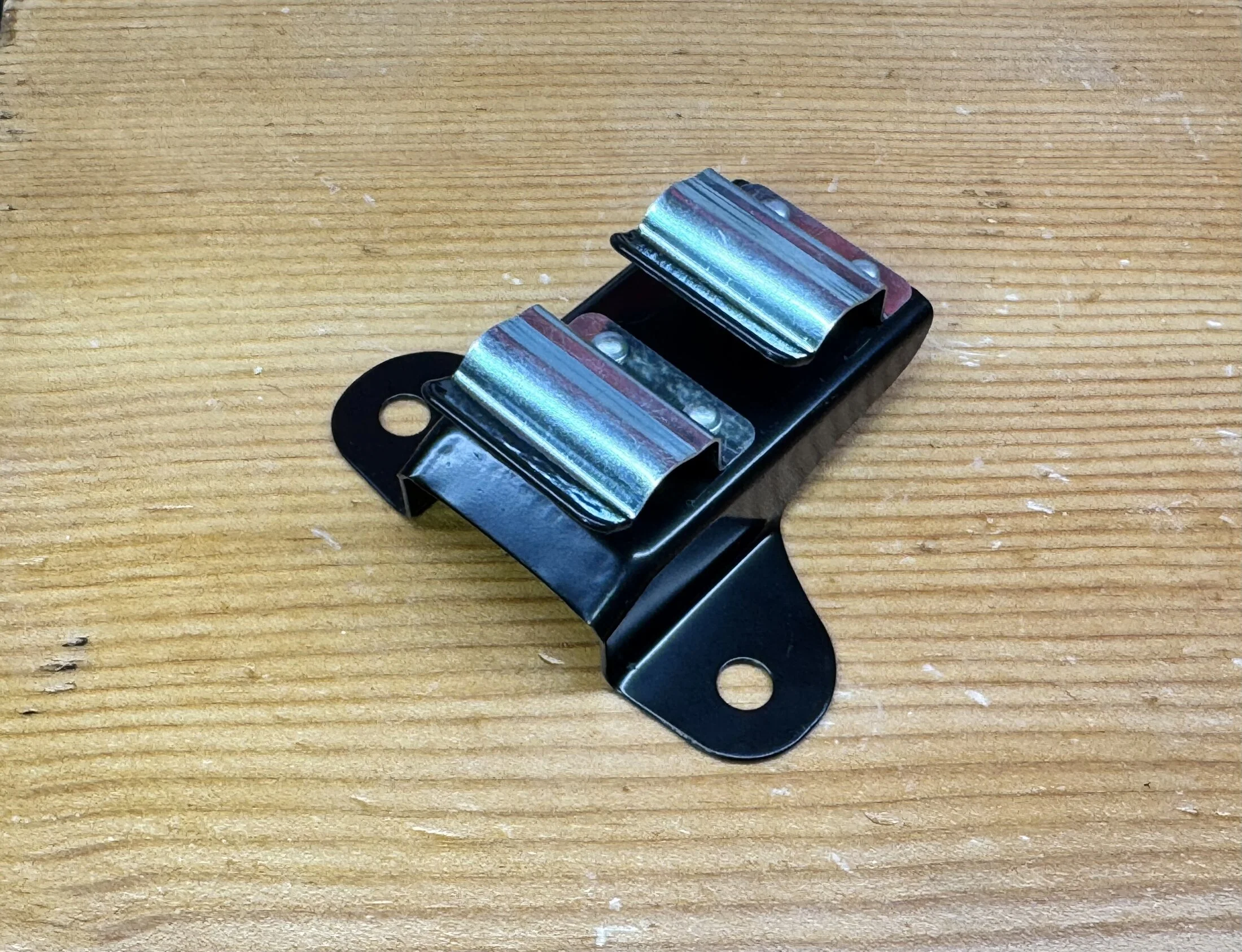

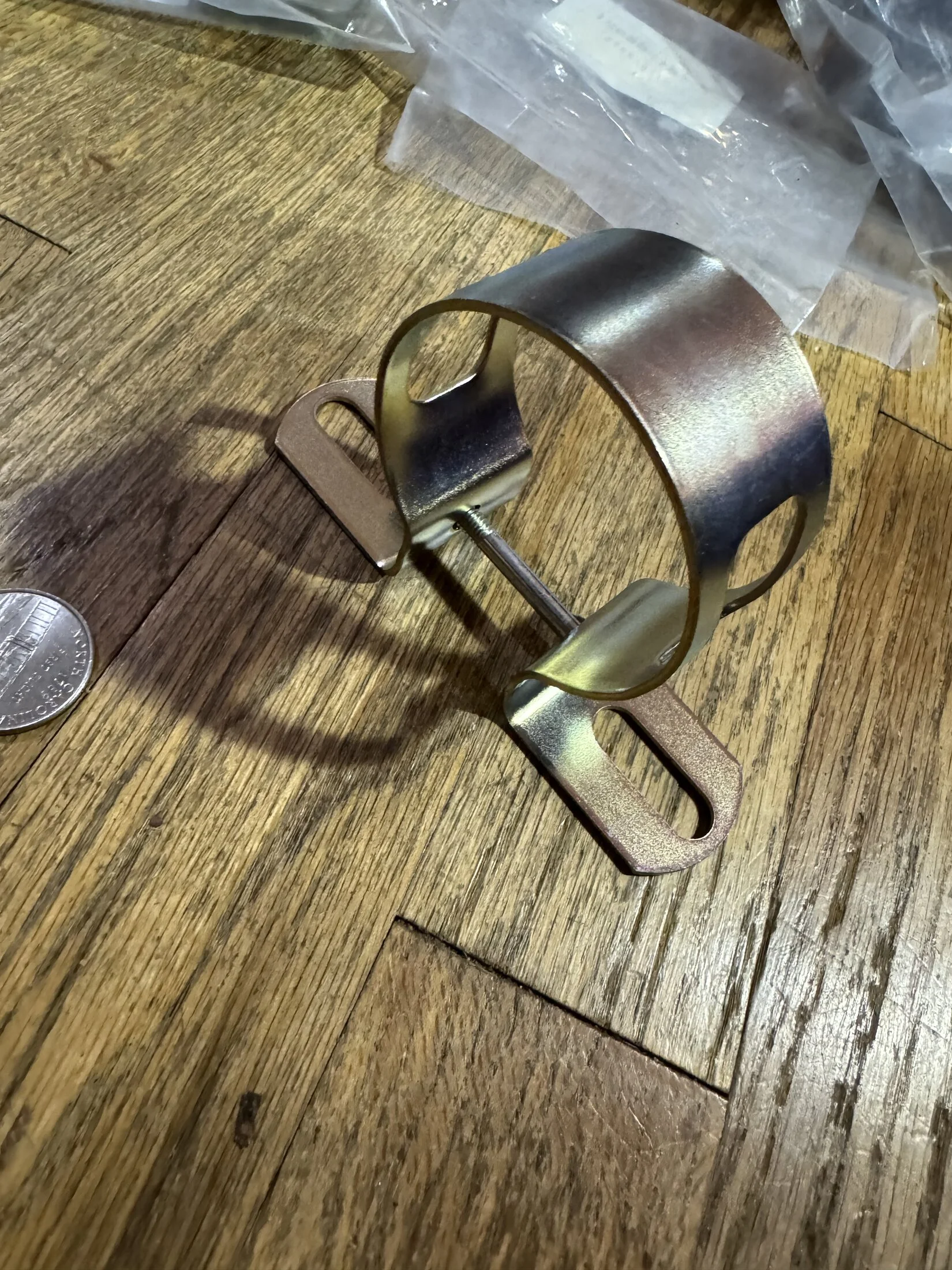

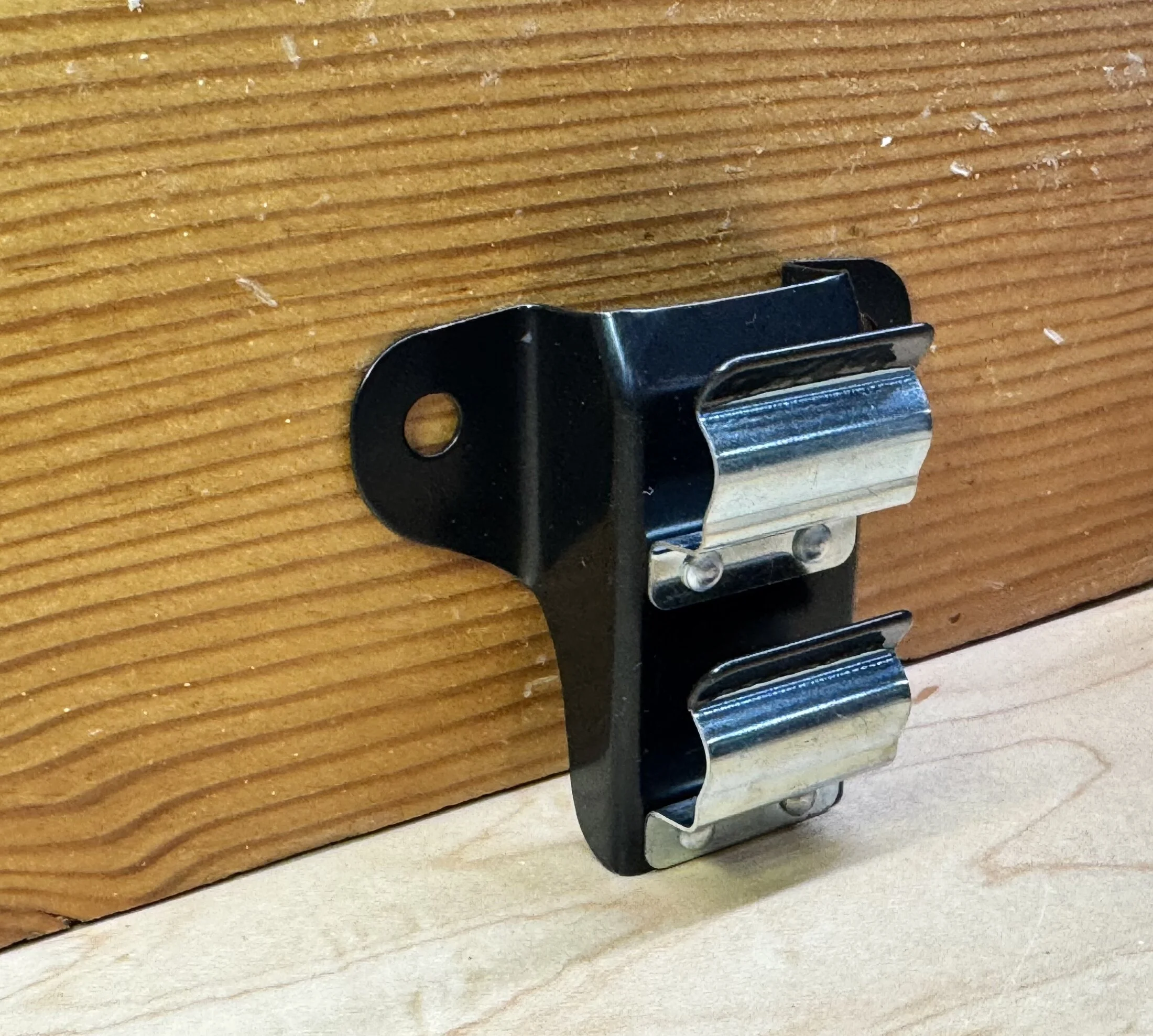

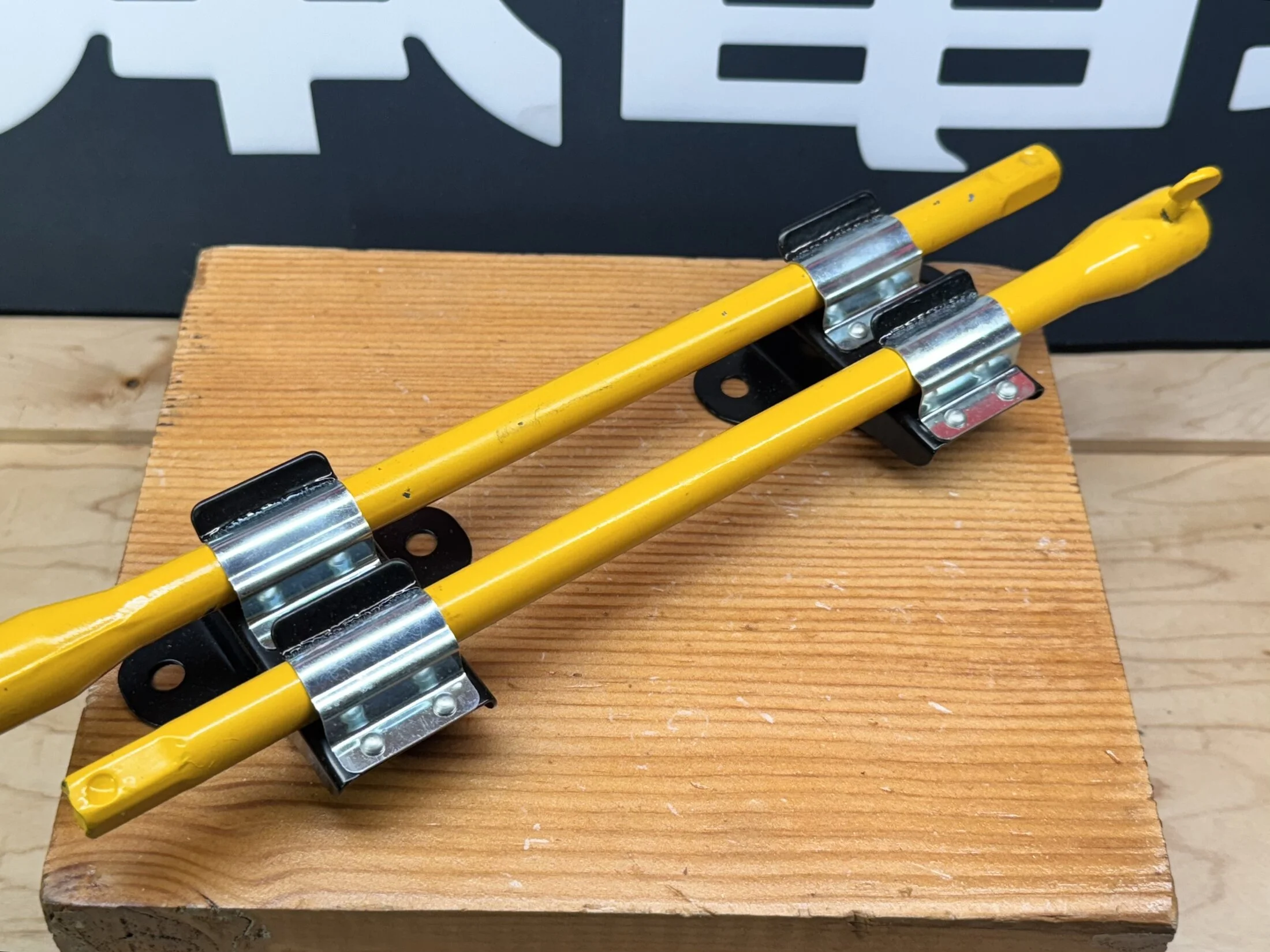

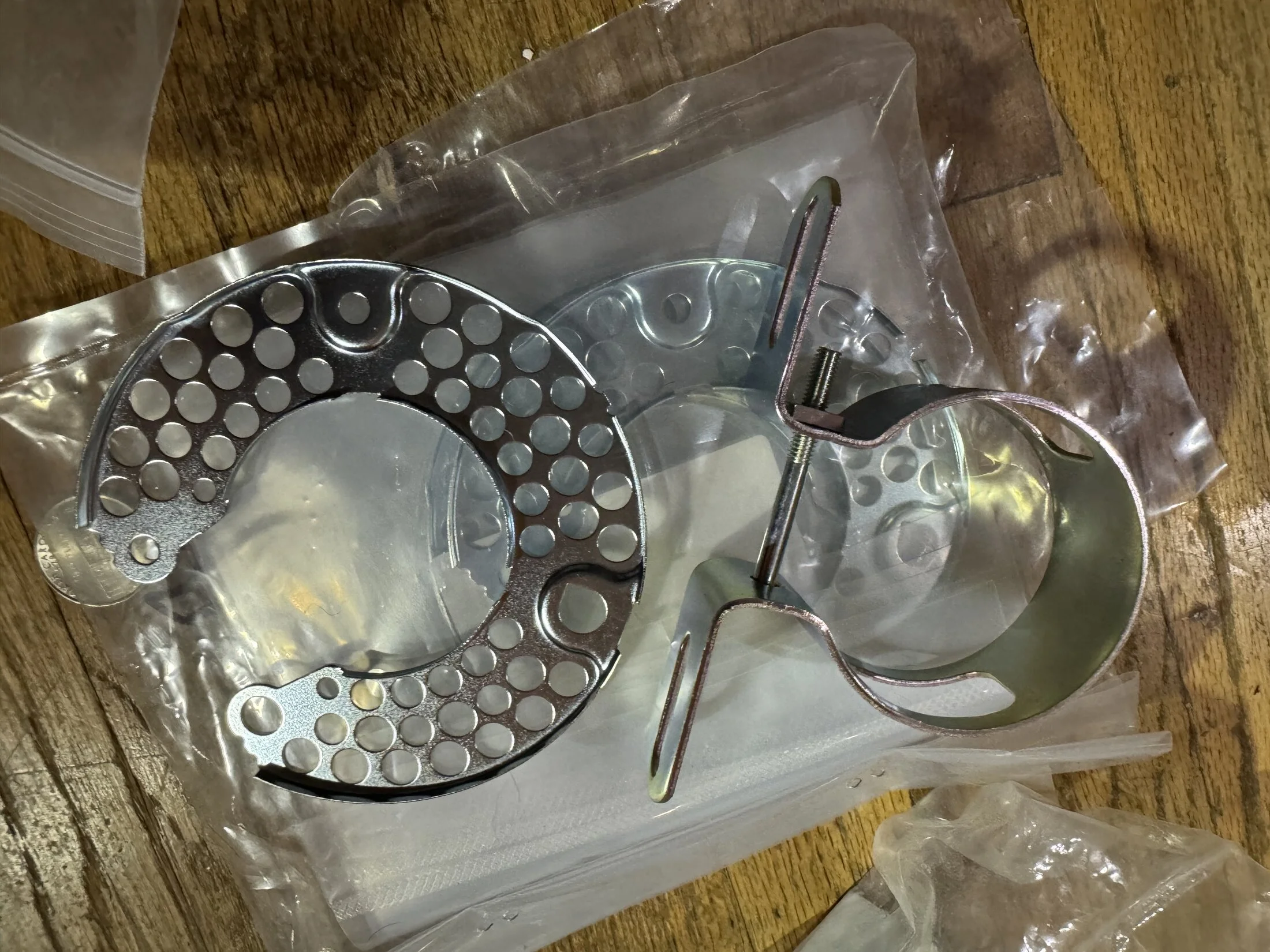

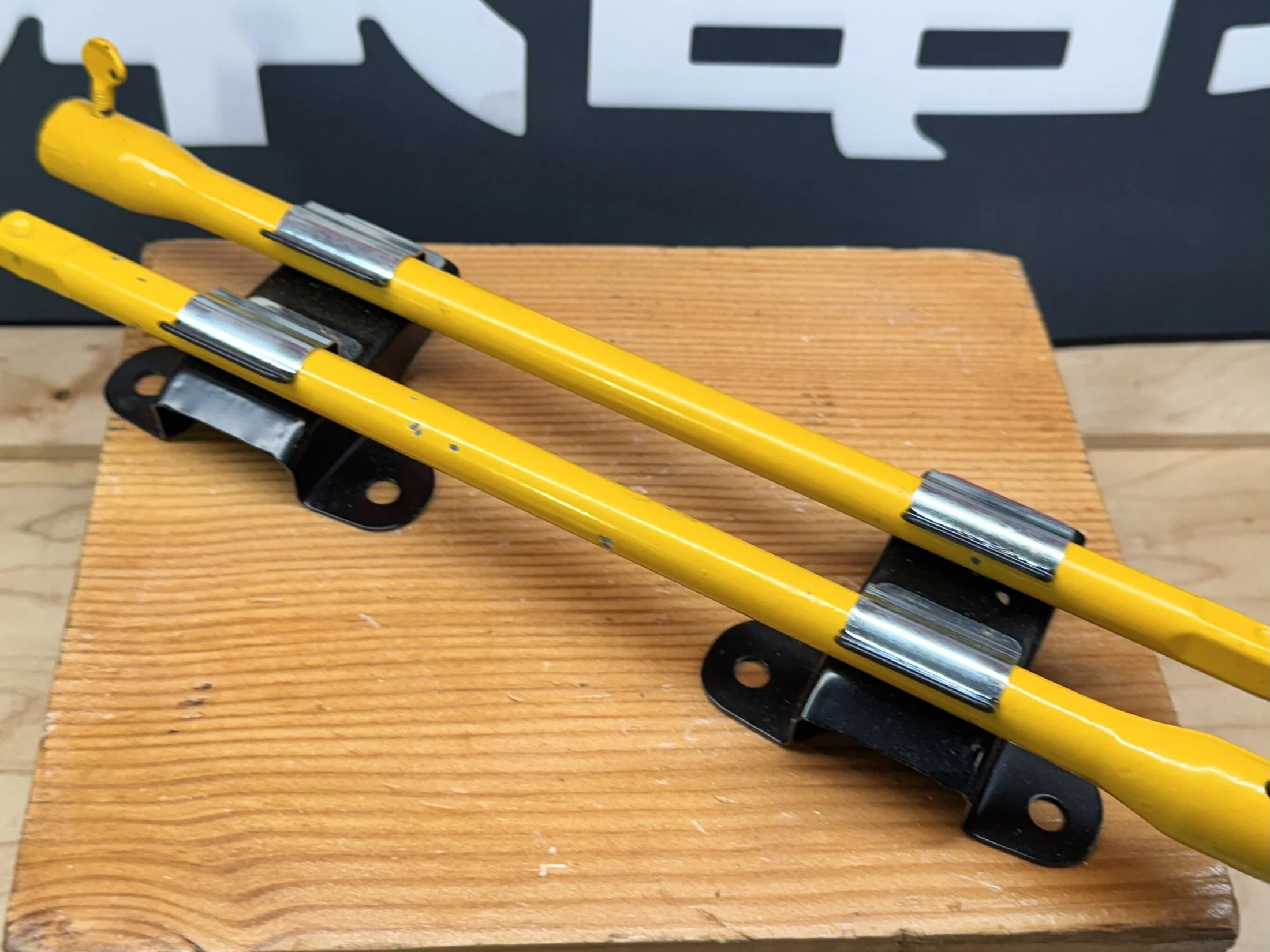

Perhaps you can evaluate these 2 pipe dream brain children of mine below as well ….

Entering the modern age of metallurgical Rockets Science and Surface Treatment is not such a sour-grape …
